AUDI Q7 2017 Owner´s Manual

u (0 ...... N r--. N ...... 0
0
:E Opening the selection menu/options menu
with the control buttons
F ig . 163 Contro l bu ttons for MMI contro l panel w ith MMI
to uch
Applies to: MMl control panel with separate control but­
tons on the
MMI control panel
Fig. 164 Control buttons o n the MMI control pa nel
Multi M edia I nterfac e
S ele ction menu :
th rough the se lection menu,
you can open additional functions within a menu
item (such as
R adio ).
Requirement: the se lection menu symbo l must
be displayed in the Infotainment system disp lay
¢ fig. 163 .
Opening /closing the selec tion menu : press the
left control button ¢
fig. 163. Then you can se­
lect and confirm a function using the control
knob.
Opt ions menu : using the options menu, yo u can
select and confirm context-dependent func tions
as well as settings within a menu item (such as
Radio ).
Requirement: the options menu symbo l El must
be displayed in the Info tainmen t system disp lay
r=> fig. 163 . Then you can select and confirm a
function using the control knob .
Opening/closing the option s menu : press the
right cont rol but ton ¢
fig. 163 . Then you can se­
lect and confirm a function using the control
knob .
Information about paths
This guide shows you at a glance the paths for
opening a desired menu and its settings and
functions.
Example of a path
.. Select: !RADIO I button> lef t control k nob> FM .
Following the path
.. Press the I RADIO I button .
.. Press the left control button .
.. Tu rn the control knob to the
FM menu item to
select it .
.. Press the contro l knob to co nfirm the selected
FM menu item .
.. The se lected and confirmed function is exec ut­
ed . In this example, the
FM frequency band is
set.
159

Multi Media Interface
MMI touch
MMI touch control pad
A pp lies to: ve hicles w ith MMI touch
You can enter data using handwriting recogni­
tion on the MMI touch control pad .

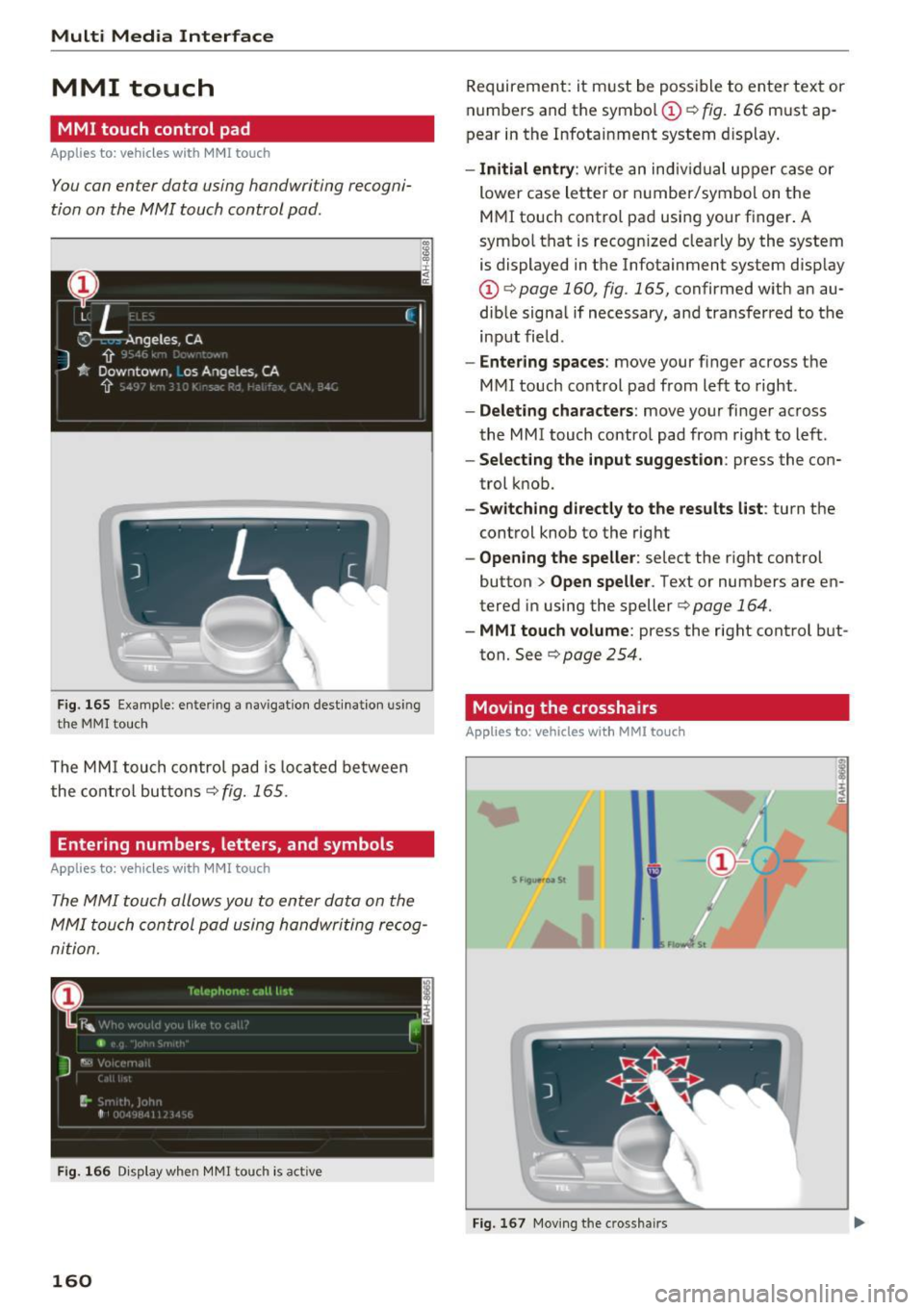

Fig . 165 Example: e ntering a nav igatio n des tinat io n us ing
t h e
MMI touc h
The MM I touch contro l pad is loca ted between
the co nt rol buttons
r=;, fig. 165 .
Entering numbers, letters, and symbols
App lies to: ve hicles w ith MMI touch
The MMI touch allo ws you to enter data on the
MMI touch control pad using handwriting re cog ­
nition .
Fig. 166 Disp lay when MMI touch is act ive
160
Requirement: it m ust be possible to ente r text or
numbe rs and the symbo l
CD r=;, fig. 166 must ap­
pear in the Infota inment system d isplay .
-Initial entry : write an indiv idual upper case or
lower case lette r or number/symbol on the
M MI touch control pa d using your f inger. A
symbo l that is recognized clea rly by the system
is displayed in the Infotainment system disp lay
CD r=;, page 160, fig. 165, confirmed w ith an au­
dib le signa l if necessary, and transferred to the
input field .
-Entering spaces : move your finger across t he
MMI touch control pad from lef t to right .
-Delet ing characters : move your finger across
the MMI touch contro l pad from right to left.
- Selecting the input suggestion : press the con­
trol k nob.
- Switching directly to the results list : turn the
control knob to the rig ht
- Opening the speller : select the right control
button>
Open speller . Text or numbers are en­
tered in using the speller
r=;, page 164.
- MMI touch volume : press the right cont rol but­
ton. See
r=;, page 254.
Moving the crosshairs
Applies to: vehicles wit h MMI to uch
Fi g. 16 7 Mov ing the crossha irs

u (0 ...... N r--. N ...... 0
0
:E Requirement: a map must be disp layed
¢ page 215.
- Showing/hiding the crosshairs : press the con­
trol knob to show the crossha irs
© ¢fig. 167 .
Or: press on the MMI touch control pad. To
hide the cross hairs again, press the
I BACKI but­
ton
(j) ¢ page 156, fig. 156 or ¢ page 156,
fig. 157 .
-Moving the crosshairs on a map : move the
crosshairs shown in the desired direction using
your finger on the MMI touch control pad
¢ fig . 167.
Moving the map
App lies to: veh icles with MMI touch

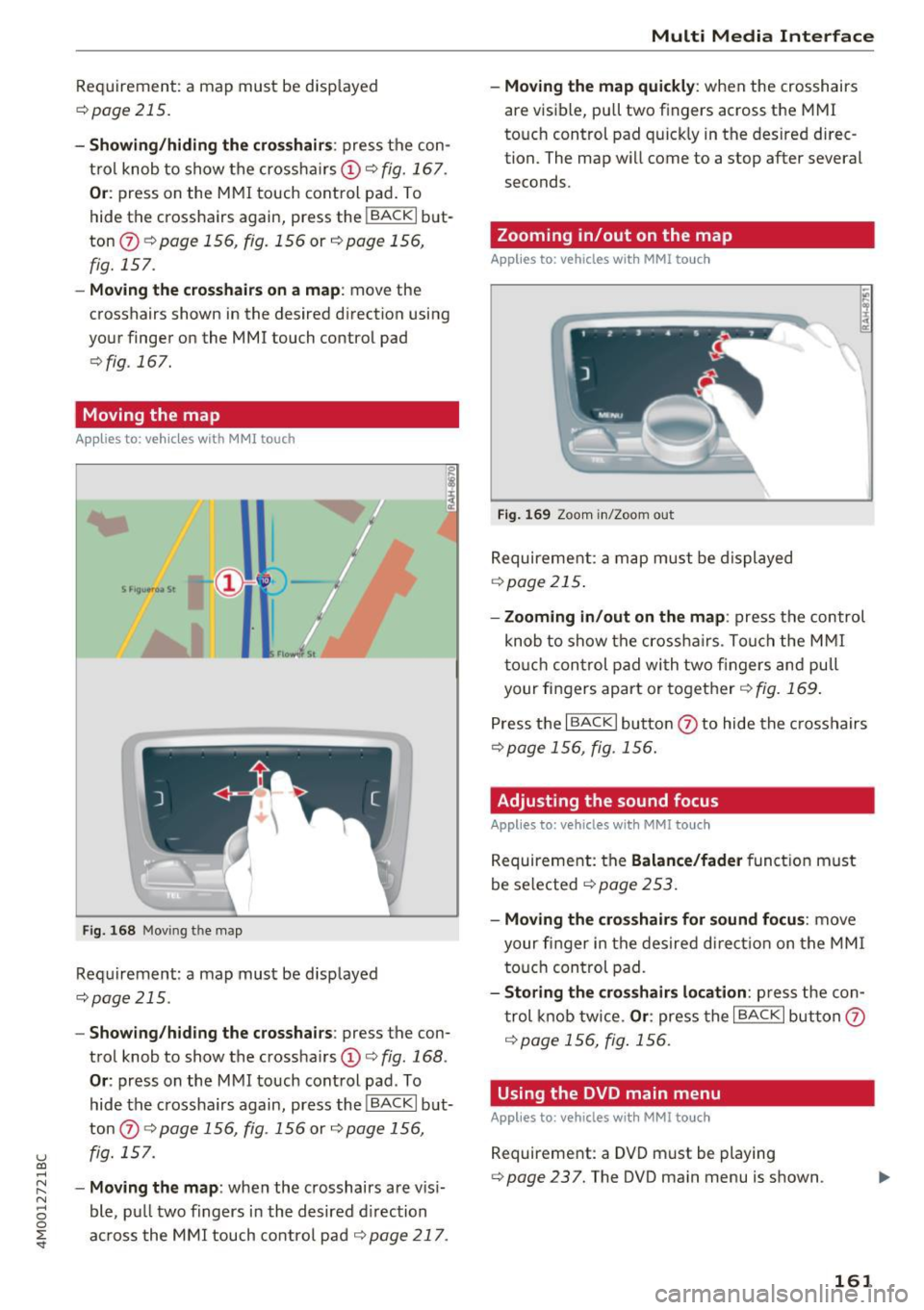

Fig. 168 Movi ng the map
Requirement: a map must be displayed
¢page 215 .
-Showing /hiding the crosshairs : press the con­
trol knob to show the crosshairs
© ¢fig. 168 .
Or: press on the MMI touch control pad . To
hide the crosshairs again, press the
iBACKI but­
ton
(j) ¢ page 156, fig . 156 or ¢ page 156,
fig. 157 .
-Moving the map : when the crosshairs are vis i­
ble, p ull two fingers in the desired direction
across the MMI touch control pad¢
page 217.
Multi Media Interface
-Moving the map quickly : when the crosshairs
are visible, pu ll two fingers across the MMI
touc h control pad quickly in the desired direc­
tion. The map will come to a stop after several
seconds .
Zooming in/out on the map
Applies to : vehicles with MM! touch
Fig. 169 Zoom in/Zoom out
Requirement: a map must be displayed
¢page 215.
X
- Zooming in/out on the map : press the control
knob to show the crossha irs. Touch the MMI
t o uch control pad with two fingers and pull
your fingers apart or together ¢
fig. 169.
Press the I BACK I button (j) to hide the crosshairs
¢page 156, fig. 156.
Adjusting the sound focus
Applies to: vehicles with MMI touch
Requirement: the Balance/fader function must
be selected
¢ page 2 53.
- Moving the crosshairs for sound focus: move
your finger in the desired direct io n on the MMI
touch control pad.
-Storing the crosshairs location: press the con­
trol knob tw ice.
Or : press the I BACKI button (j)
¢ page 156, fig. 156.
Using the DVD main menu
Applies to: vehicles with MMI touch
Requirement: a DVD m ust be playing
¢page 237. The DVD main menu is shown .
161

Multi Media Interface
-Selecting a menu item: move your finger up/
down or left/right on the MMI touch contro l
pad.
- Confirming a selection: press the control knob.
Or: press on the MMI touch control pad .
(D Tips
The volume of the voice guidance prompts for
the MMI touch* can be adjusted separately
c:>page254.
Control knob with
joystick function
Operation

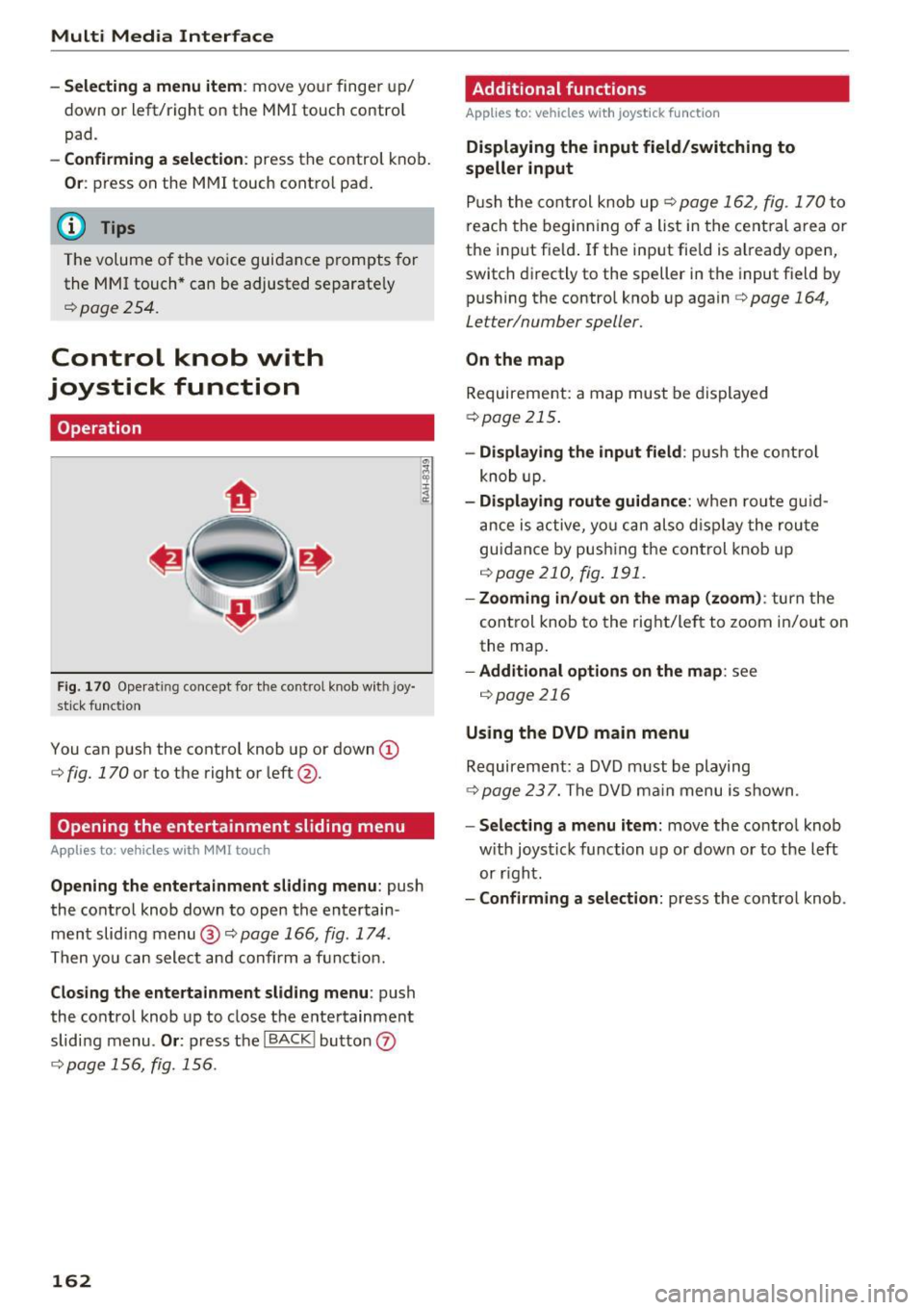

F ig. 170 Ope ra ting concept fo r the control knob with joy·
stick function
You can push the control knob up or down @
c:>
fig. 170 or to the right or left@.
Opening the entertainment sliding menu
Applies to: vehicles with MMI touch
Opening the entertainment sliding menu: push
the control knob down to open the entertain­
ment sliding menu@c:>
page 166, fig. 174.
Then you can select and confirm a funct ion.
Closing the entertainment sliding menu: push
the control knob up to close the entertainment
sliding menu .
Or: press the I BACK I button 0
c:>page 156, fig. 156 .
162
Additional functions
Applies to: vehicles with joystick function
Displaying the input field/switching to
speller input
Push the control knob up c:> page 162, fig . 170 to
reach the beginning of a list in the central area or
the input field . If the input field is already open,
switch directly to the speller in the input field by
pushing the control knob up again c:>
page 164 ,
Letter/number speller.
On the map
Requireme nt: a map must be displayed
c:>page 215.
-Di splaying the input field : push the control
knob up.
-Displaying route guidance: when route guid­
ance is active, you can also displa y the route
guidance by push ing the control knob up
r:!>page 210, fig. 191 .
-Zooming in/out on the map (zoom): turn the
control knob to the right/left to zoom in/out on
the map.
- Additional options on the map : see
r:!> page 216
Using the DVD main menu
Requirement: a DVD must be playing
r:!>page 237. The DVD main menu is shown.
-Selecting a menu item: move the control knob
w ith joystick function up or down or to the left
or right.
- Confirming a selection: press the control knob .

u (0 ...... N r--. N ...... 0
0
:E Opening the selection/options menu with
the control knob
A pp lies to: ve hicles with joystick function
Fig . 171 Opening the select ion/options menu with the
control knob
Requirement: the selection menu symbol 3 must
be disp layed in the Infota inment system display
<=:>fig. 171.
Opening /closing the selection menu : push the
control knob to the left
c::> fig. 171 to open the se­
lection menu. T hen you can se lect and confirm a
f u nction using the contro l knob.
Press the
I BACKI button (J) c::> page 156, fig. 156
to return to the function one level up.
Requirement: the options menu symbol
El must
be disp layed in the Infotainment system display
<=:>fig. 171.
Multi Media Interface
Opening/closing the options menu: push the
contro l knob to the right
c::> fig. 171 to open the
options menu . Then you can select and confirm a
funct ion using the control knob .
Press the
I BACK I button (J) c::> page 156, fig. 156
to return to the function one level up.
Shortcut keys
Frequently used radio stations can be stored on
the shortcut keys.
T he shortcut keys are on the MMI control panel
@ c::> page 156, fig . 156 or c::> page 156, fig. 157 .
Storing radio stations: turn the control knob to
the desired radio station in a list (for examp le, a
radio station in the FM station list). Press and
hold the desired shortcut key for several seconds .
The active radio station will be stored on the
shortcut key.
Accessing a radio station : press the shortcut key.
Displaying a radio station: swipe you r finger over
the shortcut keys.
Deleting a stored radio station: reset the Short­
cut keys
to the factory default setting
<=:>p age 250.
(0 Tips
It is not possible to enter numbers using the
shortcut keys. Use the number speller
<=:>page 164 or MMI touch* <=>page 160to en­
ter numbers.
163

Multi Media Interface
Letter/number speller

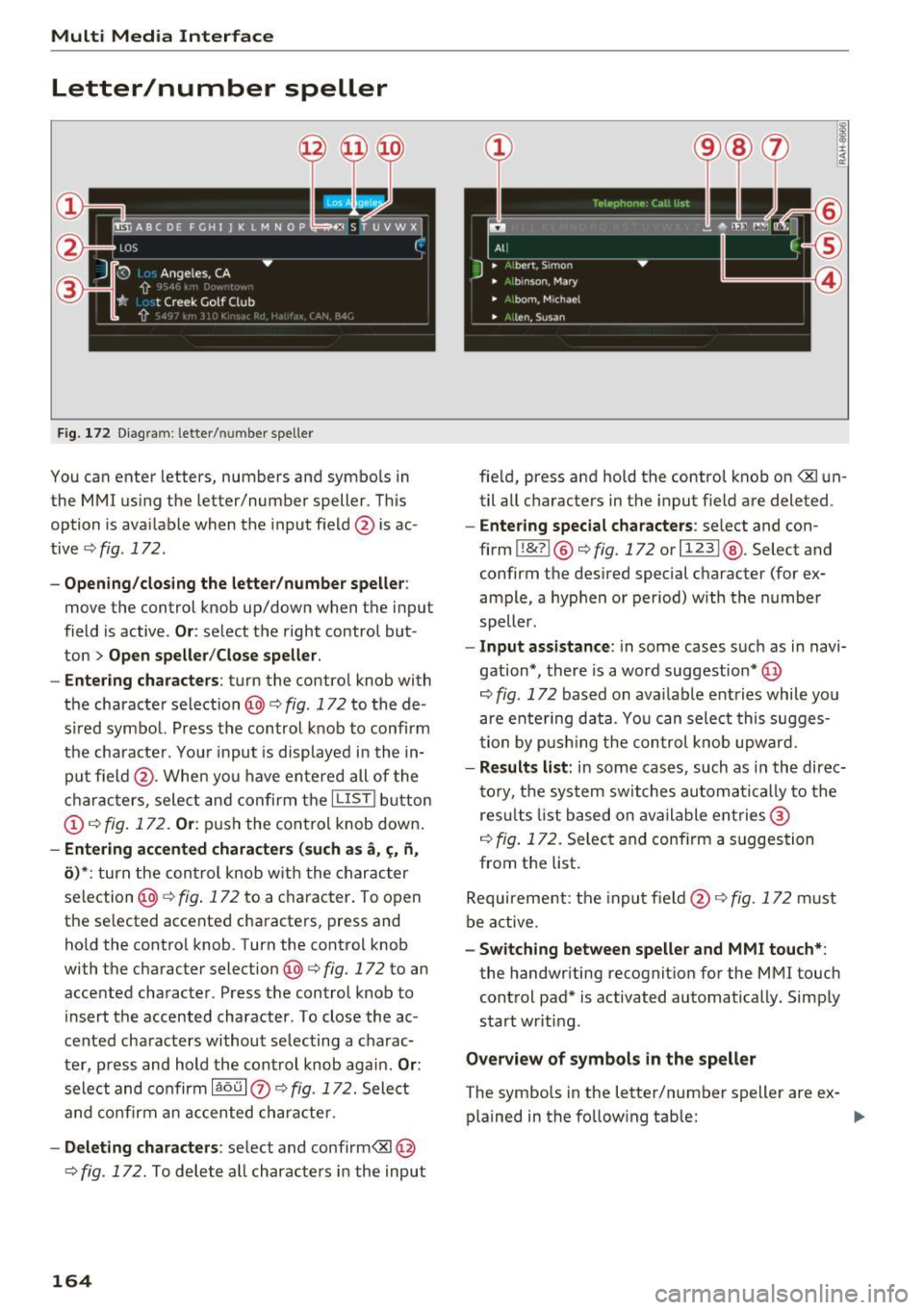

F ig. 172 Diagram : letter/ number spe ller
You can enter letters, numbers and symbo ls in
t he MMI using the letter/number speller. This
option is ava ilable when the input field @is ac ­
tive
¢ fig . 172.
-Opening /closing the letter /numbe r speller :
move the control knob up/down when the input
field is active .
Or: select the right control but ­
ton
> Op en speller /Clos e speller .
- En te ri ng cha racters :
turn the control knob with
the character selection @c:>
fig. 172 to the de ­
s ir ed symbol. Press the control knob to conf irm
the characte r. Your i nput is displayed in the in­
put fie ld @ . When you have entered all of the
cha racters, sele ct and confirm t he
I L IS TI button
@ ¢ fig . 172 . Or: push the cont rol knob down .
-Entering accented character s (s uch as a, ,;, fi,
o )* : turn the con trol knob w it h t he char acter
selection @¢
fig. 172 to a character. To open
the selected accented characters, press and ho ld the contro l knob . Turn the control knob
with the character selection@¢
fig. 172 to an
accented character . Press the control knob to
insert the accented character . To close the ac ­
cented characters without selecting a charac­
ter, press and hold the cont rol knob again.
Or :
select and confirm laou I 0 ¢ fig. 172. Select
and co nfirm an accented character.
- Delet ing character s: select and confirm<81 @
¢fig . 172 . To delete all characters i n the input
164
fie ld, press and hold the control knob on <81 un­
til all characters in the input f ield are deleted.
- Entering special cha racters: se lect and con­
firm
I !&? I® i::> fig. 172 or I 1 2 3 I@ . Select and
confirm the desired special c haracter (for ex­
ample , a hyp hen or period) with the n umbe r
speller.
- Input assistance : in some cases s uc h as in navi­
gation*, there is a word suggest ion *@
r=;, fig . 172 based on ava ilable e ntries while yo u
are ente ring data . Yo u can select this sugges­
tion by p ushi ng the con trol knob upwar d.
- Result s list: in some cases , such as in the direc­
to ry, t he sys tem switches automat ically to the
res ults list based on ava ila ble en tries @
¢fig. 172 . Selec t and conf irm a suggestion
from the list .
Requireme nt: the inpu t field @¢
fig. 172 must
be active.
- Switch ing between spelle r and MMI touch* :
the handwriting recognitio n for the MMI touch
cont rol pad* is activated automatically. Simp ly
start wr iting .

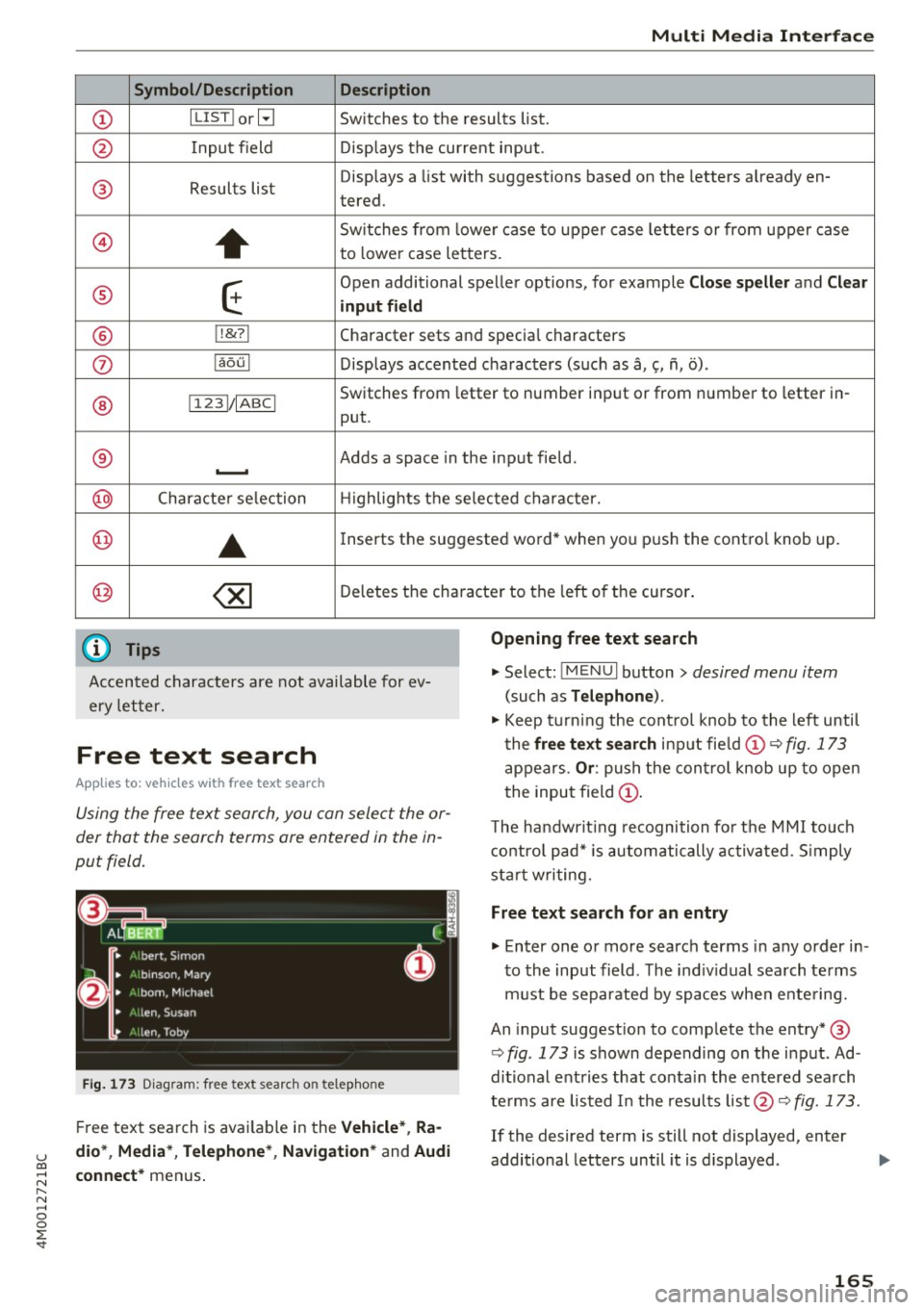

Overview of symb ols in the speller
The symbo ls in the letter/number sp eller are ex-
plained in the follow ing tab le:
IJ,-

u co ...... N r-... N ...... 0
0
:E: ' Multi Media Interface
Symbol /Description Description
CD IL IST lorB Switches to the iresults list.
@ Input field
Displays the cur rent input.
® Results list Displays a list with suggestions based on the letters already
en-
tered.
@
+
Sw itches from lowe r case to upper case letters or from upper case
to lower case letters .
® E
Open additional speller options, for example Close sp ell er and C le ar
input field
® 11
& 71 Character sets and specia
l characters
0 laou l
Displays accented characters (suc h as a,~, fi, i::i).
Switches from letter to number input or from number to letter in-
® 1123!/ !ABC!
put.
® Adds a space in the input field . ..........
@ Character se lection Highlig hts the selected character.
@ ...
Inserts the suggested word* when you push the control knob up .
@ <&] Deletes the character to the left o f the cursor.
(D Tips
Opening free text search
Accented characters are not available for ev­
ery letter. ..
Select: !MENU! button> desired menu item
(such as Te lephon e).
.,. Keep tu rning the cont rol knob to the left until
t he
free t ext s ear ch inp ut fie ld CD ~ fig. 173
appears. Or : push the control knob up to open
the input field
CD -
Free text search
Applies to: veh icles with free text search
Using the free text search, you can select the or­
der that the search terms are entered in the in­
put field.
F ig. 173 Diagram: free text search on telep hone
Fr ee text search is ava ilab le in the Vehicle *, Ra­
dio *, Med ia* , Telephone* , Na vig ation *
and Audi
c onne ct *
menus . T
he handwrit ing recognition fo r the MMI touch
contro l pad* is automatically activated. S imply
sta rt writing.
Free text search for an entry
.,. Enter one o r more search terms in any order in­
to the input field. The ind iv idual sea rch te rms
must be separated by spaces when e nte ring.
An input suggest ion to complete the entry* @
r:>
fig. 173 is shown depending on the input. Ad­
ditional e ntries that co nta in the entered search
te rms are listed In the results list@r:>
fig. 173.
If the desired term is still not displayed, enter
additional letters until it is displayed.
165

Multi Media Interface
It is often enough just to enter the first letters of
the search term in order for it to display in the re­
sults list . For example, in the
Telephone* menu,
write the in itials of the contact being searched
separated by a space.
Selecting the input suggestion to complete
the entry
Requirement: an input suggestion to complete
the entry* ®
r:> fig. 173 must be displayed.
.,. MMI touch input* : press the control knob. Or:
press on the MMI touch control pad *.

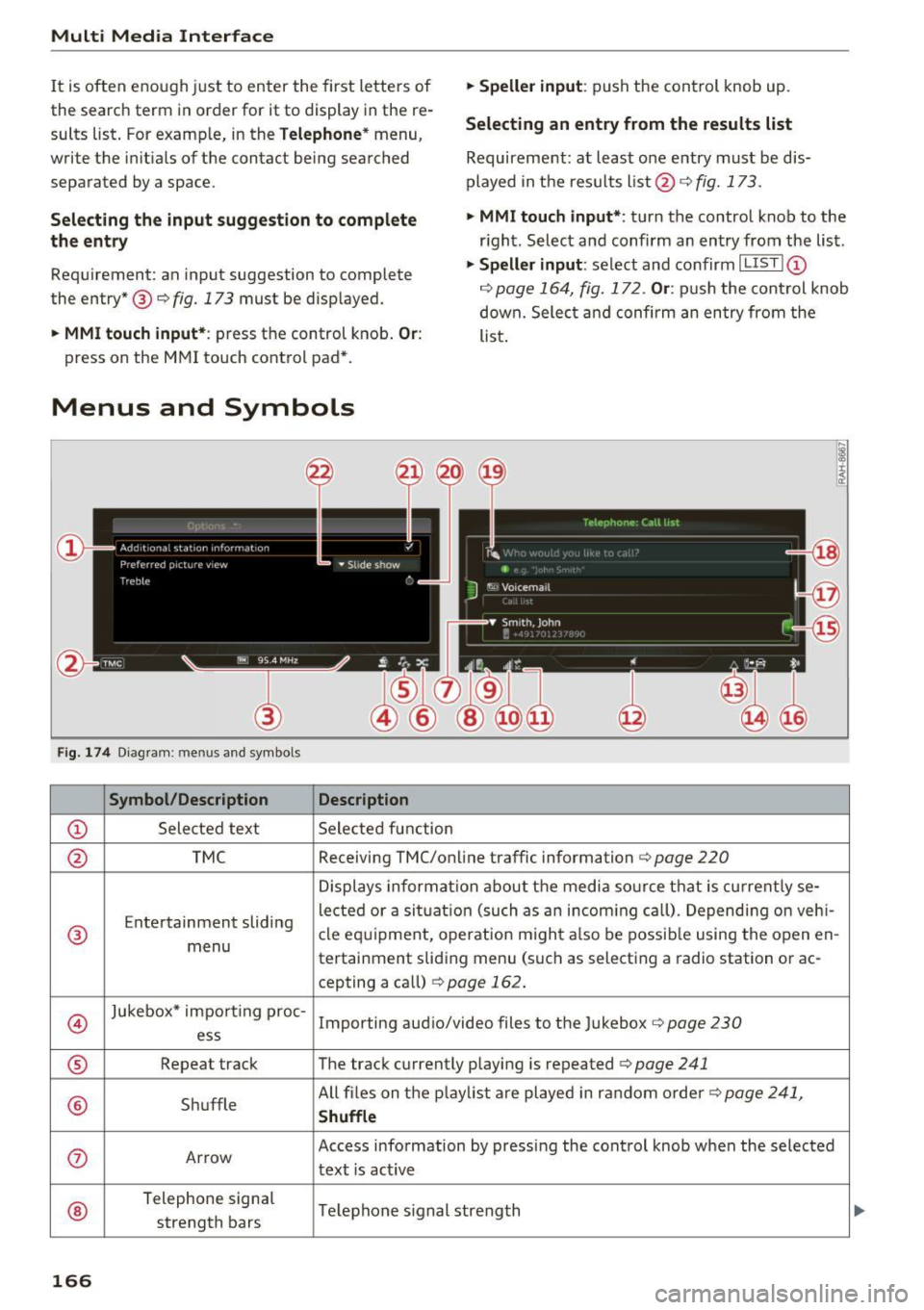

Menus and Symbols
F ig. 174 Diag ram : me nus and symbols
Symbol /Description Description
@ Selected text Selected function
.,. Speller input : push the control knob up.
Selecting an entry from the results list
Requirement: at least one entry must be dis­
played in the results list @ ¢
fig. 173.
.,. MMI touch input*:
turn the control knob to the
r ight. Select and confirm an entry from the list .
.,. Speller input: select and confirm I LIST!@
c:> page 164, fig. 172. Or : push the cont rol knob
down. Select and confirm an entry from the
list .
@ TMC Receiving TMC/online traffic
information
c:::> page 220
Displays informat ion about the media source that is current ly se-
Entertainment sliding lected or a
situation (such as an incom ing call) . Depending on veh i-
® cle
equipment, operation m ight also be possible using the open en-
menu tertainment sliding menu (such as selecting a radio station or ac-
cepting a call)
¢ page 162.
©
Jukebox* impo rt ing proc-
Importing audio/video files to the Jukebox r:> page 230
ess
® Repeat track The track currently playing is repeated <=:>page 241
® Shuffle All files on the
playlist are played in random order c:>page 241,
Shuffle
(J) Arrow Access information by pressing the control knob when the selected
text
is act ive
®
Telephone signal
Telephone s ignal strength
strength bars
166

u co ...... N r-... N ...... 0
0
:E: ' ®
@
@
@
@
@)
@
@
@
@
@
@
@
@

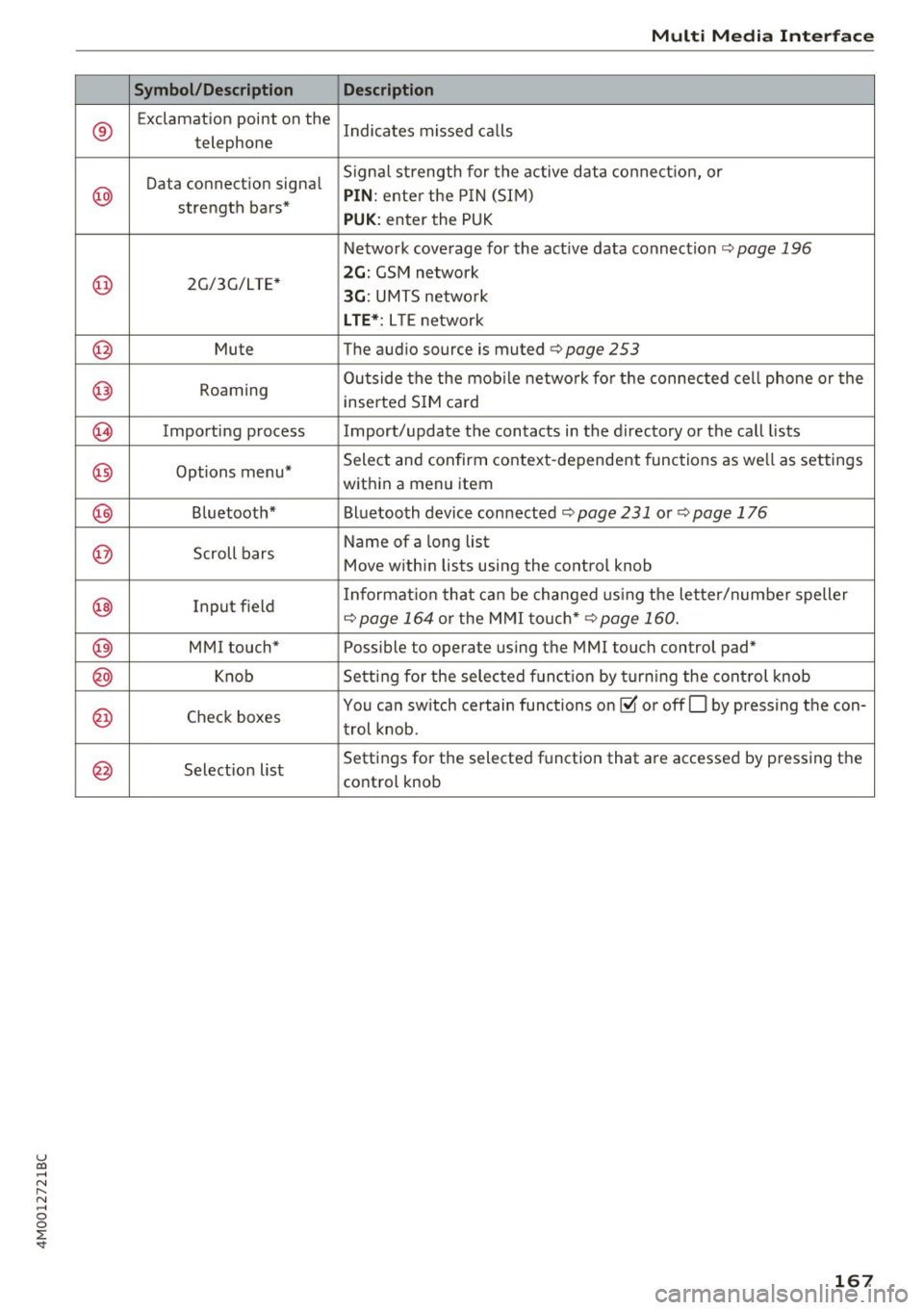

Symbol/Description
Exclamation point on the
telephone
Data connect ion signa l
strength bars*
2G/3G/LTE* Mute
Roaming
Importing process
Options menu* Bluetooth*
Scroll bars
Input field
MMI touch* Knob
Che ck boxes
Selection list
Multi Media Interfac e
Description
In di cates missed calls
S igna l strength for the active data co nnect io n, or
PIN: ente r the PIN (SI M)
PUK : enter the PUK
Network coverage for the act ive data connection ~
page 196
2G: GSM networ k
3G: UM TS netwo rk
LTE* : LT E network
The audio source is muted
q page 253
Outside the the mo bile netwo rk fo r the connec ted ce ll phone or the
inserted S IM caird
Import/update the contacts in the directo ry or the call lists
Select and confirm context -dependent func tions as we ll as settings
within a menu
item
Bluetoo th device connected~ page 231 or~ page 176
Name of a long list
Move within lists using the control knob
Informat io n that c an be cha nged using t he let ter/num be r speller
qpage 164 or the M MI to uch* ~page 160.
Poss ible to operate using the MMI touch c ontrol pad*
Setting fo r the selected funct ion by turning the control knob
You can sw itch certain functions on~ or offO by pressing t he con-
trol knob.
Settings for the selected f unction that a re accessed by pressing the
control knob
167

Voice recognition system
• Telephone
• Audi connect •
Favorites
• Call (XV)
• Navigation
• Directory
• Radio
• Media
• Sound •
Enter number
• Redial
• Read new text message
• Navigate to
(XY)
• Enter address/destination
• Help • Online destinations
• Help Speech dialog system
• Help Telephone •
Cancel route guidance
• Map
• Help Audi connect •
Line
(XV)
• Help Navigation
• Help
Map
• Help Radio •
Next page/ previous page
• Cancel
• No. I meant (XV)
• He lp Media • Correction
TE ,EPflON ~
• Enter number • Call list
• Delete number/ correction • Redial
• Directory
• Call
(XV)
• Call mailbox
• Telephone favorites
· business/ private/ land tine
I mobile
• Nav igate to
(XV)
• Start I cancel route guidance
• Directory
• Last destinations •
Block route for (XV) miles
I Block
the next section
• Route list
• Calculate alternative routes
• Nav igation favorites
• Drive home
• Enter address •
Online destinations
• Special destination
• Enter country
I town I street/ state
• Exclude route/ Exclude route for
(XV) km/ m
• Map
• Day map/ Night map
• 2D driving position map/ 20 north position map/ 3D map/ Destination map/ Overview map
~UJDI CONNECT
• Audi connect
• Travel Information/ Parking Information
• Fuel prices
• Weather
RADIO
• Radio presets
• FM
• FM /AM/ SIRIUS XM
• Station (XY) / Frequency (XV)
• Traffic announcement on
I off
Fig. 175 Comm and overv iew
168
•
• Flight Information
• City events
• Online news
• Twitter
MEDIA
• Jukebox
• CD
I DVD
• SD card l / SD card 2
• Audi music Interface/ I Pod/ USB / Bluetooth /
WI -Fl/ Med ium (XV)
• Media favorites / Artists / Albums / Genres /
Tracks/ Playllsts / Videos
• Folder up
• Random playback on/ off
