AUDI Q7 2017 Owner´s Manual

-Take the chi ld restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
P ASS ENGER A IR
BA G OFF~;
light does not stay on .
- Have the airbag system inspected by your
authorized Audi dealer immediately .
The child seats listed in categories A to C have been statically tested by Audi only for the Ad­
vanced Airbag function.
Important safety instructions for using
child safety seats
Correc t use of child safety sea ts substan tially re­
duces the risk of injury in an accident!
As the driver, you are responsible for the safety
of everybody in the vehicle, especially children:
~ Always use the right child safety seat for each
child and a lways use it properly~
page 301.
~ Always carefully follow the child safety seat
manufacturer 's instructions on how to route
the safety belt properly through the child safe­
ty seat .
~ When using the vehicle safety be lt to install a
child safety seat , you must first activate the
convertible locking retractor on the safety be lt
to prevent the child safety seat from moving
¢ page 306.
~ Push the child safety seat down with your fu ll
weight to get the safety be lt really tight so that
the seat cannot move forward or sideways
more than one inch (2.5 cm).
~ Secure unused safety belts on the rear seat
¢ page 301 .
Always remember: Even though your vehicle is
equipped with an Advanced Airbag system, all
children, especially those 12 years and younger,
should always ride in the back seat properly re­
strained fo r their age and size.
_& WARNING
~ Not using a ch ild safety seat, using the wrong
~ child safety seat or improper ly installing a N .... 0
0
:E: ' Ch ild safety
child restraint increases the risk of serious
personal injury and death.
- All vehicle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestra ined or improperly
restrained child could be injured by striking
the inter ior or by being ejected from the ve­
hicle dur ing a sudden maneuve r or impact .
An unrest rained or improperly restrained
child is a lso at greater r is k of injury or death
through contact w ith an inflating a irbag.
- Commerc ially availab le child safe ty seats
are requi red to comply with U.S . Federal
Motor Vehicle Safety Standard (FMVSS) 213
(in Canada CMVSS 213).
- When buying a child restra int, select one
that fits your ch ild and the vehicle .
- Only use child restraint systems that fully
contact the flat portion of the seat cush­
ion. The ch ild restraint must not t ip or
lean to either side . Audi does not recom­
mend using child safety seats that rest on
legs or tube-like frames. They do not pro­
vide adequate contact with the seat.
- Always heed all lega l requirements per­
ta ining to the insta llation and use of child
safety seats and carefu lly follow the in­
structions provided by the manufacturer
of the seat you are using .
- Never a llow children under 57 inches
(1.45 mete rs) to wear a normal safety be lt.
They must a lways be restrained by a proper
child restraint system. Otherwise, they
could sustain injuries to the abdomen and
neck areas during sudden braking maneu­
vers or accidents .
- Never let more than one child occupy a child
safety seat.
- Never let babies or o lder children ride in a
vehicle while sitting on the lap of another
passenger .
- Holding a child in your arms is never a sub­
stitute for a chi ld restrain t system .
- The strongest person cou ld not ho ld the
ch ild with the forces that exist in an acci­
dent. The child will strike the interior of
the vehicle and can also be struck by the passenger.
299

Child safety
-The child and the passenger can also in­
jure each other in an accident.
- Never install rear-facing child safety seats
or infant carriers on the front passenger
seat. A child will be seriously injured and
can be killed when the passenger airbag in­
flates -even with an Advanced Airbag Sys­
tem.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
- Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Make sure there is enough space in front of
the child in the child seat. If necessary, ad­
just the angle and position of the seat in
front of the child seat.
- Forward-facing child safety seats installed
on the front passenger's seat can interfere
with the airbag when it inflates and cause
serious injury to the child. Always install for­
ward-facing child safety seats on the rear
seat.
- If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat, the child's safety
and well-being require that the following
special precautions be taken:
- Make sure the forward-facing seat has
been designed and certified by its manu­
facturer for use on a front seat with a pas­
senger front and side airbag.
- Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier.
- Always move the front passenger seat to the highest position in the up and down
adjustment range and move it back to the
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible, before installing
the forward-facing child restraint.
- Always make sure that the safety belt up­
per anchorage is behind the child restraint
and not next to or in front of the child re-
300
straint so that the safety belt will be prop­
erly positioned.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
-Always make sure that the backrest is in
the upright position.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heat­
er for child seats) on the front passenger seat if the device is connected to the 12-
volt socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passenger
seat, never install any child restraint sys­
tem on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or oth­
er liquids on the front passenger seat
cushion.
- Never place objects on the seat (such as a
laptop, CD player, electronic games de­
vice, power inverter or seat heater for
child seats). These may influence the elec­
trical capacitance measured by the capaci­
tive passenger detection system and can
also fly around in an accident and cause
serious personal injury.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a collision .
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used<::;>
page 265, Safety belts,
r:::;,page 273, Airbag system
and
r:::;, page 295, Child safety.
.8. WARNING
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF 11,;; light
comes on and stays on whenever a child re­
straint is installed on the front passenger seat
and the ignition is switched on. .,_

u (0 ...... N r--. N ...... 0
0
:E -Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF ~;
light does not stay on .
- Have the airbag system inspected by your
authorized Audi dealer immediately.
Secure unused safety belts on the rear seat
Fig. 246 Schema tic ove rv ie w: k eep unu sed s-a fety belts
away from chil dren in chil d safety seats .@ · oute r rear
sa fety belt,
@ -cente r rea r sa fety bel t
If a chi ld safety seat is used on the rear bench,
especia lly with LA TCH univ ersal lower anchorag­
es, the unused safety belts
must be secured so
that the child in the child restraint cannot reach
them
c::> ,& .
-Gui de the safety belt webbings @ and @ be­
hind the head restra int of the seat where the
child restraint is installed
c::> fig. 246 . When do­
ing so, do not engage the convertible lock ing
retractor! You should not hear a "click ing"
sound when w inding up the safety belt.
- Let the belt retractor wind up the safety belt
webbing .
A WARNING
A child in a child safety seat installed with the
LATCH lower anchorages or with the standard
safety belt or a child in a booste r seat on the
rear seat could play with unused rear seat
safety belts and become entangled. This
cou ld cause the chi ld serious personal injury
and even death.
- Always secure unused rear seat safety belts
out of reach of children in child seats such
as by proper ly routing them aro und the
Child safety
head restraint of the seat where the child
restraint is installed .
- Never activate the convertible locking re­
tractor when routing the safety belts around
the head restraints.
- Never let anyone sit at the center rear seat­
ing position if the center rear safety belt has
been routed around a rear head restraint.
Child safety seats
Infant seats
Babies and infants up to about one year old and
20 lbs. or
9 kg need special rearward-facing
child restraints that support the back , neck and
head in a crash.
Fig. 247 Schema tic ove rview: rearw ard -fac ing in fan t seat ,
proper ly i nsta ll ed o n the rear sea t
., When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertib le locking retractor on the safety belt
to prevent the chi ld safety seat from moving
c::> page 306 or install the seat using the LATCH
attachments .
.. Push the child safety seat down with your full
weight to get the safe ty belt really tight so that
the seat cannot move forward or sideways
more than one inch (2 .5 cm) .
., Sec ure unused safety belts on the rear seat
c::>page301.
Infants up to about one year (20 lbs . or 9 kg) are
best protected in special infant carriers and child
safety seats designed for the ir age group. Many
expe rts be lieve that infants and small children
shou ld ride only in special res tra ints in wh ich the
child faces the back of the vehicle. These infant ..,.
301

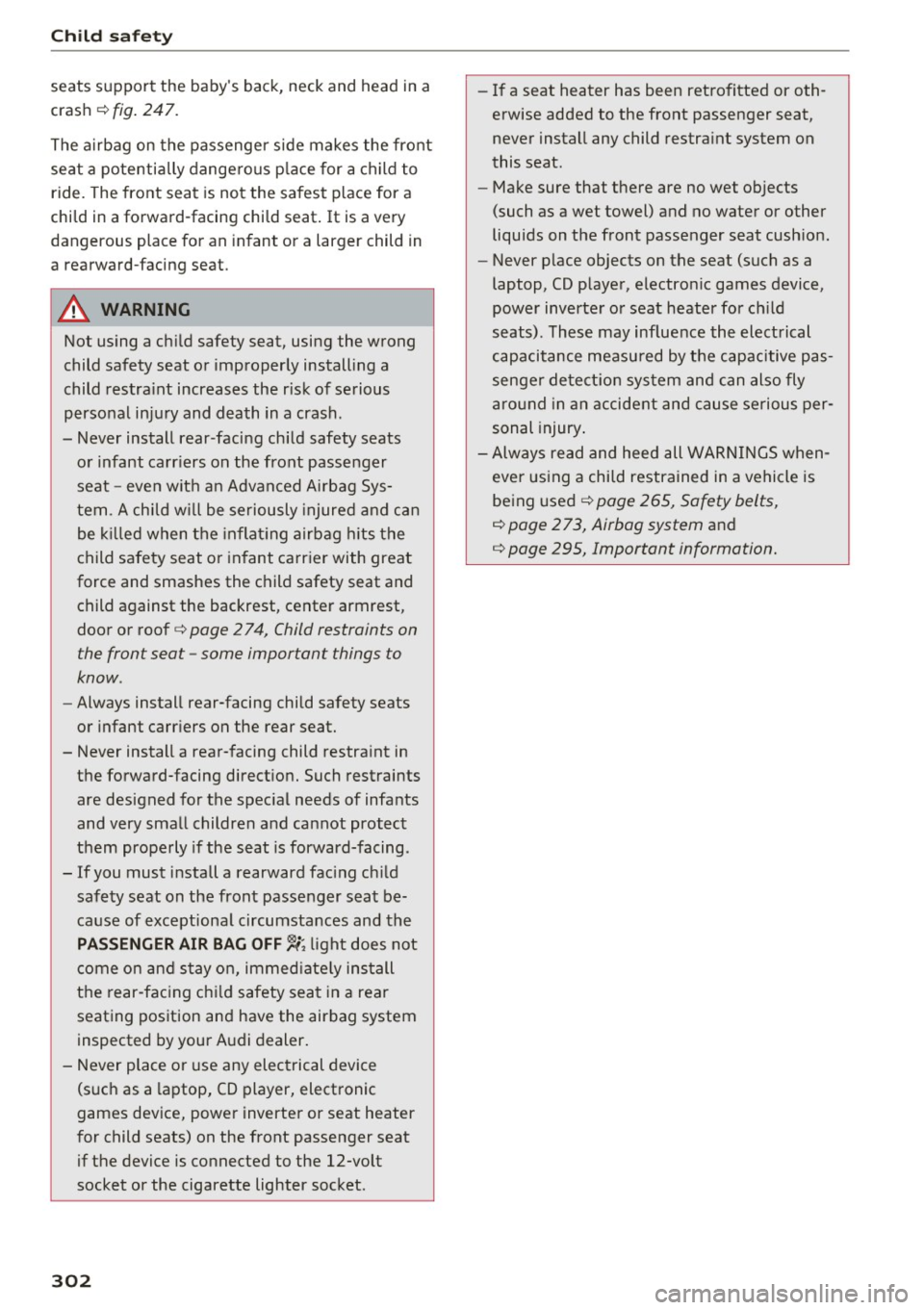

Child safety
seats support the baby's back, neck and head in a
crash
¢ fig. 247.
The airbag on the passenger side makes the front
seat a potentially dangerous place for a child to ride. The front seat is not the safest place for a
child in a forward-facing child seat. It is a very
dangerous place for an infant or a larger child in
a rearward-facing seat .
A WARNING
Not using a child safety seat, using the wrong
child safety seat or improperly installing a
child restraint increases the risk of serious
personal injury and death in a crash.
- Never install rear -facing child safety seats
or infant carriers on the front passenger
seat -even with an Advanced Airbag Sys­
tem . A child will be seriously injured and can
be killed when the inflating airbag hits the
child safety seat or infant carrier with great
force and smashes the child safety seat and child against the backrest, center armrest,
door or roof<=>
page 2 7 4, Child restraints on
the front seat -some important things to
know .
-Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Never install a rear-facing child restraint in the forward-facing direction. Such restraints
are designed for the special needs of infants and very small children and cannot protect
them properly if the seat is forward-facing .
- If you must install a rearward facing child safety seat on the front passenger seat be­cause of exceptional circumstances and the
PASSENGER AIR BAG OFF~; light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected by your Audi dealer.
- Never place or use any electrical device (such as a laptop, CD player, electronic
games device, power inverter or seat heater
for child seats) on the front passenger seat
if the device is connected to the 12-volt
socket or the cigarette lighter socket.
302
- If a seat heater has been retrofitted or oth­
erwise added to the front passenger seat,
never install any child restraint system on
this seat .
- Make sure that there are no wet objects
(such as a wet towel) and no water or other
liquids on the front passenger seat cushion.
- Never place objects on the seat (such as a
laptop, CD player, electronic games device,
power inverter or seat heater for child
seats) . These may influence the electrical
capacitance measured by the capacitive pas­
senger detection system and can also fly
around in an accident and cause serious per­
sonal injury.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is being used
¢ page 265, Safety belts,
¢ page 2 73, Airbag system and
c> page 295, Important information.

Convertible child safety seats
Properly used convertible child safety seats can
help protect toddlers and children over age one
who weigh between
20 and 40 lbs. (9 and 18 kg)
in a crash.
Fig. 248 Schemat ic overv iew: installatio n of the attac h­
ments app lica ble to a LA TCH seat
Fig. 249 Schematic overv iew : installat io n of the seat using
the vehicle 's safe ty be lt syste m
.. When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertible locking retractor on the safety belt
to prevent the child safety seat from moving
Q page 306 or install the seat us ing the LATC H
attachments .
.. Push the child safety seat down with your fu ll
weight to get the safety belt really tight so that
the seat cannot move forward o r sideways
more than one inch (2.5 cm)
Q page 306.
.. If the child safety seat is equipped with a tether
strap, attach it to the tether anchors
Q page 312.
.. Secure unused safety belts on the rear seat
Q page 301.
~ A toddler or child is usually too large for an in-
~ fant restraint if it is more than one year old and
8 weighs more than 20 lbs . (9 kg) . 0 :E Child safety
Toddlers and children who are older than one
year up to about 4 years old and weigh more than
20 lbs. (9 kg) up to 40 lbs. (18 kg) must always
be properly restrained in a child safety seat certi ­
fied for their size and weight
Q fig . 248 and
q fig . 249.
The airbag on the passenger side makes the front
seat a potentially dangerous place for a child to
ride. The front seat is not the safest place for a
child in a forward -facing child safety seat. It is a
very dangerous place for an infant or a larger
child in a rearward-facing seat .
_&. WARNING
Not using a child safety seat, us ing the wrong
child safety seat or improperly instal ling a
chi ld restraint increases the risk of serious
personal injury and death in a collision or oth ­
er emergency situation.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates.
A child in a rearward-facing ch ild safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child safety
seat or infant carr ier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
-Al ways install rear-fa cing child safety seats
on the rear seat .
- If you must insta ll a rearward facing child
safety seat on the front passenger seat be­
cause of excep tional circumstances and the
PASSENGER AIR BAG OFF '-I; light does not
come on and stay on, immediately insta ll
the rear-facing child safety seat in a rear
seating position and have the a irbag system
inspected by your Audi dealer .
- The rear side of the ch ild safety seat shou ld
be positioned as close as possible to the
backrest on the veh icle seat. Adjust or re­
move the rear seat head restraint if it is dif-
f icult to install the child seat with the head
~
303

Child safety
restraint in place ~page 63. Install the
head restraint again immediately once the
child seat is removed. Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically .
- Always read and heed all WARNINGS when ­
ever using a child restrained in a vehicle is
being used
~ page 265, Safety belts,
~ page 2 73, Airbag system and
~ page 295, Important information.
_& WARNING
If exceptional circumstances require the use
of a forward-facing child restraint on the
front passenger's seat , the child's safety and
well-being require that the following special precautions be taken:
- Make sure the forward-facing seat has been
designed and certified by its manufacturer
for use on a front seat with a passenger
front and side airbag.
- Always follow the manufacturer 's instruc­
tions provided with the child safety seat or
infant carrier.
- Always move the front passenger seat to the highest position in the up and down ad­
justment range and move it back to the
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible, before installing the for­
ward-facing child restraint.
- Always make sure that the safety belt upper
anchorage is behind the child restraint and
not next to or in front of the child restraint
so that the safety belt will be properly posi­
tioned.
- Always make sure that nothing prevents the
front passenger's seat from being moved to
the rearmost position in its fore and aft ad­
justment range.
- Always make sure the backrest is in an up­
right position.
- Never place or use any electrical device (such as a laptop, CD player, electronic
games device, power inverter or seat heater
for child seats) on the front passenger seat
304 if the device is connected to the 12-volt
socket or the cigarette lighter socket.
- If a seat heater has been retrofitted or oth­
erwise added to the front passenger seat,
never install any child restraint system on
this seat.
- Make sure that there are no wet objects (such as a wet towel) and no water or other
liquids on the front passenger seat cushion .
- Never place objects on the seat (such as a
laptop, CD player, electronic games device,
power inverter or seat heater for child
seats) . These may influence the electrical
capacitance measured by the capacitive pas­
senger detect ion system and can also fly
around in an accident and cause serious per­
sonal injury.
- Make sure that the
PASSENGER AIR BAG
OFF
11,;; light comes on and stays on all the
time whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF 11,;; light
does not come on and stay on, immediately
install the forward-facing child seat at a
seating position on the rear seat and have
the airbag system inspected by your author­
ized Audi dealer.
- Take the child restraint off the front passen­
ger seat and install it properly at one of the rear seat positions if the
PASSENGER AIR
BAG OFF
11,;; light does not stay on whenever
the ignition is switched on .

Booster seats and safety belts
Properly used booster seats can help protect
children weighing between about 40 lbs. and
80 lbs. (18 kg and 36 kg) who are less than 4
ft.
9 in. (57 inches/1.45 meters) tall.
Fig. 250 Rear se at; chi ld proper ly restrained in a booster
sea t
The vehicle's safety belts alone will not fit most
children until they are at least 4
ft. 9 in. (57 in­
ches/1.45 meters) tall and weigh about 80 lbs.
(36 kg). Booster seats raise these children up so
that the safety belt will pass properly over the
stronger parts of their bodies and the safety belt
can help protect them in a crash.
.,. Do not use the convertible locking retractor
when using the vehicle's safety belt to restrain
a chi ld on a booster seat .
.. The shoulder belt must lie as close to the cen­
ter of the child's collar bone as possible and must lie fla t and snug on the upper body.
It
must never lie across the throat or neck. The
lap belt must lie across the pelvis and never
across the stomach or abdomen. Make sure the
belt lies flat and snug. Pull on the belt to tight­
en if necessary .
.,. If you must transport an older child in a boos­
ter seat on the front passenger seat , you can
use the safety belt height adjustment to help
adjust the shoulder portion properly .
.. Secure unused safety belts on the rear seat
r:=>page 301.
Children up to at least 8 years old (over 40 lbs. or
18 kg) are best protected in child safety seats de-
u ~ signed for their age and we ight. Experts say that
N ~ the skeletal structure , part icularly the pelvis , of
g these children is not fully developed, and they
:E Child safety
must not use the vehicle safety belts without a
suitable child restraint .
It is usually best to put these children in appro­
priate booster seats. Be su re the booster seat
meets all applicab le safety standards .
Booster seats raise the seating position of the
child and reposition both the lap and shoulder
parts of the safety belt so that they pass across
the child's body in the right places. The routing of
the belt over the chi ld's body is very important
for the ch ild's protection, whether or not a boos­
ter seat is used. Children age 12 and under must
always ride in the rear seat.
Ch ildr en who are at least 4
ft. 9 in. (57 inches/
1.45 meters) tall can generally use the vehicle 's
three point lap and shoulder belts . Never use the
lap belt portion of the vehicle 's safety belt alone
to restrain any ch ild, regard less of how big the
ch ild is. Always remember that childr en do not
have the pronounced pelvic structure required for
the proper function of lap belt portion of the ve­
hicle's three point lap and shoulder belts . T he
child's safety absolutely requires that a lap belt
portion of the safety belt be fastened snugly and
as low as possible around the pe lvis. Never let
the lap belt portion of the safety belt pass over
the child 's stomach or abdomen .
In a crash, airbags must inflate within a blink of
an eye and with considerab le force. In order to do
its job, the airbag needs room to inflate so that it
will be there to protect the occupant as the occu­
pan t moves forward into the airbag .
A vehicle occ upant who is out of position and too
close to the a irbag gets in the way of an inflating
airbag. When an occupant is too close , he or she
will be struck violently and will receive serious or possibly even fata l injury .
In order for the airbag to offer protection, it is
important that all vehicle occupants, especially
any children, who must be in the front seat be­
cause of exceptiona l circumstances, be properly
restrained and as far away from the airbag as
poss ible. By keeping room between the child 's ..,.
305

Child safety
body and the front of the passenger compart­
ment, the airbag can inflate completely and pro­
vide supplemental protection in certain frontal
collisions.
.,&. WARNING
Not using a booster seat, using the booster
seat improperly, incorrectly installing a boos­
ter seat or using the vehicle safety belt im­
properly increases the risk of serious personal
injury and death in a collision or other emer­
gency situation. To help reduce the risk of se­
rious personal injury and/or death:
- The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body.
It must never lie across the throat or
neck. The lap belt must lie across the pelvis
and never across the stomach or abdomen .
Make sure the belt lies flat and snug. Pull on
the belt to tighten if necessary .
- Failure to properly route safety belts over a
child's body will cause severe injuries in an
accident or other emergency situation
¢ page 265.
- The rear side of the child safety seat should
be positioned as close as possible to the
backrest on the vehicle seat . Adjust or re­
move the rear seat head restraint if it is dif­
ficult to install the child seat with the head
restraint in place
¢page 63. Install the
head restraint again immediately once the
child seat is removed. Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically.
- Never let a child put the shoulder belt under
the arm or behind the back, because it could
cause severe injuries in a crash.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates .
- Never let a child stand or kneel on any seat,
for example the front seat.
- Never let a child ride in the cargo area of
your vehicle.
- Always remember that a child leaning for­
ward, sitting sideways or out of position in
306
any way during an accident can be struck by
a deploying airbag. This will result in serious
personal injury or death .
- If you must install a booster seat on the
front passenger seat because of exceptional
circumstances the
PASSENGER AIR BAG
OFF
fj,;; light must come on and stay on,
whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF fj,;; light
does not come on and stay on, perform the
checks described ¢
page 285, Monitoring
the Advanced Airbag System.
- Take the child restraint off the front passen­
ger seat and install it properly at one of the rear seat positions if the
PASSENGER AIR
BAG OFF~;
light does not stay on whenever
the ignition is switched on.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 265, Safety belts,
¢ page 273, Airbag system and
¢ page 295, Important information.
Securing child safety
seats
Securing a child safety seat using a safety
belt
Safety belts for the rear seats and the front pas­
senger can be locked with the convertible locking
retractor to properly secure child safety seats.
The safety belts for the rear seats and for the
front passenger's seat have a convertible locking
retractor for child safety seats. The safety belt
must be locked so that belt webbing cannot un­
reel. The retractor can be activated to lock the
safety belt and prevent the safety belt webbing
from loosening up during normal driving . A child
safety seat can only be properly installed when
the safety belt is locked so that the child and
child safety seat will stay in place.
Always remember : Even though your vehicle is
equipped with an Advanced Airbag system, all children, especially those 12 years and younger,
should always ride in the back seat properly re-
strained for their age and size.
ll-

u co ...... N r-... N ...... 0
0
:E: ' A WARNING
-
Improperly installed child safety seats in­
crease the risk of serious personal injury and
death in a collision.
- Always make sure that the safety belt re­
tractor is locked when installing a child
safety seat. An unlocked safety belt retrac­
tor cannot hold the child safety seat in place
during normal driving or in a crash.
-Always buckle the child safety seat firmly in place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a collision .
- Always make sure that the rear seat back­
rest to which the center rear safety belt* is
attached is securely latched whenever the
rear center safety belt is being used to se­
cu re a ch ild restraint .
- If the backrest is not securely latched, the
child and the child restraint will be thrown
forward together w ith the backrest and will
strike parts of the vehicle interior. The ch ild
can be se riously injured or killed .
- Never ins tall rear-facing child safety seats
or infant carriers on the front passenger
seat . A child will be serious ly injured and
can be killed when the passenger airbag in­
flates.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the ch ild safety seat and chi ld
against the backrest, center armrest, door
or roof .
- Always install rear-facing child safety seats
or infant carriers on the rear seat.
- Forward-fac ing ch ild safety seats or infant
carriers installed on the front passenger's
seat may interfere with the deployment of
the a irbag and cause serious injury to the
child .
-It is safer to install a forward -fac ing ch ild
safety seat on the rear seat .
- Always read and heed all WARNINGS when­
ever using a child restrained in a veh icle is
being used
~ page 295 . Specia l precaut ions
apply when installing a child safety seat on
the front passenger seat
~ page 2 7 4, Child
Ch ild safety
restraints an the front seat -some impor­
tant things to know.
A WARNING
-A lways take special precautions if you must
i nstall a forward or rearward-facing child re­
stra int on the front passenger's seat in excep ­
tional s ituations:
- Whenever a forward or rearward-fac ing
child restraint is installed on the front pas ­
senger seat, the
PASSENGER AIR BAG OFF
~; light must come on and stay on whenev­
er the ign ition is switched o n.
- I f the
PASSENGER AIR BAG OFF~; light
does not come on and stay on, perform the
checks desc ribed
~ page 285, Monitoring
the Advanced Airbag System.
- Take the child restra int off the front passen­
ge r seat and install it prope rly at one of the
rear seat positions i f the
PASSENGER AIR
BAG OFF~;
light does not stay on whenever
the ignition is switched on .
- Improper installat ion of child res tra ints can
reduce their effectiveness or even prevent
them f rom providing any protect ion .
- An improperly installed child restraint can
interfere with the airbag as it deploys and
serious ly injure or even kill the chi ld.
- Always carefully follow the manufacturer's
instr uctions provided with the child safety
seat or carr ier .
- After checking to make sure that the c hild
restraint is properly installed, make certain
that the child restraint is correctly recog­
n ized by the capacitive passenger detection
system in the front passenger seat and that
the
PASSENGER AIR BAG OFF~; light sig­
na ls the cor rect front passenger fronta l air­
bag status.
A WARNING
F orwa rd -facing child restra ints:
- Always make sure the forward-facing seat
has bee n des igned and certified by its man­
ufa cture r for use on a fron t sea t with a pas­
senger front and side airbag.
-
307

Child safety

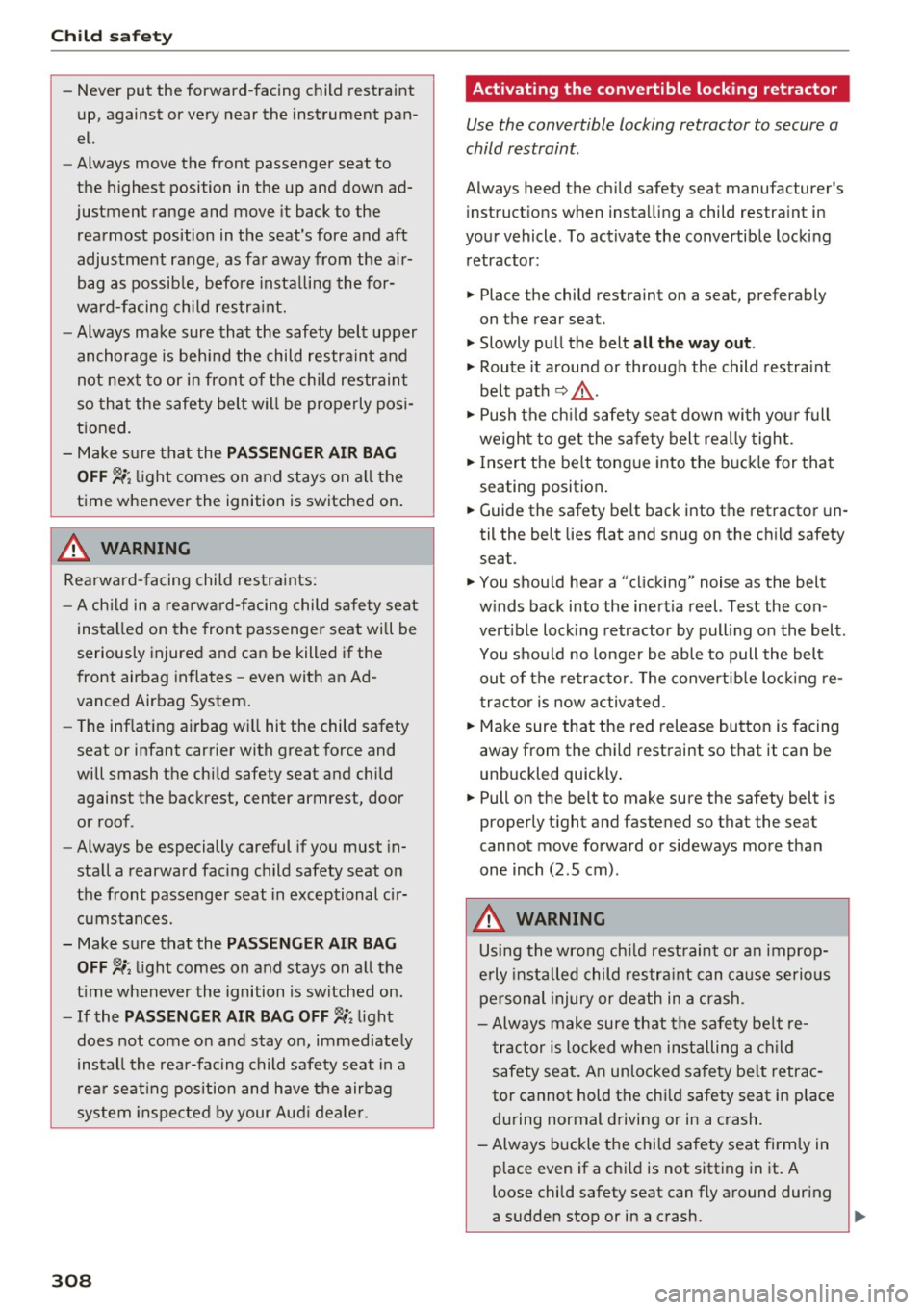

-Never put the forward-facing child restraint
up, against or very near the instrument pan­
el.
- Always move the front passenger seat to
the highest position in the up and down ad­
justment range and move it back to the
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible, before installing the for­
ward-facing child restraint.
- Always make sure that the safety belt upper
anchorage is behind the child restraint and
not next to or in front of the child restraint
so that the safety belt will be properly posi­
tioned.
- Make sure that the
PASSENGER AIR BAG
OFF~ ;
light comes on and stays on all the
time whenever the ignition is switched on.
A WARNING
Rearward-facing child restraints:
- A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof .
- Always be especially careful if you must in­
stall a rearward facing child safety seat on
the front passenger seat in exceptional cir­
cumstances .
- Make sure that the
PASSENGER AIR BAG
OFF~;
light comes on and stays on all the
time whenever the ignition is switched on.
- If the
PASSENGER AIR BAG OFF~; light
does not come on and stay on, immediately
install the rear-facing child safety seat in a
rear seating position and have the airbag
system inspected by your Audi dealer .
308
· Activating the convertible locking retractor
Use the convertible locking retractor to secure a
child restraint.
Always heed the child safety seat manufacturer 's
instructions when installing a child restrain t in
your vehicle . To activate the convertible locking
retractor:
.. Place the child restraint on a seat, preferably
on the rear seat .
.. Slowly pull the belt
all the way out .
.. Route it around or through the child restraint
belt path
~ ,&. .
.. Push the child safety seat down with your full
weight to get the safety belt really tight.
.. Insert the belt tongue into the buckle for that
seating position.
.. Guide the safety belt back into the retractor un­
til the belt lies flat and snug on the child safety
seat.
.. You should hear a "clicking" noise as the belt
winds back into the inertia reel. Test the con ­
vertible locking retractor by pulling on the belt.
You should no longer be able to putt the belt
out of the retractor. The convertible locking re­
tractor is now activated .
.. Make sure that the red release button is facing
away from the child restraint so that it can be
unbuckled quickly.
.. Pull on the belt to make sure the safety belt is
properly tight and fastened so that the seat
cannot move forward or sideways more than
one inch (2 .5 cm) .
A WARNING
Using the wrong child restraint or an improp­
erly installed child restraint can cause serious
personal injury or death in a crash.
- Always make sure that the safety belt re­
tractor is locked when installing a child
safety seat. An unlocked safety belt retrac­
tor cannot hold the child safety seat in place
during normal driving or in a crash.
- Always buckle the child safety seat firmly in
place even if a child is not sitting in it. A
loose child safety seat can fly around during
a sudden stop or in a crash.
