Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System
performs in a crash . For example, using tire-r im
comb inat ions not approved by Audi, lowering the
ve hicl e, chang ing the s tiffness of the suspens io n,
in clud ing the spr ings, suspens ion str uts, shock
absor bers et c. can change the forces that are
measured by the airbag sensors and sent to the
e lectronic contro l unit. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in which it would not deploy if
the changes had not been made. Other ki nds of
changes may reduce the fo rce levels meas ured by
the sensors and prevent the airbag from deploy­ in g when i t should .
Airbag sys tem
A WARNING ,-
Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious personal injury in a
crash.
- Never install suspension components that
do not have the same pe rformance charac­
teristics as the components o rigina lly ins tal­
led on your vehicle.
- Never use tire-rim combinations t hat have
not been approved by Audi.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fig. 2 42 Sid e airbag location in t he drive r's seat
The side airbags are located in the sides of the
front seat backrests
¢ fig . 242 and the rear back­
r es t* facing the doo rs.
The side airbags installed for the front seating
pos itions have bee n des igned and certified to
help reduce the risk of in ju ry that can be caused
by a irbags when they inflate, pa rticu larly when
the oc cupant s itting next to it is not seated prop ­
erly . T he side airbag for the fron t passenger seat
can be used w it h properly installed chi ld re­
straints . Please be sure to read the important in­
formation and warnings whenever using a child
restra int in a vehicle: Safety belts
c::> page 265,
Airbag system c::> page 273, Child safety
c>page295 .
The side airbag sy stem ba sica lly consi st s of: II>
289

Airbag syste m
-the e lectronic contro l modu le and external side
impact sensors
- the two side airbags located in the sides of the
front backrests
- two rear side airbags*
- the a irbag warning light in the instrument clus-
ter .
The airbag system is monitored electronically to make certa in that it is functioning properly at all
times. Each time you turn on the ignit ion, the air­
bag system ind icator light will come on for a few
seconds (self diagnostics).
The s ide a irbag system supplements the safety
be lts and can help to reduce the risk of injury to
the dr iver's, front and rear* passenger 's upper
torso on the side of the vehicle that is struck in a
s ide collision . The airbag dep loys only in side im­
pacts and on ly wh en the vehicle acceleration reg ­
iste red by the control unit is high enough . If this
rate is below the reference value programmed in­
t o the control unit, the side airbags w ill not be
tr iggered , even though the car may be badly
damaged as a result of the collision .
It is not pos­
sib le to define an airbag tr igger ing range that
w ill cover every possib le ang le of impact , since
the c ircumstances wi ll vary cons iderably between
one co llision and another . Important factors in­
clude, for example, the nature (hard or soft) of
the impacting object, the angle of impact, v ehicle
speed, etc.
c::> page 291 , Important safety in­
s tructions on the side airbag sys tem.
Aside from their normal safety function, safety
be lts work to help k eep the driver or front pas­
senger in position in the event of a side collision
so that the side a irbags can provide protection .
The airbag system is
not a substitute for your
safety belt . Rather , it is part of the overa ll occu ­
pant restraint system in your vehicle . Always re­
member that the s ide airbag system can only
help to protect you if you are wearing your safety
belt and wea ring it properly . Th is is another rea ­
son why you should always wear your safety
be lts, not just because the law requ ires you to do
so ¢
page 265 , General information .
It is important to remember that while the sup ­
plemental side a irbag system is des igned to re-
290
duce the likelihood of ser ious injuries, other inju ­
ries, for example, swelling, bruising, friction
burns and m inor abras ions can also be assoc iated
with deployed side airbags. Remember too, side
airbags will dep loy only once and only in certa in
k inds of acc idents -your safety belts are always
there to offer protection .
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessar ily an ind ication
of over -sens itive or fa iled airbag activat ion. In
some collisions, both front and side airbags may
i nflate . Remember too, that a irbags w ill dep loy
o nl y once and on ly in certain kinds of collisions -
you r safety be lts are always there to offer protec­
tion in those accidents in which airbags are not supposed to deploy or when they have a lready
deployed.
The side airbag system will not deploy:
- when the ignit io n is tu rned off
- in side co llisions when the acceleration meas-
ured by the sensor is too low
- in front-end coll is ions
- in rear-end collisions
-in rollovers .
In some types of accidents the front ai rbags, side
curtain airbags and side airbags may be triggered
together .
A WARNING
-Safety belts and the airbag system will only
provide protect ion when occupants are in
the proper seating pos ition
c::> page 291 .
-If the airbag ind icator light c::> page 29
comes when the veh icle is being used, have
the system inspected immediately by your
author ized Audi dealer . It is possible that
the airbag will inflate when i t is not sup­
posed to, or wi ll not inflate when it should.

u (0 ...... N r--. N ...... 0
0
:E How supplemental side airbags work
Side airbags deploy instantly and can help re­duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig. 243 Inflated side airbags on left side of vehicle , rear
side airbag optiona l equipment
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in
the seat surface area.
It expands between the
side trim panel and the passenger. In order to help provide this additional protection, the side
airbag must inflate within a fraction of a second
at very high speed and with great force. The sup­
p leme ntal side airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the supple­
mental side airbag expands. This applies espe­
cially to children~
page 295, Child safety. Sup­
plemental side airbags inflate between the occu­
pant and the door panel on the side of the vehicle
that is struck in certain side collision
~fig. 243.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper part
of the body.
A fine dust may develop when the airbag deploys.
This is normal and does not mean there is a fire
in the vehicle .
Airbag system
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position .
There is a lot that you and your passengers must
know and act accordingly to help the safety belts
and airbags do their job to provide supplemental
protection.
A WARNING
An inflating side airbag can cause serious or
fatal injury. Improperly wearing safety belts
and improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and never
lean against the area where the supple­
mental side airbag is located.
- Never let a child or anyone else rest their
head against the side trim panel in the
area where the supplemental side airbag inflates.
- Always make sure that safety belts are
worn correctly,
- Do not let anyone sitting in the front seat
put their hand or any other parts of their
body out of the window.
- Always make sure that the side airbag can
inflate without interference.
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi.
- Never use additional seat cushions that
cover the areas where the side airbags de­ ploy.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
-
- Objects between you and the airbag can in­
crease the risk of injury in an accident by in­
terfering with the way the airbag unfolds or _,.
291

Airbag syste m
by being pushed into you as the airbag in­
flates.
- Never p lace or attach accessories or other
objects (such as cupho lders, te lephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause in ju ry
when the supplemental side airbag de­ ploys.
- Never carry any objects or pets in the de­ ployment space between them and the
airbags or allow children or other passen­
gers to travel in this posit ion.
- Always use the built-in coat hooks* only for
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may interfere w it h side airbag deployment
and can cause personal i njury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an author ized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
orig inal seat covers or to the seam in the
area of the side a irbag mod ule m ust always
be repa ired immed iate ly by an authorized
Audi dealer .
-If children are sea ted improperly, their r is k
of injury increases in the ca se of an ac ciden t
¢ page 295, Child safety .
-Never attempt to modify any components of
the a irbag sys tem in any way.
- In a side collision, side a irbags w il l not fu nc­
t ion properly if sensors cannot correct ly
measure increasi ng air pressure ins ide the
doo rs when air escapes through larger, un­
closed openings in the door panel.
- Never drive w ith inter io r door tr im panels
removed .
- Never drive when parts have been re­
moved from the inside doo r panel and the
open ings they leave have not been proper­
ly closed.
292
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
other equipment is installed i n the inside
door panels.
- Always have work on the doors done by an
authorized Aud i dealer or q ualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbags can provide supplemen­
tal protection to properly restrained oc cupants.
Fig. 244 S id e curta in airbags, driver 's side : locatio n
The side curtain airbags are located on both sides
of the interior above the front and rear side win­
dows
¢ fig. 244.
The side curtain airbags contain features that
provide ejection mitigation to help prevent vehi­
cle occupants or parts of their bodies from be ing
completely or part ially ejected from the vehicle
i nterior i n certa in side impacts and vehicle roll­
ove rs .
The side curtain airbag system supplements the
safety belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso in a
side collision . The s ide curtain a irbag inflates in
s ide impacts and on ly when the veh icle ac celera­
tion registered by the control unit is high
eno ugh . If this ra te is be low the refere nce va lue
programmed into the contro l unit, the side cur ­
tain airbag will not be triggered, even though the
car may be badly damaged as a result of the ..,_

collision. It is not possible to define an airbag
triggering range that will cover every possible an­
g le of impact, s ince the circumstances will vary
considerably between one collision and another.
Important factors include, for example, the na­
ture (hard or soft) of the impacting object, the
angle of impact, vehicle speed, etc.
¢ page 293,
How side curtain airbags work .
Aside from their normal safety function, safety
be lts work to he lp keep the driver or front pas­
senger in pos it ion in the event of a collision so
that the side curtain airbags can p rovide protec­
tion .
The airbag system is not a substitute for your
safety belt . Rather, it is part of the overall occu­
pant restraint system in your veh icle . Always re­
member that the airbag system can only help to
p rotect you if you are wearing your safety bel t
and wearing it properly . This is another reason
why you should always wear your safety belts, not just because the law requires you to do so
¢ page 265, General information.
It is important to remember that whi le the s ide
curtain airbag system is designed to he lp reduce
the likelihood of serious injuries, other injuries,
for example, swelling, bruising, friction burns and minor abrasions can also be associated with
these airbags upon deployment . Remember too,
these airbags will deploy only o nce and only in
certa in ki nds of acc idents -your safety belts are
always there to offer protection .
The side curtain airba g sy stem ba sically
consists of:
- The electronic control module and external s ide
impact senso rs
- The side curtain airbags above the w indows of
the outer seating positions with ejection miti­
gation feat ures
- The airbag indicator light in the instrument
panel
The airbag system is monitored electronically to make certain it is funct ion ing properly at all
~ times . Each time you turn on the ignit ion, the air-
.... ~ bag system ind icator light will come on for a few
8 seconds (self d iagnost ics) .
0 :E Airb ag sys tem
The side curta in airbag is not activ ated:
- if the ignition is turned off
- in side co llisions whe n the acceleration meas-
ured by the sensor is too low
- in rear-end col lisions .
_&. WARNING
-Safe ty bel ts and the airbag system will only
provide pro tect ion when occupants are in
the proper seating position
¢ page 59,
Front seats.
- I f the airbag ind ic a tor light q page 29
comes when the veh icle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possib le that
the airbag will inflate when it is not sup­
posed to, or w ill not inf late when it should.
How side curtain airbags work
Side curtain airbags con work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who are properly re­
strained .
Fig. 24 5 Illustration of pr incip le: Inflated s ide curta in air­
bags o n the left s ide
The side curtain airbags inflate between the oc­
cupant and the w indows in a side collis ion
c> fig . 245 .
When the system is triggered, the side curtain
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In order
to help provide this additional protect ion, the
s ide curtain a irbag must inf late w ithi n the blink
of a n eye at very high speed and with g reat fo rce .
T he side c urtain airbag could injure you if yo ur
Ill>
293

Airbag syste m
seating position is not proper or upright or if
items are located in the area where the supp le­
mental side curtain airbag inflates. This applies
especially to children¢
page 295.
Although they are not a soft pillow, side curtain
airbags can "cushion" the impact and in this way
they can help to reduce the risk of in jury to the
head and the upper part of the body.
A fine dust may develop when the airbag deploys.
This is quite normal and does not mean there is a
f ire in the veh icle .
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position.
There is a lot that yo u and your passengers must
know and do to help the safety be lts and airbags
do their job to provide supplemental protect ion.
A WARNING
Improperly wearing safety belts and improper
seating posit ions increase the risk of serious
personal inju ry and death whenever a vehicle
is being used.
- Never let occupants p lace any parts of the ir
bodies in the area from which the side cur­
ta in a irbag inflate.
- Always make sure that the side curtain air­
bags can inflate witho ut interferen ce.
- Use the built- in coat hooks on ly for light­
weight cloth ing. Neve r leave any heavy or
sharp-edged obje cts in t he pockets that may
in terfere w ith airbag deployment and can
ca use personal injury in a collision.
- Never use hangers to hang clothes on the
hoo ks.
- Only use factory-installed s un shades or, if
shades installed after the veh icle leaves the
factory, use only genuine Aud i sun shades.
- Never swing the sun viso rs ove r to the side
windows if things such as pens, ga rage door
openers, hands-free speakers, etc . are at­
tached to the sun visors. They co uld come
294
loose and cause serious injury if the side cu r­
tain airbag inflates.
- A deploying airbag inflates in a fraction of a
second and with great force.
- Never attach objects to the cover or in the
deployment zone of a side curtain airbag .
- The a irbag deployment zones must be kept
clear at all times. Make s ure there are no
objects, pets, o r other persons in the space
between any vehicle occupant and any air­
bag at any time.
- Do not attach any accessories to the doors.
A WARNING
- The a irbag system can deploy on ly once. If
the airbag has been triggered, the system
m ust be rep laced by an authorized A udi
dealer or qualified workshop .
- Always have work invo lv ing the side curtain
airbag system, remova l and installat ion of
the airbag components, or other repairs
pe rformed by a q ualified dealership. Other­
w ise the airbag system may not work cor­
rectly.
- Never attempt to mod ify any componen ts of
the airbag system in any way.

Child safety
Important information
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your vehicle is in a crash apply also to children
c:> page 266, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenagers, their muscles and bones are not fully
developed. In many respects children are at
greater r isk of serious injury in crashes than
adults .
Because children's bodies are not fu lly devel­
oped, they require restraint systems especially
designed for their size, weight , and body struc­
ture. Many countries and all states of the United
States and provinces of Canada have laws requir­
ing the use of approved child restraint systems
for infants and small children .
I n a frontal crash at a speed of 20 -35 mph (30 -
56 km/h) the forces acting on a 13-pound (6 kg)
infant will be more than 20 times the weight of
the child . This means the weight of the chi ld
would suddenly be more than 260 pounds (120 kg) . Under these conditions, only an appro­
priate child restraint properly used can reduce
the r isk of serious injury . Child restra ints, like
adult safety belts, must be used properly to be
effect ive. Used improperly, they can increase the
risk of serious injury in an accident .
All ch ildren, especially those 12 years and young­
er must always ride in the back seat proper ly re­
strained for their age and size. If you must install
a child restraint on the front passenger seat in
exceptional circumstances, be sure to read and
heed the important information and warnings
c:>page 274. Infants and other children who are
properly restrained in an appropriate child re­
straint that is for their si ze and age can benefit
from the protection that supplemental side air-
~ bags provide in some kinds of crashes. ...... N r-... N For more information please see information ......
8 provided by the: :E: ' Child safety
- National Highway Traffic Safety Administration
(NHTSA), currently at: http :/ /www.safe ­
rcar.gov (for the USA)
- Transport Canada Information Centre, current-
ly at: http://www.tc .gc.ca (for Canada)
Consult the child safety seat manufacturer's in­
structions in order to be sure the seat is right for
yo ur child's size
c:> page 299 , Important safety
instructions for using child safety seats .
Please
be sure to read and heed all of the important in­
formation and WARNINGS about child safety,
Advanced Airbags, and the installation of child
restra ints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work
when infants and children in child restraints are on the front passenger seat . Because of the large
amount of important informat ion, we cannot re­
peat it all he re . We urge you to read the detailed

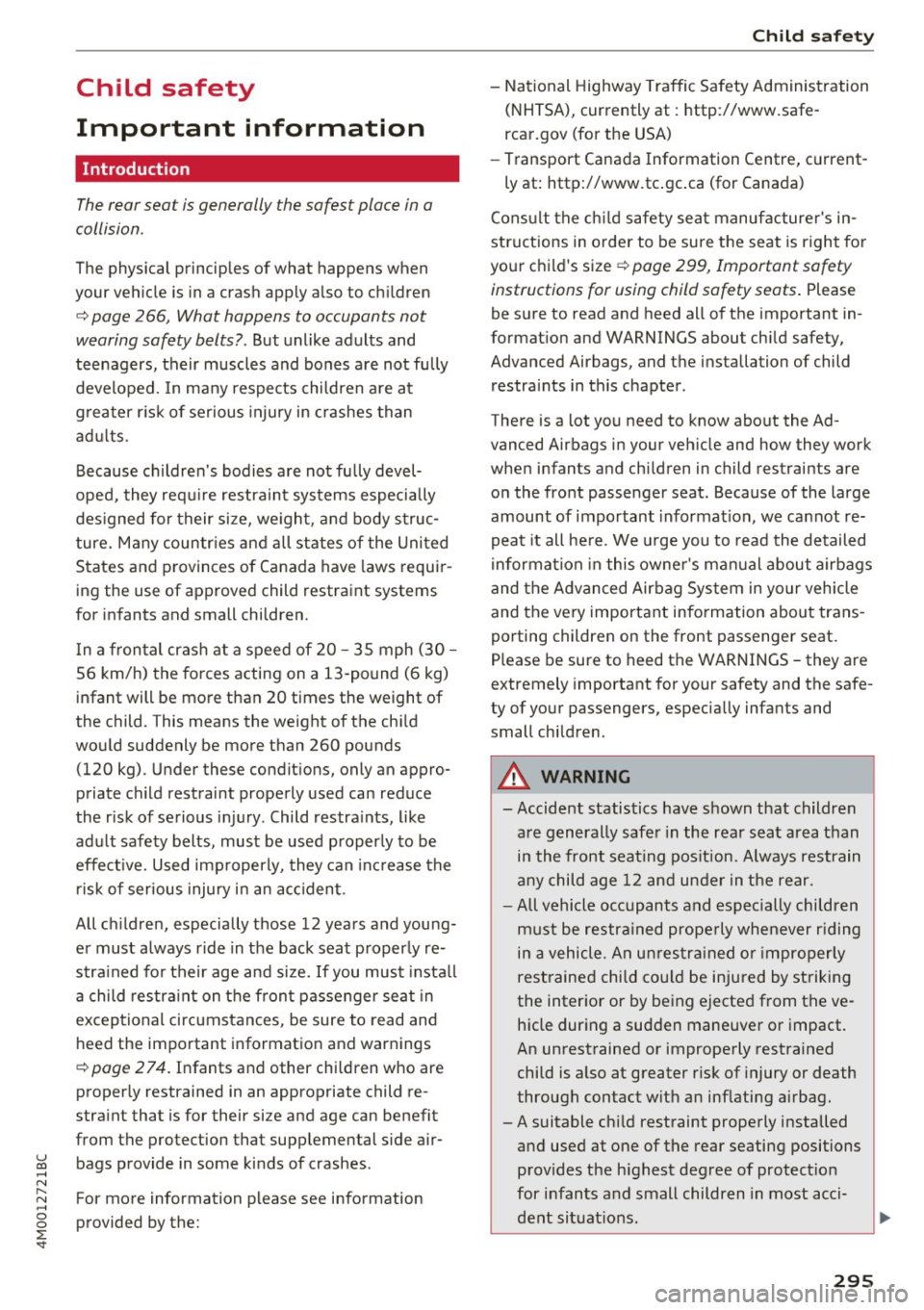

information in this owner's manual about airbags
and the Advanced Airbag System in your vehicle
and the very important information about trans­
porting children on the front passenger seat.
P lease be sure to heed the WARNINGS -they are
extremely important for your safety and the safe­
ty of your passengers, especially infants and
small children .
A WARNING
--Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seat ing pos ition. Always restrain
any child age 12 and under in the rear.
- All vehicle occupants and especially children
must be restrained properly whenever riding
in a vehicle. An unrestrained or imp roperly
rest rained child could be injured by striking
the interior or by being ejected from the ve­ hicle during a sudden maneuver or impact.
An unrestrained or improperly restrained
child is also at greater r isk of injury or death
through contact w ith an inflating a irbag.
- A suitable ch ild restraint properly installed
and used at one of the rear seating positions
provides the h ighest degree of protect ion
for infants and small children in most acci­
dent situat ions .
295

Child safet y
A WARNING
Children on the front seat of any car even with
Advanced Airbags can be seriously injured or even killed when an airbag inflates. A child in
a rearward-facing child safety seat installed
on the front passenger seat will be serious ly
injured and can be killed if the front a irbag in ­
flates .
- The inflating a irbag w ill hit the child safety
seat or infant carrier with great force and
will smash the chi ld safety seat and child
against the backrest, center armrest, o r
doo r.
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat in
exceptional c ircumstances and the
PASSEN ­
GER AIR BAG OFF~;
light does not come
on and stay on, immediately install the rear ­
facing child safety seat in a rear seating po­ sition and have the airbag system inspected
immediately by your Audi dealer.
A WARNING
- Forward-facing chi ld seats installed on the
front passenger seat may interfere with the deployment of the a irbag and cause serious
personal injury to the child .
- If except ional circumstances require the use
of a forward -facing child restraint on the
front passenger's seat , the child's safety
and well-being require the following special
precautions to be taken:
- Always make sure that the forward-facing
seat has been designed and certified by its
manufacturer for use on a front passenger
seat with a front and s ide a irbag.
-Always carefully follow the manufacturer's instructions provided with the child seat
or infant carrier.
- Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer 's instructions
require the top tether strap to be used.
296
- Never put the forward-fac ing child re­
straint up against or very near the instru­
ment panel.
- Always set the safety belt upper anchor­
age to the adjustment position that per­
mits proper installation in accordance
with the child restraint manufacturer's in ­
structions .
- Always move the front passenger seat to
the h ighest position in the up and down
adjustment range and move it back to the
r earmos t position in the seat's fore and
aft adj ustmen t range, as far away from
the airbag as possible, before installing
the forward-facing child restraint .
- Always make s ure that the safety belt up­
per anchorage is behind the chi ld restraint
and not next to or in front of the child re­
straint so that the safety belt wi ll be prop­
erly pos itioned.
- Always make sure that nothing prevents
the front passenger's seat from being
moved to the rearmost position in its fore
and aft adjustment range.
- Never place objects on the seat (such as a
laptop, CD player, electronic games de­
v ice, power inverter or seat heater for
ch ild seats) . These may influence the elec ­
trical capacitance measured by the capaci­
tive passenger detection system and can
also fly a round in an accident and cause
serious personal injury.
- Never place or use any elect rical device
(such as a laptop, CD p layer, electronic
games device, power inverter or seat heat­
er for child seats) on the front passenger
seat if the device is connected to the 12-
vo lt socket or the cigarette lighter socket .
- If a seat heater has been retrofitted or
otherwise added to the front passenger
seat, never install any child restraint sys­
tem on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or oth­
er liquids on the front passenger seat
cush ion .
- Always make sure that the
PA SSEN GER
AIR BAG OFF~;
light comes on and stays

u co ...... N r-... N ...... 0
0
:E: ' on all the time whenever the ignition is
switched on.
- If the
PASSENGER AIR BAG OFF~. light
does not come on and stay on, immediate­
ly install the forward-facing child seat in a
rear seating position and have the airbag
system inspected by your authorized Aud i
dealer.
- Always buckle the child seat firmly in
place even if a ch ild is not sitt ing in it. A
loose child seat can fly around during a
sudden stop o r in a collision.
-Always read and heed all WARNINGS whenever using a child restraint in a vehi­
cle ~
page 265, Safety belts, ~ page 2 73,
Airbag system
and ~ page 295, Impor­
tant information .
@ Tips
Always replace ch ild restraints that were in­
stalled in a vehicle dur ing a crash. Damage to
a child restraint that is not visib le co uld cause
it to fail in anothe r collision situation .

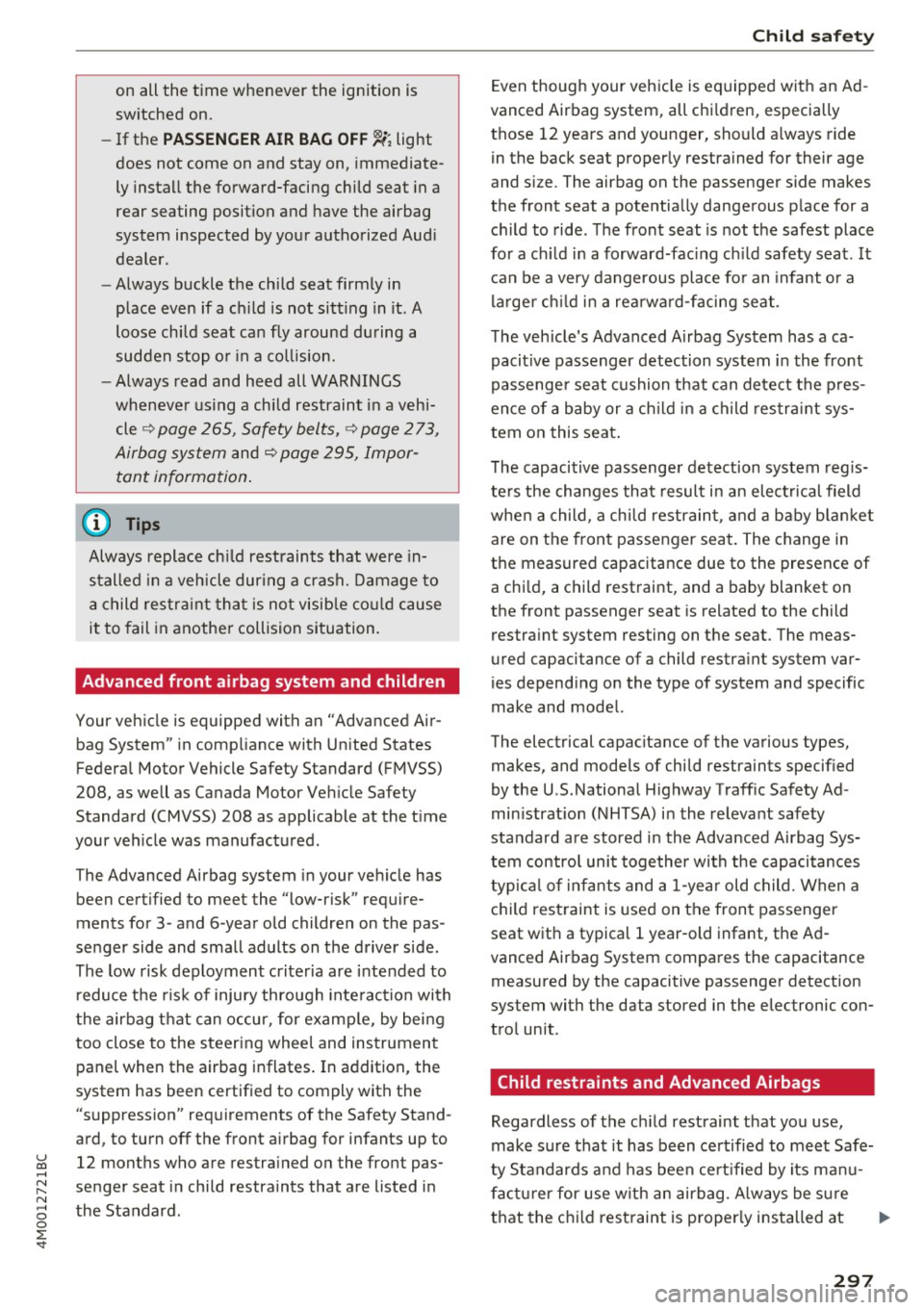

Advanced front airbag system and children
Your vehicle is equipped with an "Advanced Air­
bag System" in compliance with United States
Federal Motor Vehicle Safety Standard (FMVSS)
208, as well as Canada Motor Vehicle Safety
Standard (CMVSS) 208 as applicable at the time
your veh icle was manufactured.
The Advanced Airbag system in your vehicle has
been certified to meet the "low-risk" require­
ments for 3-and 6-year old children on the pas­
senger side and small adults on the driver side.
The low risk deployment crite ria are intended to
reduce the risk of injury through inte raction with
the airbag that can occur, for examp le, by being
too close to the steering whee l and instrument
panel when the airbag inflates . In addition, the
system has been certified to comply with the
"suppression" req uirements of the Safety Stand­
ard, to turn off the front airbag for infants up to
12 months who are restra ined on the front pas­
senger seat in child restraints that are listed in
the Standard .
Child safety
Even though your vehicle is equipped with an Ad­
vanced Airbag system, all chi ldren, especially
those 12 years and younger, should always ride in the back seat properly restrained for their age
and size. The airbag on the passenger side makes
the front seat a potentia lly dangerous place for a
child to ride . The front seat is not the safest place
for a ch ild in a forward-fac ing ch ild safety seat .
It
can be a very dangerous place fo r an infant o r a
la rger ch ild i n a rea rwa rd-facing seat .
T he veh icle 's Advanced Airbag System has a ca­
pacit ive passenger detection system in the front
passenge r seat cushion that can detect the p res­
ence of a baby or a ch ild in a child restra int sys­
tem on this seat .
The capacitive passenger detection system reg is­
te rs the changes that result in an electrical field
when a child, a ch ild restraint, and a baby b lan ket
are on the front passenger seat. The change in
the measured capacitance due to the presence of
a chi ld, a child restraint, and a baby blanket on
the front passenger seat is related to the child
restra int system resting on the seat. The meas­
ured capacitance of a child restraint system var­
ies depend ing on the type of system and specific
make and model.
The electrical capac itance of the various types,
makes, and models of child restraints specif ied
by the U .S.National Highway Traff ic Safety Ad ­
min istrat ion (NHTSA) in the relevant safety
standard are stored in the Advanced Airbag Sys­
tem contro l unit together with the capacitances
typ ica l of infants and a 1-year old child. When a
child restraint is used on the front passenger
seat with a typical 1 year-old infant, the Ad­
vanced Airbag System compares the capacitance
measured by the capacitive passenger detection
system with the data stored in the electronic con­
trol unit .
Child restraints and Advanced Airbags
Regardless of the ch ild restraint that you use,
make sure that it has been certified to meet Safe­
ty Standards and has been ce rt ified by its manu­
fact urer for use w ith an airbag . Always be su re
that the child restraint is properly installed at
llo-
297

Child safet y
one o f the rear seating posit ions . If in exception ­
al circumstances you must use it on the front passenger seat, carefully read all of the informa­
tion on child safety and Advanced Airbags and heed a ll of the app licab le WARNINGS. Make cer­
tain that the child and child restraint are correct­ ly recogn ized by the capacit ive passenger detec­
tion system i n the front passenge r seat, that the
fron t passenger airbag is turned off, and that the
a irbag status is always cor rectly sig naled by the
PASSENGER AIR BA G OFF ~; light.
M any types and models of child rest raints have
been available ove r the yea rs , new models are in­
troduced regularly incorporat ing new and im­
p roved designs and older mode ls are taken o ut of
product ion . Chi ld restraints a re not standardized .
Ch ild rest raints of the same type typica lly have
d ifferent weights and s izes and d ifferent "foot­
prints", the s ize and shape of the bottom of the
chi ld restraint that s its on the seat, when they
are installed on a vehicle seat . These differences
make it virtually impossible to ce rtify compliance
with the requ irements fo r advanced airbags with
each and eve ry ch ild rest raint that has ever been
sold in the past or will be sold ove r the co urse of
the useful life of your vehicle.
F or this reason, the Un ited States National High­
way Traffi c Safety Administ ration has p ublished a
lis t of specific type, makes and models of child
restraints that must be used to cert ify comp li­
ance of the Advanced Airbag System in your vehi­
cle with the suppression requirements of Federal
Motor Vehicle Safety Standard 208. These child
restraints are:

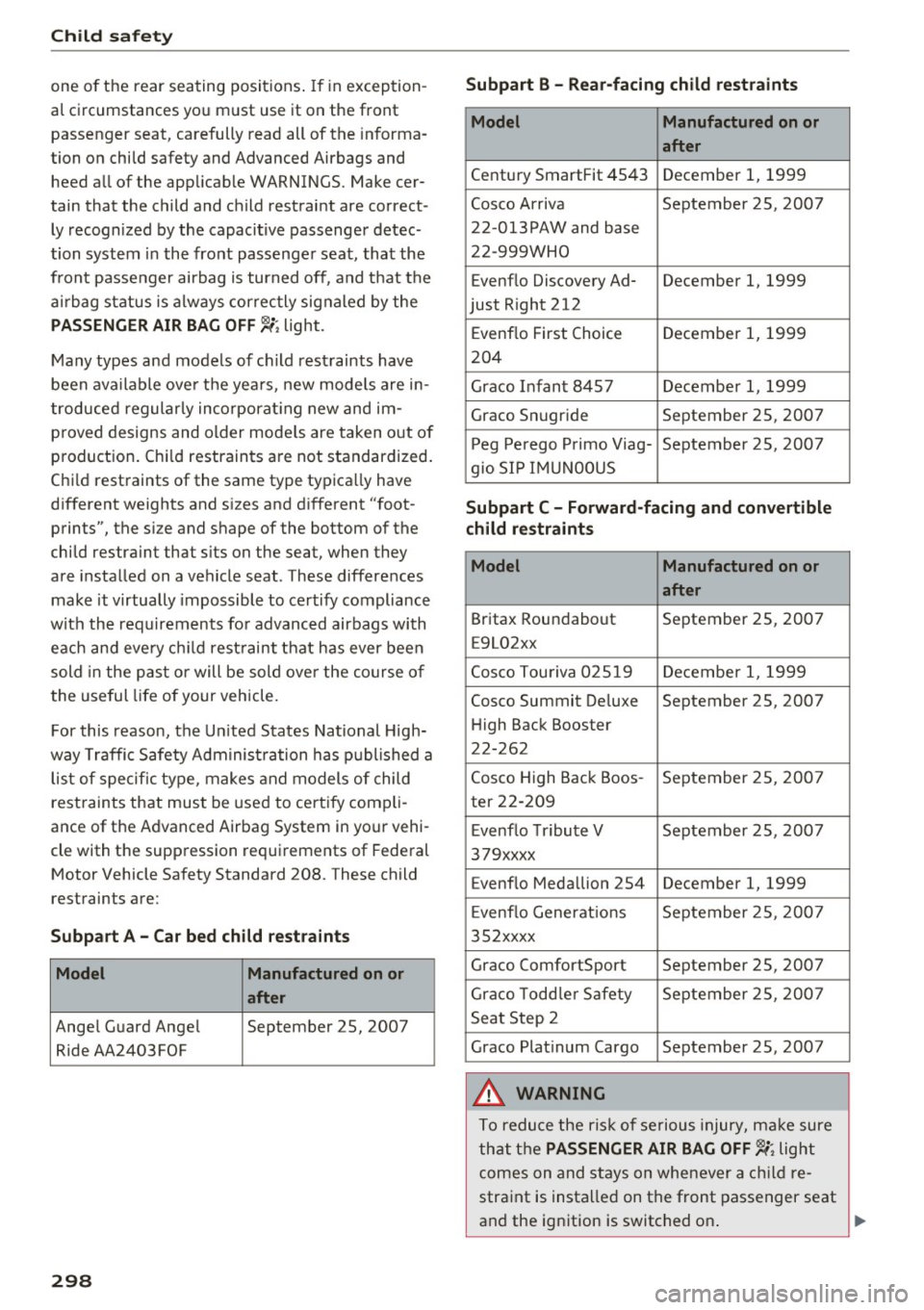

Subpart A -Car bed child restraints
Model Manufactured on or
after
Angel G uard Angel September 25, 2007
Ride AA2403FOF
298
Subpart B -Rear -facing child rest raints
Model Manufactured on or
after
Century SmartFit 4543 December 1, 1999
Cosco Arriva September 25, 2007
22-013PAW and base
22-999WHO
Evenflo Discovery Ad- December 1, 1999
just R ight 212
Evenflo First Choice December 1,
1999
204
Graco Infant 8457 December 1, 1999
Graco Snugr ide September 25, 2007
P eg Perego P rimo Viag- September 25, 2007
g io SI P IMU NOOUS
Subpart C -Forward-facing and convertible
child r estraints
Mod el Manufactured on or
after
Br itax Roundabout September 25, 2007
E9L02xx
Cosco Tou riva 025 19 December 1, 1999
Cosco Summit De luxe September 25, 2007
H igh Back Booster
22-262
Cosco High Back Boos -September 25, 2007
ter 22 -209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Meda llion 254 December 1, 1999
E venflo Generat ions September 25, 200 7
35 2xxxx
Graco ComfortSport September 25, 2007
Graco Todd le r Safety September 25, 200 7
Seat Step 2
Graco Plat inum Cargo September 25, 2007
A WARNING
To redu ce the ris k of serious injury, ma ke sure
that the
PASSENGER AIR BAG OFF ,;; light
comes on and stays on whenever a c hild re­
straint is installed on the front passenger seat
and the ignition is switched on .
~
