Technical data not successful. Tow-starting is an attempt to start the engine via the
movement of the wheels.
When tow-starting a vehicle with a petrol engine, do not tow it more
than a short distance, otherwise unburnt fuel can enter the catalytic
converter and cause damage.
WARNING
There is a high risk of accidents when tow-starting, as the towed
vehicle can easily be driven into the towing vehicle.
Caution
When tow-starting the vehicle, do not tow it further than 50 metres:
otherwise the catalytic converter could be damaged.To w i n g a w a y
Certain restrictions must be observed when towing your
vehicle.Please observe the notes ⇒page 187.
The vehicle can be towed with a towbar or towrope in the normal
way, with all four wheels on the ground. When doing so, please note
the following points:•
Make sure the gear lever is in neutral or the selector lever is in
the N position.
•
The vehicle must not be towed faster than 50 km/h.
•
The vehicle must not be towed further than 50 km. The reason
for this is: when the engine is not running, the gearbox oil pump
does not work and the gearbox is not adequately lubricated for
higher speeds or longer distances.
Caution
The vehicle must not be towed with the wheels lifted at either the
front or rear otherwise the gearbox may be damaged.
Note
If it is not possible to tow the vehicle as described above, or if it has
to be towed further than 50 km, it must be transported on a special
car transporter or trailer.
document_0900452a816e6cc9.book Seite 189 Mittwoch, 21. Februar 2007 1:32 13

Fuses and bulbs 190Fuses and bulbsFusesChanging fuses
If a fuse has blown it must be replaced.The various electrical circuits are protected by fuses. The
fuses are located behind a cover in the passenger's foot-
well.
– Switch off the ignition and the component concerned.
– Remove the floor mat.
– Fold out the foot rest ⇒fig. 133.
– Identify the fuse for the failed component ⇒page 190,
“Fuse list”.
– Take the plastic clip from inside the fuse box, fit it onto
the blown fuse, and pull the fuse out.
– Replace the blown fuse (which will have a melted metal
strip) with a new fuse of the same amp rating.
– Fold the foot rest back into place.Caution
Never attempt to “repair” a fuse or replace it by fitting a fuse with a
higher rating - risk of fire! It could also cause damage to other parts
of the electrical system.
Note
•
If a newly replaced fuse blows again after a short time, the elec-
trical system must be checked by a qualified workshop as soon as
possible.
•
It is advisable to carry several spare fuses at all times. They are
available from Audi R8 dealers and specialist retailers.
Fuse listFig. 134 Fuse layout in passenger's footwell, rows A to F
Fig. 133 Passenger's
footwell: Foot rest/fuse
box
document_0900452a816e6cc9.book Seite 190 Mittwoch, 21. Februar 2007 1:32 13

Fuses and bulbs191
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
The fuse box is located behind the foot rest in the
passenger's footwell ⇒page 190, fig. 134.Row of the fuse box is not used.Row
No
Electrical equipment
amps
1
Mobile phone adapter
5
2
Heated washer jets
5
3
Parking aid (APS)
10
4
Vacant
--
5
Diagnostic interface, light switch,
Airbag OFF warning lamp, selector lever
10
6
Network gateway, diagnostic interface
5
7
Vacant
--
8
Anti-dazzle interior mirror, garage door
opener
10
9
Washer pump
15
10
ESP button
10
11
Pressure sensor, air conditioner
5
12
Airbag
5
Fuse row -B-
AAAB
Row
No
Electrical equipment
amps
1
Radiator fan (1)
40
2
Radiator fan (2)
40
3
Exterior lighting
40
4
Exterior lighting
40
5
Vacant
--
6
Blower control
40
Fuse row -C-Row
No
Electrical equipment
amps
1
Reversing camera
5
2
Tyre pressure monitoring
10
3
Parking aid (APS)
5
4
Phone pre-installation, compensor
5
5
Instrument cluster
5
6
Network gateway
5
7
Switches for steering column
5
8
Diagnostic interface, brake pedal switch,
selector lever
10
9
Rain sensor/light sensor
5
10
Interior lighting
5
11
Sound amplifier
30
12
Radio
20
Fuse row -D-
ACAD
document_0900452a816e6cc9.book Seite 191 Mittwoch, 21. Februar 2007 1:32 13

Fuses and bulbs 192
Some of the items listed are only fitted on certain models or are
optional extras.

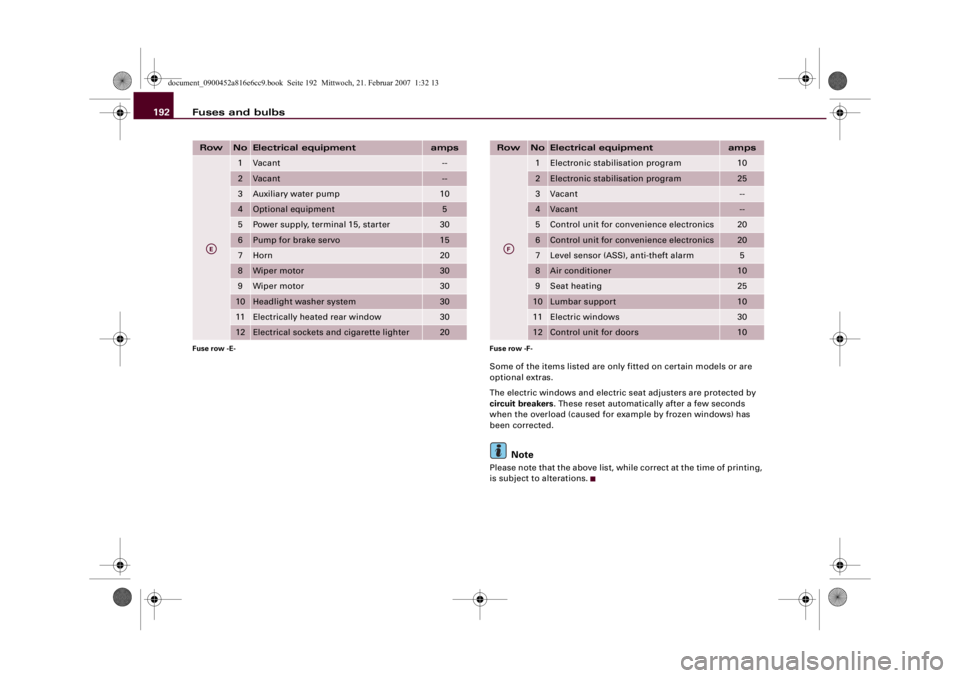

The electric windows and electric seat adjusters are protected by
circuit breakers. These reset automatically after a few seconds
when the overload (caused for example by frozen windows) has
been corrected.
Note
Please note that the above list, while correct at the time of printing,
is subject to alterations.
Row
No
Electrical equipment
amps
1
Vacant
--
2
Vacant
--
3
Auxiliary water pump
10
4
Optional equipment
5
5
Power supply, terminal 15, starter
30
6
Pump for brake servo
15
7
Horn
20
8
Wiper motor
30
9
Wiper motor
30
10
Headlight washer system
30
11
Electrically heated rear window
30
12
Electrical sockets and cigarette lighter
20
Fuse row -E-
AE
Row
No
Electrical equipment
amps
1
Electronic stabilisation program
10
2
Electronic stabilisation program
25
3
Vacant
--
4
Vacant
--
5
Control unit for convenience electronics
20
6
Control unit for convenience electronics
20
7
Level sensor (ASS), anti-theft alarm
5
8
Air conditioner
10
9
Seat heating
25
10
Lumbar support
10
11
Electric windows
30
12
Control unit for doors
10
Fuse row -F-
AF
document_0900452a816e6cc9.book Seite 192 Mittwoch, 21. Februar 2007 1:32 13

Fuses and bulbs193
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data
BulbsNoteYour vehicle is fitted with maintenance-free headlights and rear
lights. If you do need to change a bulb, please contact your Audi R8
dealer or specialist retailer.
document_0900452a816e6cc9.book Seite 193 Mittwoch, 21. Februar 2007 1:32 13

194
document_0900452a816e6cc9.book Seite 194 Mittwoch, 21. Februar 2007 1:32 13

195 Technical data
document_0900452a816e6cc9.book Seite 195 Mittwoch, 21. Februar 2007 1:32 13

General notes 196General notesNotesWhere not otherwise indicated or separately listed, all technical
data apply to vehicles with standard equipment for the German
market. Other figures may apply for special versions and export
models.
Please note that the details listed in the vehicle's registration docu-
ments can be taken as correct.
Engine data
The figures for engine power output are determined according to
EU standards. Slight variations are possible due to the different test
methods.
Performance figures
The performance figures were measured without equipment which
may influence performance, such as mudflaps or extremely wide-
section tyres.
Kerb weight (unladen weight)
These figures (kerb weight according to the currently applicable
version of EU Directive 92/21/EEC) apply to the vehicle with the tank
90% full, with no special equipment. The figures include an addi-
tional 75 kg to allow for the weight of the driver.
Vehicle identification dataThe most important data are given on the type plate and
the vehicle data sticker.Type plate
The type plate is located on the passenger's door pillar.
Vehicles for certain export countries have no type plate.

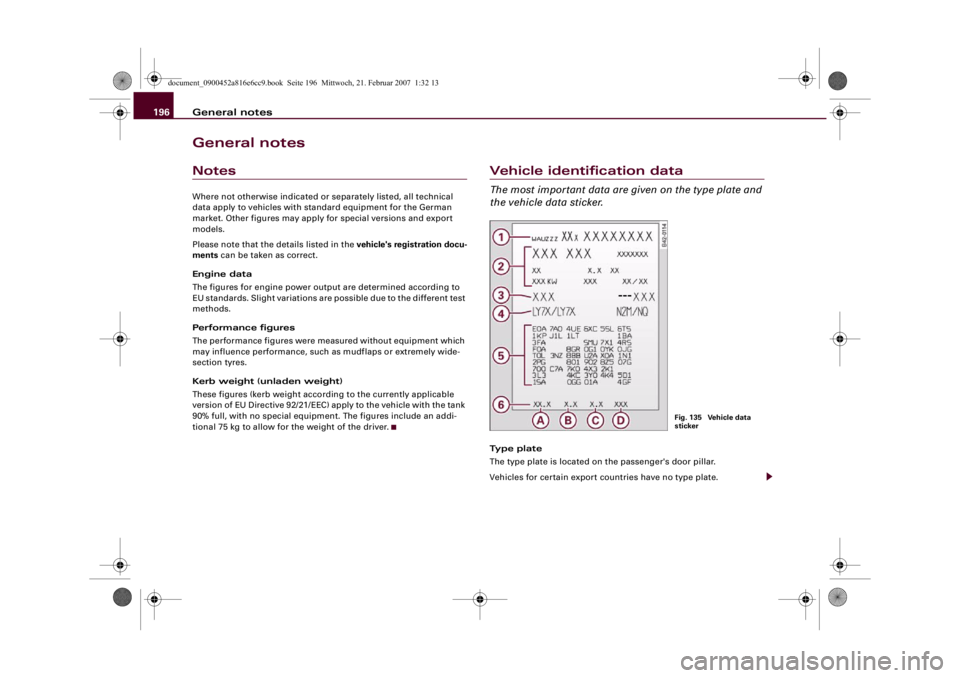

Fig. 135 Vehicle data
sticker
document_0900452a816e6cc9.book Seite 196 Mittwoch, 21. Februar 2007 1:32 13

General notes197
Controls
Safety
Driving tips
General maintenance
Self-help
Technical data Vehicle identification number
6)
The vehicle identification number (chassis number) can be found
behind the windscreen (bottom left).
Vehicle data sticker
The vehicle data sticker ⇒page 196, fig. 135 is located together with
the fuses in the passenger's footwell ⇒page 190. One section of the
vehicle data sticker is attached to the inside cover of the Service
Schedule before the vehicle is handed over.
The sticker lists the following data:
Vehicle identification number (chassis number)
Vehicle type / engine power / gearbox type
Engine and gearbox code letters
Paint No. / Interior equipment No.
Optional equipment codes
Fuel consumption and emissions
Fuel consumption and emissions
Information on the vehicle's fuel consumption and emissions is
given at the bottom of the vehicle data sticker :
Urban cycle consumption (ltr./100 km)
Extra-urban cycle consumption (ltr./100 km)
Combined cycle consumption (ltr./100 km)
Combined CO
2 emissions (g/km)
The specified values were determined in accordance with the test
procedure prescribed by the currently applicable version of
Directive 80/1268/EEC. The specifications do not refer to an indi-
vidual vehicle. Other consumption figures may be achieved during
normal driving, depending on special equipment fitted, vehicle
loading, personal driving style, road and traffic conditions, environ-
mental factors and the condition of the car.
6)On some models you can also call up the vehicle identification number on
the menu display.A1A2A3A4A5A6
A6
AAABACAD
document_0900452a816e6cc9.book Seite 197 Mittwoch, 21. Februar 2007 1:32 13

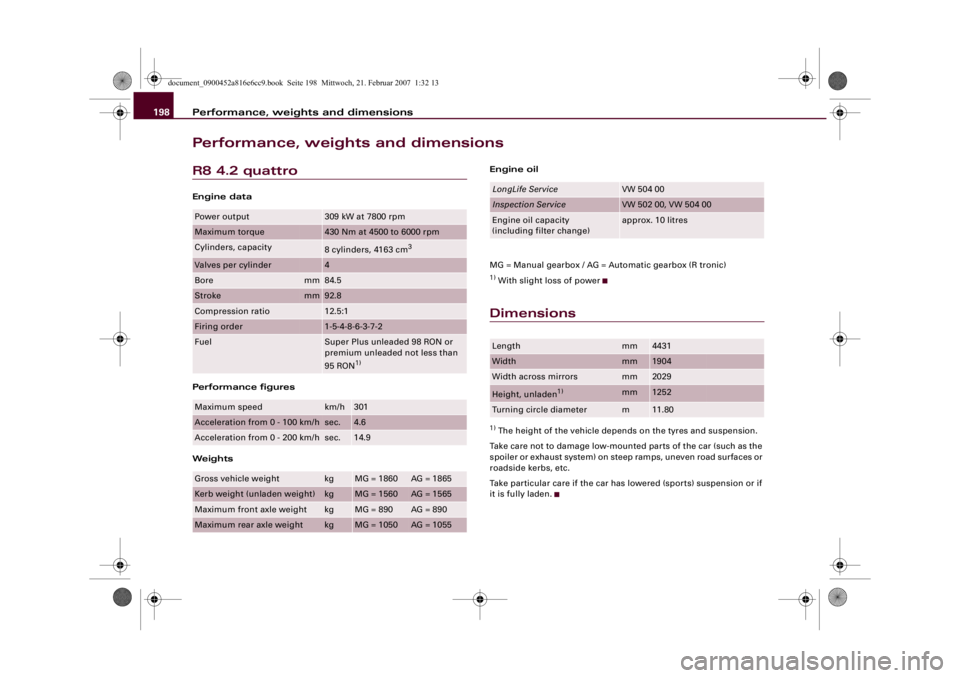

Performance, weights and dimensions 198Performance, weights and dimensionsR8 4.2 quattroEngine data
Performance figures
WeightsEngine oil
MG = Manual gearbox / AG = Automatic gearbox (R tronic)
1) With slight loss of powerDimensions1) The height of the vehicle depends on the tyres and suspension.
Take care not to damage low-mounted parts of the car (such as the
spoiler or exhaust system) on steep ramps, uneven road surfaces or
roadside kerbs, etc.
Take particular care if the car has lowered (sports) suspension or if
it is fully laden.
Power output
309 kW at 7800 rpm
Maximum torque
430 Nm at 4500 to 6000 rpm
Cylinders, capacity
8 cylinders, 4163 cm
3
Valves per cylinder
4
Bore
mm
84.5
Stroke
mm
92.8
Compression ratio
12.5:1
Firing order
1-5-4-8-6-3-7-2
Fuel
Super Plus unleaded 98 RON or
premium unleaded not less than
95 RON
1)
Maximum speed
km/h
301
Acceleration from 0 - 100 km/h
sec.
4.6
Acceleration from 0 - 200 km/h
sec.
14.9
Gross vehicle weight
kg
MG = 1860
AG = 1865
Kerb weight (unladen weight)
kg
MG = 1560
AG = 1565
Maximum front axle weight
kg
MG = 890
AG = 890
Maximum rear axle weight
kg
MG = 1050
AG = 1055
LongLife Service
VW 504 00
Inspection Service
VW 502 00, VW 504 00
Engine oil capacity
(including filter change)
approx. 10 litres
Length
mm
4431
Width
mm
1904
Width across mirrors
mm
2029
Height, unladen
1)
mm
1252
Turning circle diameter
m
11.80
