If the convertible locking retracto r shou ld be
activated inadvertently, the safety belt must be unfastened and guided comp letely back in­
to its stowed position to deactivate th is fea­
ture. If the co nvertible locking retractor is not
deactivated, the safety belt will gradually be­
come tighter and u ncomfortable to wear.
A WARNING
Improperly insta lled child safety seats in­
crease the risk of ser ious personal inju ry
and death in a collision.
- Never unfasten the safety belt to deacti­
vate the convert ible lock ing ret ra ctor for
child restrain ts w hile the veh icle is mov­
ing. You would not be rest rained and
cou ld be seriously injured in an accident.
- Always read and heed all WARN INGS
whenever using a child rest rained in ave ­
hicle is being used
c:!) page 165. Spec ial
precautions apply when installing a ch ild
safety seat on the front passenger seat
c:!) page 141, Child restraints on the front
seat -some important things to know.
LATCH Lower
anchorages and tethers
for children
Child Restraint System anchors and how
are they related to child safety
To provide a s impler and more pract icable way
to attach the child restraint on the vehicle
seat, Federa l regu lations require specia l lower
anchorages in vehicles and devices on new
chi ld restraints to attach to the vehicle ancho­
rages.
The combination of the tether anchorages and
the lower anchorages is now generally called
the
LAT CH system for " Lower Anchorages and
T ethers for Children."
F orward-facing child restraints manufactured
after September 1, 1999, are required by U.S.
federal regulations to comply with new child head movement performance requirements.
Child Sa fet y 1 79
These new performance requirements make a
tether necessary on most new child seats.
Installing a ch ild restra int that requires a top
tether without one can seriously impair the
performance of the child restraint and its abil ­
ity to protect the child in a collision . Insta lling
a chi ld restraint that requires a top tether
without the top tether may be a violat ion of
state law.
Child restraint manufacturers offer LA TCH
l ower anchorages on their child seats w ith
hook-on or push-on connectors attached to
adjustable straps.
In addition to the LATCH lower anchorages,
these chi ld restraint systems usually require
the use of tether straps to he lp keep the child
restraint f irmly in place.
A WARNING
Improper installat ion of child restra ints
will increase the r isk of injury and death in
a crash.
- Always follow the instructions provided
by the manufacturer of the child re­
straint you intend to install in your vehi­
cle.
- Never install a child restraint without a
properly attached top tether strap if the
child restraint manufacturer's instruc­
tions require the top tether st rap to be
used .
- Improper use of child restraint LATC H
lower anchorage points can lead to injury
in a collision. The LATCH lowe r anchorage
points are designed to withstand on ly
those loads imposed by correctly fitted
child restraints.
- Never mo unt two child restraint systems
on one LATCH lower anchorage point.
- Never secure or attach any luggage or
other item to the LATCH lower anchorag­
es.
-
•
•

180 Child Safet y
@ Tips
-In Canada, the terms "top tether" with
"lower universa l anchorages" (or "lower
universal anchorage bars") are used to
describe the system.
- In other countries, the term "ISO FIX" is used to describe the lower anchorages.
Location
Fig . 174 Schemat ic overview: LA TCH ancho rage point
l ocat ions
The illustration shows the seating locations in
your veh icle which are equipped w ith the low­
e r anchorages system.
Description
The lower anchorage positions are marked
for quick locating .
Fig. 175 Lower a nch orages, covers marked
Fig. 176 Rea r seats: lowe r ancho rage b racket locat ions
L o w er an ch orage s
The circular markings on the rear seat help
you to ident ify the location of lower anchorag ­
es for the two outboard seating positions
~ fig . 175. The LATCH lower unive rsal ancho r­
age a ttachment po ints are between the rear
seatback and rea r seat cushion .
Remove the covers~
fig. 175 to access the
lower anchorage attachment points.
The lower anchorage attachment points are
vis ible
c:> fig . 176 .
Lower anchorages secure the chi ld restraint in
the seat without using the vehicle 's safety
belts. Anchorages provide a secure and easy­
to -use attachment and minimize the possib ili­
ty of improper child rest ra int installation .
All child restraints manufactured after Sep­
tember 1, 2002, must h ave lower anchorage
attachments for the
LATCH system .
Please remember that the lower anchorage
po ints are only intended for installat ion and
attachment of child restraints spec ifically cer­
tified fo r use with
LATCH lower anchorages .
Child rest raints that are not equ ipped with the
lower anchorage attachments can still be in­
sta lled in compliance w ith the ch ild restra int
manufactu rer's instr uctions on using veh icle
safety belts .
A WARNING
-
Improper use of LATCH lower anchorages
can cause serious persona l injury in an ac ­
cident.
- Always carefu lly follow the child re ­
straints manufacturer's instructions for

"' N
a:: I.J "". rl I.O
"' ......
"' rl
proper installation of the child restraint
and proper use of the lower anchora ges
or safety belts in your vehicle.
- Never secure or attach any luggage or
other items to the LATCH lower ancho­
rages.
- Always read and heed the important in­
formation about child restraints in this
chapter and WARNINGS¢
page 165,
Child Safety.
Installing a child restraint with LATCH
lower anchorages
Whenever you install a child restraint always
follow the child restraint manufacturer's in­
structions.
Fig. 177 Lower anchorages: p roper mo unting
Mounting
.. Make sure the seatback of the rear seat
bench is in the upright position and securely
latched in place.
.. Attach both hook-on connectors with the
spring catch release on the child safety seat
onto the LATCH lower anchorage so that the
connectors lock into place¢
fig. 177 .
.. Pull on the connector attachments to make
s ure they are properly attached to the LATCH
lower anchorage .
.. Pull straps tight following the child restra int
manufacturer's instructions.
Releasing
.. Loosen the tension on the straps following
the child restraint manufacturer's instruc­
tions .
Child Safety 181
.. Depress the spring catches to release the
anchorage hooks from the lower anchorag­
es.
Remember: Use tether straps to help keep the
child restraint firmly in place.
& WARNING ~
Improper use of the LATCH system can in-
crease the risk of serious personal injury
and death in an accident.
- These anchors were developed only for
child safety seats using the "LATCH" sys­
tem.
- Never attach other child safety seats,
belts or other objects to these anchors.
- Always make sure that you hear a click
when latching the seat in place. If you do
not hear a click the seat
is not secure and
could fly forward and hit the interior of
the vehicle, or be ejected from the veh i­
cle .
& WARNING
Improper installat ion of child restraints
will increase the risk of injury in an acci­
dent.
- Always follow the child restraint system
manufacturer's instructions for proper
installation of the child restraint system
and proper use of tether straps as well as
the lower anchorages or safety belts in
your vehicle .
-Always read and heed the important in­
formation and WARNINGS about child safety and the installation of child re­
straint systems¢
page 165, Child Safe­
ty.
-

182 Child Safet y
Tether anchors and tether straps
Fig. 178 Tethe r ancho rs: attachment hook locat io ns
behind the rea r sea tbacks
The tethe r anchors for the rear sea ting posi­
tions are located on the backside of the rea r
seatbacks
~ fig. 178.
A tether is a straight or V-shaped strap that
attaches the top part of a child restraint to
specia l anchorage points in the veh icle.
The purpose of the tether is to reduce the for·
ward movement of the ch ild restra int in a
crash, in order to he lp reduce the r isk of head
in ju ry that could be ca used by s tri king the ve­
hicle interior.
Forward facing child restra ints manufactured
after September 1, 1999, a re required by U .S .
federal regulations to comply with new child
head movement performance requirements.
These new performance requ irements make a
tether necessary on most new chi ld safety
seats.
A WARNING
Improper insta llation of chi ld restraints
w ill increase the risk of injury and death in
a crash.
- Always follow the instructions prov ided
by the manufacturer of the ch ild re­
st ra int you intend to install in your Audi.
- Improper use of c hild restra int anchors
(including tether anchors) can lead to in ·
jury in a co llision. Th e anchors are de·
sign ed to withstand only those loads im­
posed by cor rect ly fi tted ch ild restraints.
- Never mou nt two chi ld restraint systems
on one LA TCH lower anchor po int. -
Never attach two child restraint systems
to one tether strap or tether ancho rage.
- Never attach a tether strap to a tie-down
hook in the luggage compartment.
- Never use child restraint tether ancho­
rages to secure safety belts or other
kinds o f occupant restraints.
- Never secure or attac h any luggage or
other items to the LATCH lower ancho­
rages or to the tether anchors.
- If you must install a rearwa rd facing
chi ld safety seat on the front passenger
seat because of exceptiona l c ircumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately insta ll the rear-fac ing ch ild
safety seat i n a rea r seating position and
h ave the air bag system ins pe cte d by your
Au di dea le r.
Installing the upper tether strap on the
anchorage
F ig . 1 79 Tet her st rap: prope r rou ting and mou nting
Installing the tether strap
.,. Release or deploy the tether st rap on the
child res traint accord ing to t he child re­
s traint manufa cturer's instructions.
.,. Guide the upper te ther s trap unde r or side­
ways o f the rear head restraint~
fig. 179
(depending on the c hild restraint) .
.,. Attach the tether strap anc horage hook into
the tether anchorage.
.,. Pull on the tether strap hook so that the
spring catch of the hook engages .
.,. Tighten t he tether strap firmly fol low ing the
child r estraint manufacture r's instructions .
liJJ,

M N
0:: <.J 'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,

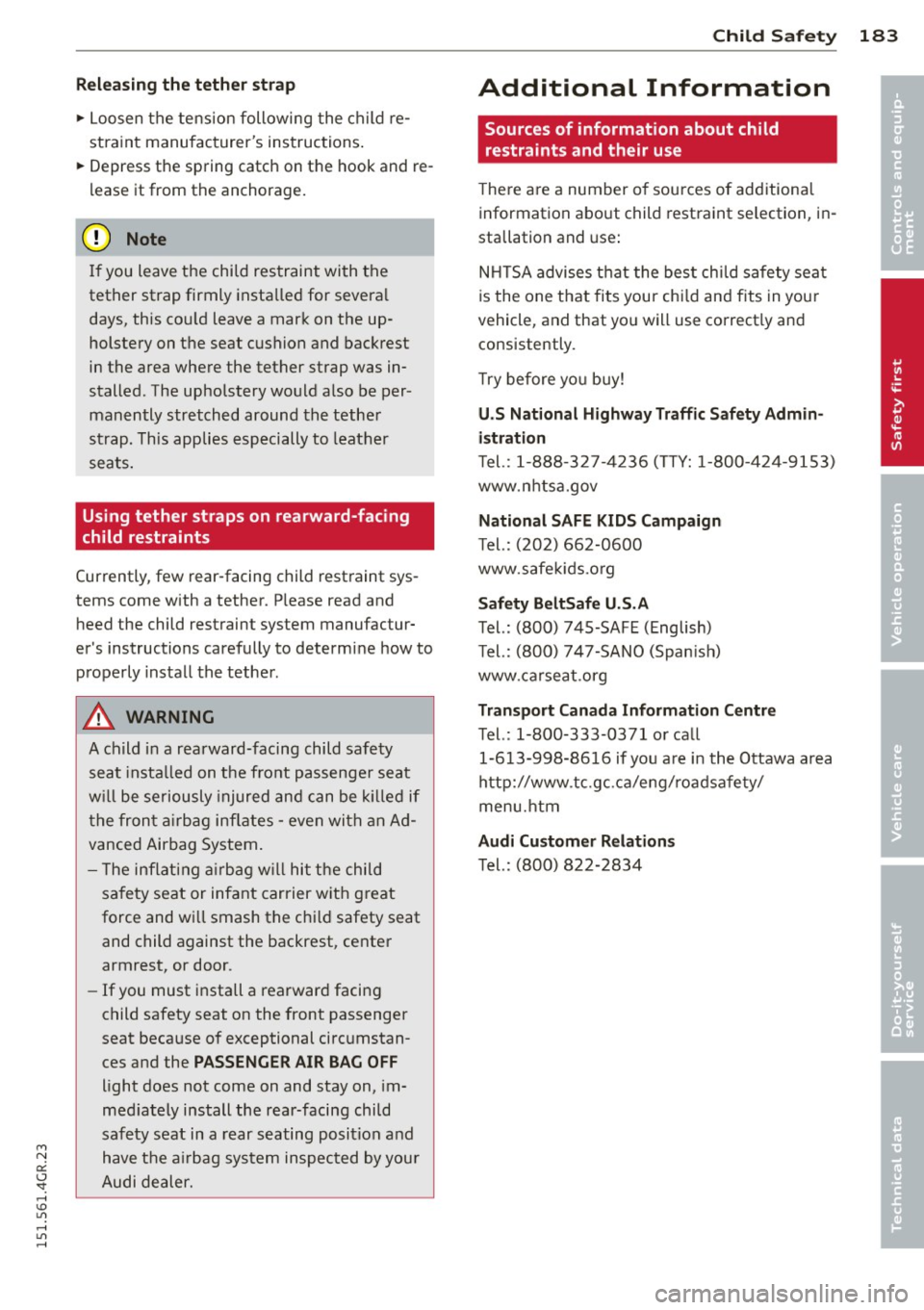

Releasin g the teth er str ap
"' Loosen the tens ion following the child re ­
stra int manufac turer's instructions .
"' Depress the spring catch on the hook and re­
l ease it from the anchorage.
(D Note
If you leave the child restraint with the
tether strap firmly insta lled for severa l
days, this cou ld leave a mark on the up­
holstery on the seat cushion and backrest
in the area where the tether strap was in­
stalled. The upholstery would a lso be per­
manently stretched around the tether
strap. This applies especially to leat her
seats.
Using tether straps on rearward-facing
child restraints
Currently, few rear-facing child restraint sys­
tems come with a tether. P lease read and
heed the child restraint system manufactur­
er's instructions carefully to determine how to
properly install the tether.
A WARNING
-
A child in a rearward-facing child safety
seat insta lled on the front passenge r seat
w ill be se riously injured and can be killed if
t he fron t air bag inflates - even with an Ad­
vanced Airbag System .
- T he inf lat ing airb ag w ill hit the child
sa fety seat or infant carrier w it h great
force and w ill smash the ch ild safety seat
and child against the backrest, center
armrest, or door.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circ umstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
med iately install the rear-facing child
safety seat in a rear seating position and
have t he a irbag system inspected by you r
Audi de aler.
Child Sa fet y 183
Additional Information
Sources of information about child
restraints and their use
There are a number o f sources of additiona l
information abo ut child restraint se lection, in­
stallation and use :
N HT SA advises t hat the bes t ch ild safety seat
is the one that fits your chi ld and fits in your
vehicle, and that yo u will use correct ly and
consistently.
T ry before yo u buy!
U.S National Highway Traffic Safety Admin­
istration
Tel.: 1 -888 -3 27-42 36 (TIY: 1-800-424-9153)
www. n hts a .gov
National SAFE KIDS Campaign
Tel.: (202) 66 2-0600
www.safe kids.o rg
Safety Belt Safe U .S .A
Tel.: (800) 7 45-SAFE (English)
Te l.: (800) 7 47-SANO (Span ish)
www.carseat.org
Transpo rt Canada Information Centre
Tel.: 1-800-333-0371 o r ca ll
1-6 13-998-86 16 if yo u are in the Ottawa a rea
http://www .t c .gc. ca/eng/ roadsafety/
men u.h tm
Audi Cu stomer R elation s
Tel.: (800) 822-2834 •
•

184 Audi pre sense
Audi pre sense
Preventative passenger
protection
A pp lies to veh icles: with Audi pre se nse
Audi pre sense can initiate steps to help pro­
tect vehicle occupants in certain situations.
The functions described depend on equ ipment
installed in your vehicle:
Audi pre sense basic*
The following functions can be triggered in
certain driving situations:
- Tightening of the safety belts (for example,
during heavy braking) : the front safety belts
have reversible belt pretensioners. If a colli­
sion does not occur, the safety belts loosen
slightly and are ready to be tightened again.
- Closing the windows and the sunroof*: the
windows and the sunroof* close leaving a
small open gap.
Audi pre sense basic functions can be trig­
gered at speeds above 20 mph (30 km/h).
Vehicles with Aud i drive select*: the deploy­
ment time is adapted in
Dynamic mode.
Audi pre sense front (vehicles with
adaptive cruise control*)
Audi pre sense front includes the functions in
Audi pre sense basic. In addition, within the
limits of the system, the likelihood of a colli ­
sion with the vehicle immediately ahead is al­
so calculated . If the system senses an immi­
nent collision the following functions can be
tr iggered :
- Braking guard c::>poge
87
-Tightening the safety be lts
- Closing the windows and the sunroof* (leav -
ing a small open gap)
Audi pre sense rear (vehicles with Audi
side assist*)
Audi pre sense rear includes the functions in
Audi pre sense basic. In addition, the likeli­
hood of a rear-end collision with the vehicle
coming from behind is also calcu lated.
If the risk
of a co llision is detected, the following
functions can be triggered:
- Tig htening the safety belts
- Closing the windows and the sunroof* (leav-
ing a small open gap)
Audi pre sense plus*
Audi pre sense plus includes the functions in
Audi pre sense front and Audi pre sense rear.
Error message
Audi pre sense: not available
Preventative passenger protection is not avail­
able. See your authorized Audi dealer immedi­
ately to have the malfunction corrected.
_& WARNING
-=
Audi pre sense cannot overcome the laws
of physics. It cannot prevent a collision. Do
not let the increased safety provided
tempt you to take risks. This will increase
the r isk of a collis ion and serious personal
in juries .
- The sensors cannot always detect all ob­
jects. This increases the risk of a colli­
s10n.
-Aud i pre sense does not detect people or
an im als or objects that are crossing the
veh icle's path c::> page
81.
-The radar sensor's vis ion can be reduced
by heavy rain, ice, snow, heavy road sp ray
and reflections from guard rails, tunnel
entrances, etc. These and similar condi­
tions can prevent vehicles from being ac ­
curately detected and in some cases they
may not be detected at all.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the function of
the Audi pre sense system. Have your au­
thorized Audi dealer check to make sure
that the system is working properly.

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,
@ Tips
-Certain Audi pre sense functions are not
ava ilable when ASR is sw itched off (sport
mode) or when driving in reverse.
- The Audi pre sense functions may not be
available if there is a malfunction in the
ESC system or the airbag control mod­
ule.
- The Audi pre sense front/plus functions
are not available if there is a malfunction
in the adaptive cru ise control* system
9 page88.
-The Audi pre sense rear/plus functions
are not available if there is a malfunction
i n the Audi side assist* system
9page88.
Audi pre sense 185
•
•

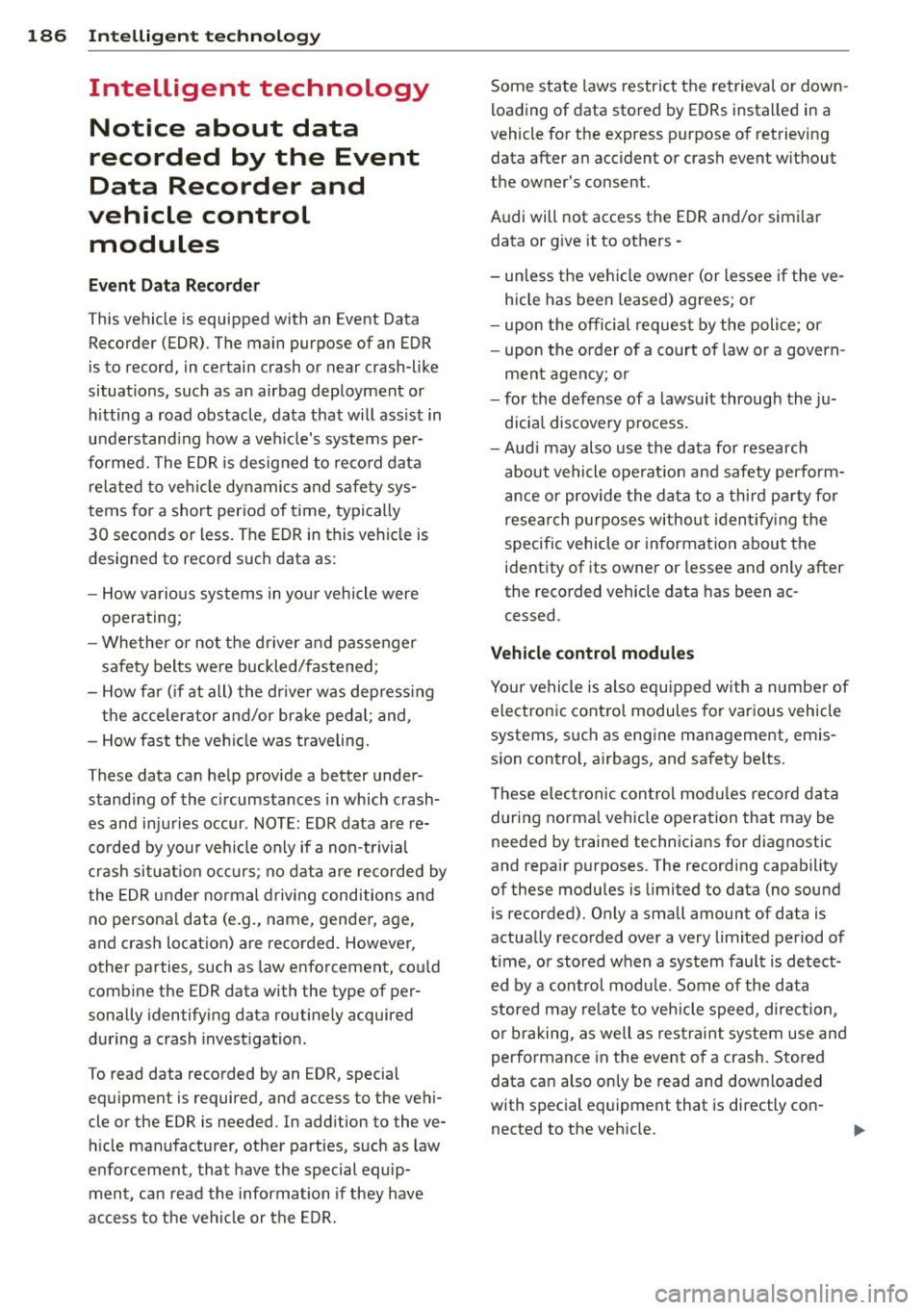

186 Intelligent technology
Intelligent technology
Notice about data
recorded by the Event
Data Recorder and
vehicle control modules
E ve nt Dat a Recorder
This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR
is to record, in certain crash or near crash-like
situations, such as an airbag deployment or h itting a road obstacle, data that will ass ist in
understand ing how a veh icle's systems per­
formed. The EDR is designed to record data
re lated to vehicle dynamics and safety sys­
tems for a short period of time, typically
30 seconds or less. The EDR in this vehicle is
designed to record such data as:
- How various systems in you r vehicle were
operating;
- Whether or not the d river a nd passenger
safety belts were buckled/fastened;
- How far ( if at all) the dr iver was dep ress ing
the accelerator and/or brake peda l; and,
- How fast the ve hicle was traveling.
These data can help provide a better under­
stand ing of the c ircumstances in which crash­
es and injuries occur . NOTE : EDR data a re re­
corded by your veh icle only if a non-trivial
crash sit uat ion occ urs; no data are recorded by
the EDR under normal driving cond itions and
no personal data (e.g., name, gender, age,
and crash location) are recorded. However,
other parties, such as law enforcement, co uld
comb ine the EDR data with the type of per­
sonally identify ing data routinely acquired
during a crash invest igation .
To read data recorded by an EDR, special
equ ipment is required, and access to the veh i­
cle or the EDR is needed. In add ition to the ve­
h icle manufacturer, other parties, such as law
e nfo rcement, that have the special equip­
ment, can read the information if they have
access to the ve hicl e or the EDR. Some state
laws restrict the retrieval o r down­
loading of data stored by ED Rs insta lled in a
vehicle for the express purpose of retrieving data after an accident or crash event w ithout
the owner's consent .
Audi will not access the EDR and/or simi lar
data or g ive it to others -
- un less the vehi cle owner (or lessee if the ve ­
hicle has been leased) agrees; or
- upon the officia l request by the police ; or
- upon the o rder of a court of law or a govern-
ment agency; or
- for the defense of a lawsuit through the ju­
dicia l discovery p rocess.
- Aud i may also use the data for research
about vehicle ope rat ion and safety perform­
ance or provide the da ta to a third party fo r
research purposes without iden tif ying the
specif ic vehicle or in formation about the
identity of its owner or lessee and only after
the recorded vehicle data has been ac­
cessed .
Vehicle control modul es
Your vehicle is also equ ipped with a n umber of
electron ic control modules for various vehicle
systems, such as engine management, emis­
sion contro l, airbags, and safety belts.
T hese electronic con trol mod ules record data
during norma l vehicle operation that may be
needed by trained technicians for diagnostic
and repair purposes. The recording capability
of these modu les is limited to data (no sound
is recorded). Only a small amount of data is
actually recorded over a very lim ited period of
t ime, or stored when a system fault is detect­
ed by a contro l modu le. Some of the data
stored may re late to vehicle speed, direction,
o r braking, as well as restraint system use and
performance in the event of a crash. Stored
data can also only be read and dow nloaded
with special eq uipment that is directly con-
nected to the vehicle. .,..

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,
@ Tips
Your vehicle may be equipped with Audi
connect. Your use of certain Aud i connect
features req uires wireless serv ices that are
provided by a third party wireless telecom­
municat ions provider. For details regard­
ing how information obtained through
Aud i connect is collected, processed,
transmitted, used, and shared, please see
your contra ct w ith the wire less telecom ­
municat ions provider and the "About A udi
connect" tab in your vehicle's MMI:
!MENU !
button > Audi connect > About Audi con·
nect .
Electronic Stabilization
Control (ESC)
Description
ESC helps to improve road holding and vehicle
dynamics to help reduce the probability of
skidd ing and loss of veh icle control. It works
only when the eng ine is running. ESC detects
certain difficult driv ing s ituations, including
when the vehicle is beginning to spin (yaw)
out of cont ro l and helps you to get the vehicle
back under control by select ively brak ing the
wheels, and/or red ucing engine powe r and
p roviding steering assistance to help hold the
ve hicle on the driver's intended course . The in­
dicator light
m in the instrument cluster
blinks when ESC is taking action to help you
control the vehicle.
ESC has limitations.
It is important to remem­
ber that ESC cannot overcome the laws of
phys ics. It will not a lways be able to help out
under all conditions you may come up against.
For example, ESC may not always be able to
h elp you master situat ions where there is a
sudden change in the coefficient of fr iction of
the road surface. When there is a sect io n of
d ry road that is s udden ly cove red with water,
slush o r snow, ESC canno t perform the same
way it would on the dry su rface.
If the vehicle
hydroplanes (rides on a c ush ion of wate r in­
stead of the road surface), ESC wi ll not be
ab le to he lp you steer the veh icle because con-
Int ellig ent technolog y 187
tact with the pavement has been interrupted
and the vehicle cannot be braked or steered .
D uring fast corner ing, particular ly on wind ing
roads, ESC cannot always deal as effectively
with difficult dr iv ing s ituations than at lower
speeds.
A lways adjust your speed and driving style to
road, traffic and weather condit ions. ESC can­
not override the vehicle's physical lim its, in­
crease the availab le tract ion, or keep a veh icle
o n the road if road departu re is a result of
drive r inattent io n. Instead, ESC imp roves the
poss ibility of keep ing the vehicle unde r con­
trol and on the road dur ing extreme maneu­
vers by using the driver's steering inp uts to
help keep the vehicle going in the intended di ­
rection . If you are traveling at a speed that
causes you to run off the road before ESC can
provide any assistance, you may not experi­
ence the benefits of ESC.
ESC is switc hed on all the time . In certain sit­
uat ions when you need less traction, yo u can
switch off ASR by pressing the button
[&I
c::> page 189, fig. 180. Be sure to switch ASR
o n again when you no longer need less t rac ­
t ion.
The following systems are integrated in the
ESC:
Anti-lock bra king sy stem (ABS )
ABS prevents the whee ls from locking up
whe n brak ing. The vehicle can sti ll be stee red
even dur ing hard braking. App ly steady pres­
s u re to the brake pedal. Do not pump the ped­
al. A pulsing in the brake pedal indicates that
the system is helping you to brake the vehicle.
Brake as sist sy stem
The brake assist system can decrease braking
distance. It increases brak ing power when the
driver presses the brake peda l quickly in emer­
gency s ituations. You must press and hold the
brake pedal until the situation is over. In
vehicles with adapt ive c ruise control*, the
brake assist system is more sensitive if the
distance detected to the vehicle ahead is too
small.
•
•

188 Intelligent technology
Anti-slip regulation (ASR )
ASR reduces engine power when the drive
wheels begin to spin and adapts the force to
the road conditions. This makes it easier to
start, accelerat e and drive up hills .
Electronic differential lock (EDL )
The ED L brakes wheels that are spinn ing and
transfers the drive powe r to the o ther wheels.
This function is not availab le at higher speeds.
I n extreme cases , ED L automat ica lly switches
off to help keep the brake on the braked whee l
from ove rheating. EDL wi ll sw itch on aga in au­
tomatically when conditions have returned to
norma l.
Steering recommendation
The ESC helps to stabilize the ve hicle by
changing the steering to rque.
In vehicles with dynam ic steering*, ESC also
he lps to stabilize the stee ring in critical s itua­
tions.
Selective wheel torque control
Selective wheel torque control is used when
driving on curves . The front wheel on the in­
side of the curve o r both wheels on the inside
of the curve are braked selective ly as needed.
This a llows more prec ise driving in curves. The
appl icable system may no t activ ate when driv­
ing in wet or snowy condi tions .
A WARNING
- The ESC and its integrated systems can­
not overcome the lim its posed by natural
physical laws. This is especia lly impor- tant on slippery or wet roads
. If the sys­
tems beg in acting to stabilize your vehi­
cle, you should immediately change your
speed to match the road and traffic con­
ditions . Do not let the increased safety
provided by these systems tempt you to
take risks. Do ing so will increase the risk
of a loss of veh icle contro l, collision and
serio us pe rsonal inj uries.
- Always ad apt your speed to road, traffic
a nd wea ther conditions. The risk of los­
ing con trol of the vehicle increases when
driving too fast, especially through
curves and on slippe ry or wet roads, and
when dr iv ing too close to vehicles up
ahead . The ESC and its integrated sys­
tems cannot a lways prevent collisions -
there is still a risk of acc idents!
- Always accelerate with special care on
even, smooth su rfaces such as those that
are wet or covered with ice and snow.
The drive wheels can spin even w ith
these assistan ce sys tems that cannot al­
ways he lp to re duce the risk of loss of ve­
h icle control.
(D Tips
- ABS and ASR o nly wo rk correctly when
all four wheel s are equipped with identi­
c al tires . D iffe ren t tire sizes can lead to a
reduction in engine power.
- Yo u may hear noises when the systems
descr ibed are working.
- If the ind icator lig ht
BJ or rJlll (USA
mode ls)/ l§J (Can ada models) appears,
t here may be a malfunction ¢
page 18,
r:!>page 18.
