caused by airbags when they inflate, particu­
l arly when the occupant sitting next to it is
not seated properly. The s ide a irbag for the
front passenger seat can be used with proper­ ly installed chi ld restraints. Please be sure to
read the important information and warnings
whenever us ing a child restraint in a veh icle :
Safety belts
c::;, page 130, A irbag system
c::;, page 139, Child safety ~ page 165.
The side airbag system basically con sists of:
- the e lectronic control module and external
s ide impact sensors
- the two airbags located in the sides of the
front backrests and the two airbags* located
in the rear backrest
- the airbag warning light in the instrument
cluster.
The airbag system is monito red elect ron ica lly
to make certain that it is functioning properly
at all times. Each time you switch on the igni­
tion, the airbag system indicator light will
come on for a few seconds (self diagnostics) .
T he side airbag system supplements the safe­
ty belts and can help to reduce the risk of in ­
jury to the driver's, front and rear passenger's upper torso on t he side of the vehicle that is
struck in a side collision . The airbag deploys
only in s ide impac ts and on ly when the veh icle
acceleration registered by the control u nit is
hi gh enough . If this rate is below the refer­
e nce va lue progr ammed i nto the con trol un it,
the side airbags will not be triggered, even
though the ca r may be badly damaged as a re­
sult of the collision . It is not possible to de­
f ine an a irbag trigger ing range that will cover
eve ry possible angle of impact, since the cir­
cumstances will vary considerably between
one co llision and another . Important facto rs
in clude, for examp le, the natu re (hard o r soft)
of the impacting objec t, the ang le of impact ,
ve hicl e speed, etc. ~
page 1 60, Impor tan t
safety instructions on the side airbag sy stem.
Aside from the ir no rmal safety function, safe­
ty belts wor k to he lp keep the d river or front
passenger in posi tion in the event of a side
Airbag system 159
collision so that the side airbags can provide
protection.
T he airbag system is
not a substi tute fo r your
s af ety belt . Ra ther, it is part o f the over all oc­
cupant restra int system in you r vehicle . A l­
ways remember that the side airbag system
can on ly help to protect yo u if you are wearing
your safety be lt and wearing it proper ly. This
is another reason why you should always wear
your safety be lts, not just because the law re­
quires you to do so c::;,
page 130, General
notes.
It is important to remember that wh ile the
suppleme nta l side airbag system is desig ned
to r educe the likelihood of ser ious injuries,
othe r injur ies, for exampl e, swelling, bru is ing ,
friction bur ns and m ino r abrasions can a lso be
associ ated w ith dep loye d side airbags. Re­
member too, si de a irbags w ill dep loy o nly
once an d only in ce rtain kinds of accidents -
yo ur safety be lts a re a lways there to offer p ro ­
tection .
Vehicle damage, repair costs o r even the lack
of ve hicle damage are not necessarily a n indi­
cation of ove r-sensitive or failed airbag activa­
tion. In some coll is ions, both front and side
a irbags may inflate. Remember too, that air­
bags will deploy only once a nd only in certain
ki nds of col lisions - you r safety belts a re a l­
ways t he re to offe r protection in those acc i­
dents i n which a irbags are not supposed to
deploy or when they have a lready deployed .
The side airbag system will not deploy:
-when the ignit io n is switched off
- in side co llisions whe n the acceleration
meas ured by t he sensor is too low
- in front-end collisions
- in rear -end co llisions
- in rollove rs .
In some types of accidents the front airbags,
s ide cu rtain airbags and s ide a irbags may be
t rigge red together. .,,. •
•

160 Airbag system

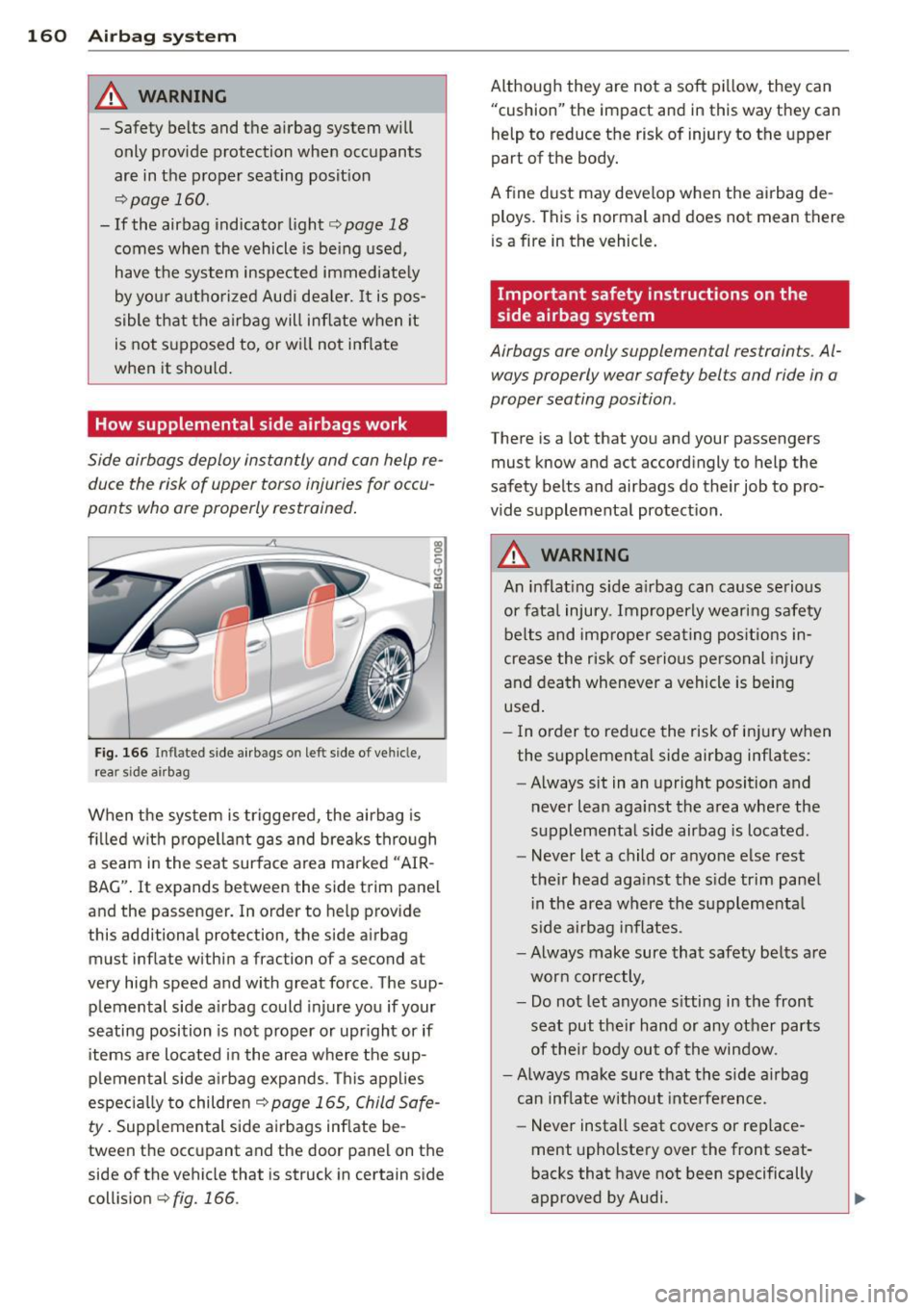

& WARNING
-Safety belts and the airbag system will
only provide protection when occupants
are in the proper seating position
<=>pag e 160.
- If the airbag indicator light c::> page 18
comes when the vehicle is being used,
have the system inspected immediately
by your authorized Audi dealer. It is pos­
sible that the airbag will inflate when it
is not supposed to, or will not inflate
when it should.
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig. 166 Inflated side airbags o n left side of vehicle,
rear s ide airbag
When the system is triggered, the airbag is
filled with propellant gas and breaks through
a seam in the seat surface area marked "AIR­
BAG". It expands between the side trim panel
and the passenger. In order to help provide
this additional protection, the side airbag
must inflate within a fraction of a second at
very high speed and with great force . The sup­
plemental side airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the sup­
plemental side airbag expands . This applies
especially to children
c::> page 165, Child Safe­
ty.
Supplemental side airbags inflate be­
tween the occupant and the door panel on th e
side of the vehicle that is struck in certain side
coll ision
c::> fig. 166 .
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper
part of the body.
A fine dust may develop when the airbag de­ ploys. This is normal and does not mean there
is a fire in the vehicle.
Important safety instructions on the
side airbag system
Airbags ore only supplemental restraints. Al­
ways properly wear safety bel ts and ride in a
proper seating position .
There is a lot that you and your passengers
must know and act accord ingly to help the
safety belts and airbags do their job to pro­
vide supplementa l protection .
& WARNING
-An inflating side airbag can cause serious
or fatal injury . Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located .
- Never let a child or anyone else rest
their head against the side trim panel in the area where the supplemental
side airbag inflates.
-Always make sure that safety belts are
worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window .
- Always make sure that the side airbag
can inflate without interference.
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.

"' N
a:: I.J "". rl I.O
"' rl
"' rl
-Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer .
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders., tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat
backrests .
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position.
- Always use the built-in coat hooks only
for lightweight clothing. Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must
always be repaired immediately by an au­
thorized Audi dealer.
Airbag system 161
-If children are seated improperly, their
risk of injury increases in the case of an
accident
Q page 165, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­
rectly measure increasing air pressure in­
side the doors when air escapes through
larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­ els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
- Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop .
Side curtain airbags
Description of side curtain a irbags
The side curtain airbag system can provide
supplemental protection to properly restrain­
ed occupants.

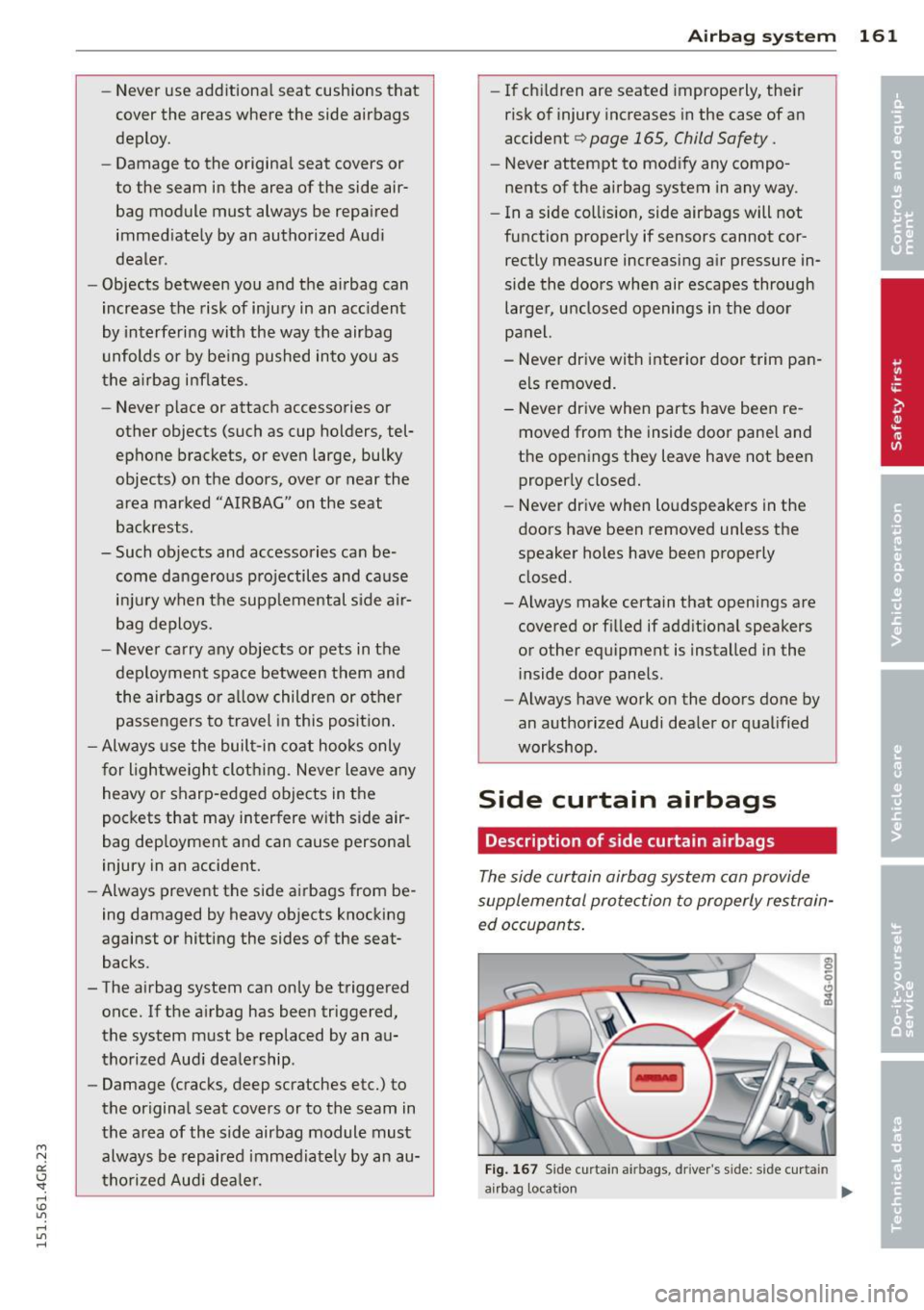

Fig. 167 Sid e curta in airbag s, driver's sid e: s ide curta in
airbag locatio n ....

162 Airbag sys tem

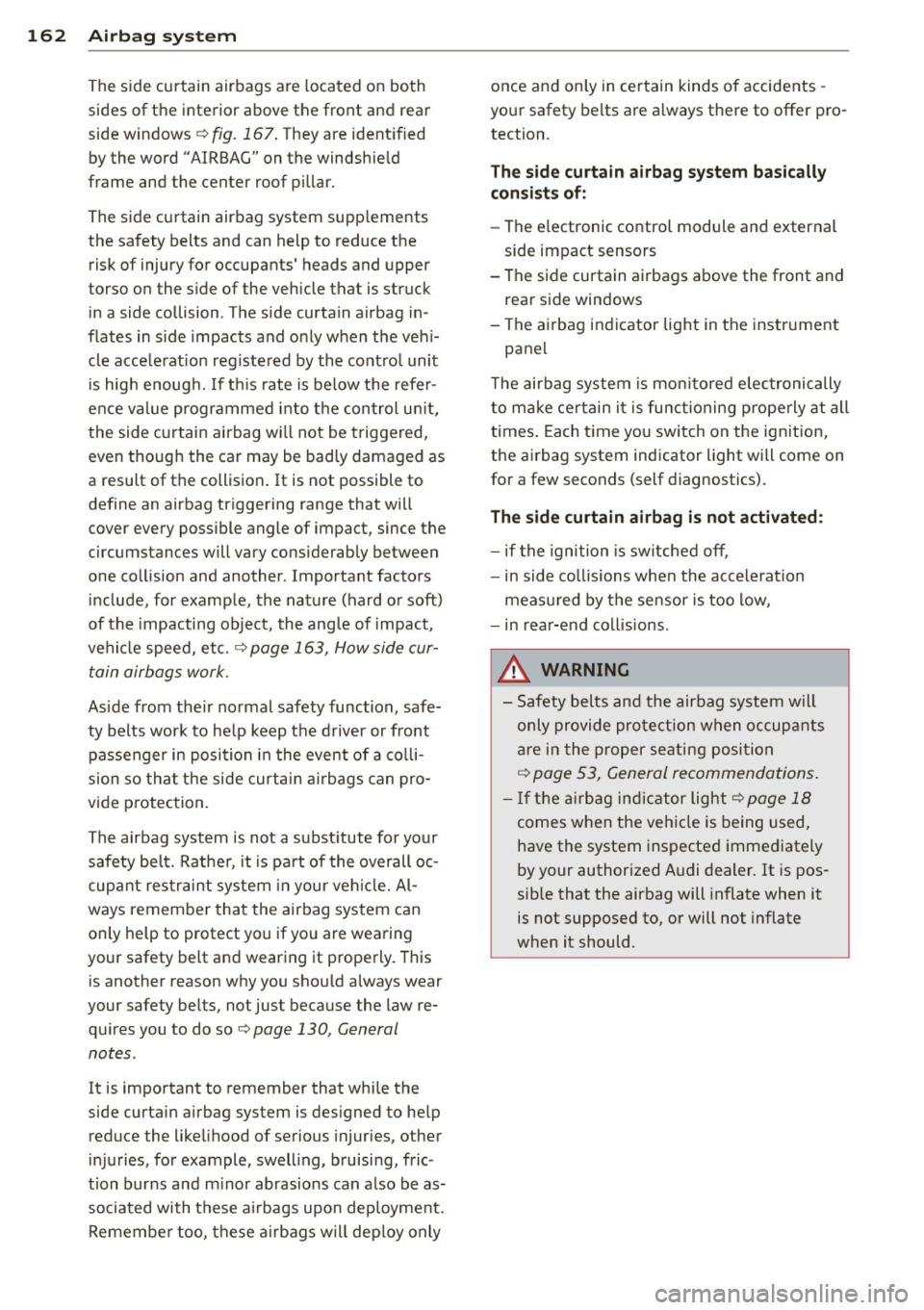

The side curtain airbags are located on both
sides of the interior above the front and rear
side windows ~
fig. 167. They are ident ified
by the word "AIRBAG" on the windshie ld
frame and the center roof p illar.
The side curtain airbag system supp lements
the safety belts and can help to reduce the
risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck
in a side co llision . The side curtain airbag in­
flates in s ide impacts and only when the veh i­
cle acce lerat ion reg istered by the contro l unit
is high enoug h. If th is rate is below the refe r­
ence va lue programmed i nto the control un it,
the side curtain airbag wi ll not be triggered,
even though the car may be badly damaged as
a result of the collision . It is not possible to
define an airbag triggering range that will
cover every possible angle of impact, since the
circumstances will vary cons iderably between
one co llision and another. Important factors
i nclude, for example, the nature (hard or soft)
of the impacting object, the ang le of impact,
vehi cle speed, etc.
~ page 163, How side cur­
tain airbags work.
As ide from the ir normal safety function, safe­
ty belts work to he lp keep the driver or front
passenger in position in the event of a co lli­
sion so that the side curta in airbags can pro­
vide protection.
The airbag system is not a subst itute for you r
safety belt. Rathe r, it is pa rt of the overall oc­
cupant res traint system in your ve hicle. Al­
ways remember that the airbag system can
only help to protect you if you are wearing
your safety be lt and wearing it properly. This
is another reason why you sho uld always wear
your safety belts, not just because the law re­
qu ires you to do so
Q page 130, General
notes.
It is important to remember that while the
side curta in a irbag system is designed to help
reduce the likelihood of serious injuries, other
injuries, for example, swell ing, bruisi ng, fric ­
tion burns and m ino r abrasions can also be as­
sociated with these a irbags upon deployment.
Remembe r too, these airbags w ill dep loy only once and on
ly in certain kinds of accidents -
your safety belts are always there to offer pro­
tection.
The side curtain a irbag system basically
con sists of :
-The e lectronic control module and external
side impact sensors
- The side curtain airbags above the front and
rear side windows
- The airbag indicator light in the instrument panel
T he airbag system is mon itored e lectronically
to make ce rtain i t is func tioning prope rly at all
times . Each time you switch on the ignition,
the airbag system indicator light will come on
for a few seconds (self diagnostics).
The side curtain airbag i s not activated :
-if the ignition is sw itched off,
- in side co llisions when the acceleration
measured by the se nsor is too low,
- in rear-end col lisions.
_&. WARNING
- Safety belts and the airbag system will
only provide protection when occupants
are in the proper seating posi tion
¢ page 53, General recommendations.
- If the ai rbag ind icator light Q page 18
comes when the veh icle is being used,
have the system inspected immediately
by your authorized A udi dealer. It is pos­
sible that the airbag will inflate when it
is not supposed to, or will not inflate
when it should.
.

"' N
a:: I.J "". rl I.O
"' rl
"' rl

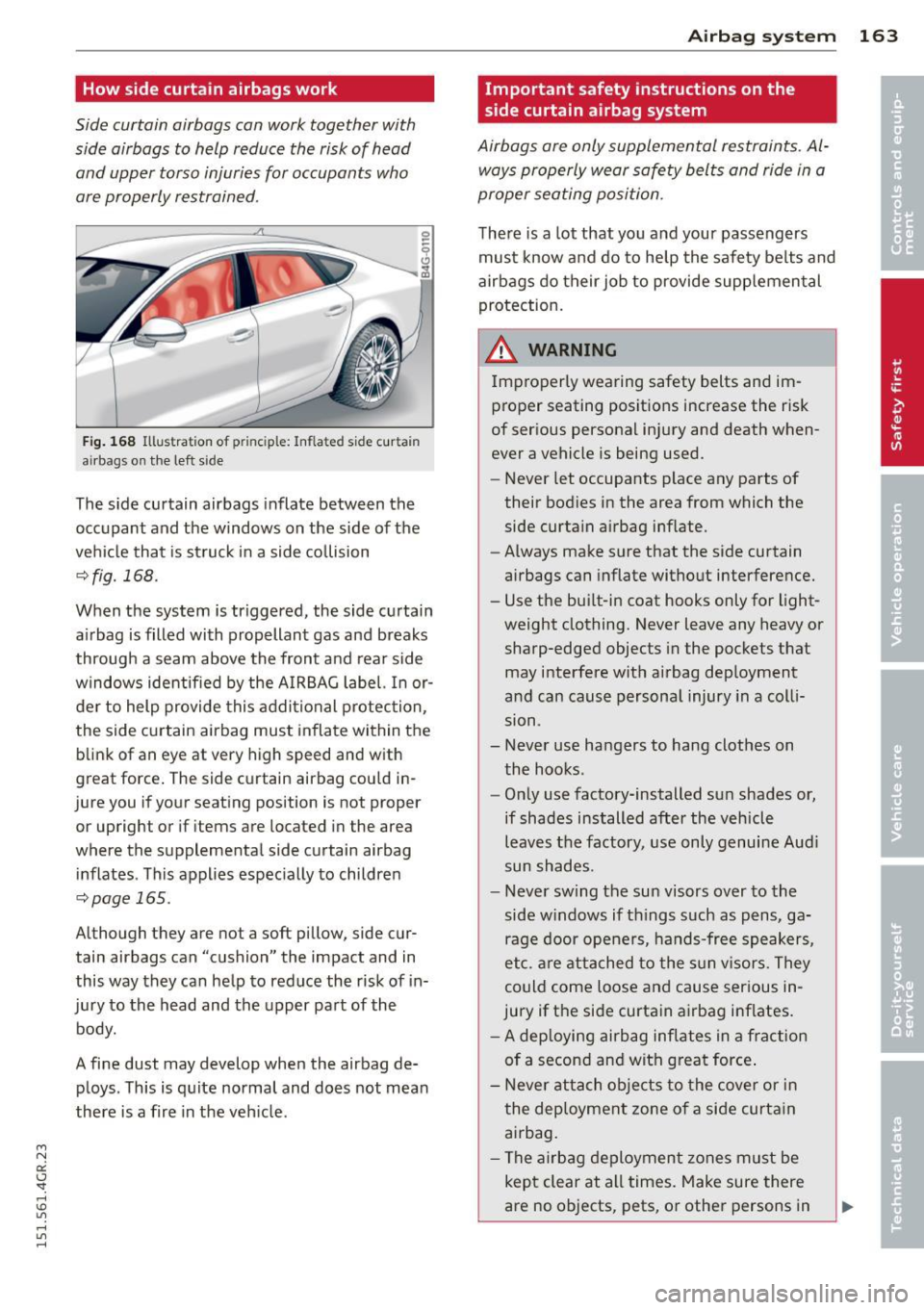

How side curtain airbags work
Side curtain airbags can work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
Fig. 168 Illustration of principle: In flated side cur ta in
airbags on the left side
The side curtain airbags inflate between the
occupant and the windows on the side of the
vehicle that is struck in a side collision
¢fig. 168 .
When the system is triggered, the side curtain
airbag is filled with propellant gas and breaks
through a seam above the front and rear side windows identified by the AIRBAG label. In or­
der to help provide this additional protection,
the side curtain airbag must inflate within the
blink of an eye at very high speed and with
great force. The side curtain airbag could in­
jure you if your seating position is not proper or upright or if items are located in the area
where the supplemental side curtain airbag
inflates . This applies especially to children
¢ page 165.
Although they are not a soft pillow, side cur­
tain airbags can ''cushion" the impact and in
this way they can help to reduce the risk of in­
jury to the head and the upper part of the
body.
A fine dust may develop when the airbag de­ ploys . This is quite normal and does not mean
there is a fire in the vehicle .
Airbag system 163
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints . Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and do to help the safety belts and
airbags do their job to provide supplemental
protection.
A WARNING
Improperly wearing safety belts and im­
proper seating positions increase the risk
of serious personal injury and death when­
ever a vehicle is being used.
- Never let occupants place any parts of
their bodies in the area from which the side curtain airbag inflate.
- Always make sure that the side curtain
airbags can inflate without interference.
- Use the bui lt-in coat hooks only for light­
weight clothing. Never leave any heavy or sharp-edged objects in the pockets that
may interfere with airbag deployment
and can cause personal injury in a colli­
sion .
- Never use hangers to hang clothes on the hooks .
- Only use factory-installed sun shades or,
if shades installed after the vehicle
leaves the factory, use only genuine Aud i
sun shades .
- Never swing the sun visors over to the
side windows if things such as pens , ga­
rage door openers, hands-free speakers,
etc. are attached to the sun visors. They
could come loose and cause serious in­
jury if the side curtain airbag inflates.
-A deploying airbag inflates in a fraction
of a second and with great force .
- Never attach objects to the cover or in
the deployment zone of a side curtain airbag.
- The airbag deployment zones must be
kept clear at all times . Make sure there
are no objects, pets, or other persons in
-

164 Airbag sys te m

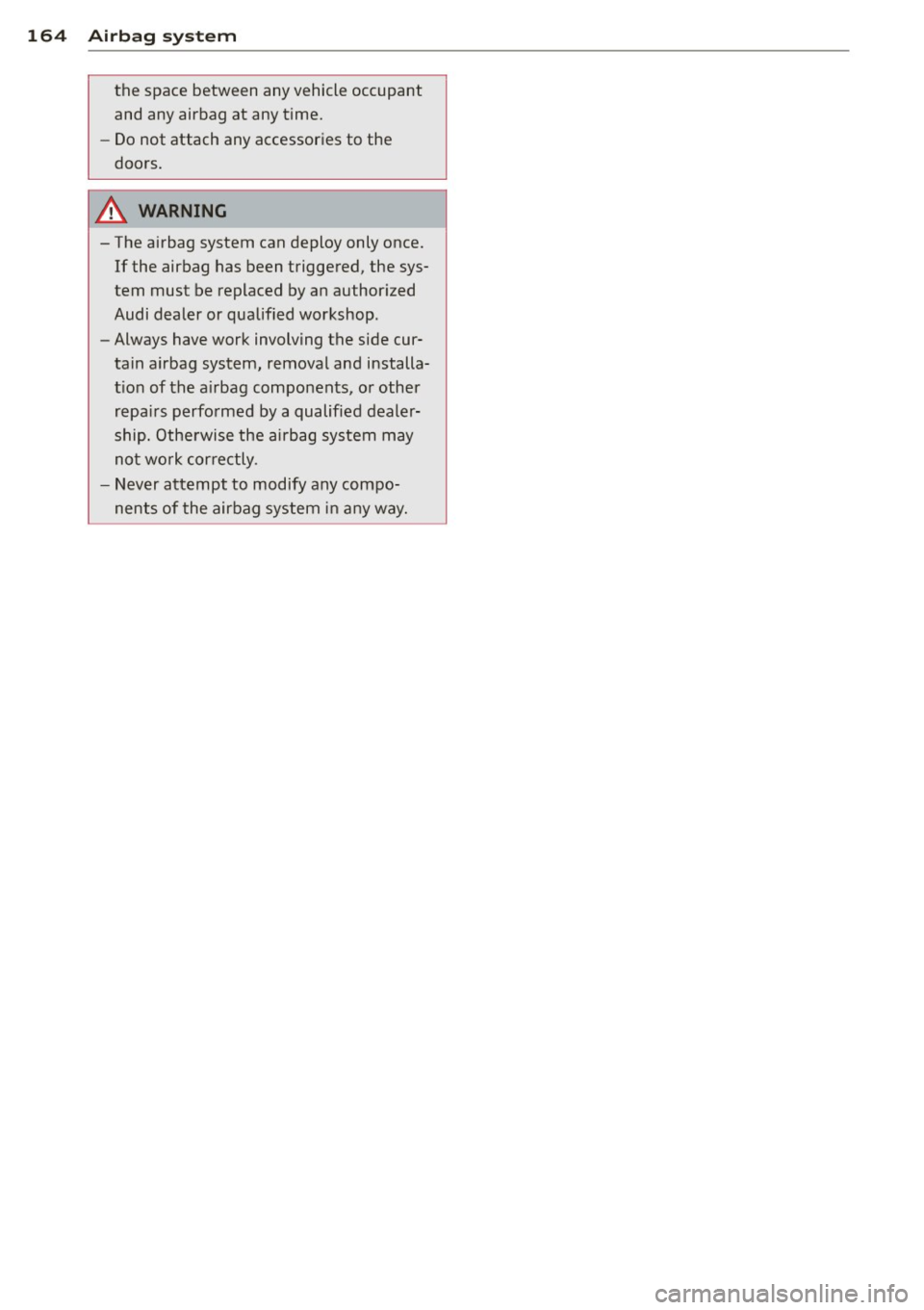

the space between any vehicle occupant
and any airbag at any time.
- Do not attach any accessories to the
doors .
.&_ WARNING
- The airbag system can deploy only once.
If the airbag has been triggered, the sys­
tem must be replaced by an author ized
Audi dealer or qualified workshop .
- Always have work involving the side cur­
tain airbag system, removal and installa­
tion of the a irbag components, o r other
repa irs perfo rmed by a qualified dealer­
ship. Othe rwise the airbag system may
not wo rk cor rectly .
- Never a ttempt to modify any compo­
nents of the airbag sys tem in any way.

M N
0:: <.J 'SI: ,...., \!) 1.1"1 ,...., 1.1"1 ,....,

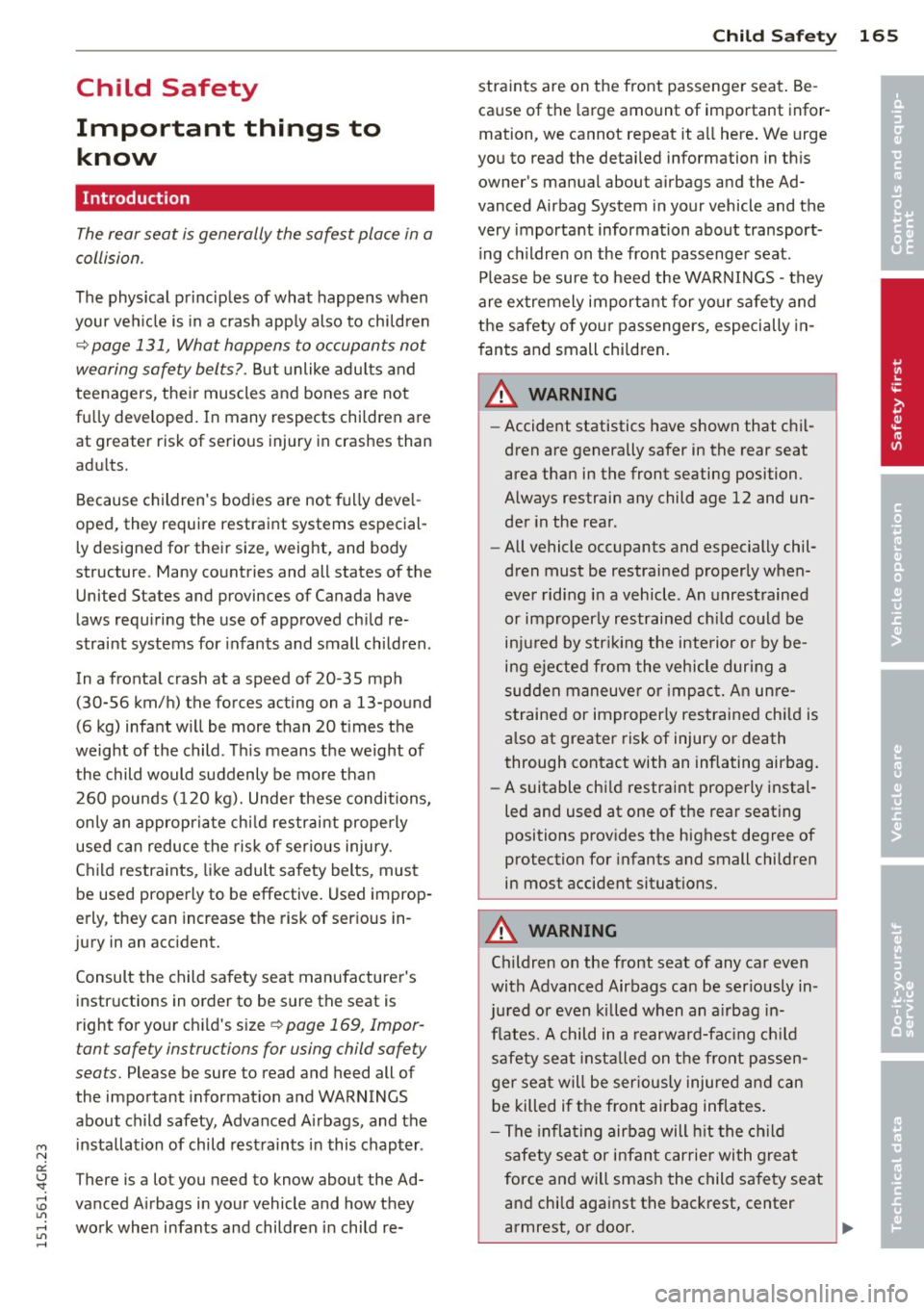

Child Safety
Important things to know
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
~ page 131, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenag ers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adu lts.
Because children's bodies are not fully deve l­
oped, they require restraint systems especial­ ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small children .
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child . This means the weight of
the child would suddenly be more than
260 pounds (120 kg). Under these conditions,
on ly an appropriate chi ld restraint properly
used can reduce the risk of ser ious injury .
Child restra ints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in ­
jury in an accident.
Consult the child safety seat manufacturer's
instructions in order to be sure the seat is
right for your chi ld's size ~
page 169 , Impor­
tant safety instructions for using child safety
seats.
Please be sure to read and heed all of
the important information and WARNINGS
about ch ild safety, Advanced A irbags, and the
installation of child restraints in this chapter.
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work when infants and children in child re-
Child Sa fet y 165
straints are on the front passenger seat . Be­
cause of the large amount of important infor­
mation, we cannot repeat it a ll here . We urge
you to read the detailed information in this owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat .
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small chi ldren .
.A, WARNING
-Accident statistics have shown that chil ­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­ der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle . An unrestrained
or improperly restrained chi ld could be
injured by str ikin g the interior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An un re ­
strained or improper ly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal­
led and used at one of the rear seating
positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an a irbag in­
flates. A child in a rearward-facing child
safety seat installed on the front passen­
ger seat will be ser iously injured and can
be killed if the front airbag inflates .
- The inflating airbag will h it the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, or door.
•
•

166 Child Safety

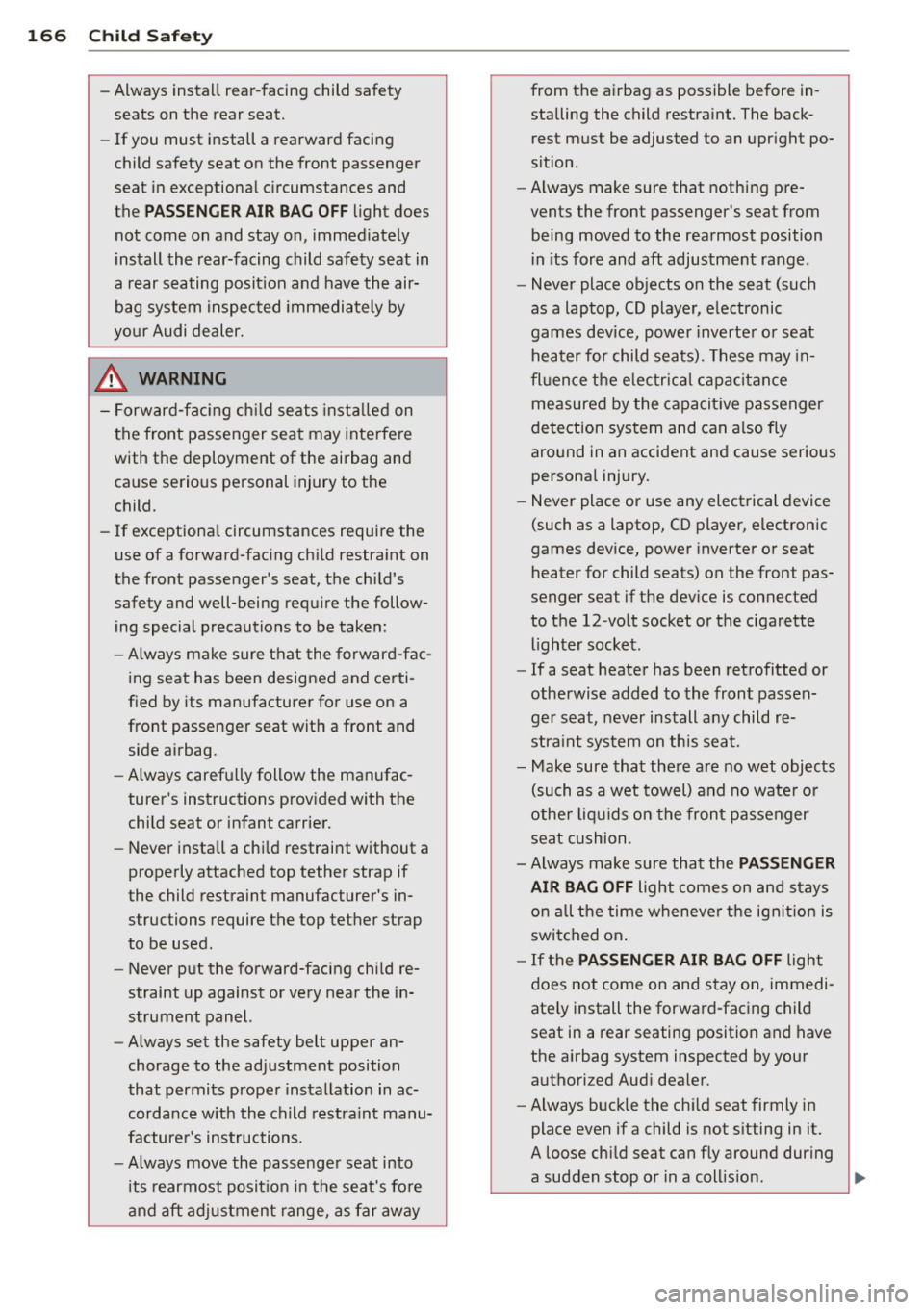

-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_&, WARNING
- Forward-facing child seats installed on
the front passenger seat may interfere
with the deployment of the airbag and
cause serious personal injury to the
child.
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger 's seat, the child's
safety and well-being require the follow­ ing special precautions to be taken:
- Always make sure that the forward-fac­
ing seat has been designed and certi­
fied by its manufacturer for use on a
front passenger seat with a front and
side airbag.
- Always carefully follow the manufac­
turer's instructions provided with the
child seat or infant carrier.
- Never install a child restraint without a
properly attached top tether strap if
the child restraint manufacturer's in­
structions require the top tether strap
to be used.
- Never put the forward-facing child re­
straint up against or very near the in­
strument panel.
- Always set the safety belt upper an­
chorage to the adjustment position
that permits proper installation in ac­
cordance with the child restraint manu­
facturer's instructions.
-Always move the passenger seat into
its rearmost position in the seat's fore
and aft adjustment range, as far away
.
from the airbag as possible before in­
stalling the child restraint. The back­
rest must be adjusted to an upright po­
sition .
- Always make sure that nothing pre­
vents the front passenger's seat from
being moved to the rearmost position
in its fore and aft adjustment range.
- Never place objects on the seat (such
as a laptop, CD player, electronic
games device, power inverter or seat
heater for child seats) . These may in­
fluence the electrical capacitance
measured by the capacitive passenger
detection system and can also fly
around in an accident and cause serious
personal injury.
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat
heater for child seats) on the front pas­
senger seat if the device is connected
to the 12 -volt socket or the cigarette
lighter socket.
- If a seat heater has been retrofitted or
otherwise added to the front passen­
ger seat, never install any child re­
straint system on this seat.
- Make sure that there are no wet objects
(such as a wet towel) and no water or
other liquids on the front passenger
seat cushion .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
- If the PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the forward-facing child seat in a rear seating position and have
the airbag system inspected by your
authori zed Audi dealer.
- Always buckle the child seat firmly in
place even if a child is not sitting in it.
A loose child seat can fly around during
a sudden stop or in a collision.
~

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,

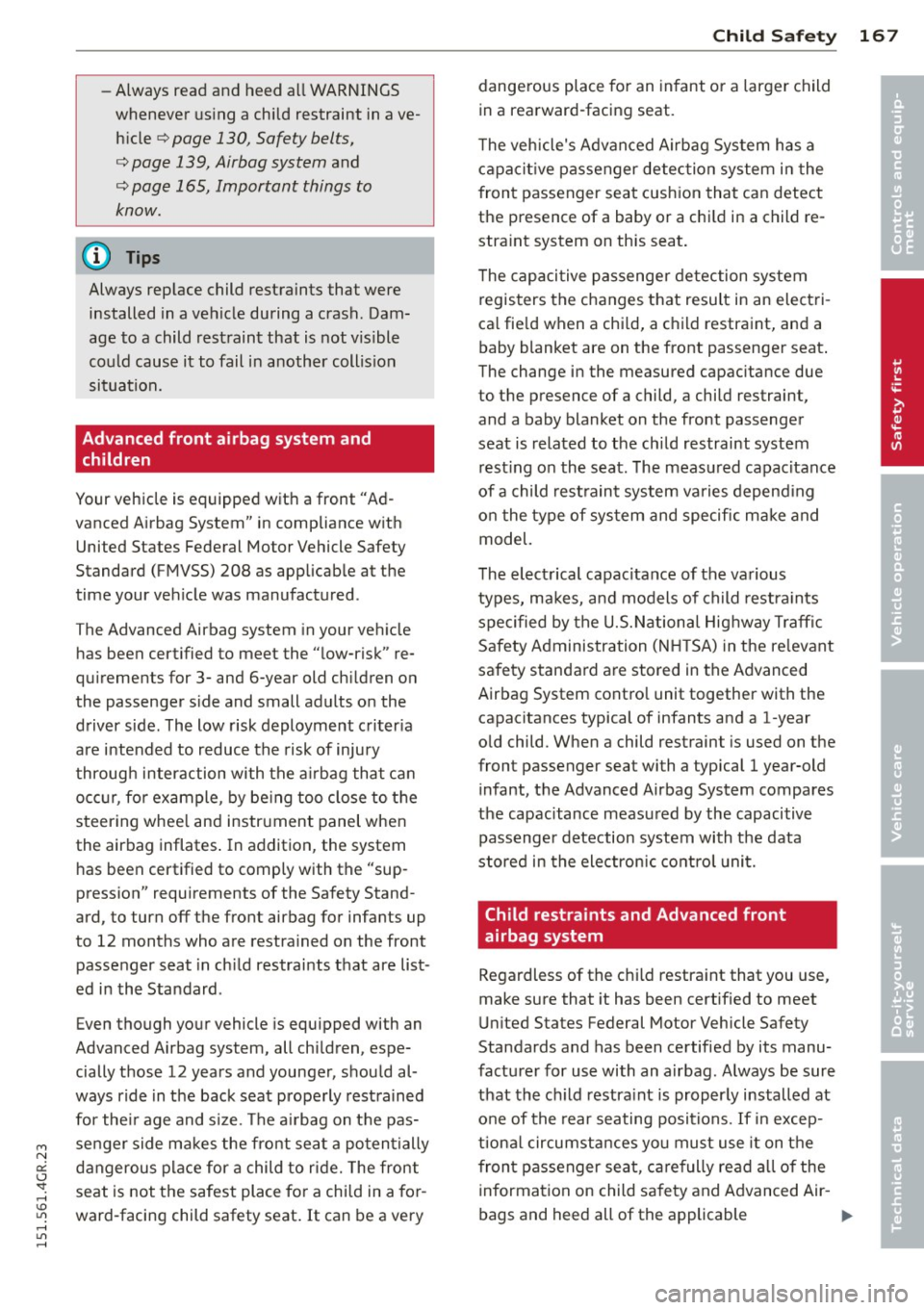

-Always read and heed all WARNINGS
whenever using a child restraint in ave­
h icle
¢ page 130, Safety belts,
¢ page 139, Airbag system and
¢ page 165, Important things to
know.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child rest raint that is not vis ible
could cause it to fail in another collis ion
situation.
Advanced front airbag system and children
Your vehicle is eq uipped with a front "Ad ­
vanced Airbag System" in compliance w ith
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your veh icle was manufactured .
T he Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
qu irements for 3-and 6-year old ch ildren on
the passenger s ide and small adults o n the
driver side. The low risk deployment criter ia
a re i ntended to reduce the risk of inju ry
through interaction with the a irbag that can
oc cu r, fo r example , by be ing too close to the
steering whee l and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
press ion" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restra ined on the front
passenger seat in ch ild restraints that are list­
ed i n the Standard .
Even though your vehicle is equipped with an
Advanced Airbag system, all chi ldren, espe­
cially those 12 years and younger, shou ld al­
ways ride in t he back seat properly rest ra ined
fo r the ir age and s ize. Th e a irbag on t he pas­
senger side makes the fro nt seat a poten tially
d a ngerous pla ce for a child to ride. The front
seat is not the safest place fo r a child in a fo r­
ward-facing child safety seat . It can be a very
Child Sa fet y 167
dange rous place fo r an infant o r a larger child
in a rearward-facing seat.
T he veh icle's Advan ced Ai rb ag Sys tem has a
capacit ive passenger detec tion system in the
front passenger seat cush ion that can detect
the presence of a baby or a c hild in a child re­
stra int system on this seat .
T he capaci tive passenge r detection system
r egisters the changes that result in an electri ­
ca l fie ld when a chi ld, a ch ild restraint, and a
baby blanket are on the front passenger seat .
The change in the measured capac itance due
to the presence of a child, a child restraint,
and a baby blanket on the front passenger
seat is related to the ch ild restraint system
rest ing on the seat . The meas ured capacitance
of a child res traint system va ries depend ing
o n the type of sys tem and specific m ake and
model.
T he elect rical capac itance of the va rious
types, ma kes, a nd models of child restra ints
spe cified by the U.S. Nationa l Highway Traff ic
Safety Administra tion (N HTSA) in the re levant
sa fety standard are stored in the Advanced
Airbag System contro l unit together with the
capacitances typical of infants and a 1-year
o ld child. W hen a child restraint is used on t he
front passenger seat with a typica l 1 year-old
infant, t he Advanced Airbag System compares
the capacitance measu red by the capacitive
passenger detection system with the data
s tored in the ele ctronic co ntrol unit.
Child restraints and Advanced front
airbag system
Rega rdless of the c hild restraint that you use,
make sure that it has been certified to meet
U nited States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with an airbag. A lways be sure
that the c hild restra int is properly installed at
o ne of the rear seating positions. If in excep­
t iona l circumsta nces yo u must use it on the
fron t passenger sea t, ca re fully read all of the
i nformation on child sa fe ty and Advanced Air -
bags and heed all of the applicable ..,.
•
•

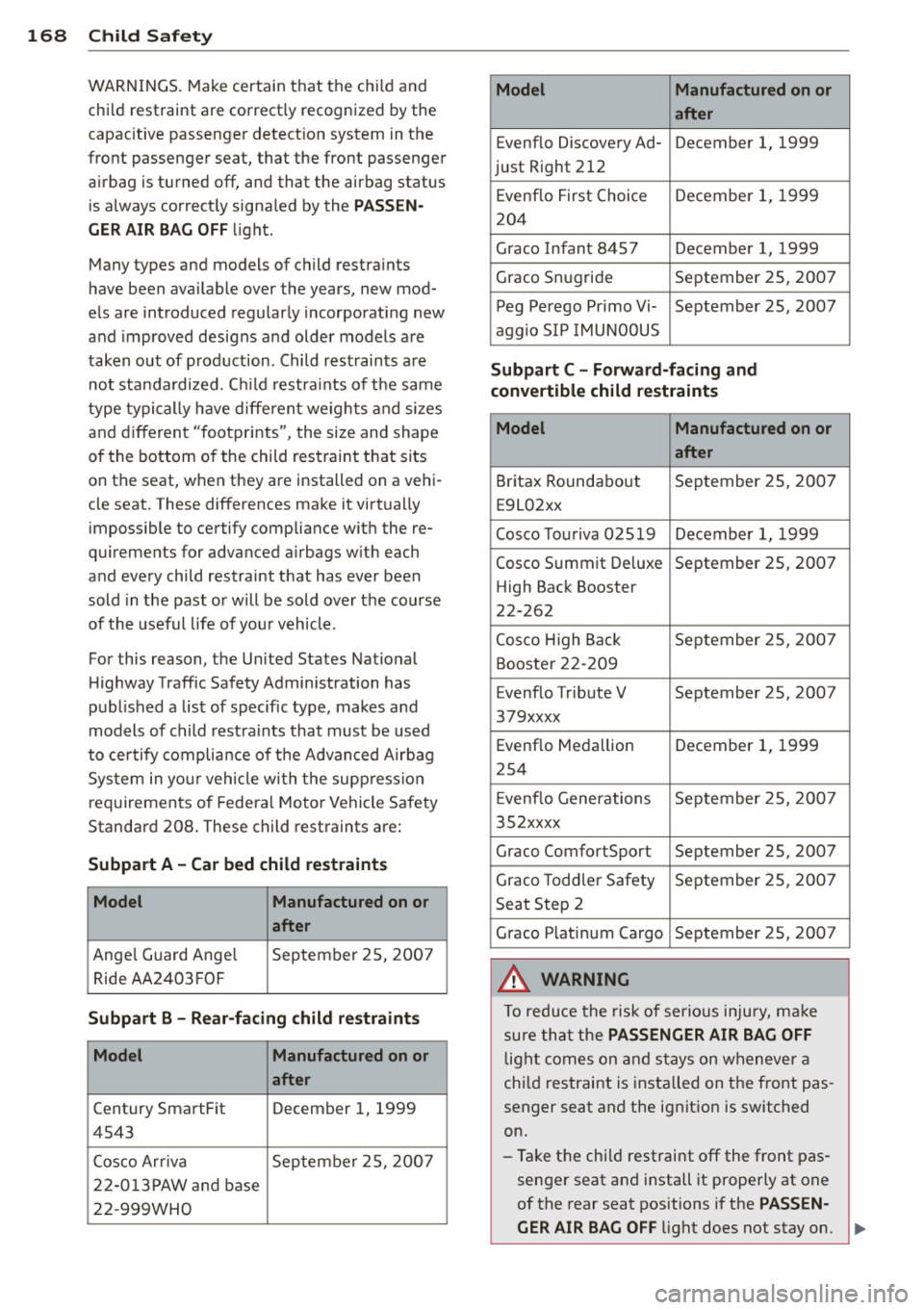

168 Child Saf ety
WARNINGS. Make certain that the ch ild and
child restraint are correct ly recognized by the
capacitive passenger detect ion system in the
front passenger seat, that the front passenger
a irbag is turned off, and that the airbag status
is always correct ly signa led by the
PAS SEN­
GER AIR BAG OFF
l ight .
Many types and models of child restra ints
have been ava ilable over the years, new mod­
e ls are introduced regular ly incorporating new
and improved designs a nd older models are
taken out of production . Child rest raints are
not standardi zed. C hild restra ints of the same
type typi cally have differen t weights and s izes
and d ifferent "footprints", the size and shape
of the bottom o f the child restraint that sits
on the seat, when they are installed on a vehi­
cle seat. These differences make it virtually
imposs ible to certify compliance w ith the re­
qu irements for advanced a irbags w ith each
and every child restraint that has ever been
sold in the past or will be sold over the course
of the useful life of you r vehicle .
For this reason, the United States Nat ional
H ighway Traffic Safety Admin istration has
published a list of specific type, makes a nd
models of child rest ra ints that must be used
to certify complia nce of the Advanced Airbag
Sys tem in yo ur vehicle with the suppress io n
requiremen ts of Federal Motor Vehicle Safety
Standard 208 . These child restraints are:
Subpart A -Car bed child restraints
Model Manufactured on or
after
Angel Guard Ange l September 2S, 200 7
Ride AA2403 FOF
Subpart B -Rear -facing child restraints
Model Manufactured on or
after
Century SmartFit December 1, 1999
4543
Cosco Arriva September 2S, 2007
22 -0 13PAW an d base
22-999WHO
Model Manufactured on or
after
Evenflo Discovery Ad- December 1, 1999
just Right 212
E venflo First Choice December 1, 1999
204
Graco Infant 8457 December 1, 1999
Graco Snugride September 25 , 2007
Peg Perego Pr imo Vi- September 25, 2007
aggio SIP IMUNOOUS
Subpart C - Forward-facing and
convertible child restraints
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02S19 December 1, 1999
Cosco Summit De luxe September 2S, 2007
High Back Booster
22-262
Cosco H igh Back September 2S , 2007
Booste r 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Meda llion December 1, 1999
254
E venflo Generations September 25 , 200 7
352xxxx
Graco ComfortSport September 25, 2007
Graco Todd ler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
A WARNING
To reduce the risk of serious inju ry, ma ke
sure that the
PASSENGER AIR BAG OFF
l ight comes on and stays on whenever a
chi ld restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the chi ld restraint off the front pas­
senger seat and install it properly at one
of the rear seat positions if the
PA SSEN -
GER AIR BAG OFF
light does not stay on. ...
