AUDI RS7 SPORTBACK 2015 Owners Manual

"' N
a:: I.J "". rl I.O

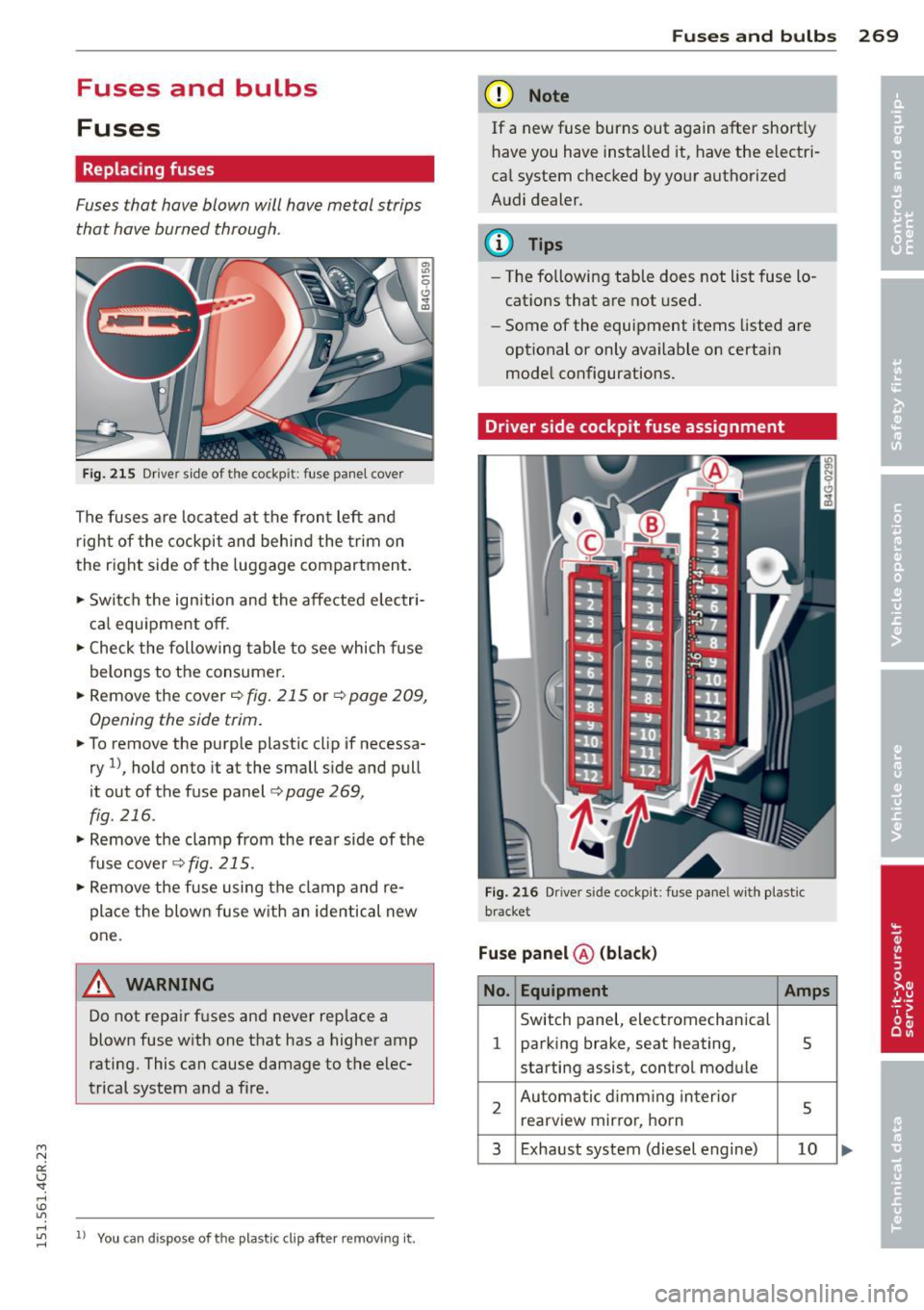

Fuses and bulbs
Fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig. 215 Dr iver side of the cockp it: fuse panel cover
The fuses are located at the front left and
r igh t of the cockpit and behi nd the trim on
the right side of the luggage compartment .
.. Switch the ign ition and the affected electr i­
ca l equipment off .
.. Check the following table to see which fuse
belongs to the consume r .
.. Remove the cover
r:!;> fig. 215 or r:!;> page 209,
Opening the side trim .
.. To remove the purple plastic clip if necessa­
ry
ll, hold onto it at the small side and pull
it out of the fuse panel
r:!;> page 269,
fig. 216 .
.. Remove the clamp from the rea r side of the
fuse cover ¢
fig. 215 .
.. Remove the fuse using the clamp and re­
pla ce the blown fuse w ith an identical new
one.
& WARNING , -
Do not repair fuses and never replace a
blown fuse w ith one that has a higher amp
rating. This can cause damage to the elec­
trical system and a fire.
"' rl
~ 11 You can dis pose of the plastic clip after remov ing it.
Fu se s and bulb s 269
(D Note
If a new fuse burns out again after short ly
have you have insta lled it, have the electri ­
ca l system checked by your authorized
A udi dealer .
{!) Tips
-The following table does not list fuse lo ­
cat ions that are not used .
- Some of the equipment items listed are
opt ional or only available on certa in
mode l configurations.
Driver side cockpit fuse assignment
Fi g. 216 Dr iver side cockpit : fuse pa nel w ith plastic
bracket
Fuse panel @ (blac k)
No . Equipment Amps
Switch panel, electromechanica l
1 parking brake, seat heating, 5
starting assist, control module
2 Au tomatic d imm ing in terior
5 rearview mir ror, horn
3 Exhaust system (diesel engine) 10

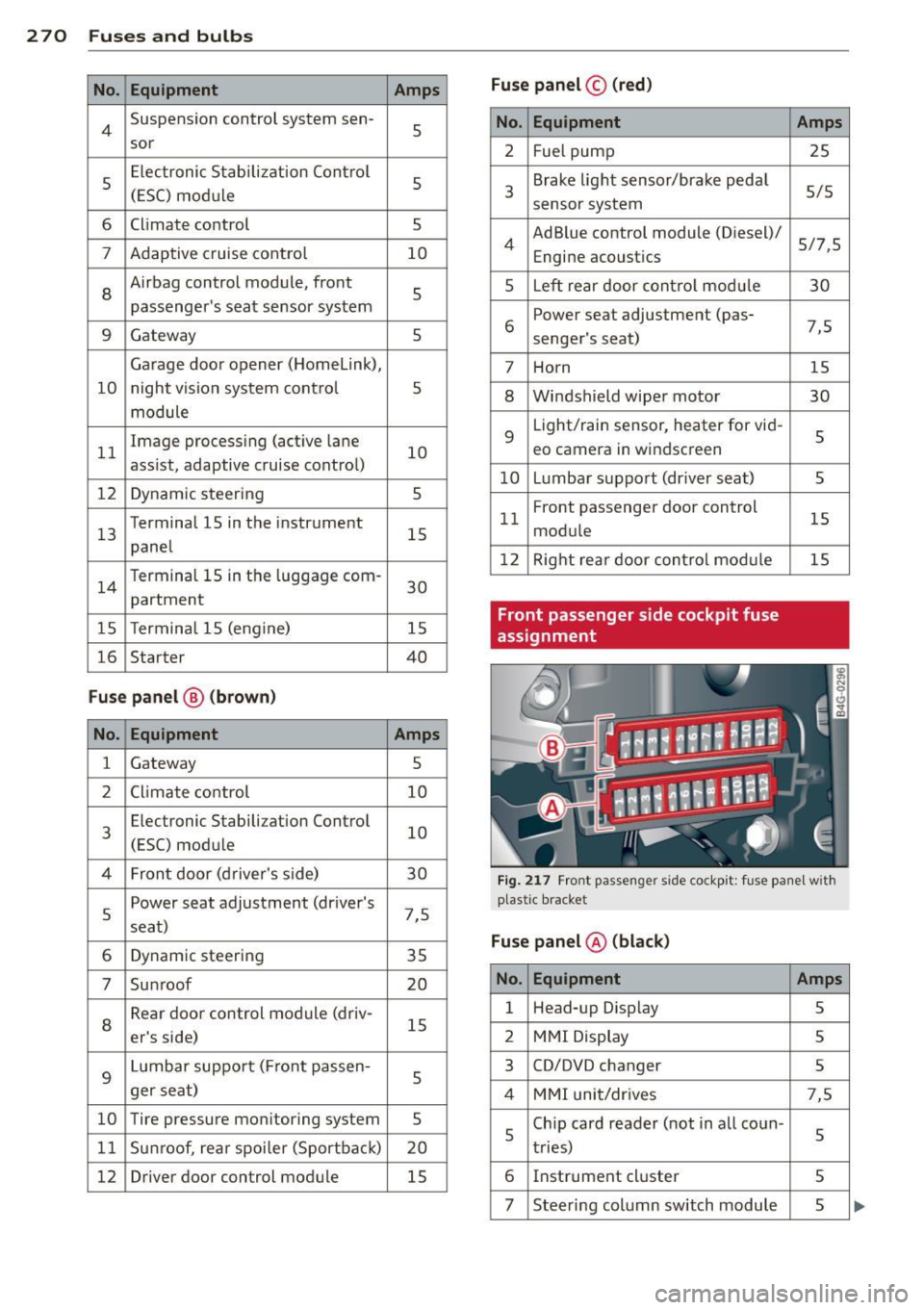

2 70 Fu ses and bulb s
No. Equ ipment Amps
4 Suspension control system sen-
5
sor
5 E
lectronic Stabilization Control
5
(ESC) mod ule
6 Climate control
5
7 Adaptive cruise control 10
8
Airbag control module, front
5
passenger's seat sensor system
9 Gateway 5
Garage door opener (Homelink),
10 night vision system contro l 5
module
11 Image
processing (active lane
10
ass ist, adaptive cruise control)
12 Dynamic steering 5
13 Terminal 15 in the
instrument
15
panel
14 Termina
l 15 in the luggage com-
partment 30
15 T
erminal 15 (engine)
15
16 Starter 40
Fuse p anel @ (b rown )
No . Equipment Amps
1 Gateway
5
2 Cl imate control 10
Electronic Stabilization Contro l
10
3
(ESC) module
4 Front door
(driver's side)
30
5 Power seat adjustment (driver's
7,5
seat)
6 Dynamic steering
35
7 Sunroof 20
Rear door control module (driv-
15
8
er's side)
9 Lumbar support
(Front passen-
5
ger seat)
10 Tire pressure monitoring system
5
11 Su
nroof, rear spoiler (Sportback)
20
12 Driver
door control module
15
Fuse panel © (r e d )
No . Equipment
2 Fuel pump
3 Brake light
sensor/brake pedal
sensor system
4 AdBlue
control module (Diesel)/
Engine acoustics
5 Left rear door contro l modu le
6 Power seat adjustment (pas-
senger's seat)
7 Horn
8 Windshield
wiper motor
9
Light/rain sensor, heater for vid-
eo camera in windscreen
10 Lumbar support (dr iver seat)
11 Front
passenger door control
module
12 Right rear door control mod ule
Front passenger side cockpit fuse
assignment Amp
s
25
5/5
5/7,5 30
7,5 15
30
5
5
15
15
Fig . 2 1 7 Front passenger side cockp it: fuse pane l w ith
plastic bracket
Fu se panel @ (bla ck)
No . Equipment Amps
1 Head-up Display
5
2 MMI Display 5
3 CD/DVD changer
5
4 MMI unit/drives 7,5
5 Chip card reader (not
in all coun-
5
tries)
6 Instrument cluster
5
7 Steering column switch
module 5

"' N
a:: I.J "". rl I.O
"' rl
"' rl
No. Equ ipment Amps
8
Headlight range adjustment/ 5/7,5
adaptive lighting system
10
Left headlight (headlight with 7,5 adaptive light)
11 Supplementary heater s
Fuse p anel @ (bro wn)
No . Equipment Amps
1 Climate control 10
2
Climate control system blower 40
3
Diagnostic interface 10
4
E lectrical ignition lock 5
5
Power steering column adjust-
ment
5
6 Steering column switch module 10
7
Power steering column adjust-
ment
25
8 Light switch 5

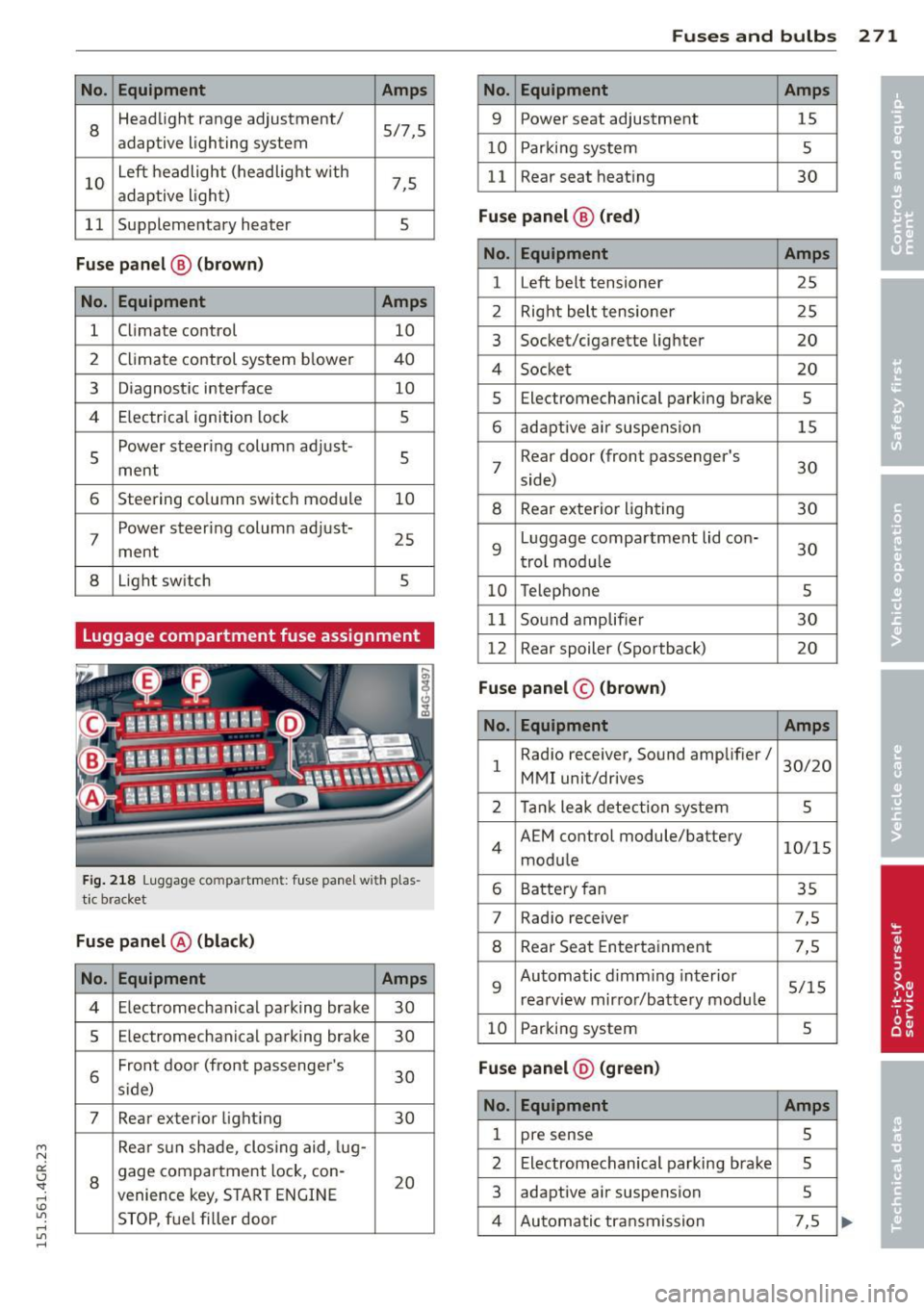

Luggage compartment fuse assignment
Fig . 218 Luggage compartment: fuse panel with plas ­
tic bracket
Fuse p anel @ (black )
No. Equipment Amps
4 Electromechan ical parking brake 30
5
Electromechanical parking brake 30
6
Front door (front passenge r's
30 s ide)
7 Rear exterior light ing 30
Rea r sun shade, closing aid, lug-
8
gage compartment lock, con-
20 venience key, S TART ENGINE
STOP, fuel filler door
Fu se s and bulb s 2 71
No. Equipment Amps
9 Power seat adjustment 15
10
Parking system 5
11
Rear seat heating 30
Fu se pan el@ (r e d )
No . Equipment Amps
1 Left belt tensioner 25
2
Right belt tensioner 25
3
Socket/cigarette lighter 20
4
Socket 20
5
Electromechanical parking brake 5
6 adaptive air suspension 15
7
Rear door (front passenger's
30 side)
8 Rear exterior lighting 30
9
Luggage compartment lid con-
30 trol mod ule
10 Telephone 5
11
Sound amplifier 30
12
Rear spoiler (Sportback) 20
Fuse panel © (brown)
No . Equipment Amps
1
Radio receiver, Sound amplifier/
30/20
MMI unit/drives
2 Tank leak detection system 5
4
AEM control module/battery 10/15
module
6 Battery fan 35
7
Rad io receiver 7,5
8 Rear Seat Entertainment 7,5
9
Automatic d imm ing interior 5/15
rearview mirror/battery mod ule
10 Parking system 5
Fu se pan el@ (gre en)
No . Equipment Amps
1 pre sense 5
2
Electromechanical parking brake 5
3
adaptive air suspension 5
4 Automatic transmission 7,5

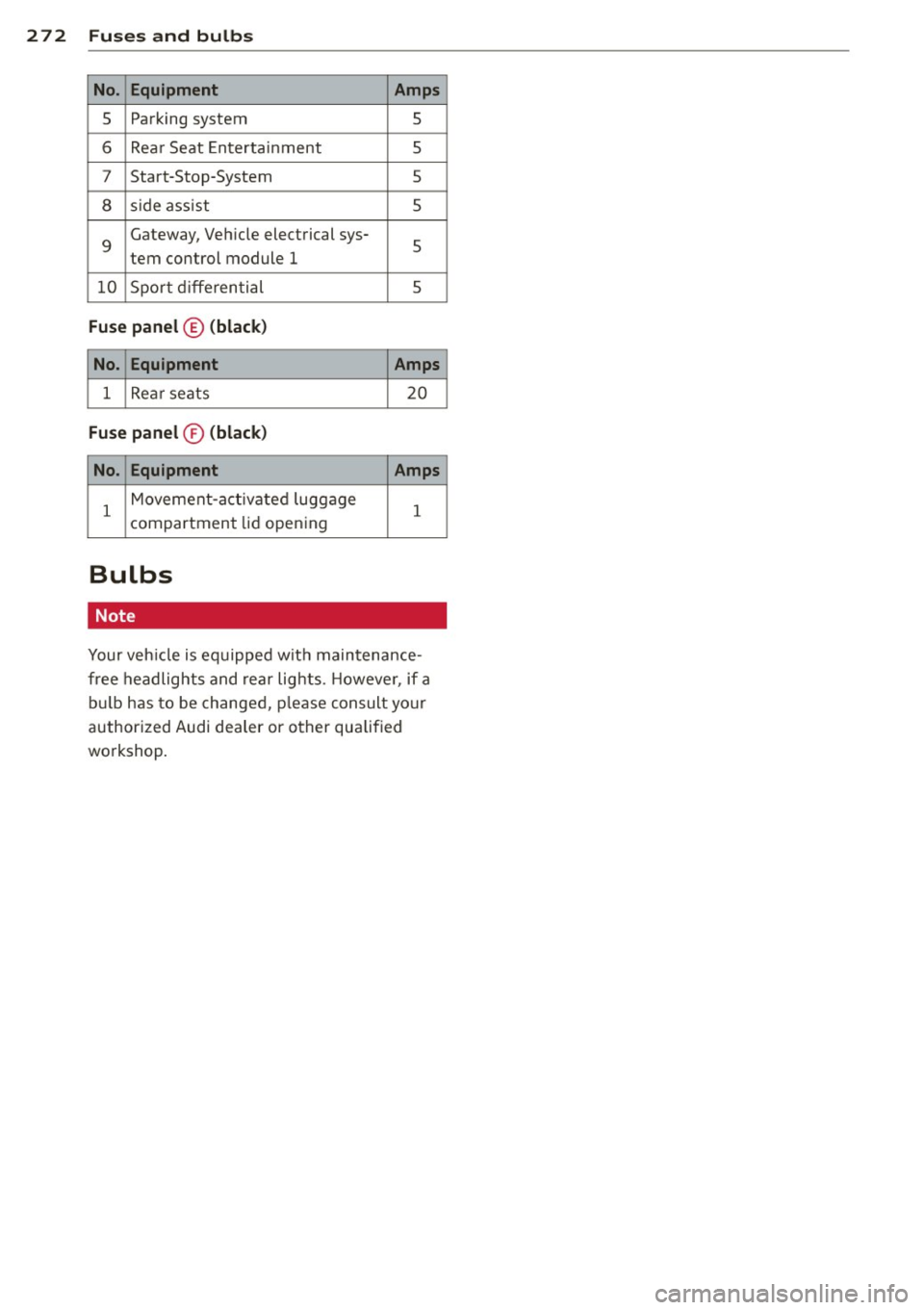

272 Fuses and bulbs
No. Equipment Amps
s Parking system s
6 Rear Seat Entertainment s
7 Start-Stop-System s
8 side assist s
9
Gateway, Vehicle electrical sys-
s tern control module 1
10 Sport differential s
Fuse panel © (black)
No. Equipment Amps
1 Rear seats 20
Fuse panel ® (black)
No. Equipment Amps
1 Movement-activated luggage 1
compartment lid opening
Bulbs
Note
Your vehicle is equipped with maintenance­
free headlights and rear lights. However, if a
bulb has to be changed, please consult your
authorized Audi dealer or other qualified
workshop.

M N
0:: <.J 'SI: ,...., \!) ..,.,
,...., ..,., ,....,

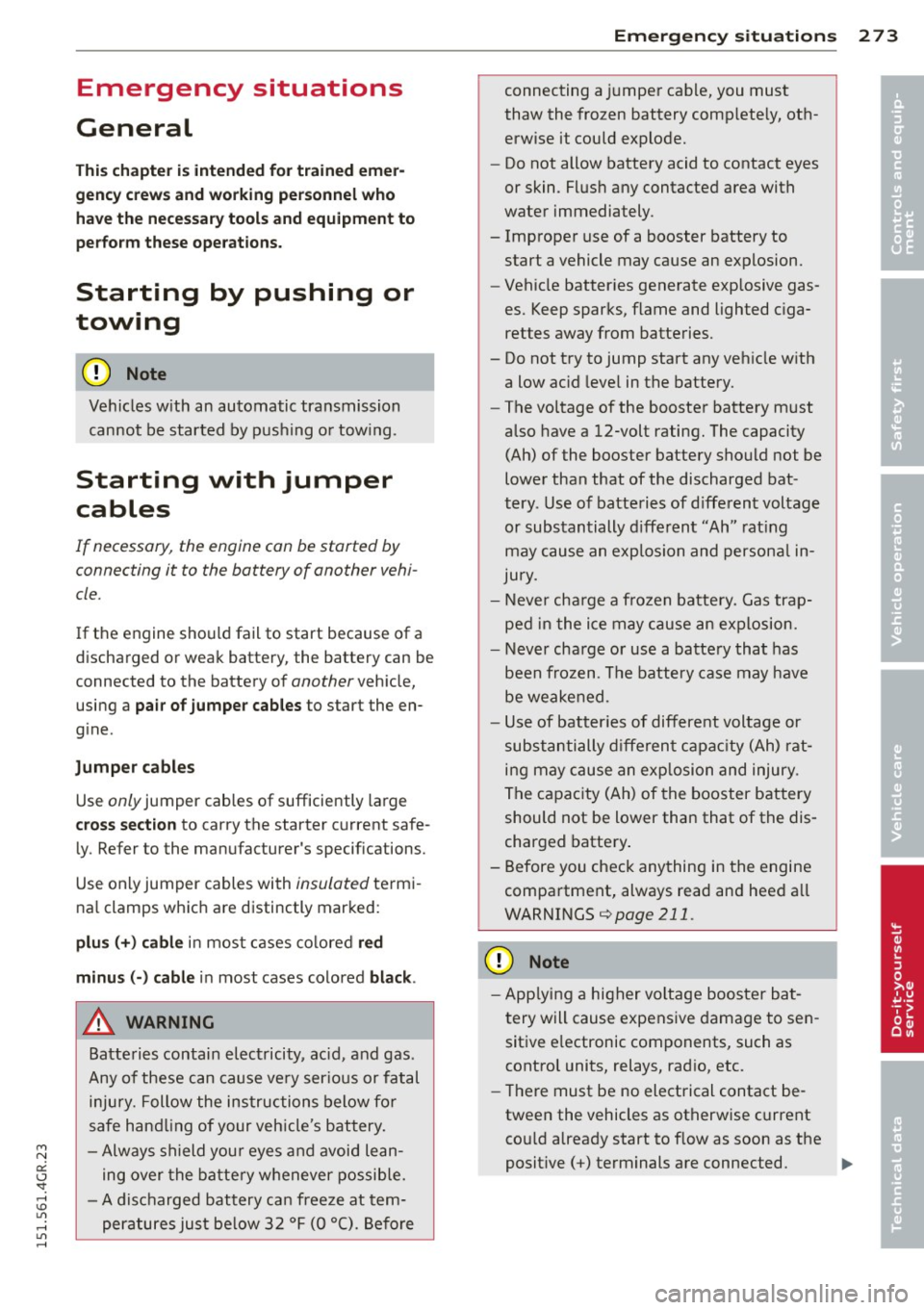

Emergency situations
General
This chapter i s intended for trained emer­
gency crews and working personnel who have the necessary tools and equipment to
perform these operations.
Starting by pushing or
towing
(D Note
Ve hicles w ith an au tomatic tra nsmission
cannot be started by pus hing o r tow ing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine shou ld fail to start because of a
discha rged o r wea k battery, the battery can be
connected to the battery o f
another vehicle,
using a
pair of jumper cables to start the en­
g ine.
Jumper cables
Use only jumper cables of sufficiently la rge
c ross section to carry the starter c urrent safe­
l y. Refer to the man ufacturer's specifications.
Use only jumper cables with
insulated te rm i­
na l clamps wh ic h are d istinctly marked:
plus(+) cable i n mos t cases co lore d red
minu s(-) cable
in most cases colored black .
A WARNING
Batterie s contain e lec tricity, ac id, an d gas.
A ny of these can cause ve ry ser io us or fatal
inju ry. Follow the instructions below f or
safe han dling of your veh icle's b attery .
- Alway s shield you r eyes and avoid lean­
ing over the bat te ry whenever possib le.
- A dis ch arged battery c an free ze at tem­
peratures ju st be low 32 °F ( 0 °C ). Befo re
Emergency situations 273
connecting a jumpe r cab le, you must
thaw the fr ozen battery c omp lete ly, ot h­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin. Fl ush any contacted area with
wate r immediately.
- Improper use of a booster battery to start a vehicle may cause an explosion.
- Vehicle batter ies genera te exp losive gas­
es. Keep spar ks, flame and lighted c iga ­
rettes away from batte ries.
- Do not try to jump start any ve hicle w ith
a low ac id leve l in the battery.
- The vo ltage of the booste r batte ry m ust
a lso have a 12-volt rating. The capacity
(Ah) of the booster battery sho uld not be
lowe r tha n that of the discharged bat­
tery . U se of batte rie s of d iffe ren t voltage
or substantially diffe rent "Ah" rat ing
may c au se an exp losion and persona l in­
JU ry.
- N ever cha rge a fro zen battery. Gas trap­
pe d in the ice may cause a n ex plosion.
- Never cha rge or use a batte ry tha t h as
been fr ozen. T he battery case may have
be weakened.
- Us e of b atter ies of differe nt voltage or
sub stant ia lly diffe ren t ca pa city (Ah) ra t­
i ng may c ause an ex plosion an d injury .
Th e capac ity (Ah) of the booster bat tery
should not be lower than that of the dis ­
charged batte ry .
- Before you chec k any thing in the engine
compa rtment, always read and hee d all
WARNINGS
¢page 211.
(D Note
-App lyin g a higher vo ltage booster ba t­
t ery w ill cause expens ive damage to se n­
sit ive e lectronic com ponents, such as
cont ro l units, relays, rad io, etc.
- The re must be no electrical contact be­
tween the vehicles as ot herwise c urrent
co uld a lready start to f low as soon as the
p o sit ive(+) term inals a re connected. ..,. •
•

2 7 4 Emergency situations
@ Tips
The discharged battery must be properly
connected to the vehicle's electrical sys­
tem. When jump starting or charging the
battery, never connect the negative
ground cable to the battery negative post
because the batte ry manager system must
be able to detect the battery 's state of
charge. Always connect the negative
ground cab le to the negative ground post
of the battery manager control unit.
Use of jumper cables
Make sure to connect the jumper cable
clamps in exactly the order described below!
Fig. 219 Engine compartment: connecto rs for jump
start cables and charger
Fig. 220 Jump start ing with the battery of another ve·
hide: @-booster battery, @-discharged ve hicle bat­
tery
The procedure described below fo r connecting
jumper cables is intended to provide a jump
start for your vehicle.
Vehicle with discharged battery:
.,. Turn off lights and accessories, move lever
of automatic transmission to N (Neutral) or
P (Park) and set parking brake.
Connect POSITIVE(+) to POSITIVE(+)
(red)
.,. Open the red cover on the positive terminal
¢fig. 219.
1. Connect one end of the red positive cable
on the
jump start bolt c::;, fig. 220 @ (bolt
under the red cover = "positive") of the ve­
hicle to be started @.
2. Connect the other end to the positive ter-
mina l@ of the booster battery@.
Connect NEGATIVE (-) to NEGATIVE (-)
(black)
3. Connect one end of the black negative ca­
ble to the negat ive terminal @ of the
booster battery @.
4. Connect the other end to the
jump start
pin © (bolts with hex head bolt= "nega­
tive") of the vehicle to be started @.
Starting the engine
.,. Start the engine of the veh icle w ith the
booster battery@. Run the engine at a
moderate speed .
.,. Start engine with discharged vehicle battery
@ in the usual manner.
.,. If the engine fails to start, do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try aga in .
.,. With engine running, remove jumper cables
from both vehicles in the exact
reverse o r­
de r .
.,. Close the red cover on the positive term inal.
T he battery is vented to the outside to prevent
gases from entering the veh icle inter ior. Make
sure that the jumper clamps are well connect­
ed with their metal parts in full contact with
the battery terminals.
_& WARNING
To avoid serious personal injury and dam­
age to the vehicle, heed all warnings and
instructions of the jumper cable manufac­
turer. If in doubt, call for road service .
- Jumper cables must be long enough so
that the veh icles do not touch.
-

"' N
a:: I.J "". rl I.O
"' rl
"' rl

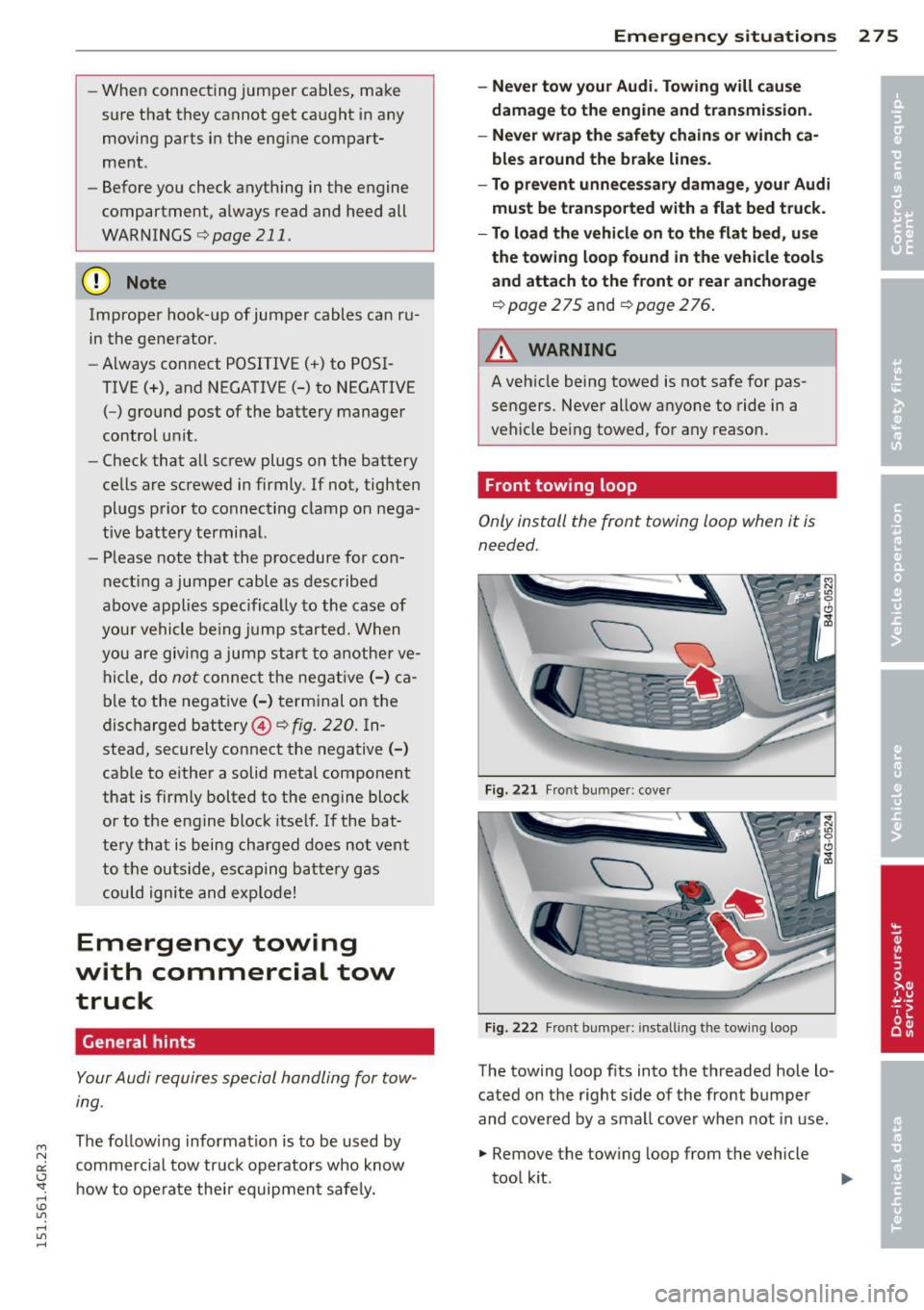

-When connecting jumper cables, make
sure that they cannot get caught in any
moving parts in the eng ine compart­
ment .
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
¢ page 211.
(D Note
Improper hook-up of jumper cables can r u­
in the generator.
- Always connect POSITIVE( +) to POSI­
TIVE(+), and NEGATIVE(-) to NEGATIVE
( - ) gro und post of the battery manager
control unit .
- Check that all screw plugs on the battery
cells a re screwed in firmly . If not, tighten
pl ugs p rior to connecting clamp on nega ­
tive battery term inal.
- Please note that the procedure f or con­
nect ing a jump er cable as desc ribed
above appl ies spec ifically to the case of
you r vehi cle be ing jump started. When
you are giv ing a jump star t to an othe r ve­
hi cle, do
not connec t the negat ive (-) ca­
ble to the negat ive (-) terminal on the
discharged battery @¢
fig. 220. In ­
stead, securely connect the negative( -)
cable to e ithe r a solid metal component
that is firmly bolted to the engine block
or to the e ng ine block itse lf. If the bat­
te ry tha t is being charged does not vent
to the outside, escaping batte ry gas
could igni te and exp lode!
Emergency towing
with commercial tow truck
General hints
Your Audi requires special handling for tow ­
tng.
The follow ing information is to be used by
commercia l tow tr uck operators who know
h ow to ope rate thei r equipme nt safe ly.
Emergenc y situ ation s 2 7 5
- Ne ver tow your Audi. Towing will cau se
damage to the engine and tran smission.
- Never wrap the safety chain s or w inch ca­
ble s around the brake lines.
- To prevent unnece ssary damage , your Audi
must be transported with a flat bed tru ck.
- To load the vehicle on to the fl at bed , use
the towing loop found in the vehicle tools
a nd attach to the front or rear anchora ge
¢pag e 275 and ¢ page 276 .
_& WARNING
A vehicle being towed is not safe for pas ­
sengers. Never allow anyo ne to ride in a
vehicle be ing towed, for any reason.
Front towing loop
Only install the front towing loop when it is
needed.
Fig. 22 1 Front bumpe r: cove r
Fig. 222 Front bu mpe r: in stall ing t he tow ing loop
-
The towing loop fits into the threaded hole lo ­
cated on the right s ide of the front bumpe r
and cove red by a sma ll cover when not in use.
.. Remove the tow ing loop from the vehicle
too l kit .

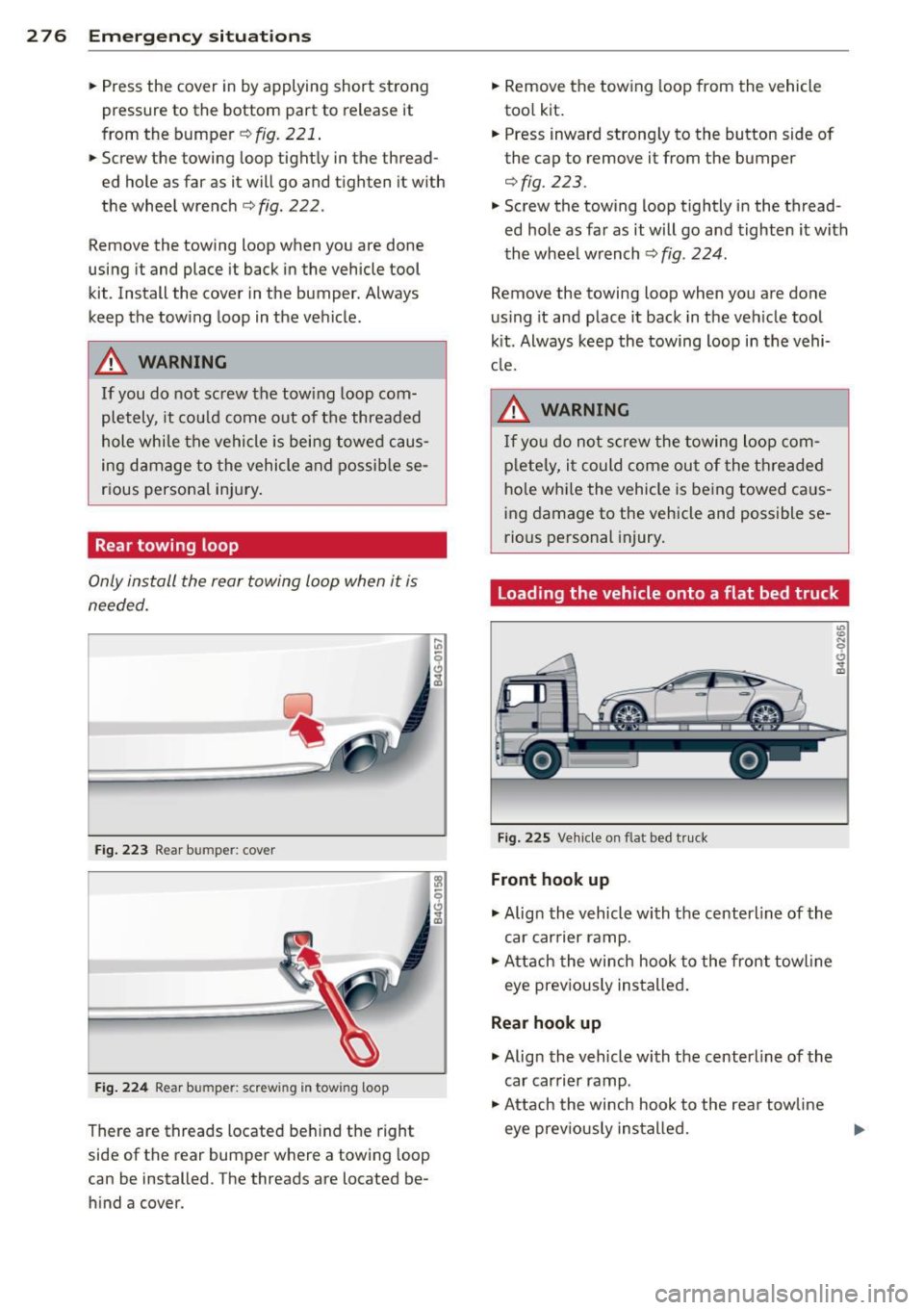

2 76 Emergency situations
• Press the cover in by applying short strong
pressure to the bottom part to release it
from the bumper
¢ fig. 221 .
• Screw the towing loop tightly in the thread­
ed hole as far as it will go and tighten it with
the wheel wrench
¢ fig . 222 .
Remove the towing loop when you are done
using it and place it back in the vehicle tool
kit . Install the cover in the bumper. Always
keep the towing loop in the vehicle.
A WARNING
If you do not screw the tow ing loop com­
pletely, it could come out of the threaded
hole while the vehicle is being towed caus­
ing damage to the vehicle and possible se­
rious personal injury.
Rear towing loop
Only install the rear towing loop when it is
needed.
Fig . 223 Rear bum per: cover
Fig. 224 Rear bum per: screw ing in tow ing loop
There are threads located behind the right
side of the rear bumper where a towing loop
can be installed . The threads are located be ­
hind a cover.
-
• Remove the towing loop from the vehicle
tool kit.
• Press inward strong ly to the button side of
the cap to remove it from the bumper
¢fig. 223.
• Screw the towing loop tightly in the thread­
ed hole as far as it will go and tighten it with
the wheel wrench¢
fig. 224.
Remove the towing loop when you are done
using it and place it back in the vehicle tool
kit. Always keep the towing loop in the vehi­
cle.
A WARNING
If you do not screw the towing loop com­
pletely, it could come out of the threaded
hole while the vehicle is be ing towed caus­
ing damage to the vehicle and possible se­
rious personal injury.
Loading the vehicle onto a flat bed truck
Fig. 225 Vehicle on flat bed truck
Front hook up
• Align the vehicle with the centerline of the
car carrier ramp.
• Attach the winch hook to the front towl ine
eye previously installed.
Rear hook up
• Align the vehicle with the centerline of the
car carrier ramp .
• Attach the winch hook to the rear tow line
eye prev iously installed.
-

"' N
a:: I.J "". rl I.O
"'

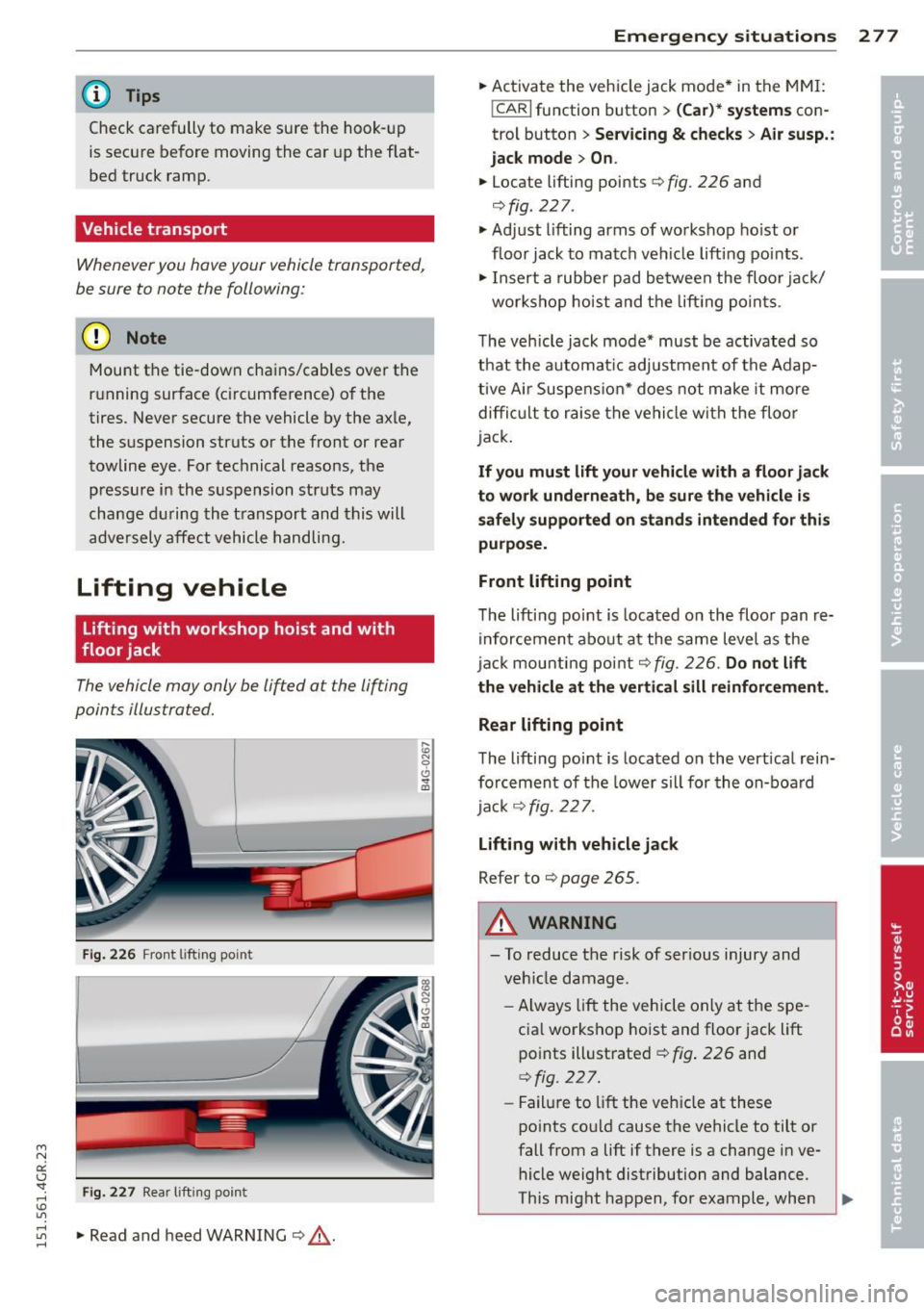

@ Tips
Check carefully to make sure the hook-up
is secure before moving the car up the flat­
bed truck ramp.
Vehicle transport
Whenever you hove your vehicle transported,
be sure to note the following:
(D Note
Mount the tie-down chains/cables over the
running surface (circumference) of the
tires. Never secure the vehicle by the axle,
the suspension struts or the front or rear
towline eye. For technical reasons, the
pressure in the suspension struts may
change du ring the transport and this will
adve rsely affect vehicle handling.
Lifting vehicle
Lifting with workshop hoist and with
floor jack
The vehicle may only be li~ed at the lifting
points illustrated.
Fig. 226 Front l ift ing po int
Fig. 22 7 Rea r lifti ng point
:;:; N 0 6 ., a,
5 .. Read and heed WARNING Q ,&..
Emergenc y situ ation s 2 77
.. Activate the vehicle jack mode* in the MM I:
!CARI function button > ( C ar)* s ystem s con­
trol button>
S e rv ic ing & check s> Air su sp. :
jac k m od e> On .
.. Locate lifting points Q fig. 226 and
Qfig. 227.
.. Adjust lifting arms of workshop hoist or
floor jack to match veh icle lifting points.
.. Insert a rubber pad be tween the floor jack/
workshop hoist and the lift ing po in ts.
The vehicle jack mode* must be activated so
that the automat ic adjustment of the Adap­
tive Ai r Suspens ion* does not make it more
diffi cult to raise the vehicle with the floor
jack.
If yo u must lift your v ehi cle with a floor jack
t o wo rk und ern eath , be sure th e vehicle i s
s af ely s upported on s tands intended for thi s
purpo se.
Front lifting point
The lifting po int is located on the floor pan re­
inforcement abo ut at the same leve l as the
jac k mounting point
Q fig. 226. Do n ot lift
t h e ve hicle at th e verti cal sill reinforc em ent .
Re ar lifting point
The lifting point is located on the vert ical rein­
forcement of the lower sill for the on-boa rd
ja ck
c::> fig. 22 7 .
Lifting with veh icle j ack
Refer to Q page 265 .
A WARNING
-To reduce the risk of ser ious injury and
veh icle damage.
- Always lift the veh icle only at the spe ­
cia l workshop hoist and floor jack lift
po ints illust rated
c::> fig . 226 and
<=:> fig. 227.
-Failu re to lift the vehicle at these
po ints could cause the vehicle to tilt or
fall from a lift if there is a change in ve­
hicle weight distribution and balance.
This might happen, for example, when
-

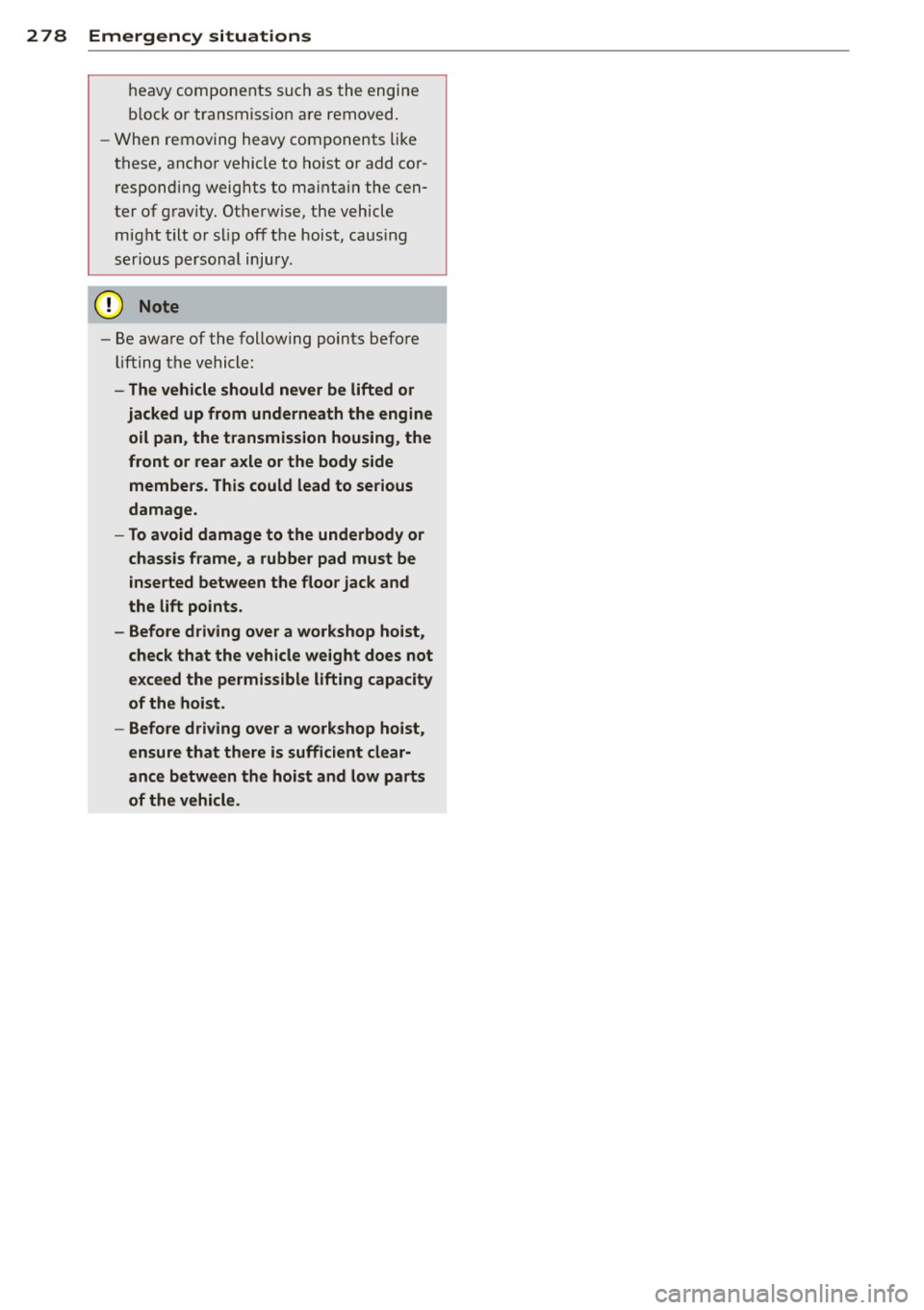

2 78 Emergency situations
heavy components such as the engine
b lock or transmiss io n are removed.
- W he n removing heavy components like
these, ancho r vehicle to ho ist o r add cor­
responding weig hts to ma inta in the cen ­
ter of g ravity . Othe rwise, the vehicle
might tilt or s lip off t he hoist, causing
ser ious p erson al injury.
(D Note
-Be awa re of the follow ing points befo re
li fting the vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan, the transmission housing, the
front or rear axle or the body side
membe rs. This could lead to ser ious
damage.
- To avoid damage to the underbody or
chassis frame , a rubber pad must be
i nserted between the floor jack and
the l ift points.
- Before driving over a workshop hoist,
check that the veh icle weight does not
exceed the permissible lifting capacity
of the hoist .
- Before driving over a workshop hoist,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.
