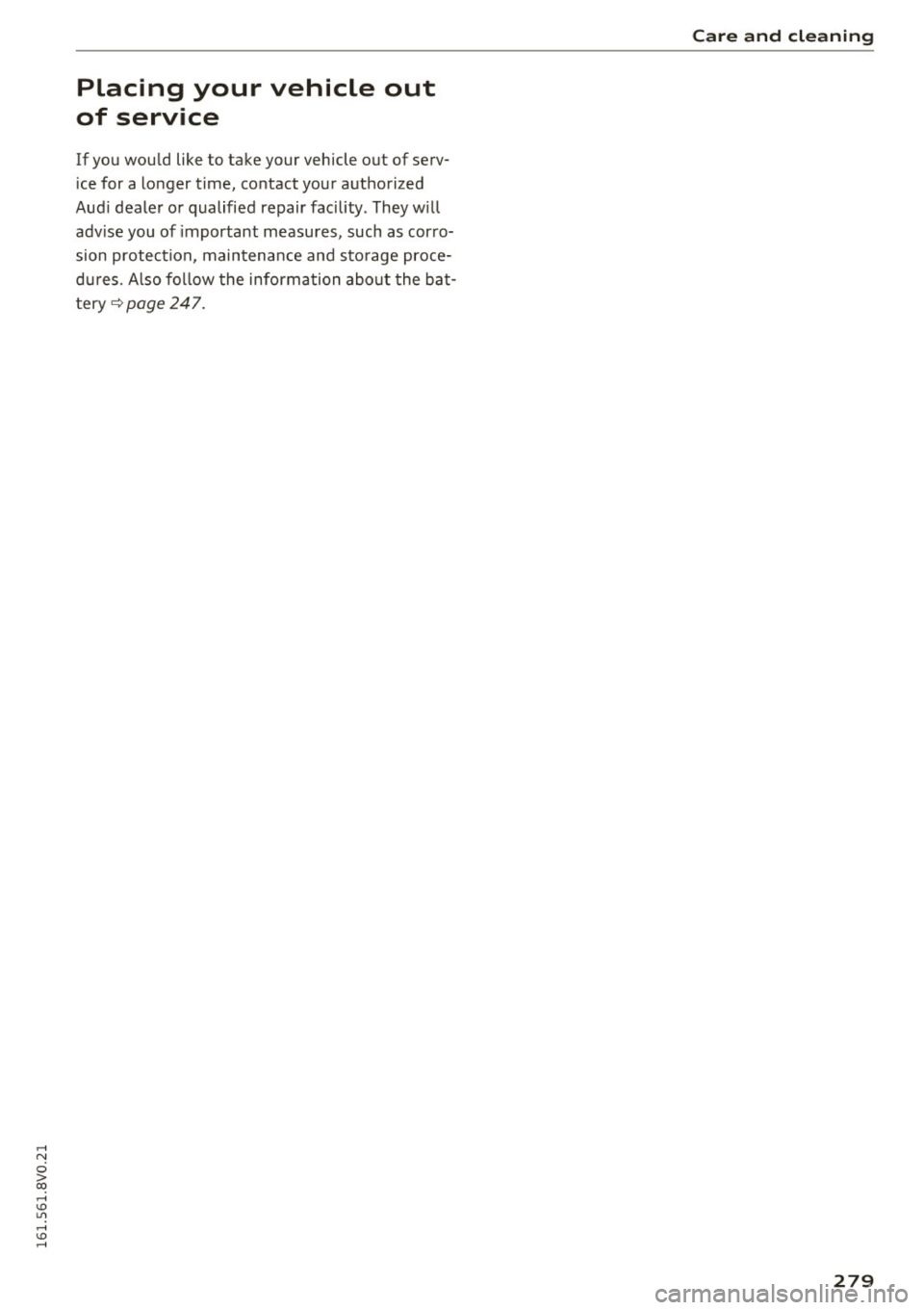

0 > co ,...., Placing your vehicle out
of service
If you would like to take your vehicle out of serv­
ice for a longer time, contact your authorized
Aud i dealer or qualified repair facility . They w ill
adv ise you of important measures, such as cor ro­
sion protection, maintena nce and sto rage proce ­
d ur es. A lso follow the information abo ut the ba t­
tery~
page 247.
Ca re and cleaning
279

Emerg ency assis ta nce

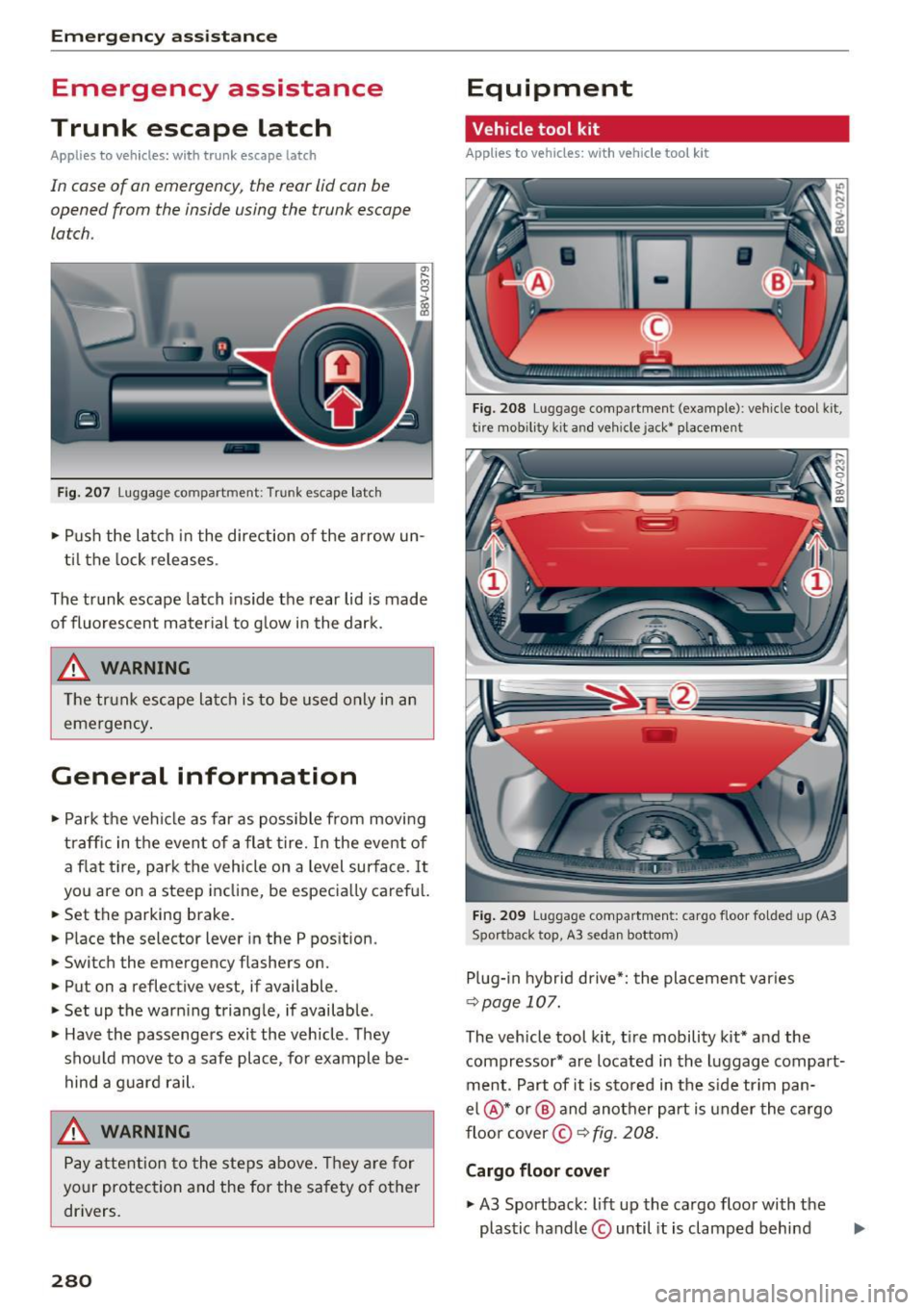

Emergency assistance
Trunk escape latch
Applies to veh icles: with trunk escape latch
In case of an emergency, the rear lid can be
opened from the inside using the trunk escape
latch.
Fig. 207 luggage compartment: Trunk escape latch
.,. Push the latch in the direction of the arrow un­
ti l the lock releases.
The trunk escape latch inside the rear lid is made
of fluo rescent mater ial to g low in the dark.
_& WARNING
The trunk escape latch is to be used only in an
emergency .
General information
.,. Park the vehicle as far as poss ible from moving
t raff ic in the event of a flat tire. In the event of
a f lat t ire, park the vehicle on a level surface. It
you are on a steep incline, be especia lly careful.
.,. Set the parking brake.
.,. Place the selector lever in the P pos ition .
.,. Switch the emergency flashers on.
.,. Put on a reflective vest, if available .
.,. Set up the warn ing triangle, if available .
.,. Have the passengers exit the vehicle. They
should move to a safe place, for example be­
hind a guard rail.
_& WARNING
Pay attention to the steps above. They a re for
your protection and the for the safety of other
drivers.
280
Equipment
Vehicle tool kit
Applies to vehicles: with vehicle tool kit
Fig. 208 luggage compartment (example): vehicle tool kit,
t ire mobility kit and vehicle jack* placement
Fig. 209 luggage compartment: cargo floor fo lded up (A3
Spo rtback top, A3 sedan bottom)
Plug-in hybrid drive*: the placement var ies
<>page 107 .
The vehicle tool kit, tire mobility kit* and the
compressor* are located in the luggage compart­
ment. Part of it is sto red in the s ide tr im pan­
el @ * or @ and another part is under the cargo
floor cover ©¢
fig. 208.
C argo floor cove r
.,. A3 Sportback: lift up the cargo floor with the
plastic handle © until it is clamped behind

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
both tabs on the side panels ¢ fig. 209 (top im ­
age).
.. A3 Sedan: clip the plastic hook@ into the lug ­
gage compartment seal¢
fig. 209 (bottom im­
age) .
Side panel
.. Open the twist lock and remove the cover @* I
@ ¢fig. 208 .
.&_ WARNING
Improper use of the vehicle jack can cause se­
rious personal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts cannot
atta in the necessary tightening torque if you
use the hex head, potentially caus ing an ac­
c ident.
- The factory-supplied jack is intended only
for your vehicle model. Under no circum­
stances should it be used to
lift heavy
vehicles o r other loads; you r is k inju ring
yo urself.
- Never start the engine when the vehicle is
ra ised, whi ch could cause an accide nt.
- Support the veh icle secure ly with app ropr i­
ate stands if wor k is to be perfo rmed under­
neath t he vehicle; otherwise, the re is a po­
tent ial risk for in jury.
- Never use the jack s upplied with your Audi
on another vehicle, par tic ularly on a heav ier
one. The jack is only suitab le for use on the
vehicle it came with .
(D Tips
The vehicle jack* in your vehicle is mainte­
na nee-free.
Tire mobility kit
Preparation
A ppl ies to vehicles: W ith t ire re pair set
.. Read and fo llow th e import ant saf ety pr ecau­
tion s¢
page 280, General information .
.. Check if a repair w ith the t ire mobility k it is pos­
s ible
¢ page 281.
Emergen cy a ssis tanc e
Using the tire mobility kit
App lies to vehic les : With tire r epair set
F ig. 210 T ire: t ire damage t hat cannot be repaired
The tire repair is only meant for temporary use.
Change the spare tire as soon as possible <=>,&. .
If the t ire is p ierced by an object such as a nail,
do not remove the object from the tire.
The tire repair set is ab le to be used at tempera­
tures as low as - 4 °F (- 20 °C).
The t ire mobility kit may not be us ed:
- if the ti re has cuts or punctures that are larger
than
0 .1 6 in (4 mm)@ ¢ fig. 210.
-if the rim is damaged @.
- if you drove with very low t ire pressure or with-
out air in the tire @.
See an authorized Audi dealer or authorized Audi
Service Facility for assistance in these situations .
.&_ WARNING
>=
-Please note that the tire mobility kit cannot
be used in all situations, and that it may on­
ly be used temporarily.
- The tire sealant must not come in contact
wit h skin, eyes, o r clothes.
- If ti re sealant gets in you r eyes or on yo ur
skin, tho ro ughly rinse the affected area im­
mediately wi th clea n wate r.
- Do not inha le the fumes.
- If you swallow any of the tire sealant, thor-
ough ly rinse your mouth immediately and
drink a lot of water . Do not ind uce vomiting.
Seek med ica l attent io n immed iate ly .
- Change yo ur clothes immediately if they get
tire seala nt on them.
~
281

Emergency assistance
-If an allergic reaction occurs, seek immedi­
ate medical attention .
- Keep the tire sealant away from children .
- In vehicles with a tire pressure monitoring
system*, using tire sealant can results in an
incorrect display or a system malfunct ion.
Drive carefully to the nearest author ized
Audi dealer or authorized Audi Service Facili­
ty.
@ Tips
- If sealant leaks, allow it to dry in place. You
can then pee l it off like a sticker.
- Note the expiration date on the sealant bot­
tle . Replace the tire sealant at an author­
i zed Audi dealer or authorized Audi Service
Facility.
- Radio reception can be interrupted when operating the compressor*.
- Obey all laws.

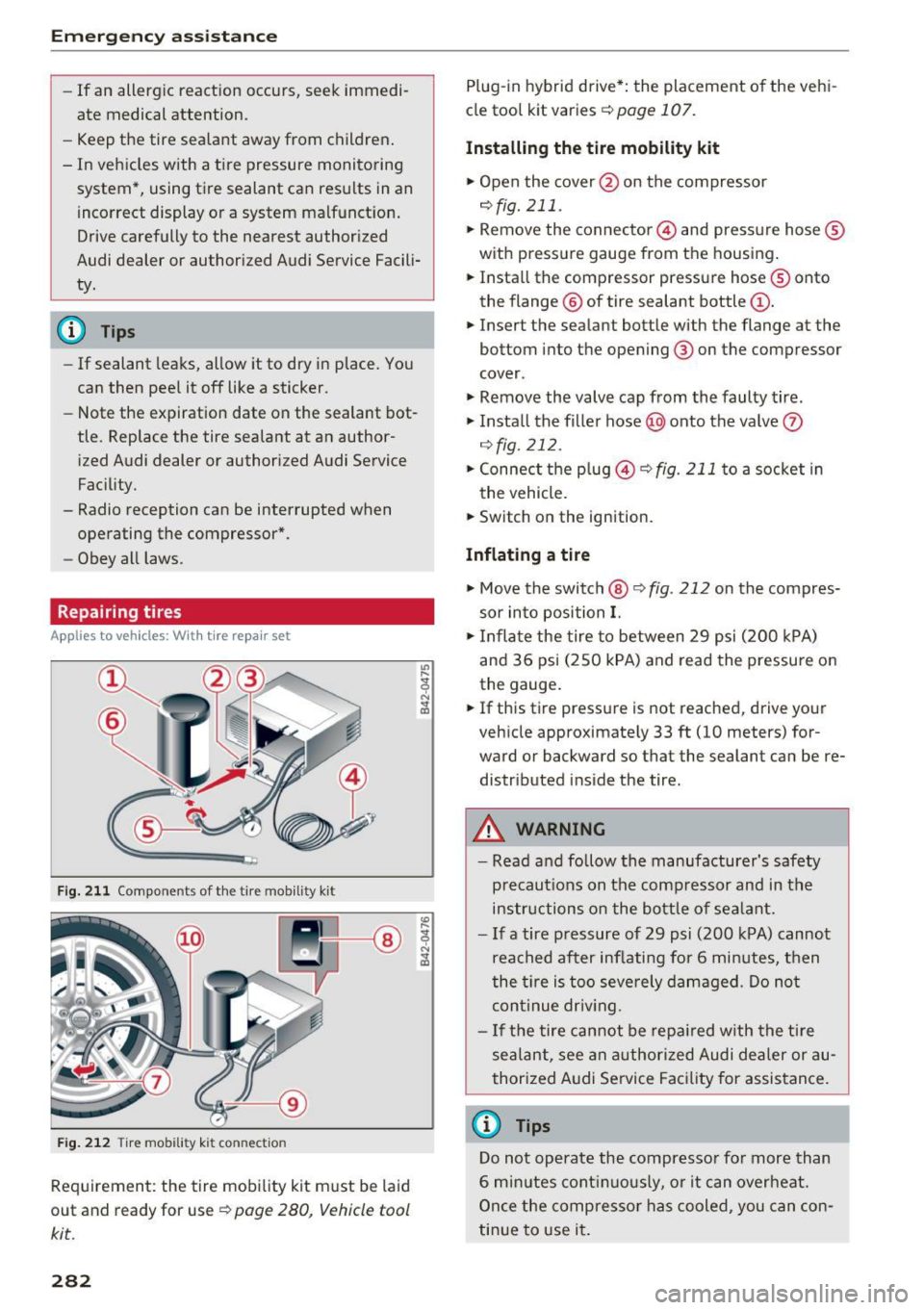

Repairing tires
App lies to veh icles: W it h tir e re p air set
F ig . 211 Compo nents of the tire mobili ty k it
F ig. 212 Tire mob ilit y kit co nn ectio n
Requirement: the tire mobility kit must be laid
out and ready for use
9 page 280, Vehicle tool
kit.
282
Plug-in hybrid drive*: the placement of the vehi­
cle tool kit varies
9 page 107.
Installing the tire mobility kit
.,. Open the cover @on the compressor
<=)fig. 211 .
.,. Remove the connector@and press ure hose ®
with press ure gauge from the housing .
.,. Insta ll the compressor pressure hose ® onto
the flange ® of tire sealant bottle ©-
.,. Insert the sealant bottle with the flange at the
bottom into the opening ® on the compressor
cover .
.,. Remove the valve cap from the faulty tire.
.,. Insta ll the filler hose@onto the valve (!)
<=)fig. 212 .
.,. Connect the plug @~ fig. 211 to a socket in
the vehicle.
.,. Switch on the ignition.
Inflating a tire
.,. Move the switch@ 9 fig. 212 on the compres­
sor into position
I.
.,. Inflate the tire to between 29 psi (200 kPA)
and 36 psi (250 kPA) and read the pressure on
the gauge .
.,. If this tire pressure is not reached, drive your
veh icle approximately 33
ft (10 meters) for­
ward or backward so that the sealant can be re­
distr ibuted inside the tire.
_& WARNING
-Read and follow the manufacturer's safety
precaut ions on the compressor and in the
instructions on the bottle of sealant.
- If a tire pressure of 29 psi (200 kPA) cannot
reached after inflating for 6 minutes, then
the tire is too severely damaged. Do not
continue driving.
- If the tire cannot be repaired with the tire
sealant, see an authorized Audi dealer or au­
thorized Audi Service Facility for assistance.
(D Tips
Do not operate the compressor for more than
6 minutes continuously, or it can over heat.
Once the compressor has cooled, you can con­
tinue to use it.

,....,
N

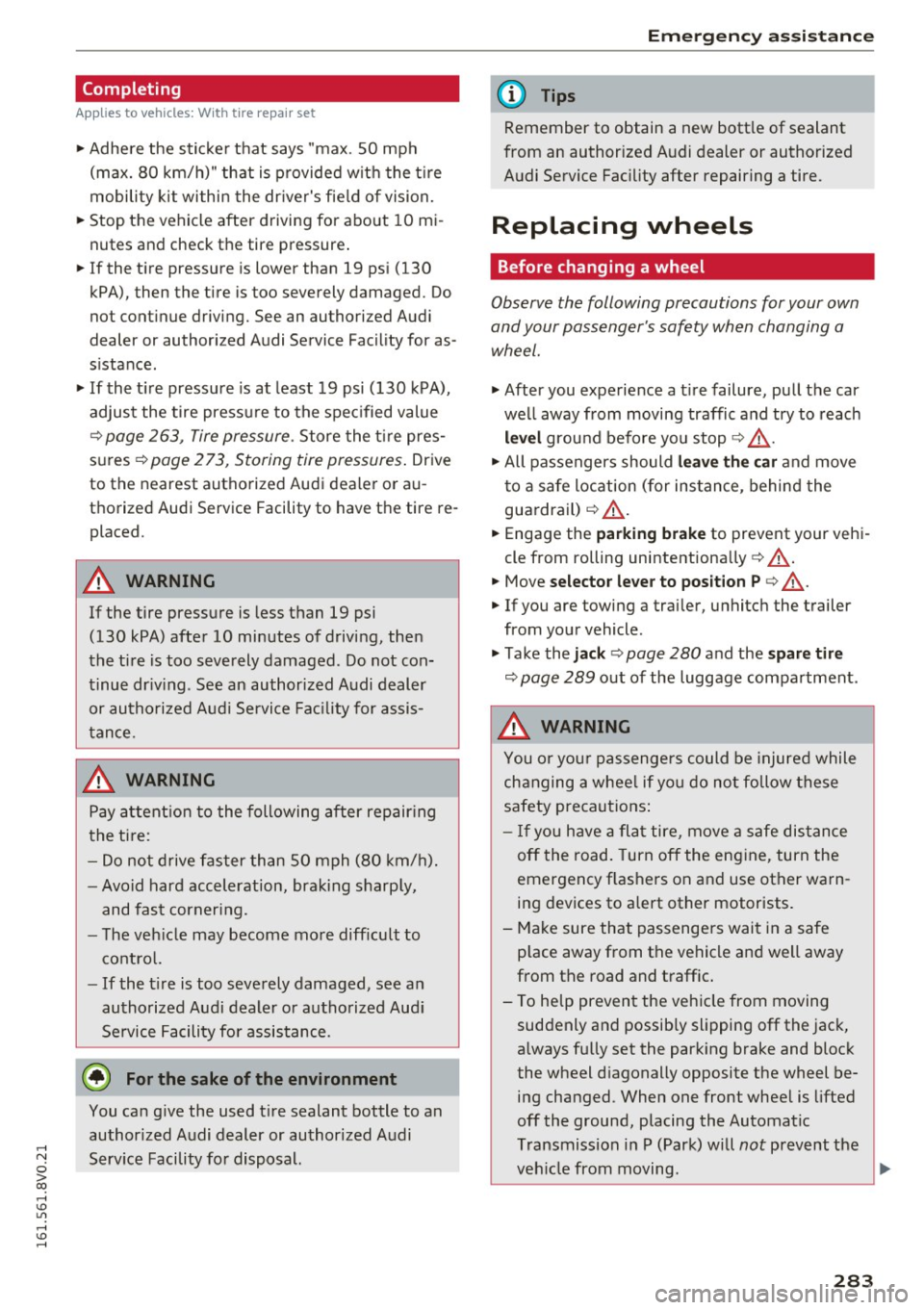

0 > co ,...., Completing
Appl ies to vehicles: W ith t ire repa ir set
.,. Adhe re the sticke r that says "max. SO mph
(max. 80 km/h)" that is p rovided w ith the t ire
mobility k it within the driver's fie ld of vision .
.,. Stop the vehicle after driving for about 10 mi ­
nutes and check the tire pressure .
.,. lfthe tire pressure is lower than 19 psi (130
kPA), then the tire is too severely damaged. Do
not cont inue driving. See an authorized Audi
dealer or authorized Audi Service Facil ity for as­
s istance .
.,. If the t ire pressure is at least 19 psi (130 kPA),
adjus t the tire pressu re to the spec ified value
~ page 263, Tire pressure . Store the tire pres ­
sures
~page 273, Storing tire pressures . Drive
to the nearest authorized Audi dealer or au­
thorized Audi Serv ice Facility to have the tire re­
placed.
A WARNING
If the tire pressure is less than 19 psi
(130 kPA) after 10 minutes of d riving, then
the tire is too severely damaged. Do not con­
tinue dr iv ing . See an authorized Audi dealer
or autho rized Audi Service Fac ility for assis­
t ance.
A WARNING
Pay a ttent ion to the following after repair ing
the tire:
- Do not drive faster than 50 mph (80 km/h).
- Avoid hard acceleration, brak ing sharp ly,
and fast corner ing.
- The veh icle may become mo re difficu lt to
co ntro l.
-If the t ire is too severely damaged, see an
authorized Audi dealer o r autho rized Aud i
Service Facility for assistance .
@ For the sake of the environment
You can give the used t ire sealant bottle to an
author ized Audi dealer or authorized A udi
Serv ice Facility fo r disposal.
Em ergenc y ass is tanc e
{!) Tips
Remember to obtain a new bott le of sealant
from an authorized A udi dealer or authorized
Audi Service Fac ility after repairing a tire.
Replacing wheels
Before changing a wheel
Observe the following precautions for your own
and your passenger's safety when changing a wheel.
.,. After you experience a t ire failure, pull the car
well away from moving traffic and try to reach
le vel grou nd before you stop~,& .
.,. All passengers should
leave the car and move
t o a safe location (for ins tance, behind the
gua rdrail) ~,& .
.,. Engage the
pa rking brake to prevent your vehi ­
cle from rolling unintentionally ~ .,& .
.,. Move
sele ctor le ver to po sition P ~ .,& .
.,. If you are tow ing a trai ler, unhitch the trailer
from yo ur vehicle .
.,. Take the jack Q page 280 and the spare tire
~ page 289 out of the luggage compartment.
A WARNING
You o r you r passengers could be injured while
changing a whee l if yo u do not follow these
safety precaut ions :
- If you have a fla t tire, move a safe dis tance
off the road. Turn off the eng ine, turn the
emergency f lashers on and use other warn ­
ing devices to alert other motorists.
- Make sure that passenge rs wai t in a safe
p lace away from the vehicle and well away
from the road and t raffic.
- To help prevent the vehicle from moving suddenly and possib ly slipping off the jack,
always fu lly set the park ing brake and block
the wheel d iagonally opposite the wheel be­
ing changed . When one front whee l is lifted
off the ground, placing the Automatic
Transmission i n P (Park) w ill
not prevent the
veh icle from moving.
~
283

Emergency assistance
-Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack.
- Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
partment
c:> page 172.

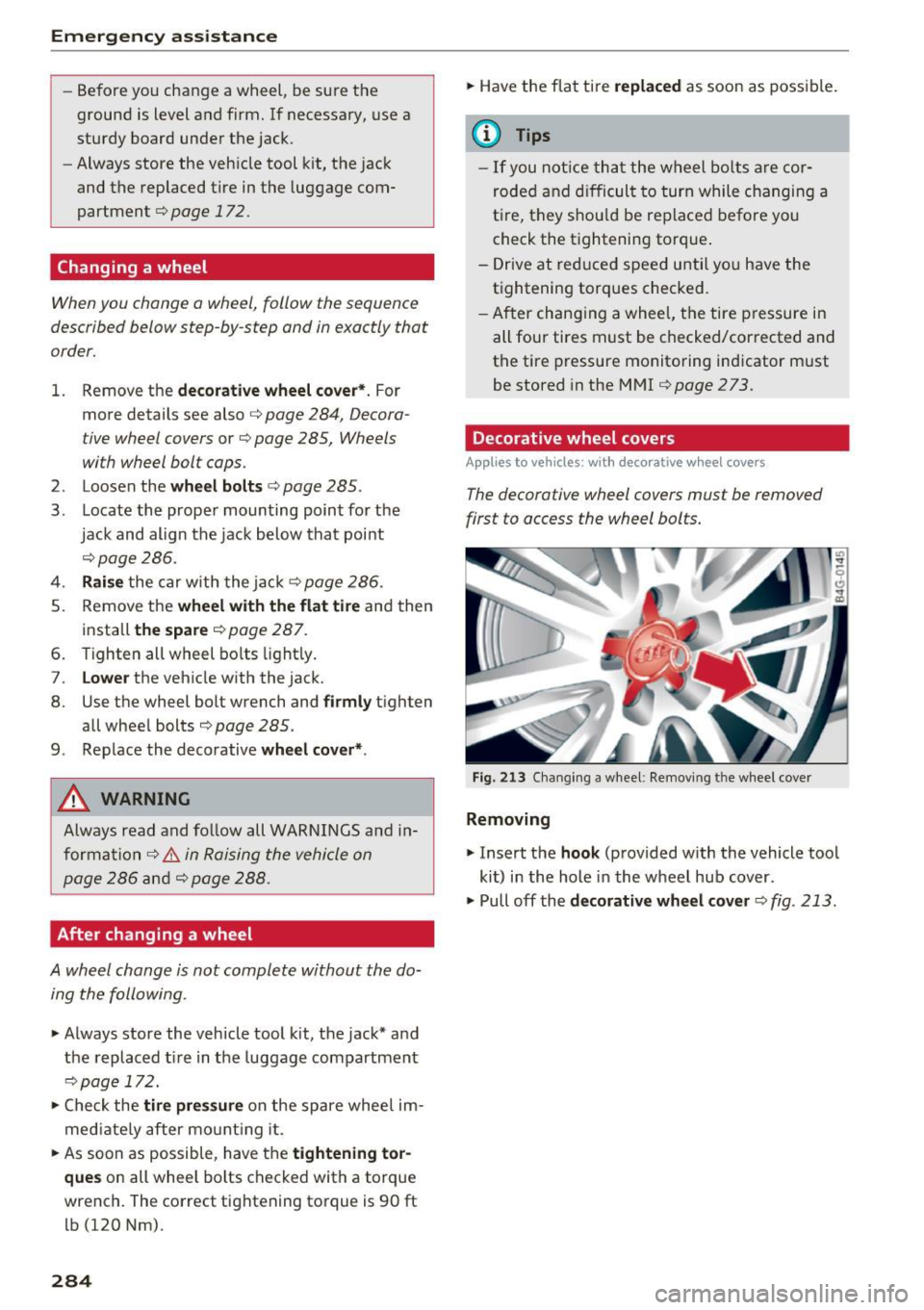

Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order.
1. Remove the decorative wheel cover*. For
more details see also
c:> page 284, Decora­
tive wheel covers
or c:> page 285, Wheels
with wheel bolt caps.
2 . Loosen the wheel bolts c:> page 285 .
3. Locate the proper mounting point for the
jack and align the jack below that point
c:> page 286 .
4. Raise the car with the jack c:> page 286 .
5. Remove the wheel with the flat tire and then
install
the spare c:>page 287.
6. Tighten all wheel bolts lightly.
7 .
Lower the vehicle with the jack.
8. Use the wheel bolt wrench and firmly tighten
all wheel bolts
c:> page 285.
9. Replace the decorative wheel cover* .
_&. WARNING
Always read and follow all WARNINGS and in­
forma tion
c:> .& in Raising the vehicle on
page 286
and c:> page 288.
After changing a wheel
A wheel change is not complete without the do­
ing the following .
.,. Always store the vehicle tool kit, the jack* and
the replaced tir e in the luggage compartment
c:> page 172 .
.,. Check the tire pressure on the spare wheel im­
mediate ly after mounting it .
.,. As soon as possible, have the
tightening tor­
ques
on all wheel bolts checked with a torque
wrench. The correct tightening torque is 90 ft
lb
(120 Nm).
284
.,. Have the flat tire replaced as soon as possible .
@ Tips
- If
you notice that the wheel bolts are cor­
roded and difficult to turn while changing a
tire, they shou ld be replaced before you
check the tightening torque .
- Drive at reduced speed until you have the
tightening torques checked.
- After chang ing a wheel, the tire pressure in
all four tires must be checked/corrected and
the tire pressure monitoring indicator m ust
be stored in the MMI
c:>page 273.
Decorative wheel covers
Applies to vehicles: wit h decorative wheel covers
The decorative wheel covers must be removed
first to access the wheel bolts .
Fig. 213 Chang ing a w heel : Remov ing t he wheel cover
Removing
.,. Insert the hook (provided with the vehicle tool
kit) in the hole in the wheel hub cover.
.,. Pull off the
decorative wheel cover c:> fig. 213 .

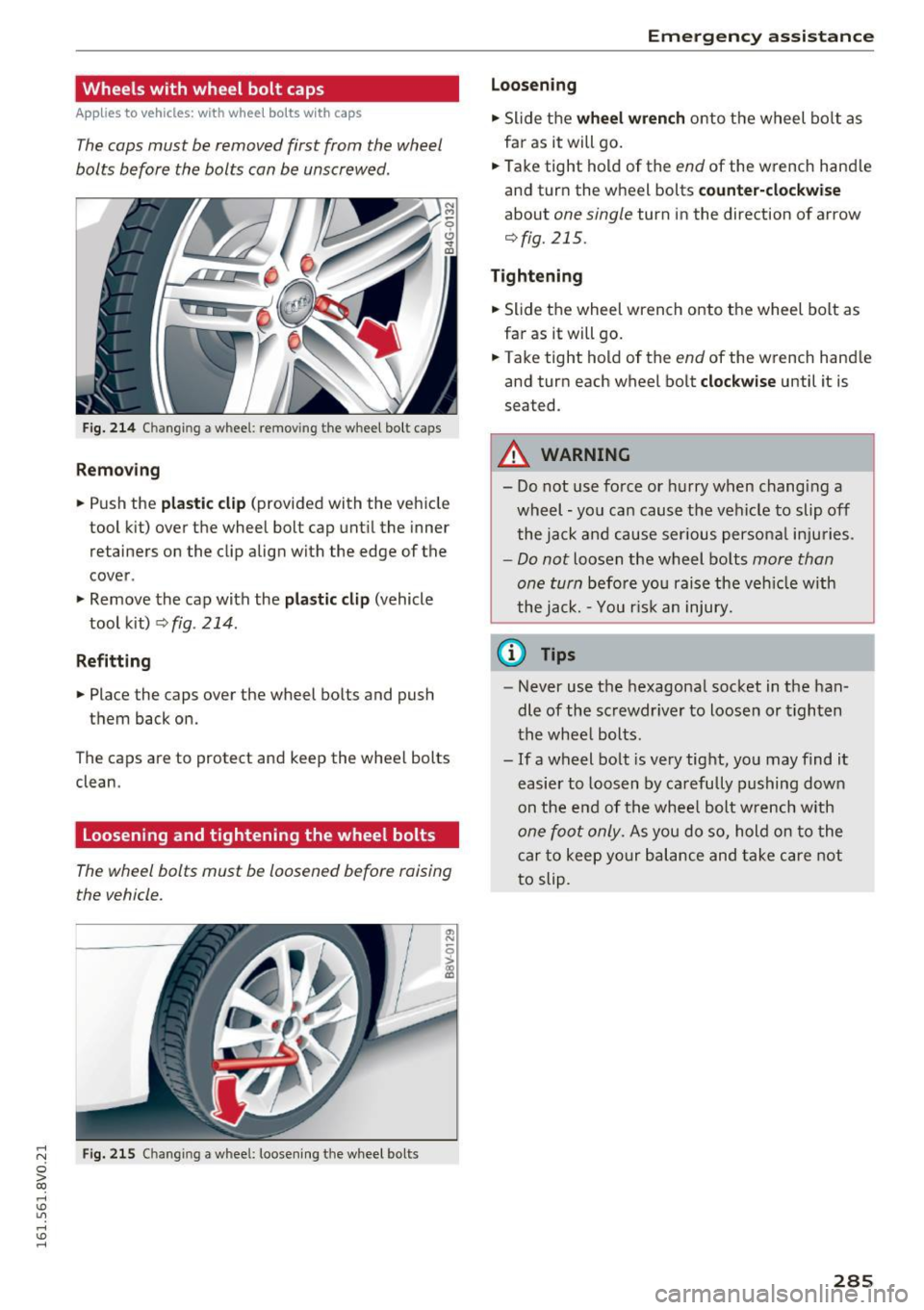

Wheels with wheel bolt caps
Applies to vehicles: with whee l bo lts w ith caps
The cops must be removed first from the wheel
bolts before the bolts con be unscrewed.
Fig. 214 C hanging a wheel: remov ing the wheel bolt caps
Remo ving
.. Push the pla sti c cli p (provided with the vehicle
tool kit) over the wheel bolt cap unt il the inner
retainers on the clip align with the edge of the
cover.
.. Remove the cap with the
pla s tic cli p (vehicle
tool kit)
q fig . 214.
Refitting
.. Place the caps over the wheel bo lts and push
them back on.
The caps are to protect and keep the whee l bolts
clean.
Loosening and tightening the wheel bolts
The wheel bolts must be loosened before raising
the vehicle.
;::: Fig. 2 15 Changing a wheel: loosen ing t he w heel bolts
0 > CX)
rl I.Cl U"I
rl I.Cl rl
Em ergen cy a ssis tanc e
Loosen ing
.. Slide t he whe el wren ch onto the wheel bolt as
fa r as it will go.
.. Take tight hold of the
end of the wrench hand le
and tur n the wheel bolts
counter -clockwise
about one single turn in the direction of arrow
qfig. 215.
Tightening
.. Slide the wheel wrench onto the wheel bolt as
far as it will go .
.. Take tight hold of the
end of the wrench hand le
and turn each wheel bolt
clo ckwi se until it is
seated.
A WARNING
-- Do not use force or hurry when chang ing a
wheel -you can cause the vehicle to slip off
the jack and cause ser ious persona l inju ries .
-Do not loosen the wheel bolts more than
one turn
befo re you raise the veh icle with
the jack. -You r isk an injury.
(0 Tips
- Never use the hexagonal socket in the han­
dle of the screwdr iver to loosen or tighten
the whee l bolts.
- If a wheel bolt is very tight, you may find it
easier to loosen by ca refully pushing down
on the e nd of the whee l bolt w rench with
one foot only. As you do so, hold on to the
car to keep yo ur balance and take care not
to slip.
285

Emerg ency assis ta nce

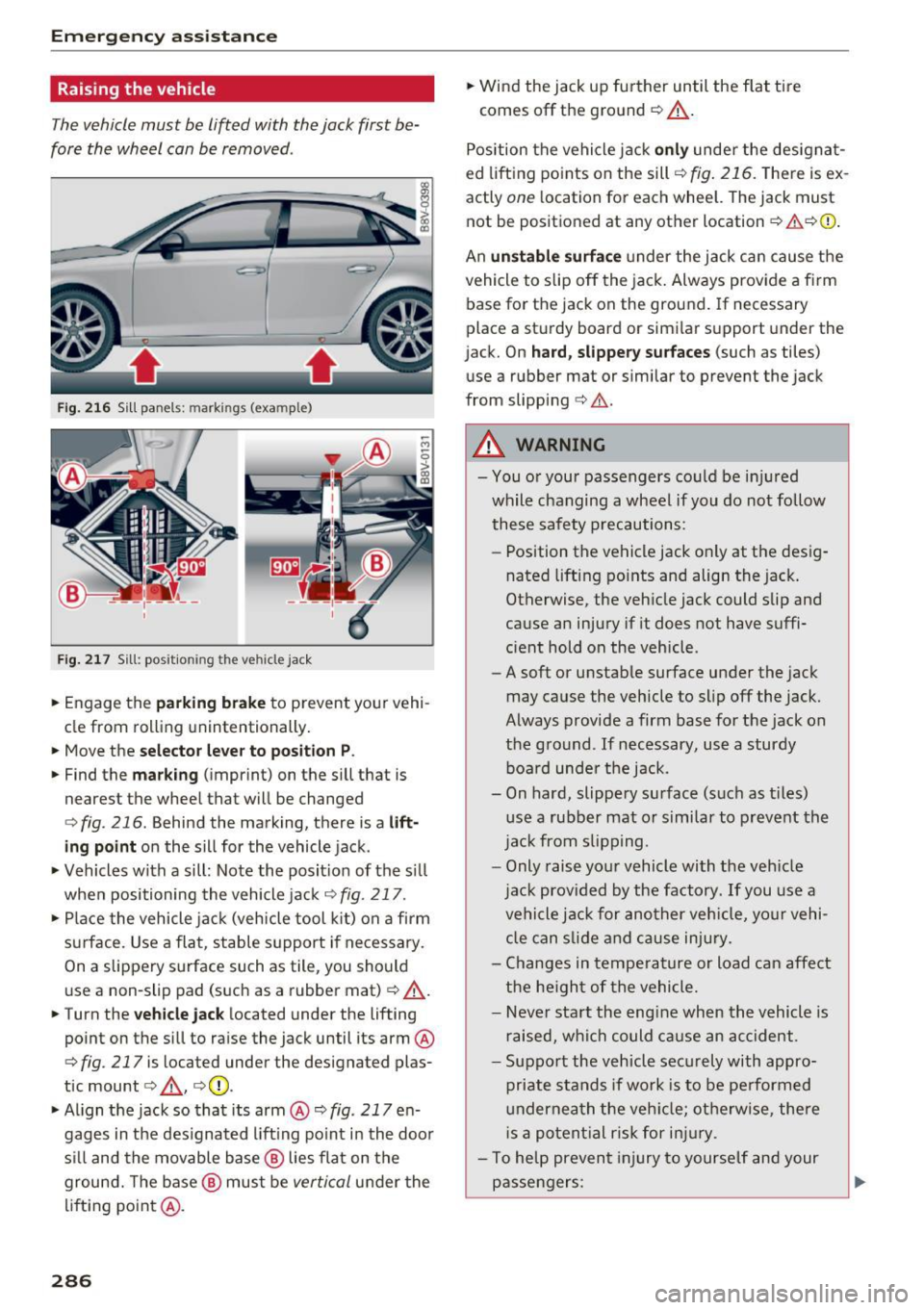

Raising the vehicle
The vehicle must be li~ed with the jack first be­
fore the wheel can be removed .
Fig. 216 Sill panels : markin gs (example)
Fig . 217 S ill : pos itio ning the vehicle jack
• Engage the park ing b rake to prevent you r vehi­
cle from rolling unintentionally.
• Move the
sel ec tor lev er to position P.
• Find the ma rk ing ( impr int) on the sill that is
nearest the wheel that will be changed
¢ fig. 216 . Behind the marking, there is a lift­
ing point on the sill for the vehicle jack .
• Vehicles with a sill: Note the posit io n of the s ill
when positioning the vehicle jack ¢
fig. 217 .
• Place the vehicle jack (veh icle tool kit) on a firm
s u rface. Use a flat, stable s upport if necessary.
On a slippery surface such as tile, you should
use a non-slip pad (such as a rubber mat)
¢ .&_ .
• Turn the vehicle j ack located under the lifting
point on the sill to ra ise the jack until its arm @
¢fig . 217 is located under the designated plas­
tic mount ¢
_A, ¢(D.
• Al ign the jack so that its arm @
q fig. 217 en­
gages in the des ignated lift ing po int i n the doo r
s ill and the movable base @ lies flat on the
ground. The base @ must be
vertical under the
li ft ing point @.
286
• Wind the jack up further until the flat tire
comes off the ground ¢
_A.
Position the vehicle jack only under the designat ­
ed lifting points on the sill ¢
fig. 216. There is ex­
actly
one l ocation fo r each wheel. The jack must
not be positioned at any other location ¢
,1.¢(D .
An un stab le surf ace under the jack can cause the
vehicle to slip off the jack. Always provide a firm
base for the jack on the ground. If necessary
place a st urdy board or similar s upport under the
jack. On
ha rd, slipper y sur fac es (such as tiles)
use a rubber mat or similar to prevent the jack
from slipping ¢& .
A WARNING
-You or your passengers could be inj ured
while changing a wheel if you do not follow
these safety precautions:
- Position the vehicle jack only at the desig­
nated lifting po ints and align the jack .
Otherwise, the veh icle jack could slip and
cause an injury if it does not have suffi­
cient hold on the vehicle .
- A soft or unstab le surface under the jack
may cause the vehicle to slip off the jack.
Always provide a firm base for the jack on
the gro und . If necessary, use a sturdy
boa rd unde r the jack.
- On hard, slippery surface (such as t iles)
u se a rubber mat o r similar to p revent the
ja ck from s lipp ing.
- Only raise your vehicle with the veh icle
j ack prov ided by the factory . If you use a
vehicle jack for another veh icle, yo ur vehi­
cle can s lide and cause injury.
- Changes in tempe rature or load can affect
the he ight of the vehicle.
- Never start the eng ine when the vehicle is
r aised, w hich could cause an accident.
- Suppo rt the vehicle sec urely with appro­
priate stands if work is to be pe rformed
u ndernea th the ve hicle; ot herwise, there
i s a potent ial risk for in jury.
- To he lp prevent injury to yourse lf and your
p assengers: .,.

.... N
0 > CX)
.... I.Cl U"I ,....,
I.Cl ....
-Do not raise the vehicle until you are sure
the jack is securely engaged.
- Passengers must not remain in the vehicle
when it is jacked up.
- Make sure that passengers wait in a safe
p lace away from the vehicle and well away
from the road and traff ic.
- Make sure jack position is correct, adjust
as necessary and then cont inue to raise
the jack.
- Changes in temperature or load can affect
the height of the vehicle.
CD Note
Do not lift the vehicle by the sill. Position the
veh icle jack on ly at the designated lifting
points on the sil l. Otherwise, your vehicle will
be damaged.

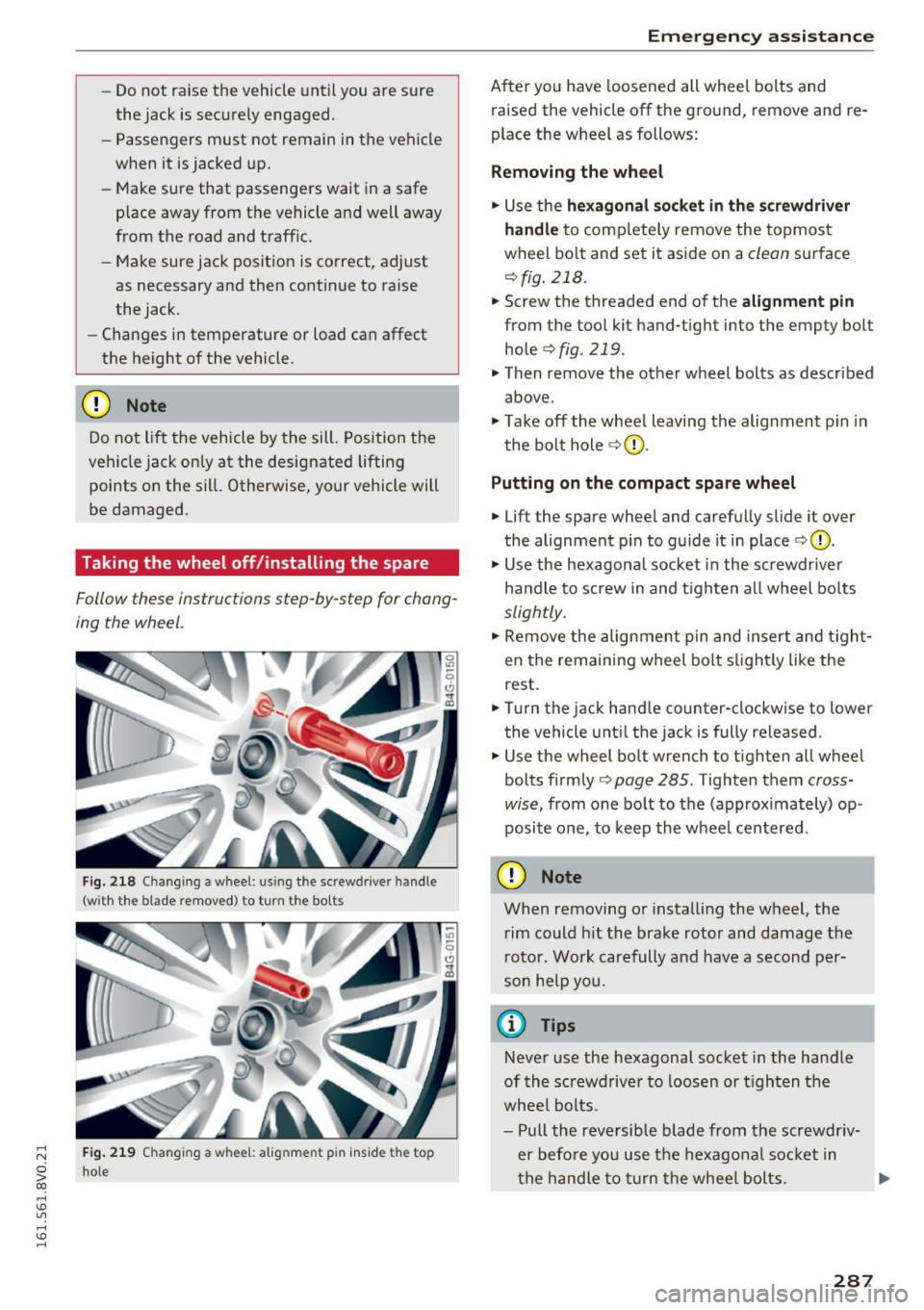

Taking the wheel off/installing the spare
Follow these instructions step-by-step for chang­
ing the wheel .
Fig. 2 18 Ch anging a whee l: using the screwd river handle
(with the blade removed) to turn the bolts
F ig . 2 19 Ch ang ing a whee l: alig nmen t pin inside the top
hole
Em ergen cy a ssis tanc e
After you have loosened all wheel bolts and
raised the vehicle off the ground, remove and re­
place the wheel as follows:
Removing the wheel
.,.. Use the hexagonal socket in the screwdri ver
handle
to comp letely remove the topmost
wheel bo lt and set it aside on a
clean su rface
c!>fig. 218.
.,.. Screw the threaded end of the alig nment pin
from the tool kit hand-tight into the empty bo lt
hole
r::!> fig . 219.
.,.. Then remove the other wheel bolts as descr ibed
above .
.,.. Take off the wheel leaving the alignment p in in
the bolt hole
~ 0-
Putting on the comp act spare wheel
.,.. Lift the spare wheel and carefully slide it over
the alignment p in to guide it in place
r::!> (0 .
.,.. Use the hexagonal socket in the screwdr iver
handle to screw in and tighten a ll wheel bolts
slightly .
.,.. Remove the alignment pin and insert and t igh t­
en the remaining wheel bo lt s light ly like the
rest .
.,.. Turn the jack hand le counter -clockwise to lower
the vehicle until the jack is fully released .
.,.. Use the wheel bolt wrench to tighten a ll wheel
bolts firmly
r::!> page 285 . Tighten them cross­
wise,
from one bo lt to the (approx imately) op­
posite one, to keep the wheel centered .
CD Note
When removing or installing the wheel, the
rim co uld h it the brake rotor and damage the
r otor. Work carefully and have a second per­
son help you.
0) Tips
Never use the hexagonal socket in the handle
of the sc rewdrive r to loosen or t ighten the
whee l bolts.
- Pull the reversible blade from the screwdr iv­
er before yo u use the hexagona l soc ket in
t he handle to tu rn the whee l bolts.
287

Emergency assistance
- W hen mounting tires w ith unidirectional
tread design
make s ure the t read pattern is
po inted the r ight way ¢
page 288 .
-The wheel bolts should be clean and easy to
turn . C heck for di rt and cor ros ion on t he
mating surfaces o f both the wheel and the
h ub. Remove all dirt from these surfaces be­
fo re remo unting the wheel.

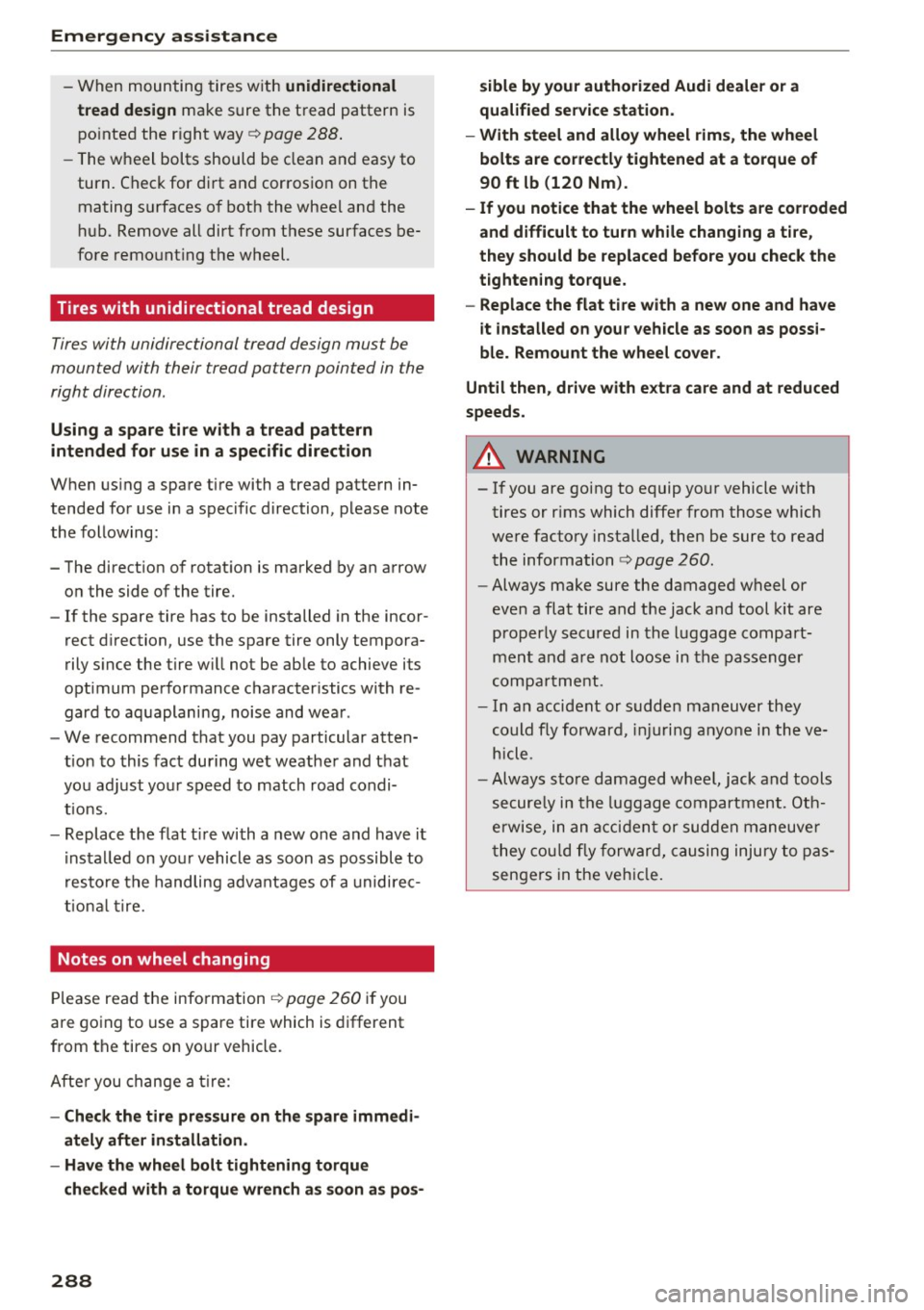

Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction.
Using a spare tire with a tread pattern
intended for use in a specific direction
When us ing a spare tire with a tread pattern in­
tended for use in a spec ific d irection, p lease note
the following:
- The direct ion o f rotat ion is marked by an a rrow
o n the side of the tire.
- If the spare tire has to be installed in the incor­
rect d irection, use the spare tire only tempora­
rily s ince the tire w ill not be ab le to achieve its
o ptimum performance charac ter istics wi th re­
gar d to a quaplaning, noise and wea r.
- We recommend t hat you pay particular atten­
tion to this fac t during wet weathe r and t hat
yo u ad just yo ur speed to match road condi­
tio ns.
- Replace the f lat t ire with a new one and have i t
i ns ta lled on yo ur ve hicl e as soon as possibl e to
r esto re th e han dling adv antages of a unidi re c­
tio nal ti re.
Notes on wheel changing
Plea se read the info rmation ¢ page 2 60 if you
are go ing to use a spare tire which is different
from the tires on your vehicle.
Af te r yo u change a tir e:
- Check the tire pressure on the spare immedi­
ately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as pos -
288
sible by your authorized Audi dealer or a
qualified service station.
- With steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of
90 ft lb (120 Nm ).
- If you notice that the wheel bolts are corroded
and difficult to turn while changing a tire,
they should be replaced before you check the
t ightening torque.
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi ­
ble. Remount the wheel cover .
Until then , drive with extra care and at reduced
speeds.
& WARNING
- If you are going to equip yo ur vehicle with
tires or r ims which diffe r from those which
were facto ry insta lled, then be sure to read
t he informa tion ¢
page 260.
-Always make sure the damaged wheel or
eve n a flat tire and the jack and tool kit are
pro per ly secur ed in the l uggage compart­
men t and a re not loose in the passeng er
co mpart me nt.
- In an accident or sudde n maneuver they
co uld fly forw ard, injuri ng anyo ne in the v e­
hicle .
- Always s to re damaged wh eel, jack and tools
s ecure ly i n t he luggage co m pa rt m ent. Oth­
erwi se, in an a ccid ent or sudde n m aneu ve r
t hey cou ld fly forw ard , cau sing injury to pa s­
s engers in the veh icle.
-
