Spare tire
General information
Applies to vehicles: with space-saving spare tire (compact
spare tire)
F ig. 220 Luggage co mpa rtmen t: ca rgo floo r fo lded up (A3
Sportback top, A3 sedan bo ttom )
F ig. 221 Compac t spare tir e
The spare tire ¢ fig. 221 is intended for sho rt­
term use only . Have the damaged tire checked
and replaced if necessary by an authorized Aud i
dealer or authori zed Audi Service Facility as soon
as possible .
There are some restrictions on the use of the compact spare tire . The compact spare tire has
been designed specif ica lly for your type of vehi­
cle . Do not replace it with the spare tire from an­
other type of vehicle.
Em ergen cy a ssis tanc e
Removing the sp are tire (A3 Sportback )
.,. Lift up the cargo floor wi th the p lastic handle
until it is clamped beh ind the tabs on both s ide
pane ls
(D ¢ fig. 220.
.,. Remove the subwoofer* if necessary . Check
which subwoofer is installed based on the con ­
nector : version 1 ¢
page 290 or version 2
¢page 290.
"'Turn the large screw counter -clockw ise .
.,. Remove the spare tire .
Removin g the sp are tire (A3 Sedan )
.,. Lift the cargo floor by the plastic handle.
"' Hang the p lastic hook on the luggage compart-
ment weather strip -arrow -¢
fig . 220 .
"'Turn the large screw counter-clockw ise .
"' Remove the spare tire .
Snow chains
For technical reasons, the use of snow chains on
the compact spare tire is not permitted.
If you have to drive with snow chains and a front
tire fails, mount the spare wheel in p lace of a
rear tire . Install the snow chains on the rear tire
that you removed , and install that in place of the
front t ire that fai led .
A WARNING
=
-After installing a spare tire, the t ire pres-
sure must be checked as soon as possible .
The t ire pressure is availab le on ¢
page 263,
fig. 205.
- If the spa re ti re is mo re t han 6 years old,
use it only in an emergency and with ex­
treme ca ution and careful driving.
- The spare tire is intended only fo r tempora­
ry a nd short-term use.
It should be replaced
as soon as poss ible with the normal whee l
and tire .
- After moun ting the compact spare tire, the
tire pressure must be checked as soon as possible. The tire press ure of the compact
spare tire must be 61 ps i (420 kPA); other­
wise, you risk having an accident .
- Do not drive faster than 50 mph (80 km/h).
You risk having an acc ident. ""
289

Emergency assistance
-Avoid full-throttle acceleration, heavy brak­
ing, and fast cornering. You risk having an
accident.
- Never dr ive using more than one spare
wheel and tire. You risk having an accident.
- Normal summer or winter tires must not be
mounted on the compact spare wheel rim.
- For technical reasons, the use of tire chains
on the spare tire is not permitted. If it is
necessary to drive with tire chains, the spare
wheel must be mounted on the front axle in
the event of a flat in a rear tire. The newly
available front wheel must then be installed
in place of the rear wheel with the flat tire.
Installing the tire chain before mounting
the wheel and tire is recommended.
- Loose items in the passenger compartment
can cause serious personal injury during
hard braking or in an acciden t. Never store
the inflatable spa re tire or jack and tools in
the passenger compartment.
- Normal summer or winter tires must not be
mounted on the compact spare wheel rim .
Removing the subwoofer (version 1)
Applies to veh icles: w ith subwoofer
The subwoofer must be removed before the
spare wheel" can be removed.
F ig. 222 Spare wheel well : subwoofer
Removing the subwoofer
.,. Lift up the cargo floor~ page 289, fig. 220 .
.,. Press the connector tabs CD cc> fig . 222 togeth­
er .
.,. Remove the connector @and set the discon­
nected cable aside .
.,. Remove the bolt @ .
290
.,. Carefully remove the su bwoofer.
Installing the subwoofer
.,. Carefully p lace the su bwoofer in the rim well .
The word "FRONT " on the subwoofer must face
forward.
.,. Insert the connecto r that was removed.
.,. Secure the subwoofer with the bolt.
.,. Fold the cargo f loor cover back into place.
Removing the subwoofer (version 2)
Applies to vehicles: wit h subwoo fe r
The subwoofer must be removed before the
spare wheel" can be removed.
Fig. 223 Spa re w hee l we ll: s ubwoofe r
Removing the subwoofer
.,. Lift up the cargo floor ¢page 289, fig. 220.
.,. Pull the lock CD~ fig. 223 toward the cable .
.,. Press the locking tab @down .
.,. Remove the connector @ and set the removed
cable aside .
.,. Remove the bolt@ .
.,. Carefully remove the subwoofer.
Installing the subwoofer
.,. Carefully place the subwoofer in the r im well .
The word "FRONT" on the s ubwoofer must face
forward.
.,. Insert the connector that was removed.
.,. Secure the subwoofer with the bolt .
.,. Fold the cargo floor cover back into place .

.... N
Fuses and bulbs
Electrical fuses
Replacing fuses
A fuse that has blown will have metal strips tha t
have burned through .
Fig. 224 Steer ing colu mn area : cove r
Fig. 225 Left side of the engin e com partment : fus e cover
Fuses in the interior
The fuses are behind the cover in the steering
column area
¢fig. 224.
• Switch the ign ition and all electr ical equipment
off .
• Check the following table to see which fuse be­
longs to the equipment
r::!.> page 292.
• Remove the cover ("AIRBAG" label)
¢ fig. 224.
Begin at the bottom right corner -arrow- .
• Remove the plastic clip from the fuse panel
cover in the engine compartment ¢
fig. 225.
• Remove the fuse using the plastic clamp.
• Replace the burned fuse with an identical new
one .
• Install the cover .
~ Fuses in the engine compartment CX)
rl
~ •Turnoff the ignition and the failed electrical
~ equipment . ....
Fuses and bulbs
• Check the following table to see which fuse be­
longs to the equipment¢
page 293.
• Remove the fuse panel cover r::!.> fig. 225.
• Remove the plastic clip from the fuse panel
cover¢
fig . 225 .
• Remove the fuse using the plastic clamp .
• Replace the burned fuse with an identical new
one .
• Reinstall the cover.
The individual circu its are protected by safety
fuses . The fuses are located under the steering
wheel beh ind a cover and in the left side of the
engine compartment .
Fuse color identification
Color Current rating
in amps
Black 1
Purple 3
Light brown 5
Brown 7.5
Red 10
Blue 15
Yellow 20
White or transparent 25
Green 30
orange 40
A WARNING
Do not repair fuses and never replace a blown
fuse with one that has a higher amp rating .
This can cause damage to the electr ical sys­
tem and a fire.
(D Note
If a new fuse burns out again shortly after you
have installed it, have the electrical system
checked as soon as possible by an authorized
Audi dealer or authorized Audi Service Facili­
ty.
(0 Tips
- Th e following table does not list fuse loca­
tions that are not used.
291

Fuses and bulbs
-Some of the equipment listed in the follow­
ing tables applies only to certain mode l ver­
sions or certain optional equ ipment.
Interior fuse assignment

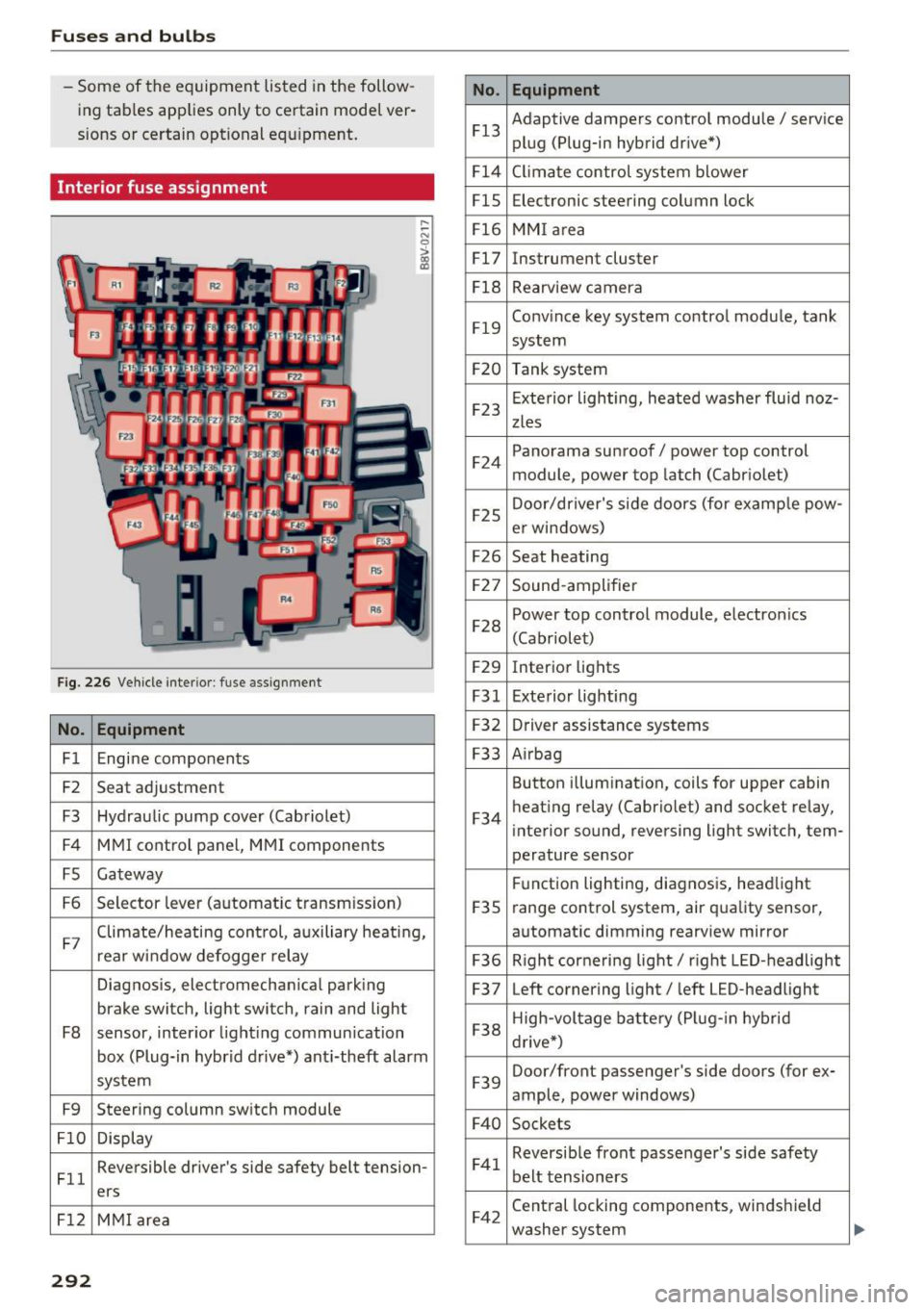

F ig. 226 Vehicle interior: fuse assignment
No. Equipment
Fl Engine components
F2 Seat adjustment
F3 Hydraulic pump
cover (Cabriolet)
F4 MMI control panel, MMI components
FS Gateway
F6 Selector lever (automatic transmiss
ion)
.... ~ N 0
> a) cc
F7 Climate/heating cont
rol, auxiliary heating,
rear window defogger relay
Diagnosis, electromechanical parking
brake switch, light switch , rain and light
F8 sensor, interior lighting commun ication
box (Plug-in hybrid drive*) ant i-theft alarm
system
F9 Steering column switch module
FlO Display
Fll Reversible driver's side safety belt tension-
ers
Fl2 MMI area
292
No.
Fl3
Fl4
FlS
Fl6
Fl7
Fl8
Fl9
F20
F23
F24
F25
F26
F27
F28
F29 F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F41
F42
Equipment
Adaptive dampers control module/ service plug (Plug-in hybrid dr ive")
Climate control system blower Electronic steering column lock
MMI area
Instrument cluster
Rearview camera
Convince key system control module, tank
system
Tank system Exterior lighting, heated washer fluid noz-
zles
Panorama sunroof/ power top control
module, power top latch (Cabriolet)
Door/dr iver's side doors (for example pow-
er windows)
Seat heating
Sound-amplifier
Power top control module, electro nics
(Cabriolet)
Interior lights
Exterior lighting
Driver assistance systems
A irbag
Button illumination, coils for upper cabin
heating relay (Cabriolet) and socket relay,
interior sound, reversing light switch, tern-
perature sensor
Function lighting, diagnosis, headlight
range control system, air quality sensor,
automat ic dimming rearv iew mirror
Right corneri ng light/ r ight LED-headlight
Left cornering light/ left LED-headlight
High-voltage battery (Plug- in hybrid
drive*)
Door/front passenger's side doors (for ex-
ample, power windows)
Sockets
Reversib le front passenger's side safety
belt tensioners
Central locking components, windshield
washer system

.... N
0 > CX)
rl I.Cl U"I
rl I.Cl ....
No. Equipment
F43 Headlights, lighting
F44 all whee l drive
F47 Rear window wiper
F48 Outer noise amplifier
(Plug-in hybrid
drive*)
Starter, clutch sensor, headlight relay coil,
F49 high-voltage battery (Plug-in hybr id
drive*)
F53 Rear window
defogger
The power seats* are protected via
circuit break­
ers
that automatically switch on after a few sec­
onds after the overload has been reduced.
(D Tips
Note that the following table was accurate at
the time of printing and is subject to change.
Left engine compartment fuse assignment
Fig. 227 Engine compartment: fuse assignment
No. Equipment
Fl ESC control module
F2 ESC control module
F3 Engine control module (gasoline/d iesel)
M ,-..
0
> co ID
Fuses and bulbs
No. Equipment
Engine cooling, engine components, auxili-
F4 ary heater coil relay (1+2), secondary a ir
injection pump relay
FS Engine components, tank system
F6 Brake light sensor
F7 Engine components,
water pumps
F8 Oxygen sensor
F9 Engine
components, exhaust door, glow
time control module, SULEV va lve
FlO Fuel injectors, fuel control modu le
Fll Auxiliary heater heating element 2
F l2 Auxiliary heater heating element 3
Fl3 Automatic transmission control module
FlS Horn
Fl6 Ignition coil/
power electronics (Plug-in
hybrid drive*)
Fl7 ESC control
module, eng ine control mod -
ule
Fl8 Terminal 30 (reference voltage)
F l9 Windshield wipers
F20 Horn
F22 Termina l 50 diagnosis
F23 Starter
F 24 Auxiliary heater heating element 1,
brake
booster (Plug-in hybrid drive*)
F31 Vacuum
pump/water pump (Plug-in hybrid
drive*)
F32 LED
headlights
F33 Brake booster
memory (Plug-in hybrid
drive*)
F 34 Brake
booster control (Plug -in hybrid
drive*)
F 35 Relay (Plug-in hybrid drive*)
@ Tips
Note
that the fo llowing tab le was accurate at
the time of printing and is subject to change.
293

Fuses a nd bul bs
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned out
bulbs for you.
It is becoming increasingly more and more diffi­
cult to replace vehicle light bulbs since in many
cases, other parts of the car must first be re­
moved before you are able to get to the bu lb .
This applies espec ially to the light bulbs in the
front of your car wh ich you can only reach
through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, and parts
m ust be correctly taken apa rt and then p roperly
put back together to help prevent breakage of
parts and long term damage from water that can
enter housings that have not been properly re­
sealed.
For your safety, we recommend that you have
your authorized Audi dealer replace any bu lbs for
you, since your dealer has the proper tools, the correct bulbs and the expertise.
G as di sc harg e l am ps (Xe non li ghts):
Due to the high electrical voltage, have the bulbs
replaced by a qua lified technic ian . Headlights
with Xenon light can be identified by the high­
voltage sticker.
LED headlights* require no maintenance. Please
contact your authorized Aud i dealer if a bulb
needs to be replaced.
A WARNING
Contact w ith high-voltage components of the
electrical system and improper rep lacement
of gas discharge (Xenon) headlight bulbs can
cause serious personal injury and death.
- Xenon bulbs are pressurized and can ex­
plode when being changed.
- Changing Xenon lamps requires the special training, instructions and equipment.
- Only an a uthorized Audi dea ler or other
qualified workshop should change the bulbs
in gas discharge lamps .
294
A WARNING
-
There are parts with sharp edges on the open-
ings and on the bulb holders that can cause
serious cuts.
- If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer or other qualified workshop. Ser ious
pe rsonal injury may resu lt from improperly
pe rformed wor k.
@ Tips
- If you still prefer to replace the light bulbs
yourself, be aware that the engine compart­ ment is a hazardous area to work in
9 page 2369 .&.
-It is best to ask your authorized Audi dealer
whenever you need to change a bulb.

,....,
N
0 > co ,...., Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec­
essary tools and equipment to perform these
ope rations.
Starting by pushing or
towing
(D Note
Veh icles with an automatic transmission can­
not be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by con­
necting it to the battery of another vehicle.
Plug-in hybrid drive*: the connection points for
the jump start cables vary ¢
page 108.
If the engine should fail to start because of a dis ­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumper cables to start the engine.
Jumper cables
Use only jumper cables of suffic iently large cross
section
to carry the starter current safely. Refer
to the manufact urer 's specifications.
Use only jumper cables with
insulated term inal
clamps which are distinct ly ma rked:
plus (+) cable in most cases colored red
minus (-) cable
in most cases colored black .
.,&. WARNING -
Plug-in hybrid drive*: you must not give a
jump start with your vehicle. This could cause significant damage to the electrical system in
your vehicle ¢
page 108.
Emergency situations
.,&. WARNING
-
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury . Follow the instruct ions below for safe
handling of your vehicle's battery.
- Always shield your eyes and avoid leaning over the battery whenever possible.
- A discharged battery can freeze at tempera­
tures just below 32 °F (0 °C) . Before con­
necting a jumper cable, you must thaw the
frozen battery completely, otherwise it
could explode.
- Do not allow battery acid to contact eyes or
skin. Flush any contacted area with water
immed iate ly.
- Improper use of a booster batte ry to sta rt a
veh icle may cause an exp losion .
- Veh icle batteries generate exp losive gases .
Keep sparks, flames and lit cigarettes away
from batteries.
- Do not try to jump start any vehicle with a
low acid level in the battery .
- The voltage of the booster battery must also
have a 12 volt rat ing. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batteries of different voltage or substantial­ ly different "Ah" rating may cause an explo­
sion and personal injury.
- Never charge a frozen battery . Gas trapped
in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen. The battery case may have been
weakened.
- Use of batteries with different voltage or
substantially different Ah rating may cause
an explosion and injury. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery .
- Before you check anyth ing in the eng ine
compartment, always read and heed all
WARNINGS
¢page 236.
(D Note
-App lying a higher voltage booster battery
will cause expensive damage to sensitive
295

Emergency situations
electronic components, such as control
units, re lays, radio, etc.
- There must be no electrical contact between
the vehicles otherwise current could already
start to flow as soon as the positive(+) ter­ minals are connected.
@ Tips
The discharged battery must be properly con­
nected to the vehicle's electrical system .
When jump starting or charging the battery,
never connect the negative ground cable to
the battery negative post because the battery
manager system must be able to detect the
battery's state of charge. Always connect the
negat ive g ro und cable to the negative g round
post on the battery manager control unit.
Using jump start cables
Connect the jump start cables in the exact order
described below.
Fig. 228 Engine co mpartment : connectors for ju mp start
cables and a charger
Fig. 229 Jump starting the battery wit h another vehicle:
@ -drained battery, @- starter battery
Plug-in hybrid drive* : the connection points for
the jump start cables vary<=>
page 108.
296
00 ~
5 > 00 ID
The battery is located to the left in the engine
compartment.
Do not jump start a frozen or
thawed battery
¢ A in Starting with jumper ca­
bles on page 295 !
Replace the battery. The pro­
cedure for connecting jump start cables that is
described next is designed to help jump start
your vehicle.
Vehicle with drained battery :
.,. Read the following carefu lly <=> page 295
.,. Set the parking brake and place the selector
lever in the P position.
.,. Turn the ignition and electr ical equipment off
in both vehicles .
Connecting the negative terminal(-) to the
negative terminal(·) (black)
.,. To reach the battery terminals, flip the battery
cover cap to the side¢
fig. 228 .
1. Clamp the end of the red jump start cab le to
the terminal @¢
fig. 229 on the dead bat­
te ry @ ¢
0 in Starting with jumper cables
on page 295.
2. Clamp the other end of the red jump start ca­
ble to the terminal @on the charging bat­
tery @.
Connect NEGATIVE(-) to NEGATIVE(-)
(black)
3. Clamp the black end of the jump start cable
preferably at the ground point, or on the
negative terminal @ on the charging battery
®·
4. Clamp the other end of the black jump start
cable
only to the ground point © on your
vehicle @
¢0.
5. Route the jump start cables so they cannot
get caught in the moving parts in the engine
compartment.
Starting the engine
6 . Start the engine in the vehicle giving the
charge and let it run at idle.
7. Start the engi ne in the vehicle with the dead
batte ry and wait two to three minutes until it
"runs smoothly".
8. If the engine does not start, stop the starting
procedure after 10 seconds and then repeat
it after approximately 30 seconds. ..,_

,....,
N
0 > co ,...., 9. In the veh icle that is being jump started,
switch the heater fan and rear window de­
froster on to reduce any voltage peaks that
may occur when disconnecting the jumper
cab les. The he adlights must be switched off.
10 . With the engines running, remove the cables
i n
reverse order of the way they were instal­
l ed . Make sure the cables do not get caught
in mov ing engine components.
11. Sw itch the heater fan and rear w indow de-
froster off.
12. Close the battery cover .
The battery is vented to the o utside so that not
gases enter the passenger compartment. Make
sure that the connected positive terminal clamps
on the jump start cab le have sufficient contact
with m etal.
.&_ WARNING
Follow the warnings and instructions from
the jump start cable manufacturer to reduce
the risk of serious injuries and vehicle dam­
age. If you are unsure about anything, call
roads ide assistance.
- The jump start cables must be long enough
so that the veh icles do not touch .
-
-Route the jump start cables so they cannot
get caught in the moving parts in the engine
compartment .
- Always read and follow the warnings before
check ing anything in the engine compart­
me nt ¢
page 236.
Connecting jump start cables incorrectly can
destroy the alternator .
- Always connect the positive terminal(+) to
the positive term inal( +) and the negative
term inal(-) to the negat ive termi nal( -) on
the body ground po int, but not the negative
te rminal on t he battery.
- Make sure the screw plugs on the battery
ce lls are installed securely .
If not, tighten
the p lugs before connecting the clamps to
the negat ive termina l on the battery.
- Please note that the connecting p rocess de­
scribed below for the j ump start cables is in-
Emergency s ituatio ns
tended for when your vehicle is be ing j ump
started.
If you are jump starting another ve­
hicle, do not connect the negat ive cab le to
the negative term inal( -) on the dra ined
battery, but rather connect it to a large
metal component that is bolted secure ly to
the engine block, or to the engi ne b lock it­
self . If the batte ry in the veh icle being jump
s tarted is not ven ted to the outside, there is
a risk of explos ion due to hyd rogen gas .
- Make sure that the connected pos itive ter­
m inal clamps have suff ic ien t conta ct with
metal.
- Do not use the battery negative terminal for
jump starting or a m alfunction co ul d o ccur
in the vehicle e lectrica l system.
Towing with a tow truck
General hints
Your Audi requires special handling for towing.
T he following information is to be used by com ­
mercial tow truck operators who know how to op­
e rate th eir equipment safely.
- Ne ver tow your Audi. Towing will caus e dam­
age to the engine and tr ansmi ssion.
- Neve r wrap th e safety ch ains or win ch c able s
a round the brake lin es.
- To pr event unn ecess ary damag e, your Audi
must be tran sport ed with a flat bed tru ck.
- To load th e ve hicl e on to the flat bed, use the
towin g loop found in the v ehicle tools and at ­
t ac h t o the front o r rea r anchorage
¢ page 298 and ¢ page 298 .
.&_ WARNING ~
A vehicle being towed is not safe for passen-
gers. Never allow anyone to ride in a vehicle
being towed, for any reason.
297

Emergency situations

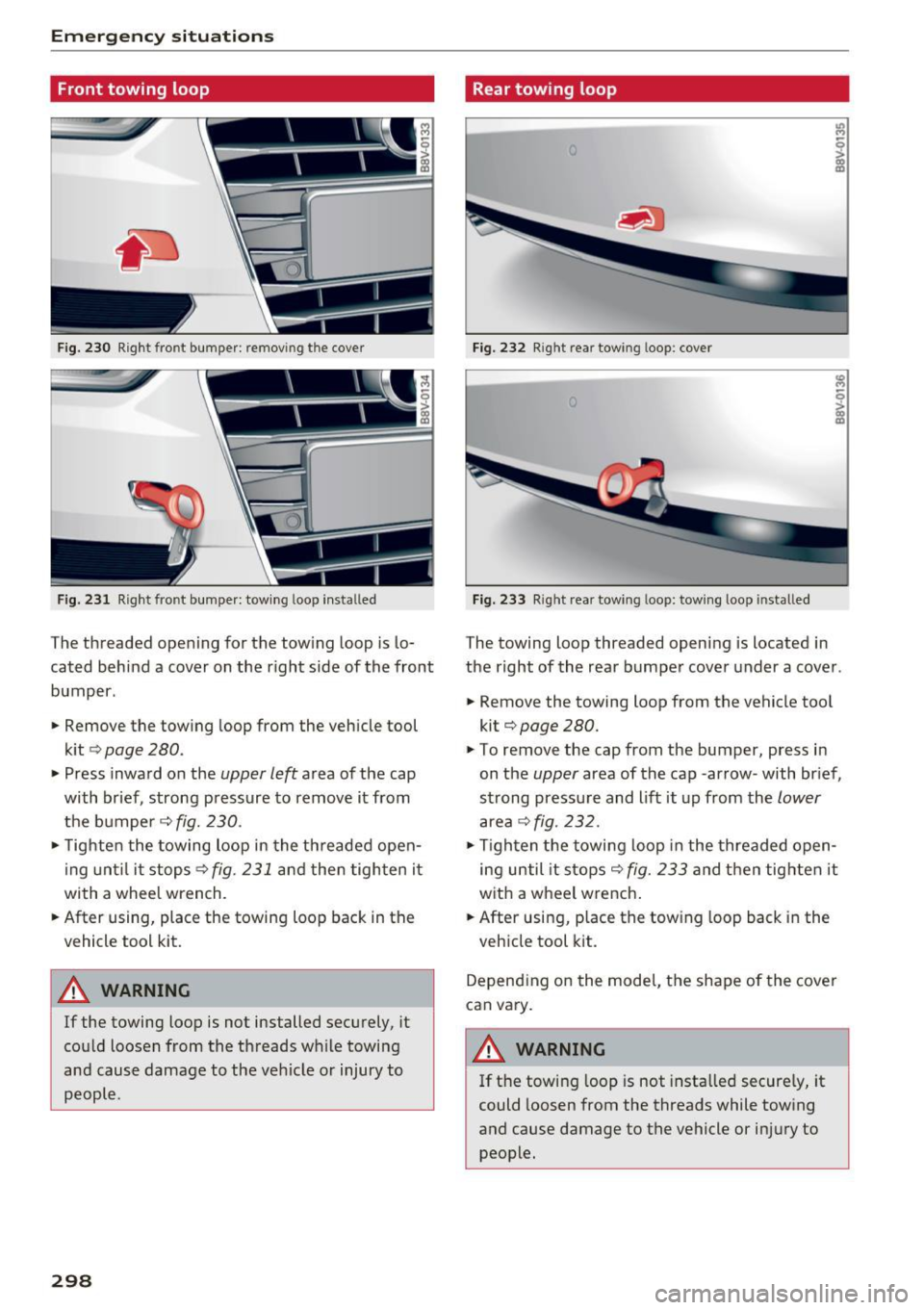

Front towing loop
Fig. 230 Right front bumper: removing the cover
Fig. 231 Right front bumper: towing loop installed
The threaded open ing for the tow ing loop is lo­
cated behind a cover on the right side of the front
bumper .
.,. Remove the towing loop from the vehicle tool
k it ¢
page 280 .
.,. Press inward on the upper left area of the cap
with brief, strong pressure to
remove it from
the bumper
¢fig. 230 .
.,. Tighten the towing loop in the threaded open­
ing until it stops
¢fig. 231 and then tighten it
with a wheel wrench.
.,. After using, place the towing loop back in the
vehicle tool kit.
& WARNING
If the towing loop is not installed securely, it
cou ld loosen from the threads w hile towing
and cause damage to the vehicle or injury to
people.
298
Rear towing loop
Fig. 232 R ig ht rear towing loop : cover
Fig. 233 Right rear towing loop: towing loop ins talled
The towing loop threaded opening is located in
the right of the rear bumper cover under a cover .
.,. Remove the towing loop from the vehicle tool
kit¢
page 280 .
.,. To remove the cap from the bumper, press in
on the
upper area of the cap -arrow-with brief,
strong pressure and lift it up from the
lower
area ¢fig. 232.
.,. Tighten the towing loop in the threaded open­
ing until it stops ¢
fig. 233 and then tighten it
with a wheel wrench.
.,. After using, p lace the tow ing loop back in the
vehicle tool k it.
Depending on the model , the shape of the cove r
can vary.
~ WARNING
If the tow ing loop is not installed securely, it
could loosen from the threads while towing
and cause damage to the vehicle or injury to people.
