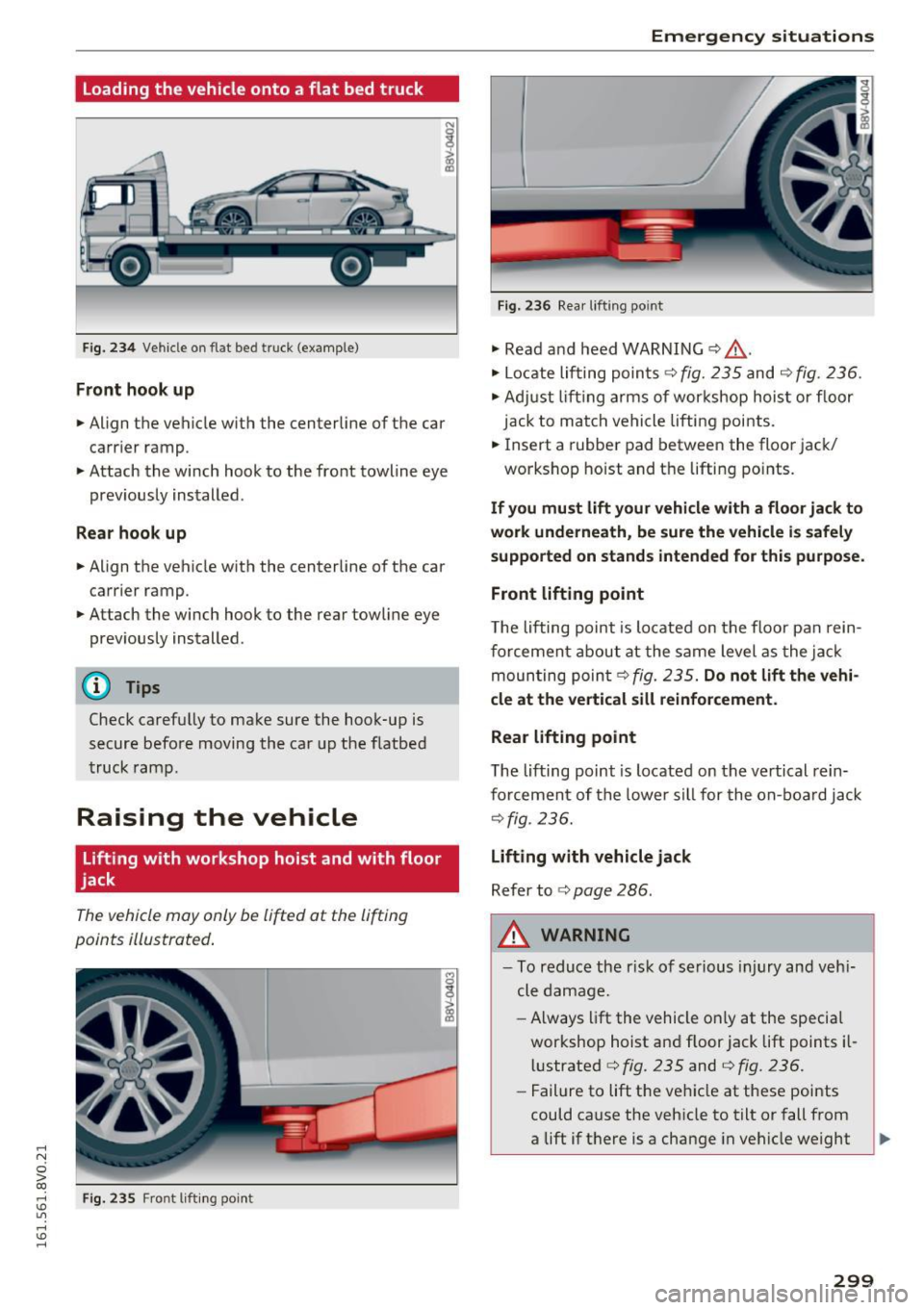

Loading the vehicle onto a flat bed truck
Fig. 234 Vehicle on flat bed truck (example)
Front hook up
• Align the vehicle with the centerline of the car
carrier ramp .
• Attach the winch hook to the front towline eye
prev iously installed.
Rear hook up
• Align the vehicle with the centerline of the car
carrier ramp .
• Attach the winch hook to the rear towline eye
previously installed.
@ Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp.
Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only be lifted at the lifting
points illustrated.
F ig. 235 Front lifting point
Emergency situations
Fig. 236 Rear lifting point
• Read and heed WARNING c:> .&_.
• Locate lifting points c:> fig. 235 and c:> fig. 236.
• Adjust l ift ing arms of workshop hoist or floor
jack to match vehicle lifting points.
• Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
If you must lift your vehicle with a floor jack to
work underneath, be sure the vehicle is safely
supported on stands intended for this purpose .
Front lifting point
The lifting point is located on the floor pan rein­
forcement about at the same level as the jack
mounting point
c:> fig. 235. Do not lift the vehi­
cle at the vertical sill reinforcement .
Rear lifting point
The lifting point is located on the vertical rein­
forcement of the lower sill for the on-board jack
c:> fig . 236.
Lifting with vehicle jack
Refer to c:> page 286 .
A WARNING
-To reduce the r isk of se rious injury and vehi­
cle damage.
- Always lift the vehicle only at the special
workshop hoist and floor jack lift points i l­
lustrated
c:> fig. 235 and c:> fig. 236.
- Failure to lift the ve hicle at these points
could cause the vehicle to tilt or fall from
a lift if there is a change in vehicle weight
299

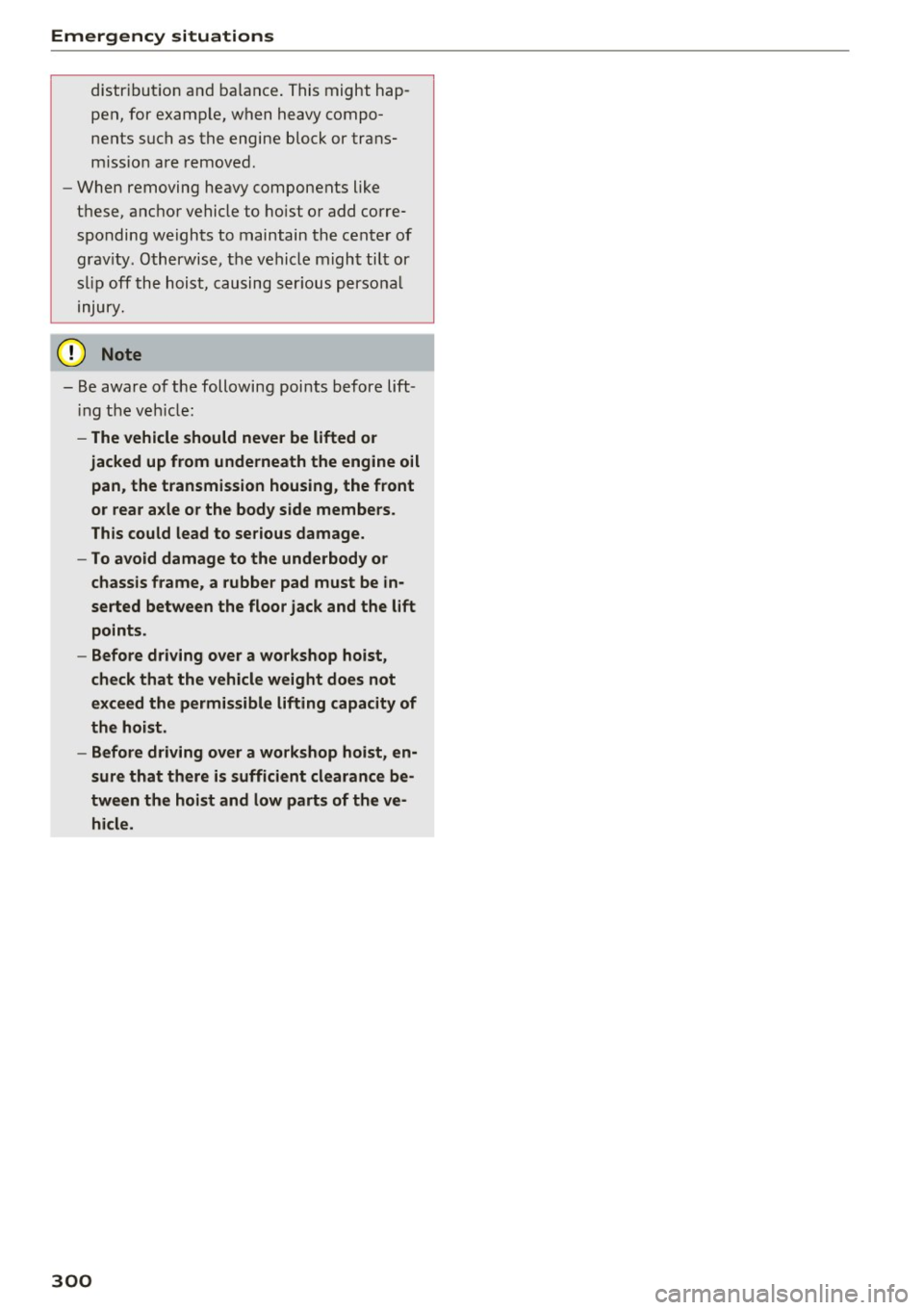

Emergency situations
distribut ion and ba lance . This might hap ­
pen, for example, when heavy compo­
nents such as the engine block or trans­
miss io n are removed.
- When removing heavy components like
th ese, a nch or vehicle to ho ist o r add corre­
sponding weights to maintain the cen ter of
gr avity. Otherwise , th e vehicle migh t ti lt or
s li p off the h ois t, causing ser ious perso nal
rnJury.
0 Note
- Be aware of t he following poi nts before lift­
i ng t he veh icle:
-The vehicle should never be lifted or
jacked up from underneath the engine oil
pan , the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage.
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in·
serted between the floor jack and the lift points.
- Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist .
- Before driving over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the ve ·
hide .
300

Technical data
Vehicle identification
F ig . 237 Vehi cle Ide ntif icatio n Number (VlN) plate : loca·
t ion on dr iver 's side dash pane l
XXXXX XX -X -XXXX XXX XX
CD+ ~t :1:: xxxxxxxx xx x xxxxxxxx
T VP /fffl XXX XXX
XX XXXXXXX XX X X XX
XXX
K W XXX
®i ~:J ·f lfils~~ XXXX XXX XXX
®-+ ~N:a=i~l xxxx ; xxxx xxx ; xx
II.· AUSS, I OPTIONS
E0A
7D5 4UB 6XM 5SG 5RW
2EH J0Z lLB l
A S lBA
3FC SMU 7Xl
F0A 9G3 0G7 0YH 0JF
TL6 3KA 8EH UlA X98 QZ7
lXW 803 908 824 020
7T6 CV7 7K0 4X3 2K2
3L4
4KC 3Y0 413 502
lSA 7GB 01A 4G0
XX. X XX X XX X xxxx
Fig. 238 Th e ve hicle iden tifica tion label- inside the lug­
gage co mpartment
Veh icle Identification Number (VlN )
The Vehicle Identific ation N umbe r is lo cate d in
d if f eren t places:
- u nder the w indshield on the dr iver's side
c:> fig. 23 7.
- in the M MI: Select: the I MENU I button >Car >
Sy stems *
control b utton > Service & control >
;::: VIN number .
~ -on the vehicle identification label. CX)
rl I.Cl U"I
rl I.Cl rl
Technical data
Vehicle identification label
T he vehicle identi fica tion label is lo cate d in t he
l uggage compa rtment in the sp are whee l we ll.
T he lab el
c:> fig. 238 shows the fo llow ing vehicle
da ta:
(D Vehicle Identification Number (VIN)
@ Vehicle type, eng ine output, transm ission
@ Engine and transmission code
@ Paint numbe r and in terior
® Optional equipment numbers
T he inf ormation of the veh icle identification label
can al so be fo und in your W arranty
& M ainte ­
nance booklet.
Safety compliance sticker
The safety co mpliance sticker is yo ur ass ura nce
t h at your new vehi cle complies w ith all appli cable
Fede ral Motor Vehicle Safety Stand ards which
we re in effe ct at t he tim e the veh icle w as manu ­
fac tured. Yo u ca n fi nd this sticker on the door
jamb on the driver 's side. It shows the month and
year of production and t he ve hicle identification
number of your vehicle (perforation) as well as
t h e Gross Vehicle Weight Rat ing (GVWR) and the
G ross Axle We ight Rati ng (GAWR).
H igh- voltage warning label
T he high-voltage wa rnin g labe l is located in the
engine compartment next to the engine hood re­
lease. The spark ignition system complies with
t h e Canadian standard ICES-002.
Weights
Gross Vehicle Weight Rating
The Gross Vehicle We ight Rating (GVWR), and
t h e Gross Axle Weight Rating (GAWR) for front
and rear a re listed on a sticker on the door jamb
o n the driver 's side .
The Gross Vehicle Weight Rating includes the
weight o f the basic vehicle plus f ull fuel tank, oil
and coolant, p lus maxim um load, which includes
passenger weight (150 lbs/68 kg per des ignated
seat ing pos it ion) and luggage weight
c:> .&, . .,.
301

Tech nical data

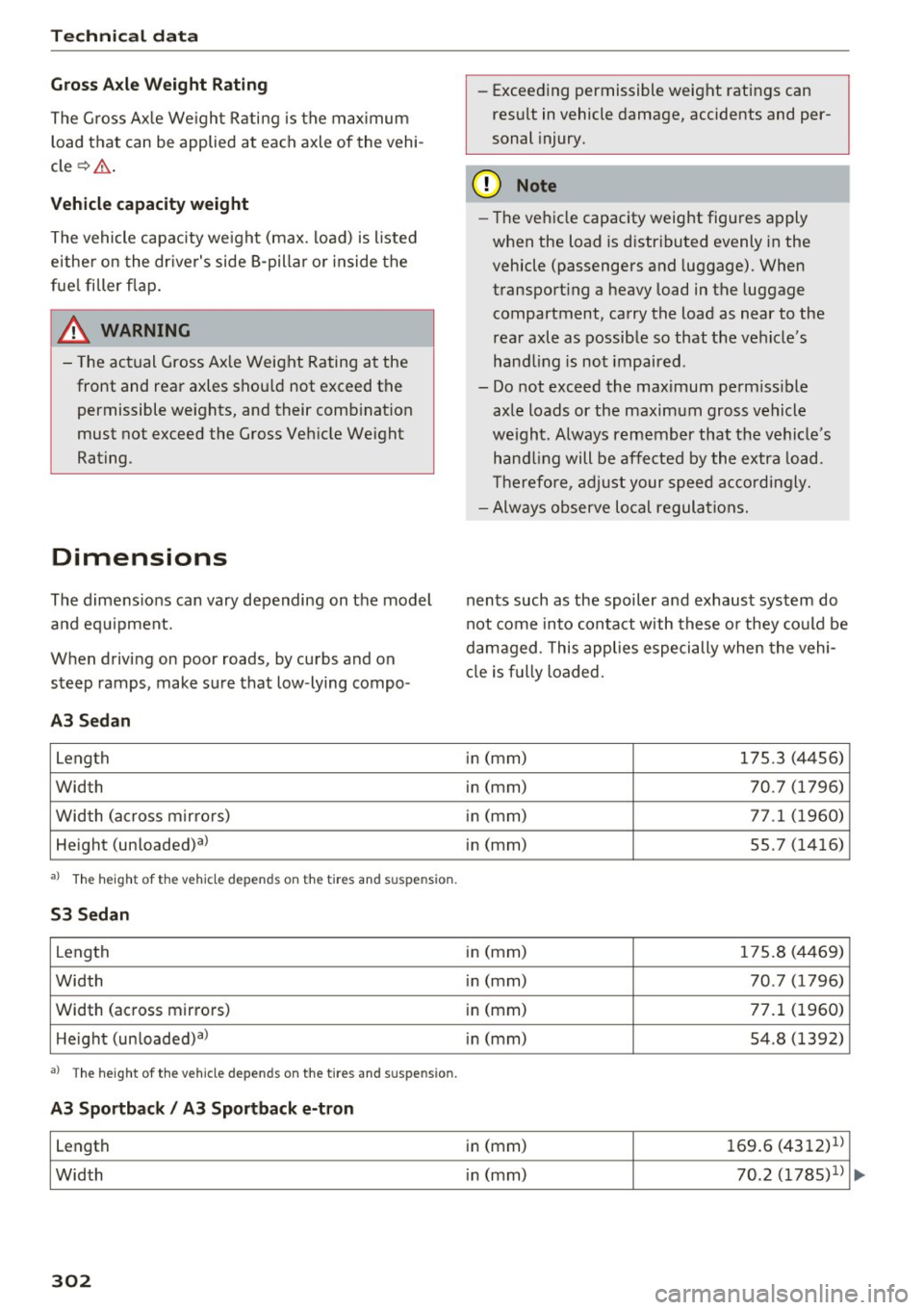

Gross Axle Weight Rating
The G ross Ax le We ight Rating is the max imum
load that can be applied at each axle of the vehi ­
cle¢ &.
Vehicle capacity weight
The vehicle capacity we ight (max. load) is l isted
eithe r on the dr iver's side 8-pilla r or inside the
fue l filler f lap.
A WARNING
- The ac tual Gross Axle Weight Rating at the
front and rear axles shou ld not exceed the
permissible weights, and their comb inat ion
must not exceed the Gross Veh icle Weight
Rating.
Dimensions
The dimens ions can vary depending on the model
and eq uipment.
When driving on poor roads, by curbs and on
steep ramps, make su re that low-lying compo-
A3 Sed an
Leng th
Width
Wid th (across m irrors)
He ight (un loaded)al
•> T h e he ight of the veh icle depends on the tires and suspe nsion.
53 Sedan
Length
Width
Width (across mirrors)
He ight (un loaded)al
•> The he ight of the vehicle depends on the tires and suspe nsion.
A3 Sportback / A3 Sportback e-tron
Length
Width
302
- Exceed ing permissible weight ratings can
result in vehicle damage, accidents and per­
sonal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage). When
t ransporting a heavy load in the luggage
compartment, carry the load as near to the
rea r axle as possib le so that the vehicle's
hand ling is not impaired.
- Do not exceed the max imum perm iss ible
axle loads or the maxim um gross vehicle
we ight. Always remember that the ve hicle's
han dling will be affe cted by the extra load.
T herefore, a djust your spee d ac co rd ingly.
- Always observe lo cal regulations.
nents such as the spoiler and exhaust system do
not come into contact w ith these o r they co uld be
d am aged. This applies especially when the vehi ­
cl e is f ully loaded.
i n (mm)
175.3 (4 456)
in (mm) 70.7 (1796)
in (mm) 77.1 (1960)
in (mm) 55 .7 (1416)
in (mm) 1 75.8 (4469)
in (mm) 70 .7 (1796)
in (mm) 77.1 (1960)
i n (mm) 54.8 (1392)
in (mm) 169.6 (4312)1)
in (mm) 70.2 (1785)1
)

,....,
N
0 > co ,...., Width (across mirrors) He ight (un loaded)al
a) The height of the vehicle depends on the tire s and s uspe nsion .
1)

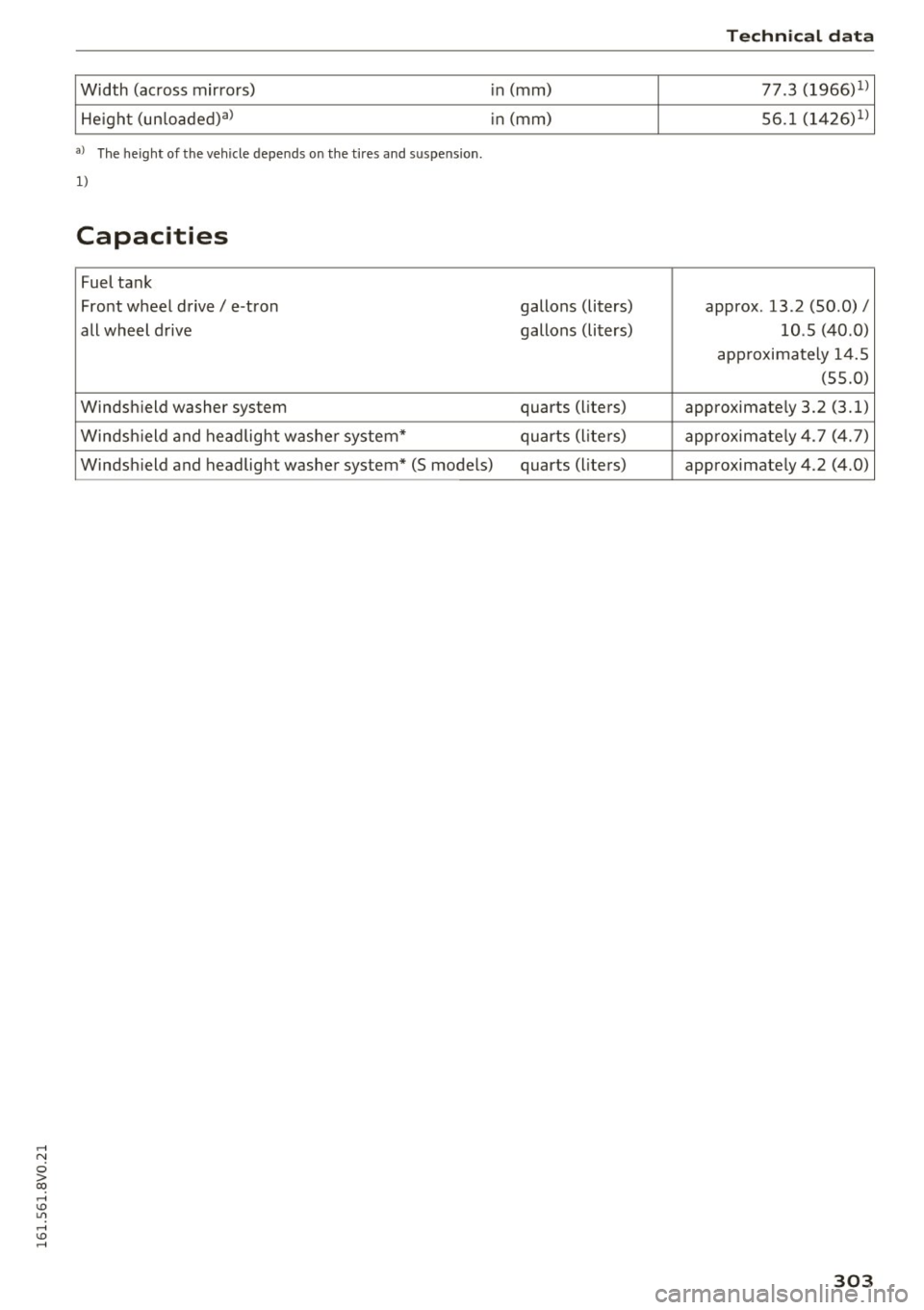

Capacities
Fuel tank
Front wheel drive/ e -tron
all wheel drive
Windshield washer system
Windsh ield and headlight washer system* i
n (mm)
i n (mm)
gallons (liters)
gallons (liters)
quarts (liters)
quarts (l iters)
Windshield and headlight washer system* (5 modlels) quarts (liters)
Techn ical data
77.3 (1966)1
)
56.1 (1426)1
)
approx . 13.2 (50.0) /
10 .5 (40.0)
app roximately 14.5
(55.0)
approximately 3.2 (3.1)
approximate ly 4. 7 (4. 7)
approximately 4.2 (4.0)
303

Tech nical data

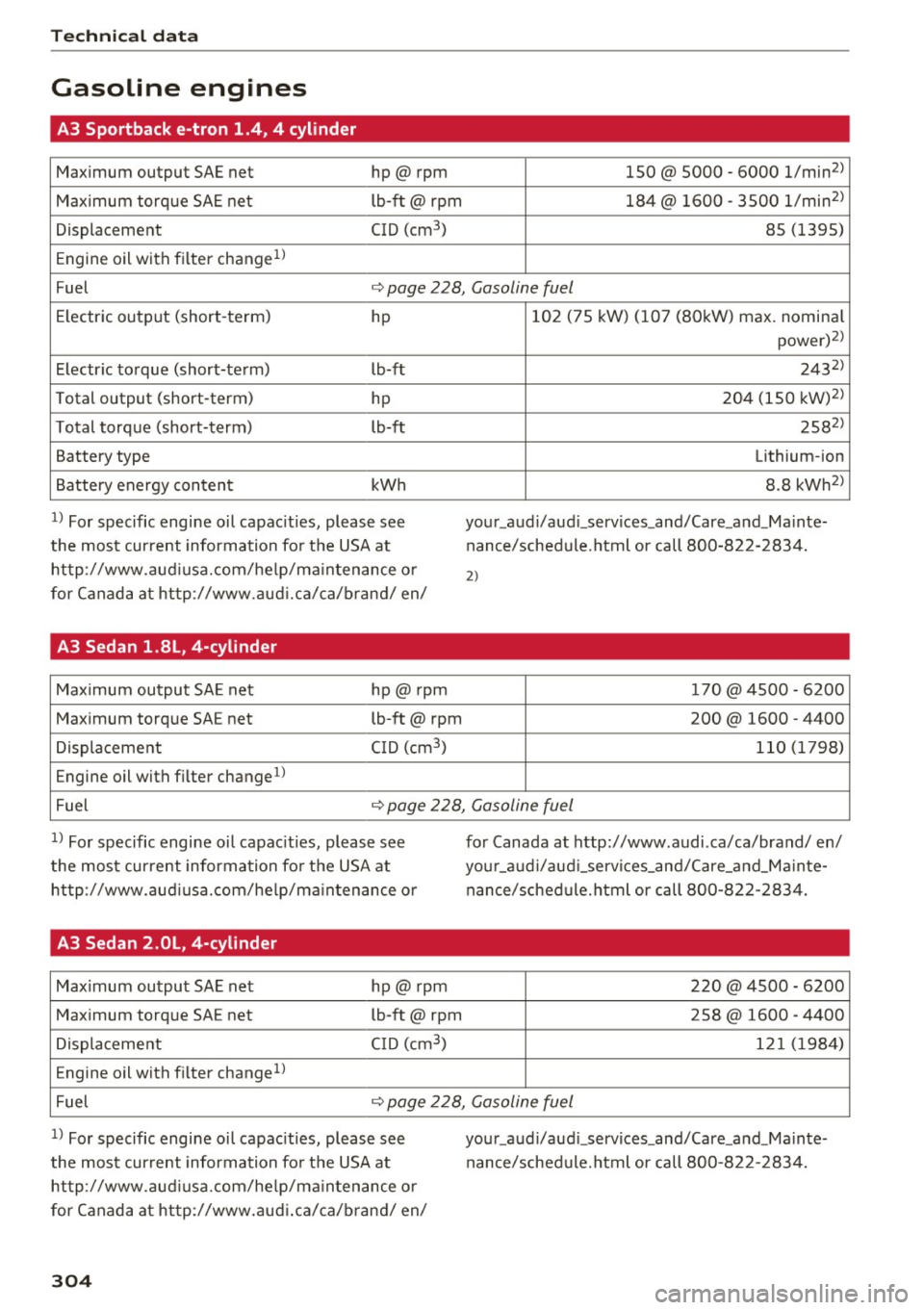

Gasoline engines
A3 Sportback e-tron 1.4, 4 cylinder
Maximum output SAE net hp@ rpm 150@ 5000 -6000 l/min2>
Max
imum torq ue SAE net lb-ft@ rpm 184@ 1600 - 3500 l/min2>
Displacement
CID (cm3
) 85 (1395)
Engine oil with filter change
1>
Fuel ¢ page 228, Gasoline fuel
Electric output (short-term)
hp
E lectr ic torque (short-te rm) lb-ft
Total output (short-term) hp
T otal torque (short-term) lb-ft
Battery type
Battery energy content kWh
1> For specific engine oil capacities, please see
the most cur rent informa tion fo r th e USA at
http :/ /www.aud iusa.com/he lp/ma intenance o r
for Canad a at http ://www. aud i.c a/ca/ brand/ en/
A3 Sedan l.8L, 4-cylinder
Maximum output SA E net hp@rpm
Maximum torq ue SAE net lb-ft@ rpm
Displa cement C
ID (cm
3
)
Engine oil with filter change1>
102 (75 kW) (107 (80kW) max. nomina l
power) 2
l
243 2
)
204 (150 kW)2l
2582
)
Lithium-ion 8.8 kWh 2
l
you r _ aud i/aud i_ services_ and/Care _a nd_Ma i nte­
nance/schedule. html or call 800-822-2834.
2)
1 70 @ 4500 - 6200
200@ 1600 - 4400 110 (1798)
Fuel
¢ page 228, Gasoline fuel
l ) For specific engine oil capac it ies , please see
the mos t cur rent informa tion fo r the USA at
http :/ /www. audi usa.com/he lp/ma inten ance o r
A3 Sedan 2.0L, 4-cylinder
Maximum output SA E net hp@ rpm
Maximum torque SAE net lb-ft@ rpm
Displa cement C
ID (cm
3
)
Engine oil with f ilter changell fo
r Canada at http://www.audi.ca/ca/brand/ en/
yo ur _a ud i/aud i_services_and/Care_a nd_Ma i nte­
nance/sched ule. h tml or c all 8 00-822- 2834.
220 @ 4500 - 6200
258@ 1600 -4400
12 1 (1984)
Fuel
¢ page 228 , Gasoline fuel
l) For specific engine oil capac ities, please see
the most cur rent informa tion fo r th e USA at
http://www.au diusa.com/he lp/ma inten ance o r
for C anada at h ttp://www.au di.ca /ca/br and/ en/
304
you r _ a ud i/aud i_ services_ and/Care _and _Ma i nte­
nance/schedule. html or call 800-822-283 4.

,..,
N
0 > co ,.., Technical dat a

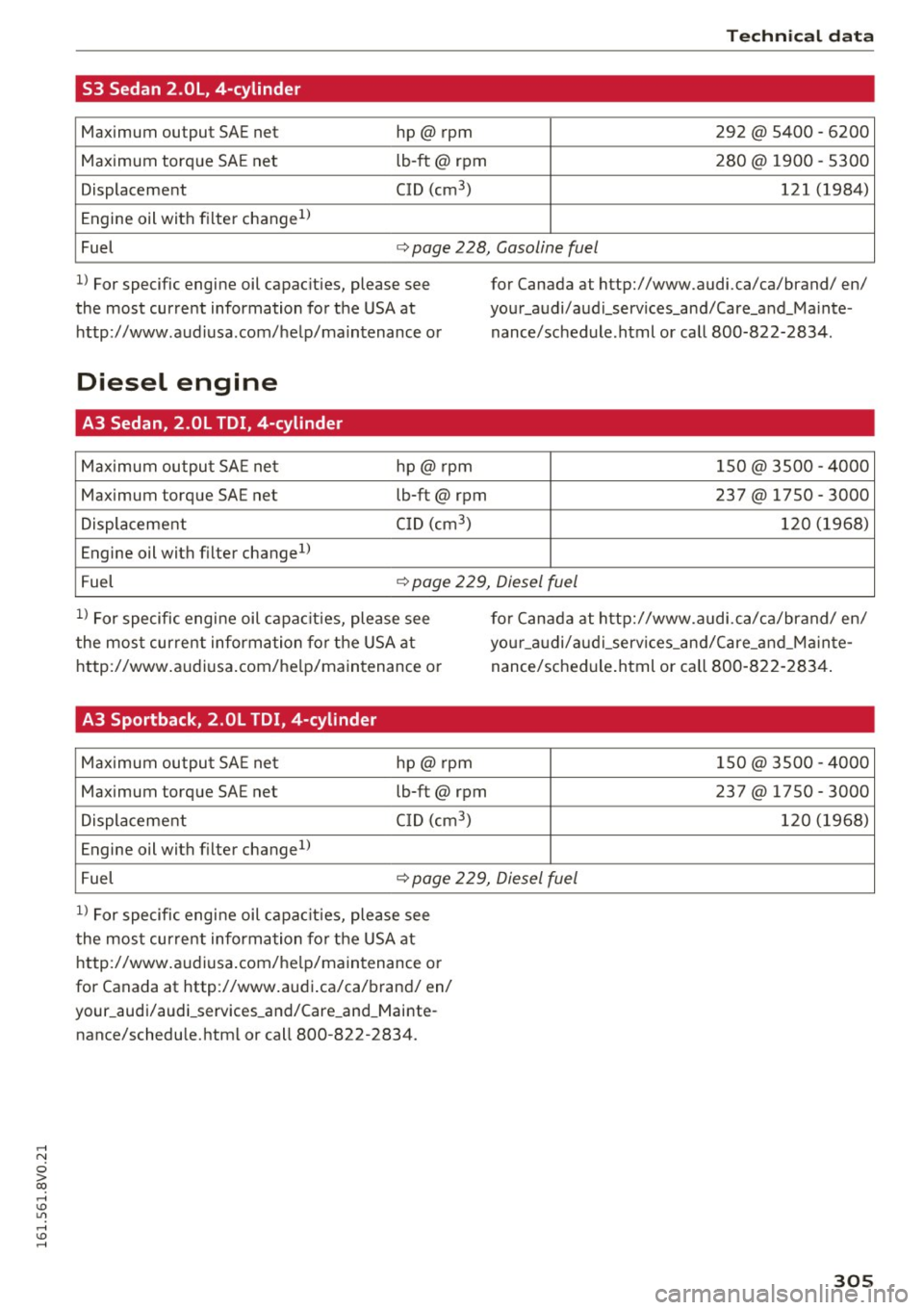

53 Sedan 2.0L, 4-cylinder
Maximum output SAE net hp@rpnn 292 @ 5400 -6200
Maximum torque SAE net lb
-ft@ rpm 280@ 1900 -S300
Displacement CID (cm
3
) 121 (1984)
Engine oil with filter change
1>
Fuel <=> page 228, Gasoline fuel
ll For specific engine oil capacities, please see
the most current information for the USA at
http:/ /www.audiusa.com/help/ma intenance or
Diesel engine
A3 Sedan, 2.0L TDI, 4-cylinder
Max imum outpu t SA E net hp@ rpnn
Maximum torque SAE net lb-ft@ rpm
Displacement C
ID (cm
3
)
Engine oil with filter change1l for
Canada at http:/ /www.audi.ca/ca/brand/ en/
your _audi/aud i_services_and/Care_a nd_Mainte­
nance/schedule. html or call 800-822-2834.
150@ 3S00 -4000
237@ 1750 -3000
120 (1968)
Fuel
<=> page 2 2 9, Diesel fuel
l ) For specific engi ne oil capac ities, please see
the most current information fo r the USA at
http:/ /www .a udiusa .com/he lp/maintenance or
A3 Sportback, 2.0L TDI, 4-cylinder
Maximum output SA E net hp@rpnn
Maximum torque SAE net lb-ft@ rpm
Displacement C
ID (cm
3
)
Engine oil with filter change1l for Canada at http://www.audi.ca/ca/brand/ en/
you
r _ audi/ aud i _serv ices _and/Care _a nd _Ma inte­
nance/schedule . html or call 800 -822 -2834 .
1 50@ 3S00 -4000
237@ 1750 -3000
120 (1968)
Fuel
c> page 229, Diesel fuel
l ) For specific engine oil capac ities, please see
the most current information for the USA at
h ttp:/ /www .audiusa .com/he lp/maintenance or
for Canada at http://www .audi .ca/ca/brand/ en/
your _aud i/ aud i_services _a nd/Ca re _and _M a i nte­
na nce/ schedu le.html or call 800-822-2834.
305

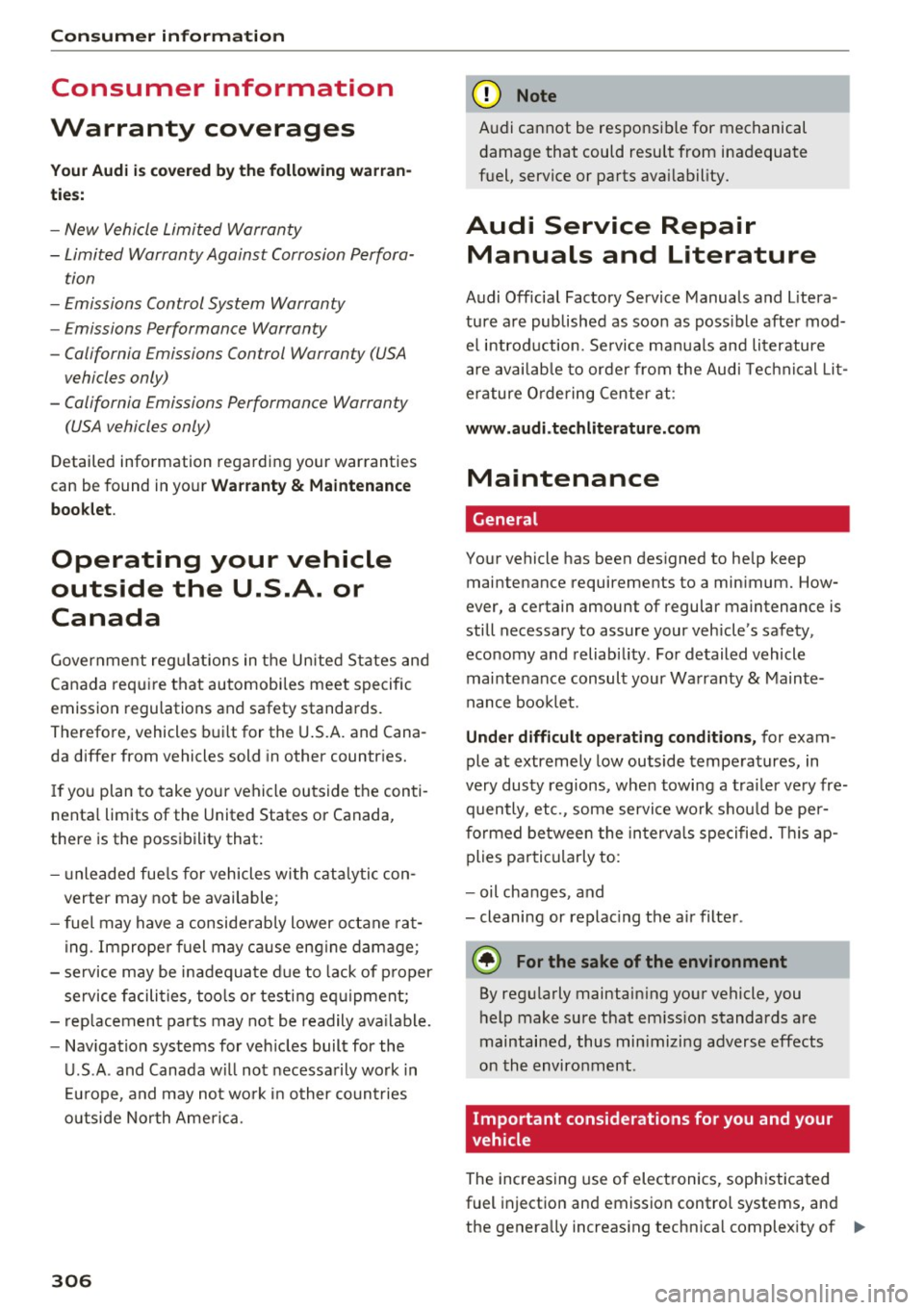

Consumer information
Consumer information
Warranty coverages
Your Audi is covered by the following warran­
ties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your
Warranty & Maintenance
booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulati ons in the United States and
Canada require that automobi les meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana ­
da differ from vehicles sold in other countries.
If you plan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- un leaded fue ls for vehicles with catalytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
ing . Improper fuel may cause engine damage;
- service may be inadequate due to lack of proper
service facilities, tools or testing equipment;
- r eplacement parts may not be readily available.
- Nav igation systems for veh icles built for the
U.S .A . and Canada will not necessarily work in
Europe, and may not work in other countries
outside North America.
306
(D Note
Audi cannot be responsib le for mechanical
damage that could result from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera ­
ture are published as soon as poss ible after mod­
el introduction . Service manuals and literature
are available to order from the Audi Technical Lit ­
erature Ordering Center at :
www.audi.techliterature .com
Maintenance
General '
Your vehicle has been designed to help keep
maintenance requirements to a minimum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliability . For detailed vehicle
maintenance consult your Warranty & Mainte­
nance booklet .
Under difficult operating conditions, for exam ­
ple at extremely low outside temperatures, in
very dusty regions, when towing a trailer very fre­
quently, etc., some service work should be per­
formed between the intervals specified. This ap­
plies particularly to:
- oil changes, and
- cleaning or replac ing the a ir filter .
'
@) For the sake of the environment
By regularly maintain ing your vehicle, you
help make sure that em iss ion standards are
maintained, thus minimizing adverse effects
on the environment .

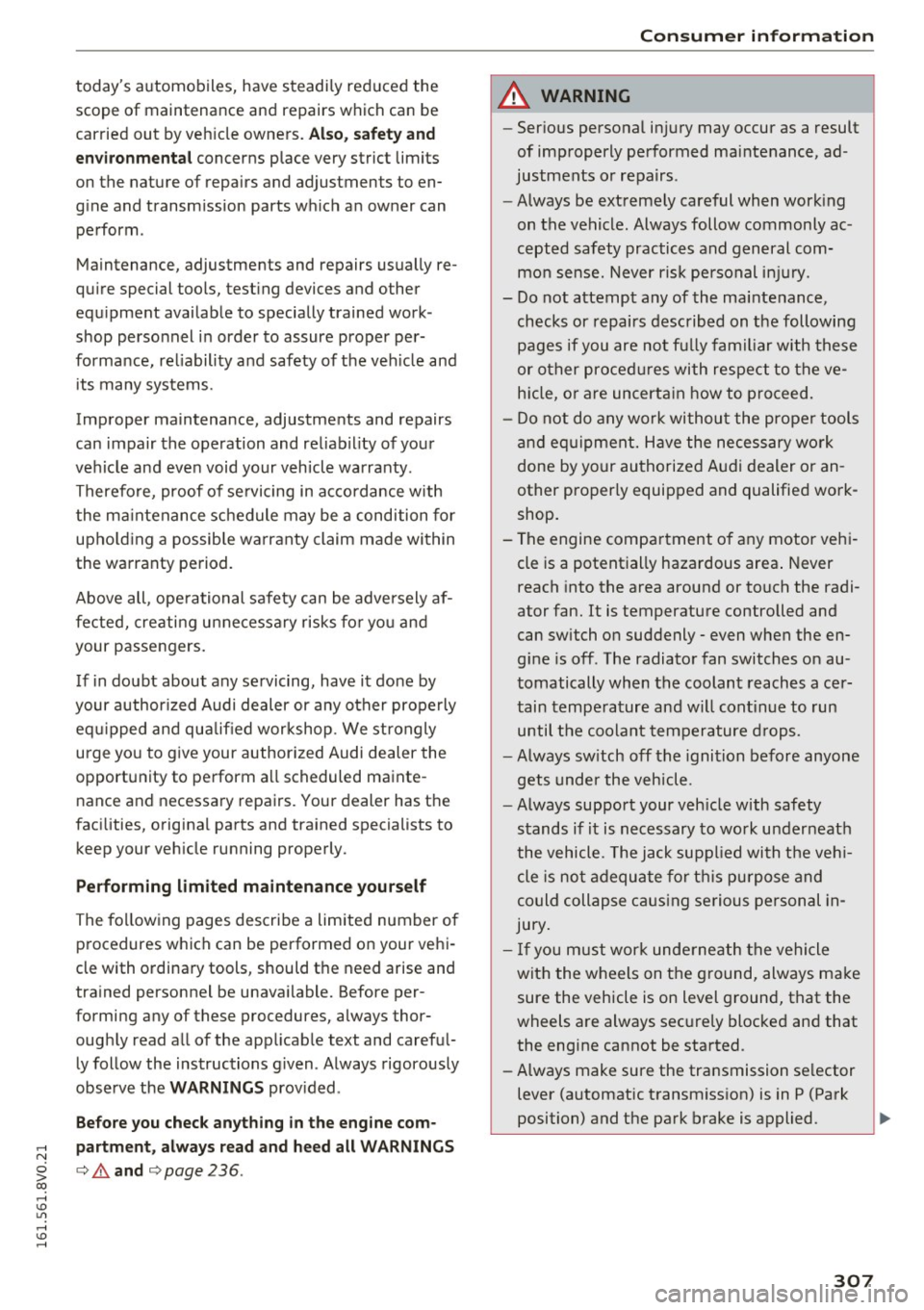

Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated
fuel injection and emission control systems, and
the generally increas ing technica l complexity of ..,_

today's automobiles, have steadily reduced the
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the n ature of repairs and adjustments to en­
gine and transmission parts which an owner can perform .
Maintenance, adjustments and repairs usually re­
quire special tools, testing devices and o ther
equipment available to specially trained work ­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty .
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for upholding a possible warranty claim made within
the warranty period.
Above all , operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any other properly equipped and qualified workshop. We strongly urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­ nanc e and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly .
Performing limited maintenance yourself
The following pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­ ly follow the instructions given . Always rigorously
observe the
WARNINGS provided .
Before you check anything in the engine com-
,.., partment, always read and heed all WARNINGS
N
~ c::> .&. and c::> page 236.
co ,...., Consumer information
A WARNING
-Serious personal injury may occur as a result
of improperly performed maintenance, ad ­
justments or repairs .
- Always be extremely careful when working
on the vehicle. Always follow commonly ac ­
cepted safety practices and general com­ mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fully familiar with these
or other procedures with respect to the ve­ hicle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi­ cle is a potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan.
It is temperature controlled and
can switch on suddenly - even when the en­
gine is off . The radiator fan switches on au ­
tomatically when the coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle .
-Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle . The jack supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in P (Park
position) and the park brake is applied .
II>
307

Consumer inf orm ation

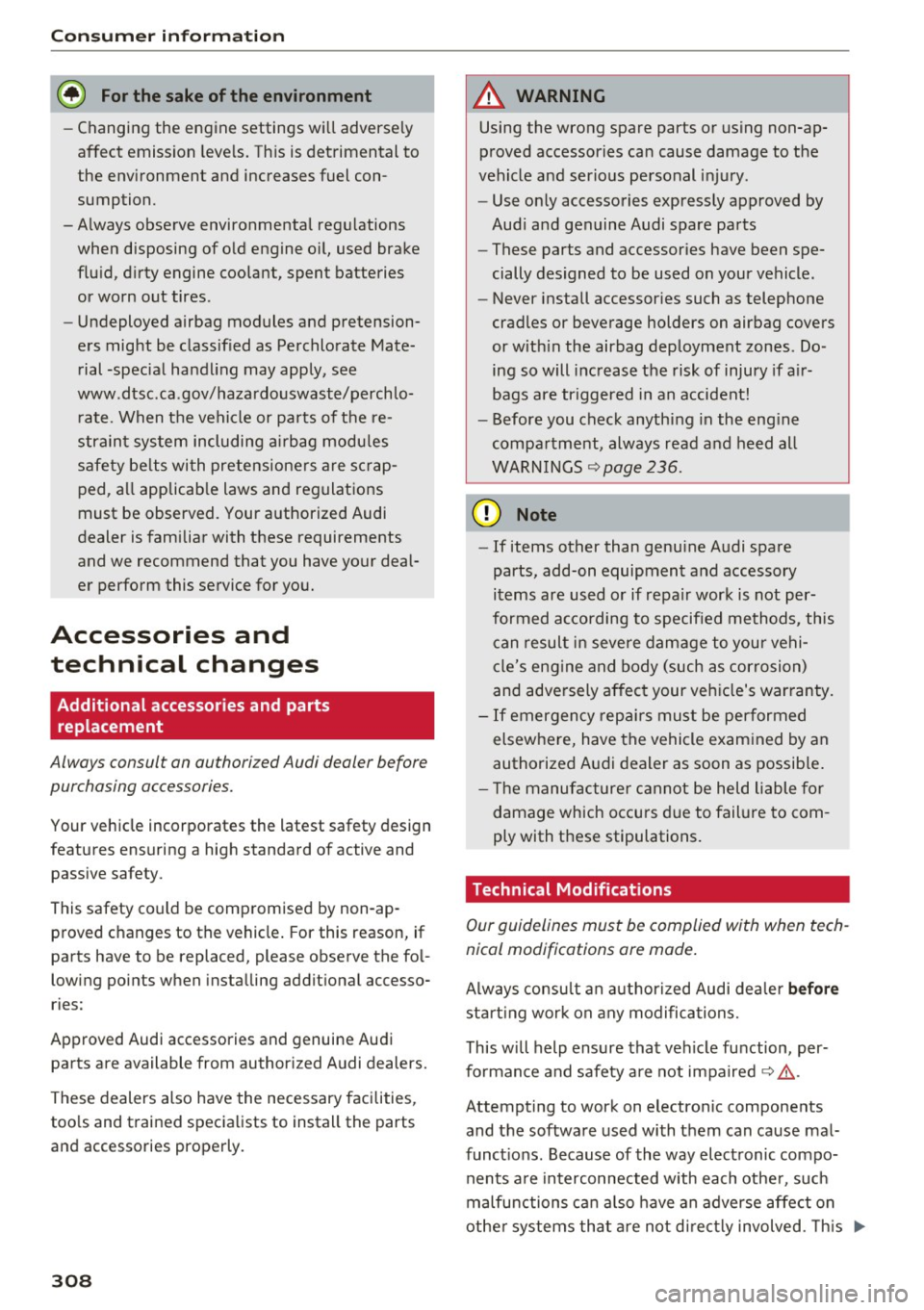

@ For the sake of the env ironment
- Changing the engine settings wi ll adversely
affect emission levels. Th is is detrimental to
the environment and increases fuel con­
sumption.
- A lways observe environmental regu lations
when disposing of old engine o il, used brake
fl ui d, d irty engine coolant, spent batteries
or worn out tires.
- Undeployed airbag modules and pretension­
ers mig ht be classified as Perchlorate Mate­
rial -special handl ing may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
r ate. When the vehicle or parts of the re­
straint system including airbag modu les
safety be lts wi th pretensioners are scrap­
ped, all applicab le laws and regulations
must be observed. Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your deal­ er perform this service for you.
Accessories and technical changes
Additional accessories and parts replacement
Always consult an authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design
features ensuring a high standard of active and passive safety.
This safety could be comp romised by non-ap­
proved changes to the vehicle . For this reason, if
parts have to be replaced, please observe the fo l­
lowing points when insta lling addit ional accesso­
ries:
Approved Audi accessories and genuine Audi parts are available from author ized Audi dealers.
These dealers also have the necessary facilities,
too ls and trained specialists to install the parts
and accessories properly.
308
A WARNING
-
Using the wrong spare parts or using non-ap-
proved accessories can cause damage to the
vehicle and serious personal injury.
- Use only accessories expressly approved by
Aud i and genuine Audi spare parts
- These parts and accessor ies have been spe­
cially designed to be used on your vehicle.
- Never install accessor ies such as telephone
cradles or beverage holders on airbag covers
or w ith in the airbag deployment zones. Do­
ing so will increase the risk of injury if a ir­
bags are triggered in an accident!
- Before you check anything in the eng ine
compartment, always read and heed all
WARN INGS
Qpage 236.
(D Note
-If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used or if repair wor k is not per­
formed a ccording to specified methods, this
c an resul t in severe damage to you r vehi­
cle's eng ine and body (such as corrosion)
and adve rsely af fect your vehicle's war ranty.
- I f emergency repai rs must be performed
elsewhere, have the vehicle exam ined by an
authorized A udi dealer as soon as possib le .
- T he manuf acture r ca nnot be held liable for
damage which occurs d ue to failure to com ­
ply with these stipulations.
Technical Modifications '
Our guidelines must be complied with when tech ­
nical modifications are made .
Always consult an a uthorized Audi de aler bef ore
sta rt ing work on any modifica tions.
This will help ensure that vehicle fu nction, per­
fo rmance and safety are not impaired
Q ,& .
Attempting to work on electronic components
and the software used with them can cause mal­
funct io ns. Because of the way elect ronic compo­
nen ts a re interconnected with each othe r, such
malfunc tions c an also have an adverse affect on
othe r systems that are not d irectl y involved. This ..,.
