AUDI S3 SEDAN 2017 Owners Manual

CXl CXl .... N r--­N .... 0 N > 00

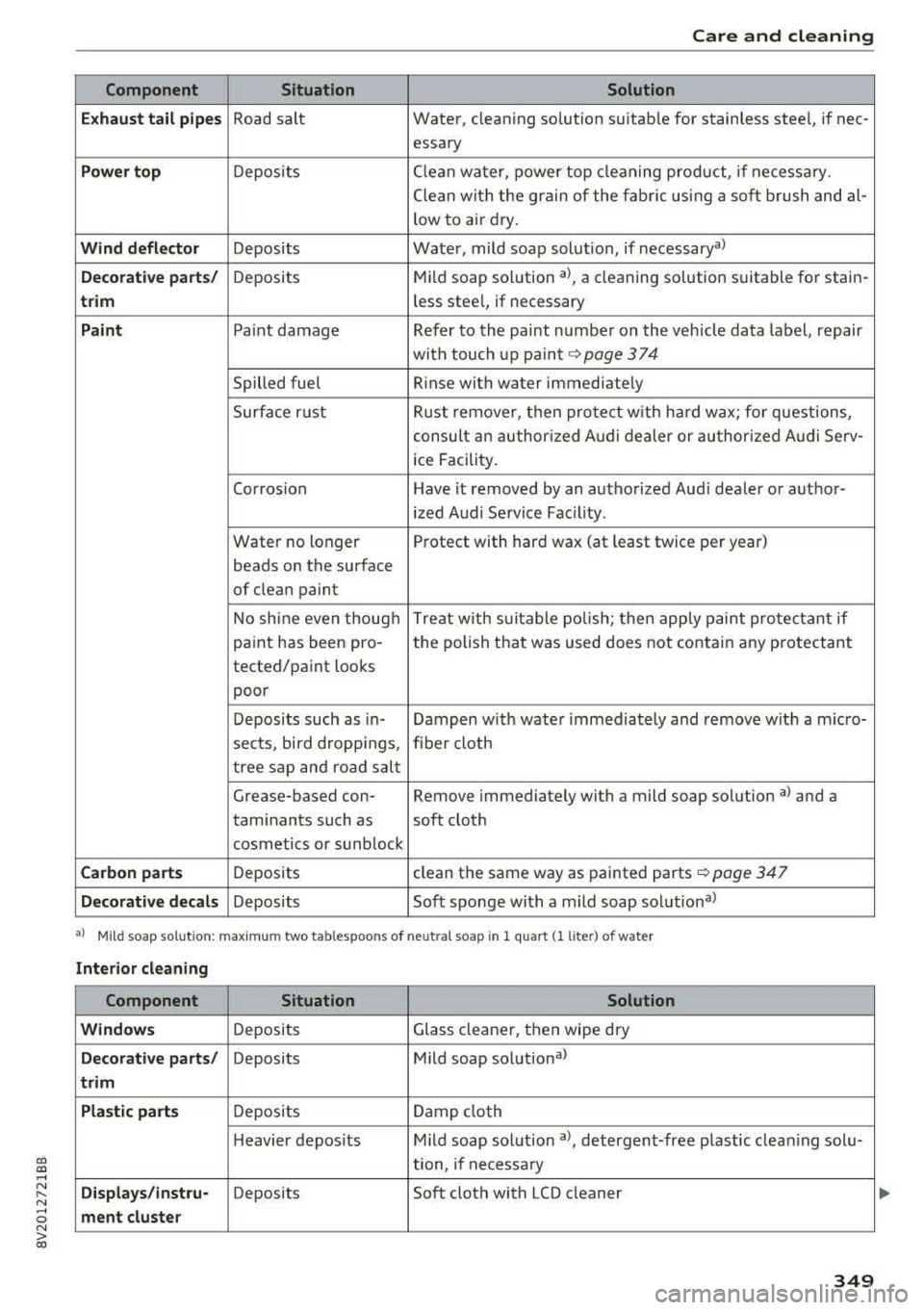

Care and cleaning
Component Situation Solution
Ex haust t ail p ip es
Road salt Water, cleaning solution suitab le for stainless steel, if nee-
essary
Po we r top Deposits Clean water, power top cleaning product, if necessa ry.
C lean with the grain of the fabric us ing a so ft brush and al-
l ow to air dry.
Wind defl ecto r Deposits Water, mild soap solut ion, if necessaryal
D ecor ativ e part s/ Deposits Mild soap solution al, a cleaning so
lution suitable for stain-
trim less stee l, if necessary
P aint Pa int damage Refer to the paint numbe r on the vehicle data label, repair
with touch up paint
~page 374
Spilled fuel Rinse with water immediately
Surface rust Rust remover, then prote ct w ith ha rd wax; for questions,
consult an author ized Audi dealer or authorized Audi Serv-
ice Facility .
Corrosion Have it removed by an authorized Aud i dealer or author-
i zed Audi Service Facility.
Water no longer Protect with hard wax (at least twice per year)
beads on the surface
of clean paint
No sh ine even thoug h Treat w ith suitable po lish; then apply paint protectant if
paint has been pro -the polish that was used does not contain any protectant
tected/paint looks poor
Deposits such as in- Dampen w ith water immediately and remove with a m icro-
sects, bi rd dropp ings, fiber cloth
tree sap and road sal t
Grease-based con-Remove immediately with a mild soap solution al and a
tam inants such as soft cloth
cosmetics or sunblock
C ar bon p art s Deposits clean
the same way as painted parts ~ page 347
Dec orati ve d ecals
Deposits Soft sponge with a mild soap solutional
a) Mild soap solution: maximum two tablespoons of neutral soap in 1 quart (1 liter l of water
Interio r cl ea ning
Component Situation Solution
Window s
Deposits Glass cleaner, then wipe dry
D
ecor ati ve part s/ Deposits Mild soap solutional
trim
Pla stic pa rts
Deposits Damp cloth
Heavier depos its Mild soap solution
al, detergent-free plastic clean ing solu-
tion, if necessary
Di spl ays/in stru· Deposits Soft cloth with LCD cleaner
ment clus te r
349

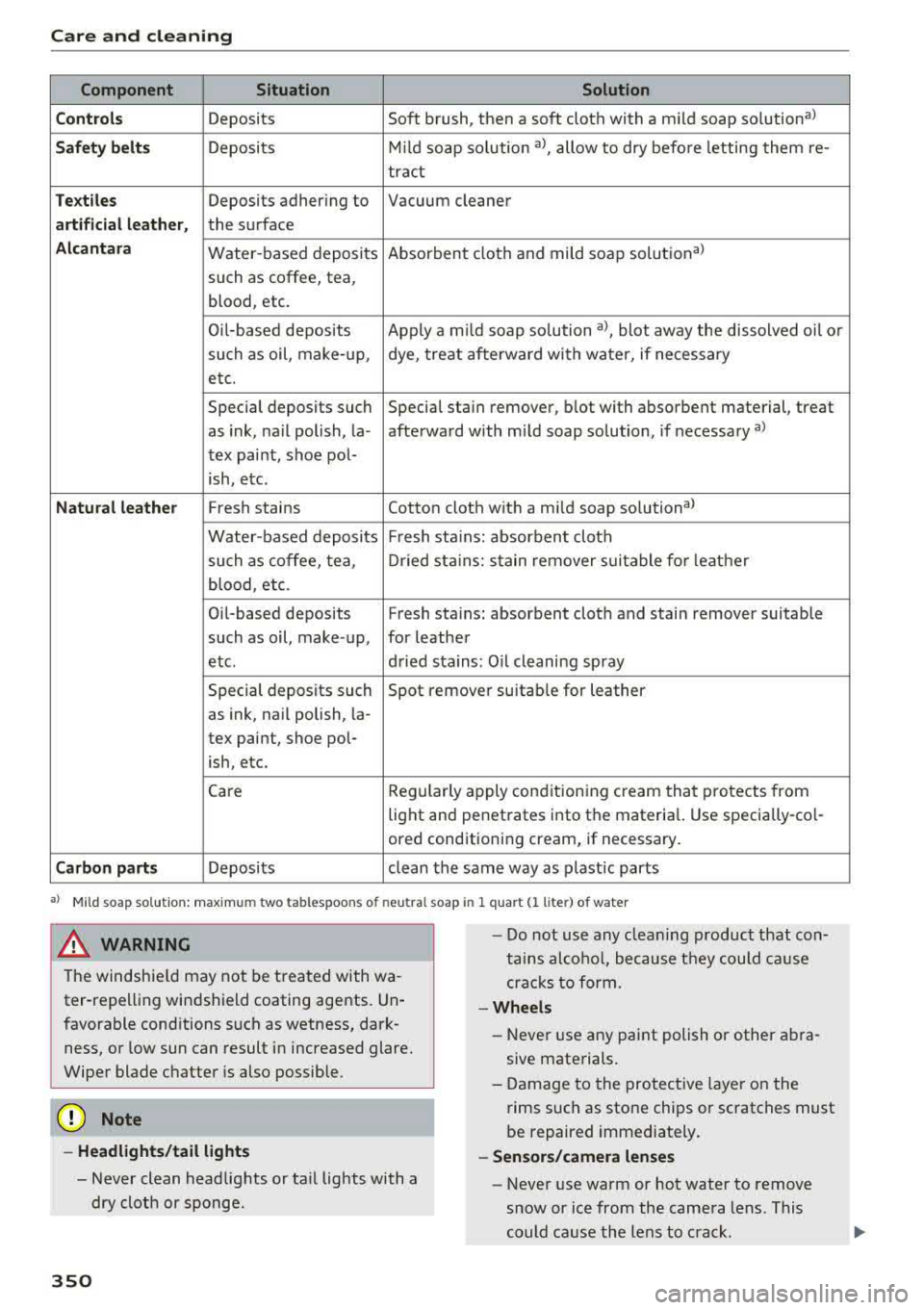

Care and cleaning
Component Situation Solution
C ont rols
Deposits Soft brush, then a soft cloth with a mild soap solution a)
Safet y belt s Deposits M
ild soap so lution a), allow to dry befo re letting them re-
tract
Te xt ile s Deposits adhering to Vacuum cleaner
artifi cial le athe r, the surface
Alcantara Water -based deposits Absorbent cloth and mild soap solutional
such as coffee, tea,
blood , etc.
Oi l-based deposits Apply a m ild soap so lution al, blot away the dissolved oi l or
such as oil, make-up , dye, treat afterward with water, if necessary
etc.
Special deposits such Special sta in remover, blot with absorbent material, treat
as ink, na il polish, la -afterward with mild soap solution, if necessary al
tex paint, shoe pol-
ish, etc.
N atu ral leath er Fresh stains Cotton cloth with a mild soap so lutiona )
Water-based deposits Fresh sta iins: absorbent cloth
such as coffee, tea , Dried st ains: stain remover suitable fo r leathe r
blood , etc.
Oil-based deposits Fresh
sta iin s: absorbent cloth and stain remover suitable
such as oil, make -up, for leather
etc. dried stains: Oil cleaning spray
Special deposits such Spot remover suitab
le for leather
as ink, nail polish, la-
tex paint, shoe pol-
ish, etc.
Care Regularly apply conditioning cream that protects from
light and penetrates into the materia l. Use specially-co l-
ored cond itioning cream, if necessary .
Carbon part s Deposits clean the same way as plastic parts
a) M ild soap so lution: maxim um two tabl espoo ns o f neu tral s oa p in 1 quart (l lite r) of water
8_ WARNING
-The windshie ld may not be treated with wa-
ter-repelling windshield coating agents. Un­
favorable conditions such as wetness, dark­ ness, or low sun can result in increased glare.
Wiper blade chatter is also possible.
Q;) Note
- Headl ights /tail li ght s
- Never clean headlights or ta il lights with a
dry cloth or sponge .
350
-
-Do not use any clea ning product that con­
tains alco ho l, because they could cause
crac ks to form.
-Whe els
- Never use any paint polish or other abra-
sive materials.
- Damage to the protect ive layer on the
rims such as stone chips or scratches must
be repaired immediately.
- Sensors /camera lenses
- Never use warm or hot water to remove
snow or ice from the camera lens . This
could cause the lens to crack.

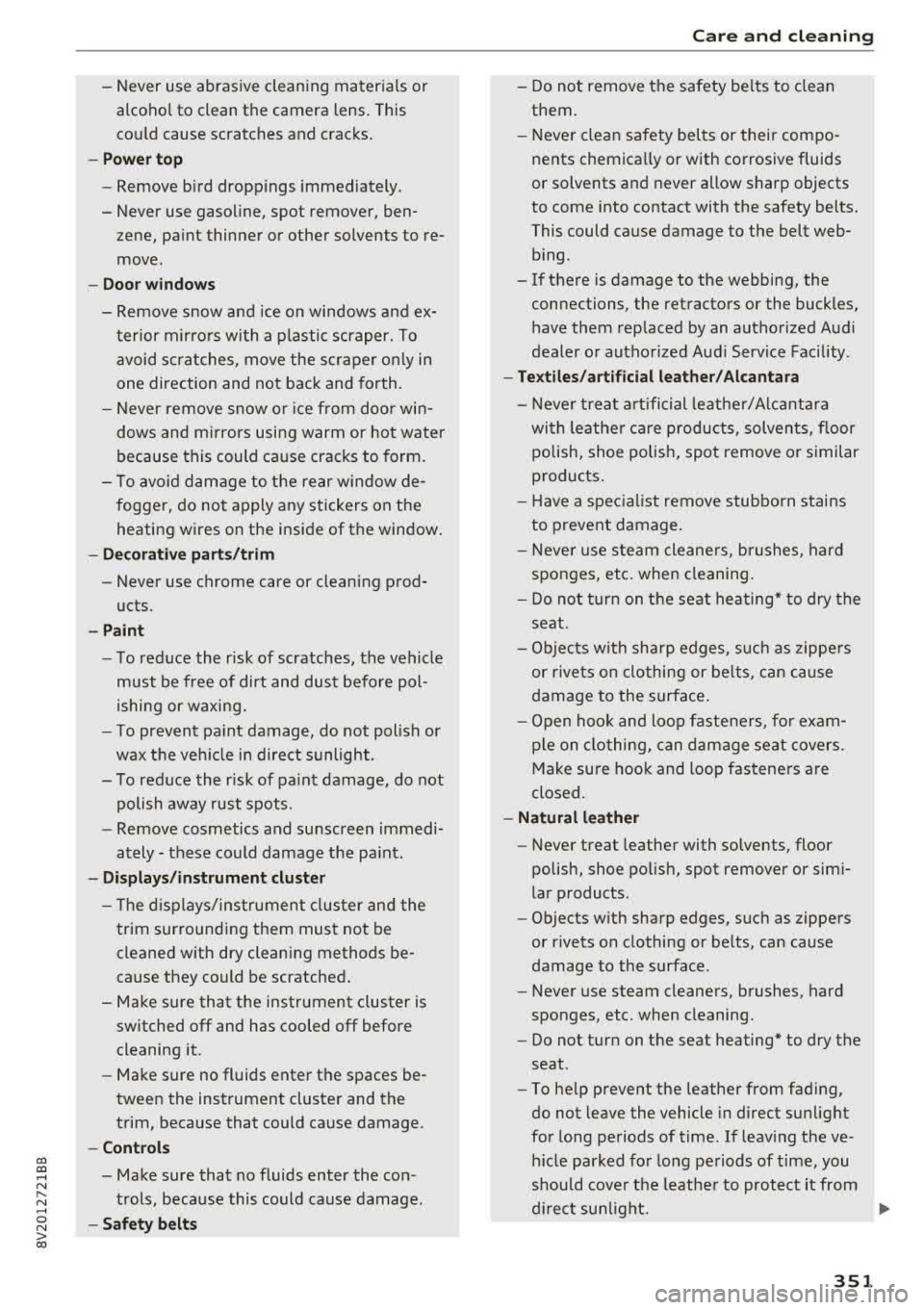

CXl CXl .... N ,.__
N .... 0 N > 00
-Never use abrasive cleaning materials or
alcohol to clean the camera lens. This
could cause scratches and cracks.
-Power top
-Remove bird droppings immediately.
-Never use gasoline, spot remover, ben-
zene, paint thinner or other solvents to re­
move.
-Door windows
-Remove snow and ice on windows and ex-
terior mirrors with a plastic scraper. To
avoid scratches, move the scraper only in
one direction and not back and forth.
-Never remove snow or ice from door win­
dows and mirrors using warm or hot water
because this could cause cracks to form.
-To avoid damage to the rear window de­
fogger, do not apply any stickers on the heating wires on the inside of the window.
-Decorative parts/trim
-Never use chrome care or cleaning prod-
ucts.
-Paint
-To reduce the risk of scratches, the vehicle
must be free of dirt and dust before pol­
ishing or waxing.
-To prevent paint damage, do not polish or
wax the vehicle in direct sunlight .
-To reduce the risk of paint damage, do not
polish away rust spots .
-Remove cosmetics and sunscreen immedi­
ately- these could damage the paint.
-Displays/instrument cluster
-The displays/instrument cluster and the
trim surrounding them must not be
cleaned with dry cleaning methods be­
cause they could be scratched.
-Make sure that the instrument cluster is
switched off and has cooled off before
cleaning it.
-Make sure no fluids enter the spaces be­
tween the instrument cluster and the
trim, because that could cause damage.
-Controls
-Make sure that no fluids enter the con-
trols, because this could cause damage.
-Safety belts
Care and cleaning
-Do not remove the safety belts to clean
them.
-Never clean safety belts or their compo­
nents chemically or with corrosive fluids
or solvents and never allow sharp objects
to come into contact with the safety belts.
This could cause damage to the belt web­ bing .
-If there is damage to the webbing, the
connections, the retractors or the buckles
,
have them replaced by an authorized Audi
dealer or authorized Audi Service Facility .
-Textiles/artificial leather/ Alcantara
-Never treat artificial leather/Alcantara
with leather care products, solvents , floor
polish, shoe polish, spot remove or similar
products.
-Have a specialist remove stubborn stains
to prevent damage.
-Never use steam cleaners, brushes , hard
sponges, etc. when cleaning.
-Do not turn on the seat heating* to dry the
seat.
-Objects with sharp edges, such as zippers
or rivets on clothing or belts, can cause
damage to the surface.
-Open hook and loop fasteners, for exam­
ple on clothing, can damage seat covers .
Make sure hook and loop fasteners are
closed.
-Natural leather
-Never treat leather with solvents, floor
polish, shoe polish, spot remover or simi­
lar products.
-Objects with sharp edges, such as zippers
or rivets on clothing or belts, can cause
damage to the surface.
-Never use steam cleaners, brushes, hard
sponges, etc . when cleaning.
-Do not turn on the seat heating* to dry the
seat.
-To help prevent the leather from fading,
do not leave the vehicle in direct sunlight
for long periods of time. If leaving the ve ­
hicle parked for long periods of time, you
should cover the leather to protect it from
direct sunlight.
Ill>
351

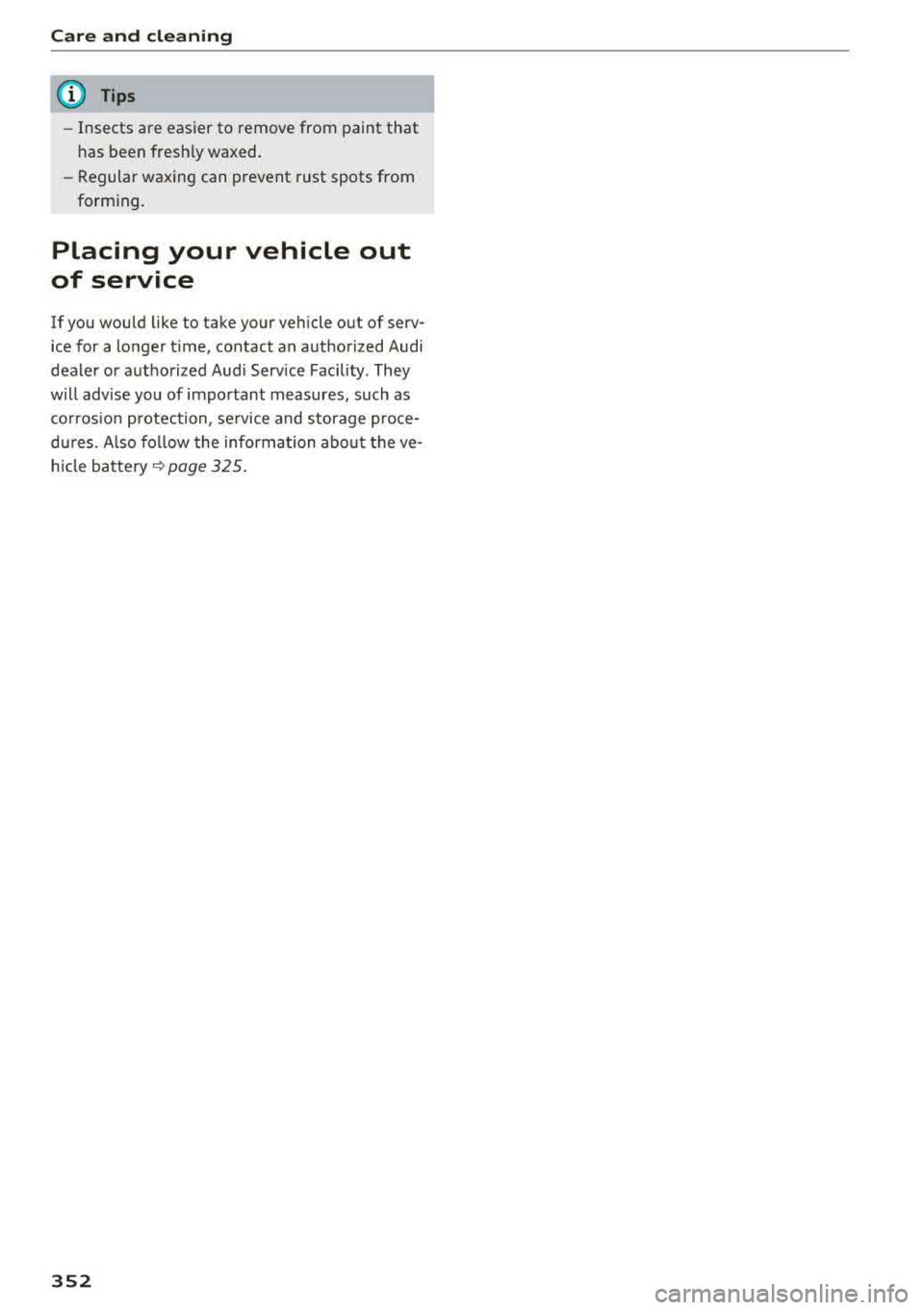

Care and cleaning
(D Tips
-Insects are easier to remove from paint that
has been fresh ly waxed.
- Regular waxing can prevent rust spots from
forming.
Placing your vehicle out
of service
If you wou ld like to take your vehicle out of serv­
ice for a longer t ime, contact an authorized Audi
dealer or authorized Aud i Serv ice Facility . They
w ill advise you of impo rtant measures, such as
corros ion protection, se rvice and storage proce­
dures. A lso follow the information about the
ve­
h icle battery ¢ page 325.
352

a, a, ..... N
" N ..... 0 N > 00

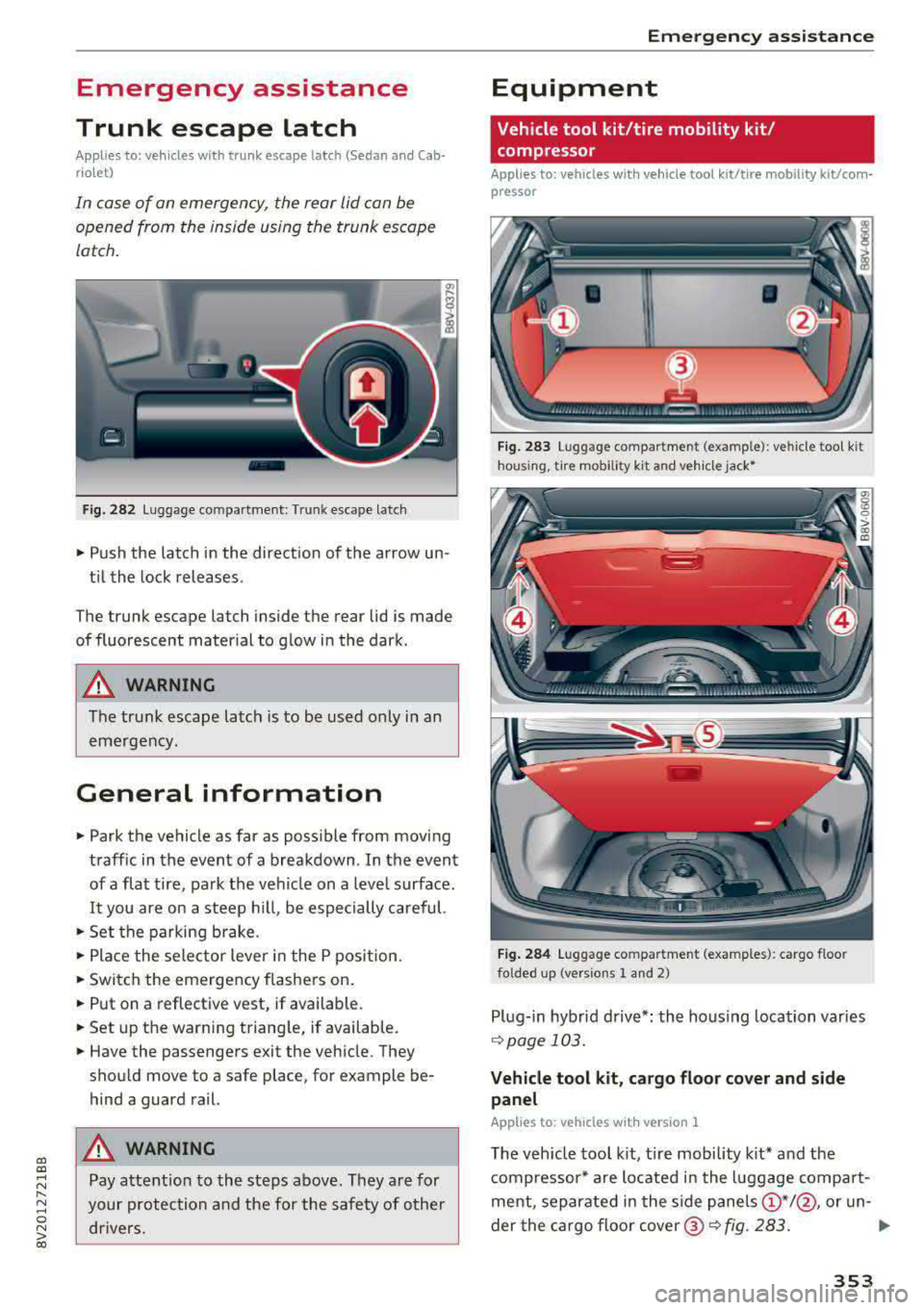

Emergency assistance
Trunk escape latch
Applies to: vehicles with trunk escape latch (Sedan and Cab­
rio let)
In case of an emergency, the rear lid can be
opened from th e inside using th e trunk escape
latch.
Fig. 282 Luggage co m partment: T runk escape latch
• Push the latch in the direction of the arrow un ­
t il the lock releases .
T he trunk escape latch inside the rear lid is made
of fluorescent mater ial to g low in the dark .
A WARNING
The trunk escape latch is to be used only in an
emergency .
General information
• Park the vehicle as far as possible from moving
traff ic in the event of a breakdown . In the event
of a flat tire, park the vehicle on a leve l surface .
It you are on a steep h ill, be especially careful.
• Set the parking b rake .
• Place the sele ctor lever in the P pos ition.
• Switch the emergency flashers on .
• Put on a reflective vest, if available.
•Setup th e warn ing triang le, if available.
• Have the passengers exit the vehicle . They
shou ld move to a safe place, for example be­
hind a guard rail.
A WARNING
Pay attent ion to the steps above . They a re for
your protection and the for the safety of other drivers.
Em ergen cy a ssis tanc e
Equipment
' Vehicle tool kit/tire mobility kit /
compressor
Applies to: vehicles with vehicle tool kit/tire mobility kit/com­
pressor
Fi g. 283 Lugg age compartme nt (ex ample): ve hicle too l kit
h o u sin g, tire mobili ty k it and vehicle
jac k*
F ig . 284 Luggage compar tmen t (exa mples ): cargo floor
fo lded up (ve rs ion s 1 and 2)
Plug- in hybr id drive*: the housing location var ies
~ page 103.
Vehicle t ool k it , ca rgo floor cover and s ide
panel
Applies to: vehicles with version 1
The vehicle tool k it, t ire mobility k it * an d the
compressor* are located in the l uggage compart ­
ment, separate d in the side
panels @*/@ , or un-
der the cargo floor
cover @~ fig. 283. ..,.
353

Emergency assistance
• To open the side pane l, turn the lock and re­
move the
cover @*/ @ ¢ fig. 283.
• Lift the cargo floor using the plastic handle @
un til the cargo floor engages behind the tabs
© in both side panels¢ fig. 284 (upper im­
age) .
• Fold the cargo floor back before closing the
luggage compartment lid.
Vehicle tool kit and cargo floor cover
App lies to: ve hicles w ith versio n 2
The vehicle too l kit, tire mobility kit* and com­
pressor* are stored in the luggage compartment
under the cargo floor
cover @¢ fig. 283 .
• Engage the plastic hook® in the luggage com­
partment
seal ¢ fig. 284.
• Fold the cargo floor back before closing the
luggage compartment lid .
.&_ WARNING
Improper use of the vehicle jack can cause se­
r ious personal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts cannot
attain the necessary tightening torque if you
use the hex head, potentially causing an ac­
cident.
- T he factory-supplied jack is intended only
for your vehicle model. Under no circum­
stances should it be used to lift heavy
vehicles or other loads; you risk injuring
yourself.
- Never start the engine when the vehicle is
raised, which could cause an accident.
- Support the vehicle securely with appropri­
ate stands if work is to be performed under­
neath the vehicle; otherwise, there is a po­
tent ial risk for injury.
- Never use the jack supplied with your Audi
on another vehicle, particularly on a heavier
one. The jack is only suitable for use on the
vehicle it came w ith.
@ Tips
The vehicle jack* in your vehicle is mainte­
nance-free.
354
Tire mobility kit
Preparation
App lies to: vehicles with tire mobility kit
• Read and fo llow the important safety precau-
tions
in ¢ page 353.
• Set the parking brake.
• Move the selector lever into the P position.
• Check if a repair with the tire mobility kit is pos­
sible
¢ page 354.
Using the tire mobility kit
Applies to: vehicles wit h tire mobility kit
Fig. 285
Tire: t ir e damage that cannot be repaired
The tire repair is only meant for temporary use .
Change the spare tire as soon as possible
c:;> .&..
If the tire is pierced by an object such as a nail ,
do not remove the object from the tire.
..... N
0
> 00 m
The tire repair set is able to be used at tempera­
tures as low as -4 °F ( -20 °C).
The tire mobility kit may not be used :
-if the tire has cuts or punctures that are larger
than
0.16 in (4 mm) (!)¢ fig. 285.
-if the rim is damaged @.
- if you drove with very low tire pressure or with-
out air in the tire @.
In this case, see an authorized Aud i dea ler or au­
thorized Audi Service Facility for assistance.
~ WARNING
-Please note that the tire mobility kit cannot
be used in all situations, and that it may on­
ly be used temporarily.
-The tire sealant must not come in contact
with skin, eyes, or clothes.

a, co ..... N
" N ..... 0 N > 00
-If tire sealant gets in your eyes or on your
sk in, thoroughly rinse the affected area im­
med iately with clean water.
- Do not inhale the fumes.
- If you swallow any of the ti re sealant, thor-
oughly rinse your mouth immediately and
drink a lot of water. Do not induce vomiting .
Seek medical attention immediately.
- Change your clothes immediate ly if they get
t ire sealant on them.
- If an allergic reaction occurs, seek immedi­
ate medical attention.
- Keep the tire sea lant away from children .
- In vehicles with a ti re pressure monitoring
system *, using tire sealant can results in an
incorrect display or a system malfunction .
Drive carefully to the nearest authorized
Audi dealer or authorized Audi Service Facili­
ty.
{!) Tips
- If sealant leaks, allow it to dry in place. Yo u
can then pee l it off like a sticker.
- Note the expiration date on the sealant bot ­
tle . Replace the tire sea lant at an author­
ized Audi dealer or authorized Audi Service
Fac ility.
- Radio reception can be interrupted when operating the compressor*.
- Obey all laws .

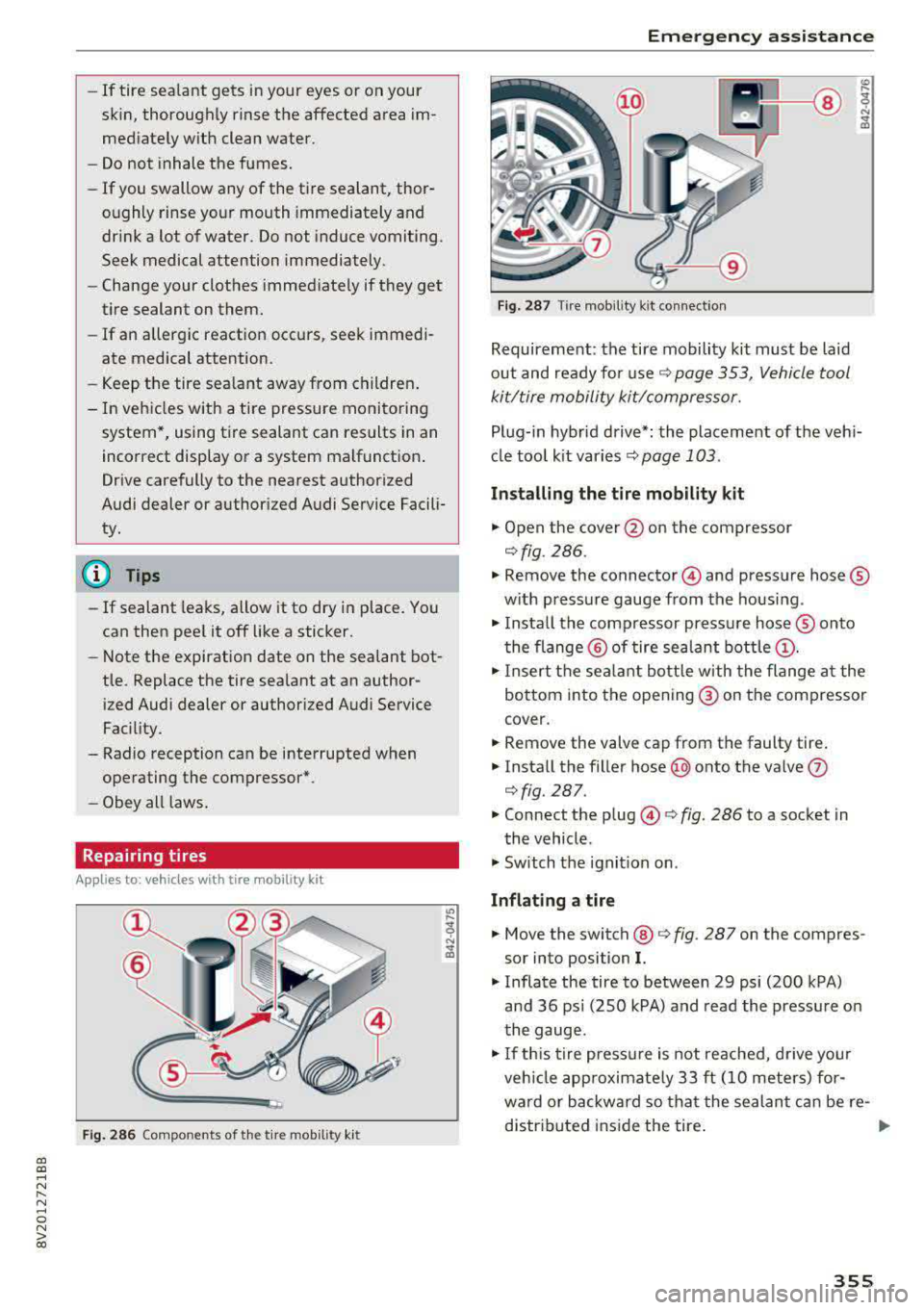

Repairing tires
App lies to: ve hicles w ith tire mobility ki t
Fig. 286 Components of the t ire mobility kit
Em ergen cy a ssis tanc e
Fig. 287 Tire mobil ity k it connection
Requirement: the tire mobility kit must be laid
out and ready fo r
use ¢ page 353, Vehicle tool
ki t/tire mobility kit/compressor.
Pl ug- in hybrid drive*: the placement of the veh i­
cl e tool k it varies
¢ page 103 .
Installing the tire mobility k it
.,. Open the cover @ on the compressor
¢fig. 286.
.,. Remove the connector © and pressure hose ®
w ith pressure gauge from the housing .
.,. Install the compressor pressu re hose ® onto
t he flange @ of tire sea lant
bottle @.
.,. Insert the sea lant bott le with the flange a t the
bo ttom into the opening ® on the compressor
cover .
.,. Remove the valve cap from the faulty tire .
.,. Install the filler hose @onto the valve (J)
¢fig. 287.
.,. Connect the plug ©¢ fig. 286 to a socket in
the vehicle.
.,. Switch the ignit ion on .
Inflating a tire
.,. Move the switch @¢ fig. 287 on the compres­
sor into position
I.
.,. Inflate the tire to between 29 psi (200 kPA)
and 36 ps i (250 kPA) and read the pressure on
the gauge .
.,. I f th is ti re press ure is not reached, d rive yo ur
veh icle app roximate ly 33
ft (10 meters) for­
ward or backwa rd so tha t the sealant can be re­
distr ibuted ins ide the tire .
355

Emergency assistance
A WARNING
-Read and follow the manufacturer's safety
precautions on the compressor and in the
instructions on the bottle of sealant .
- If a t ire pressure of 29 ps i (200 kPA) cannot
reached after inflating for 6 minutes, then
the tire is too severely damaged. Do not
continue driving.
- If the t ire cannot be repaired with the tire
sealant, see an authorized Audi dealer or au­
thorized Aud i Serv ice Facility fo r ass istance.
@ Tips
Do not operate the compressor for more than
six m inutes continuously, or it can overheat.
Once the compressor has cooled, you can con­
tinue to use it.

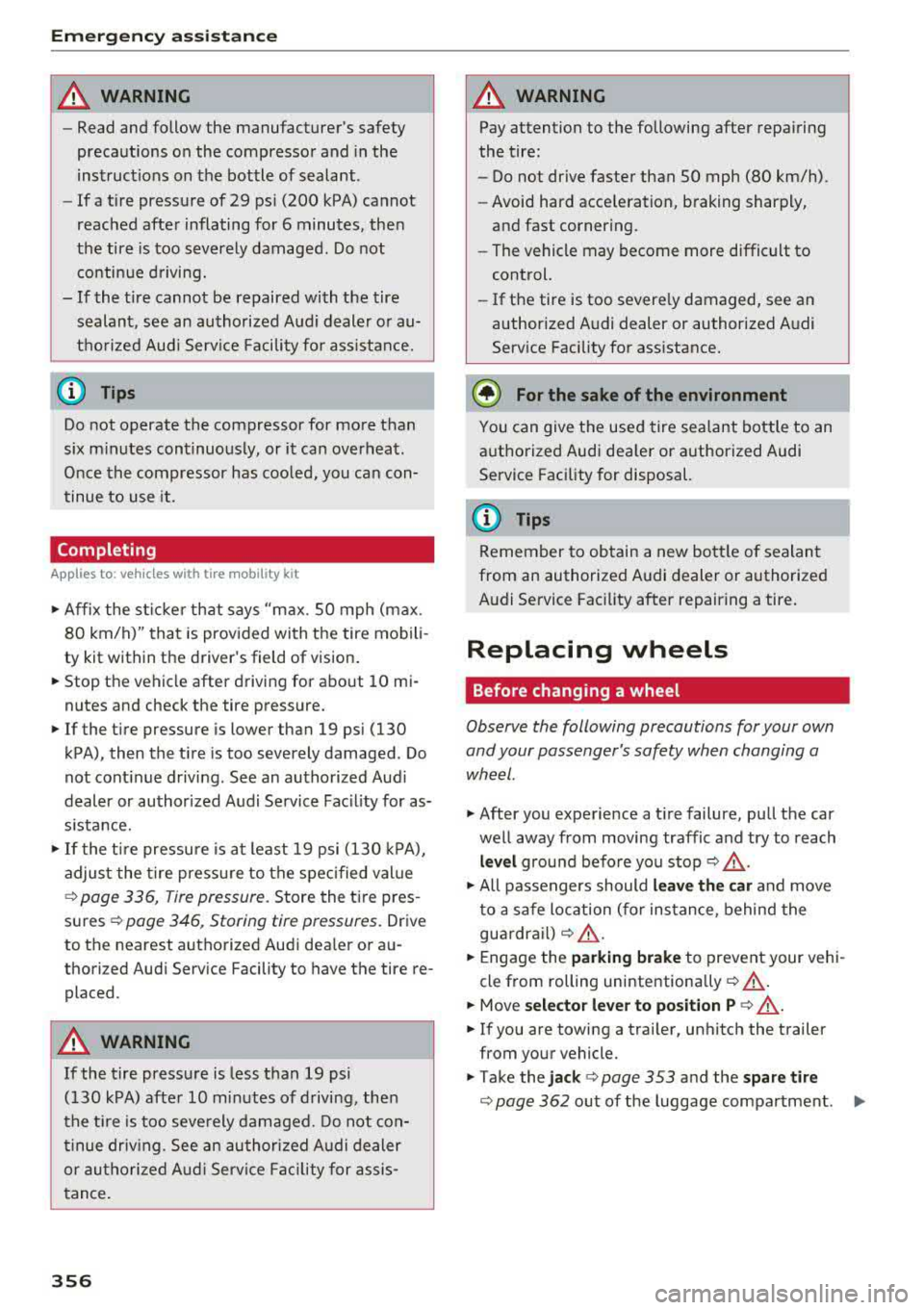

Completing
App lies to: vehicles with tire mobility kit
.,. Affix the sticker that says "max. SO mph (max .
80 km/h)" that is provided with the tire mobili ­
ty kit within the driver's field of vision .
.,. Stop the vehicle after driving for about 10 mi­
nutes and check the tire pressure.
.,. If the tire pressure is lower than 19 ps i (130
kPA), then the tire is too severely damaged. Do
not cont inue driving. See an authorized Audi
dealer or authorized Audi Service Fac il ity for as­
s istance.
.,. If the tire pressure is at least 19 psi (130 kPA),
adjust the tire pressure to the spec ified value
<:!'v page 336, Tire pressure . Store the tire pres­
sures
¢ page 346, Storing tire pressures. Drive
to the nearest authorized Aud i dea le r or au­
thorized Audi Service Facility to have the tire re­ placed.
A WARNING
If the tire pressure is less than 19 psi
(130 kPA) afte r 10 minutes of driving, then
the tire is too severely damaged. Do not con­
tinue driving. See an authorized Audi dealer
or authorized Audi Service Facility for assis­
tance.
356
A WARNING
-
Pay attention to the following after repairing
the tire:
- Do not drive faster than SO mph (80 km/h).
- Avoid hard acceleration, braking sharply,
and fast cornering.
- The vehicle may become more difficult to
control.
- If the tire is too severe ly damaged, see an
authorized Audi dealer or authorized Audi
Serv ice Facility for assistance.
@ For the sake of the environment
You can give the used tire sealant bottle to an
a uthorized Audi dea ler or authorized Audi
Service Facility for disposal.
(D Tips
Remember to obtain a new bott le of sealant
from an authorized Audi dealer or authorized
Audi Service Facility after repairing a tire .
Replacing wheels
Before changing a wheel
Observe the following precautions for your own
and your passenger's safety when changing a
wheel.
.,. After you experience a t ire failure, pull the car
well away from moving traffic and try to reach
level ground before you stop¢.&_ .
.,. All passengers should leave the car and move
to a safe location (for instance, behind the
guardrail)¢ .&_.
.,. Engage the parking brake to prevent your vehi­
cle from rolling
unintentiona lly¢ ,&.
.,. Move selector lever to position P ¢ ,& .
.,. If you are towing a trai ler, unhitch the trailer
from your vehicle.
.,. Ta ke the jack ¢ page 353 and the spare tire
<:!'v page 362 out of the luggage compartment . ..,.

a, a, ..... N
" N ..... 0 N > 00
_& WARNING
You or your passengers could be injured while
changing a wheel if you do not follow these
safety precautions:
- If you have a flat tire, move a safe distance
off the road. Turn off the engine, turn the emergency flashers on and use other warn­
ing devices to alert other motorists.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
- To help prevent the vehicle from moving
suddenly and possibly slipping off the jack,
always fully set the parking brake and block
the wheel diagonally opposite the wheel be­
ing changed. When one front wheel is lifted
off the ground, placing the Automatic
Transmission in P (Park) will
not prevent the
vehicle from moving.
- Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack.
- Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
partment
c:> page 253.

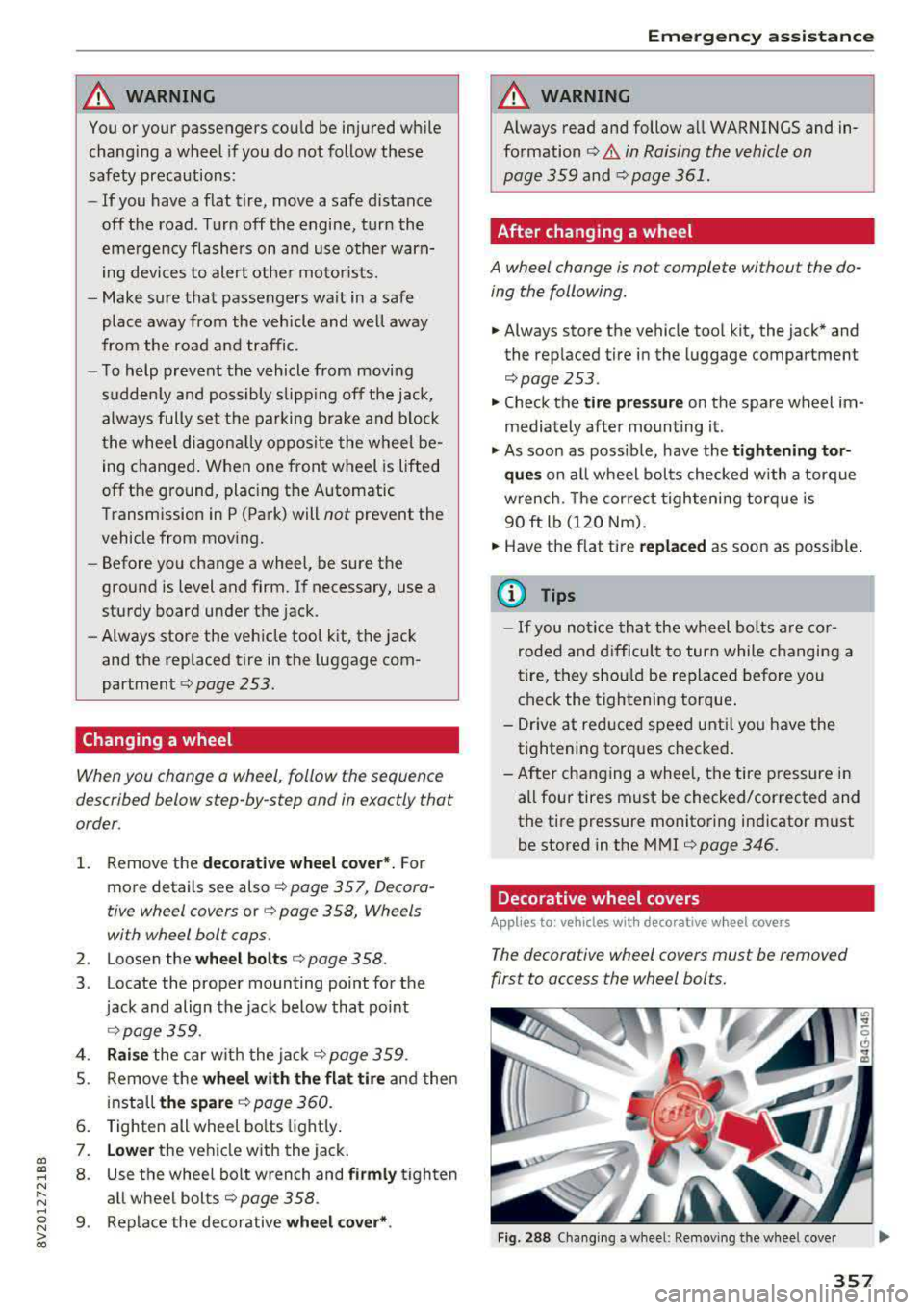

Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order.
1. Remove the decorative wheel cover*. For
more details see also
c:> page 357, Decora-
tive wheel covers
or c:> page 358, Wheels
with wheel bolt caps.
2. Loosen the wheel bolts c:> page 358.
3 . Locate the proper mounting point for the
jack and align the jack below that point
c:> page359.
4. Raise the car with the jack c:> page 359.
5. Remove the wheel with the flat tire and then
install
the spare c:> page 360.
6. Tighten all wheel bolts lightly.
7. Lower the vehicle with the jack .
8 . Use the wheel bolt wrench and firmly tighten
all wheel bolts
c:> page 358 .
9. Replace the decorative wheel cover* .
Emergency assistance
_& WARNING
-Always read and follow all WARNINGS and in-
formation
c:> .&. in Raising the vehicle on
page 359
and c:> page 361.
After changing a wheel
A wheel change is not complete without the do­
ing the following.
.. Always store the vehicle tool kit, the jack* and
the replaced tire in the lugg age compartment
c:> page 253.
.. Check the tire pressure on the spare wheel im­
mediately after mounting it .
.. As soon as possible, have the tightening tor­
ques
on all wheel bolts checked with a torque
wrench. The correct tightening torque is
90 ft lb (120 Nm).
.. Have the flat tire replaced as soon as possible.
@ Tips
-If you notice that the wheel bolts are cor­
roded and difficult to turn while changing a
tire, they should be replaced before you
check the tightening torque.
- Drive at reduced speed until you have the tightening torques checked.
- After changing a wheel, the tire pressure in
all four tires must be checked/corrected and
the tire pressure monitoring indicator must
be stored in the MMI
c:>page 346.
Decorative wheel covers
Applies to : vehicles wit h decorative w heel covers
The decorative wheel covers must be removed
first to access the wheel bolts.
Fig. 288 Changing a wheel: Removing the wheel cover
357

Emergency assistance

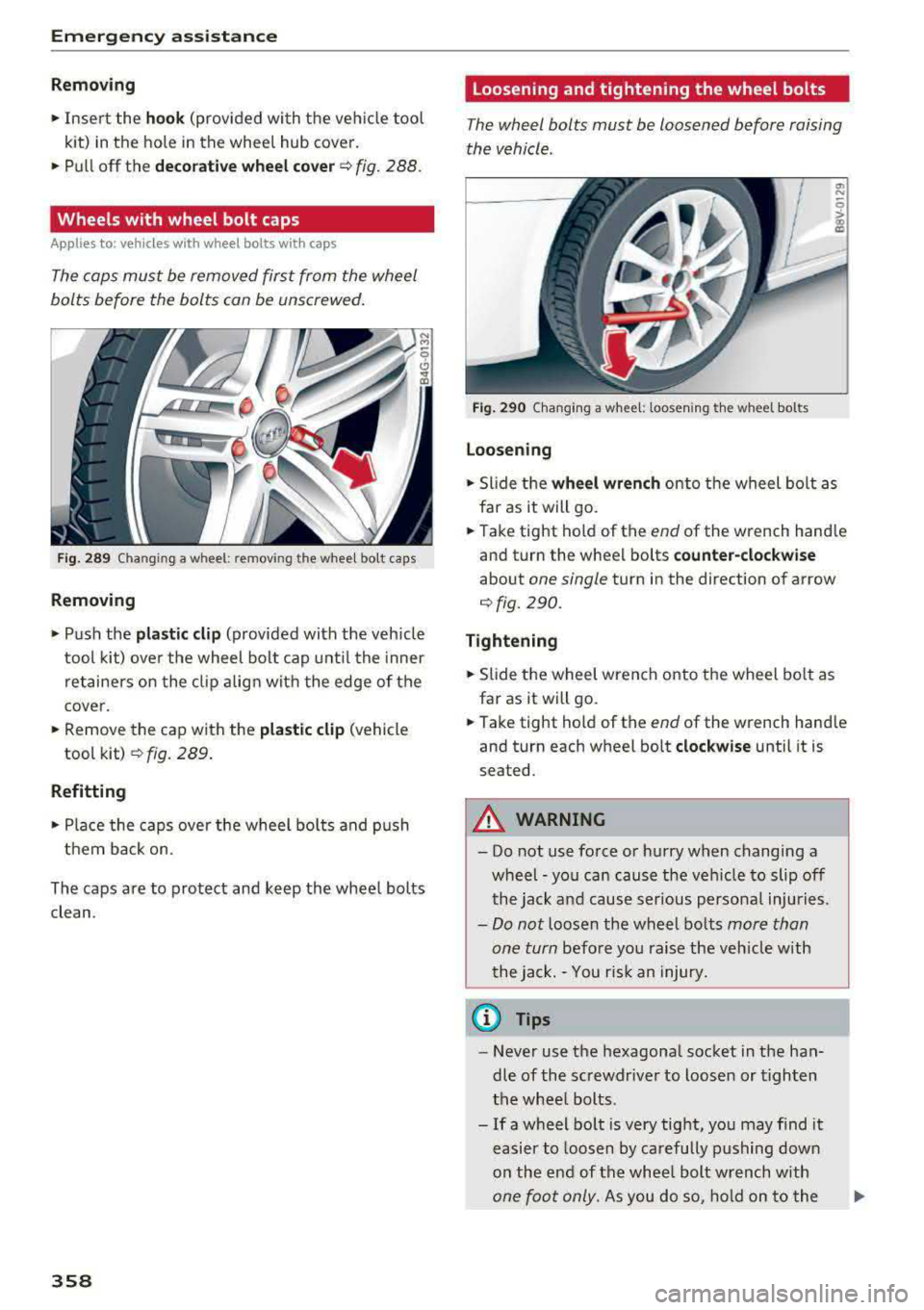

Removing
.. Insert the hook (provided with the vehicle tool
kit) in the hole in the wheel hub cover.
.. Pull off the decorative wheel cover¢ fig. 288.
Wheels with wheel bolt caps
App lies to: vehicles with wheel bolts with caps
The caps must be removed first from the wheel
bolts before the bolts can be unscrewed.
Fig. 289 Changing a wheel: remov ing the wheel bo lt caps
Removing
" Push the plastic clip (provided with the veh icle
tool kit) over the wheel bolt cap until the inn er
retainers on the clip align with the edge of the
cover.
.. Remove the cap with the plastic clip (vehicle
tool kit)
¢fig. 289.
Refitting
" Place the caps over the wheel bolts and push
them back on.
The caps are to protect and keep the wheel bolts
clean.
358
Loosening and tightening the wheel bolts
The wheel bolts must be loosened before raising
the vehicle .
Fig. 290 Changing a whee l: loose ning the wheel bolts
Loosening
"Slid e the wheel wrench onto the wheel bolt as
far as it will go .
.. Take tight hold of the end of the wrench handle
and turn the wheel bolts
counter-clockwise
about one single turn in the direction of arrow
¢fig. 290.
Tightening
.. Slide the wheel wrench onto the wheel bolt as
far as it will go.
.. Take tight hold of the end of the wrench handle
and turn each wheel bolt
clockwise until it is
seated.
A WARNING
-Do not use force or hurry when changing a
wheel - you can cause the vehicle to slip off
the jack and cause serious personal injuries.
-Do not loosen the wheel bolts more than
one turn
before you raise the vehicle with
the jack.
-You risk an injury.
(D Tips
-Never use the hexagonal socket in the han­
dle of the screwdriver to loosen or tighten
the wheel bolts.
-If a wheel bolt is very tight, you may find it
easier to loosen by carefully pushing down
on the end of the wheel bolt wrench with
one foot only. As you do so, hold on to the
