AUDI S8 2009 Owners Manual

Side airbags
Description of side airbags
The airbag system can provide supplemental protecti on
to properly rest rained occupants.
Fi g. 238 Si de a ir b ag
lo ca tio n in th e driv er's
seat
The side airbags are located in the sides of the front seat backrests
=> fig. 238 and the rear backrest facing the doors . They are identified
by the word "AIRBAG" .
The sid e ai rbag sy stem b asica lly consis ts of :
• t he electronic control module and external side impact sen sors
• the two side airbags located in the sides of the front backrests
• two rear side airbags
• the a irbag warning light in the instrument cluster.
The airbag system is monitored electronically to make certain that it is functioning properly at all times. Each time you turn on the igni ­
tion, the airbag system indicator light wi ll come on for a few
seconds (self diagnostics).
The side airbag system supplements the safety belts and can help to reduce the risk of injury to the driver's, front and rear passenger's
upper torso on the side of the vehicle that is struck in a side colli ­
sion. The airbag deploys only in side impacts and on ly when the
vehicle acceleration registered by the control unit is high enough . If
Safety first
Airb ag sy ste m
this rate is below the reference value programmed into the control
unit, the side airbags w ill not be triggered, even though the car may
be badly damaged as a result of the col lision. It is not possible to
define an airbag triggering range that wi ll cover every possible
ang le of impact, since the circumstances will vary considerably
between one collision and another. Important factors include, for
examp le, the nature (hard or soft) of the impacting object, the angle
of impact, vehicle speed, etc.=>
page 240, "Important safety instruc ­
tions on the side airbag system".
Aside from their norma l safety function, safety belts work to he lp
keep the driver or front passenger in position in the even t of a side
collision so that the side airbags can provide protection .
The airbag system is
not a substitute for your safety belt. Rathe r, it
is part of the overall occupant restraint system in your vehicle.
Always remember that the side airbag system can only he lp to
pro tect you if you are wearing your safety belt and wear ing it prop­
erly. This is another reason why you should always wear your safety
belts, not just because the law requires you to do so==>
page 211,
"General notes" .
I t is important to remember that while the supplementa l side airbag
system is designed to reduce the likelihood of serious injuries, other
injuries, for example, swelling, bruising, and minor abrasions can
a lso be associated with deployed s ide airbags . Remember too, side
airbags will deploy only once and only in certain kinds of accidents
- your safety belts are always there to offer pro tec tion .
Vehicle damage, repair costs or even the lack of vehicle damage are not necessarily an indication of over -sensitive or failed airbag acti ­
vation . In some collisions, both front and side airbags may inflate.
Remember too, that airbags will deploy on ly once and only in
certain kinds of collisions -your safety belts are always there to
offer protection in those acc idents in which airbags are not
supposed to deploy or when they have already dep loyed.
The sid e airbag system w ill not deploy :
• when the igni tion is turned of f
•
Vehicle care I I irechnical data

___ A_ ir_b _a_ g;:::;_ s--:.. y_s _t _e _m _________________________________________________ _
• in side collisions when the acceleration measured by the sensor
is too low
• in front -end collisions
• in rear -end collisions
• in rollovers.
In some types of accidents the front airbags, side curtain airbags
and side airbags may be triggered together.
& WARNING
• Safety belts and the airbag system will only provide protection
when occupants are in the proper seating position
~ page 240.
• If the airbag indicator light comes on when the vehicle is being
used , have the system inspected immediately by your authorized
Audi dealer . The airbag may not work properly when the vehicle
acceleration in a side collision is high enough to activate the
airbag .•

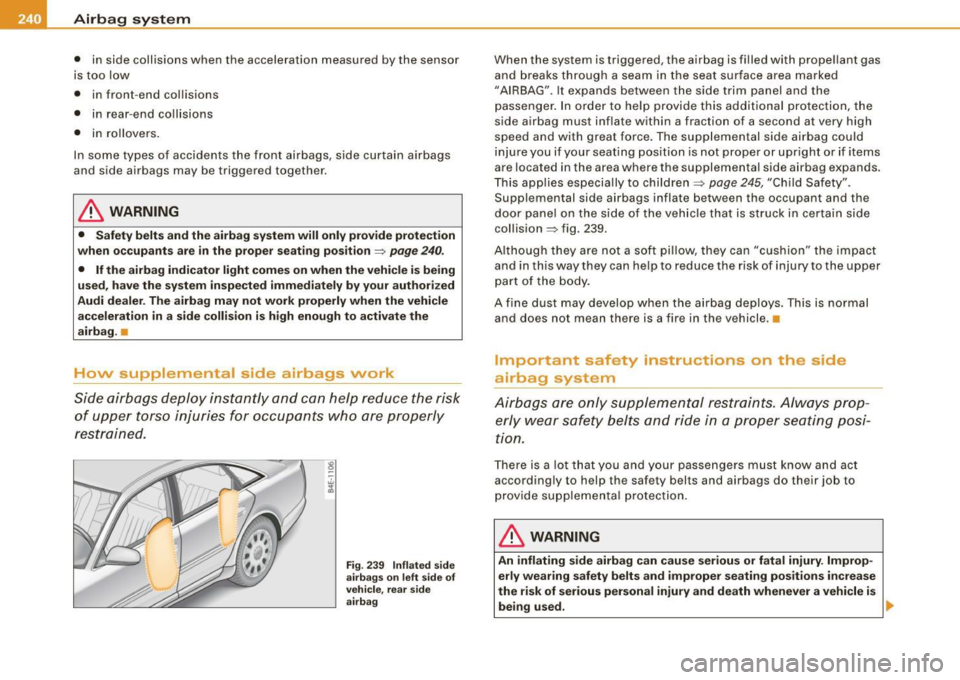

How supplemental side airbags work
Side airbags deploy instantly and can help reduce the risk
of upper torso injuries for occupants who are properly
restrained.
Fig. 239 Inflated side
airbags on left side of
vehicle, rear s ide
airbag
When the system is triggered, the airbag is filled with propellant gas
and breaks through a seam in the seat surface area marked
"AIRBAG" . It expands between the side trim panel and the
passenger. In order to he lp provide this additional protection, the
side airbag must inflate within a fraction of a second at very high
speed and with great force . The supplemental side airbag could
injure you if your seating position is not proper or upright or if items
are located in the area where the supplemental side airbag expands.
This applies especially to children~
page 245, "Child Safety".
Supplem ental side airbags inflate between the occupant and the
door panel on the side of the vehic le that is struck in certain side
collision~ fig. 239.
Although they are not a soft pillow, they can "cushion" the impact and in this way they can he lp to reduce the risk of injury to the upper
part of the body.
A fine dust may develop when the airbag deploys. This is normal
and does not mean there is a fire in the vehicle. •
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints. Always prop­
erly wear safety belts and ride in a proper seating posi­
tion .
There is a lot that you and your passengers must know and act
accordingly to help the safety belts and airbags do their job to
provide supplementa l protection.
& WARNING
An inflating side airbag can cause serious or fatal injury. Improp ­
erly wearing safety belts and improper seating positions increase
the risk of serious personal injury and death whenever a vehicle is
being used . _.,

_______________________________________________ .=_A ::_ i :.:.r ~b ~a:=.; 9!:!...: S~ y[: s~ t~ e:::_ m ~ ----
& WARNING (continued)
• In order to reduce the risk of injury when the supplemental side
airbag inflates:
-Always sit in an upright position and never lean against the
area where the supplemental side airbag is located .
- Never let a child or anyone else rest their head against the
side trim panel in the area where the supplemental side airbag
inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front seat put their hand or any other parts of their body out of the window.
• Always make sure that the side airbag can inflate without inter ­
ference.
-Never install seat covers or replacement upholstery over the
front seat backs that have not been specifically approved by
Audi.
- Never use additional seat cushions that cover the areas
where the side airbags deploy .
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer .
• Objects between you and the airbag can increase the risk of
injury in an accident by interfering with the way the airbag unfolds
or by being pushed into you as the airbag inflates .
- Never place or attach accessories or other objects (such as
cup holders, telephone brackets, or even large, bulky objects)
on the doors, over or near the area marked "AIRBAG" on the
seat backrests .
- Such objects and accessories can become dangerous projec­
tiles and cause injury when the supplemental side airbag deploys.
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued)
-Never carry any objects or pets in the deployment space
between them and the airbags or allow children or other
passengers to travel in this position .
• Always use the built -in coat hooks only for lightweight
clothing. Never leave any heavy or sharp-edged objects in the
pockets that may interfere with side airbag deployment and can
cause personal injury in an accident .
• Always prevent the side airbags from being damaged by heavy
objects knocking against or hitting the sides of the seatbacks.
• The airbag system can only be triggered once. If the airbag has
been triggered, the system must be replaced by an authorized
Audi dealership.
• Damage (cracks, deep scratches etc.I to the original seat covers
or to the seam in the area of the side airbag module must always
be repaired immediately by an authorized Audi dealer.
• If children are seated improperly, their risk of injury increases
in the case of an accident=>
page 245, "Child Safety".
• Never attempt to modify any components of the airbag system
in any way.
• In a side collision, side airbags will not function properly if
sensors cannot correctly measure increasing air pressure inside
the doors when air escapes through larger, unclosed openings in
the door panel.
-Never drive with interior door trim panels removed.
- Never drive when parts have been removed from the inside
door panel and the openings they leave have not been properly
closed.
- Never drive when loudspeakers in the doors have been
removed unless the speaker holes have been properly closed .
- Always make certain that openings are covered or filled if
additional speakers or other equipment is installed in the
inside door panels.
Vehicle care Do-it-yourself service Technical data

___ A_ ir_b _a_ g;:::;_ s--=- y_s _t _e _m _________________________________________________ _
& WARNING (c ont in ued)
- Alwa ys ha ve work on th e doo rs done by an auth ori ze d Aud i
d ea le r or q ualified works hop . •

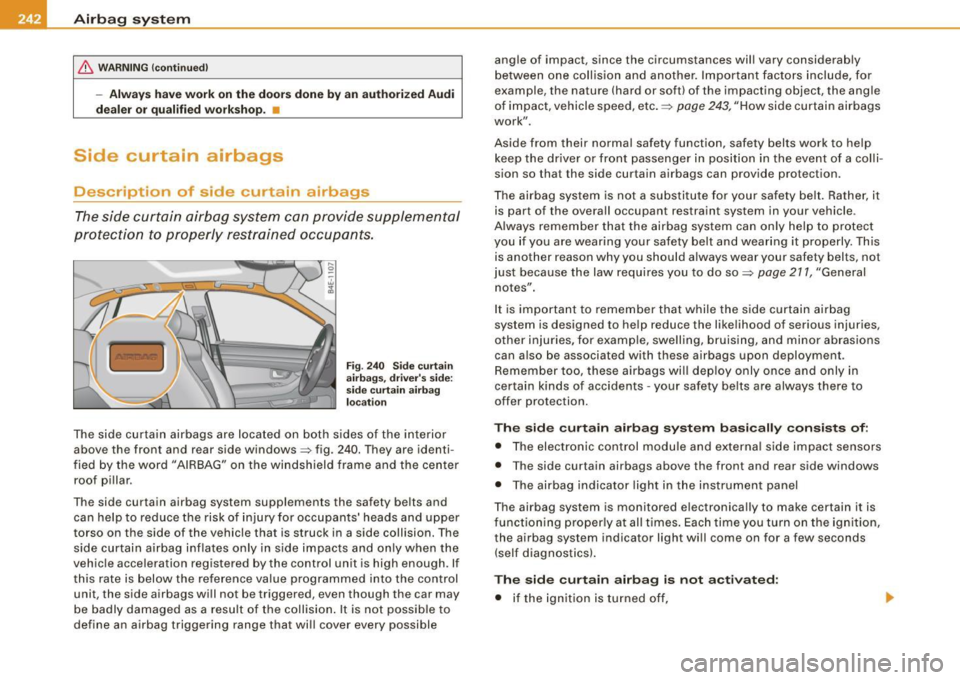

Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide supplemental
protection to pr operly restrained occupants .
Fig. 240 Side cu rtai n
ai rb ags, drive r's side:
s ide c urt a in airb ag
l oca tion
The side curtain airbags are located on both sides of the interior
above the front and rear side windows~ fig. 240. They are identi ­
fied by the word "AIRBAG" on the windshield frame and the center
roof pillar.
The side curtain airbag system supplements the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck in a side collision. The
side curtain airbag inflates only in side impacts and on ly when the
vehic le acceleration registered by the control unit is high enough . If
t his rate is below the re ference value programmed into the control
unit, the side airbags will not be triggered, even though the car may
be badly damaged as a result of the collision . It is not possib le to
define an airbag triggering range that will cover every possible angle of
impact, since the circumstances will vary considerably
be tween one collision and another. Important factors include, for
example, the nature (hard or soft) of the impacting object, the ang le
of impact, vehicle speed, etc.~
page 243, "How side curtain airbags
work" .
Aside from their normal safety function, safety belts work to help
keep the dr iver or front passenger in position in the event of a colli ­
sion so that the side curtain airbags can prov ide protection .
The airbag system is not a substitute for your safety belt. Rathe r, it
is part of the overall occupant restraint system in your vehicle .
A lways remember that the airbag system can on ly help to protect
you if you are wearing your safety belt and wearing it properly. This
is another reason why you should always wear your safety belts, not
just because the law requires you to do so~
page 211, "General
notes".
It is important to remember that while the side curtain airbag
system is designed to he lp reduce the like lihood of serious injuries,
other injuries, for example, swelling, bruising, and minor abrasions
can a lso be associated with these airbags upon deployment.
Remember too, these airbags wi ll dep loy only once and only in
certain kinds of accidents -your safety belts are always there to
offer protection.
Th e s ide cu rtai n air ba g sys te m b asi ca lly co nsis ts of:
• The electronic control modu le and external side impact sensors
• T he side curtain airbags above the front and rear side windows
• The airbag indicator light in the instrument panel
The airbag system is monitored electronically to make certain it is
funct ion ing proper ly at all times . Each time you turn on the ignition,
the airbag system indicator light will come on for a few seconds (self diagnostics).
The s ide c urtain a irbag is no t activa te d:
• if the ignition is tu rned off,

• in side collisions when the acceleration measured by the sensor
is too low,
• in front -end collisions,
• in rear-end collisions,
• in rollovers.
& WARNING
• Safety belts and the airbag system will only provide protection
when occupants are in the proper seating position
=> page 86,
"General recommendations" .
• If the airbag indicator light comes on when the vehicle is being
used, have the system inspected immediately by your authorized
Audi dealer . The side curtain airbag may not work properly even
when the vehicle acceleration in a side collision is high enough to
activate the airbag.
c:J
How s ide curtain airbags work
Side curtain airbags can work together with side airbags
to help reduce the risk of head and upper torso injuries for
occupants who are properly restrained.
Safety first
Fig. 241 Illustration o f
prin ciple: Inflated side
c urtain airbags on the
left side
Airbag system
The side curtain airbags inflate between the occupant and the
windows on the side of the vehicle that is struck in a side collision
=> fig. 241 .
When the system is triggered, the side curtain airbag is filled with
propellant gas and breaks through a seam above the front and rear
side windows identified by the AIRBAG label. In order to help
provide this additional protection, the side curtain airbag must
inf late within the blink of an eye at very high speed and with great
f orce . The side curtain airbag could injure you if your seating posi­
tion is not proper or upright or if items are located in the area where
the supplementa l side curtain airbag inflates . This applies espe ­
cially to children=>
page 245.
Although they are not a soft pil low, side curtain airbags can
"cushion" the impact and in this way they can help to reduce the risk
of injury to the head and the upper part of the body.
A fine dust may develop when the airbag deploys. This is quite
normal and does not mean there is a fire in the vehic le .•
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints. Always prop­
erly wear safety belts and ride in a proper seating posi­
tion.
There is a lot that you and your passengers must know and do to
help the safety belts and airbags do the ir job to provide supple­
mental protection.
& WARNING
Improperly wearing safety belts and improper seating positions
increase the risk of serious personal injury and death whenever a
vehicle is being used. •
Vehicle care I I irechnical data

___ A_ ir_ b_ a-g _ s_y _s_ t_ e_ m _________________________________________________ _
& WARNING (continued)
• Never let occupants place any parts of their bodies in the area
from which the side curtain airbags inflate .
• Always make sure that the side curtain airbags can inflate
without interference . Unsuitable accessories fitted inside the
expansion range of a side curtain airbag can dangerously interfere
with its function. A deploying head airbag develops enough force
to catapult any p iece of add-on component out of its path of infla­
tion and into the passenger compartment. An occupant hit by such a projectile can suffer serious injury or death
=> page 385 ,
"Technical Modifications" .
• Do not swivel the sun visors to the side if you have any objects
clipped onto them (for example pens). If the airbag should deploy ,
you could be injured by these objects .
• Use the built -in coat hooks only for lightweight clothing. Never
leave any heavy or sharp-edged objects in the pockets that may
interfere with airbag deployment and can cause personal injury in
an accident .
• Never use hangers to hang clothing from the hooks .
• Only use factory -installed sun shades or, in the case of shades
installed after the vehicle leaves the factory , only Audi roll -up
sunscreens may be used
=> page 384, "Additional accessories and
parts replacement" .
• Always sit in proper seating position and wear safety belts
while traveling so that the side curtain airbags can help provide
protection .
• The airbag system can only be triggered once . If the airbag has
been triggered, the system must be replaced by an authorized
Audi dealer or qualified workshop.
• Always have work involving the side curtain airbag system,
removal and installation of the airbag components , or other
repairs performed by a qualified dealership. Otherwise the airbag
system may not work correctly.
& WARNING (continued)
• Never attempt to modify any components of the airbag system
in any way. •

_______________________________________________ C_h _ i_ld _ S_ a_ f_ e_ t..,:c y __ lftlll
Child Safety
Important things to know
Introduction
The rear seat is generally the safes t place in a collision.
The p hysica l pr inciples of what happens when you r veh ic le is in a
crash apply also to children=>
page 213, "What happens to occu ­
pa nts not wearing safety bel ts?" . But un like adults and teenagers,
their musc les and bones are not fully developed. In many respects
children a re a t greater ris k of serious injury in cras hes than a dults .
B ecause chi ldren's bodies are no t fully deve loped, they require
restraint systems especial ly designed for their size, weight, and
body structu re. Ma ny countries and al l sta tes of the U nited States
and provinces of Canada have laws requiring the use of approved
chil d restraint sys te m s for infa nts and smal l children .
I n a frontal crash at a speed of 20 -35 mph (30 -56 km/h) the forces
acting on a 13-pou nd (6 kg) infant wi ll be mo re than 20 times the
weight of the child. This means the weight of the child would
suddenly be more than 260 pounds ( 120 kg). Under these condi ­
t ions, only an appropriate child restraint proper ly used can reduce
the risk of serious injury. Child restraints, like adult safety belts,
must be used properly t o be effective. Used impro perly, they can
increase the risk of serious injury in an accident.
Co nsul t the c hild safety seat man ufacture r's ins truc tions to be su re
the seat is right for your child's size=>
page 248, "Important safety
instructions for using child safety seats" . Please be sure to read and
heed a ll of the important information and WARNI NGS about child
safety, Advanced Airbags, and the insta llation of child restraints in
this chapter.
T here is a lot you need to know about the Advanced Airbags in your
veh ic le and how they work whe n inf an ts and ch ild ren in c hild
restraints are on the front passenger seat. Because of the large
Controls and equip­ ment Safety first Vehicle operation amoun
t of important informat ion, we cannot repeat it all here. We
urge you to read the detai led information in this owner's manua l
about a irbags and the Advanced Airbag Sys tem in your ve hic le and
the very important information about transporting children on the
fr ont passenger sea t. Please b e sure to hee d th e WAR NINGS -th ey
are extreme ly important for your safety and the safety of your
p asse ngers, es pecia lly inf ant s and s mall ch ildren .
& WARNING
• Accident statistics have shown that children are generally safer
in the rear seat area than in the front seating position . Always
restrain any child age 12 and under in the rear.
• All vehicle o ccupants and especially children must be
restrained properly whenever riding in a vehicle . An unrestrained
or improperly restrained child could be injured by striking the inte­
rior or by being ejected from the vehicle during a sudden
maneuver o r impact . An unrestrained or improperly restrained
c hild is also at greater risk of injury or death through conta ct with
an inflating a irbag .
• A suitable child restraint properly installed and used at one of
the rear seating positions provides the highest degree of protec­
tion for infants and small children in most ac cident situations .
& WARNING
Children on the front seat of any car even with Advanced Airb ag s
c an be seriously injured or even killed when an airbag inflates . A
child in a rearward -fa cing child safety seat installed on the front
pas senger seat will be seriously injured and can be killed if the
front airbag inflates.
• The inflating airbag will hit the ch ild safety seat or infant
carrier with great force and will sma sh the child safety seat and
child against the backrest , center arm rest , or door. •
Vehicle care Do-it-yourself service Technical data

-Child Safety -------=---------------------------------------

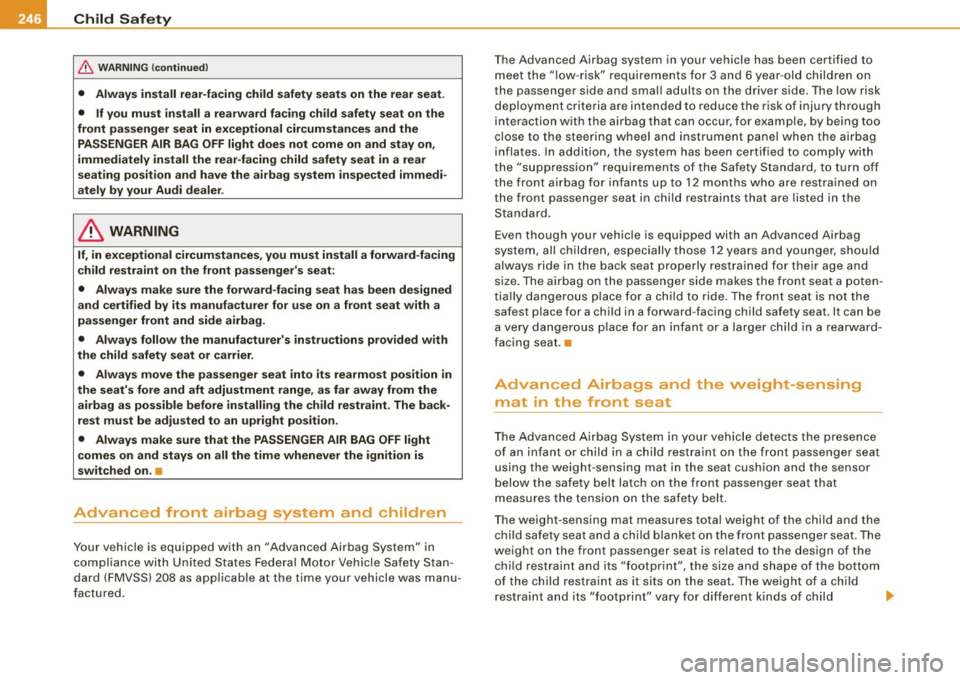

& WAR NIN G (co ntinued )
• Alw ays in sta ll re ar-facin g child safety s eats on the r ear seat .
• If you m us t in sta ll a rear ward f acing child saf ety s eat on th e
fr ont pa ssenger seat in exceptional circum stan ces and the
PA SSEN GER AIR BAG OFF light do es not come on and sta y on ,
immediately in sta ll the re ar-facing child safety s eat in a rear
s eating po sit ion and ha ve th e airb ag s ystem insp ected immedi ­
atel y by your Audi dea ler .
& WARNING
If, in exceptional circum stance s, you mu st in sta ll a forward -f a cing
c hild re str ain t on th e fr ont p assenger's s eat:
• Always mak e sure the forward -fac ing seat ha s been de signed
a nd ce rt ified by it s m anufa cturer for u se on a fr ont se at w ith a
pa ssenger front and side airbag.
• Always follow the m anufacturer's instru ctions provided w ith
the child safety seat or carr ier.
• Alwa ys mo ve the pa ssenger seat into it s rea rmost positi on in
the seat' s fore and aft adju stment range , as far aw ay from the
ai rbag as possib le bef ore installing the ch ild r estr aint . The ba ck­
re st mu st b e adjusted to an upright po sition.
• Alway s m ake sure that the PASSENGER AIR BAG OFF l ight
c om es on and sta y s on all the time whenever the ignition is
s w it c hed on . •
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced Airbag System" in
complia nce with United States Federa l Motor Vehicle Safety Stan ­
dard (FMVSS) 208 as applicable at the time your vehicle was manu ­
factu red. T
he Advanced Airbag system in your vehicle has been certified to
meet the " low -risk" requirements for 3 and 6 year -old chi ldren on
the passenger side and smal l adults on the driver side . The low risk
deployment criteria are intended to reduce the risk of injury through
interaction with the airbag that can occur, for example, by being too
close to the steering wheel and instrument panel when the airbag
inflates. In addition, the system has been certified to comply with
the "suppression" requirements of the Safety Standard, to turn off
the front airbag for infants up to 12 months who are restrained on
the front passenger seat in child restraints that are listed in the
S tandard.
Even though your vehicle is equipped with an Advanced Airbag
system, all ch ildren, especially those 12 years and younger, should
always ride in the back seat properly restrained for their age and
size . The airbag on the passenger side makes the front seat a poten­
tially dangerous p lace for a child to ride. The front seat is not the
safest p lace for a child in a forward -facing child safety seat. It can be
a very dangerous p lace for an infant or a larger ch ild in a rearward­
facing seat. •
Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle detects the presence
of an infant or child in a chi ld restraint on the front passenger seat
using the weight -sensing mat in the seat cushion and the sensor
below the safety belt latch on the front passenger seat that
measures the tension on the safety belt.
The weight -sensing mat measures total weight of the chi ld and the
child safety seat and a child blanket on the front passenger seat . The
weight on the front passenger seat is related to the design of the
child restraint and its "footprint", the size and shape of the bottom
of the child restraint as it sits on the seat . The weight of a child
restraint and its "footprint" vary for different kinds of child ..,.

-----------------------------------------~C::_! h~ i~ ld ~ S~a !_!f ~e _!;tY L _ffllll
restraints and for the different models of the same kind of child
restraint offered by child restraint manufacturers.
The weight ranges for the individual types, makes and models of
child restraints that the NHTSA has specified in the Safety Standard
together with the weight ranges of typ ical infants and typical 1 year­
old child have been stored in the control unit of the Advanced
Airbag System. When a child restraint is being used on the front
passenger seat with a typical 1 year -old child, the Advanced Airbag
System compares the weight measured by the weight sensing mat
with the information stored in the electronic control unit.
The electronic control unit also registers the tension on the front
passenger safety belt. The tension on the safety belt for the front
passenger seat will be different for an adult who is properly using
the safety belt as compared to the tension on the belt when it is
used to attach a child restraint to the seat. The sensor below the
latch for the safety belt for the front seat passenger measures the
tension on the belt . The input from this sensor is then used with the
weight to "decide" , whether there is a child restraint with a typical 1
year-old child on the front passenger seat and whether or not the airbag must be turned off.•
Child restraints and Advanced Airbags
Regardless of the child restraint that you use, make sure that it has
been certified to meet United States Federal Motor Vehicle Safety
Standards and has been certified by its manufacturer for use with
an airbag. Always be sure that the chi ld restraint is properly
installed at one of the rear seating positions. If in exceptiona l
circumstances you must use it on the front passenger seat, carefully
read all of the information on child safety and Advanced Airbags
and heed a ll of the applicable WARNINGS. Make certain that the
child restraint is correctly recognized by the weight -sensing mat
inside the front passenger seat, that the front passenger airbag is
turned off and that the airbag status is always correctly signaled by
th e
PASSENGER AIR BAG OFF light .
Controls and equip­
ment Safety first Vehicle operation
Many
types and models of child restraints have been available over
the years, new mode ls are introduced regularly incorporating new
and improved designs and older mode ls are taken out of produc­
tion. Child restraints are not standardized . Child restraints of the
same type typically have different weights and sizes and different
'footprints,' the size and shape of the bottom of the chi ld restraint
that sits on the seat, when they are installed on a vehicle sea t. These
differences make it virtual ly impossible to certify comp liance with
the requirements for advanced airbags with each and every child
restraint that has ever been sold in the past or will be sold over the
course of the usefu l life of your vehic le.
For this reason, the United States National Highway Traffic Safety
Administration has pub lished a list of specific type, makes and
models of child restraints that must be used to certify compliance
of the Advanced Airbag System in your vehicle with the suppression
requirements of Federal Motor Vehicle Safety Standard 208. These
child restraints are:
A. Car beds, manufactured on or after September 1,
2004:
• Cosco Dream Ride 02-719
B. Rear facing child restraint systems, manufactured
on or after September 1, 2004:
(When the restraint system comes equipped with a removable base,
compliance has to be certified with or without the base) .
• Britax Handle with Care 191
• Century Assura 4553
• Century Smart Fit 4543
• Cosco Arriva 02727
• Evenflo Discovery Adjust Right 212
• Evenflo First Choice 204
• Graco lnfant8457
Vehicle care Do-it-yourself service Technical data

___ C_h_ i_ ld _ S_ a_ f_ e_ t_y ____________________________________________ _

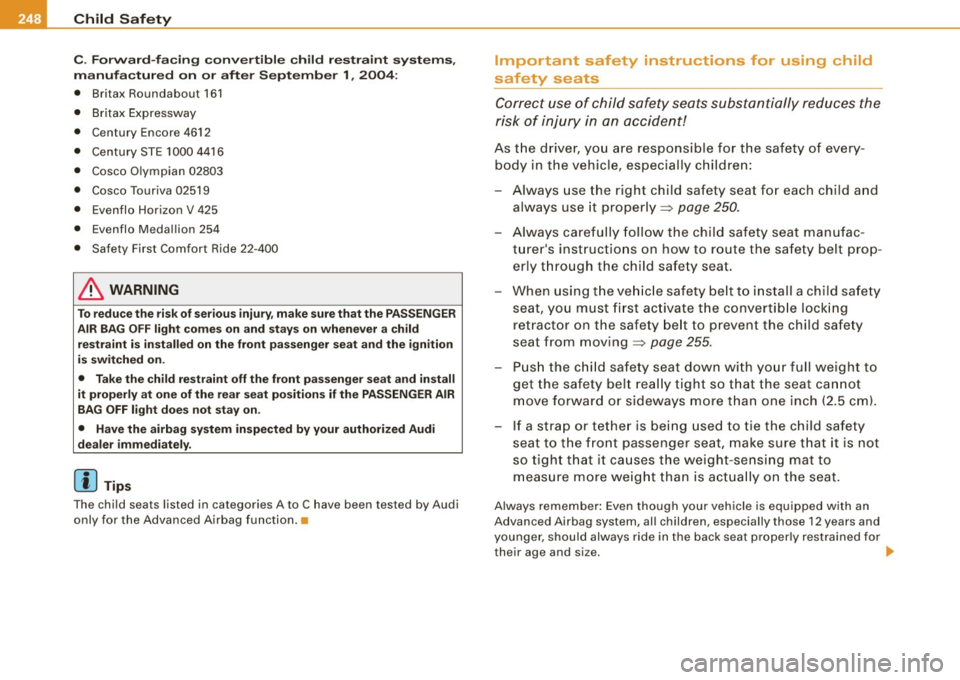

C. Forward-facing convertible child restraint systems,
manufactured on or after September 1, 2004:
• Britax Roundabout 161
• Britax Expressway
• Century Encore 4612
• Century STE 1000 4416
• Cosco Olympian 02803
• Cosco Touriva 02519
• Evenflo Horizon V 425
• Evenflo Medallion 254
• Safety First Comfort Ride 22-400
& WARNING
To reduce the risk of serious injury, make sure that the PASSENGER
AIR BAG OFF light comes on and stays on whenever a child
restraint is installed on the front passenger seat and the ignition
is switched on.
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
• Have the airbag system inspected by your authorized Audi
dealer immediately.
[ i] Tips
The child seats listed in categories A to C have been tested by Audi
only for the Advanced Airbag function. •
Important safety instructions for using child
safety seats
Correct use of child safety seats substantially reduces the
risk of injury in an accident!
As the driver, you are responsible for the safety of every ­
body in the vehicle, especially children:
- Always use the right child safety seat for each child and
always use it properly ::::>
page 250.
-Always carefully follow the child safety seat manufac­
turer's instructions on how to route the safety belt prop­
erly through the child safety seat.
- When using the vehicle safety belt to install a child safety
seat, you must first activate the convertible locking
retractor on the safety belt to prevent the child safety
seat from moving ::::>
page 255.
-Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot
move forward or sideways more than one inch (2.5 cm).
- If a strap or tether is being used to tie the child safety
seat to the front passenger seat, make sure that it is not
so tight that it causes the weight-sensing mat to
measure more weight than is actually on the seat.
Always remember: Even though your vehicle is equipped with an
Advanced Airbag system, all children, especially those 12 years and
younger, should always ride in the back seat properly restrained for
their age and size. _,,
