.,..__H_ o_m_ e_ L_ i _n_ k_ ® _______________________________________________ _
Applies to veh icles : w ith Homelin k® un iversa l remote control
Programming the Homel ink ® transmitter
The transmitter is programmed in two phases . For rolling
code transmitters, a third phase is also necessary .
i--------------~
I----~---------.---- "' :;
N
"' M ~ w
~
Fig. 195 Overhead
conso le: Homelink ®
keypad
F ig . 196 F ront
bumpe r, driver side:
location of transmitter
u n it
Phas e 1: programming the o verhead k eyp ad
1. Make sure your vehicle is within operating range of the
remote controlled garage door opener.
2 . Set the parking brake=>
& in "General information " on
page 181.
3. Turn the ignition on. Do not start the engine! 4
. Press and hold the two outside Homelink ® buttons
G) and
@ for approximately 20 seconds until indicator light@
=> fig.
195 begins to flash . Then release both buttons . Do
not hold the buttons for longer than 30 seconds .
- This procedure only needs to be performed
once. It erases
the factory-set default codes and does not have to be repeated to program additional remote controls .
5. Press and hold the Homelink ® button
G) , @ or@ until
the indicator light@ starts flashing
slowly . Release the
button .
-The system will remain in programming mode for 5
minutes. Co to the front of the vehicle and proceed with
phase
2 .
Phase 2:
programming the bumper mounted tr ansmit
ter
6 . Hold the original r emote control at a distance between 0-
6 in. (0 -15 cm) from the bumper below the appropriate
headlight for your vehicle=> fig .
196 (use the shortest
distance possible) .
7 . Aim the remote control just below the
driver side head ­
light .
8. Press and hold the activation button on the remote control.
- May be different in Canada . If so, press and re-press
(cycle) the activation button on your remote control every
two seconds. .-,,

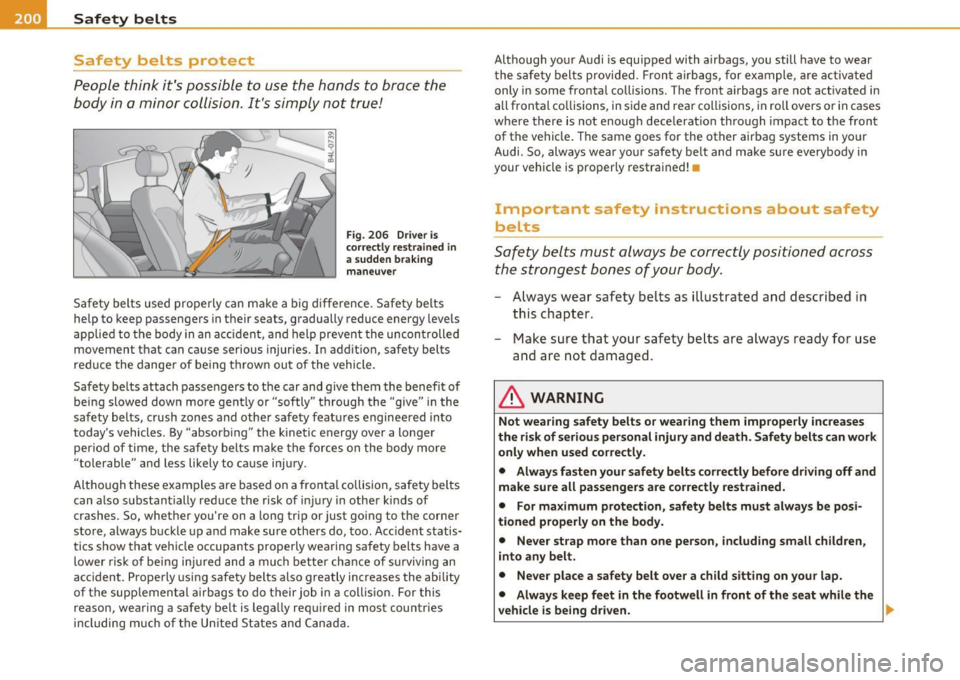

__ _:::S:.::a :..:f...:e :.:t::1y ~ b:..:e:.: l:.: t :.:s :._ ____________________________________________ _
Safety belts protect
People think it's possible to use the hands to brace the
body in a minor collision . It's simply n ot true!
F ig. 2 06 Dri ver is
correct ly re str ain ed in
a s udden b rakin g
m ane uver
Safe ty belts used properly can make a big d ifference. Safe ty belts
help to keep passengers in their seats, gradually reduce energy levels
applied to the body in an accident, an d help prevent the uncon trolled
movement that can cause serious injuries. In add it ion, safety belts
red uce the danger of be ing t hrown ou t of the vehicle .
Safety be lts attach passengers to the car and give them the benefit of
being slowed down more gently or "softly" through the "give" in the
safety belts, crush zones and othe r saf ety features engine ered into
today's vehicles. By "absorb ing" the kinetic energy over a longer
per iod of time , the safety belts m ake the forces on the body more
"tolerable" and less likely to cause injury.
Altho ugh these examples are based on a fronta l collision, safety belts
can also s ubstant ially red uce the risk of injury in other ki nds of
crashes. So, whether you're on a long trip or just going to the corner
sto re, always buckle up and make sure others do, too. Acc ident statis­
tics show that vehicle occupants properly wear ing safety belts have a
lower ris k of bei ng inj ured and a mu ch better cha nce of s urviv ing an
acc ident . Properly using safety belts also greatly increases the ability
of the supp lemen tal air bags to do the ir job in a coll is ion. For this
reason, wearing a safety bel t is lega lly requ ired in most coun tries
including muc h of the Un ited States and Canada. Altho
ugh your Audi is equ ipped with a irbags, you still have to wear
t he safe ty belts provided. Fron t air bags, for ex ample, are a ctiv ate d
only in some frontal collisions . T he front a irbags are not act ivated in
all frontal co llisions, in s ide and rear coll isio ns, in roll overs or in cases
where there is not enough decelerat ion thro ugh impact to the front
of the vehicle . The same goes for the other airbag systems in yo ur
Audi. So, always wea r your safety be lt and make su re everybody in
your vehicle is properly restrained!
Important safety Instructions about safety
belts
Safety b elts must always be correctly positioned across
the strongest bones of your body .
-Always wear safety belts as illustrated and described in
this chapter .
- Make sure that your safety belts are always ready for use and are not damaged .
& WARNING
Not wearing safety belts o r wearing them improperly inc reases
the risk of s eriou s personal injury and death . Safety belts can work
only when u sed correctl y.
• Alway s fasten your safety belts correctly bef ore driving off and
make sure all passengers are corre ctly restrained.
• For ma ximum protection , safety belts must alw ays be posi ­
ti oned properly on the body.
• Never strap more than one person , including small children ,
into any belt .
• Never place a safety belt o ver a ch ild sitting on you r lap .
• Alway s keep feet in the footwell in front of the seat while the
vehicle is being driven.
~

Intelligent technology
'-----------------------------------------------
Intelligent technology
Notice about data recorded by
vehicle control modules
Your vehicle is not equipped with an Event Data Recorder (EDR),
installed by some manufacturers for the express purpose of
capturing data for retrieva l after an accident or crash event. ED R's are
sometimes called "crash recorders".
Some state laws restrict the retrieval or downloading of data stored
by ED R's that were installed in a vehicle for the express purpose of
retrieving data after an accident or crash event without the owner's
consent.
Although your vehicle is not equipped with an EDR, it is equipped w ith
a number of electronic control modu les for various vehicle systems
such as, for example, engine function, emission control, as well as for
the airbags and safety belts.
T hese electronic contro l modules also record vehicle-re lated data
during normal vehicle operation for diagnostic and repair purposes .
Th e recording capacity of the e lectronic control modu les is limited to
data (no sound is recorded) and only a sma ll amount of data is actu­
ally recorded over a very limited period of time and stored when a
system fault or other condition is sensed by a control unit. Some of
the data then stored may relate to vehicle speed, direction, braking
as well as restraint system use and performance in the event of a
crash or other condition. Stored data can only be read and down­
loaded with special equipment.
Electronic Stabilization Program
(ESP)
General information
The ESP improves the vehicle stability.
N
-. ...
~
I ' I A I ~ )
--
Fig. 234 Center
console with ESP
switch
ESP is des igned to help you maintain vehicle control in s ituations
where the car approaches the limits of "grip", especia lly when accel­
erat ing and cornering. ESP reduces the risk of skidd ing and imp roves
stability under all road conditions.
Th e system operates across the entire speed range in combination
with the ABS system. If the Anti-Lock Brake System (ABS) malfunc­
tions, the ESP will also shut down.
How the system works
The Anti-Lock Brake System (ABS), Electronic Differential Lock (EDL)
and the Anti-Slip Regulation System (ASR) are integrated in the elec­
tronic stabilizatio n pro gram. In addition to the data provided by
these funct ions, the ESP control unit requires additional measure­
ment data provided by high performance sensors. The rotational
speed of the vehicle about its vertical axis, the lateral acceleration ...

_________________________________________ I_ n_ t_ e_ ll_,igent technology ,__E~-
acting on the vehicle, the brake pressure and the steering angle are
all meas ured.
The direction in which the driver wishes to travel is determined with
the aid of the steering angle and vehicle speed and is continually
compared with the actual behavior of the vehicle. If the two do not
match, for example , when the vehicle starts hydroplaning on a wet
road, ESP will automatically brake the appropriate wheel to correct
the problem.
The vehicle is then stabi lized by the forces acting on the whee l during
braking. If the vehicle is
oversteering (rear tends to skid out of the
turn), the brakes are main ly applied on the wheel that is on the
outs ide of the curve. In the case of a vehicle that is
understeering
(tendency to slide out of the curve), the brakes are applied at the rear
wheel that is on the inside of the curve. An acoustic signal ind icates
when ESP brake application cuts in =>
&.
Th e system operates across the entire speed range in combination
with the ABS system=>
page 256. If the Anti-Lock Brake System
(ABS) malfunctions, the ESP will be out of action as we ll.
Activation
When you turn on the engine, ESP will automatically be activated and
will perform a self-test .
The system can be activated or deactivated by pressing the button
=>
page 252, fig. 234 . The warning light comes on when the system
is switched off=>
page 16.
Normally, the ESP should always be on, however, it may be advanta­
geous to turn off the sys tem in certain special cases when some
degree of whee l spin is desired such as:
• when driving with snow chains
• when driving in deep snow or on a loose surface (to allow the
wheels to dig in to reach firm ground)
• when trying to "roc k" the vehicle free when it has become stuck.
The system should be reactivated once you are no longer in such situ­
ations.
Controls and equip­ ment Safety first Vehicle operation
Both the ABS and
EDS systems are still functioning even if the ESP is
switched off.
& WARNING
The Electroni c Stabilization Program is nevertheless subject to the
laws of physics. It is particularly important to pay attention to
this fact on wet and slippery roads. It is therefore important that
you always adapt your driving to the condition of the road and
traffic conditions. Do not allow the increased safety provided by
the Electronic Stabilization Program system to lull you into
accepting additional safety risks. •
Electronic differential lock (EDL)
The electronic differential lock monitors the rotational
speed of the drive wheels.
General notes
The electronic differential lock (EDL) helps the car to start moving,
acce lerate and climb a gradient on surfaces providing poor or almost
no grip . Without EDL, this would be difficult, if not impossible .
How the system works
The EDL operates automatically. It monitors the rotational speed of
the drive wheels on an axle with the he lp of the ABS sensors
=>
page 256 . If a noticeable difference in rotational speed between
the drive wheels on one axle is detected (e .g . on slippery ground
on
one side),
the spinning wheel is braked, thereby transferring power to
the other drive whee l or wheels (all -wheel drive). This is done up to a
speed of about 60 mph (100 km/h) . Noises from the brake system
signal that wheel spin is being contro lled.
Driving off
When driving off, always be sure to keep road conditions in mind as
you accelerate. If one drive wheel spins because it is on a surface with
less grip , gradually increase the pressure on the accelerator peda l
Iii>
Vehicle care Do-it-yourself service Technical data

Intelligent technology
'-----------------------------------------------
until the car starts to move . The whee l less ab le to transfer power
spins .
Overheating of brakes
To prevent the disc b rake of the bra ked wheel from ove rhea ting if
subjected to excessive loads, the EDL cuts out temporarily . The
veh icle remains operat ional and beh aves in the same way as a vehicle
without EDL .
As soon as the brake has coo led down, EDL switches on again auto­
matically .
& WARNING
• When a ccelerating on slippery surfaces, such as on ice or snow,
alw ay s be careful when depre ssing the a ccelerator pedal. E ven
with the EDL working, the drive wheel s can spin and reduce your
ability to control your car . Risk of crash !
• The in creased safety afforded by EDL does not mean that you
can take safety ri sks. Always adapt your driving st yle to the road
condition s and traffic situation .
fi Tips
If a fault occurs i n the ABS, the EDL is also no t fu nct ion ing . This is
indicated by the ABS warning light~
page 19. •
Anti-Slip Regulation System (ASR)
The Anti-Slip Regulati on System prevents the driven
wheels from spinning when the car is a ccel erating.
General notes
T he Anti-S lip Regulation System (ASR) is integrated in the electronic
stabilization program (ESP). When the veh icle starts up and acceler­
ates , the wheels are p reve nted from sp inning by adjust ing the eng ine
powe r to match t he amo unt of grip avai lab le from the road s urface.
How the system works
ASR perfo rms au toma tica lly, i .e . witho ut the drive r's in tervent ion .
With the aid of the A BS sensors~
page 256, ASR monitors the speed
of the driven wheels . If the wheels start to spin, the engine powe r is
reduced automat ically u nti l the t ires find enough gr ip to lock onto
the road s urface. The system is active across the entire speed range.
Th e ASR wor ks in con ju nction with the A BS .
If a m alfu nction sho uld
occur in the ABS, the ASR w ill also be out of action.
& WARNING
The increased safety afforded by ASR does not mean that you can
take safety ri sks . Always adapt your driving style to the road
condit ions and traffic situation.
[ i ] Tips
To ensure that the ASR works prope rly, all four wheels must be fitted
w ith ident ic a l ti res Any differences in rollin g radius of the tires can
cause the system to reduce engine power when t his is not desired .
See also ~
page 318, "N ew t ires and replacing tires and whee ls" .•
Braking
General Information
What affects b raking efficiency ?
Operating cond itions and driving habits
Th e bra kes on t oday's automo biles are still subjec t to we ar,
depending large ly on operating conditions a nd driving habits~ &.
O n ve hicles tha t are eithe r driven mostly in stop- and-go city t raff ic or
are drive n hard, the brake pads should be checked by your author ized
Audi de aler more o ften than specified in the
Warranty & Mainte­
nance booklet .
Failure to have your brake pads i nspected can result
in re duced brake pe rformance. .,

lillill.a._...:I:..: n~ t .::.e::::..::.: ll~igent technology ,_ _______________________________________ _
Brake booster
The brake booster adds extra braking power.
The brake booster works with vacuum pressure which is created on ly
w hen the eng ine is ru nn ing =>& .
& WARNING
• Nev er let the vehicle roll to a stop w ith the engine shut off.
• If the brake booster is n ot working , for e xample when towing
your vehicle, or because the brake booster has som ehow been
damaged , the brake pedal must be pressed conside rably harder to
make up for the lack of booster assistan ce. •
Functioning of Anti-Lock Brake System
(ABS)
A BS prevents the wheels fr om locking up under braking.
The ABS co ntributes effectively to ve hicle contro l s i nee it preve nts the
w heels from
locking when the brakes a re applied. T his means that the
vehicle remains steerable and is less likely to skid .
With ABS you do not need to pump the brake. Just hold the brake
pedal down.
However, do not expect the A BS to shorten brak ing distance under all
circumstances. When driving on grave l o r on newly fa llen snow on top
of icy su rfaces, b raking distance may be even longer, therefore, under
these circumstances, it is especially important that you drive slowly
and w ith great care.
How the ABS system works
An automatic check is made w hen a speed of abo ut 4 mph (6 km/h) is
reached . When this happens, a pumping noise can be heard . If a
n ind iv idua l wheel begins to rotate too slow ly in relat ion to ve hicle
speed and tends to lo ck, the ABS automat ically redu ces bra ke pres ­
su re to p revent t hat wheel from lock ing.
Th is automatic adjustment process wi ll cause a
slight vib ration of
t he bra ke pedal and so me noises to al er t you tha t vehicle s peed mus t
be adapted to existing road and traff ic conditions.
& WARNING
Although the ABS is very effective, always remember that braking
capability is limited by tir e traction. Always adjust your driving
speed acco rding to the road and traffic conditions. Do not let the
extra safety afforded by the ABS tempt you into taking extra ri sks .
The ABS cannot ove rcome the laws of physics.
[I) Tips
• If ABS is not funct ioning properly, a warning light will come on.
See=>
page 19.
• If a fa ult occ urs in the ABS, the ED L is also not functioning . This is
ind icated by the A BS warn ing ligh t.•
Brake assistant
T he brake assistant is designed to achi eve the optimum
b ra king effect.
The b rake ass istant helps to i ncrease the effective brak ing power and
thus to achieve a shorter stopping distance. If the driver p resses the
bra ke pedal
very quickly, the brake assistan t automatically boosts t he
brak ing fo rce to the maximum level, up to the po int where the anti­
lo ck bra ke f un ct ion (ABS) intervenes to stop the whee ls from locking.
You shou ld then keep the brake pedal pressed unt il the ve hicle has
bra ked to t he required s peed . T he bra ke ass ist ant sw itches itse lf off
as soon as you re lease the brake pedal. ._

_________________________________________ I_ n_ t_ e_ ll_,igent technology ,__E~-
The brake assistant will not be operative if there is a malfunct io n in
t he ABS.
& WARNING
Plea se remember that the accident ri sk a lwa ys increa se s if you
d riv e too fast , especially in corne rs or on a slippery road , or if you
follow the vehi cle ahead of you too closely . In cre ased ri sk of an
accident cannot be compensated for e ven by the brake ass istant,
so always maintain a safe speed. •
Servotronic® - advanced power
steering system
The power steering systems uses th e power of the
running engine to allow precise steering with little effort.
Th e advanced Servotronic ® power steeri ng system senses the road
speed and electronically ad justs power assistance to provide
c omfortable and safe s teer ing response exa ctly matched to the
vehicle speed.
Powe r steering will not work if the engi ne is of f. As a resu lt, the
steer ing wheel will be hard to turn .
The power stee ring fluid level is checked during the sched uled main­
t enance se rvi ces.
0 Note
If the re is an ele ct roni c mal func tion, servotroni c will still f unction
like a conventional power steer ing system, prov iding a constant
steeri ng support force tha t is no lo nger propo rt iona te to the ve hicle
speed. This is most not iceab le when turn ing the steer ing wheel at low
speeds (for example when parking), -more effort will be required
than usual.
Controls and equip­ ment Safety first Vehicle operation
•
Be aware of the d ifferent than usual steering response and adjust
your stee rin g for ce acco rdi ng ly.
• Have the prob lem checked and set r ight by an A udi dea ler as soon
as possib le.
[ i ] Tips
• Whe n the eng ine is runni ng, neve r hold t he steering w hee l turned
all the way to the right or to t he left for longer than 15 seconds. The
powe r stee ring pump wi ll over heat the hydra ulic fluid if yo u keep
holding the steeri ng w heel tur ned all the way. This is likely to damage
the power steering system .
• If the power stee ring system shou ld fa il entire ly, or if the engine
is not r unning (fo r examp le, while being towed), you w ill still be a ble
to steer the vehicle. However,
considerably more effo rt will be
req uired to do so .
• If the power steering system s hou ld have a lea k, or is not func­
tioning properly, contact your authorized Au di dea ler immediate ly .
• The power steering system requ ires a specially formulated
hydra ulic fl uid. The power stee ring re se rvoir is t he one located mos t
forward o n the left side of the eng ine compa rtment=:>
page 290 . The
correct fluid leve l in the reservoir is important fo r proper f unctioning
of t he power steering. •
Dr"ving with your quattro®
With All Whee l Drive, all four wheels are driven .
General information
With All Wheel Drive, power is d istributed to all four wheels. This
happens au tom atically depending on you r d rivi ng style a nd the roa d
conditions at the time. See also=>
page 253, "Electronic different ial
lock (ED L)".
Vehicle care Do-it-yourself service Technical data

Intelligent technology
'-----------------------------------------------
W inter tires
When d riving in the winter, your vehicle with A ll Whee l Drive has an
advantage, even with reg ula r tir es . In wi nter road cond it ions i t may
be advisab le to mount w inte r tires (or all-season tires) for imp roved
dr iveabili ty and braking: these tires m ust be mounted on
all four
wheels .
See also => page 323, "Winter tires".
Tire chains
Whe re tire chains are mandato ry on certa in roads, this normally also
applies to veh icles with A ll Whee l Drive=>
page 324, "Snow chains ".
Replacing wheels/tires
Veh icles with All Wheel Drive m ust always have t ires of the same size.
Also avoid tires with different trea d de pths . For details see page
=>
page 318, " N ew tires and replac ing tires a nd wheels" .
Off-Road driving?
Your Audi does not have enough ground clearance to be used as a n
off -road vehi cle. It is the re fore best to avoid ro ug h trac ks and uneven
ter rain as muc h as poss ib le. Also re fer to=>
page 263 .
& WARNING
Always adjust your dri ving to road and traffic conditions. Do not
let the extra safety afforded by All Wheel Drive tempt you into
taking ex tra risks.
• Although the All Wheel Drive is very effective, always
remember that braking capacity is l imited by tire traction. You
should therefore not drive at exce ssive speeds on icy or slippery
road surfaces.
• On wet road surfa ce s, be careful not to drive too fast because
the front wheels could begin to slide on top of the water (aqua­
planing ). If this should occur, you will have no warning from a
sudden increase in engine speed as with a front-wheel drive
vehicle. Always drive at speeds which are suited to the road condi­
tions - risk of crash. •
Energy management
Starting ability is optimized
Energy m ana gemen t con tr ols the distributi on of elec­
trical ener gy an d thu s optimiz es the ava ila bility of elec­
t ri cal ene rgy f or starting the en gine.
If a vehicle w ith a convent iona l energy system is not driven for a long
pe riod of time, t he b att ery is di sch arged by idling current con sumers
(e .g. immob ilize r). In certain c ircumstances it can result i n there
be ing insuffi cien t energy avai lab le to s tar t the engine.
I n te lligent e ne rgy management in yo ur vehicle ha ndles the dist ribu­
tion of e lectrical energy . Starting ab ility is ma rkedly improved and
t he life of the battery is extended.
Basically, energy management consists of
battery diagnosis , idling
current management
a nd dynamic energy management .
Battery diagnosis
Batte ry diagnosis co nti nu ously deter mi nes the s tate of the batte ry .
Sensors determine battery vo ltage, battery current and battery
t empe rature. This determines the cur rent sta te of charge and the
power of the battery.
Idling current management
Id ling current management red uces energy consumpt ion while the
veh icle is s tanding. W it h t he ignition swi tched off, it con trol s the
energy supply to the var ious electrica l components. Data from
b attery di ag nos is is conside red .
Depe nding on the batte ry 's state of charge, individ ua l consumers a re
gradually t urne d off to prevent excessive discha rge of the batte ry an d
t hus main tain sta rting capabili ty .
Dynamic energy management
W hile the vehicle is being driven, dynamic energy management
dis trib utes the energy generated acco rding to the nee ds o f the indi -•

_________________________________________ I_ n_ t_ e_ ll_,igent technology ,__E~-
vidual components. It regulates consumption, so that more electrical
ene rgy is not being used than is being generated and ensures an
optimal state of charge for the battery.
[I] Tips
• But even energy management cannot negate the limits of physics.
Consider that the power and life of a battery are limited.
• If starting ability is threatened, you are informed by a warning
~ page 259, "Driver notification in the instrument cluster display" .•
What you should know
The highest priority is given to maintaining starting capa ­
bility.
Th e battery is severely taxed in short-distance driving, in city tra ffic
and during the cold time of year. Abundant electrical energy is
required, bu t on ly a little is generated .
It is also critical if the engine
is not running and electrical components are turned on. In this
instance energy is being consumed but none is being generated.
It is in prec isely these situations that you will notice energy manage­
ment actively regulating the distribution of energy.
Vehicle stands for an extended period
If you do not drive your vehicle over a period of several days or weeks,
electrical components are gradually cut back or switched off. This
reduces energy consumption and maintains starting capability over a
longer period.
Be aware that when you unlock your vehicle, some of the convenience
functions may not operate, such as the Convenience key, the remote
control or the power seat adjustment. The convenience functions will
be available aga in when you turn on the ignition and start the eng ine.
Controls and equip­
ment Safety first Vehicle operation
With the
engine turned off
If you listen to the radio, for example, with the engine turned off or
use other MMI functions, the battery is being discharged .
If starting capab ility is jeopardized due to energy consumption, the
following warning appears in the MMI display:
Please start engine, otherwise system will switch off in 3
minutes.
The warning indicates that the system will be turned off automati­
cally after 3 minutes. If you wish to continue using the functions, you
have to start the engine.
With the engine running
Although electrical energy is generated when the vehicle is being
driven, the battery can become discharged . This happens mostly
when little energy is being generated and a great dea l consumed and
the battery's state of charge is not optimal.
T o bring the energy balance back into equilibrium, consumers which
require especially large amounts of energy are temporarily cut back
or switched off. Heating systems in particular require a great deal of
energy . If you notice, for example, that the heated seats* or the
heated rear window are not heating, they have been temporarily cut
back or switched off . These systems w ill be ava ilable again as soon as
the energy balance has been restored.
You will also notice that engine idle speed has been increased
slightly. This is normal and not a cause for concern . By increasing
engine idle speed the additional energy required is generated and the
battery is charged. •
Driver notification in the instrument
cluster display
If the battery's state of charge is not in the optimal range, this driver
no tifi cation appears in the instrument cluster display:
Low battery charge: battery will be charged while driving ~
Vehicle care Do-it-yourself service Technical data

Driving and environment
----------------------------------------------'
Driving and environment
The first 1,000 miles (1,500 km)
and afterwards
New engine
The engine needs to be run-in during the first 1,000 miles
(1,50 0 km) .
For the first 600 miles (1,000 kilometers):
Do not use fu ll thrott le .
- Do not drive fas ter t han 3/ 4 of the top speed marked on
t h e speedometer.
- Avo id high engine speeds .
From 600 to 1,000 miles (1,000 to 1,500
kilometers):
- Spe eds can
gradually be i ncr eas ed to the maxi mu m
perm iss ible road or engin e spee d.
During and after break-in period
- Do not rev the eng ine up to high speeds when it is co ld.
This app lies whether t he tra nsmission is in N ( Neutra l) or
1 n gear.
After the break-in period - Do not exceed maximum engi ne s pee d und er any circum­
stances .
- Up shift i nto t he next hi ghe r g ear
befor e reach in g the red
area at t he end of the tachometer sc al e=>
pa ge 10 .
Controls and equip­
ment Safety first Vehicle operation
During the first few ho
urs of d riving, the engine's interna l fr iction is
highe r than later when all the moving parts have been broken in . How
well th is br eak -in p rocess is done depends to a cons iderab le extent on
the way the veh icle is driven dur ing the f irst 1,000 miles (1,500 kilo­
meters).
0 Note
E x tremely high e ngine speeds a re au tomat ically re duced. However,
these rpm limits are programmed for an engine well run -in, not a new
engine .
~ For the sake of the environment
Do not drive with u nnecessa rily high engine s peeds -upshift ing early
saves f uel, reduces no ise and protec ts the environme nt.
New tires
If your v eh icl e is run ning on new t ires, driv e p arti cul ar ly
c a refu l fo r the first 35 0 miles (50 0 kilometers) af ter fit ting.
& WARNING
New tires tend to be slippery and must al so be "broken-in ". Be
sure to remember this during the first 350 m iles (500 kilome ­
ter s). Brake gently . Avoid following closely behind other vehicles
or other situations that might require sudden, hard braking. •
Vehicle care Do-it-yourself service Technical data
