engine AUDI S8 2010 Owners Manual

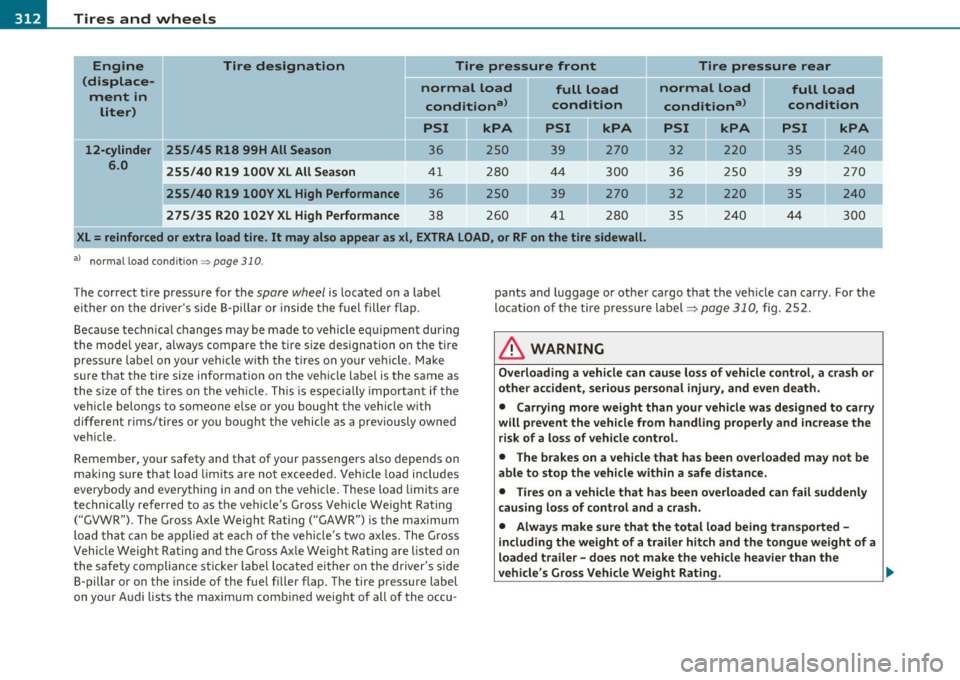

Ill Tires and wheels
-------------------
Engine Tire designation Tire pressure front Tire pressure rear
(displace- normal load
full load normal load
full load
ment in
liter) conditiona
> condition
conditiona> condition
PSI kPA PSI kPA PSI
kPA
PSI kPA
12-cylinder
255/45 R18 99H All Season 36 250 39 270 32 220 35 240
6 .0
255/40 R19 lOOV XL All Season 41 280 44 300 36 250 39 270
255 /40 R19 lOOY XL High Performance 36 250 39 270 32 220 35 240
275/35 R20 102V XL High Performance 3 8 260 41
280 35 240 44 300
XL= reinforced or extra load tire . It may also appear as xl, EXTRA LOAD, or RF on the tire sidewall.
a) norma l load cond iti on => page 310.
The correct tire pressure for the spare wheel is located on a label
ei ther on the driver 's s ide B- pillar o r inside the f uel fille r flap .
Beca use techn ica l changes may be made to vehicle equipment during
the model year, always compare the tire size designation o n the tire
pressure labe l on yo ur vehi cle w it h the tires on your ve hicle. Make
sure that the tire size information on the ve hicle labe l is the same as
t he s ize of the tires on the vehicle. This is especia lly im portant if the
vehicle belongs to someone e lse or you boug ht the vehicle w it h
different r ims/ tires or you bo ugh t the vehicle as a prev iously owne d
veh icle .
Remember, your safety and that of your passengers also depends on
ma king sure that load limits are not exceeded. Vehicle load includes
everybody and everything in an d on the vehicle . These load limits are
t echnically refer red to as the veh icle's G ross Ve hicle Weig ht Ra ting
("GVWR"). The Gross Axle Weight Rating ("GAWR") is the max imum
load that ca n be applied at ea ch of the vehi cle's two axles. The G ross
Vehicle Weight Rating and the Gross Ax le Weight Rating are listed on
t he safety compliance sticke r label lo cated ei ther on the d river 's side
B-pil lar or o n the inside of the fuel filler flap. T he tire pressure label
on yo ur A udi lists the maximum comb ined weight o f all of the occu -pa
nts and luggage or other ca rgo that the ve hicle can carry . For the
loc atio n of t he tir e pressure label~
page 310, fig. 252.
& WARNING
Overloading a vehicle can cause loss of vehicle control, a crash or
other accident, serious personal injury, and even death.
• Carry ing more weight than your vehicle was designed to carry
will prevent the vehicle from handling prope rly and increase the
ri sk of a lo ss of vehicle control.
• The brakes on a vehicle that has been overloaded may not be
able to stop the vehicl e within a safe distance.
• Tires on a vehicle that ha s been overloaded can fail suddenly
causing lo ss of control and a crash .
• Always make sure that the total load being transported -
i ncluding the weight of a trailer hitch and the tongue weight of a
loaded trailer -does not make the vehicle heavier than the
vehicle 's Gro ss Vehicle Weight Rating .
~

What do I do now? -_______________ __.EWII
(]] Tips
If you no longer have your or iginal warn ing triangle and need to equip
your vehicle with a new one, contact your authorized Aud i dealer for
a rep lacement. •
Jack, tools and spare wheel
Jack
The jack is stored underneath the floor panel in the
luggage compartment.
Fig. 26 5 Luggag e
c ompart ment vehicl e
jack
Be fore stori ng the jack, ma ke sure it is wound back down as far as it
w ill go .
& WARNING
Improper use of the vehicle jack can cause serious personal inju­
ries.
• Never use the jack suppl ied with your Audi on another vehicle ,
particularly on a heavier one . The jack is only suitable for use on
the vehicle it came with .
Vehicle OP-eration
& WARNI NG (continued )
• Using a bumper jack to raise the veh icle will dam age the
bumper system . The ja ck may slip, causing injury .
• Never support your vehicle on cinder blocks , bricks or other
objects . These may not be able to support the load and could cause
injury when they fail.
• Never sta rt or run the engine while the vehicle is suppo rted by
the jack.
• If you must work under the vehicle , always use safety stands
specifically designed for this purpo se.
• Never use the he xagonal so cket in the handle of the screw­
driver to loosen or tight en the wheel bolts .
• Always make sure the sp are tire and even a flat tire are secured
in pla ce and not loose, otherwis e they could fly forward, causing
personal injury to passengers in the vehicle in an accident or
sudden maneuver .
(]] Tips
Before you c an raise your vehi cle us ing t he jack, you mus t activate the
jack ing mode~
page 179 . •
Vehicle care Do-it-yourself service iTechnical data

What do I do now? -____________________ .:..::......:..:...___Wi'.'11
- Disengage and lower the floor panel before you close the
luggage compartment lid again.
Storing the replaced wheel
-Place the replaced wheel inside the spare wheel well in the
luggage compartment.
Tighten the knurled retaining screw clockwise to secure
the wheel in place.
- Disengage and lower the floor panel before you close the luggage compartment lid again.
& WARNING
Loose items in the passenger compartment can cause serious
personal injury during hard braking or in an accident.
• Never store the spare wheel or jack and tools in the passenger
compartment.
• Always store all jacking equipment, tools, and the spare wheel
in the luggage compartment.
• Tighten the knurled retaining screw for the spare wheel
securely.
[I] Tips
Check the inflation pressure of the spare tire periodically to keep the
tire ready for use .•
Safety first
Changing a wheel
Before changing a wheel
Observe the following precautions for your own and your
passenger's safety when changing a wheel.
- After you experience a tire failure, pull the car well away
from moving traffic and try to reach
level ground before
you stop ~& .
- All passengers should
leave the car and move to a safe
location (for instance, behind the guardrail)~& .
- Engage the
parking brake to prevent your vehicle from
rolling unintentionally~ &.
- Move
selector lever to position P ~ & .
- If you are towing a trailer: unhitch the trailer from your
vehicle.
- Take the
jack and the spare tire out of the luggage
compartment~
page 333 .
& WARNING
You or your passengers could be injured while changing a wheel if
you do not follow these safety precautions:
• If you have a flat tire, move a safe distance off the road. Turn
off the engine, turn the emergency flashers on and use other
warning devices to alert other motorists.
• Make sure that passengers wait in a safe place away from the
vehicle and well away from the road and traffic.
• To help prevent the vehicle from moving suddenly and possibly
slipping off the jack, always fully set the parking brake and block
the wheel diagonally opposite the wheel being changed. When
one front wheel is lifted off the ground, placing the Automatic ..,
Vehicle care Do-it-yourself service Technical data

________________________________________________ F_ u_s _e_ s_ a_ n_ d_ b_u_ lb_ s _ __.lftll
No. Equipment
9
10
11
13
14
15
16
17
Climate control front/rear, dash panel buttons
Suspension level control system
(Adaptive Air Suspension)
Light and rain sensor
Display-/control unit
Roof electronics control unit
CD/DVD drive Energy management
Vacant
Radiator fan electronics
Airbag front passenger recognition (weight sensor)
19 Vacant
20 Heated/ventilated seats
21 Engine control module
22 Vacant
23 Parking brake (switch)
24 Vehicle electrical system
25
26 Automat
ic transm ission
Air conditioning water valves water pump, rear climate control
27 Sunroof
28 Engine control module
29 Fuel injectors
30 Ignition coils
31 Fuel pump, r ight/fuel pump e lectron ics
Amps
5
10
5
5
10
5
5
5
5
5
5
5
10
15
10
20
5
15
30
20/40
-
Vehicle OP-eration
No ... Equipment
32
33
34
35
36
39
40
41
Automatic transmission
Right rear foo twell heater
Heated/ventilated seats, rear
Heated/venti lated seats, front
Cigarette lighter, front
Cigarette lighter, rear/socket, rear
Auxiliary cooler fan Door cont rol un it, front r ight
Brake booster
Door control un it, rear right
42 Vacant
43 Headlight washer system
Air conditioning heater fan
Amps
5
25
20
20
20
20/25
20
7.5
15
7.5
30
30
•
Fuse Location , Luggage Compartment left
0
Fig . 28 0 Fuse pan el
l a yo ut ..
Vehicle care Do-it-yourself service iTechnical data

lffll.,___F_ u_ s_e _ s_ a_n_ d_ b_u _ l_ b_s _______________________________________________ _
No.
1
2
3
4
5
6
7
8
9
10
Equipment
Vacant
Vacant
Vacant
Vacant
Digita l sound system control module
Navigation
TV Tuner
Rear-view camera
Commun ications box
Subwoofer in rear window shelf (BOSE)/
Amplifier (Bang
& Olufsen)
11 Socket
12 Vacant
Amps
30
5
10
5
5
15/30
20
Fuse Location, Luggage Compartment
right
Fig. 281 Fuse panel
layout
•
No. Equipment
1 Vacant
2 Fuel pump, left
3 Vacant
4 Vacant
5
6
7
8
9
Central control module for comfort system
(left light)
Central control module for comfort system (right light)
Central control module for comfort system (door clos ing)
Electronic parking brake control module, left
Electronic parking brake control module, right
10 Vacant
11 Vacant
12 Vacant
Bulbs
Replacing light bulbs
Amps
20
20
-
10
20
30
30
For your safety, we recommend that you hove your autho ­
rized Audi dealer replace burned out bulbs for you.
It is becoming increasingly more and more difficult to replace veh icle
light bu lbs since in many cases, other parts of the car must first be
removed before you are able to get to the bulb. This applies especially
to the light bulbs in the front of your car which you can only reach
through the engine compartment.
•
Sheet metal and bu lb holders can have sharp edges that can cause
serious cuts, and parts must be correctly taken apart and then prop- .,

111.___E_ m_ e_ r-' g=- e_n_ c=-y _ s_it _ u _ a_t_ i_ o _ n_ s ______________________________________________ _

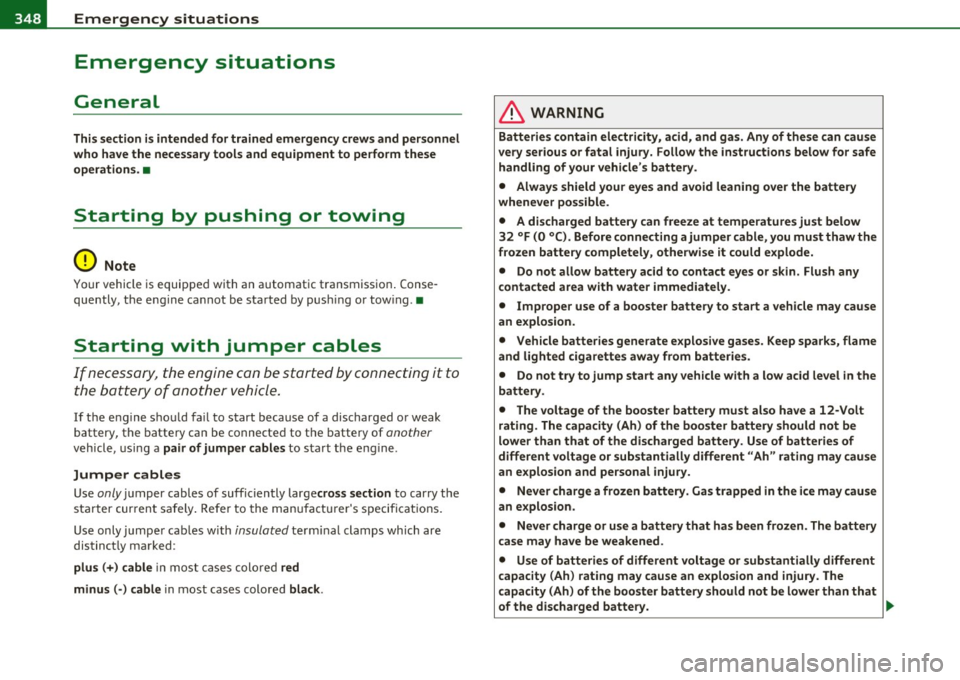

Emergency situations
General
This section is intended for trained emergency crews and personnel
who have the necessary tools and equipment to perform these
operations. •
Starting by pushing or towing
0 Note
Your vehicle is equipped with an automatic t ransmission . Conse­
quently, the e ngine ca nnot be started by push ing or tow ing .•
Starting with jumper cables
I f necess ary, the engine can be started b y connectin g it to
t he bat tery of another vehicle.
If the e ng ine shou ld fa il to start because of a discharged or weak
battery, the batte ry can be connected to t he battery of
another
veh icle, us ing a pair of jumper cables to start the eng ine .
Jumper cables
Use only jumper cables of suffic iently large cross section to carry the
sta rter cur rent s afely . Refer to the m an ufa ct ur er's specificat ions.
Use only j umpe r cab les with
insulated te rmi nal clamps wh ich are
distinct ly marked :
plu s(+) cable i n most cases colored red
minus (-) cable i n most cases colored black .
& WARNING
Batterie s contain el ectricity, acid, and gas . Any of the se can cause
very serious or fatal injury. Follow the inst ructions below for safe
handling of your vehicle 's battery.
• Always shield your eyes and avoid leaning over the battery
whenev er po ssible .
• A discharged battery can freeze at temperatures just below
32 °F (0 °C ). Before connecting a jumper cable, you must thaw the
frozen battery completely, otherwise it could explode.
• Do not allow battery acid to contact eyes or sk in . Flush any
contacted area with water immedi ately .
• Improper use of a booste r battery to start a vehicle may cause
an explosion .
• Vehicle batteries generate e xplosive gases. Keep sparks, flame
and lighted cigarettes away from batterie s.
• Do not try to jump start any vehicle with a low acid level in the
battery.
• The voltage of the booster battery must also have a 12-Volt
rating. The capacity (Ah) of the booster battery should not be
lower than that of the discharged battery . Use of batteries of
different voltage or substantially different "Ah " rating may cau se
an e xplosion and personal injury.
• Never charge a frozen battery . Gas trapped in the ice may cause
an explosion.
• Never charge or use a battery that has been frozen. The battery
c ase may have be weakened .
• Use of batteries of different voltage or substantially different
capacity (Ah) rating may cause an explosion and injury . The
capacity (Ah) of the booster battery should not be lower than that
of the discharged battery. .,_

_____________________________________________ E_ m___;, e_r-=g ~ e_ n_c,_:!y:.__: s_i:..:t ..:..u :..:a;;,. t.:.; i...: o :..: n...:..:. s _ __,J_
& WARN ING (conti nued)
• Before you check anything in the engine compartment , always
read and heed all WARNINGS~
page 281, "Engine compart­
ment ".
0 Note
• App lying a higher vo ltage booster battery will cause expensive
damage to sens itive e lectron ic components, such as contro l units,
relays, radio, etc.
• There must be no electrical contact between the vehicles as other­
wise current could already start to flow as soon as the positive(+)
terminals are connected.
[I] Tips
• The discharged battery must be properly connected to the
vehicle's electrical system . When jump starting or charging the
battery, never connect the negative ground cable to the battery nega­
tive post because the battery manager system must be able to detect
the battery's state of charge . Always connect the negative ground
cable to the negative ground post of the battery manager control
unit. •
Vehicle OP-eration
Use of jumper cables
Make sure to connect the jumper cable clamps in exactly
the order described below!
Fig. 282 Jump
starting with the
battery of another
vehicle: A -discharged
vehicle battery, B -
booster battery
The procedure described below for connecting jumper cables
is intended to provide a jump start for your vehicle.
Vehicle with discharged battery:
- Turn off lights and accessories, move lever of automatic
transmission to
N (Neutral) or P (Park) and set parking
brake.
Connect POSITIVE(+) to POSITIVE(+) (red)
1. Connect one end to the positive terminal~ fig. 282 © of
your battery @.
2 . Connect the other end to the positive terminal @ of the
booster battery®·
Connect NEGATIVE(-) to NEGATIVE(-)
(black)
3. Connect one end to the negative terminal® of the
booster battery@.
Vehicle care Do-it-yourself service iTechnical data

llffl.___E_ m_ e_r-= g=- e_ n_c-= y'-- s_ i_t _u _a_ t_ i_ o _ n_ s ____________________________________________ _
4. C onn ect the ot her end to the negative ground post of the
battery manager control unit located nex t to the battery .
Starting the engine
-Start the engine o f th e vehicle with the booster battery .
Ru n the engine at a mode rate speed.
- Start engine with discharged vehic le battery in the usua l
manner.
- If the e ngine fai ls to star t: do no t keep the s tarter
crank ing for longer than 10 seconds . Wait for about 30
seconds a nd then try aga in.
- With eng ine runni ng, remove jumper cables from bot h
veh icles in t he exact
reverse order.
T he b att ery is ven ted to the outside to p reve nt gases from en ter ing
the vehicle interior. Make sure that the jumper clamps are well connected wi th their
metal parts in full contact with the battery
terminals.
& WARNING
To avoid serious personal injury and damage to the vehicle, heed
all warnings and in stru ction s of the jumper cable manufa cturer . If
in doubt , call for road service.
• Jumper cable s mu st be long enough so that the vehicle s do not
touch.
• Wh en connecting jumper cables, make sure that they cannot
get caught in any moving part s in the engine compa rtment.
• Before you check anything in the engine compartment, always
read and heed all WARNINGS~
page 281, "Engine compart­
ment ".
0 Note
Improper hook-up of jumpe r cables can ruin the generator.
• Always connect POS ITIVE(+) to POS ITIVE(+), and NEGA TIVE(-)
to NEGATIVE (-) ground post of the battery manager co ntrol unit .
• Check t hat all s crew p lugs on t he b attery cells are screwed in
firm ly . If not, tighten plugs pr ior to co nnecting clamp on negative
battery terminal.
• Please note that the procedure for connecting a jumper cable as
descr ibed above appli es specifically to the case o f yo ur vehi cle be in g
jump started. W hen you are giving a jump sta rt to another vehicle, do
not connect the negative (-) cab le to t he negative ( -) termina l on the
discharged battery©~
page 349, fig. 282 . Instead, securely
connect the negative(-) cable to either a solid metal component that
is firmly bolted to t he eng ine b lock o r to the eng ine b lock itself. If the
battery that is being charged does not vent to the outside, escap ing
b attery gas could ignite and exp lode! •
Emergency towing with
commercial tow truck
General hints
Your Audi requires special handling for towing.
Th e fo llow ing in forma tion is to be used by commerci al tow tru ck
operators who know how to operate their equ ipment safely .
• Never to w your Aud i, towing will cause damage to the eng ine
and tran smi ssion .
• Neve r wrap the safety chains or winch cable s around the b rake
lines.
• To prevent unnece ssary damage, your Audi must be transported
with a flat bed truck . _.,

lffll.___E_ m_ e_r-= g:.. e_ n_c-= y'-- s_ i_t _u _a_ t_ i_ o _ n_ s ____________________________________________ _
-Read and heed WARN ING=> &.
Fig . 29 0 Rear lift ing
poi nt
- Activa te the vehicle jacking mode if ap plicab le
=>page 179 .
- Locate lift ing poi nts=> page 353, fig . 289 => fig. 290.
- Adj ust lift ing arms of wor kshop ho ist or floor jack to
match vehicle lifting poi nts .
- Inse rt a rub ber pad between th e floor j ac k/wo rksho p hois t
and t he lifting points .
The ve hicle jacking mode mus t be activa ted so that the automa tic
adjustm ent of the Adapt ive A ir Suspens io n does not make it more
diffic ult to raise the vehicle wit h the (floor jack)=>
page 179.
If you must lift your vehicle with a floor jack to work underneath,
be sure the vehicle is safely supported on stands intended for this
purpo se.
Front lifting point
Th e lifting poi nt is loca ted on the floo r pan reinforcemen t about at
the same leve l as the jack mo unting point =>
page 353, fig. 289. Do
not lift the vehicle at the verti cal sill reinfor cement .
Rear lifting point
The li fting point is located on the ve rt ica l reinfo rceme nt of the lower
sill for the on-board jack=> fig. 290.
Lifting with vehicle jack
Refer to=> page 338.
& WARNING
• To reduce the risk of serious injury and vehicle dam age.
- Alway s lift the vehicle only at the special workshop hoist and
floor jack l ift points illustrated =>
page 353, fig. 289 and
=> fig. 290 .
- Failure to lift the vehicle at these points could cause the
vehicle to tilt or fall from a lift if there is a change in vehicle
weight distribution and balance. This might happen, for e xample , when heavy component s such as the engine block or
transmission are removed .
• When removing heavy components like these, an chor vehicle
to hoist or add correspond ing weights to maintain the center of
gravity . Otherwi se , the vehicle might tilt or slip off the hoist,
caus ing serious personal injury.
0 Note
• Be aware of th e following points before lifting th e vehicle :
-The vehicle should neve r be lifted or jacked up from under ­
neath the eng ine oil pan , the transmission housing , the front or
rear axle or the body side members . This could lead to serious
damage.
- To avoid damage to the underbody or chassis frame, a rubbe r
pad must be inserted between the floor ja ck and the lift points.
- Before driving over a workshop hoist , check that the vehicle
weight does not exceed the permissible lifting capacity of the hoist . _..

___ G_ e_n_ e_r _a _ l_ in_ f_o _r_ m_ a_ t_io _ n _______________________________________________ _
General information
Explanation of technical data
Some of the technical data listed in this manual requires
further explanation.
The technical data for your vehicle is listed in the charts starting on
~ page 360. This section provides general information, notes and
restrictions which apply to this data.•
Vehicle identification
The key data is given on the vehicle identification number
(VIN) plate and the vehicle data sticker.
Fig . 291 Vehicle Iden­
tification Number
(V IN) plate: location
on driver's side dash
panel Fig.
292 The vehicle
identification label -
inside the luggage
compartment
The Vehicle Identification Number (VlN)
is locat ed on the driver's sid e so that it is visible from the outside
through the windshield ~ fig . 291. You can also display the Vehicle
Identification Number of your vehicle in the MMI. Select: Function
button [CAR]>
Systems> Vehicle ID number (VIN) .
The vehicle identification label
is located in the luggage compartment in the spare wheel well.
The label ~ fig . 292 shows the following vehicle data:
© Production control No.
@ Vehicle identification No.
® Type code number
@ Type designation/engine output in Kilowatts
© Engine and transmission code letter
© Paint No./lnterior
(j) Optional equipment No.'s
Vehicle data 2 to 7 are also found in your Warranty
& Maintenance
booklet . .,,
