Service interval display
The service interval display detects when your ve­
hicle
is due for service.
Fig . 191 Inst rument cluster display: serv ice in terva l d is ­
p lay (exa mpl
e)
The service interval display works in two stages:
-Inspection or oil change reminder: after a cer­
tain distance driven, a message appears in the
Infotainment system display each time the ig­
nition is switched on
or off¢ fig. 191. The re­
main ing
distance or time is displayed briefly.
-Inspection or oil change due: if your vehicle
has reached an inspection or oil change interval
or both intervals at the same time, the mes­
sage Inspection due! or Oil chang e due! or Oil
cha nge and inspection due! appears briefly af­
ter switching the ignition on/off.
Check ing s ervice intervals
You can check the remaining distance or time un­
til the next oil change or next inspection. Select
in the Infotainment system: the IMENUI button>
Vehicle > left control button > Ser vice & checks >
Service intervals .
@ Note
-Follow ing the service intervals is critical to
maintaining the service life and value of
your vehicle, especially the engine. Even if
the mileage on the vehicle is low, do not ex­
ceed
the time for the next service.
- Calcu l
ating the time to the next o il change
is interrupted when the vehi cle battery is
disco n
nected. If the vehicle is not driven for
a long period
of time, check the mainte­
nance schedule so that you can follow th e
maintenance intervals .
Checking and Filling
249

Downloaded from www.Manualslib.com manuals search engine Wheels
Wheels
Wheels and Tires
General information
.,.Check your tires regularly for
damage (punctures, cuts, cracks
and bulges). Remove foreign ob­
jects from the tire tread.
.,. If driving over curbs or similar
obstacles, drive slowly and ap­
proach the curb at an angle.
.,.Have faulty tires or rims re­
placed
immediately.
.,.Protect your tires from oil,
grease and fuel.
.,.Mark tires before removing
them so that the same running
direction can
be maintained if
they are reinstalled .
... Lay tires flat when storing and
store them in a cool, dry location
with
as little exposure to light as
possible.
CD Note
-Please note that summer and
winter tires are designed for
the conditions that are typical
in those seasons. Audi recom­
mends using winter tires dur­
ing the winter months. Low
temperatures significantly de­
crease the elasticity of summ­
er tires, which affects traction
250
and braking ability. If summer
tires are used in very cold
temperatures, cracks can form
on the tread bars, resulting in
permanent tire damage that
can cause loud driving noise
and unbalanced tires.
-Burnished, polished or
chromed rims must not be
used in winter driving condi­
tions. The surface of the rims
does not have sufficient corro­
sion
protection for this and
could be permanently dam­
aged by road salt or similar
substances.
Tire designations
Fig. 192 Tire designation on the side­
wall

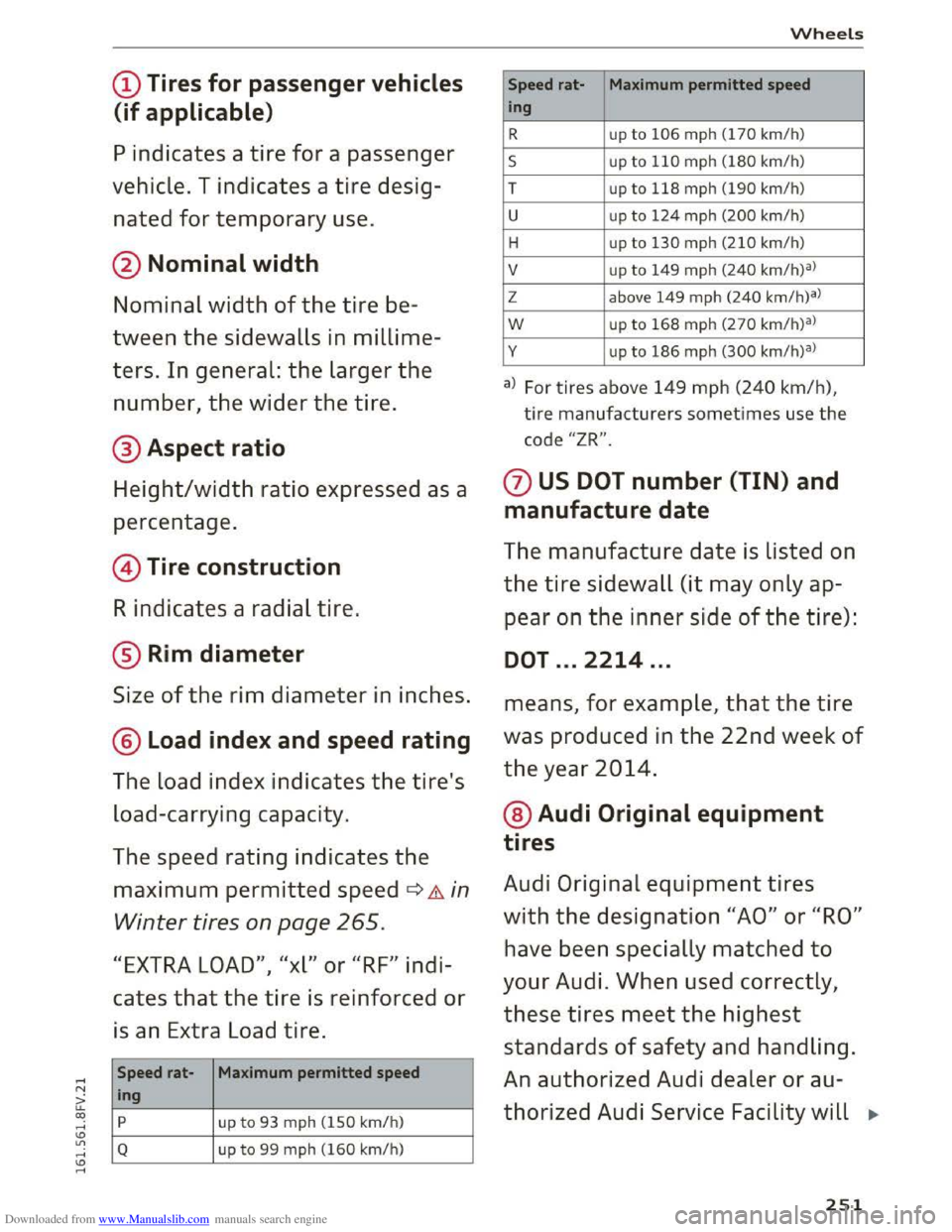

Downloaded from www.Manualslib.com manuals search engine CD Tires for passenger vehicles
(if applicable)
P indicates a tire for a passe ng er
vehi cl
e. T indi cates a tire de sig­
nated
for tempora ry use.
@Nominal width
Nominal width of the tire be­
tween
the s idewalls in millime­
ters. In general: the Larger the
number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage.
@ Tire construction
R indicates a radial tire.
®Rim diameter
Size of the rim diameter in inches.
@ Load index and speed rating
The Load index indi cate s the tire' s
Load-carr yin g c apacity.
The speed rating indicates
the
maximum permitted speed¢.& in
W i
nter tires on page 265.
"EXTRA LOAD", "xl" or "RF" indi­
cate s
that the tire is reinforced or
is an Extra Load tire.
Speed rat-Maximum permitted speed
ing
p up to 93 mph (1 50 km/h)
Q up to 99 mph (160 km/h)
Wheels
Speed rat-Maximum permitted speed
ing
R up to 106 mph (170 km/h)
s u p to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up t o 124 mph (200 km/h)
H up to 130 mph (210 km/h)
v u p to 14 9 mph (240 km/h)al
z above 149 mph (240 km/h)al
w up to 168 mph (270 km/h)al
y up to 186 mph (300 km/h)al
a) For tires above 149 mph (2 40 km/h),
tire manufacture rs sometimes use t he
cod e "ZR".
(j) US DOT number (TIN) and
manufacture date
The manufac ture date is Listed on
the tire sidewall (it may only ap­
pear on
the inner side of the tire):
DOT ... 2214 ...
means, for example , that the tire
was produced in the 22nd week of
the year 2014.
@Audi Original equipment
tires
Audi Original equipment tires
with the designation "AO" or "RO"
have been specially matched to
your Audi. When used correct ly,
these tires meet the highest
standards of safety and handling.
An authorized Audi dealer or au­
thorized Audi Service Facility will ...
251

Downloaded from www.Manualslib.com manuals search engine Wheels
be happy to provide more infor­
mation.
® Mud and snow capability
"M/S" or "M+S" indicates the tire
has characteristics that make it
suitable for driving on mud and
snow. & indicates a winter t ire.
@ Compos ition of the tire cord
and materials
The number of plies indicates the
number of rubberized fabric lay­
ers in the tire. In general: the
more layers, the more weight a
tire can carry. Tire manufacturers
must also specify the materials
used in the tire. These include
steel, nylon, polyester and other
materials.
@Maximum permitted load
This number indicates the maxi­
mum load in kilograms and
pounds that the tire can carry.
@Uniform tire quality grade
standards for treadwear,
traction and temperature
resistance
Tread wear, t raction and temper­
ature ranges c:> page 266.
252
@ Running direction
~ Maximum permitted
inflation pressure
This number indicates the maxi­
mum pressure to which a tire can
be inflated under normal operat­
ing conditions.
Glossary of tire and loading
terminology
Accessory weight
means the combined weight (in
excess of those standard items
wh ich may be replaced) of auto­
matic transmission, power steer­
ing , power brakes, power win­
dows, power seats, radio , and
heater, to the extent that these
items are available as factory-in­
stalled equipment (whether in­
stalled or no t).
Aspect ratio
means the ratio of the height to
the width of the tire in percent.
Numbers of SS o r lower indicate a
low
sidewall for improved steer­
ing response and better overa ll
handling on dry pavement.
Bead
means the part of the tire that is
made of steel wires, wrapped or ...

Downloaded from www.Manualslib.com manuals search engine reinforced by ply cords and that is
shaped to fit the rim.
Bead separation
means a breakdown of the bond
between components in the bead.
Cord
means the strands forming the
plies in the tire.
Cold tire inflation pressure
means the tire pressure recom­
mended by the vehicle manufac­
turer for a tire of a designated
size that has not been driven for
more than a couple of miles (kilo­
meters) at low speeds in the
three hour period before the tire
pressure is measured or adjusted.
Curb weight
means the weight of a motor ve­
hic le
with standard equipment in­
c l
uding the maximum capacity of
fuel, oil, and coolant, air condi­
tioning and additional weight of
optional equipment.
Extra load ti re
means a tire designed to operate
at higher loads and at higher in­
flation pressures than the corre­
sponding standard tire. Extra load
tires may be identified as "XL ",
Wheels
"xl" "EXTRA LOAD" or "RF" on , ,
the sidewall.
Gross Axle Weight Rating
("GAWR")
means the load-carrying capacity
of a single axle system, measured
at the tire-ground interfaces.
Gross Vehicle Weight Rating
(" GVWR ")
means the maximum total loaded
weight of the vehic le.
Groove
means the space between two ad­
jacent tread ribs.
Load rating (code)
means the maxim um load that a
tire is rated to carry for a g iven in­
flation pressure. You may not find
this information on all tires be­
ca use it is not required by law.
Maximum load rating
means the load rating for a tire at
the maximum permissible infla­
tion pressure for that tire.
Ma ximum loaded vehicle
weight
means the sum of:
(a)
Curb weight
(b) Accessory weight
253

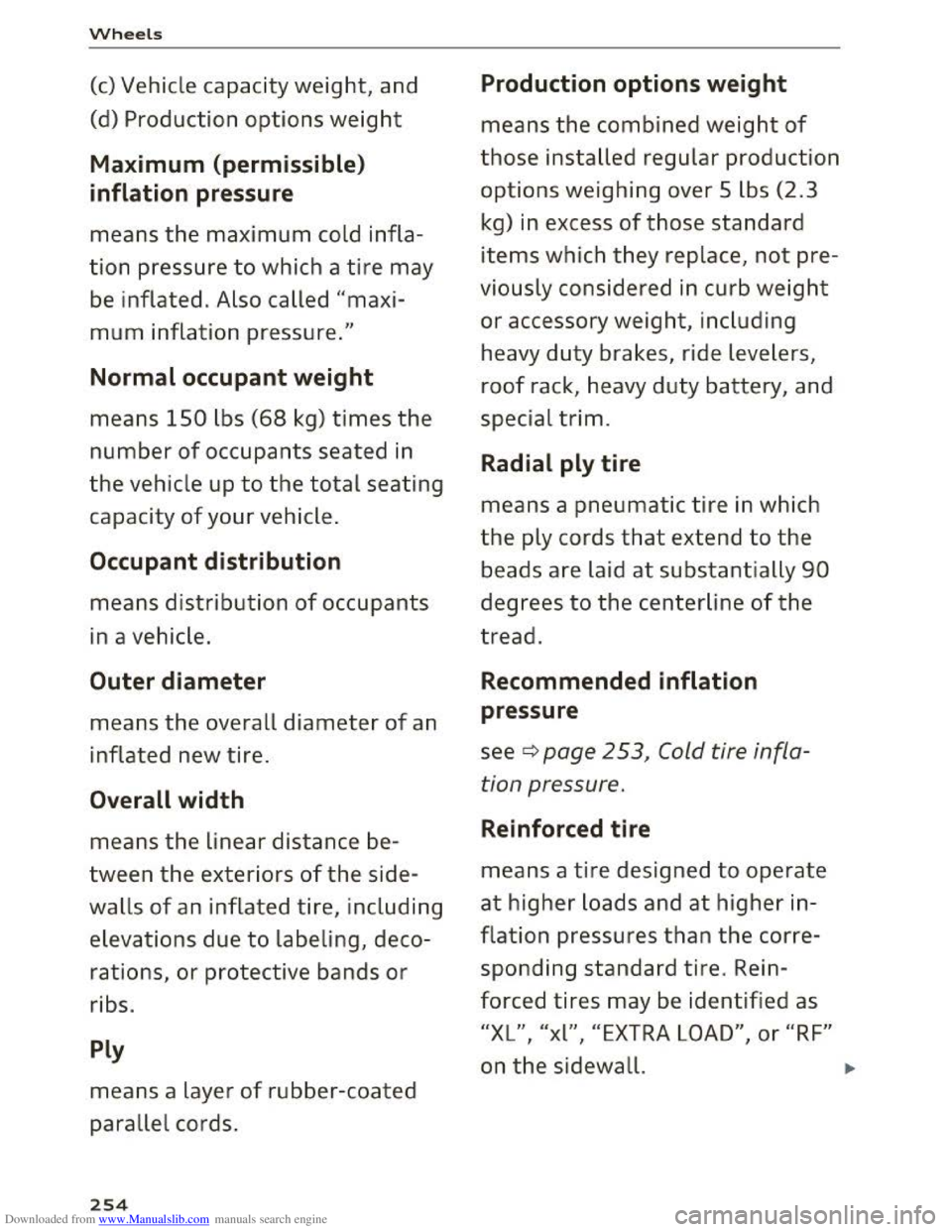

Downloaded from www.Manualslib.com manuals search engine Wheels
(c) Vehicle capacity weight, and
(d) Production options weig ht
Maximum (permissible)
inflation pressure
means the maximum cold infla­
tion pressure to which a tire may
be inflated. Also called "maxi­
mum inflation pressure."
Normal occupant weight
means 150 lbs (68 kg) times the
number of occupants seated in
the vehicle up to the total seating
capacity of your vehicle .
Occupant distribution
means distribution of occupants
in a vehicle.
Outer diameter
means the overall diameter of an
inflated new tire.
Overall width
means the linear distance be­
tween the exteriors of the side­
walls of an inflated tire, including
elevations due to labeling, deco­
rations, or protective bands or
ribs .
Ply
means a layer of rubber-coated
parallel cords.
254
Production options weight
means the combined weight of
those installed regular production
options weighing over 5 lbs (2.3
kg) in excess of those standard
items which they replace, not pre­
viously
considered in curb weight
or accessory weight, including
heavy
duty brakes, ride levelers,
roof rack, heavy duty battery, and
special trim.
Radial ply tire
means a pneumatic tire in which
the ply cords that extend to the
beads are la id at substantially 90
degrees to the centerline of the
tread.
Recommended inflation
pressure
see¢ page 253, Cold tire infla­
tion pressure.
Reinforced tire
means a tire designed to operate
at higher loads and at higher in­
flation pressures than the corre­
sponding standard tire. Rein ­
forced tires may be identified as
"XL", "xl", "EXTRA LOAD", or "RF"
on the sidewall. ...

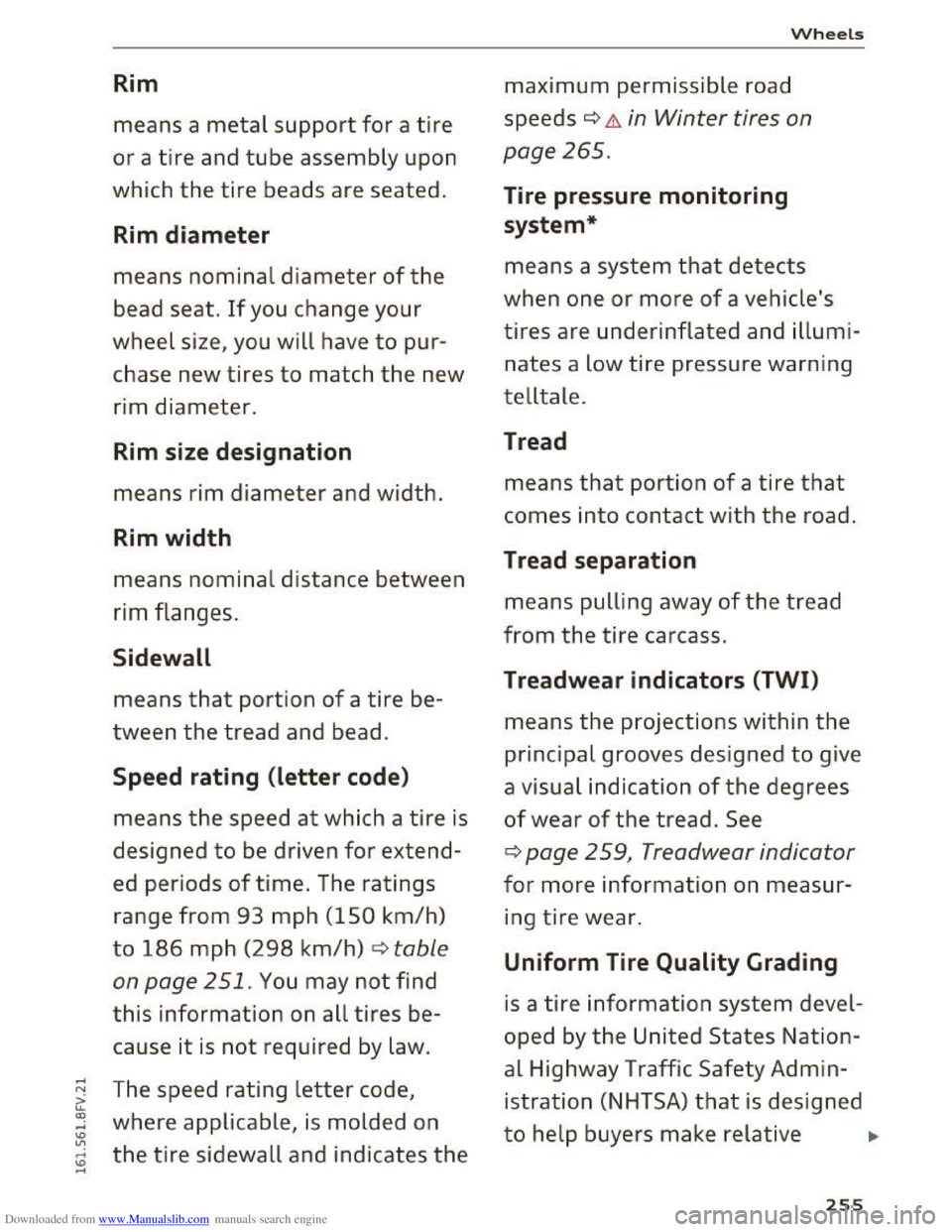

Downloaded from www.Manualslib.com manuals search engine Rim
means a metal support for a tire
or a tire and tube assembly upon
which the tire beads are seated.
Rim diameter
means nominal diameter of the
bead seat. If you change your
wheel size, you will have to pur­
chase new tires to match the new
rim diameter.
Rim size designation
means rim diameter and width.
Rim width
means nominal distance between
rim flanges.
Sidewall
means that portion of a tire be­
tween the tread and bead.
Speed rating (letter code)
means the speed at which a tire is
designed to be driven for extend­
ed periods of time. The ratings
range from 93 mph (150 km/h)
to 186 mph (298 km/h) 9 table
on page 251. You may not find
this information on all tires be­
cause it is not required by law.
The
speed rating letter code,
where applicable, i s molded on
the tire sidewall and indicates the
Wheels
maximum permissible road
speeds 9 .&. in Winter tires on
page 265.
T ire pressure monitoring
system *
means a system that detects
when one or more of a vehicle's
tires are underinflated and illumi­
nates a low tire pressure warning
telltale.
Tread
means that portion of a tire that
comes into contact with the road.
Tr ead separation
means pulling away of the tread
from the tire carcass.
Treadwear indicators (TWI)
means the projections within the
principal grooves designed to give
a visual indication
of the degrees
of wear of the tread. See
9 page 259, Treadwear indicator
for more information on measur­
ing tire wear.
Uniform Tire Quality Grading
is a tire information system devel­
oped by the United States Nation ­
a l Highway Traffic
Safety Admin­
istration (NHTSA) that is designed
to help buyers make relative
255
..

Downloaded from www.Manualslib.com manuals search engine Wheels

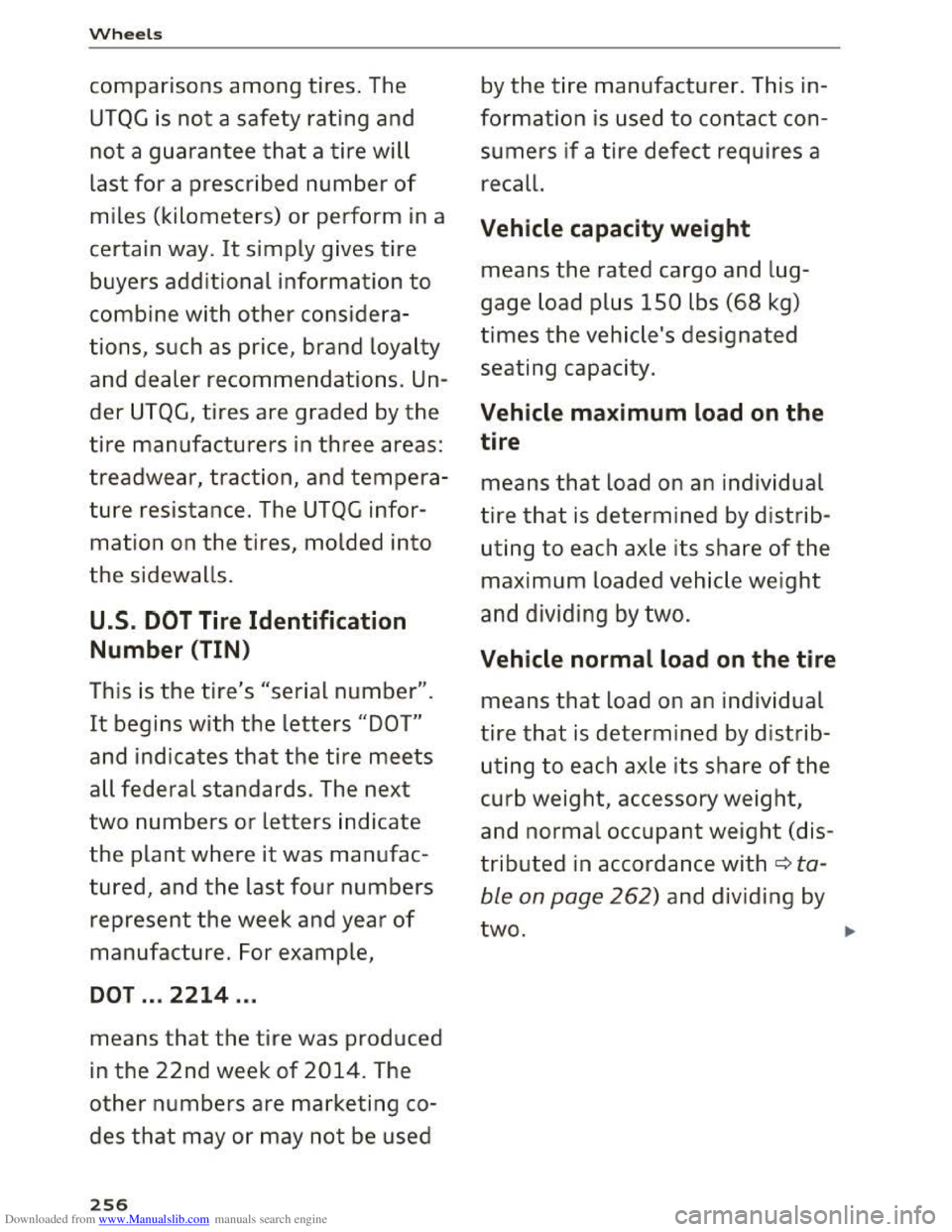

comparisons among tires. The
UTQG is not a safety rating and
not a guarantee that a tire will
last for a prescribed number of
miles (kilometers) or perform in a
certain way. It simply gives tire
buyers additional information to
combine with other considera­
tions, such as price, brand loyalty
and dealer recommendations. Un­
der UTQG, tires are graded by the
tire manufacturers in three areas:
treadwear, traction, and tempera­
ture resistance. The UTQG in for­
mation on the tires, molded into
the sidewalls.
U.S. DOT Tire Identification
Number (TIN)
T his is the t ire's "serial number".
It begins w ith the letters "DOT"
and indicates that the tire meets
all federal standards. The nex t
two numbers or letters indicate
the plant where it was manufac­
tured, and the last four numbers
represent the week and year of
manufacture. For example,
DOT ... 2214 ...
means that the tire was produced
in the 22nd week of 2014. The
other numbers are marketing co­
des that may or may not be used
2 5 6
by the tire manufacturer. T his in­
formation is used to contact con­
sumers if a tire defect requires a
recall.
Vehicle capacity weight
means the rated cargo and lug­
gage load plus 150 lbs (68 kg)
times the veh icle's designated
seating capacity.
Vehicle maximum load on the
tire
means that load on an individual
tire that is determined by distrib­
uting to each axle its share of the
maximum loaded vehic le weight
and dividing by two.
Vehicle normal load on the tire
means that load on an individual
tire that is determined by distrib­
uting to each axle its share of the
curb weight, accessory weight,
and normal occupant weight (dis­
tributed in accordance with¢ ta­
ble on page 262) and dividing by
two. ~

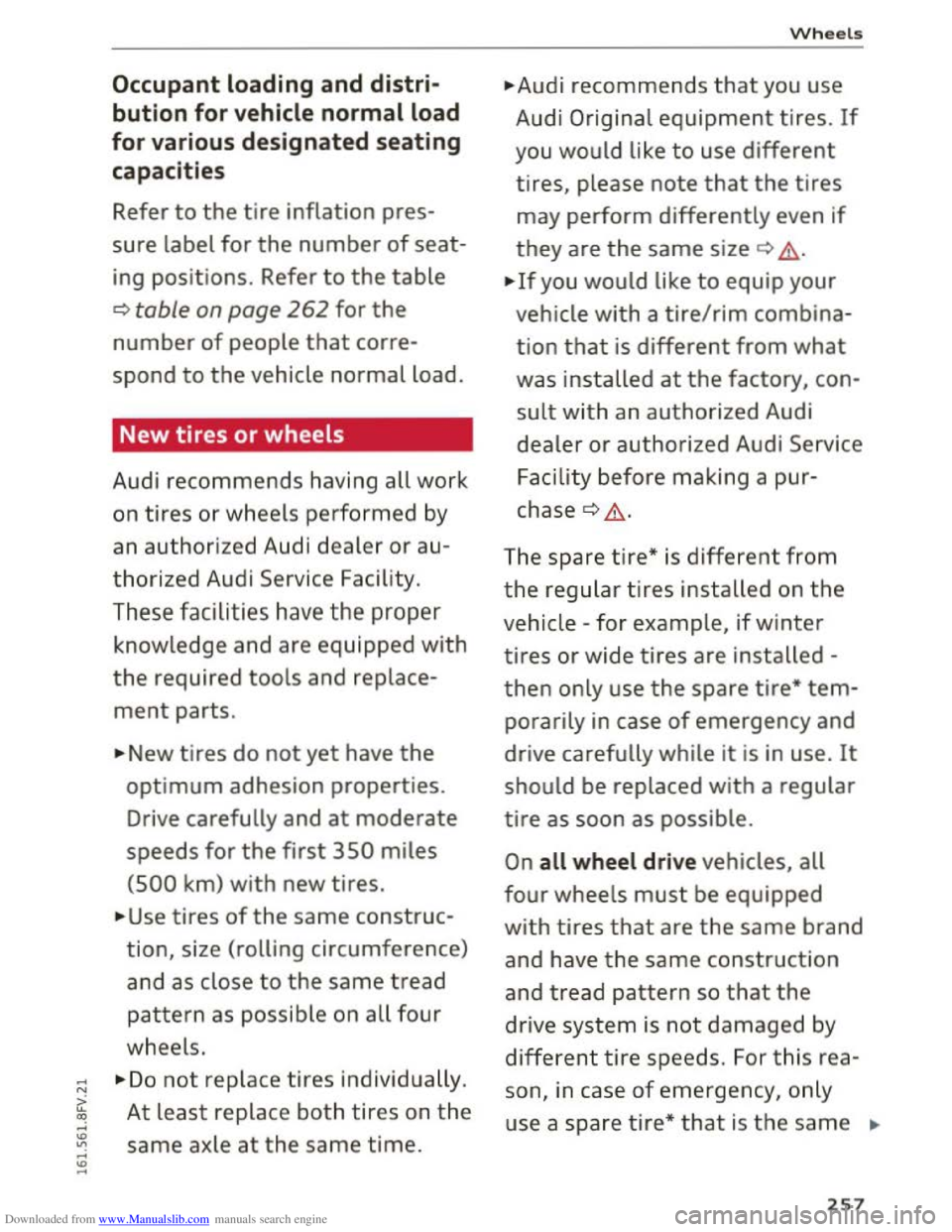

Downloaded from www.Manualslib.com manuals search engine Occupant loading and distri­
bution for vehicle normal load
for various designated seating
capac ities
Refer to the tire inflation pres­
sure label for the number of seat­
ing positions. Refer to the table
¢table on page 262 for the
number of people that corre­
spond to the vehicle normal load.
New tires or wheels
Audi recommends having all work
on tires or wheels performed by
an authorized Audi dealer or au­
thorized Audi Service Facility.
These facilities have the proper
knowledge and are equipped with
the required tools and replace­
ment parts.
... New tires do not yet have the
optimum adhesion properties.
Drive carefully and at moderate
speeds for the first 350 miles
(500 km) with new tires.
... use tires of the same construc­
tion, size (rolling circumference)
and as close to the same tread
pattern as possible on all four
wheels.
... Do not replace tires individually .
At
least replace both tires on the
same axle at the same time.
Wheel s
... Audi recommends that you use
Audi Original equipment tires. If
you would like to use different
tires, please note that the tires
may perform differently even if
they are the same size¢,&..
... If you would like to equip your
vehicle with a tire/rim combina­
tion that is different from what
was installed at the factory, con­
sult with an authorized Audi
dealer or authorized Audi Service
Facility
before making a pur­
chase¢,&..
The spare tire* is different from
the regular tires installed on the
vehicle -for example, if winter
tires or wide tires are installed -
then only use the spare tire* tem­
porarily in case of emergency and
drive carefully while it is in use. It
should be replaced with a regular
tire as soon as possible.
On all wheel drive vehicles, all
four wheels must be equipped
with tires that are the same brand
and have the same construction
and tread pattern so that the
drive system is not damaged by
different tire speeds. For this rea­
son, in case of emergency, only
use a spare tire* that is the same ..
257

Downloaded from www.Manualslib.com manuals search engine Wheels
circumference as the regular
tires.
II WARNING -I
-Only use tire/rim combina­
tions and suitable wheel bolts
that have been approved by
Audi. Otherwise,
damage to
the vehicle and an accident
could result.
-For technical reasons, it is not
possible to use tires from oth­
er vehicles -in some cases,
you cannot even use tires from
the same vehicle model.
-Make sure that the tires you
select have enough clearance
to the vehicle. Replacement
tires should not be chosen
simply based on the nominal
size, because tires with a dif­
ferent construction can differ
greatly even if they are the
same size. If there is not
enough clearance, the tires or
the vehicle can be damaged
and this can reduce driving
safety and increase the risk of
an accident.
-Only use tires that are more
than 6 years old when abso­
lutely necessary and drive
carefully
when doing so.
258
-Do not use run-flat tires on
your vehicle. Using them when
not permitted can lead to ve­
hicle
damage or accidents.
-If you install wheel covers on
the vehicle, make sure they al­
low
enough air circulation to
cool the brake system. If they
do not, this could increase the
risk of an accident.
Tire wear/damage
Fig. 193 Tire profile : treadwear indica­
tor
Tire wear
Check the tires regularly for wear.
-Inflation pressure that is too low
or high can increase tire wear
considerably.
-Driving quickly
through curves,
rapid
acceleration and heavy
braking
increase tire wear.
-Have an authorized Audi dealer
or authorized Audi Service Facili­
ty check the wheel alignment if
there is unusual wear.
