When jump starting or charging the battery,
never connect the negative ground cable to
the battery negative post because the battery
manager system must be able to detect the
battery's state of charge. Always connect the
negative ground cable to the negative ground
post of the battery manager control unit.
Use of jumper cables
Make sure to connect the jumper cable clamps in
exactly the order described below!
Fig. 213 Engine compa rtment:: connecto rs for jump start
cables and cha rger
Fig.
214 Jump starti ng with the battery of another vehi·
cle:: A -discharged vehicle battery, B -booster battery
The procedure described below for connecting
jumper cables is intended to provide a jump start
for your vehicle.
Vehicle with discharged battery:
.. Turn off lights and accessories, move lever of
automatic transmission to N (Neutral) or P
(Park)
and set parking brake.
Connect POSITIVE (+) to POSITIVE(+) (red)
.,.. Open the red cover on the positive terminal
~fig. 213 .
Emergency situations
1. Connect one end of the red positive cable on
the jump start bolt~ fig. 214 the red cover = "positive") of the veh icle to be
started@ .
2.
Connect the other end to the positi ve termi­
nal@of the booster battery@ .
Connect NEGATIVE(-) to NEGATIVE (- )
(black)
3. Connect one end of the black negative cable
to the negative terminal@ of the booster
battery@ .
4 .
Connect the other end to the jump start pin
@("negative") of the vehicle to be started
@.
Starting the engine
.. Start the engine of the vehicle with the booster
battery@. Run the engine at a moderate
speed .
.,.. Start engine w ith discharged vehicle battery@
in the usual manner.
.,.. If the engine fails to start, do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try again .
.. With engine running, remove jumper cables
from both vehicles in the exact reverse order .
.. Close the red cover on the positive terminal.
The battery is vented to the outside to prevent
gases from entering the vehicle interior. Make
sure that the jumper clamps are well connected
with their metal parts in full contact with the
battery terminals .
.&. WARNING
t-==
To avoid serious personal injury and damage
to the vehicle, heed all warnings and instruc­
tions of the jumper cable manufacturer. If in
doubt, call for road service.
-
Jumper cables must be long enough so that
the vehicles do not touch.
-
When connecting jumper cables, make s u re
that they cannot get caught in any moving
parts in the engine compartment.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS q page 236.
289

Downloaded from www.Manualslib.com manuals search engine Emergency situations
CD Note
Improper hook-up of jumper cables can ruin
the generator.
- Always
connect P O SITIVE( +) to POSITIVE
(+),and N EGATIVE( -) to NEGATIVE( -)
ground post of the battery manager control
u
nit.
-
Check that a ll screw p lugs on the battery
cells are screwed in firmly . If not, tighten
plugs p rior to connecting clamp on negative
b at
tery te rminal.
- Pl
ease note that the procedure fo r con nect­
i ng a
jumper cable as describ ed above ap­
plies specifica lly
to the case of yo ur vehicle
being
jump started . When you are giv ing a
ju
mp start to another vehicle , d o not con­
n e
ct the negative(-) c a ble to the negative
(-) terminal o n the dis ch a rged battery @
¢ fig . 214. Instead , securely connect the
negative(-) cable to either a solid metal
component that is fir m ly bolted to the en­
gine block or
to the engine bloc k itself. If
the battery that is bei ng cha rged does not
vent to the outside, escaping battery gas
could ignite and exp lode!
Towing with a tow truck
General hints
Your Audi requires special handling for towing .
The follow ing information is to be used by com­
mercia l
tow truck operators who know how to op­
erate their equipment sa fe ly .
- Never tow your Audi. Towing will cause dam­
age to the engine and transmission.
- Never wrap
the safety chains or winch cables
around
the brake lines.
-
To prevent unnecessary damage, your Audi
must be transported with a flat bed truck.
-
To load the vehicle on to the flat bed, use the
towing loop found in the vehicle tools and at­
tach
to the front or rear anchorage
¢page 290 and ¢page 291.
290
A WARNING
A veh icle being towed is not safe for passen­
gers . Neve r allow anyone to ride in a vehicle
be ing
towed, fo r any reason.
Front towing loop
Fig. 215 Front bum per: co ver
Fig. 2 16 Front bum per: install ing the to win g loop
The threaded opening for the towing loop is lo­
cated behind a cove r on the rig ht side of the front
bumper.
.. Remove the towing loop from the vehicle tool
kit¢ page 275.
.. Press inward on the upper Left side of the cap
to remove it from the b umper¢ fig. 215.
.,. T ighten the towing loop in the threaded o pen­
ing
until i t s tops¢ fig. 216 a nd then tighten it
w it h a
wheel w re nch.
.,. After using, place the towing loop back in the
veh icle tool kit.
A WARNING
If t h e t ow ing loop is not tightened until it
stops when installing, the threads may be
pu lled out when towing the vehicle and that
could cause an accident.

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
Rear towing loop
Fig. 217 Rea r bumper: cove r
Fig.
218 Rea r bumper: installing the towing loop
There are threads located behind the right side of
the rear bumper where a towing loop can be in­
stalled.
... Remove the towing loop from the vehicle tool
kit¢poge275.
... To remove from the bumper, push the cap in­
ward in the lower area -arrow-and lift it up in
the upper area ¢ fig. 217 .
... Tighten the towing loop in the threaded open­
ing until it stops ¢fig. 218 and then tighten it
with a wheel wrench .
... After using, place the towing loop back in the
vehicle tool kit .
.&. WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
pulled
out when towi ng the veh icle and that
could cause an accident .
-
Emergency situations
Loading the vehicle onto a flat bed truck
Fig. 219 Vehicle on flat bed tru ck
Front hook up
... Align the vehicle with the centerline of the car
carrier ramp.
N 00
~ ...
"'Attach the winch hook to the front towline eye
previously installed.
Rear hook up
"'Align the vehicle with the centerline of the car
carrier ramp.
"'Attach the winch hook to the rear towline eye
previously installed.
@Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp .
291

Downloaded from www.Manualslib.com manuals search engine Emergency situations
Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only be li~ed at the lifting
points illustrated.
Fig. 220 Front lifting point
Fig.
221 Rear lifting point
.,. Read and heed WARNING¢_&,
.,. locate lifting points ¢ fig. 220 and¢ fig. 221.
.,. Adjust lifting arms of workshop hoist or floor
jack
to match vehicle lifting points.
.,. Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
The vehicle jack mode*
must be activated so that
the automatic adjustment of the Adaptive Air
Suspension*
does not make it more d ifficult to
raise the vehicle with the floor jack.
If you must lift your vehicle with a f loor jack to
work underneath, be s ure the ve hicle is safely
s
upported on stands i ntended for this purpos e .
Front lifting point
The lifting point is located on the floor pan rein­
forcement about at the same level as the jack
mounting point¢ fig. 220. Do not lift the vehi­
cle at the vertical sill reinfor cement.
292
Rear lifting point
The lifting point is located on the vertical rein­
forcement of the lower sill for the on-board jack
¢fig. 221.
Lifting with vehicle jack
Refer
to¢ page 280 .
..&. WARNING
-To reduce the r isk of serious injury and vehi­
cle damage.
-Always lift the vehicle only at the special
workshop
hoist and floor jack lift points il­
lustrated ¢fig. 220 and ¢fig. 221.
-Failure to lift the vehicle at these points
could cause
the vehicle to tilt or f all from
a lift ifthere is a change in vehicle weigh t
distribution
and balance. This might hap­
pen, for example, when heavy compo­
nents such as the engine block or trans­
mission are removed.
-
When removing heavy components like
these, anchor vehicle to hoist or add corre­
sponding weights to maintain the center of
gravity. Otherwise, the vehicle might tilt or
slip off the hoist, causing serious personal
injury .
CD Note
-Be aware of the following points before lift­
ing the vehicle:
- The vehicle
should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage.
-To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points.
- Before driving over a work shop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist. ..,.

Downloaded from www.Manualslib.com manuals search engine -Before driving over a workshop hoist, en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the
vehicle.
Emergency situations
293

Downloaded from www.Manualslib.com manuals search engine Consumer information

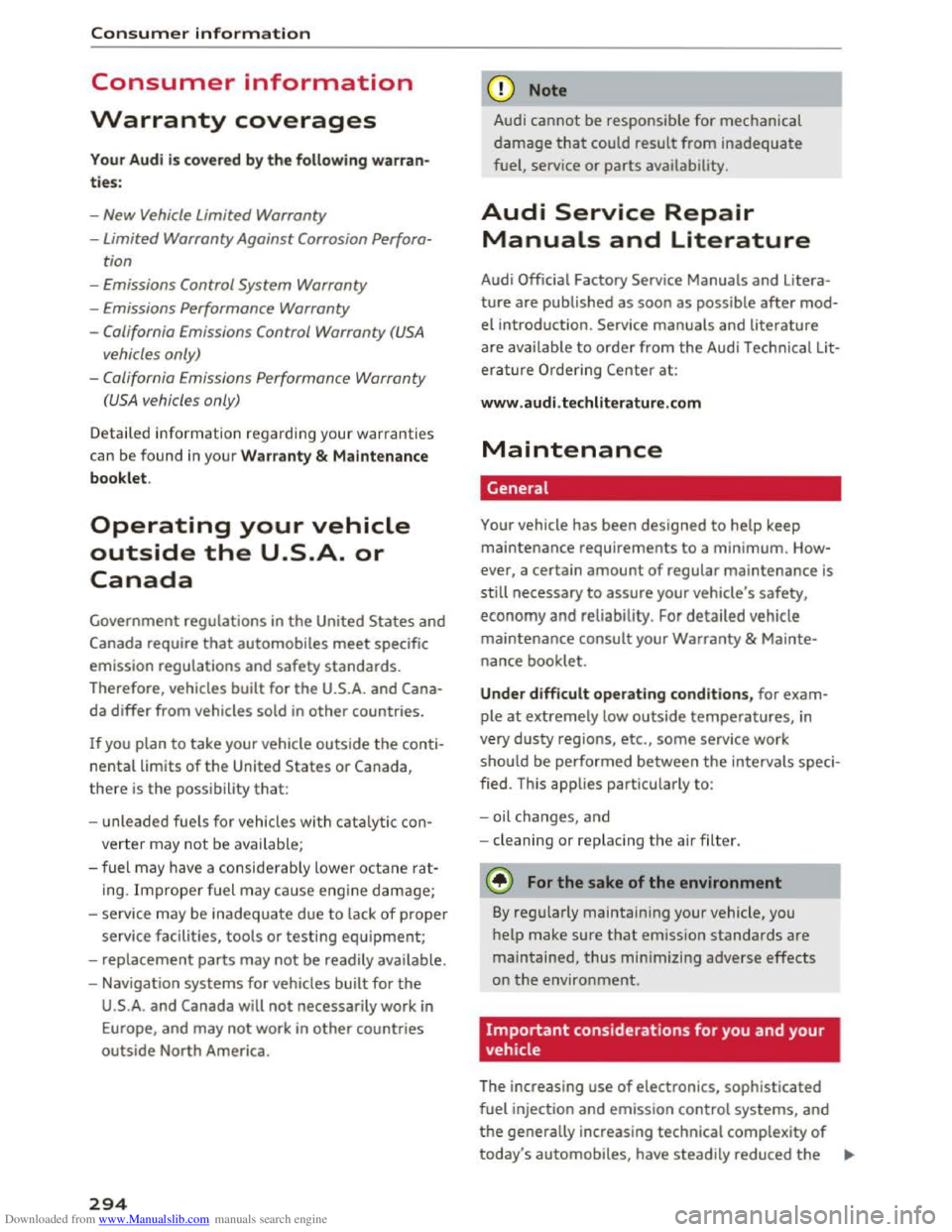

Consumer information
Warranty coverages
Your Audi is co vered by the following warran­
ties:
- New Vehicle Limited Warranty
-Limited Warranty Against Corrosion Perfora-
tion
-Emissions Control System Warranty
-Emissions Performance Warranty
-California Emissions Control Warranty (USA
vehicles only)
-
California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your Warranty & Maintenance
booklet.
Operating your vehicle
outside the U.S.A. or
Canada
Government regulations in the United States and
Canada require that automobiles meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana­
da differ from vehicles sold in other countries.
If you plan to take your vehicle outside the conti ­
nental limits of the United States or Canada,
there is the possi bility that:
- unleaded fuels for vehicles with catalytic con­
verter may not be available;
- f
uel may have a considerably lower octane rat­
ing. Improper fuel may cause engine damage;
-ser vice may be inadequate due to lack of proper
service facilities, tools or testing equipment;
-replacement parts may not be readily available.
-Navigation systems for vehicles built for the
U.S.A. and Canada will not necessarily work in
Europe , and may not work in other countries
outside North America.
294
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, service or parts availability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera­
ture are published as soon as possible after mod­
el introduction. Service manuals and literature
are available to order from the Audi Technical Lit­
erature Ordering Center at:
www.audi.techliterature.com
Maintenance
General
Your vehicle has been designed to help keep
maintenance requirements to a minimum. How­
ever, a
certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliability. For detailed vehicle
maintenance consult your Warranty & Mainte­
nance booklet.
Under difficult operating conditions, for exam­
ple
at extremely low outside temperatures, in
very dusty regions, etc., some service work
should be performed between the intervals speci­
fied. This
applies particularly to:
- oil
changes, and
- cleaning or replac ing the a ir filte r.
~ For the sake of the environment
By reg ularly maintaining your vehicle, you
help
make sure that emission standards are
maintained, thus minimizing adverse effects
on the environment.
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated
fuel injec tion and emission control systems, and
the generally increasing technical complexity of
today's automobiles, have steadily reduced the ~

Downloaded from www.Manualslib.com manuals search engine scope of maintenance and repairs which can be
carried
out by vehicle owners. Also, safety and
e n viro n
mental concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can
perform.
Maintenance,
adjustments and repairs usually re­
quire special tools, testing devices and other
equipment available to specially trained work­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty.
Therefore, proof of servicing in accordance w ith
the maintenance schedule may be a condition for
upholding a possible
warranty claim made within
the warranty period.
Above all,
operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any ser vicing, have it done by
your authorized Audi dealer or any other properly
equipped and qualified workshop. We strongly
urge you to give your authorized Audi dealer the
opportunity to perform all scheduled main te­
nance
and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to
keep your vehicle running properly.
Performing limited maintenance yourself
The follow ing pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary
tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­
ly follow the instructions given. Always rigorously
observe the WARNINGS provided .
Before you check anything in the e ngine com ­
partment , always read and heed all WARNINGS
..... c::> &. and c::> &. in Working in the engine compart-N
c;: ment on page 236.
co ..... U)
"' ..... U) .....
"'
Consumer information
A WARNING
-Serious personal injury may occur as a result
of improperly performed maintenance, ad­
justments or repairs.
-Always be extremely careful when working
on
the vehicle. Always follow commonly ac­
cepted safety practices and general com­
mon sense. Never risk personal injury.
-
Do not attempt any of the maintenance,
checks or repairs described on the following
pages if you are not fully familiar with these
or other procedures with respect to the ve­
hicle,
or are uncertain how to proceed.
-
Do not do any wor k without the proper tools
and equipment. H ave the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
-The engine compartment of any motor vehi­
cle is a
potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly -even when the en­
gine is off. The
radiator fan switches on au­
tomatically when th e coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle.
- Always
support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack supplied with the vehi­
cle is
not adequate for this purpose and
could collapse causing serious personal in­
jury.
-
If you must work underneath the vehicle
with
the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
-Always make sure the transmission selector
lever (automatic transmission) is in P (Park
position) and the pa rk brake is applied. .,..
295

Downloaded from www.Manualslib.com manuals search engine Consumer information
@ For the sake of the environment
-Changing the engine settings will adversely
affect emission leve ls.
This is detrimental to
the environment and increases fuel con­
sumption.
- A lways observe environmental regulations
when disposing
of old engine oil, used brake
fluid, dirty engine coolant, spent batteries
or worn out tires.
- Undeployed airbag modules and pretension­
ers might be classified as
Perchlorate Mate­
rial -special handl i
ng may apply, see
www.dtsc .ca. gov/hazard ouswaste/ perch l
o­
rate. When th e vehicle or parts of th e re­
strain t sys tem including
airb ag modu les
sa fety belts with prete ns ione rs a re scrap ­
ped, all applicab le laws and regulat ions
must be observed. Your authorized Audi
dealer is familia r with these requirements
and we recommend
that you have your deal­
er perform this service for you.
Accessories and
technical changes
Additional accessories and parts
replacement
Always consult on authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design
features ensuring a high standard
of active and
passive safety.
This safety could be comp romised by non -ap ­
proved changes
to the vehicle . For this reason, if
parts have to be replaced, please observe
the fol­
lowing points when insta lling addit ional accesso­
ries:
Approved
Audi accessories and genuine Audi
parts are available from author ized Audi dealers.
T hese dealers also have the necessary facilities,
too ls and trained specia
lists to install the parts
and accessories properly.
296
A WARNING
1-
Using the wrong spare parts or using non-ap-
proved accessories
can cause damage to the
vehicle and serio us personal in jury.
-
Use on ly accesso ries expressly approved by
Audi a nd gen uine Audi spare parts
- These parts and accessor ies have been spe­
cially designed
to be used on your vehicle.
- Never install accessor i
es such as telephone
cradles
or beverage holders on airbag covers
or within the airbag deployment zones. Do­
ing so will increase th e risk of injury if air­
bags are triggered
in an accident!
- Before you check anythi ng in
the eng ine
compa
rtment, always read and heed all
WARNINGS Qpoge 236.
CD Note
-If items other than genu ine Audi spare
parts, add-on equipment and accessory
i t ems are used or if repair work
is not per­
formed a
ccording to specified methods, this
c an resul t
in severe damage to yo ur vehi­
cle's engine and body (such as cor ro sion)
and adve rsely
affect your vehicle's warranty.
- I f emergen cy repai rs mus t be per formed
elsew here, have
the vehicle examined by an
authorized Au
di dealer as soon as possib le .
- T he manufac ture r ca nnot be held liable for
damage
which occu rs d ue to fail ure to com ­
ply with
these stipulations.
Technical Modifications
Our guidelines must be complied with when tech­
nical modifications ore mode .
Always consult an authorized Audi de aler before
sta rt ing work on any modifica tions.
This will help ensure tha t vehicle
function, per­
fo rmance and safety are not impaired
Q .&..
Attempting to work on electronic components
and
the softwa re used with th em can cause mal­
funct io ns. Because
of the way elect ronic compo­
nen ts a re
int erconnected with each other, such
malfunc tions can also h
ave an adverse affect on
other systems tha t are not directl y involved. This .,..

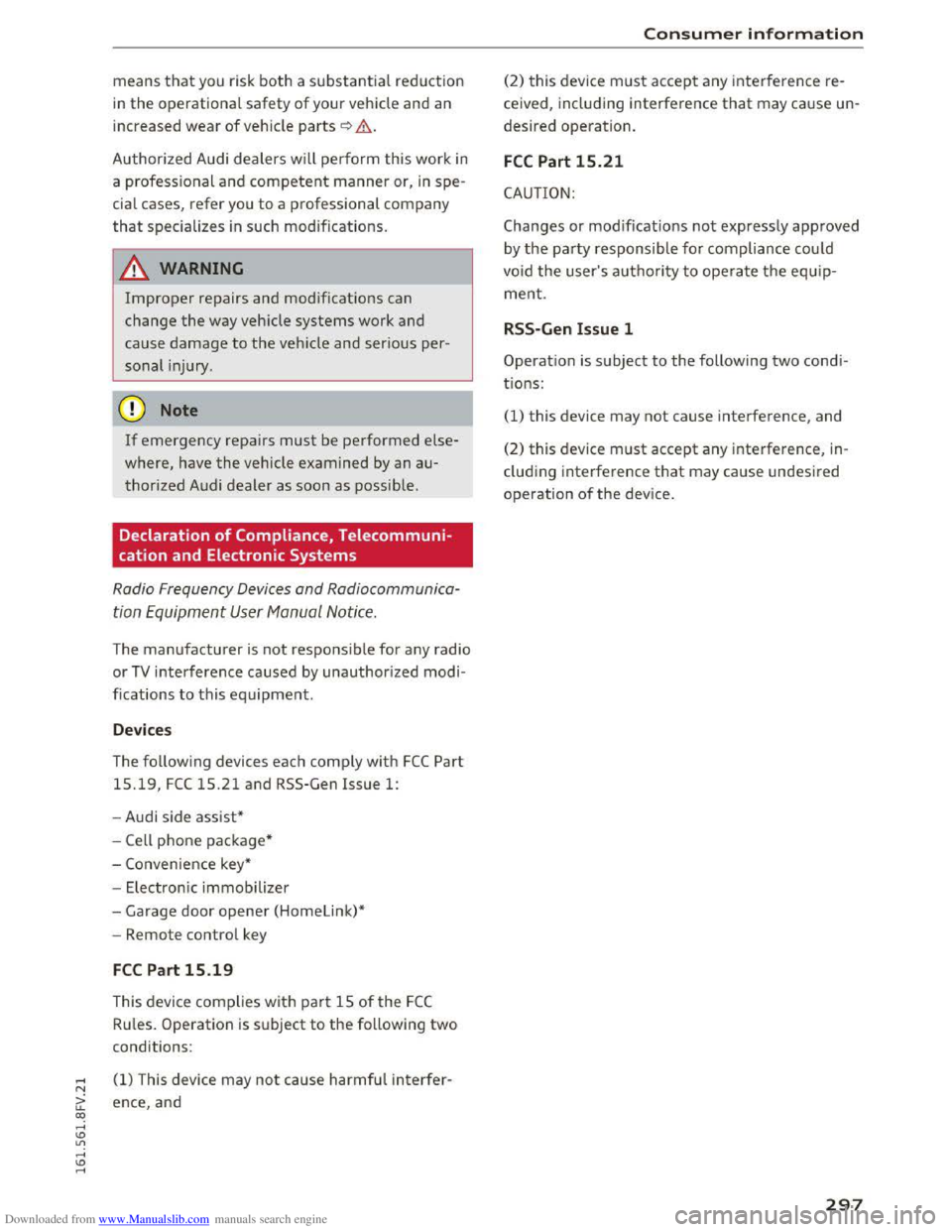

Downloaded from www.Manualslib.com manuals search engine means that you risk both a substantia l reduction
in
the operationa l safety of your vehicle and an
increased wear of vehicle parts¢& .
Authorized Audi dealers will perform this work in
a professional and
competent manner or, in spe­
cial
cases, refer you to a professional company
that specializes in such modifications.
A WARNING
Improper repairs and mod ifications can
change the way vehicle systems work and
cause damage
to the vehicle and serious per­
sonal injury.
If emergency repairs must be performed else­
where, have
the vehicle examined by an au­
thorized Audi dealer
as soon as possib le .
Declaration of Compliance, Telecommuni­
cation and Electronic
Systems
Radio Frequency Devices and Radiocommunica­
tion Equipment User Manual Notice.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modi ­
fications
to this equ ipment.
Devices
The following devices each comp ly w ith FCC Part
15.19, FCC 15.21 and R5S-Gen Issue 1:
-Audi side assist*
-
Cell phone package*
- Convenience key*
- Electron ic
immobilizer
-Garage door opener (Homelink)*
- Remote control key
FCC Part 15.19
This device complies with part 15 of the FCC
Rules. Operation is s u bject to the following two
conditions :
,.... (1) This device may not cause harmful interfer-N
it ence, and co ..... ..... Consumer information
(2) this device must accept any inte rference re­
ceived, including interference
that may cause un­
desired operation.
FCC Part 15.21
CAUTION:
Changes or mod ificatio ns not express ly approved
by
the party responsible for compliance could
vo id
the user' s auth o rity to ope rate the equip­
me n
t.
RSS-Gen Issue 1
Operat io n is subject to the following two cond i­
t io n
s:
(1) this device may not cause inte rfe rence, and
(2) this device
must accept any interference, in­
cluding inter
ference that may cause undesired
operation
of the dev ice.
297

Downloaded from www.Manualslib.com manuals search engine Technical data
Technical data
Vehicle identification
Fig. 222 Vehicle Identification Number (VlN) plate: loca·
tio n on driver 's side dash panel
xxxxx xx -x -xxxx xxx xx
©-+ : -: ::: xxxxxxxx x x )( xxxxxxxx
"'/IYl'I xxx xxx
)()( xxxxxxx xx x x xx
XXX KW XXX
®i :::~~ xxxx xxx xxx
@-t l:r":o'.:i:ra:st x xxx I xxxx xxx I xx
M. • AUSST, / Oi'llONS
EOA 705 4 UB 6XM SSG SRW
2EH JOZ lLB 1A S 1BA
3 FC S
M U 7X1
FOA 9G3 OG7 O YH OJF
TL 6 3 KA 8EH U1A X9 B OZ7
lXW 803 908 8Z4 020
7T6 CV 7 7KO 4X3 2 K2
3L4 4 KC 3YO 413 502
lSA 7GB O lA 4GO
xx x xx x xx x xx xx

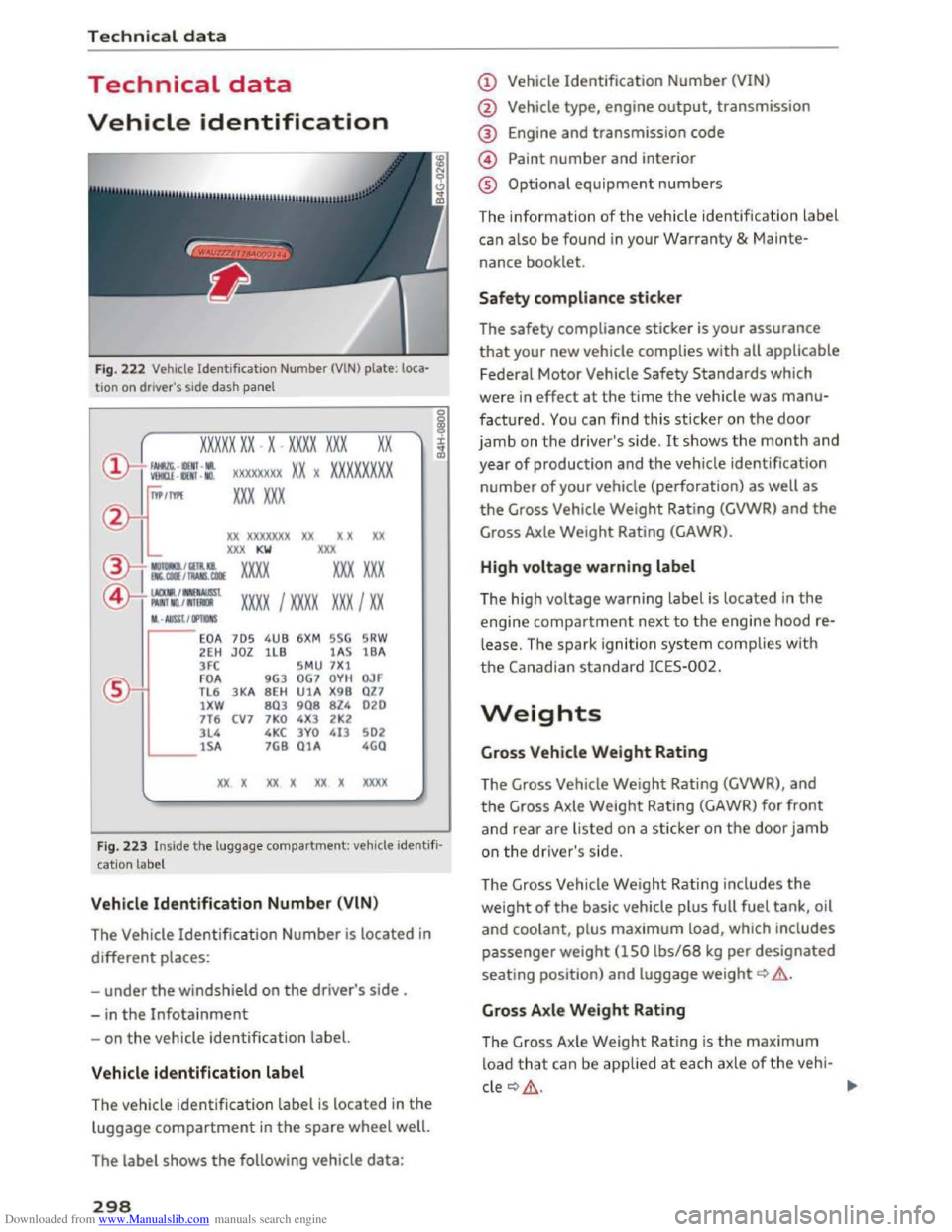

Fig. 223 Inside the luggage compartment: veh icle ide ntifi­
cation label
Veh icle Identification Number (VlN )
The Vehicle
Identification Number is located in
different places:
-
under the windshield on the driver' s side .
-
in the Infotainment
-on the vehicle identification label.
Vehicle identification label
The vehicle i
dentification label is located in the
luggage compartment in the spare wheel well.
The
label shows the following vehi cle data:
298
(!) Vehicle Identification Number (VIN)
@ Veh icle type, engine output, transmission
® Engine and transmission code
@ Paint number and interior
® Optional equipment numbers
The information of the vehicle identification label
can also be found in your Warranty & Mainte­
nance book let.
Safety compliance sticker
The
safety compliance sticker is your assuranc e
that your new vehicle complies with all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu­
factured. You can find this sticker on the door
jamb on the driver's side . It shows the month and
year of production and the vehicle identification
number of your vehicle (perforation) as well as
the Gross Vehicle Weight Rating (GVWR) and the
Gross Axle Weight Rating (GAWR) .
High voltage warning label
The high
voltage warning label is located in the
engine compartment next to the engine hood re­
lease. The spark ignition system complies w it h
the Canadian standard ICES-002.
Weights
Gross Vehicle Weight Rating
The Gross Vehicle
Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for front
and rear are listed on a sticker on the door jamb
on the driver's side.
The Gross Vehicle
Weight Rating includes the
weight of the basic vehicle plus full fuel tank, oil
and coolant, plus maximum load, which includes
passenger weight (150 lbs/68 kg pe r designated
seating posi tion) and luggage weight Q & .
Gross Axle Weight Rating
The Gross Axle
Weight Rating is the maximum
load that can be applied at each axle of the vehi-
cle
Q & . .,..
