-If you have a flat tire, move a safe distance
off the road. Turn off the engine, turn the
emergency flashers on and use other warn­
ing devices to alert other motorists.
-Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
-
To help prevent the vehicle from moving
suddenly and possibly slipping off the jack,
always fully
set the parking brake and block
the wheel diagonally opposite the wheel be­
ing changed. When one front wheel is lifted
off the ground, placing the Automatic
Transmission in P (Park) will not prevent the
vehicle from moving.
- Before you
change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack.
- Always
store the veh icle tool k it, the jack
and the replaced tire in the luggage com ­
partment¢ page 176.
Changing a wheel
When you change a wheel, follow the sequence
described
below step-by-step and in exactly that
order .
1. Remove the decorative wheel co ver*. For
more de tails see also¢ page 2 78, Decora­
tive wheel covers or c::> page 2 79, Wheels
with wheel bolt caps.
2. Loosen the wheel bolts ¢page 2 79.
3. Locate the proper mounting point for the
jack and align the jack below that point
c::>page280.
4. Raise the car with the jack c::> page 280.
5. Remove the wheel with the flat tire and then
install the s pare ¢ page 281.
6. Tighten all wheel bolts lightly.
7.
Lower the veh icle with the jack .
8. Use the wheel bolt wrench and firml y tighten
all wheel bolts ¢page 279.
9. Replace the decorative wheel cover*.
278
A WARNING
Always read and follow all WARNINGS and in­
formation c::> .& in Raising the vehicle on
page
280 and c::>page 282.
After changing a wheel
A wheel change is not complete without the do­
ing the following.
.. Always store the vehicle tool kit, the jack* and
the replaced tire in the luggage compartment
c::>page 176.
.. Check the tire pressu re on the spare wheel im ­
mediately after mounting it.
.,. As soon as possib le, have the tightening tor ­
que s on all wheel bolts checked with a torque
wrench. The correct tightening torque is 90 ft
lb (120 Nm).
.. Have the flat t ire replac ed as soon as possible .
(0 Tips
-If you notice tha t the wheel bolts are cor­
roded and difficult to turn while changing a
t ire,
they s hou ld be replaced before you
check
the tightening torque.
- Drive
at reduced speed unti l yo u have the
tightening torques checked.
-
After changing a wheel, the tire pressure in
all four tires must be checked/corrected and
the tire pressure monitoring indicator must
be stored in the Infotainment c::> page 269.
Decorative wheel covers
Gilt for: with decorative wheel covers
The decorative wheel covers must be removed
first to access the wheel bolts.
Fig. 200 Changing a w heel: Removing th e w heel cover

Downloaded from www.Manualslib.com manuals search engine Emergency assistance
-When mounting tires with unidirectional
tread design
make su re the tread pattern is
pointed the r ight way¢ page 282.
- The wheel bolts should be clean and easy to
turn .
Check for dirt and corros ion on th e
mating surfaces of both
the wheel and the
hub. Remove all dirt from these surfaces be­
fore remounting t h e wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction.
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a spare tire with a tread pattern in­
tended for use in a spec ific direction, please note
the following:
- The direct ion of
rotation is marked by an arrow
o n
the side of the tire.
-If the spare tire has to be installed in the incor­
rect direction, use the spare tire only tempora­
rily since the tire will not be able to achieve its
optimum performance charact
eristics wit h re­
gard to aqu aplaning, noise and wear.
-
We r ecommend that you pay particular atten­
tion to this fact during wet weathe r and that
you ad just your speed to match road condi­
tions.
- Replace
the flat tire with a new one and have it
i ns talle d on
your ve hicl e as soon as possibl e to
resto re the han dling adv antages of a unidire c­
tio nal tire.
Notes on wheel changing
Please read the info rmation ¢ page 257 if you
are goi
ng to use a spare tire which is different
from
the tires on your vehicle.
Afte r you change a tire:
-Check the tire pressure on the spare immedi­
ately after installation.
-
Have the wheel bolt tightening torque
checked with a torque wrench as
soon as pos-
282
sible by your authorized Audi dealer or a
qualified service station.
- With
steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of
90 ft lb (120 Nm).
- If you notice
that the wheel bolts are corroded
and difficult
to turn while changing a tire,
they should be replaced before you check the
tightening torque.
- Replace
the flat tire with a new one and have
it installed on your vehicle as soon as
possi­
ble. Remount the wheel cover .
Until then, drive with extra care and at reduced
speeds.
8_ WARNING
- I f you are going to equip your vehicle with
tires or rims which differ from those which
were factory insta
lled, then be sure to read
t he informa tion
¢ page 257.
-Always make sure the damaged wheel or
eve n a flat tire and
the jack and tool kit are
pro per ly sec ure d
in the lu ggage compart­
men t and are not loose in the passeng er
com partme nt.
- In an accident or sudde n maneuver they
could fly forw ard, in juri ng anyo ne in the v e ­
hicle.
-
Always s to re damaged whe el, jack and tools
s ecure ly i n t he luggage co m part ment.
Oth­
erwi se, in an accid ent or sudde n m aneu ve r
t hey co
uld fly f orw ard , cau sing inju ry to pa s­
sengers in the vehicle.
-

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
..... I.Cl U"I
..... I.Cl .....

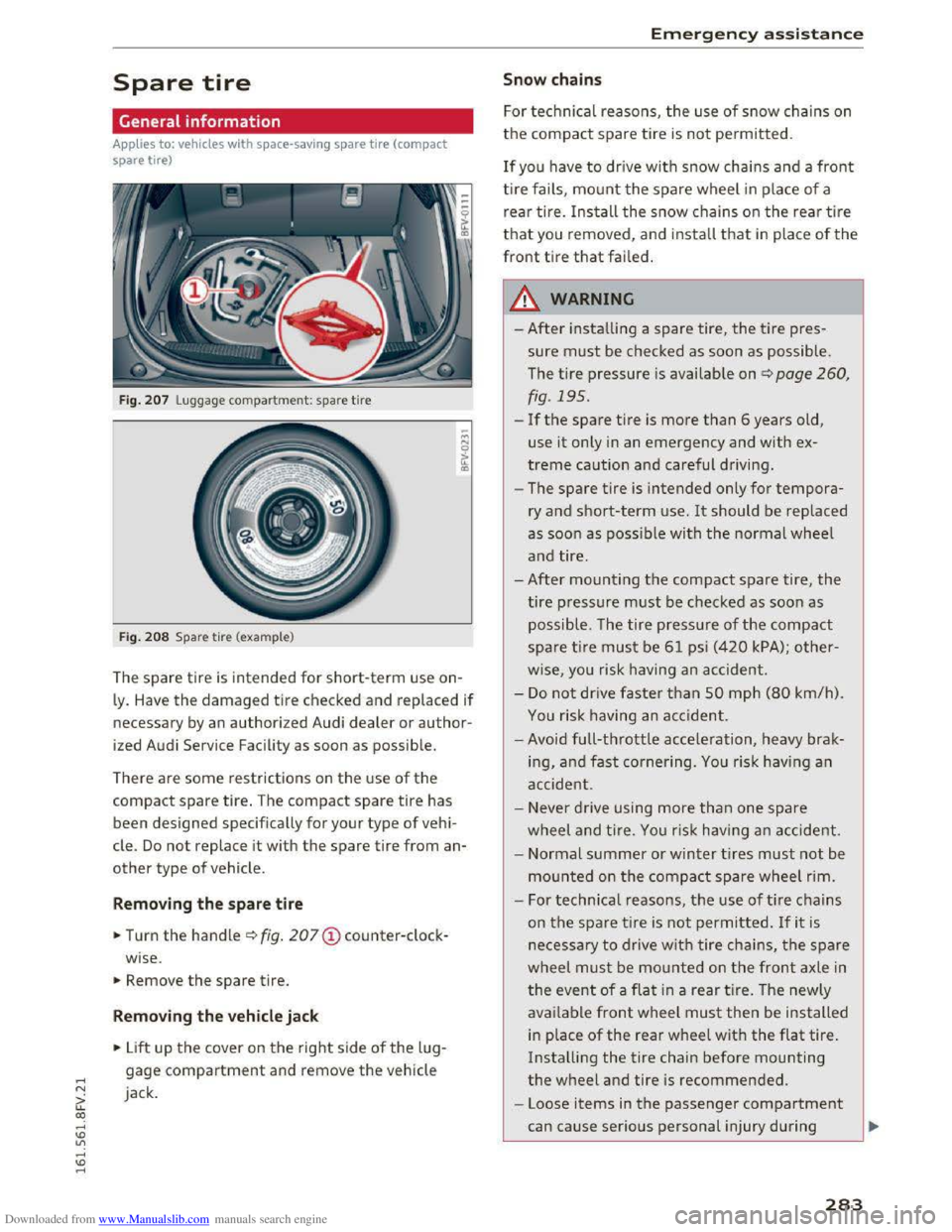

Spare tire
General information
Applies to: vehicles with space-saving spare tire (compact
spare tire)
Fig.
207 Luggage compartment: spare tire
Emergency assistance
Snow chains
For technical reasons, the use of snow chains on
the compact spare tire is not permitted.
If you have to drive with snow chains and a front
tire fails, mount the spare wheel in place of a
rear tire. Install the snow chains on the rear tire
that you removed, and install that in place of the
front tire that failed.
&,,!!_ARNING
sure must be checked as soon as possible.
The tire
pressure is available on c> page 260,
fig. 195.
--------~--If the spare tire is more than 6 years old,
:::: use it only in an emergency and with ex-
~ treme caution and careful driving.
Fig. 208 Spare tire (example)
The spare tire is intended for short-term use on­
ly. Have the damaged tire checked and replaced if
necessary by
an authorized Audi dealer or author-
ized Audi Service Facility as soon as possible.
There
are some restrictions on the use of the
compact spare tire. The compact spare tire has
been designed specifically for your type of vehi­
cle.
Do not replace it with the spare tire from an­
other type of vehicle.
Removing the spare tire
•Turn the handle c> fig. 207@ counter-clock­
wise.
•Remove the spare tire.
Removing the vehicle jack
• Lift up the cover on the right side of the lug­
gage compartment and remove the vehicle
jack. -
The
spare tire is intended only for tempora­
ry and short-term use. It should be replaced
as soon as possible with the normal wheel
and tire.
- After
mounting the compact spare tire, the
tire pressure must be checked as soon as
possible. The tire pressure of the compact
spare tire must be 61 psi (420 kPA); other­
wise, you risk having an accident.
-
Do not drive faster than SO mph (80 km/h).
You risk having an accident.
-Avoid full-throttle acceleration, heavy brak­
ing, and
fast cornering . You risk having an
accident.
- Never drive using
more than one spare
wheel and tire. You risk having an accident.
- Normal
summer or winter tires must not be
mounted on the compact spare wheel rim.
- For
technical reasons, the use of tire chains
on
the spare tire is not permitted. If it is
necessary
to drive with tire chains, the spare
wheel must be mounted on the front axle in
the event of a flat in a rear tire. The newly
available
front wheel must then be installed
in place of the rear wheel with the flat tire.
Installing
the tire chain before mounting
the wheel and tire is recommended .
- Loose
items in the passenger compartment
can cause serious personal injury during
283

Downloaded from www.Manualslib.com manuals search engine ...... N
~ ()()
......
"' "' ......
"' ....
Fuses and bulbs
Electrical fuses
Replacing fuses
A fuse
that has blown will have metal strips that
have burned through.
Fig. 209 Steering column area: cover
Fig.
210 Left side of the engine compartment: fuse cover
The individual circuits are protected by safety
fuses. The fuses are located in the interior and in
the engine compartment.
Fuse s in the interior
... Switch the ign ition and all electrical equipment
off .
... Check the following table to see which fuse be­
longs to the equipment Q page 286.
• Remove the cover Q fig. 209.
• Remove the plastic clip from the fuse panel
cover in the engine compartment Q fig. 210.
• Remove the fuse using the clamp.
• Replace the blown fuse only with an identical
new one.
•Install the cover.
Fuses and bulbs
Fus es i n the engine compartment
... Switch the ignition and all electrical equipment
off .
... Check the following table to see which fuse be­
longs to the equipment Qpage 287.
• Remove the fuse panel cover C)fig . 210.
• Remove the plastic clip from the fuse panel
coverQfig. 210.
• Remove the fuse using the clamp.
• Replace the blown fuse only with an identical
new one.
Fuse colo r identification
Color Current
rati
ng
in amps
Black 1
Purple 3
Light brown 5
Brown
7.5
Red 10
Blue 15
Yellow 20
White or transparent 25
green 30
orange 40
.&. WARNING
1-"="
Do not repair fuses and never replace a blown
fuse with one that has a higher amp rating.
This
can cause damage to the electrical sys­
tem and a fire .
CD Note
If a new fuse burns out again shortly after you
have
installed it, have the electrical system
checked as soon as possible by an authorized
Audi dealer or authorized Audi Service Facili­
ty.
@ Tips
-The following table does not list fuse loca­
tions that are not used .
-
Some of the equipment listed in the follow­
ing tables applies only to certain model ver­
sions or certain optional equipment .
285

Downloaded from www.Manualslib.com manuals search engine Emergency situations
Emergency situations
General
This chapter is intended for trained emergency
crews and working personnel who have the nec­
essary tools and equipment to perform these
operations.
Starting by pushing or
towing
CD Note
Vehicles with an automatic transmission can­
not be started by pushing or towi ng.
Starting with jumper
cables
If necessary, the engine con be started by con­
necting it to the battery of another vehicle.
If the engine should fail to start because of a dis­
charged or weak battery, the battery can be con­
nected to the battery of another vehicle, using a
pair of jumper cables to start the engine.
Jumper cables
Use only jumper cables of sufficiently large cross
section to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with insulated terminal
clamps which are distinctly marked:
plus(+) cable in most cases co lored red
minus(-) cable in most cases colored black.
A WARNING _,
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in·
jury. Follow the instructions below for safe
handling of your vehicle's battery.
-Always shield your eyes and avoid leaning
over
the battery whenever possible.
- A discharged
battery can freeze at tempera­
tures just below 32 °F (0 °C). Before con­
necting a jumper cable, you must thaw the
288
frozen battery completely, otherwise it
could explode.
-
Do not allow battery acid to contact eyes or
skin. Flush any contacted area with water
immediately.
-
Improper use of a booster battery to start a
vehicle may
cause an explosion.
- Vehicle
batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batteries.
-Do not try to jump start any vehicle with a
low acid level
in the battery.
-The voltage of th e booster battery must also
have a 12-volt rating. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batteries of different voltage or substantial­
ly different "Ah" rating may cause an exp lo­
sion and personal injury.
- Never
charge a frozen battery. Gas trapped
in the ice may cause an explosion.
- Never
charge or use a battery that has been
frozen. The battery case may have be weak­
ened.
-Use of batteries of different voltage or sub­
stantially different capacity (Ah) rating may
cause an explosion and injury. The capacity
(Ah)
of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
~page 236.
CD Note
- Applying a higher voltage booster battery
will cause expensive damage to sensitive
electronic
components, such as control
units, relays, radio, etc.
-There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
( +
)terminals are connected.
Tips
T he discharged battery must be properly con-
nected to the vehicle's electrical system. ~

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
When jump starting or charging the battery,
never connect the negative ground cable to
the battery negative post because the battery
manager system must be able to detect the
battery's state of charge. Always connect the
negative ground cable to the negative ground
post of the battery manager control unit.
Use of jumper cables
Make sure to connect the jumper cable clamps in
exactly the order described below!

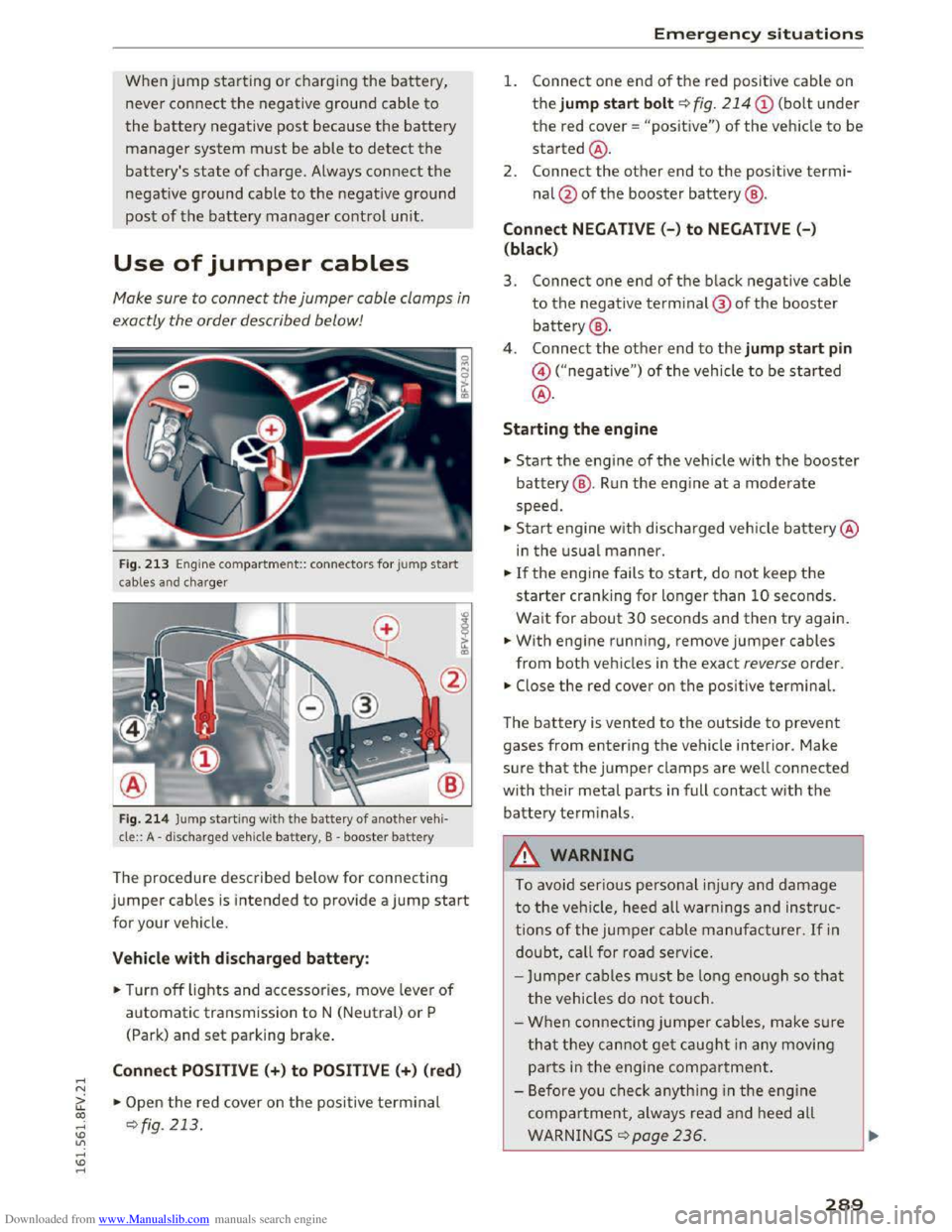

Fig. 213 Engine compa rtment:: connecto rs for jump start
cables and cha rger
Fig.
214 Jump starti ng with the battery of another vehi·
cle:: A -discharged vehicle battery, B -booster battery
The procedure described below for connecting
jumper cables is intended to provide a jump start
for your vehicle.
Vehicle with discharged battery:
.. Turn off lights and accessories, move lever of
automatic transmission to N (Neutral) or P
(Park)
and set parking brake.
Connect POSITIVE (+) to POSITIVE(+) (red)
.,.. Open the red cover on the positive terminal
~fig. 213 .
Emergency situations
1. Connect one end of the red positive cable on
the jump start bolt~ fig. 214 the red cover = "positive") of the veh icle to be
started@ .
2.
Connect the other end to the positi ve termi­
nal@of the booster battery@ .
Connect NEGATIVE(-) to NEGATIVE (- )
(black)
3. Connect one end of the black negative cable
to the negative terminal@ of the booster
battery@ .
4 .
Connect the other end to the jump start pin
@("negative") of the vehicle to be started
@.
Starting the engine
.. Start the engine of the vehicle with the booster
battery@. Run the engine at a moderate
speed .
.,.. Start engine w ith discharged vehicle battery@
in the usual manner.
.,.. If the engine fails to start, do not keep the
starter cranking for longer than 10 seconds.
Wait for about 30 seconds and then try again .
.. With engine running, remove jumper cables
from both vehicles in the exact reverse order .
.. Close the red cover on the positive terminal.
The battery is vented to the outside to prevent
gases from entering the vehicle interior. Make
sure that the jumper clamps are well connected
with their metal parts in full contact with the
battery terminals .
.&. WARNING
t-==
To avoid serious personal injury and damage
to the vehicle, heed all warnings and instruc­
tions of the jumper cable manufacturer. If in
doubt, call for road service.
-
Jumper cables must be long enough so that
the vehicles do not touch.
-
When connecting jumper cables, make s u re
that they cannot get caught in any moving
parts in the engine compartment.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS q page 236.
289

Downloaded from www.Manualslib.com manuals search engine Emergency situations
CD Note
Improper hook-up of jumper cables can ruin
the generator.
- Always
connect P O SITIVE( +) to POSITIVE
(+),and N EGATIVE( -) to NEGATIVE( -)
ground post of the battery manager control
u
nit.
-
Check that a ll screw p lugs on the battery
cells are screwed in firmly . If not, tighten
plugs p rior to connecting clamp on negative
b at
tery te rminal.
- Pl
ease note that the procedure fo r con nect­
i ng a
jumper cable as describ ed above ap­
plies specifica lly
to the case of yo ur vehicle
being
jump started . When you are giv ing a
ju
mp start to another vehicle , d o not con­
n e
ct the negative(-) c a ble to the negative
(-) terminal o n the dis ch a rged battery @
¢ fig . 214. Instead , securely connect the
negative(-) cable to either a solid metal
component that is fir m ly bolted to the en­
gine block or
to the engine bloc k itself. If
the battery that is bei ng cha rged does not
vent to the outside, escaping battery gas
could ignite and exp lode!
Towing with a tow truck
General hints
Your Audi requires special handling for towing .
The follow ing information is to be used by com­
mercia l
tow truck operators who know how to op­
erate their equipment sa fe ly .
- Never tow your Audi. Towing will cause dam­
age to the engine and transmission.
- Never wrap
the safety chains or winch cables
around
the brake lines.
-
To prevent unnecessary damage, your Audi
must be transported with a flat bed truck.
-
To load the vehicle on to the flat bed, use the
towing loop found in the vehicle tools and at­
tach
to the front or rear anchorage
¢page 290 and ¢page 291.
290
A WARNING
A veh icle being towed is not safe for passen­
gers . Neve r allow anyone to ride in a vehicle
be ing
towed, fo r any reason.
Front towing loop

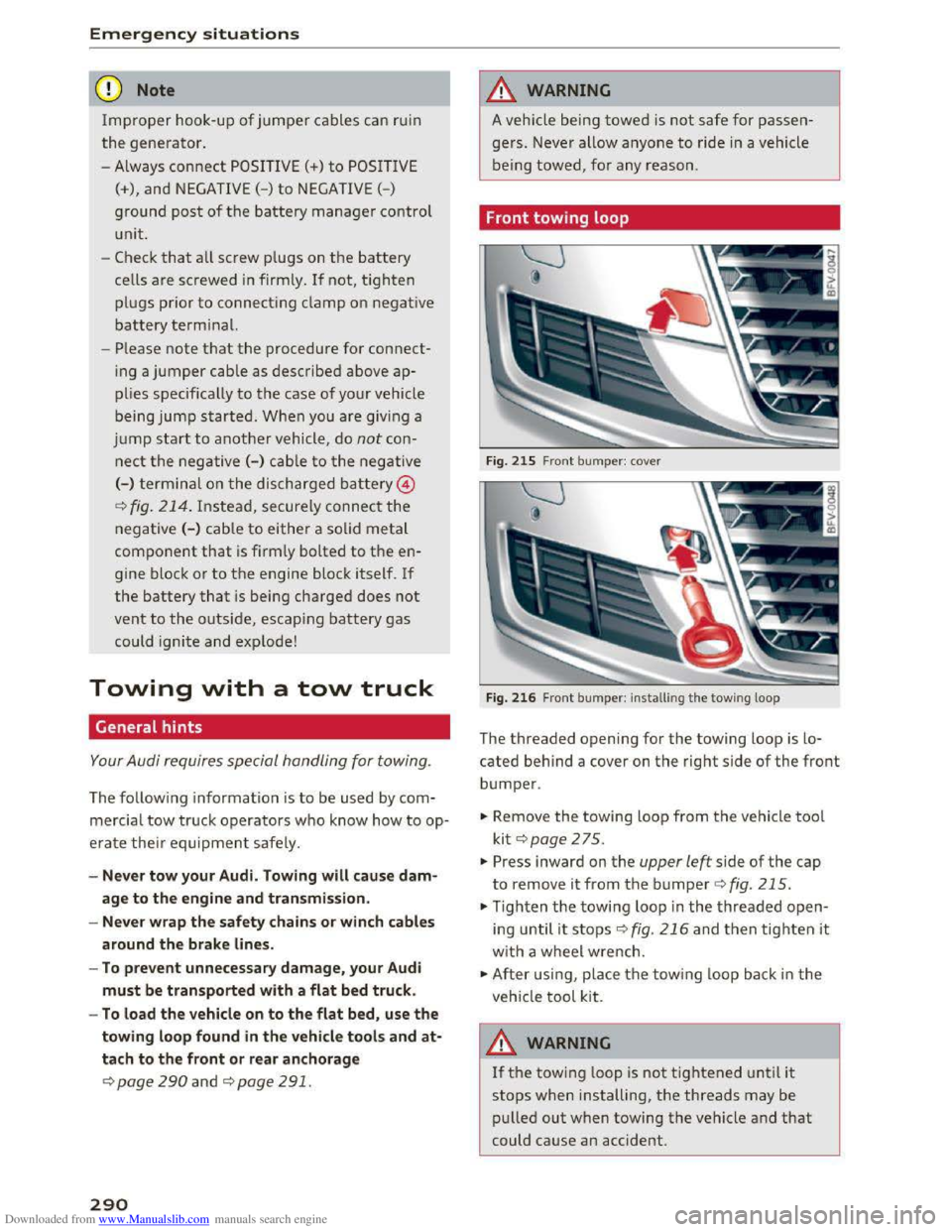

Fig. 215 Front bum per: co ver
Fig. 2 16 Front bum per: install ing the to win g loop
The threaded opening for the towing loop is lo­
cated behind a cove r on the rig ht side of the front
bumper.
.. Remove the towing loop from the vehicle tool
kit¢ page 275.
.. Press inward on the upper Left side of the cap
to remove it from the b umper¢ fig. 215.
.,. T ighten the towing loop in the threaded o pen­
ing
until i t s tops¢ fig. 216 a nd then tighten it
w it h a
wheel w re nch.
.,. After using, place the towing loop back in the
veh icle tool kit.
A WARNING
If t h e t ow ing loop is not tightened until it
stops when installing, the threads may be
pu lled out when towing the vehicle and that
could cause an accident.

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
Rear towing loop

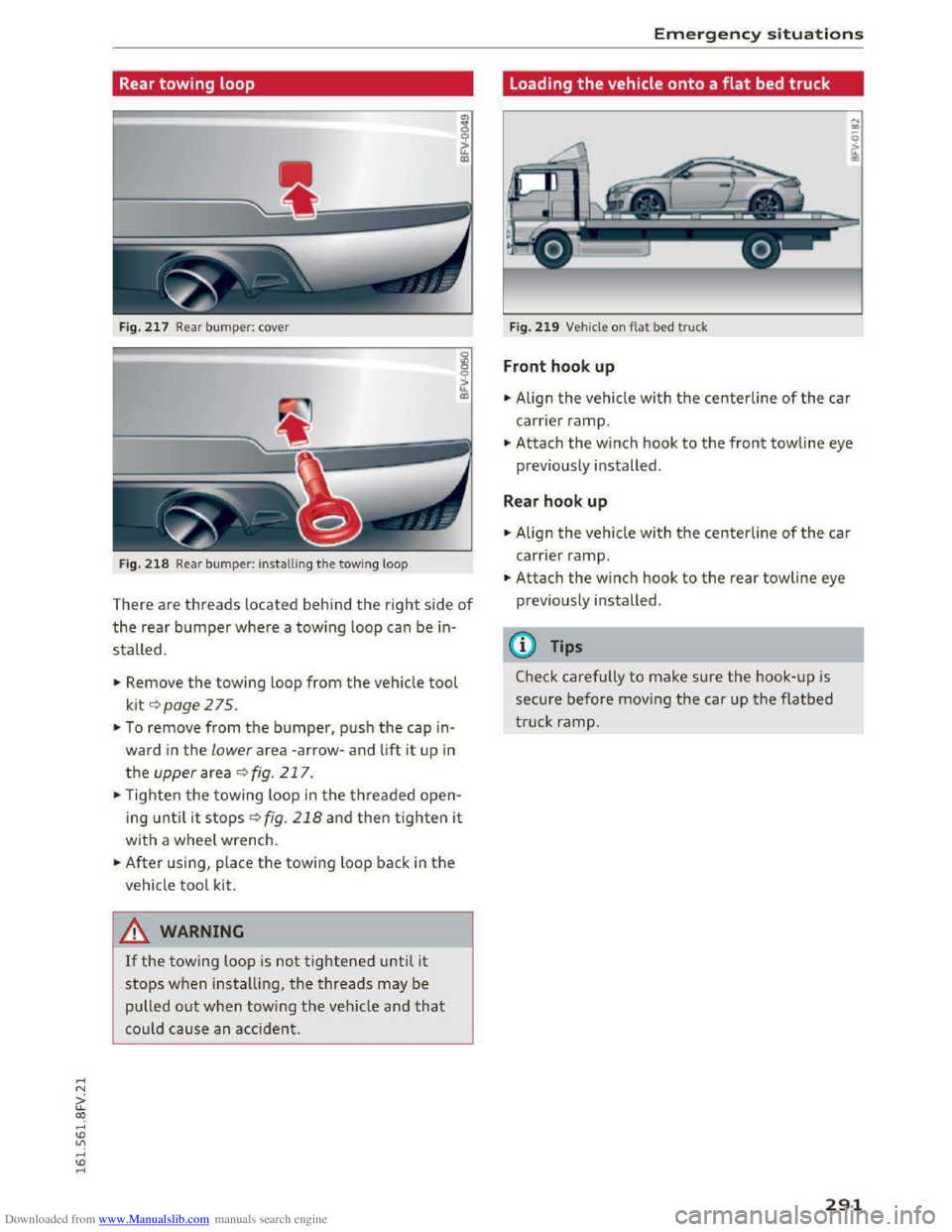

Fig. 217 Rea r bumper: cove r
Fig.
218 Rea r bumper: installing the towing loop
There are threads located behind the right side of
the rear bumper where a towing loop can be in­
stalled.
... Remove the towing loop from the vehicle tool
kit¢poge275.
... To remove from the bumper, push the cap in­
ward in the lower area -arrow-and lift it up in
the upper area ¢ fig. 217 .
... Tighten the towing loop in the threaded open­
ing until it stops ¢fig. 218 and then tighten it
with a wheel wrench .
... After using, place the towing loop back in the
vehicle tool kit .
.&. WARNING
If the towing loop is not tightened until it
stops when installing, the threads may be
pulled
out when towi ng the veh icle and that
could cause an accident .
-
Emergency situations
Loading the vehicle onto a flat bed truck
Fig. 219 Vehicle on flat bed tru ck
Front hook up
... Align the vehicle with the centerline of the car
carrier ramp.
N 00
~ ...
"'Attach the winch hook to the front towline eye
previously installed.
Rear hook up
"'Align the vehicle with the centerline of the car
carrier ramp.
"'Attach the winch hook to the rear towline eye
previously installed.
@Tips
Check carefully to make sure the hook-up is
secure before moving the car up the flatbed
truck ramp .
291

Downloaded from www.Manualslib.com manuals search engine Emergency situations
Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only be li~ed at the lifting
points illustrated.

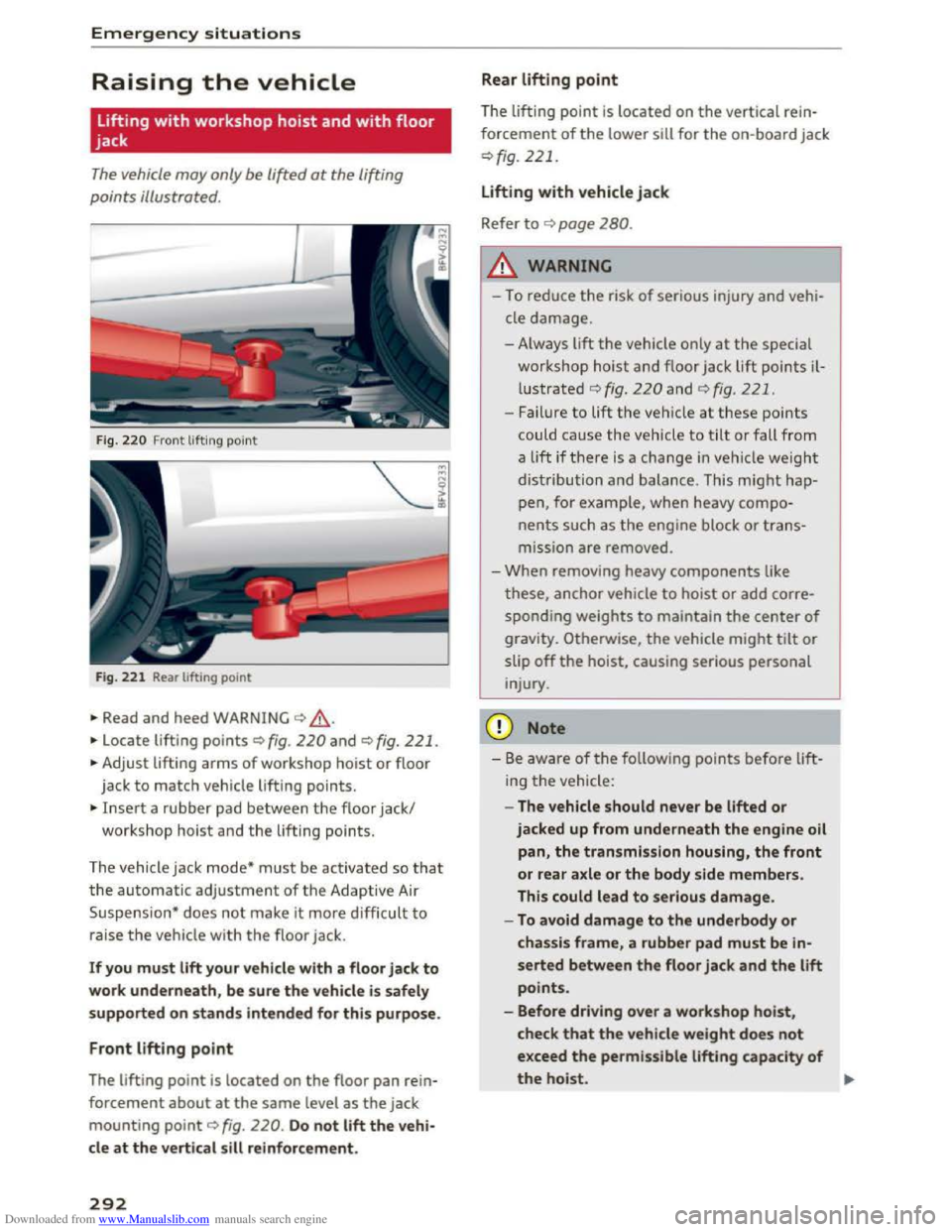

Fig. 220 Front lifting point
Fig.
221 Rear lifting point
.,. Read and heed WARNING¢_&,
.,. locate lifting points ¢ fig. 220 and¢ fig. 221.
.,. Adjust lifting arms of workshop hoist or floor
jack
to match vehicle lifting points.
.,. Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
The vehicle jack mode*
must be activated so that
the automatic adjustment of the Adaptive Air
Suspension*
does not make it more d ifficult to
raise the vehicle with the floor jack.
If you must lift your vehicle with a f loor jack to
work underneath, be s ure the ve hicle is safely
s
upported on stands i ntended for this purpos e .
Front lifting point
The lifting point is located on the floor pan rein­
forcement about at the same level as the jack
mounting point¢ fig. 220. Do not lift the vehi­
cle at the vertical sill reinfor cement.
292
Rear lifting point
The lifting point is located on the vertical rein­
forcement of the lower sill for the on-board jack
¢fig. 221.
Lifting with vehicle jack
Refer
to¢ page 280 .
..&. WARNING
-To reduce the r isk of serious injury and vehi­
cle damage.
-Always lift the vehicle only at the special
workshop
hoist and floor jack lift points il­
lustrated ¢fig. 220 and ¢fig. 221.
-Failure to lift the vehicle at these points
could cause
the vehicle to tilt or f all from
a lift ifthere is a change in vehicle weigh t
distribution
and balance. This might hap­
pen, for example, when heavy compo­
nents such as the engine block or trans­
mission are removed.
-
When removing heavy components like
these, anchor vehicle to hoist or add corre­
sponding weights to maintain the center of
gravity. Otherwise, the vehicle might tilt or
slip off the hoist, causing serious personal
injury .
CD Note
-Be aware of the following points before lift­
ing the vehicle:
- The vehicle
should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage.
-To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points.
- Before driving over a work shop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist. ..,.

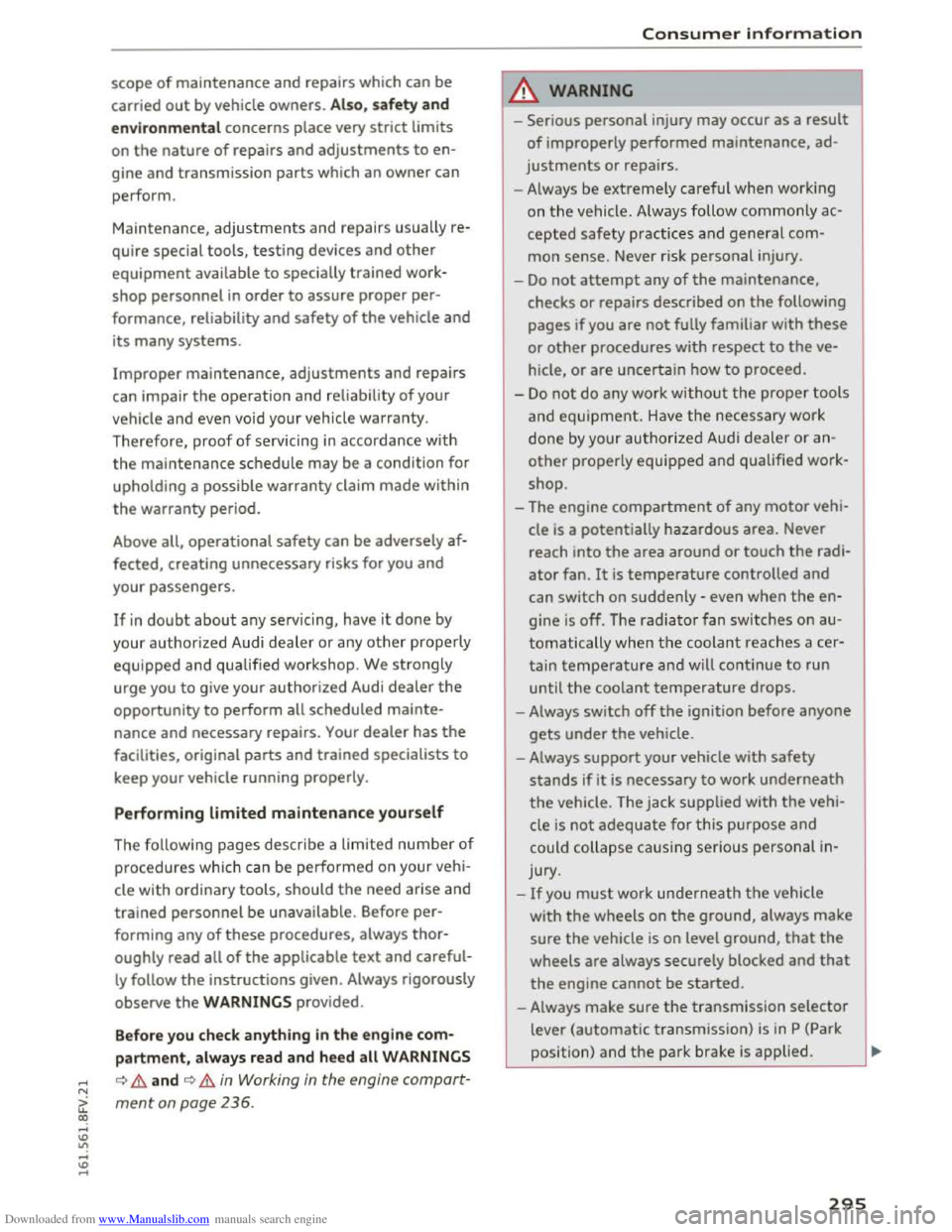

Downloaded from www.Manualslib.com manuals search engine scope of maintenance and repairs which can be
carried
out by vehicle owners. Also, safety and
e n viro n
mental concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can
perform.
Maintenance,
adjustments and repairs usually re­
quire special tools, testing devices and other
equipment available to specially trained work­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty.
Therefore, proof of servicing in accordance w ith
the maintenance schedule may be a condition for
upholding a possible
warranty claim made within
the warranty period.
Above all,
operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any ser vicing, have it done by
your authorized Audi dealer or any other properly
equipped and qualified workshop. We strongly
urge you to give your authorized Audi dealer the
opportunity to perform all scheduled main te­
nance
and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to
keep your vehicle running properly.
Performing limited maintenance yourself
The follow ing pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary
tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­
ly follow the instructions given. Always rigorously
observe the WARNINGS provided .
Before you check anything in the e ngine com ­
partment , always read and heed all WARNINGS
..... c::> &. and c::> &. in Working in the engine compart-N
c;: ment on page 236.
co ..... U)
"' ..... U) .....
"'
Consumer information
A WARNING
-Serious personal injury may occur as a result
of improperly performed maintenance, ad­
justments or repairs.
-Always be extremely careful when working
on
the vehicle. Always follow commonly ac­
cepted safety practices and general com­
mon sense. Never risk personal injury.
-
Do not attempt any of the maintenance,
checks or repairs described on the following
pages if you are not fully familiar with these
or other procedures with respect to the ve­
hicle,
or are uncertain how to proceed.
-
Do not do any wor k without the proper tools
and equipment. H ave the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
-The engine compartment of any motor vehi­
cle is a
potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly -even when the en­
gine is off. The
radiator fan switches on au­
tomatically when th e coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle.
- Always
support your vehicle with safety
stands if it is necessary to work underneath
the vehicle. The jack supplied with the vehi­
cle is
not adequate for this purpose and
could collapse causing serious personal in­
jury.
-
If you must work underneath the vehicle
with
the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
-Always make sure the transmission selector
lever (automatic transmission) is in P (Park
position) and the pa rk brake is applied. .,..
295
