Monitoring the
Advanced Airbag System
Airbag monitoring indicator light
Two separate indicators monitor the fun ction of
the A dvanced Airbag System: the
El ligh t and
t he
PASSENGER AIR BAG OFF ~; ON @ Light.
The Advanced Airbag System as we ll as the side
a ir bags and side c urta in air bags with ejec tion
m it iga tion fea tures ( in cludi ng the e lectro nic con­
tro l uni t, sensors and sys tem wiring) are a ll
monitored co nti nu ously to ma ke sure that they
are funct ioning properly whenever the ignition is
on. Every t ime you turn on the ignition, the air­
bag system ind icator
light E,lwill come on for a
few seconds (function check).
The system must be inspected when the
indicato r light
E,I:
- does not come on when the ignit ion is switched
on,
- does not go out a few seconds after you have
switched on the ign ition, o r
- comes on w hile driving.
If an airbag sys tem malf unct ion is de te cte d, the
indicator light w ill come on to serve as a co nstant
remi nder to have the system inspected immedi­
ately .
If a mal function occurs that turns the front air­
bag on the passenger side off, the
PASSENGER
AIR BAG OFF~.
lig ht w ill come o n an d stay on
whenever the ignit ion is on.
A WARNING
An airbag system that is not funct io ning prop­
erly cannot provide supplemental p rotection
in a frontal crash .
- If the airbag indicato r light¢
page 15
comes whe n the vehicle is be ing used, have
th e sys te m in spect ed immed iate ly by yo ur
au tho riz ed Aud i deale r.
It is possible that
th e air bag will i nflate w hen it i s n ot su p­
p osed to, o r will not infla te whe n it shou ld.
Airbag system
PASSENGER AIR BAG OFF '1; ON @ light
Fi g. 163 Sect io n from t he headli ner: PASSENGE R AIR BAG
OFF~ ; ON
@ light
T he PASSENGER AIR BAG OFF~; ON @ light is
located in t he headliner ¢
fig. 163.
The PASSENGER AIR BAG OFF~; light will come
o n and stay on to tell you w hen t he fro nt Ad­
van ced Air bag o n the p assenge r side has been
tu rned
off by t he e lec tron ic control unit. If the
bulb fo r the
PASSENGER AIR BAG OFF~; ON @
light b urns o ut, t he a irbag ind icator light El w ill
come on to signal a ma lfunction in the Advanced
Airbag System. Altho ugh the burned-out b ulb
will not change the way the front passenger's
frontal a irbag works, it w ill no longer be possible
to use the
PASSENGER AIR BAG OFF~; ON @
ligh t to make s ure that the airbag on/off s tatus is
c or rec t fo r th e o ccu pan t on the front passenge r
sea t. Have the airb ag system inspec ted immedi­
ate ly by yo ur au thorized A udi d ealer .
The PASSENGER AIR BAG OFF~; ON @ light
will blink for about S seconds when:
- the capacit ive passenger detection system,
which switc hes the front sea t passe nger's fron ­
tal Advanced Airbag o n and off, detects a
change in the st atus of the front pa sse nger
se at.
As soon as the
PASSENGER AIR BAG OFF~; ON
@ light s tops blin kin g, a lways make sure that the
air bag st atus (on o r off) as shown by the ligh t is
prope r for the age, size and e lec trica l capacitance
of t he perso n occ up ying the front passenger
seat . Always ma ke sure that the safety be lt fo r
t h e front passenger seat is proper ly fastened .
The PASSENGER AIR BAG OFF~;/ PASSENGER
AIR BAG ON
@ light will show the statu s of the ..,.
209

Airbag syste m

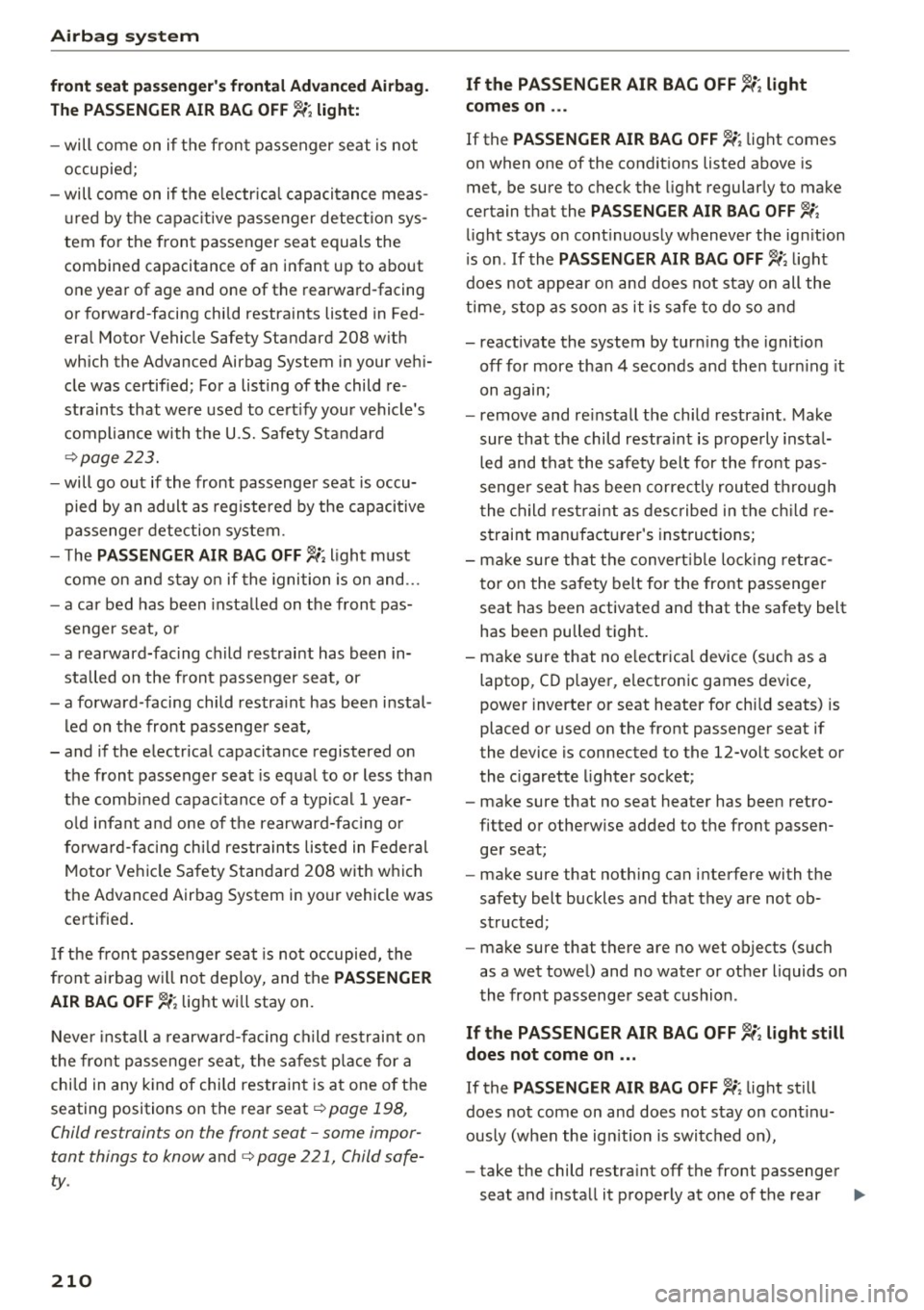

front seat p assenge r's frontal Advanced Airbag.
Th e PAS SENGER AIR BAG OFF~; light:
-will come o n if the front pa ssenger seat is not
occupied;
- will come on if the e lectr ica l capacitance meas­
u red by the c apac itive passenger detec tion sys ­
tem for the front passenger seat equals the
combined capacitance of an infant up to about
one year of age and one of the rearward-facing
or forward-facing child rest raints listed in Fed­
eral Motor Vehicle Safety Standard 208 with
which the Advanced Ai rbag System in your veh i­
cle was certif ied; Fo r a listing of the child re­
straints that were used to cert ify your vehicle's
compliance with the U .S. Safety Standard
¢ page 223.
-will go out if the front passenger seat is occu­
pied by an adult as reg istered by the capacitive
passenger detection system.
- T he
PAS SENG ER AIR BAG OFF~; light must
come on and s tay o n if the ignition is on and . ..
- a car bed has been insta lled on the front pas­
senger seat, o r
-a rearward-fac ing ch ild restrai nt has been in­
stalled on the front passenger seat , or
- a forward-facing child restra int has bee n in stal ­
led on the front passenger seat,
- and if the e lectrical capacitance registered on
the front passenger seat is equa l to or less than
the comb ined capac itance of a typical 1 year­
o ld infant and one of the rearward-fac ing o r
fo rward -fa cing chi ld restrain ts lis ted in Federal
Motor Veh icle Safety Standard 208 with w hich
the Advanced Airbag System in yo ur vehicle was
certified .
I f the fron t passe nger seat is no t occ upied, the
front ai rbag w ill not dep loy, and the
PASSENGER
AIR BAG OFF~;
light wi ll stay on.
Never i nstall a rearward-facing child rest raint on
t he front passenge r sea t, the safes t place for a
chi ld in any kind of child restraint is at one o f the
seating positions on the rea r seat ¢
page 198,
Child restraints on the front seot -some impor­
tant things to know
and ¢ page 221, Child safe ­
ty .
210
If the PASSENGER AIR BAG OFF~; light
com es on ...
If the PASSENGER AIR BAG OFF~; light comes
on when one of the condit ions listed above is
met, be sure to check the light regularly to make
certain t hat the
PASSENGER AIR BAG OFF~;
light stays on cont inuously whenever the ign ition
i s on . If the
PASSENGER AIR BAG OFF~; light
does not appear on and does not stay on all the
time, stop as soon as it is safe to do so a nd
- reactivate the system by tur ning the ignit ion
off for more than 4 seconds and then tur ning it
on again;
- remove and re install the ch ild restraint. Make
sure that the child restra int is prope rly insta l­
led and that the safety belt for the front pas­
senge r sea t has bee n corre ct ly rou ted th rough
t he child restraint as desc ribed in the ch ild re­
straint man ufact urer's inst ruc tions;
- ma ke sure that the convert ible loc king retr ac­
to r on the safety belt for the front passenge r
seat has been activated and that the safety belt has been pulled tight .
- ma ke sure that no e lectrica l device (s uch as a
laptop , CD p layer , e lectronic games device,
power inverte r or seat heater for chi ld seats) is
placed or used on the front passenger seat if
the device is connected to the 12-volt socket or
the c igarette lighter socket;
- make sure that no seat heater has been retro­
fitted or otherw ise added to the front passen­
ger seat;
- make sure that noth ing can interfere with the
safety belt buckles and that they are not ob­
struc ted;
- make sure that there are no wet objects (such
as a wet towe l) and no water or other liquids on
the front passenger seat cushion .
If the PASSENGER AIR BAG OFF~; light still
does not come on ...
If the PASSENGER AIR BAG OFF~; light st ill
does not come on and does not stay on cont in u­
ous ly (when the ign ition is switched o n),
- take the child restra int off the front passenger
seat and install it properly at one of the rear
ll-

co
co
.... N
" N .... 0
0
Vl c:o
seat positions. Have the airbag system inspect­
ed by your Audi dealer immediately.
- move the chi ld to a rear seat position and make
sure that the child is properly restrained in a
child restraint that is appropriate for its size
and age.
Th e PASSENGER AIR BAG OFF ~ ; light
s h ould NOT com e on ...
The PASS ENGER AI R BAG OFF ~ ; light should
NO T come on when the ignition is on and an
adult is sitting in a proper seating position on the
front passenger seat . If the
P ASS ENGER AIR
BAG OFF ~;
light comes on and stays on while
driving, under these circumstances, make sure
that :
- the adult on the front passenger seat is proper­
ly seated on the center of the seat cushion with
his or he r back up aga inst the backrest and the
back rest is not reclined,
- the adult is not tak ing weight off the seat by
ho lding on to the passenger assist handle
above t he front passenger door or supporting
their weight on the a.rm rest,
- the safety belt is be ing properly worn and that
there is not a lot of slack in the safety belt web­
bing,
- there are no aftermarket seat covers or cush ­
ions or other things (such as blankets) on the
front passenger seat that migh t ca use the ca­
pacitive passenger detection system to miscal­
cu late electrical capacitance .
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
-If the status of the Adv a need A irbag System
has changed while the vehicle is moving, the
PASSENGER AIR BAG OFF,;; ON @ light
blinks for about 5 seconds to catch the driv­
er's attention .
If this happens, always stop
as soon as it is safe to do so and check the
steps described above .
- If the
PASSENGER AIR BAG OFF,;; light
does not go off when an adult who is not
very small is s itting on the front passenger
-
Airb ag sys tem
seat after taking the steps described above,
make sure the adu lt is properly seated and
restrained at one of the rear seating posi­
tions . Have the a irbag system inspected by
your author ized Audi dealer before trans­
port ing anyone on the front passenger seat.
A WARNING
f-
An a irbag system that is not functioning prop-
e rly cannot prov ide supplemental protect io n
i n a front al crash.
- I f the ai rbag ind icator light
~page 15
comes when the veh icle is being used, have
the system inspected immedia tely by your
authorized Audi dealer . It is possib le that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
A WARNING
If the front airbag inflates, a ch ild without a
chi ld restraint, or in a rearward-facing child
safety seat, or in a forward-fac ing child re­
stra int that has not been properly insta lled
will be seriously injured and can be killed.
- Even though your vehicle is equipped with
an Advanced A irbag System, make certain
that all children , espec ially 12 years and
younge r, always ride on the back seat p rop­
erly rest rained for the ir age and s ize .
- Always install fo rwa rd or rear-facing child
seats on the rea r seat- even w ith an Ad­
vanced Ai rbag System .
- I f you must install a rea rwa rd-facing child
seat on the front passenge r seat because of
except ional circumstances a nd the
PASSEN­
GER AIR BAG OFF,;,
light does not appea r
and stay on, immediate ly install the rear ­
facing chi ld seat in a rear seating position
and have the airbag system inspected by
your Aud i dea ler.
- If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the seat into its rearmost position in the seat's
fore and aft ad justment range, as far away
from the a irbag as poss ible . The back rest
m ust be adjusted to an upr ight position .
211

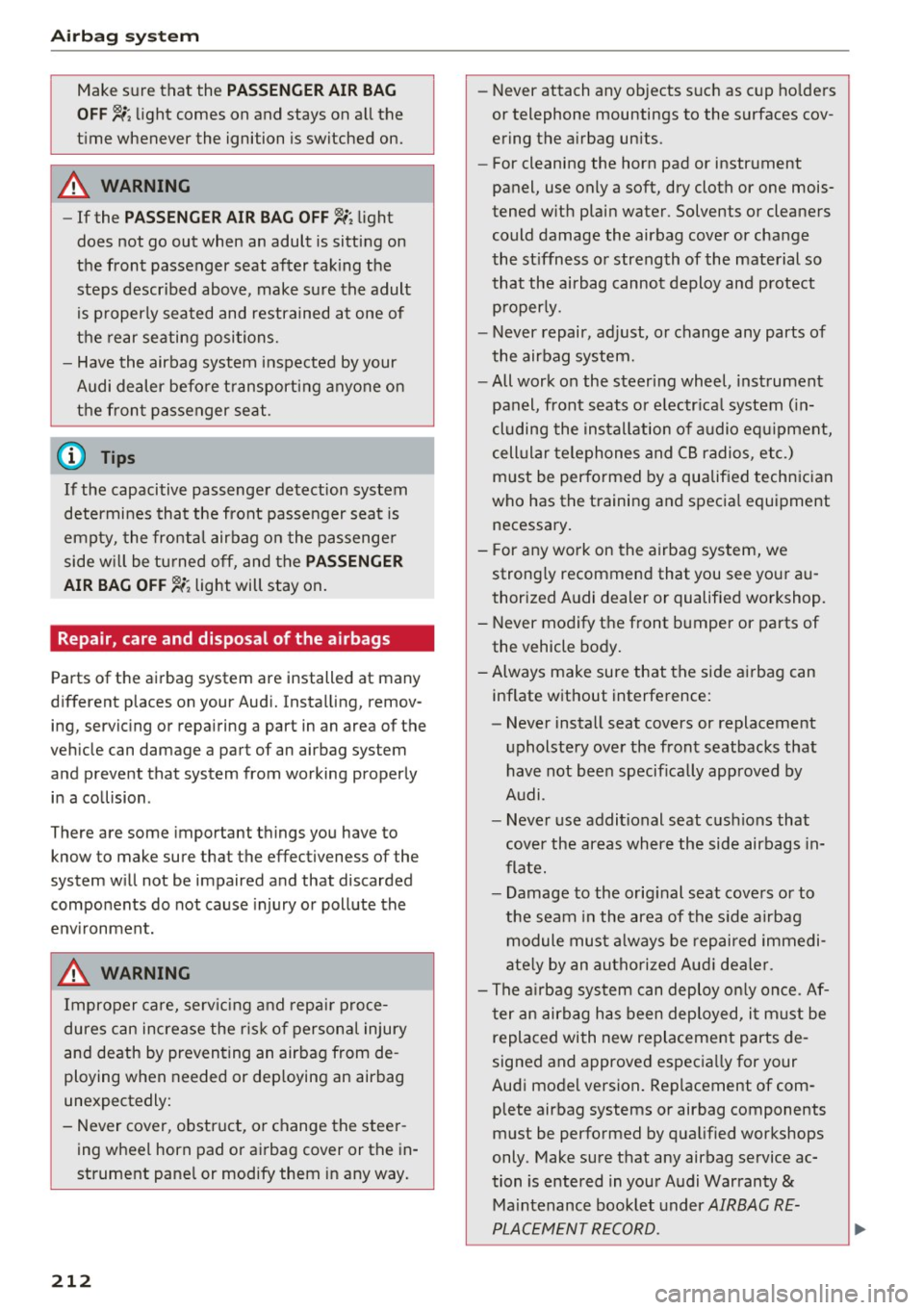

Airbag syste m
Make sure that the PASSENGER AIR BAG
OFF
11;; li ght comes on and stays on all t he
t ime whenever the ignition is switched on.
A WARNING
-
- If the PA SSEN GER AIR BAG OFF 11;; light
does not go out when an adult is si tting on
the front passe nger seat a fter ta king the
steps described above, make sure the adult is p roperly seated and restrained at one of
the rear seating positions.
- Have the airbag system inspected by your
Audi dealer befo re t ransporting anyone on
the front passenger seat.
@ Tips
If the capacitive passenger detection system
determines that the front passenger seat is
empty, the frontal airbag on the passenge r
side w ill be tu rned off, and the
PASSENGER
AIR BAG OFF
11;; light will stay on.
Repair , care and disposal of the airbags
Parts of the a irbag system are installed at many
different places on your Audi. Installing, remov­ ing, servic ing or repa iring a part in an area of the
ve hicle can damage a part of an airbag system
and prevent that system from working properly
i n a collision .
There are some important things you have to
know to make sure that the effectiveness of the
system w ill not be impaired and that discarded
components do not cause injury or pollute the
env ironment.
A WARNING
Improper care, serv icing and repai r proce­
dures can increase the r is k of personal injury
and death by preventing an airbag from de­
ploying when needed or dep loying an airbag
unexpectedly:
-
- Never cover, obstruct, or change the stee r­
ing wheel horn pad or airbag cover or the in­
strument pane l or modify them in any way.
212
- Never attach any objects s uch as c up ho lders
or telephone mountings to the surfaces cov­
ering the a irbag un its.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one mois­
tened w ith plain water. Solvents or cleaners
could damage the airbag cover or change
the st iffness or strength of the material so
that the airbag canno t deploy and p rotect
properly.
- Never repair, adjust , or change any parts of
the airbag system.
- All work on the steering wheel, inst rument
panel, front seats or e lectr ica l system ( in­
cluding the installation of a udio eq uipment,
cellular telephones and C B radios, etc.)
m ust be perfo rmed by a qualified techn ician
who has the training and specia l equipment
necessary.
- For any work on the airbag system, we strong ly recommend that you see your au­
thorized A udi dealer or qualified workshop.
- Never modify the front b umper or parts of
the vehicle body.
- Always make sure that the side a irbag can
inflate w ithout interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
A udi.
- Never use additional seat c ushions that
cover the areas where the side airbags in­
flate.
- Damage to the orig inal seat cove rs or to
the seam in the area of the s ide airbag
module mus t alway s be repaired immedi­
ate ly by an autho riz ed Au di dealer.
- The a irbag system can deploy on ly once. Af­
ter an airbag h as been deployed, i t m ust be
repla ced with new replacement parts de­
signed and approved espec ia lly for your
Audi model version . Replacement of com­
plete airbag systems or airbag components
must be perfo rmed by qua lified workshops
only. Make su re that any airbag service ac­
tion is entered in your A udi Warranty
&
Ma intenance boo klet under AIRBAG RE-
PLAC EM EN T RECORD.
~

CD
CD
.... N
" N ...... 0
0
Ill co
-For safety reasons in severe accidents, the
alternator and starter are separated from
the vehicle battery with a pyrotechn ic circuit
interrupter.
- Work on the pyrotechnic circ uit interrupt ­
er must only be performed by a qualified
technicians who have the experience, in ­
formation and special tools necessary to
perform the work safely.
- If the vehicle or the circuit interrupter is
scrapped, all app licab le safety precautions
must be followed .
@) For the sake of the environment
Undeployed airbag modu les a nd pretension ­
ers might be classified as Perch lorate Materi­
al -special handling may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
rate. When the vehicle or parts of the re­
straint system including airbag modules and
safety belts with pretensioners are scrapped,
all applicable laws and regulations must be
observed. Your authorized Audi dealer is fa­
m iliar with these requi rements a nd we recom­
mend t hat you have you r dealer perform this
service for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System
performs in a crash . For example, using tire-r im
comb inat ions not approved by Audi, lowering the
ve hicl e, chang ing the stiffness of the suspens io n,
in clud ing the spr ings, suspens ion str uts, shock
absorbers et c. can change the forces that are
measured by the airbag sensors and sent to the
e lectronic contro l unit. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in wh ich it would not deploy if
the changes had not been made. Other ki nds of
changes may reduce the fo rce levels meas ured by
the sensors and prevent the airbag from deploy­
in g when i t should .
Airbag sys tem
A WARNING
-Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious persona l injury in a
crash.
- Never install suspension components that
do not have the same pe rformance charac­
teristics as the components o rigina lly ins tal­
led on your vehicle.
- Never use tire-rim combinations t hat have
not been approved by Audi.
Knee airbags
Description of knee airbags
The knee airbag system can provide supplemen­
tal protection to prop erly restrained front sea t
occupants.
F ig. 16 4 D river 's knee a irbag
The driver knee airbag is in the instrument panel
u nderneath the steering whee l
~fig. 164, the
airbag fo r the p asse nger is at about the same
height in the instr ument pane l underneath the
glove compa rtment.
T he knee airbag offers add itiona l protection to
the driver's and passenge r's knees and uppe r and
lower thigh areas and supp lements the protec­
tion provided by the safety be lts .
If the front airbags deploy, the knee airbags a lso
deploy in fron tal coll is ions when the deploymen t
threshold stored in the cont rol un it is me t
~ page 207, More important things to know
about front airbags.
213

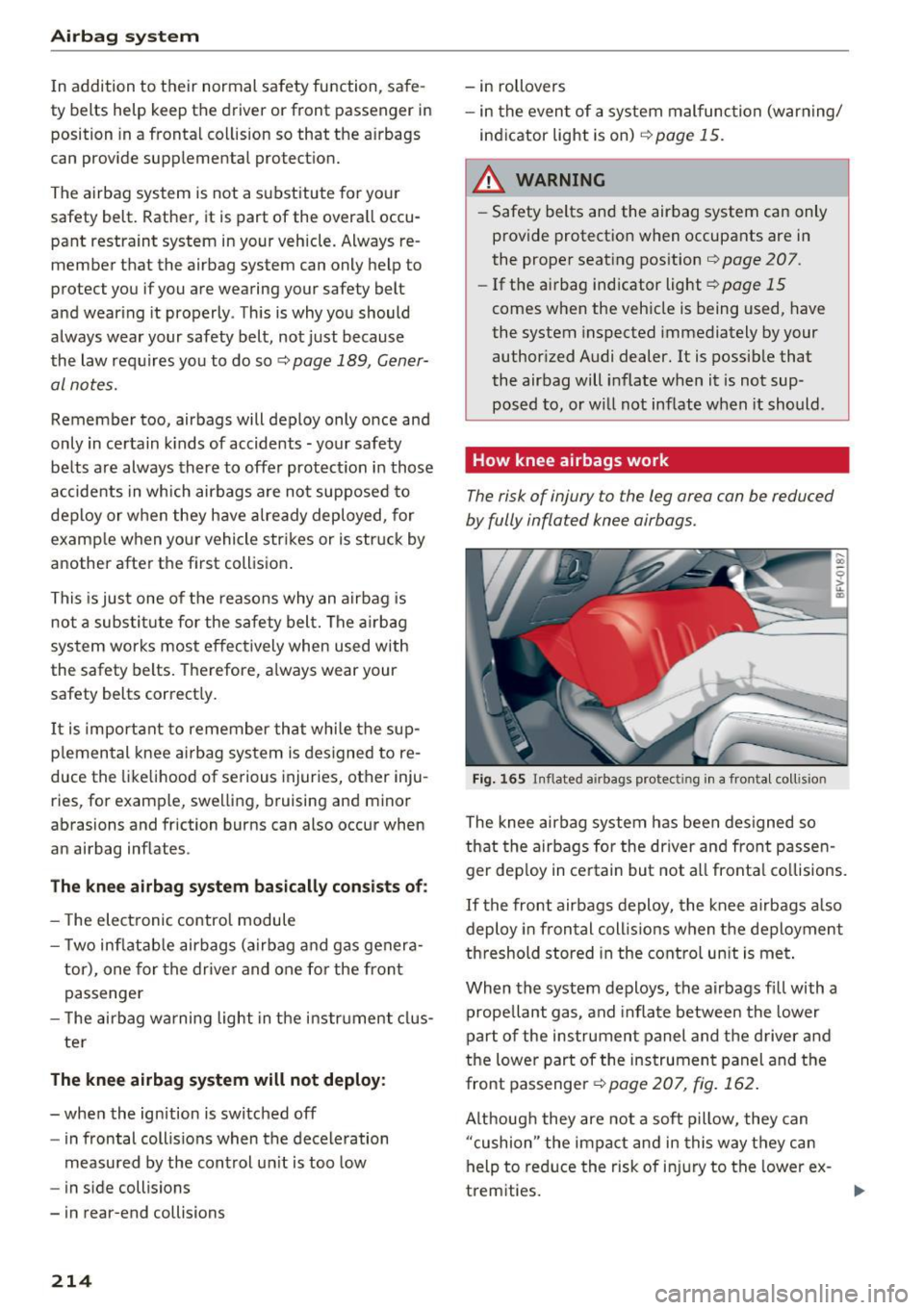

Airbag system
In addition to their normal safety function, safe­
ty belts help keep the driver or front passenger in
position in a frontal collision so that the airbags
can provide supplemental protection.
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overa ll occu­
pant restraint system in your vehicle. Always re­ member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly . This is why you should
always wear your safety belt, not just because
the law requires you to do so ¢
page 189, Gener­
al notes.
Remember too, airbags will deploy only once and
only in certain k inds of accidents - your safety
belts are always there to offer protection in those
accidents in which airbags are not supposed to
deploy or when they have already deployed, for
examp le when your vehicle str ikes or is struck by
another after the first collision .
This is just one of the reasons why an airbag is
not a substitute for the safety belt. The a irbag
system works most effectively when used with
the safety belts. Therefore, always wear your
safety belts correct ly.
It is important to remember that while the sup­
p lemental knee airbag system is designed to re­
duce the likelihood of serious injuries, other inju ­
ries, for example, swe lling, bruising and minor
abrasions and friction burns can also occur when
an airbag inflates .
The knee airbag system basically consists of:
- T he electronic control module
- T wo inflatab le airbags (airbag and gas genera-
tor), one for the driver and one for the front
passenger
- The airbag warning light in the instr ument clus­
ter
The knee airbag system will not deploy:
-whe n the ignition is switched off
- in frontal collisions when the deceleration
measured by the control un it is too low
- in side collisions
- in rear-end collisions
214
- in rollovers
-in the event of a system malfunction (warning/
indicator light is on)
¢ page 15.
A WARNING
-Safety belts and the airbag system can only
provide protection when occupants are in
the proper seating position¢
page 207 .
-If the airbag indicator light¢ page 15
comes when the veh icle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How knee airbags work
The risk of injury to the leg area con be reduced
by fully inflated knee airbags.
Fig. 165 I n flated a irbags protect ing in a fro nta l coll ision
The knee airbag system has been designed so
that the airbags for the dr iver and front passen­
ger dep loy in certain but not all fronta l collisions .
If the front airbags deploy, the knee airbags also
deploy in frontal collisions when the deployment
threshold stored in the control unit is met .
When the system deploys, the airbags fill with a
prope llant gas, and inflate between the lower
part of the instrument panel and the driver and
the lower part of the instrument panel and the
front passenger
¢page 207, fig. 162 .
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the lower ex­
tremities.

CD
CD
.... N
" N ,....,
0
0
Ill co

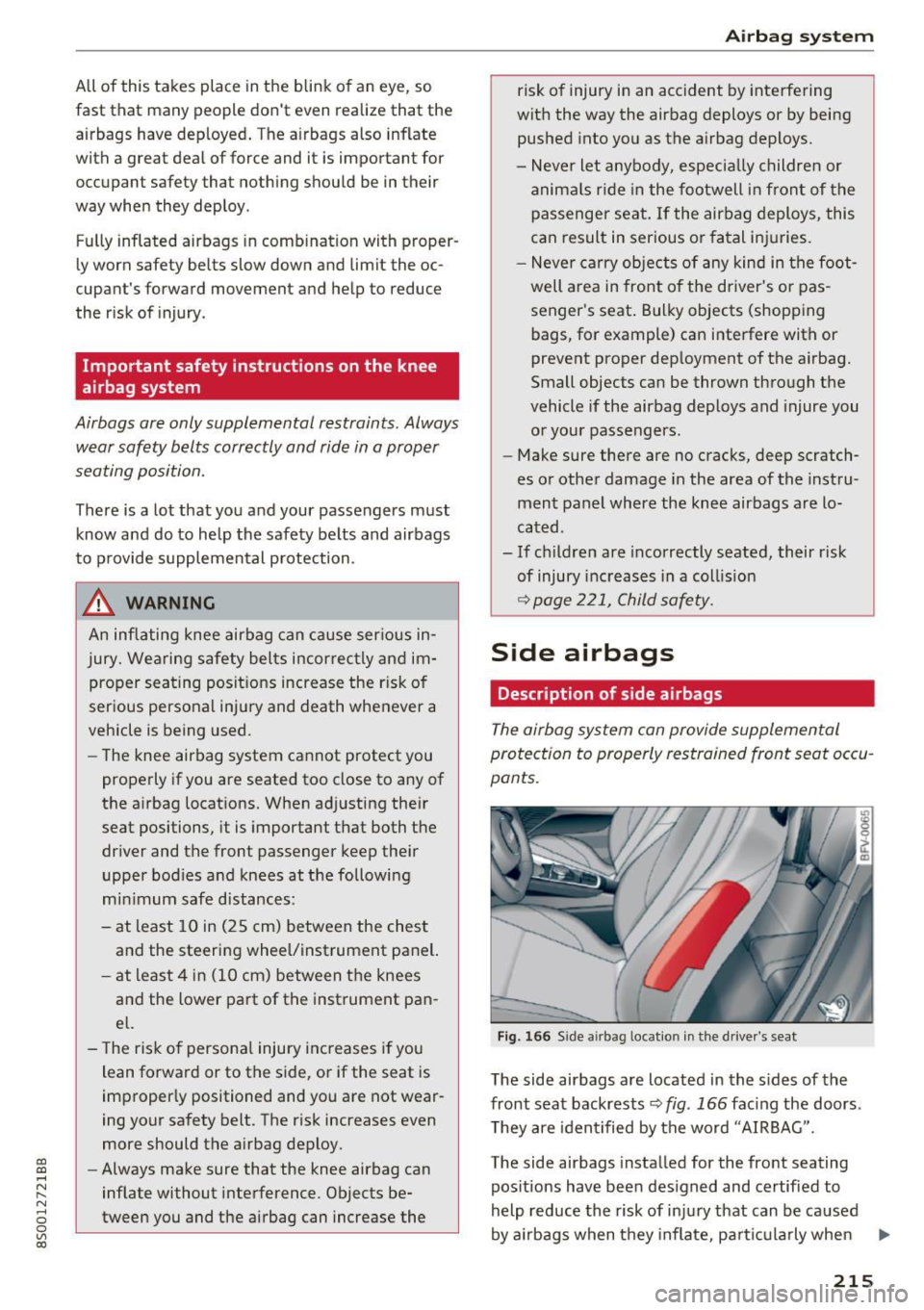

All of this takes place in the blink of an eye, so
fast that many people don't even realize that the airbags have deployed . The airbags also inflate
with a great deal of force and it is important for
occupant safety that nothing should be in their
way when they deploy .
Fully inflated airbags in comb ination with proper­
ly worn safety belts slow down and limit the oc­
cupant 's forward movement and help to reduce
the r isk of injury .
Important safety instructions on the knee
airbag system
Airbags are only supplemental restraints . Always
wear safety belts correctly and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety be lts and airbags
to provide s upplemental protection .
,& WARNING
An inflating knee airbag can cause ser ious in­
jury. Wearing safety bel ts incor rectly and im­
proper seating posit ions increase the r isk o f
serious personal injury and death whenever a
vehicle is being used.
- The knee airbag system cannot protect you
prope rly if you are seated too close to any of
the a irbag locat ions. When ad justing their
seat positions, it is important that both the
dr iver and the front passenger keep their
upper bod ies a nd knees at the following
min imum safe d istances:
- at least 10 in (25 cm) between the chest
and the steering wheel/instrument panel.
- at least 4 in (1 0 cm) between t he knees
and the lower part of the instrument pan ­
el.
- The risk of persona l injury inc reases if you
lean forward or to the side, or if the seat is
imp roper ly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the a irbag deploy.
- Always make sure that the knee airbag can
inflate without interference. Objects be­
tween you and the airbag can increase the
Airb ag sys tem
risk of injury in an accident by interfering
with the way the airbag deploys or by being
pushed into you as the a irbag deploys.
- Never let anybody, especia lly children or
anima ls r ide in the footwell i n fron t of the
passenger seat.
If the airbag deploys, this
can result in serious or fatal in juries.
- Never carry objects of any kind in the foot­
well a rea in front o f the d river's o r pas ­
senger's seat . Bulky objects (shopping
bags, for example) can interfere with or
prevent proper dep loyment of the airbag.
Small objects can be thrown thro ugh t he
vehicle if the airbag deploys and injure you
o r your passengers .
- Make sure there are no cracks, deep scratch­
es o r othe r damage in the area of the inst ru­
ment panel where the knee airbags are lo­
cated .
- If c hildren are incorrectly seated, their risk
of injury inc reases in a coll is ion
~ page 221, Child safety.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu ­
pants.
F ig. 166 Side a irbag locat io n in the drive r's sea t
The side airbags are located in the s ides of the
front seat backrests~
fig. 166 fac ing the doors .
T hey are iden tified by the word "AIRBAG".
The side airbags installed for the front seating
pos itions have been des igned and certified to
help reduce the risk of in ju ry that can be caused
by a irbags when they inflate, pa rticul arly when .,.
215

Airbag system
the occupant sitting next to it is not seated prop­
erly. The side airbag for the front passenger seat
can be used with properly installed child re­
straints. Please be sure to read the important in­
formation and warnings whenever using a child
restraint in a vehicle: Safety belts
Qpage 189,
Airbag system Qpage 197, Child safety
c::;, page 2 21 .
The side airbag system basically consists of:
-the e lectronic control modu le and externa l side
impact sensors
- the two side airbags located in the sides of the
front backrests
- the airbag warning light in the instrument clus-
ter.
The airbag system is monitored electronically to
make certa in that it is functioning properly at all
times. Each time you turn on the ignition, the air­
bag system indicator light will come on for a few
seconds (self diagnost ics).
The side airbag system supplements the safety
be lts and can help to reduce the risk of injury to
the driver 's and front passenger's upper torso on
the side of the vehicle that is struck in a side col­
lision . The airbag deploys in side impacts and on­
ly when the vehicle acceleration registered by the
control unit is high enough. If this rate is below
the reference value programmed into the control
un it, the side a irbags w ill not be triggered, even
though the car may be badly damaged as a res ult
of the collision.
It is not possible to define an air­
bag tr igger ing range that will cover every poss i­
b le ang le of impact, since the circumstances will
vary considerably between one collision and an­
other. Important factors include, for example,
the nature (hard or soft) of the impacting object,
the angle of impact, vehicle speed, etc.
Q page 217, Important safety instructions on
the side airbag system .
Aside from their normal safety function, safety
belts work to help keep the driver or front pas­
senger in pos it ion in the event of a s ide collision
so that the side a irbags can provide protection .
The airbag system is
not a subst itute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle . Always re-
216
member that the side airbag system can only
help to protect you if you are wearing your safety
belt and wearing it properly. This is another rea­
son why you should a lways wear your safety
belts, not just because the law requires you to do
so
Q page 189, General notes.
It is important to remember that while the sup­
plemental side airbag system is designed to re­
duce the likelihood of ser ious injuries, other inju­
ries, for example, swelling, bru is in g, friction
burns and minor abrasions can also be assoc iated
with deployed side airbags. Remember too, side
airbags will dep loy only once and only in certa in
kinds of accidents - your safety belts are always
there to offer protection.
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessarily an ind ication
of over -sens itive or fa iled airbag activation. In
some collisions, both front and side airbags may
inflate. Remember too, that airbags wi ll dep loy
on ly once and on ly in certain kinds of collisions -
your safety be lts are always there to offer protec­
tion in those accidents in which airbags are not
supposed to deploy or when they have already
deployed .
The side airbag system will not deploy:
-when the ignition is switched off
- in side collisions when the acceleration meas -
ured by the sensor is too low
- in front-end collisions
- in rea r-end collisions
- in rollovers .
In some types of accidents the front airbags, side
curtain airbags and side a irbags may be triggered
together .
A WARNING
-Safety belts and the airbag system will only
provide protect ion when occupants are in
the proper seating position
c::;, page 217.
- If the airbag ind icator light Qpage 15
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or wi ll not inflate when it should .

CD
CD
.... N
" N ...... 0
0
Ill co

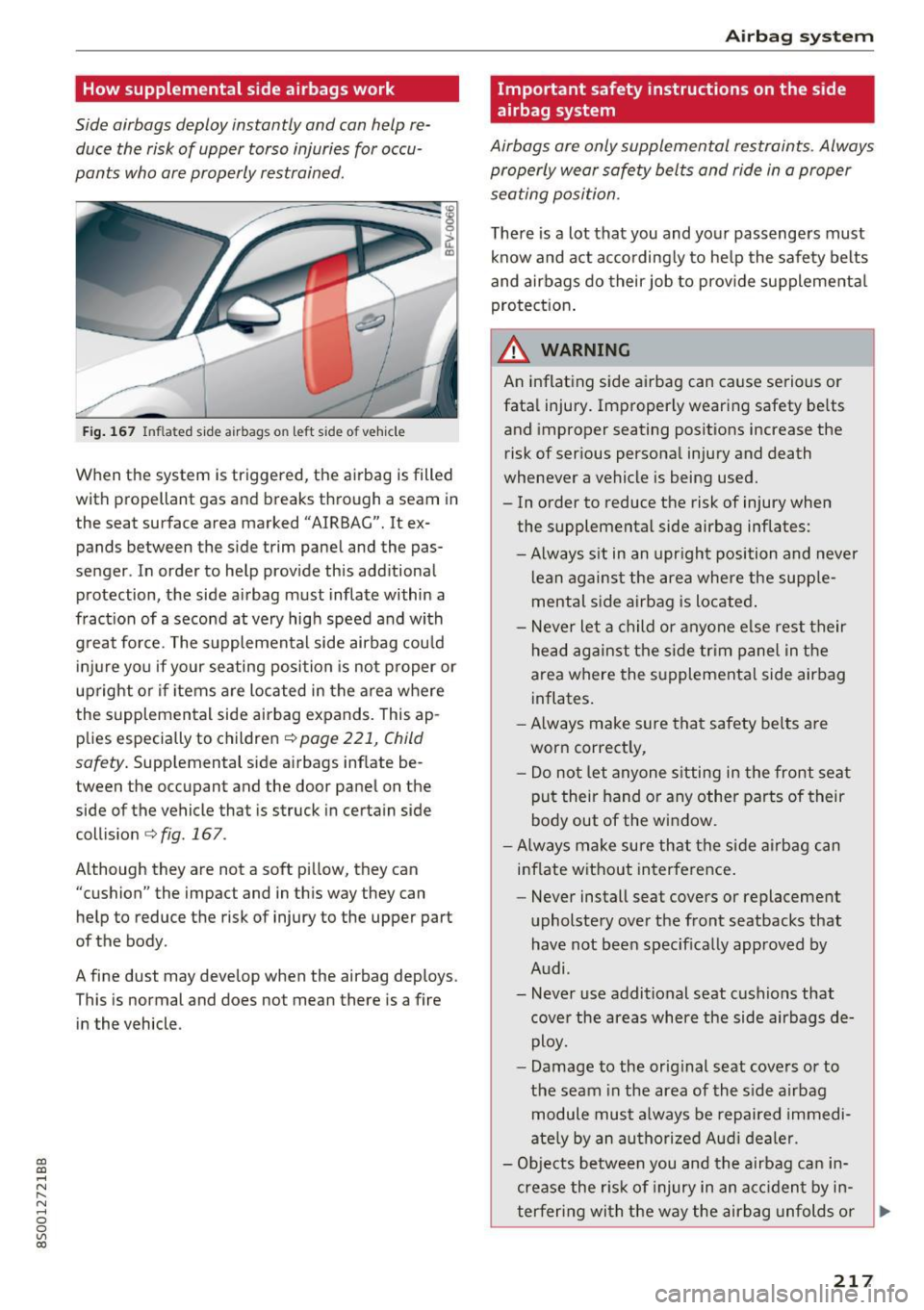

How supplemental side airbags work
Side airbags deploy instantly and can help re­duce the risk of upper torso injuries for occu­
pants who are properly restrained.
F ig . 167 Inflated side airbags on left side of vehicle
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in
the seat surface area marked "AIRBAG". It ex­
pands between the side trim panel and the pas­
senger. In order to help provide this additiona l
protection, the side airbag must inflate within a
fract ion of a second at very high speed and with
great force. The s upplemental side airbag cou ld
injure you if your seating position is not p roper or
upright or if items are located in the area where
the supplemental side airbag expands. This ap­
plies especially to children
¢ page 221, Child
safety.
Supplemental side airbags inflate be­
tween the occupant and the door panel on the
side of the vehicle that is struck in certain side
collis ion
¢ fig . 167.
A lthough they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the upper part
of the body .
A fine dust may develop when the airbag deploys .
This is normal and does not mean there is a fire
in the vehicle .
Airbag sys tem
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position .
There is a lot that you and yo ur passengers must
know and act according ly to he lp the safety belts
and airbags do their job to prov ide supplementa l
pro tect ion .
A WARNING
An inflating side airbag can cause serious or
fatal injury. Improperly wearing safety be lts
and improper seating posit ions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always s it in an upr ight position and never
lean against the area where the supp le­
mental s ide airbag is located .
- Neve r let a child or anyone e lse rest their
head against the side tr im panel in the
area where the s upplementa l side airbag
inflates.
- Always make s ure tha t safety belts are
worn correctly,
- Do no t let anyone s itting in the front seat
put their hand or any other parts of their
body out of the window .
- Always make sure that the side airbag can
inflate without interference .
- Never install seat covers or replacement
upholste ry over the front seatbacks that
have not been specif ically approved by
Audi.
- Never use additional seat cu shions that
cover the areas where the side airbags de­ ploy.
- Damage to the orig inal seat covers or to
the seam in the area of the s ide airbag
module must a lways be repaired immedi­
ate ly by an authorized Audi dealer .
-
-Objects between you and the a irbag can in­
crease the r is k of injury in an ac ciden t by in­
terfering with the way the airbag unfolds o r _,.
217

Airbag syste m
by being pushed into you as the airbag in­
flates.
- Never p lace or attach accessories or other
objects (such as cup holders, telephone brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause in ju ry
when the supplemental side airbag de­ ploys.
- Never carry any objects or pets in the de­ ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position.
- Always use the built-in coat hooks only for
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may interfere w it h side airbag deployment
and can cause personal i njury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an author ized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
orig inal seat covers or to the seam in the
area of the side a irbag mod ule m ust always
be repa ired immed iate ly by an authorized
Audi dealer .
- If children are sea ted improperly, their r is k
of injury increases in the ca se of an ac ciden t
~ page 221, Child safety .
-Never attempt to modify any components of
the a irbag sys tem in any way.
- In a side collision, s ide a irbags w il l not fu nc­
t ion properly if sensors cannot correct ly
measure increasi ng a ir pressure ins ide the
doo rs when air escapes through larger, un­
closed openings in the door panel.
- Never drive w ith inter io r door tr im panels
removed .
- Never drive when parts have been re­
moved from the inside doo r panel and the
open ings they leave have not been proper­
ly closed.
218
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
other equipment is installed i n the inside
door panels.
- Always have work on the doors done by an
authorized Aud i dealer or q ualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­
cupants.
Fig. 168 S id e curt ain airbags, driver's sid e: side curtain a ir ­
bag locatio n
The side curtain airbags are located on both sides
of the inter ior above the fro nt and rear side win­
dows~
fig. 168. T hey are identified by the word
"AIRBAG" on the windshie ld frame and the cen­
ter roof p illar .
The side curtain airbags contain features that provide ejection mitigation to help prevent veh i­
cle occupants or parts of their bodies from being
completely or part ially ejected from the vehicle
interior in certain side impacts and vehicle roll­
overs .
The side c urtain airbag system supplements the
safety belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso. The
side curtain airbag inflates in side impacts and
only when the ve hicle acceleration registered by
the control unit is high enough .
If this rate is .,.
