_________________________________________________ G_ e_ n_ e_r _a _l_ i_n _f_o _ r_ m_ a_ t _i _o _ n __ lftlll

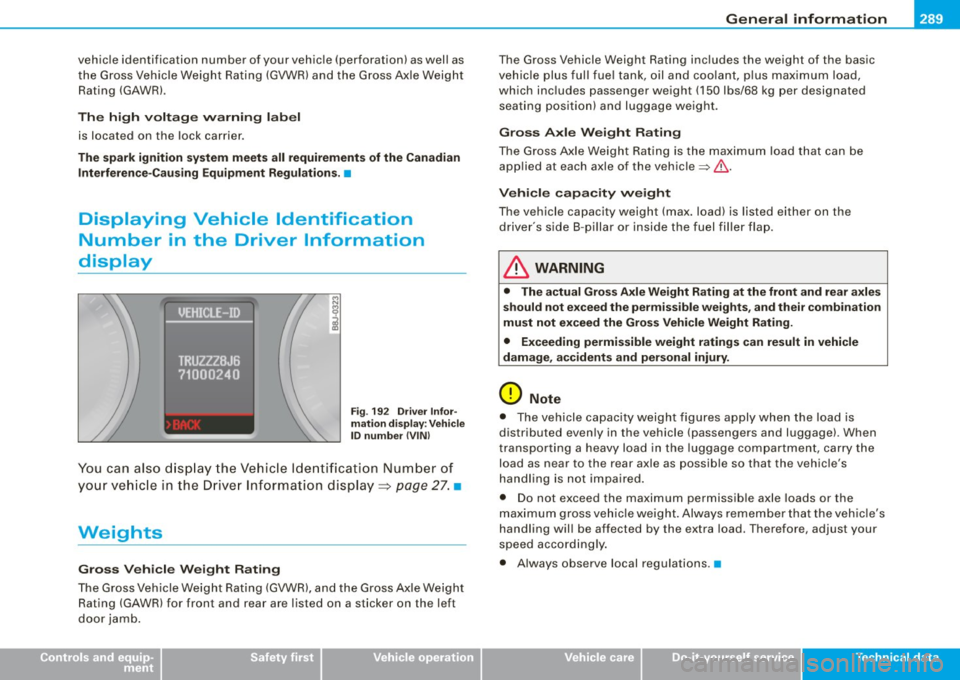

vehicle identification number of your vehicle (perforation) as well as
the Gross Vehicle Weight Rating (GVWR) and the Gross Axle Weight
Rating (GAWRl.
The high voltage warning label
is located on the lock carrier.
The spark ignition system meets all requirements of the Canadian
Interference-Causing Equipment Regulations. •
Displaying Vehicle Identification
Number in the Driver Information
display
Fig . 192 Driver Infor­
mation display: Vehicle
ID number (VIN)
You can also display the Vehicle Identification Number of
your vehicle in the Driver Information display=:>
page 27. •
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and the Gross Axle Weight
Rating (GAWR) for front and rear are listed on a sticker on the left
door jamb.
Controls and equip­ ment Safety first Vehicle operation
The
Gross Vehicle Weight Rating includes the weight of the basic
vehicle plus full fuel tank, oil and coolant, plus maximum load,
which includes passenger weight (150 lbs/68 kg per designated
seating position) and luggage weight.
Gross Axle Weight Rating
The Gross Axle Weight Rating is the maximum load that can be
applied at each axle of the vehicle~&.
Vehicle capacity weight
The vehicle capacity weight (max. load) is listed either on the
driver's side 8 -pillar or inside the fuel filler flap.
& WARNING
• The actual Gross Axle Weight Rating at the front and rear axles
should not exceed the permissible weights, and their combination
must not exceed the Gross Vehicle Weight Rating.
• Exceeding permissible weight ratings can result in vehicle
damage, accidents and personal injury.
0 Note
• The vehicle capacity weight figures apply when the load is
distributed evenly in the vehicle (passengers and luggage). When
transporting a heavy load in the luggage compartment, carry the
load as near to the rear axle as possible so that the vehicle's
handling is not impaired.
• Do not exceed the maximum permissible axle loads or the
maximum gross vehicle weight. Always remember that the vehicle's
handling will be affected by the extra load. Therefore, adjust your
speed accordingly.
• Always observe local regulations. •
Vehicle care Do-it-yourself service Tec hn ica l da ta

___ G_ e_ n_ e_r_ a _ l_ in_ f_ o _r_m _ a_ t_ i_ o _ n __________________________________________________ _

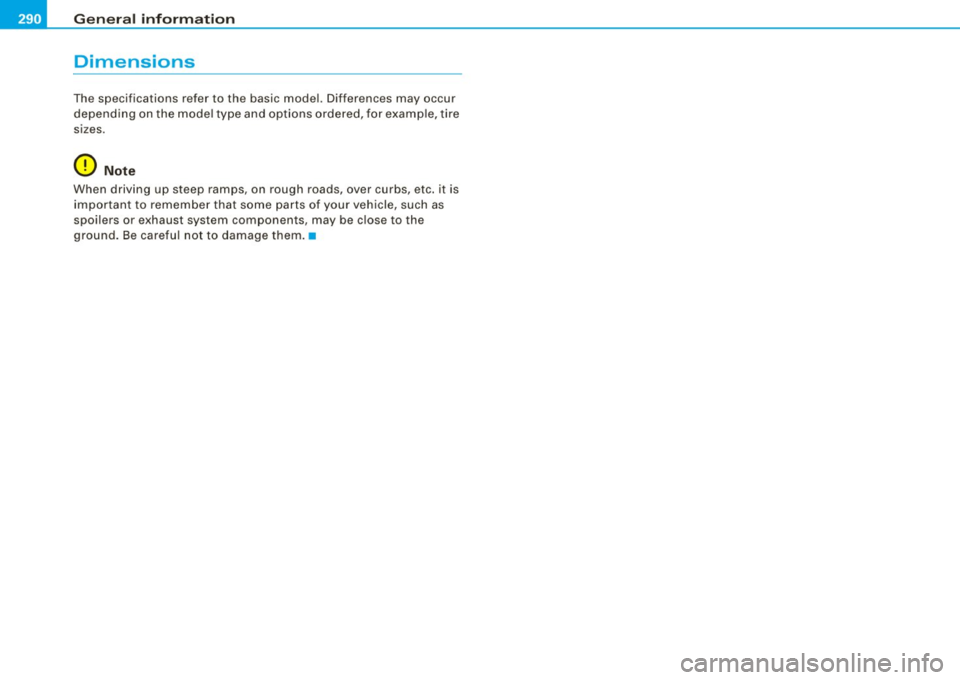

Dimensions
The specifications refer to the basic model. Differences may occur
depend ing on the mode l type a nd op tions ordered, for examp le, tire
sizes.
0 Note
When driving up steep ramps, on rough roads, over curbs, etc. it is
importan t to remembe r tha t so me parts of your vehicle, such as
spo ilers or exhaust system components, may be close to the
ground. Be careful not to damage them.•

_______________________________________________________ D_ a _ t_a __ llll
Data
A pplie s t o vehic les: w it h 2 .0 lit er 4-cy l. engi ne
200 hp, 2.0 liter 4-cyl. turbo engine
Engin e da ta
Maximum output SAE net
Maximum torque SAE net
No . of cylinders
Displacement
Stroke
Bore
Compression ratio
Fuel
Dim ension s (app rox.)
Length (with licence plate bracke t)
Width (across mirrors)
Height (unloaded)
Turning circle diameter (curb to curb)
Ca pac ities (a pprox.)
F u el t ank
-Total capacity
- Reserve (of total capacity)
Wind shi eld and he adli ght * was her fluid container
E ngine oil
with filter change
Controls and equip­
ment Safety first
hp@rpm
lb-ft@ rpm
CID (cm
3
)
in (mm)
in (mm)
200@ 5100 -6000
207 @ 1800 -5000
4
121 (1984)
3.65 (92.8)
3 .25 (82.5)
10.3 : 1
Premium unleaded (91 AKI) Recommended for maximum engine performance. Fur ­
ther details =>
page 274, "Gasoline"
in (mm)
in (mm)
in (mm)
ft. (ml
164 .5 (4178)
76.9 (1952) 53 .2 (1352)
34 .7 (10.60)
gal/litres
gal/litres
quarts/litres
quarts/l itres 14.5 / 55 .0
1 .9 / 7.0
4.3
I 4.0
4.8
I 4.5 •
Vehicle operation Vehicle care Do-it-yourself service Tec hn ica l da ta

___ D_ a_ ta ______________________________________________________ _
Applies to vehicles : wit h 3.2 liter 6-c yl. en gine
250 hp, 3 .2 liter 6-cyl. engine
Engine data
Max imum output SAE net
Maximum torque SAE net
No . of cy linders
Di spl acement
Stroke
Bo re
Comp ress ion ratio
Fuel
Dimensions (appro x.>
Length (with licence plate brac ket)
Width (across mirrors) Height (un loaded)
Tur ning c ircle diameter (curb to curb)
Capacities {approx .>
Fuel tank
-To tal capacity
- Reserve (of total capacity)
Windshield and headlight* washer fluid container
Engine oil
with filter change hp@ rpm
lb-ft@ rpm
CID (cm
3
)
in (mm)
in (m m)
250@6300
236 @ 2500 -3000
6 cylinder
195 (3189)
3 .77 (95 .9)
3 .30 (84 .0)
11 .25 : 1
Premium unleaded {91 AKll Recommended for maximum engine performance . Fur ­
t her deta ils =:>
page 214 , "Gasoli ne"
in (m m)
in (m m)
in (mm)
ft . (ml
16 4.5 ( 41 78)
76.9 (1952)
53 .2 ( 1352)
3 4. 7 (10 .60)
gal/litres
gal/ lit res
quarts/litres
quarts/l it re s 16.3 / 62 .0
1 .9 / 7 .0
4.3
I 4 .0
5.8 / 5.5
•

_______________________________________________ C _o_ n _ s_u _ m_ e_ r_l_n _f_o _ r_ m_ a_ t _i _o _ n __ _

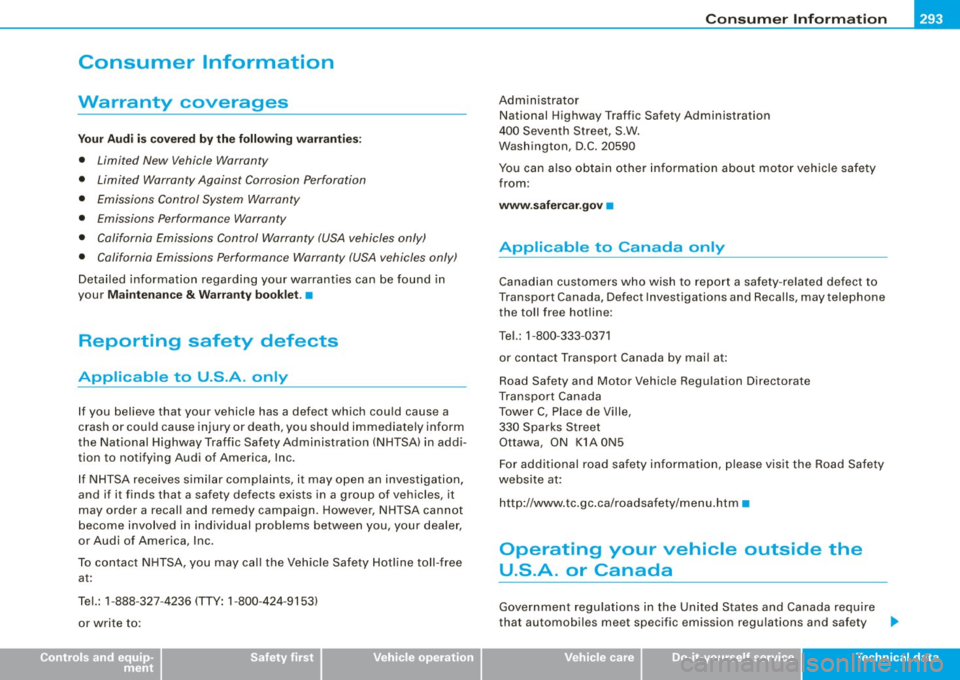

Consumer Information
Warranty coverages
Yo ur A udi i s covere d by the f ollowi ng wa rrant ie s:
• Limited New Vehicle Warranty
• Limited Warranty Against Corrosion Perforation
• Emissions Control System Warranty
• Emissions Performance Warranty
• California Emissions Control Warranty (USA vehicles only)
• California Emissions Performance Warranty (USA vehicles only)
Detai led information regarding your warrant ies can be found in
your
Mainten an ce & Warr ant y booklet .•
Reporting safety defects
Applicable to U.S.A . only
If you believe that your vehicle has a defect which cou ld cause a
crash or cou ld cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NH TSAl in addi­
tion to notifying Audi of America, Inc .
If NHTSA receives simi lar complaints, it may open an invest igation,
and if it finds that a safety defects exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA cannot
become invo lved in individual problems between you, your dealer ,
or Audi of America, Inc .
To contact N HTSA, you may cal l the Vehic le Safety Hotline toll -free
at:
T el.: 1-888 -327-4236 ( TTY: 1-800 -424 -9153)
or write to:
Controls and equip­ ment Safety first Vehicle operation
Administrator
N ational Highway Traffic Safety Administration
400 Seventh Street, S.W.
Washington, D.C. 20590
You can also obtain other informat ion about motor vehicle safety
from :
www .safer car.gov •
Applicable to Canada only
Canad ian custome rs who wish to repo rt a safety -re lated defect to
Transport Canada, Defect Investiga tions and Recalls, may telephone
the toll free hotline:
Tel.: 1 -800-333 -0371
or contact Transport Canada by mail at :
Road Safety and Motor Vehic le Regulation Directorate
Transport Canada
Tower C, Place de Ville, 330 Sparks S treet
Ottawa, ON
K1 A O N 5
For additional road safe ty informatio n, p lease visit the Road Safety
website at:
http ://www .tc.gc .ca/roadsafety/men u.htm •
Operating your vehicle outside the
U.S.A. or Canada
Governmen t regulations in the Un ited States and Canada require
that automobiles meet specific emission regu lations and safety .,_
Vehicle care Do-it-yourself service Tec hn ica l da ta

___ C_ o_n_ s_ u_m _ e_ r_ ln_ f_ o _r _m _ a_ t_ i_o _n ______________________________________________ _
standards. Therefore, vehicles built for the U.S .A. and Canada differ
from vehicles sold in other countries.
If you plan to take your vehicle outside the continental limits of the
United States or Canada, there is the possibility that
• unleaded fuels for vehicles with catalytic converter may not be
available;
• fuel may have a considerably lower octane rating. Improper fuel
may cause engine damage;
• service may be inadequate due to lack of proper service facilities,
tools or testing equipment;
• replacement parts may not be readily available .
• Navigation systems for vehicles built for the U.S.A. and Canada
will not necessarily work in Europe , and may not work in other coun­
tries outside of North America.
0 Note
Audi cannot be responsible for mechanical damage that could
result from inadequate fuel , service or parts availability .•
Audi Service Repair Manuals and
Literature
Audi Official Factory Service Manuals are published as soon as
possible after model introduction. Service manuals are available
from :
Audi Technical Literature Ordering Center
Call toll -free:
Tel.: 1 (800) 544-8021
(from 8:00 AM to 8:00 PM, EST, Monday through Friday)
or access their website www.audi.ddsltd.com on the Internet to
order repair manuals and other Audi literature. •
Maintenance
General
Your vehicle has been designed to help keep maintenance require­
ments to a minimum. However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle 's safety, economy and
reliability. For detailed vehicle maintenance consult your Mainte­
nance & Warranty booklet .
Under difficult operating conditions, for example at extremely low
outside temperatures, in very dusty regions, etc., some service work
should be performed between the intervals specified . This applies
particularly to:
• oil changes , and
• cleaning or replacing the air filter.
~ For the sake of the environment
By regularly maintaining your vehicle, you help make sure that emis ­
sion standards are maintained, thus minimizing adverse effects on
the environment. •
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated fuel injection and
emission control systems, and the generally increasing technical
complexity of today's automobiles, have steadily reduced the scope
of maintenance and repairs which can be carried out by vehicle
owners. Also, safety and environmental concerns place very strict
limits on the nature of repairs and adjustments to engine and trans­
mission parts which an owner can perform.
Maintenance, adjustments and repairs usually require special tools,
testing devices and other equipment available to specially trained .,_

_______________________________________________ C _o_ n _ s_u _ m_ e_ r_l_n _f_o _ r_ m_ a_ t _i _o _ n __ _
workshop personne l in order to assure proper performance, reli ­
abil ity and sa fe ty of the vehicle a nd i ts many sys te m s.
I mproper maintenance, adjustments and repairs can impair the
operation and reliabil ity of your vehicle and even void your vehicle
war ra nty. T here fore, proof o f serv ic ing in accorda nce with the main ­
tenance schedule may be a condition for uphold ing a possible
war ra nty claim made withi n th e warranty per iod .
Above all, operat ional safety can be adverse ly affected, creating
unnece ssary risks fo r you and you r passengers .
If in doubt about a ny servici ng, have it do ne by your authorized Aud i
dea ler or any other properly equipped and qua lified workshop. We
str ongly u rge you to give your auth orized Audi dealer the oppo rtu ­
nity to perform al l scheduled maintenance and necessary repairs.
You r deale r has the facil ities, origi nal par ts and trained special is ts
to keep your vehic le running proper ly.
Performing limited maintenance yourself
T he fo llow ing pages describe a limited numbe r of procedures which
can be perfo rme d on you r vehicle wi th ordi nary too ls, should the
need arise and trained personne l be unavailab le. Before performing
any of these proced ures, always thor oug hly read a ll of th e appli­
cable text and carefu lly fo llow the instructions given. Always rigor ­
ously observe the
WARNINGS provided .
Before you check anything in the engine compartment , alway s read
and heed all WARNINGS:::>
& and:::> & in "Wo rking in the engine
compartment" on
page 220.
& WARNING
• Ser ious persona l injury may occur as a result of improperly
performed maintenance , adjustments or repairs.
• Always be e xtremely careful when working on the vehicle .
Always follow commonly accepted safety practices and general
c ommon sense . Never ri sk per sonal injury .
Controls and equip­ ment Safety first Vehicle operation
& W
ARNING (continued )
• Do not attempt any of the maintenance , checks or repairs
described on the following pages if you are not fully familiar with
these or other pro cedures with respect to the vehicle , or are uncer­
tain how to proceed.
• Do not do any work without the proper tools and equipment.
Have the necessary work done by your autho rized Audi dealer or
another properly equipped and qualified workshop .
• The engine compartment of any motor vehicle is a potentially
hazardous area . Never reach into the area around or touch the
radiator fan . It i s temperature controlled and can switch on
suddenly -even when the engine is off and the ignition key has
been removed . The radiator fan switche s on automatically when
the coolant reaches a certain tempe rature and will continue to run
until the coolant temperature drops .
• Always remove the ignition key before anyone gets under the
vehicle.
• Always support your vehicle with safety stands if it is neces­
sary to work underneath the vehicle. The jack supplied with the
vehicle is not adequate for this purpose and could collapse
causing serious personal injury .
• If you must work underneath the vehicle with the wheels on
the ground, always make sure the vehicle is on level ground , that
the wheels are always securely blocked and that the engine
cannot be started .
• Always make sure the transmission selector lever (automatic
transmission) is in "P" (Park position ) (automatic transmission ) or
Neutral (manual tr ansm ission) and the hand brake is firmly
applied.
• Chang ing t he e ngine sett ings wi ll a dverse ly affect em ission
levels. This is detrimenta l to the environment and increases fuel
co nsu mp tion.
Vehicle care Do-it-yourself service Tec hn ica l da ta

___ C_ o_n_ s_ u_m _ e_ r_ ln_ f_ o _r _m _ a_ t_ i_o _n ______________________________________________ _

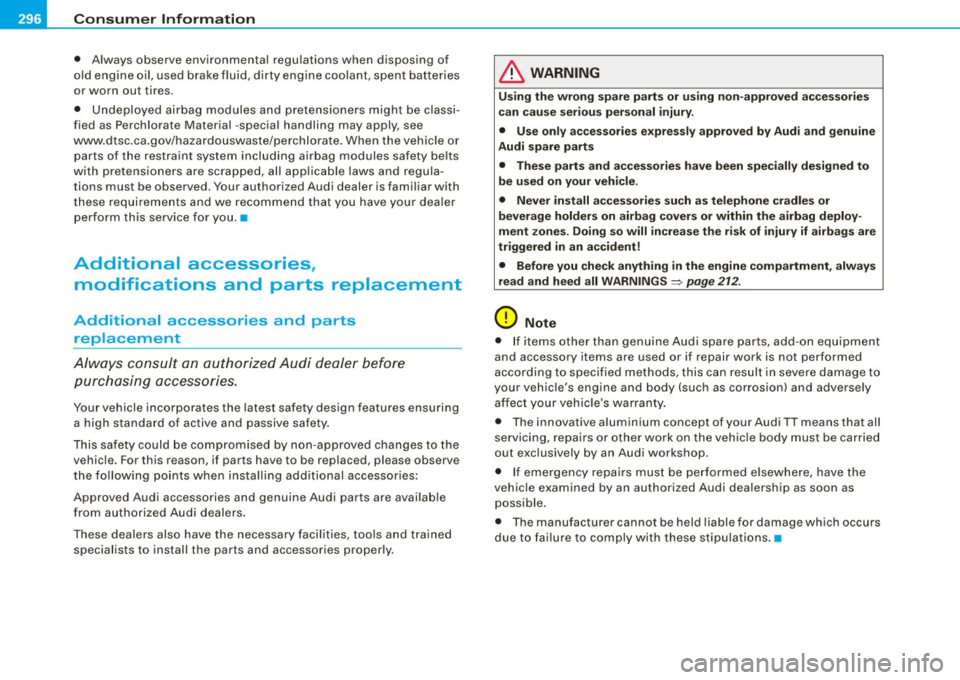

• Always observe environmenta l regulations when disposing of
o ld eng ine oil, used b rake flu id, dirty en gine co olant, spe nt batter ies
or worn out tir es.
• Undep loyed airbag modules and pretensioners might be classi­
fied as Perchlorate Material -special handling may apply , see
www .dtsc.ca .gov/hazardouswaste/perchlorate. When the vehicle or
parts of the restraint system including ai rbag modules safety be lts
with pretensioners are scrapped , all applicable laws and regula ­
tions must be observed . Your authorized Audi dealer is familia r with
these requirements and we recommend that you have your dea ler
perform this service for you .•
Additional accessories,
modifications and parts replacement
Additional accessories and parts
replacement
Al ways consult an authorized Audi dealer bef ore
pur chasing ac cess ories.
Your vehicle incorporates the latest safety design features ensuring
a high standard of active and passive safety .
This safety could be compromised by non -approved changes to the
vehic le. For this reason, if parts have to be replaced , please observe
t he follow ing po ints when installing addit ional accessories:
Approved Audi accessories and genuine Audi parts are availab le
from authorized Audi dealer s.
These dealers also have the necessary faci lities , too ls and trained
specialists to install the parts and accessories properly .
& WARNING
Using the wrong spare p arts or u sing non -approved acce ssorie s
can cause serious p ers onal injury .
• Use only acces sories e xpr essly appro ved by Audi and g en uine
Audi spare part s
• The se pa rts and accessories have been spe ciall y de sig ned to
be used on your vehic le .
• Never inst all a ccessorie s such a s telephone cra dle s or
beve rage holders on airb ag cover s or within the ai rb ag deploy ­
ment zones . D oing so will in crea se the r is k of injury if airb ags are
triggered in an acciden t!
• Before you che ck anyth ing in the eng ine comp artment , alwa ys
re ad and heed all W ARNING S=>
pag e 212 .
0 Note
• I f items other than genuine Audi spare parts, add-on equipment
and accessory items are used or if repair work is not performed
accor ding to specified methods, this can resul t in severe damage to
your vehic le's engine and body (such as corrosion) and adversely
affect your vehicle's warranty .
• T he innovative aluminium concept of your Audi TI means that all
servicing, repai rs or other work on the veh ic le body must be carried
out exclusively by an Audi workshop.
• I f emergency repa irs must be performed e lsewhere, have the
vehicle examined by an authorized Audi dea lership as soon as
possible .
• T he manufacturer cannot be held liable for damage which occurs
due to fa ilure to comply with these stipu lations. •

_______________________________________________ C _o_ n _ s_u _ m_ e_ r_l_n _f_o _ r_ m_ a_ t _i _o _ n __ !II

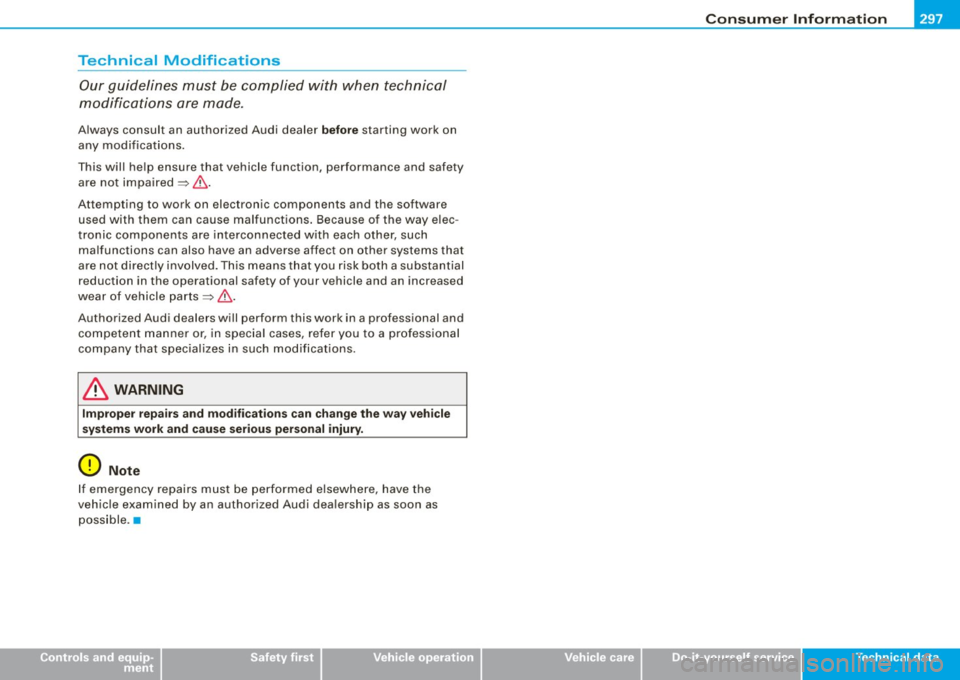

Technical Modifications
Our guidelines must be c omplied with when technical
modifications are made.
A lways consult an authorized Audi dealer before starting work on
any modifications.
T his will he lp ensure that vehicle function, performance and safety
are no t impaired =>& .
Attempting to work on electronic components and the software used with them can cause malfunctions . Because of the way elec ­
t ronic components are interconnected w ith each other , such
malfunctions can also have an adverse affect on other systems that
are not directly involved. Th is means that yo u risk both a substantial
reduction in the operational safety of your vehicle and an increased
wear of vehicle parts=>& .
Authorized Audi dealers will perform this work in a professional and competent manne r or , in specia l cases, refer you to a pr ofessiona l
company t hat special izes in suc h modificat ions.
& WARNING
Improper rep airs a nd modifi cation s can change the way vehicle
systems work and cause serious personal injury .
0 Note
If emergency repairs must be performed elsewhere, have the
veh ic le examined by an authorized Audi dea lership as soon as
poss ible .•
Controls and equip­
ment Safety first Vehicle operation
Vehicle care Do-it-yourself service Tec hn ica l da ta
