Page 11 of 48
10
At a glanceDashboard

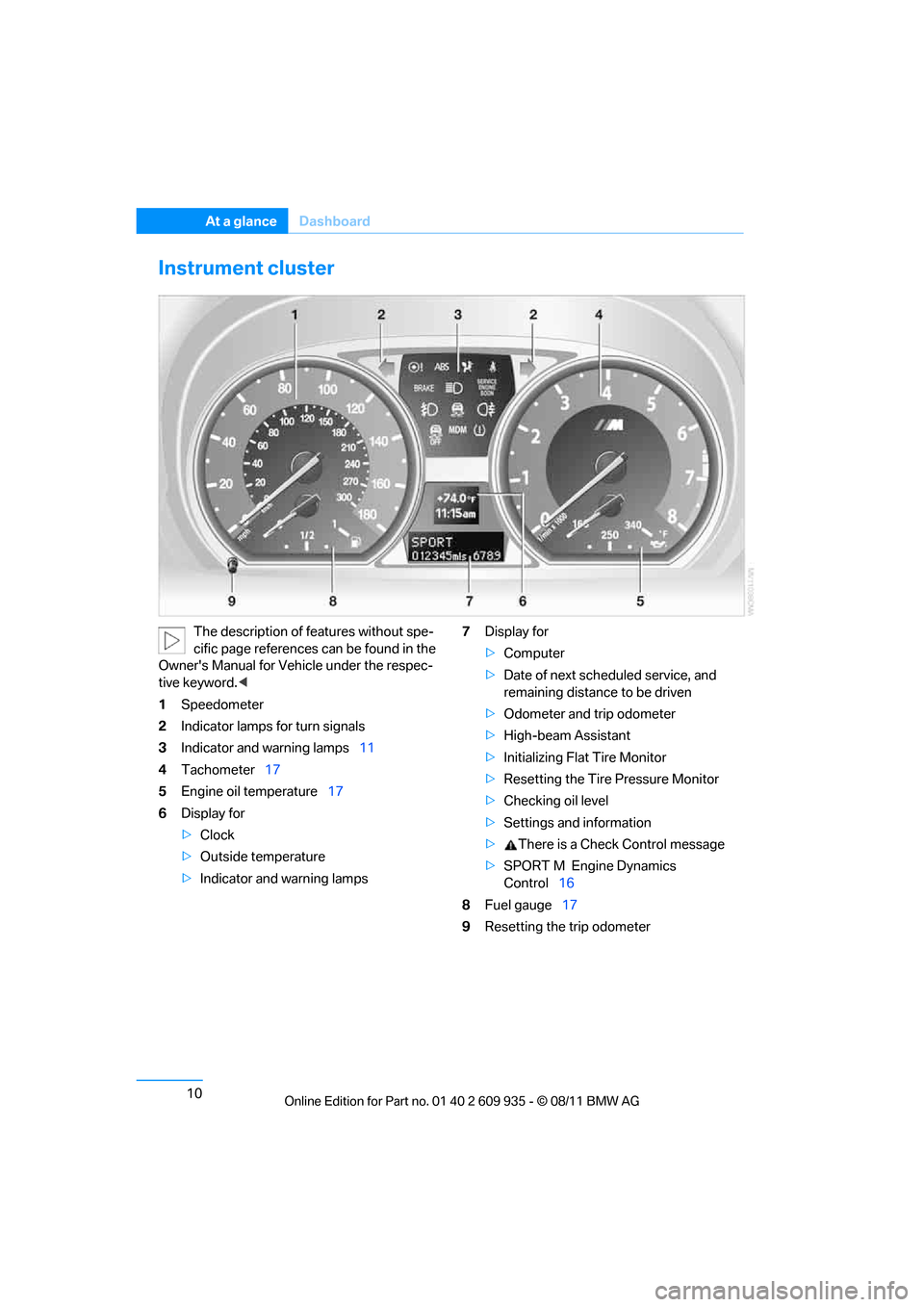

Instrument cluster
The description of features without spe-
cific page references can be found in the
Owner's Manual for Vehicle under the respec-
tive keyword. <
1 Speedometer
2 Indicator lamps for turn signals
3 Indicator and warning lamps 11
4 Tachometer 17
5 Engine oil temperature 17
6 Display for
>Clock
> Outside temperature
> Indicator and warning lamps 7
Display for
>Computer
> Date of next scheduled service, and
remaining distance to be driven
> Odometer and trip odometer
> High-beam Assistant
> Initializing Flat Tire Monitor
> Resetting the Tire Pressure Monitor
> Checking oil level
> Settings and information
> There is a Check Control message
> SPORT M Engine Dynamics
Control 16
8 Fuel gauge 17
9 Resetting the trip odometer
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 12 of 48
11
Dashboard
At a glance

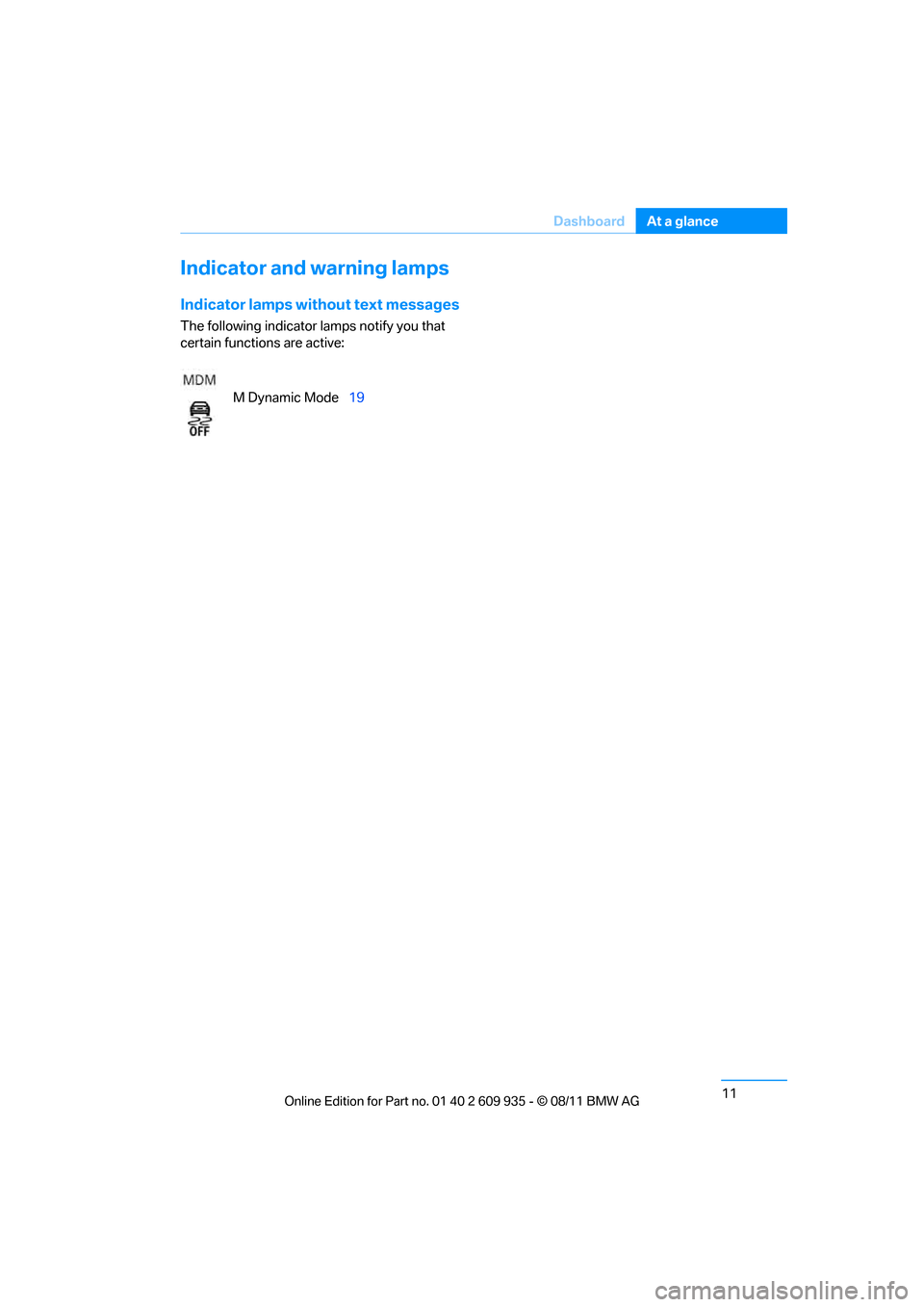

Indicator and warning lamps
Indicator lamps without text messages
The following indicator
lamps notify you that
certain functions are active:
M Dynamic Mode 19
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 13 of 48
12
At a glanceDashboard

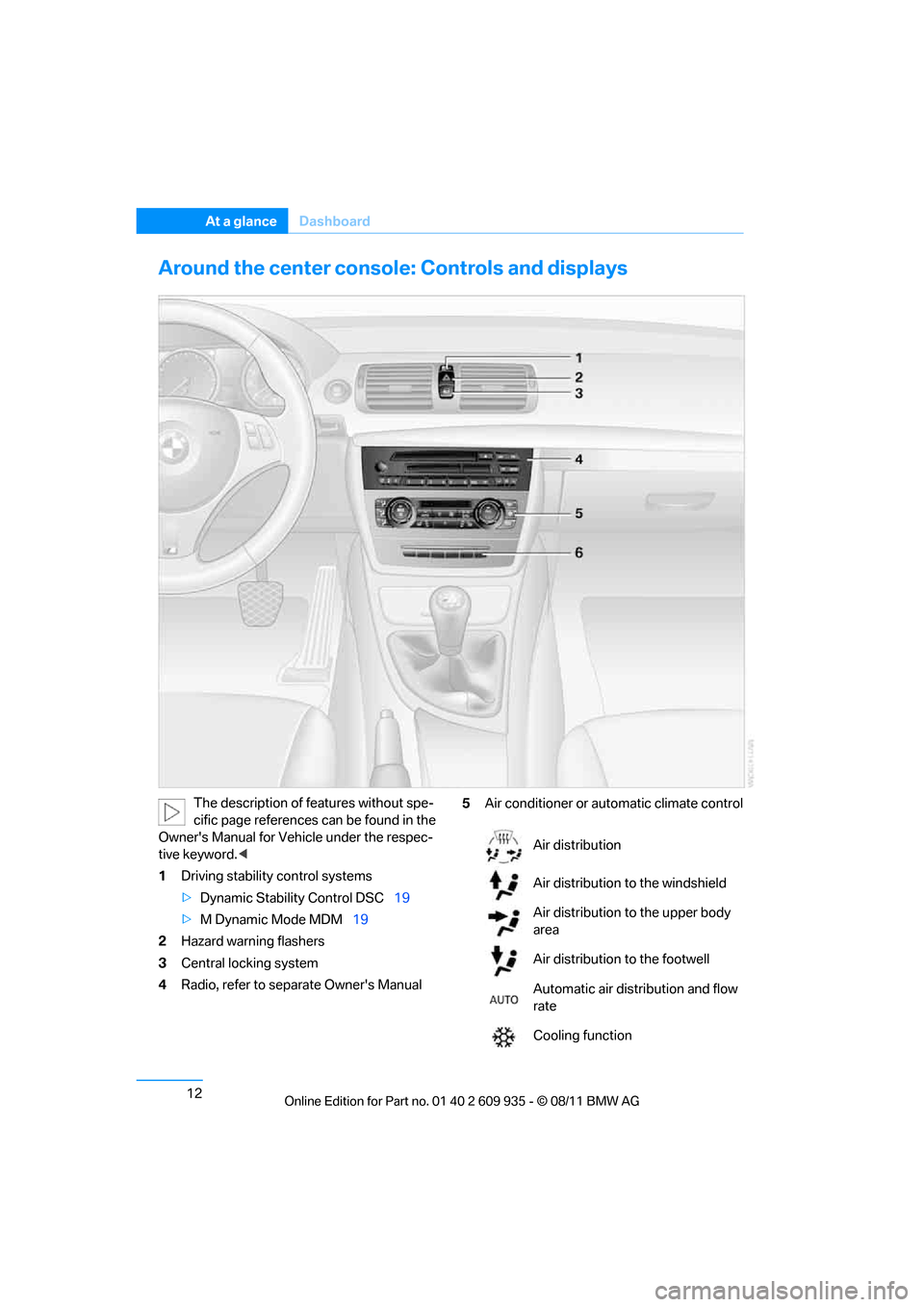

Around the center consol e: Controls and displays
The description of features without spe-
cific page references can be found in the
Owner's Manual for Vehicle under the respec-
tive keyword. <
1 Driving stability control systems
>Dynamic Stability Control DSC 19
> M Dynamic Mode MDM 19
2 Hazard warning flashers
3 Central locking system
4 Radio, refer to sepa rate Owner's Manual 5
Air conditioner or automatic climate control
Air distribution
Air distribution to the windshield
Air distribution to the upper body
area
Air distribution to the footwell
Automatic air distribution and flow
rate
Cooling function
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 14 of 48

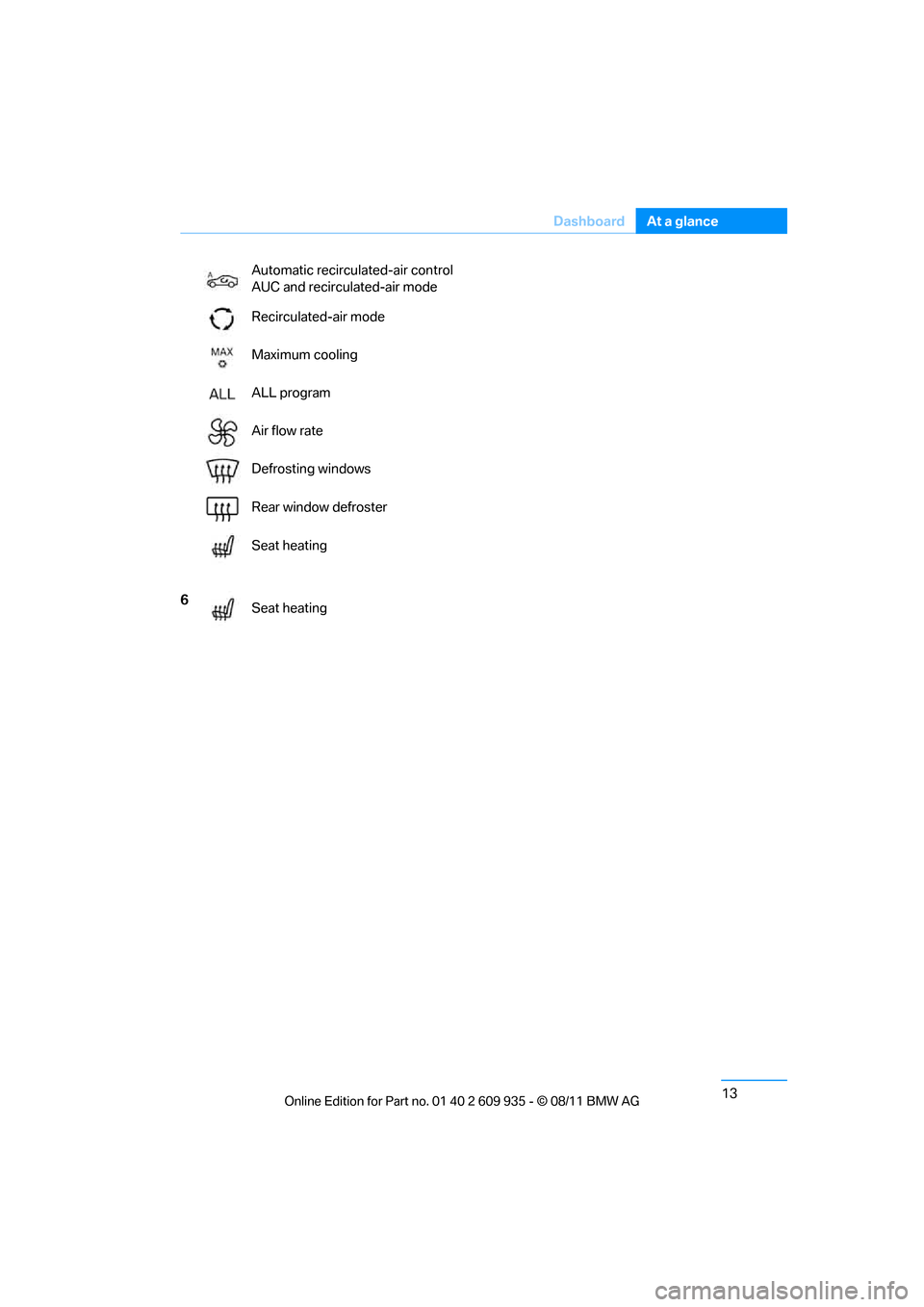

13
Dashboard
At a glance
Automatic recirculated-air control
AUC and recirculated-air mode
Recirculated-air mode
Maximum cooling
ALL program
Air flow rate
Defrosting windows
Rear window defroster
Seat heating
6 Seat heating
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 15 of 48
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 16 of 48

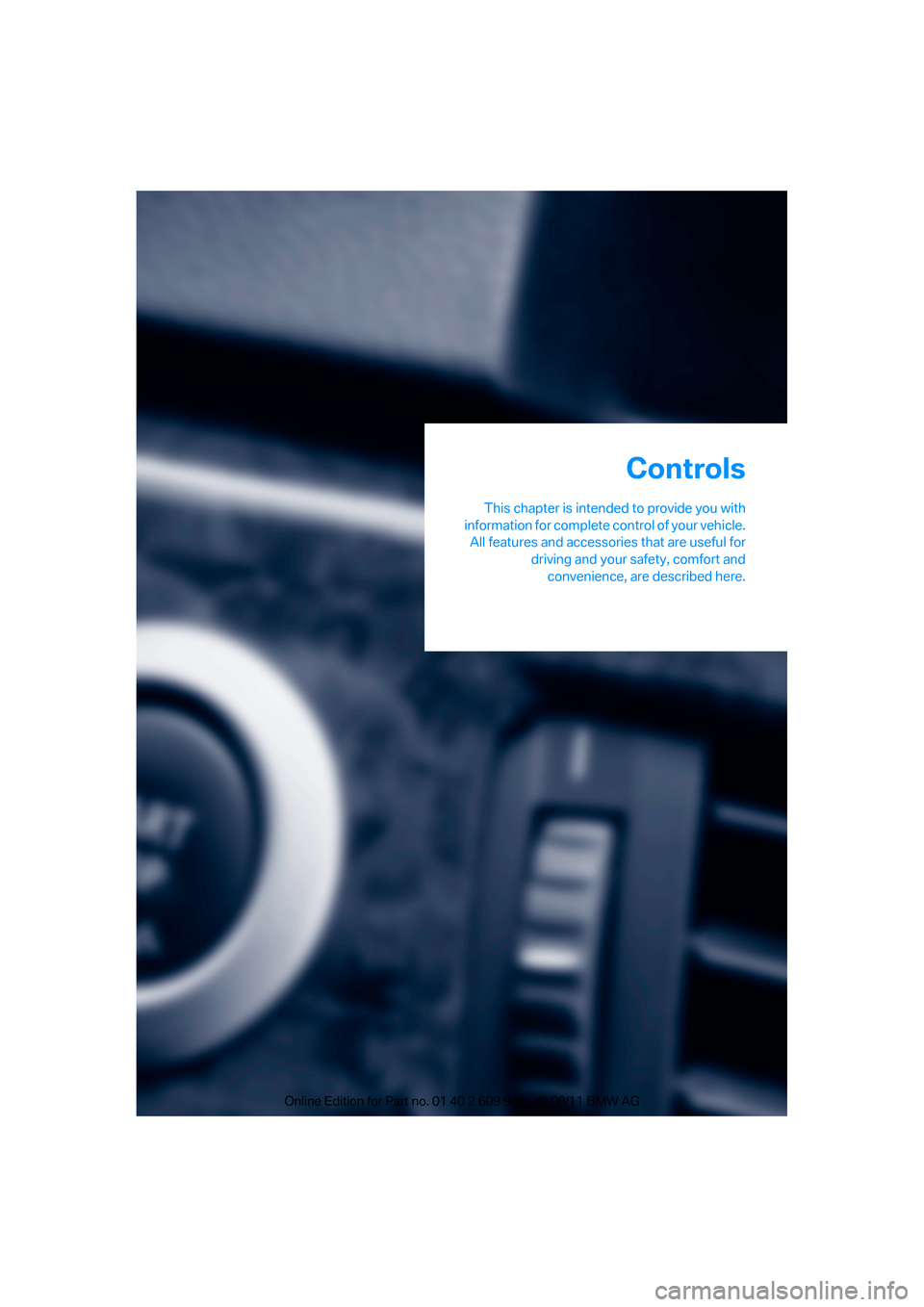

This chapter is intended to provide you with
information for complete control of your vehicle. All features and accessories that are useful for
driving and your safety, comfort andconvenience, are described here.
Controls
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 17 of 48

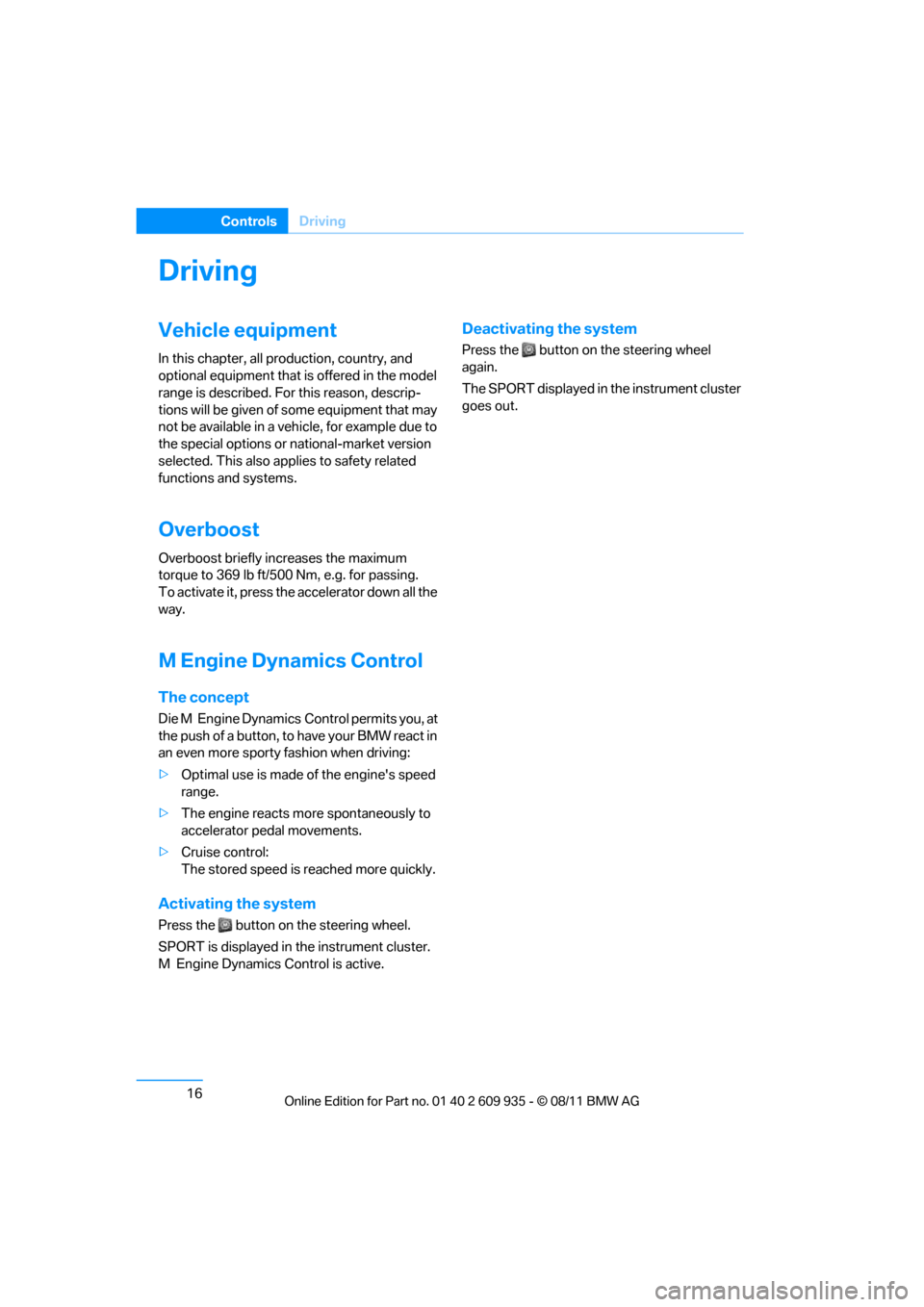

16
ControlsDriving
Driving
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Overboost
Overboost briefly in creases the maximum
torque to 369 lb ft/500 Nm, e.g. for passing.
To activate it, press the accelerator down all the
way.
M Engine Dynamics Control
The concept
Die M Engine Dynamics Control permits you, at
the push of a button, to have your BMW react in
an even more sporty fashion when driving:
> Optimal use is made of the engine's speed
range.
> The engine reacts mo re spontaneously to
accelerator pedal movements.
> Cruise control:
The stored speed is reached more quickly.
Activating the system
Press the button on the steering wheel.
SPORT is displayed in th e instrument cluster.
M Engine Dynamics Control is active.
Deactivating the system
Press the button on the steering wheel
again.
The SPORT displayed in the instrument cluster
goes out.
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 18 of 48
17

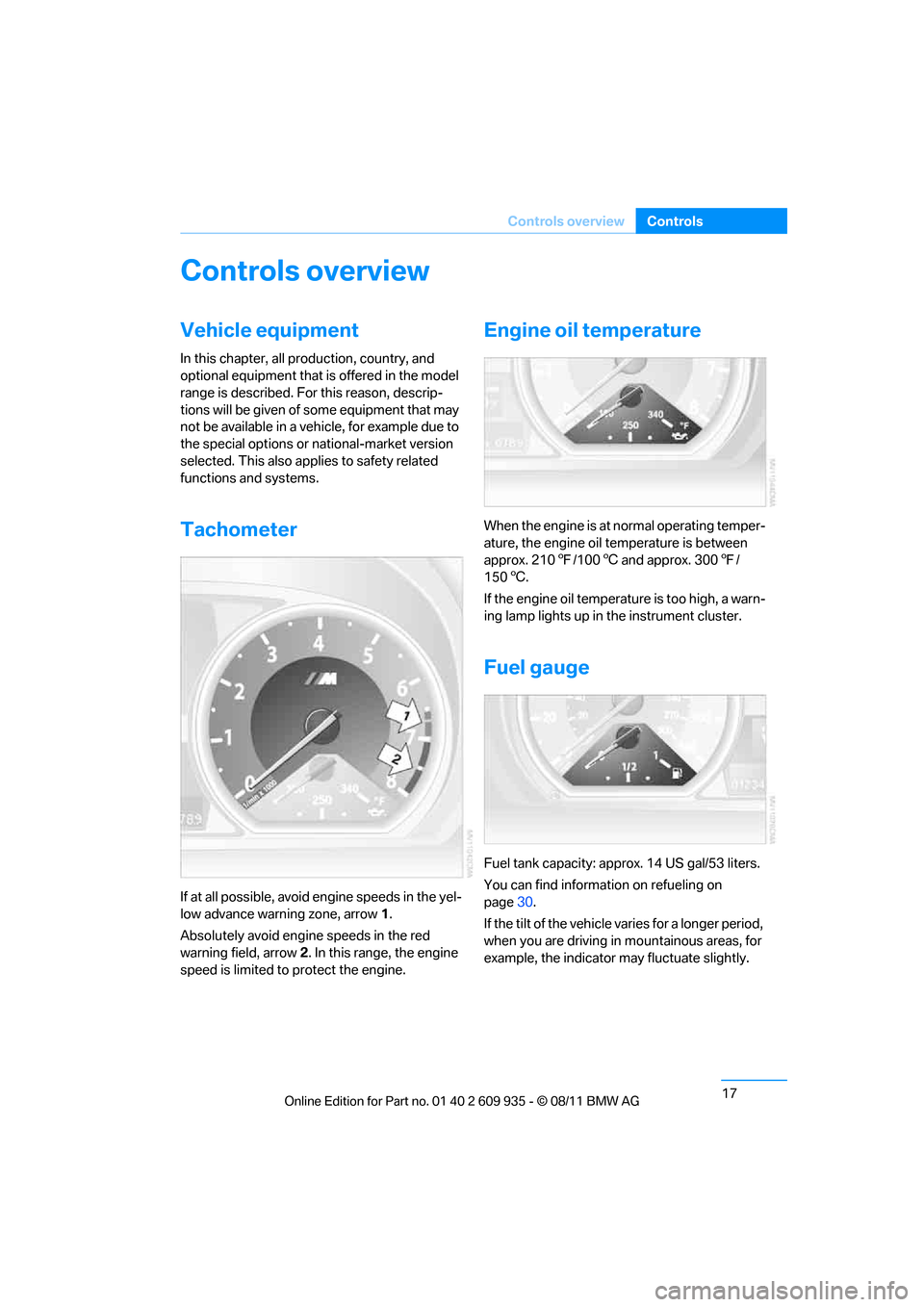

Controls overview
Controls
Controls overview
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi
cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Tachometer
If at all possible, avoid engine speeds in the yel-
low advance warning zone, arrow 1.
Absolutely avoid engine speeds in the red
warning field, arrow 2. In this range, the engine
speed is limited to protect the engine.
Engine oil temperature
When the engine is at normal operating temper-
ature, the engine oil temperature is between
approx. 210 7/100 6 and approx. 300 7/
150 6.
If the engine oil temperature is too high, a warn-
ing lamp lights up in the instrument cluster.
Fuel gauge
Fuel tank capacity: approx. 14 US gal/53 liters.
You can find information on refueling on
page 30.
If the tilt of the vehicle varies for a longer period,
when you are driving in mountainous areas, for
example, the indicator may fluctuate slightly.
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 19 of 48
18
ControlsControls overview

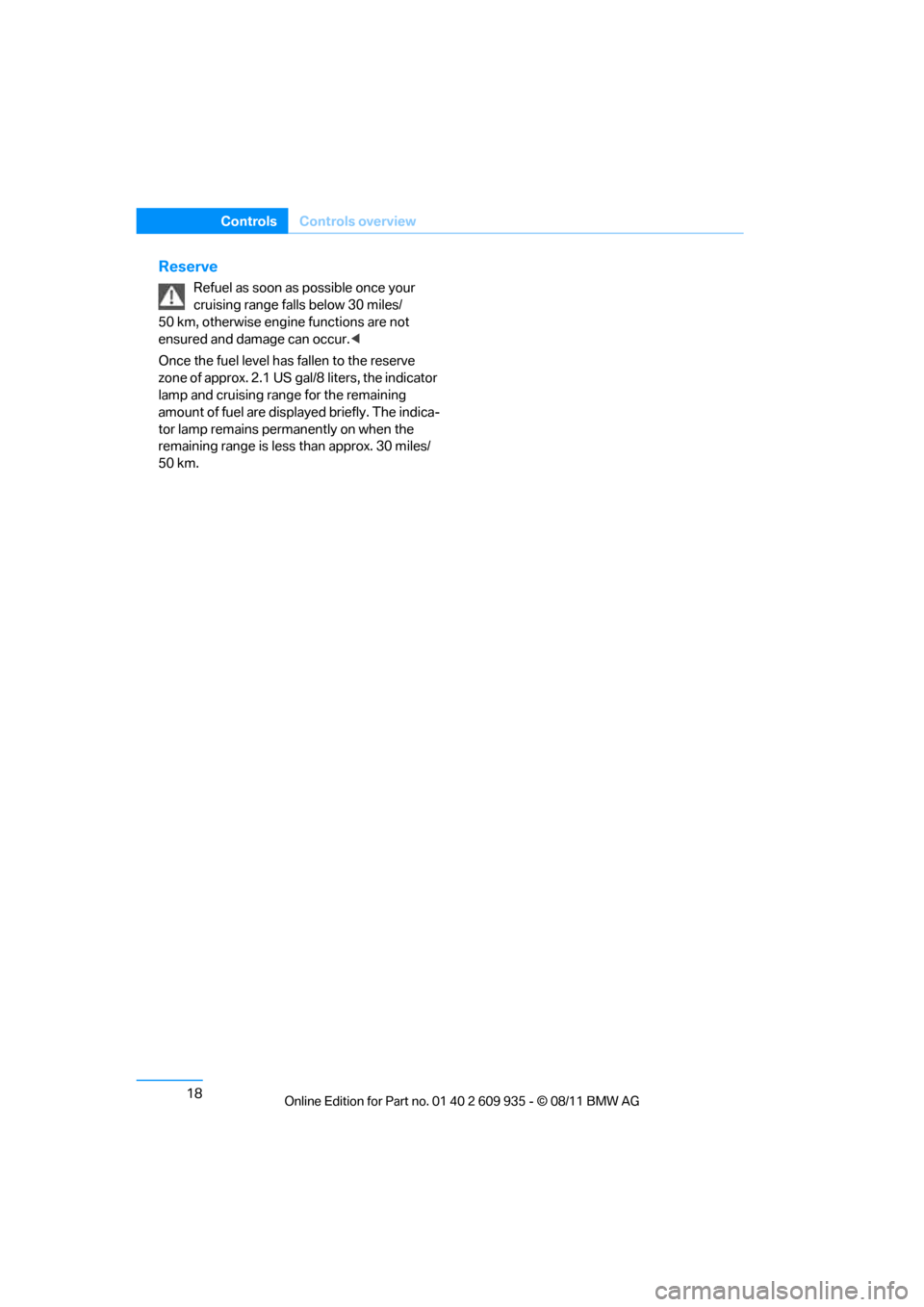

Reserve
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur. <
Once the fuel level ha s fallen to the reserve
zone of approx. 2.1 US gal/8 liters, the indicator
lamp and cruising range for the remaining
amount of fuel are displa yed briefly. The indica-
tor lamp remains permanently on when the
remaining range is less than approx. 30 miles/
50 km.
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 20 of 48
19

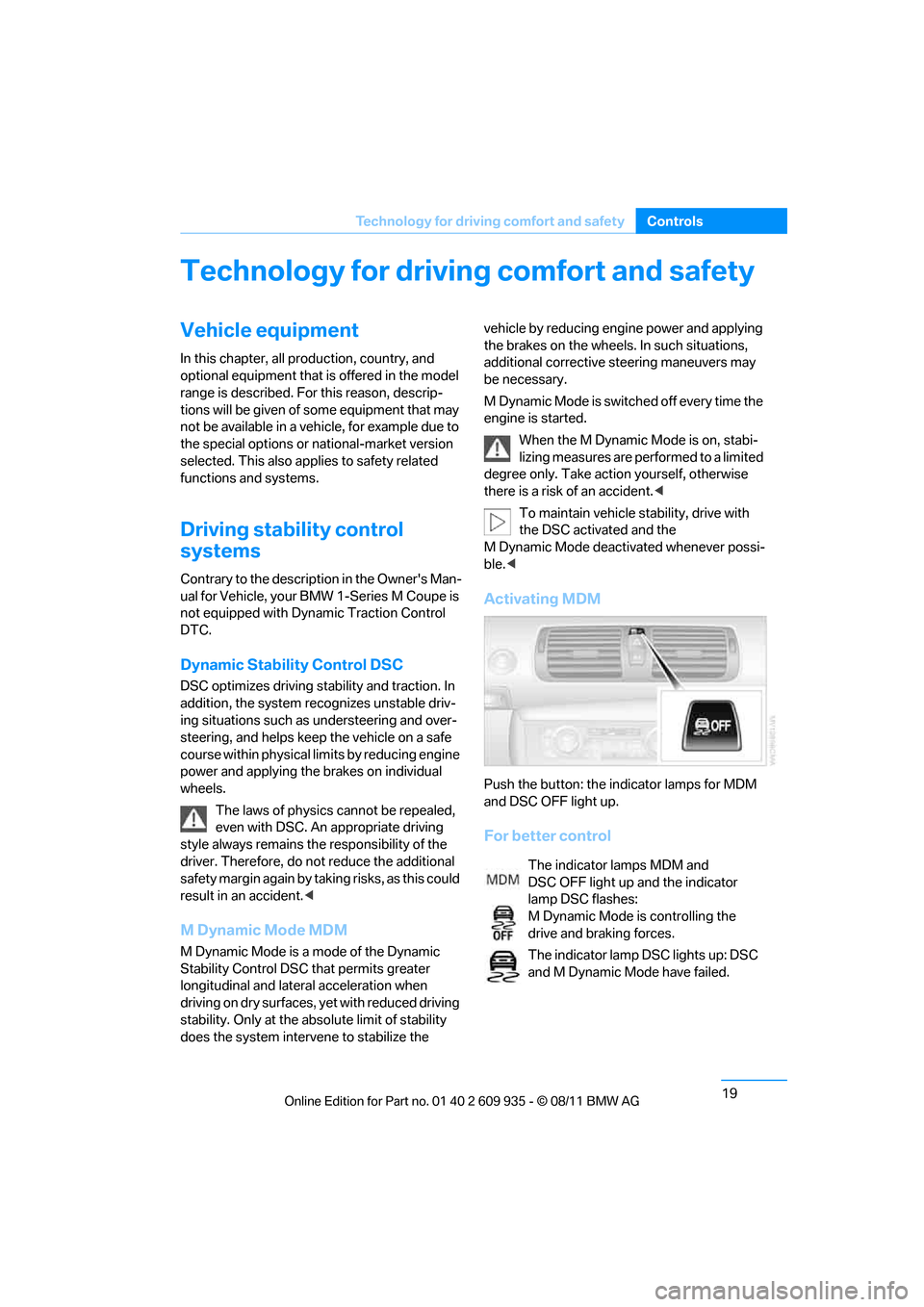

Technology for driving comfort and safety
Controls
Technology for driving comfort and safety
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi
cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Driving stability control
systems
Contrary to the descript ion in the Owner's Man-
ual for Vehicle, your BMW 1-Series M Coupe is
not equipped with Dyna mic Traction Control
DTC.
Dynamic Stability Control DSC
DSC optimizes driving stability and traction. In
addition, the system recognizes unstable driv-
ing situations such as understeering and over-
steering, and helps keep the vehicle on a safe
course within physical lim its by reducing engine
power and applying the brakes on individual
wheels.
The laws of physics cannot be repealed,
even with DSC. An appropriate driving
style always remains the responsibility of the
driver. Therefore, do no t reduce the additional
s a f e t y m a r g i n a g a i n b y t a k i n g r i s k s , a s t h i s c o u l d
result in an accident.<
M Dynamic Mode MDM
M Dynamic Mode is a mode of the Dynamic
Stability Control DSC that permits greater
longitudinal and latera l acceleration when
driving on dry surfaces, yet with reduced driving
stability. Only at the absolute limit of stability
does the system intervene to stabilize the vehicle by reducing engine power and applying
the brakes on the wheels. In such situations,
additional corrective steering maneuvers may
be necessary.
M Dynamic Mode is switched off every time the
engine is started.
When the M Dynamic Mode is on, stabi-
lizing measures are pe rformed to a limited
degree only. Take acti on yourself, otherwise
there is a risk of an accident. <
To maintain vehicle stability, drive with
the DSC activated and the
M Dynamic Mode deactivated whenever possi-
ble. <
Activating MDM
Push the button: the indicator lamps for MDM
and DSC OFF light up.
For better control
The indicator lamps MDM and
DSC OFF light up and the indicator
lamp DSC flashes:
M Dynamic Mode is controlling the
drive and braking forces.
The indicator lamp DSC lights up: DSC
and M Dynamic Mode have failed.
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
