BMW 1M 2011 E82 Owner's Guide
Manufacturer: BMW, Model Year: 2011, Model line: 1M, Model: BMW 1M 2011 E82Pages: 48, PDF Size: 3.23 MB
Page 31 of 48
30
MobilityRefueling

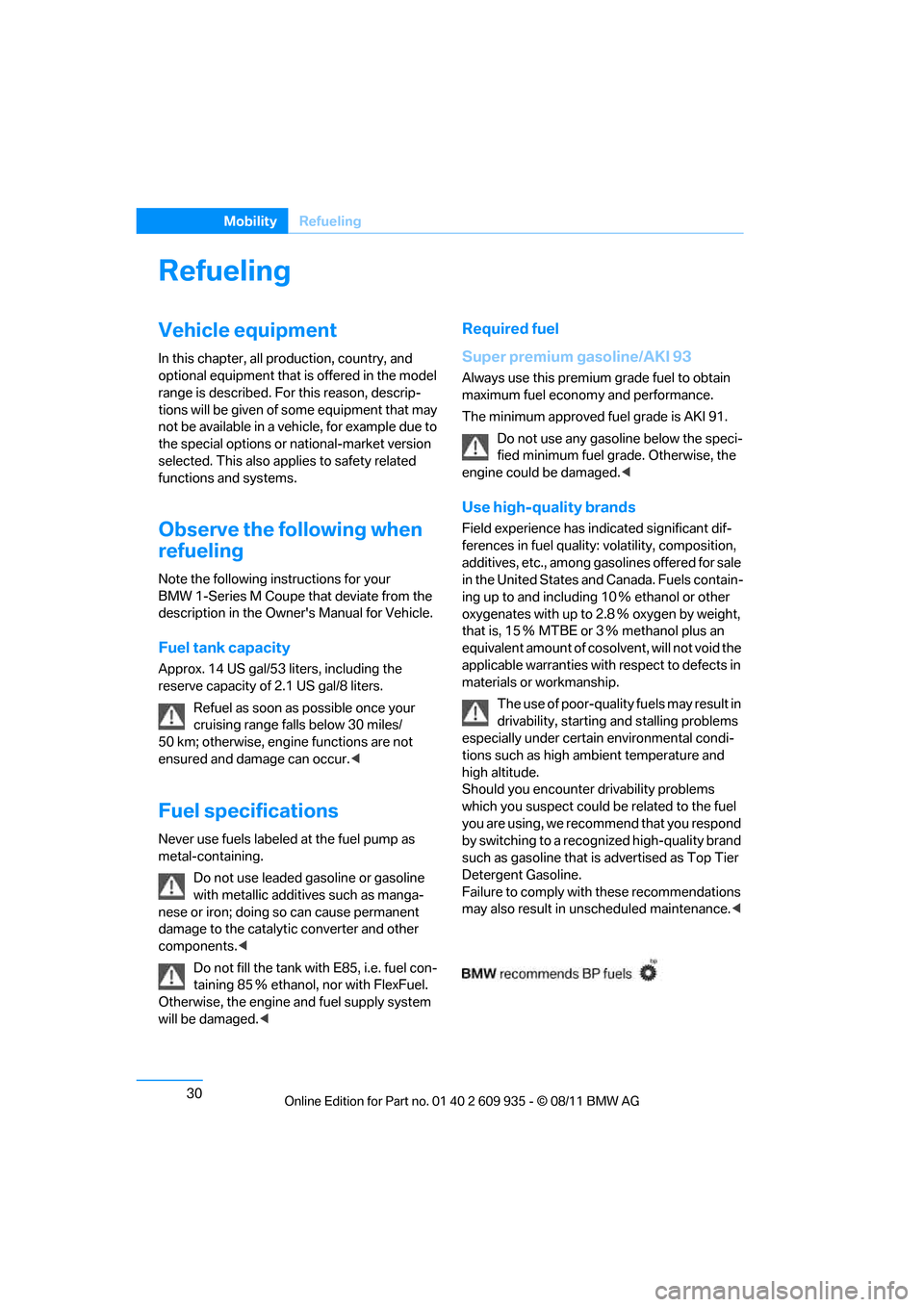

Refueling
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Observe the following when
refueling
Note the following instructions for your
BMW 1-Series M Coupe that deviate from the
description in the Owner's Manual for Vehicle.
Fuel tank capacity
Approx. 14 US gal/53 liters, including the
reserve capacity of 2.1 US gal/8 liters.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km; otherwise, engine functions are not
ensured and damage can occur. <
Fuel specifications
Never use fuels labeled at the fuel pump as
metal-containing.
Do not use leaded gasoline or gasoline
with metallic additives such as manga-
nese or iron; doing so can cause permanent
damage to the catalyti c converter and other
components. <
Do not fill the tank with E85, i.e. fuel con-
taining 85 X ethanol, nor with FlexFuel.
Otherwise, the engine and fuel supply system
will be damaged. <
Required fuel
Super premium gasoline/AKI 93
Always use this premium grade fuel to obtain
maximum fuel economy and performance.
The minimum approved fuel grade is AKI 91.
Do not use any gasoline below the speci-
fied minimum fuel grade. Otherwise, the
engine could be damaged. <
Use high-quality brands
Field experience has indicated significant dif-
ferences in fuel quality: volatility, composition,
additives, etc., among ga solines offered for sale
in the United States and Canada. Fuels contain-
ing up to and including 10 X ethanol or other
oxygenates with up to 2.8 X oxygen by weight,
that is, 15 X MTBE or 3 X methanol plus an
equivalent amount of coso lvent, will not void the
applicable warranties with respect to defects in
materials or workmanship.
The use of poor-quality fuels may result in
drivability, starting and stalling problems
especially under certain environmental condi-
tions such as high ambient temperature and
high altitude.
Should you encounter drivability problems
which you suspect could be related to the fuel
you are using, we recommend that you respond
by switching to a recogn ized high-quality brand
such as gasoline that is advertised as Top Tier
Detergent Gasoline.
Failure to comply with these recommendations
may also result in unscheduled maintenance. <
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 32 of 48

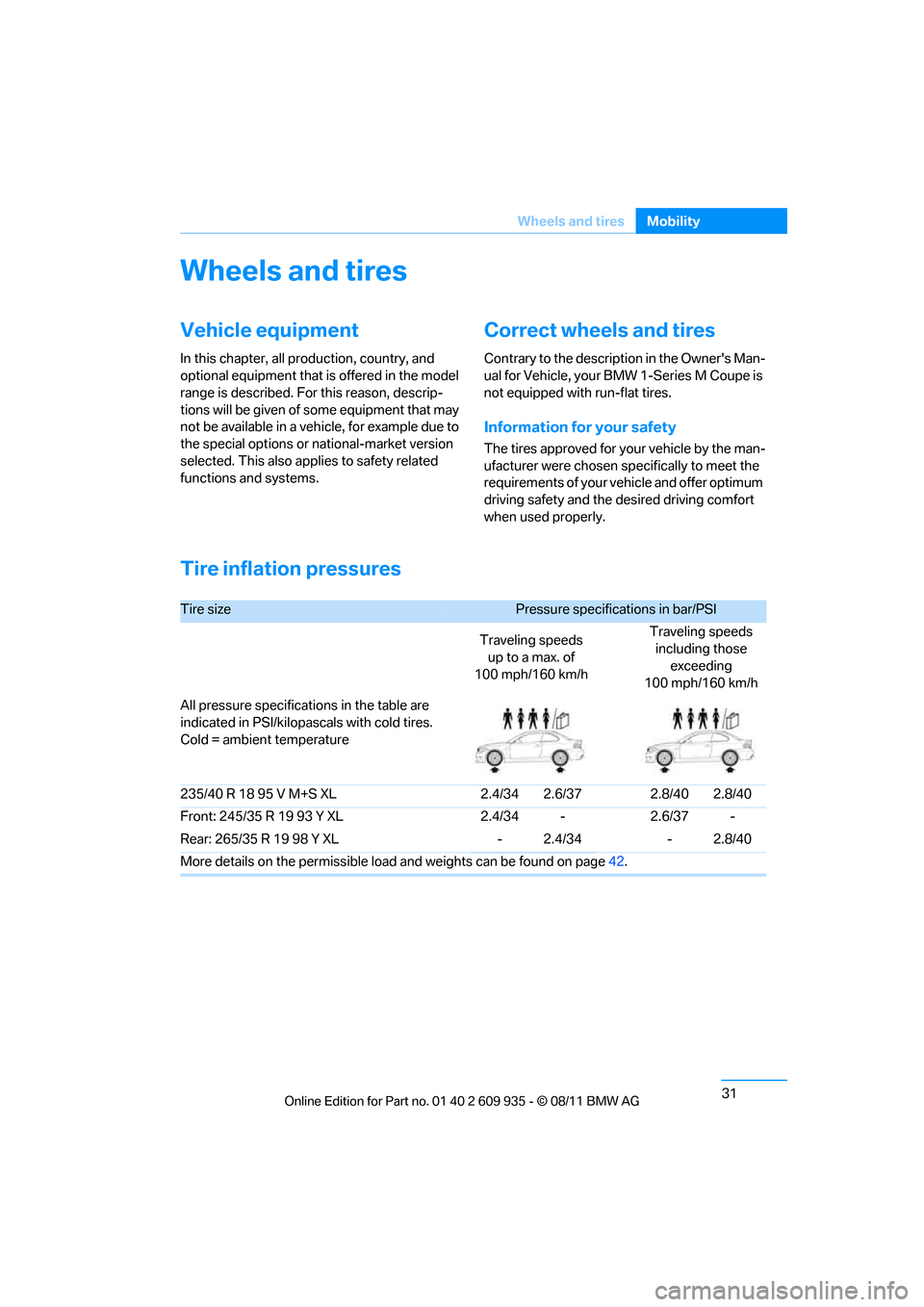

31
Wheels and tires
Mobility
Wheels and tires
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi
cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Correct wheels and tires
Contrary to the description in the Owner's Man-
ual for Vehicle, your BMW 1-Series M Coupe is
not equipped with run-flat tires.
Information for your safety
The tires approved for your vehicle by the man-
ufacturer were chosen sp ecifically to meet the
requirements of your vehicle and offer optimum
driving safety and the desired driving comfort
when used properly.
Tire inflation pressures
Tire size Pressure specifications in bar/PSI
Traveling speeds up to a max. of
100 mph/160 km/h Traveling speeds
including those exceeding
100 mph/160 km/h
All pressure specifications in the table are
indicated in PSI/kilopasc als with cold tires.
Cold = ambient temperature
235/40 R 18 95 V M+S XL 2.4/34 2.6/37 2.8/40 2.8/40
Front: 245/35 R 19 93 Y XL 2.4/34 - 2.6/37 -
Rear: 265/35 R 19 98 Y XL - 2.4/34 - 2.8/40
More details on the permissible load and weights can be found on page42.
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 33 of 48

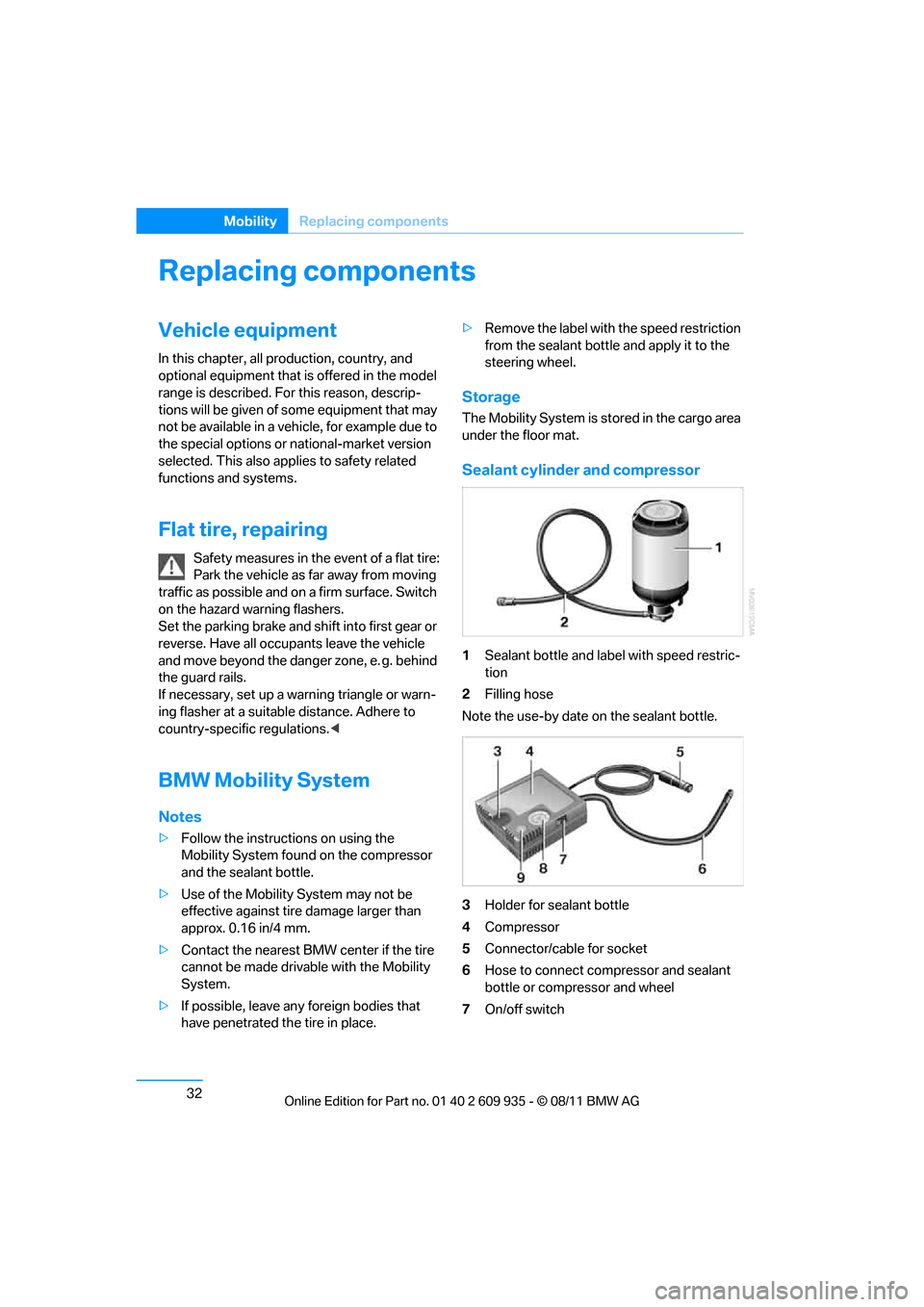

32
MobilityReplacing components
Replacing components
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Flat tire, repairing
Safety measures in the event of a flat tire:
Park the vehicle as far away from moving
traffic as possible and on a firm surface. Switch
on the hazard warning flashers.
Set the parking brake and shift into first gear or
reverse. Have all occu pants leave the vehicle
and move beyond the danger zone, e. g. behind
the guard rails.
If necessary, set up a warning triangle or warn-
ing flasher at a suitable distance. Adhere to
country-specific regulations. <
BMW Mobility System
Notes
>Follow the instructions on using the
Mobility System found on the compressor
and the sealant bottle.
> Use of the Mobility System may not be
effective against tire damage larger than
approx. 0.16 in/4 mm.
> Contact the nearest BMW center if the tire
cannot be made drivable with the Mobility
System.
> If possible, leave any foreign bodies that
have penetrated th e tire in place. >
Remove the label with the speed restriction
from the sealant bottle and apply it to the
steering wheel.
Storage
The Mobility System is st ored in the cargo area
under the floor mat.
Sealant cylinder and compressor
1 Sealant bottle and label with speed restric-
tion
2 Filling hose
Note the use-by date on the sealant bottle.
3 Holder for sealant bottle
4 Compressor
5 Connector/cable for socket
6 Hose to connect compressor and sealant
bottle or compressor and wheel
7 On/off switch
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 34 of 48

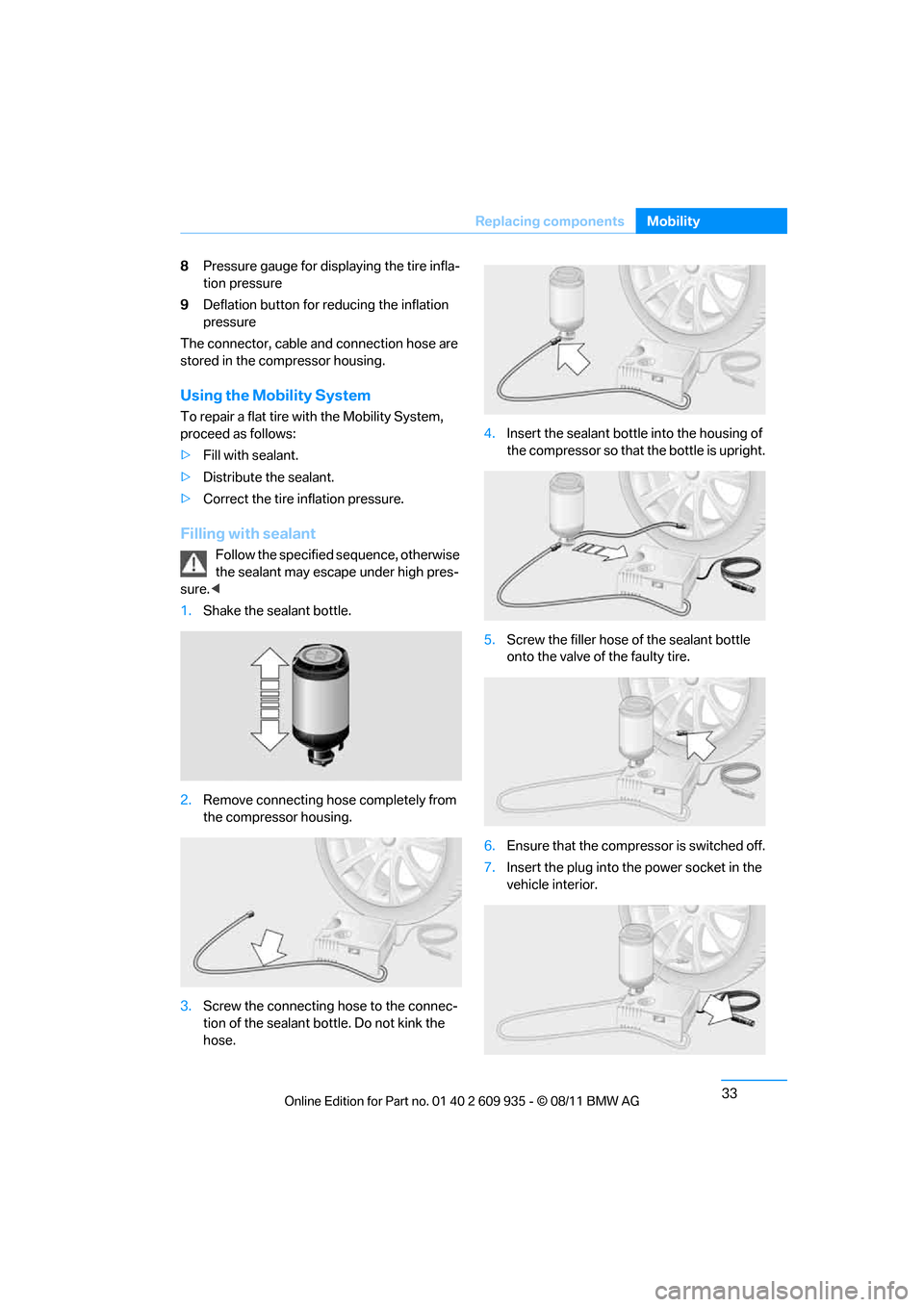

33
Replacing components
Mobility
8
Pressure gauge for displaying the tire infla-
tion pressure
9 Deflation button for reducing the inflation
pressure
The connector, cable and connection hose are
stored in the compressor housing.
Using the Mobility System
To repair a flat tire with the Mobility System,
proceed as follows:
> Fill with sealant.
> Distribute the sealant.
> Correct the tire inflation pressure.
Filling with sealant
Follow the specified sequence, otherwise
the sealant may escape under high pres-
sure. <
1. Shake the sealant bottle.
2. Remove connecting hose completely from
the compressor housing.
3. Screw the connecting hose to the connec-
tion of the sealant bottle. Do not kink the
hose. 4.
Insert the sealant bottle into the housing of
the compressor so that the bottle is upright.
5. Screw the filler hose of the sealant bottle
onto the valve of the faulty tire.
6. Ensure that the compressor is switched off.
7. Insert the plug into the power socket in the
vehicle interior.
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 35 of 48

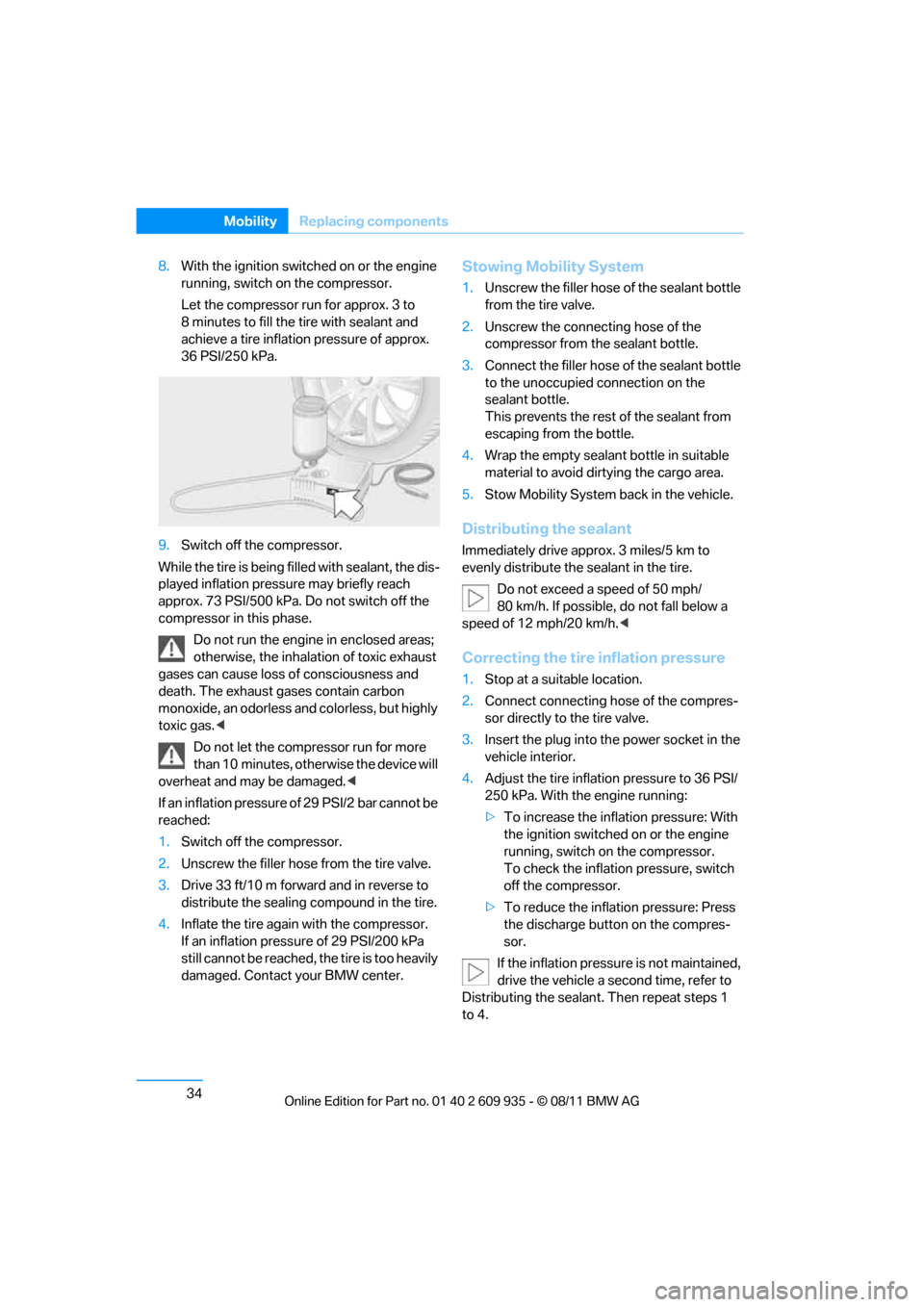

34
MobilityReplacing components
8.With the ignition switch ed on or the engine
running, switch on the compressor.
Let the compressor ru n for approx. 3 to
8 minutes to fill the ti re with sealant and
achieve a tire inflation pressure of approx.
36 PSI/250 kPa.
9. Switch off the compressor.
While the tire is being f illed with sealant, the dis-
played inflation pressu re may briefly reach
approx. 73 PSI/500 kPa. Do not switch off the
compressor in this phase.
Do not run the engine in enclosed areas;
otherwise, the inhalati on of toxic exhaust
gases can cause loss of consciousness and
death. The exhaust gases contain carbon
monoxide, an odorless and colorless, but highly
toxic gas. <
Do not let the compre ssor run for more
than 10 minutes, otherwise the device will
overheat and may be damaged. <
If an inflation pressure of 29 PSI/2 bar cannot be
reached:
1. Switch off the compressor.
2. Unscrew the filler hose from the tire valve.
3. Drive 33 ft/10 m forward and in reverse to
distribute the sealing compound in the tire.
4. Inflate the tire again with the compressor.
If an inflation pressure of 29 PSI/200 kPa
still cannot be reached, the tire is too heavily
damaged. Contact your BMW center.Stowing Mobility System
1. Unscrew the filler hose of the sealant bottle
from the tire valve.
2. Unscrew the connecting hose of the
compressor from the sealant bottle.
3. Connect the filler hose of the sealant bottle
to the unoccupied connection on the
sealant bottle.
This prevents the rest of the sealant from
escaping from the bottle.
4. Wrap the empty sealant bottle in suitable
material to avoid dirtying the cargo area.
5. Stow Mobility System back in the vehicle.
Distributing the sealant
Immediately drive approx. 3 miles/5 km to
evenly distribute the sealant in the tire.
Do not exceed a speed of 50 mph/
80 km/h. If possible, do not fall below a
speed of 12 mph/20 km/h. <
Correcting the tire inflation pressure
1.Stop at a suitable location.
2. Connect connecting hose of the compres-
sor directly to the tire valve.
3. Insert the plug into th e power socket in the
vehicle interior.
4. Adjust the tire inflation pressure to 36 PSI/
250 kPa. With the engine running:
>To increase the inflation pressure: With
the ignition switched on or the engine
running, switch on the compressor.
To check the inflatio n pressure, switch
off the compressor.
> To reduce the inflation pressure: Press
the discharge button on the compres-
sor.
If the inflation pressure is not maintained,
drive the vehicle a second time, refer to
Distributing the sealant. Then repeat steps 1
to 4.
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 36 of 48

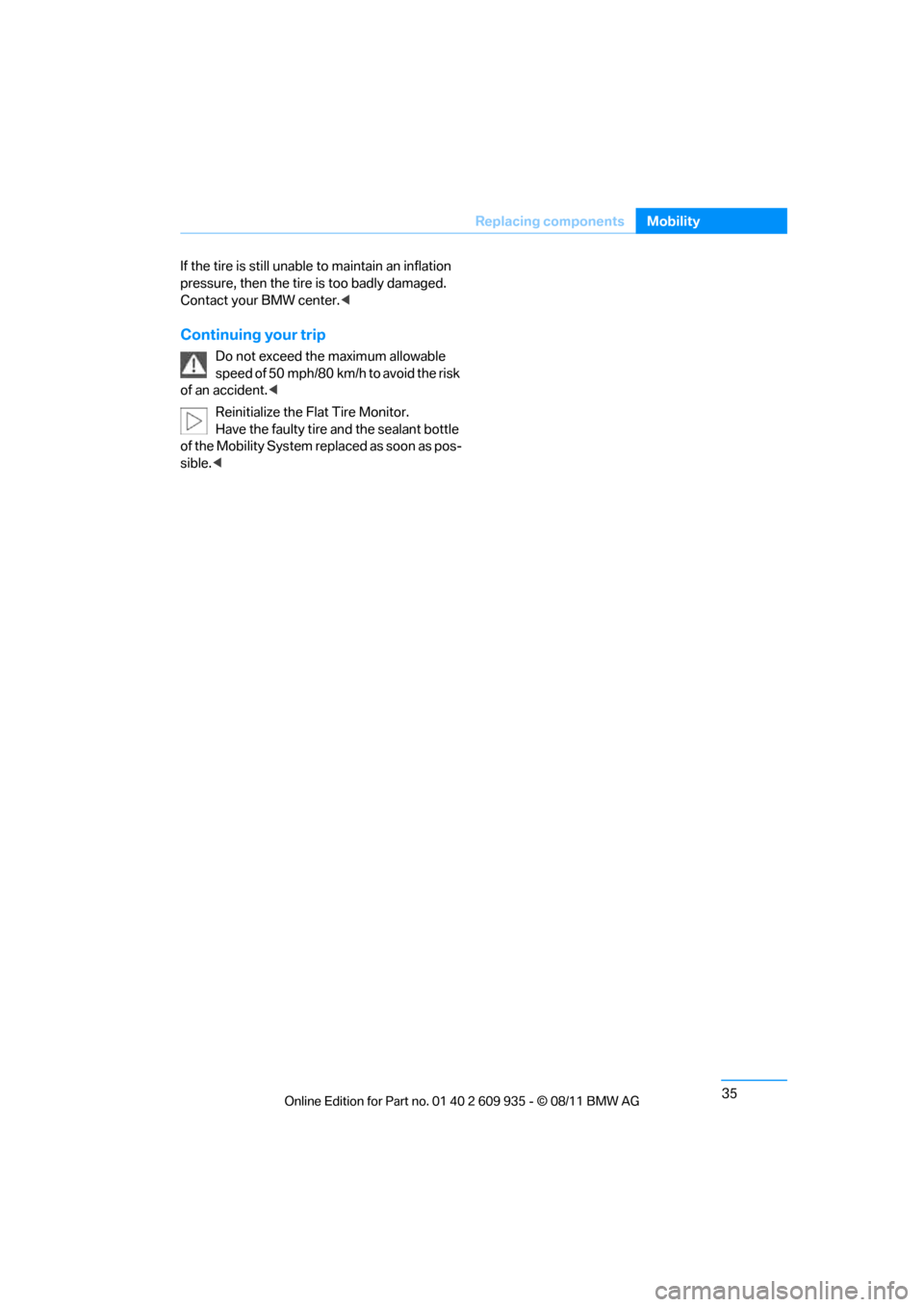

35
Replacing components
Mobility
If the tire is still unable
to maintain an inflation
pressure, then the tire is too badly damaged.
Contact your BMW center. <
Continuing your trip
Do not exceed the maximum allowable
speed of 50 mph/80 km/h to avoid the risk
of an accident. <
Reinitialize the Flat Tire Monitor.
Have the faulty tire and the sealant bottle
of the Mobility System replaced as soon as pos-
sible. <
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 37 of 48

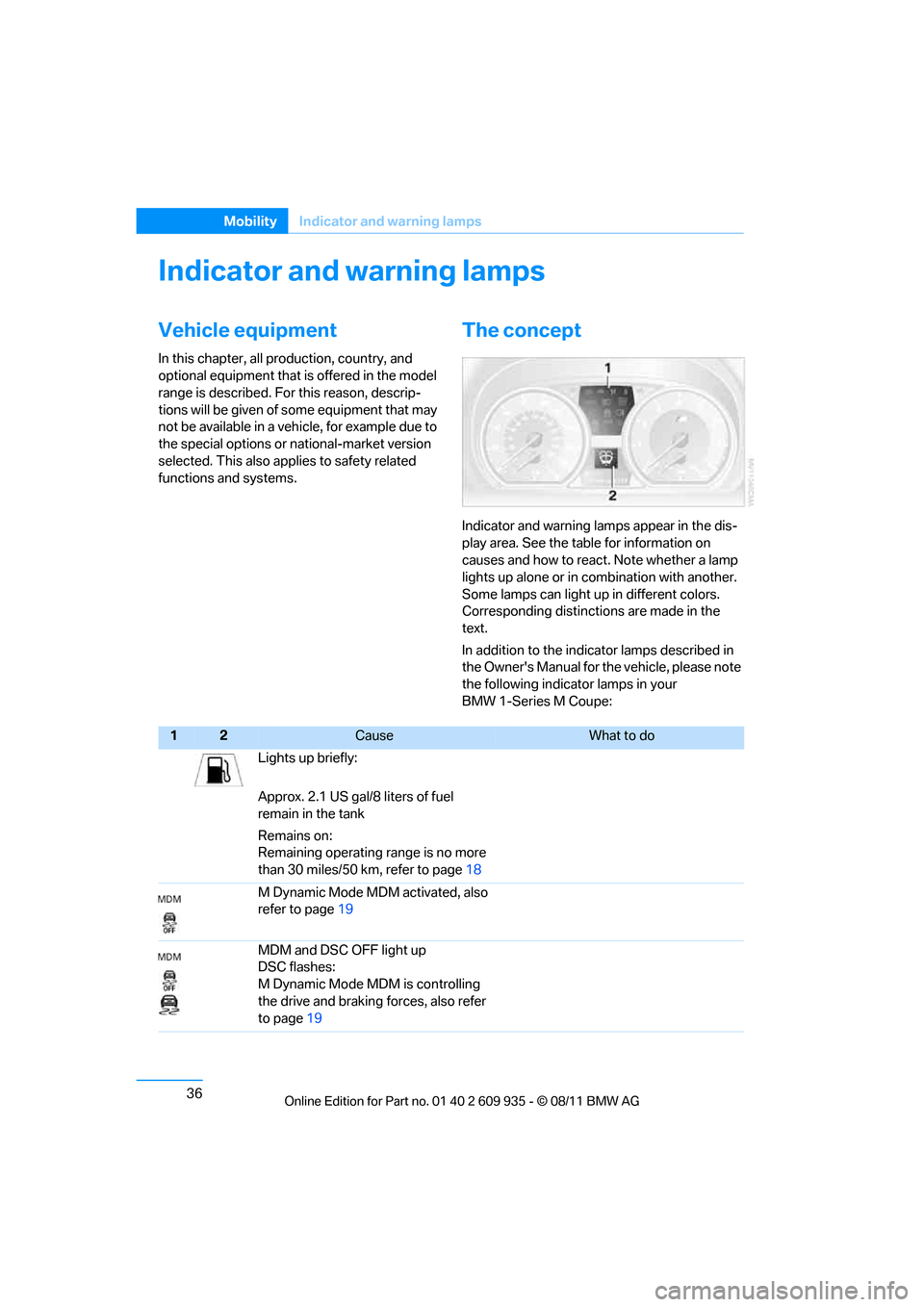

36
MobilityIndicator and warning lamps
Indicator and warning lamps
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
The concept
Indicator and warning lamps appear in the dis-
play area. See the table for information on
causes and how to react. Note whether a lamp
lights up alone or in combination with another.
Some lamps can light up in different colors.
Corresponding distinctions are made in the
text.
In addition to the indi cator lamps described in
the Owner's Manual for the vehicle, please note
the following indicator lamps in your
BMW 1-Series M Coupe:
12Cause What to do
Lights up briefly:
Approx. 2.1 US gal/8 liters of fuel
remain in the tank
Remains on:
Remaining operating range is no more
than 30 miles/50 km, refer to page 18
M Dynamic Mode MDM activated, also
refer to page 19
MDM and DSC OFF light up
DSC flashes:
M Dynamic Mode MDM is controlling
the drive and braking forces, also refer
to page 19
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 38 of 48
37

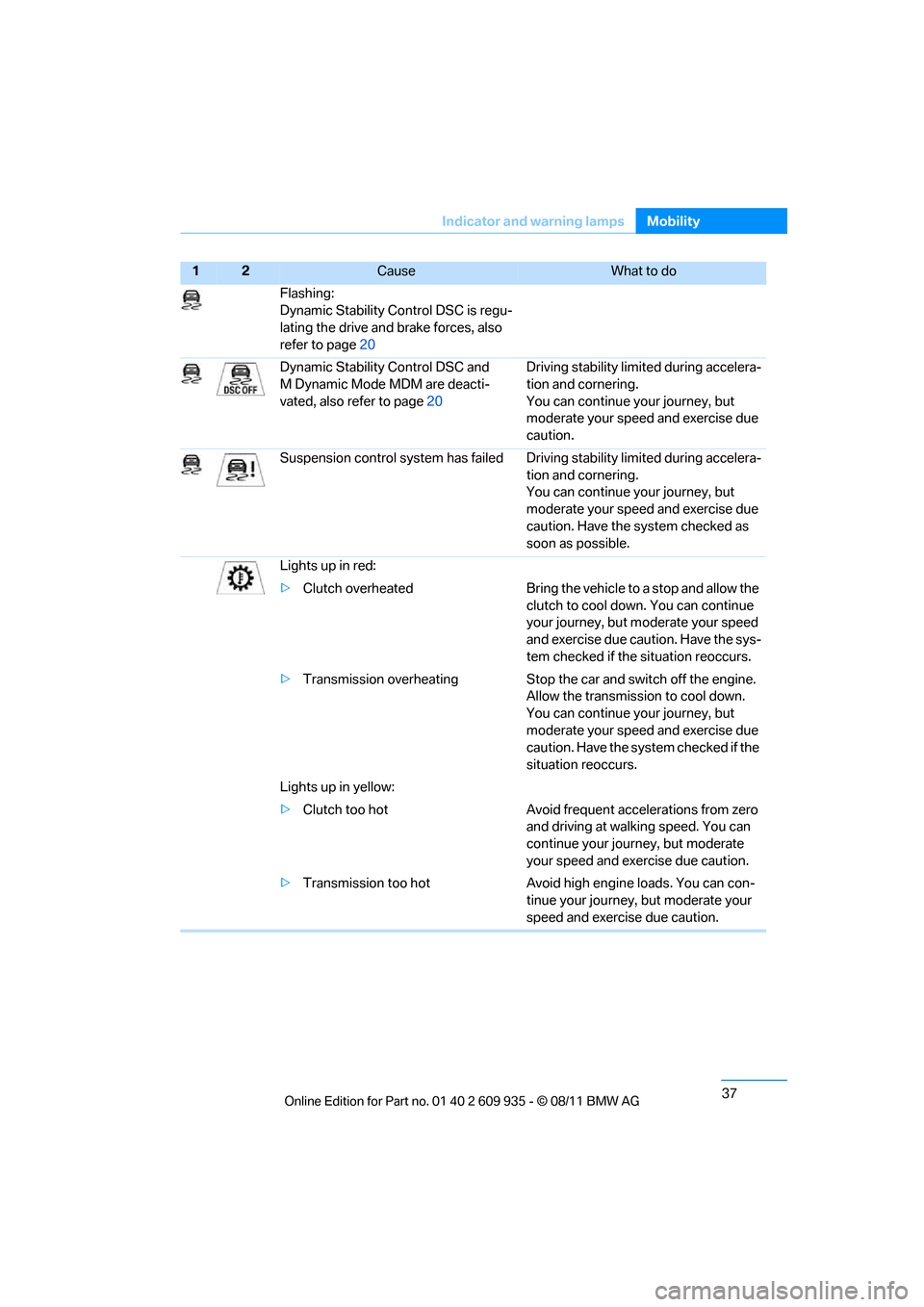

Indicator and warning lamps
Mobility
Flashing:
Dynamic Stability Control DSC is regu-
lating the drive and brake forces, also
refer to page
20
Dynamic Stability Control DSC and
M Dynamic Mode MDM are deacti-
vated, also refer to page 20Driving stability limited during accelera-
tion and cornering.
You can continue your journey, but
moderate your speed and exercise due
caution.
Suspension control system has failed Dri ving stability limited during accelera-
tion and cornering.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked as
soon as possible.
Lights up in red:
> Clutch overheated Bring the vehi cle to a stop and allow the
clutch to cool down. You can continue
your journey, but mo derate your speed
and exercise due caution. Have the sys-
tem checked if the situation reoccurs.
> Transmission overheating Stop the car and switch off the engine.
Allow the transmission to cool down.
You can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked if the
situation reoccurs.
Lights up in yellow:
> Clutch too hot Avoid frequent accelerations from zero
and driving at walking speed. You can
continue your journey, but moderate
your speed and exercise due caution.
> Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate your
speed and exercise due caution.
12Cause What to do
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 39 of 48
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
Page 40 of 48
This chapter contains technical data and an
index that will help yo u find information most
quickly.
Reference
Online Edition for Part no. 01 40 2 609 935 - \251 08/11 BMW AG
