BMW 325Ci COUPE 2003 E46 Owner's Manual

141 Giving and receiving assistance
Jump-startingWhen your battery is discharged, you
can use two jumper cables to start your
vehicle with power from the battery in a
second vehicle. You can also use the
same method to help start another
vehicle. Only use jumper cables with
fully insulated handles on the terminal
clamps.
Do not touch high-voltage wiring
and cables on a running engine.
Contact with components carrying high
voltage can be harmful or fatal. Care-
fully observe the following instructions
to avoid personal injury and/or damage
to one or both vehicles.<
1. The battery in the support vehicle
must also be rated at 12 volts. This
information is provided on the battery
label
2. Stop the engine of the support vehi-
cle and switch off all electrical com-
ponents in both vehicles – except for
the hazard warning flashers of the
support vehicle
3. Make absolutely certain that there is
no contact between the bodywork of
the two vehicles – short circuit haz-
ard
4. The auxiliary jump-starting terminal
located in your BMW's engine com-
partment acts as the positive battery
terminal. The cover of this auxiliary
terminal is marked with a + sign.
Remove by pulling the tab – see
arrow 1.
Start by connecting the jumper cable
from the positive terminal of the dis-
charged battery to the positive termi-
nal of the support battery
5. Then connect the negative terminals
with the other jumper cable. Attach
the cable to either the support vehi-
cle's negative battery terminal or to a
suitable ground on its engine or
bodywork. Then connect the other
end of the cable to the negative bat-
tery terminal of the vehicle to be
started or to a suitable ground on its
engine or bodywork.
Your BMW is equipped with a special
nut for this purpose – see arrow 2
Always adhere to this sequence
when connecting jumper cables;
failure to observe this procedure can
lead to sparks at the battery terminals
and pose an injury hazard.<
6. Start the engine of the support vehi-
cle and let it run for several minutes
at a slightly elevated engine idle
speed
7. Start the engine of the other vehicle
as usual. If the first start attempt is
not successful, wait a few minutes
before another attempt in order to
allow the discharged battery to
recharge
8. Before disconnecting the jumper
cables let the engines run for a few
minutes
9. Then disconnect the jumper cables
in reverse sequence.
Depending on the cause of the fault,
have the battery checked and
recharged by your BMW center.
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 141 Tuesday, July 30, 2002 12:16 PM

142

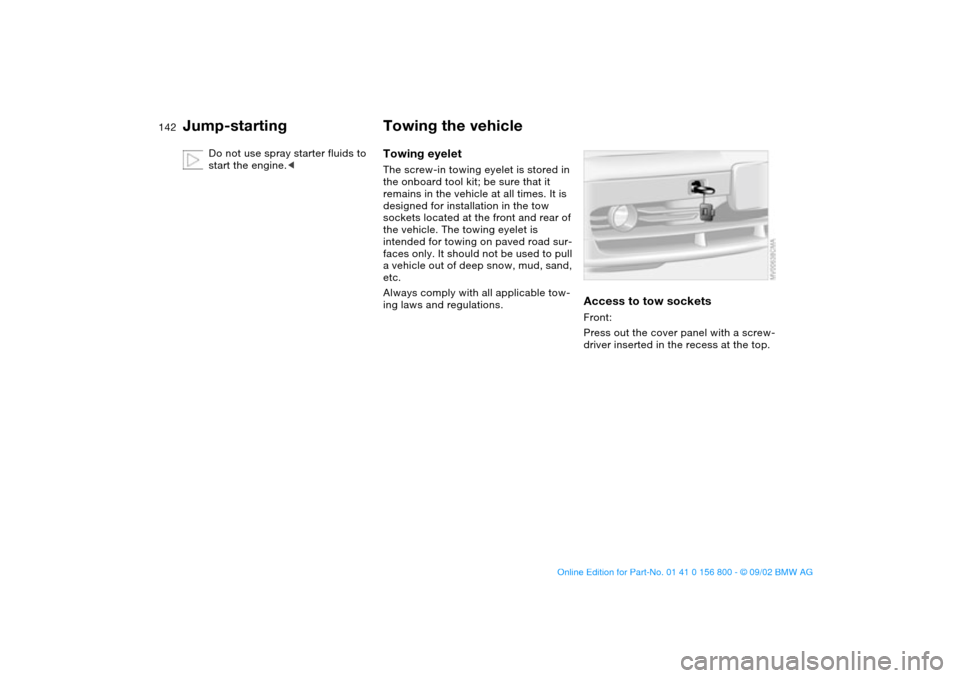

Do not use spray starter fluids to
start the engine.<
Towing the vehicleTowing eyeletThe screw-in towing eyelet is stored in
the onboard tool kit; be sure that it
remains in the vehicle at all times. It is
designed for installation in the tow
sockets located at the front and rear of
the vehicle. The towing eyelet is
intended for towing on paved road sur-
faces only. It should not be used to pull
a vehicle out of deep snow, mud, sand,
etc.
Always comply with all applicable tow-
ing laws and regulations.
Access to tow socketsFront:
Press out the cover panel with a screw-
driver inserted in the recess at the top.
Jump-starting
handbook.book Page 142 Tuesday, July 30, 2002 12:16 PM

143

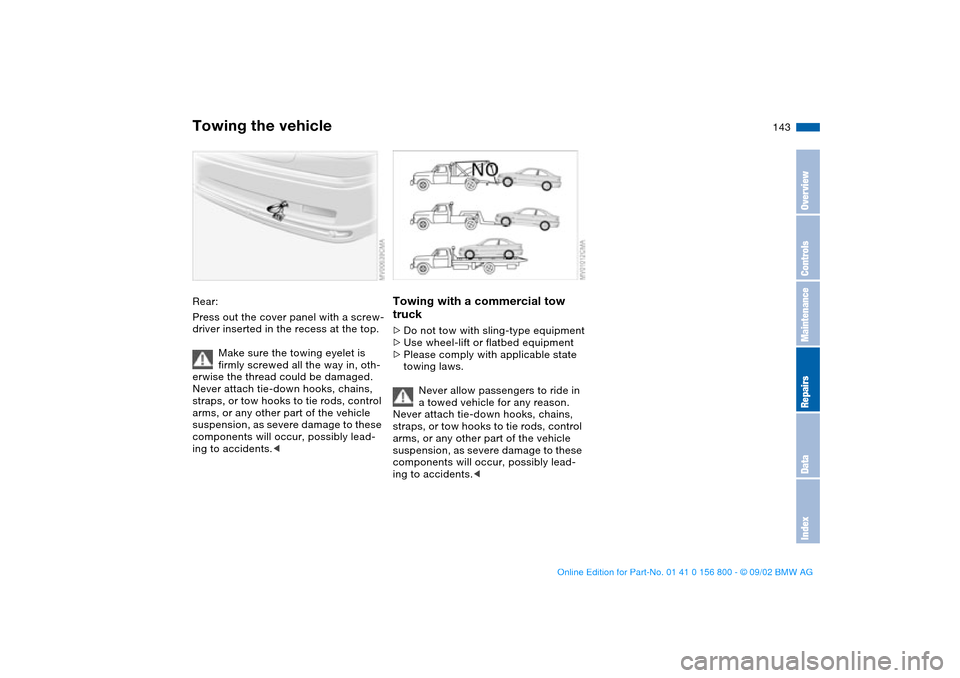

Rear:
Press out the cover panel with a screw-
driver inserted in the recess at the top.
Make sure the towing eyelet is
firmly screwed all the way in, oth-
erwise the thread could be damaged.
Never attach tie-down hooks, chains,
straps, or tow hooks to tie rods, control
arms, or any other part of the vehicle
suspension, as severe damage to these
components will occur, possibly lead-
ing to accidents.<
Towing with a commercial tow
truck>Do not tow with sling-type equipment
>Use wheel-lift or flatbed equipment
>Please comply with applicable state
towing laws.
Never allow passengers to ride in
a towed vehicle for any reason.
Never attach tie-down hooks, chains,
straps, or tow hooks to tie rods, control
arms, or any other part of the vehicle
suspension, as severe damage to these
components will occur, possibly lead-
ing to accidents.<
Towing the vehicle
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 143 Tuesday, July 30, 2002 12:16 PM

144handbook.book Page 144 Tuesday, July 30, 2002 12:16 PM

145
Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 145 Tuesday, July 30, 2002 12:16 PM

146

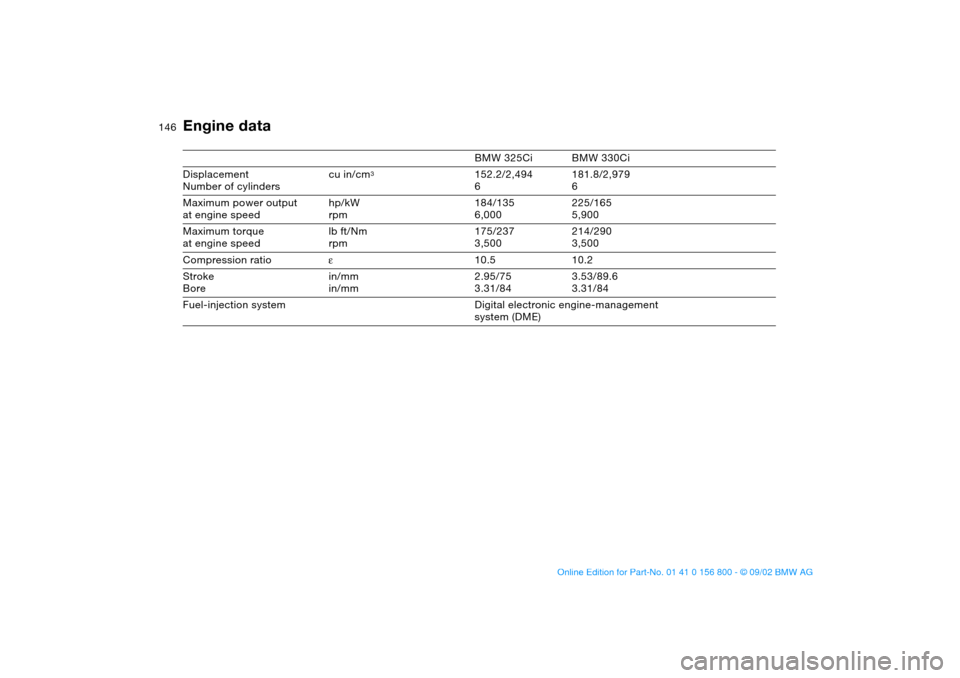

Engine data
BMW 325Ci BMW 330Ci
Displacement
Number of cylinderscu in/cm
3
152.2/2,494
6181.8/2,979
6
Maximum power output
at engine speedhp/kW
rpm184/135
6,000225/165
5,900
Maximum torque
at engine speedlb ft/Nm
rpm175/237
3,500214/290
3,500
Compression ratioε10.5 10.2
Stroke
Borein/mm
in/mm2.95/75
3.31/843.53/89.6
3.31/84
Fuel-injection system Digital electronic engine-management
system (DME)
handbook.book Page 146 Tuesday, July 30, 2002 12:16 PM

147

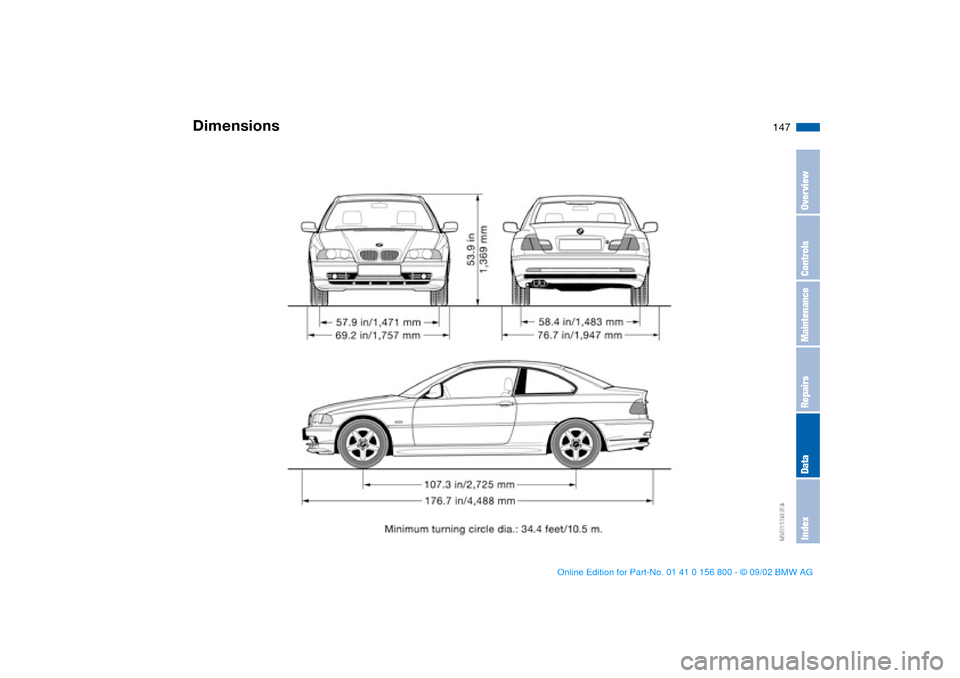

Dimensions
OverviewControlsMaintenanceRepairsDataIndex
handbook.book Page 147 Tuesday, July 30, 2002 12:16 PM

148

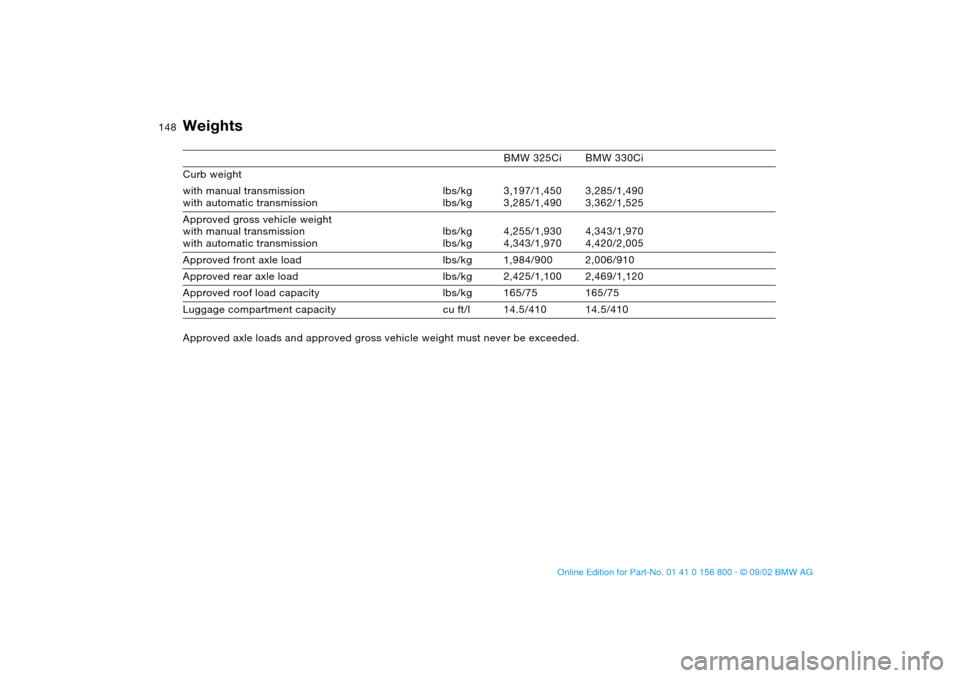

Weights
BMW 325Ci BMW 330Ci
Curb weight
with manual transmission
with automatic transmissionlbs/kg
lbs/kg3,197/1,450
3,285/1,4903,285/1,490
3,362/1,525
Approved gross vehicle weight
with manual transmission
with automatic transmissionlbs/kg
lbs/kg4,255/1,930
4,343/1,9704,343/1,970
4,420/2,005
Approved front axle load lbs/kg 1,984/900 2,006/910
Approved rear axle load lbs/kg 2,425/1,100 2,469/1,120
Approved roof load capacity lbs/kg 165/75 165/75
Luggage compartment capacity cu ft/l 14.5/410 14.5/410
Approved axle loads and approved gross vehicle weight must never be exceeded.
handbook.book Page 148 Tuesday, July 30, 2002 12:16 PM

149
Capacities
Notes
Fuel tank
Reservegal./liters
gal./litersapprox. 16.6/63
approx. 2.1/8Fuel specification: page 24
Windshield/
Headlamp washer reservoir quarts/liters approx. 5.6/5.3Specifications: page 120
Cooling system including heater circuit quarts/liters approx. 8.9/8.4 Specifications: page 122
Engine with oil filter change quarts/liters approx. 6.9/6.5 BMW High Performance
Synthetic Oil
Specifications: page 120
Manual and automatic transmission and differential – Lifetime lubricant, no oil change
required
