BMW M3 CONVERTIBLE 2012 Owner's Manual

20
At a glanceRadio

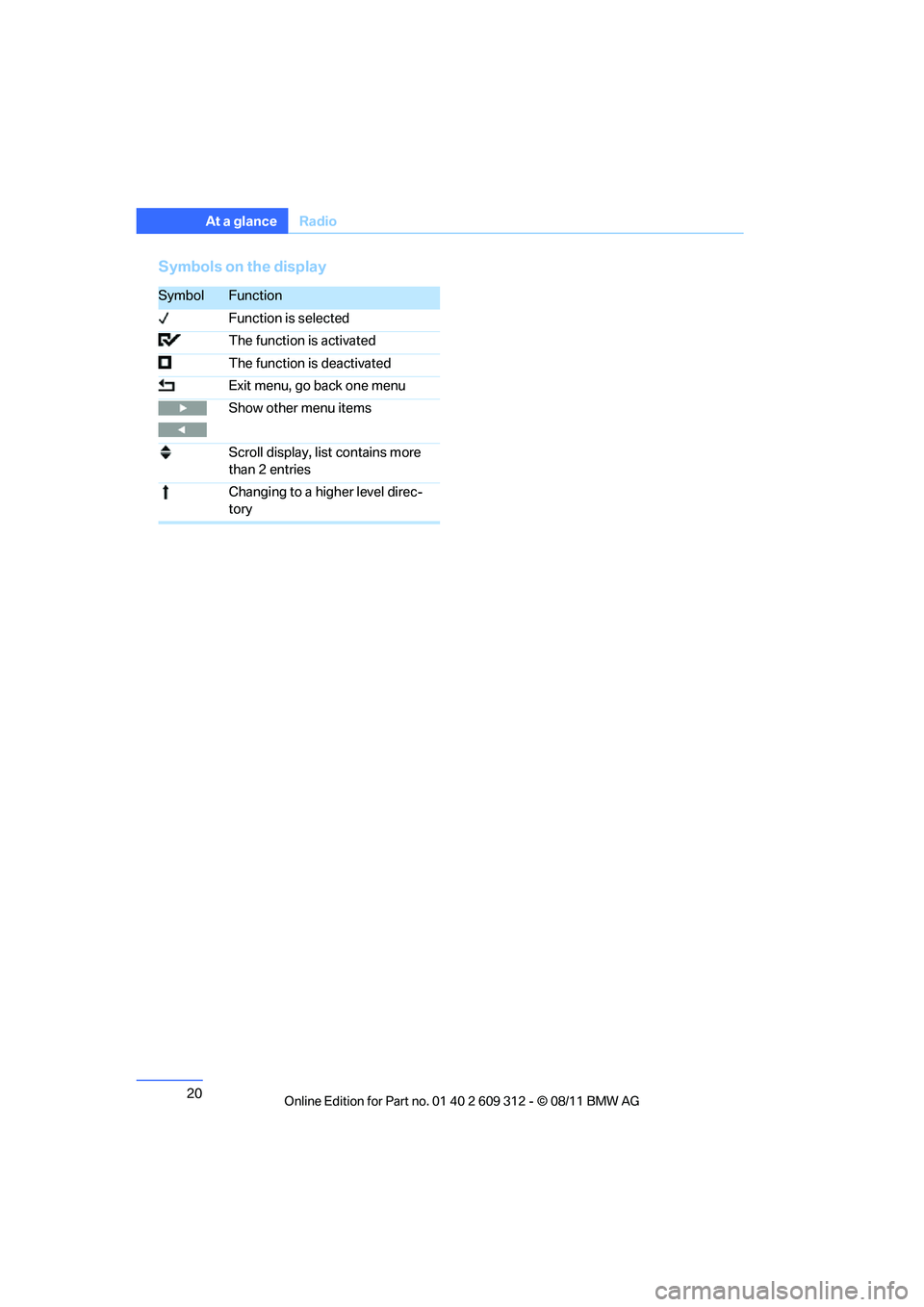

Symbols on the display
SymbolFunction
Function is selected
The function is activated
The function is deactivated
Exit menu, go back one menu
Show other menu items
Scroll display, list contains more
than 2 entries
Changing to a higher level direc-
tory
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

21
Radio
At a glance
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

This chapter is intended to provide you with
information for complete control of your vehicle. All features and accessories that are useful for
driving and your safety, comfort andconvenience, are described here.
Controls
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

24
ControlsOpening and closing

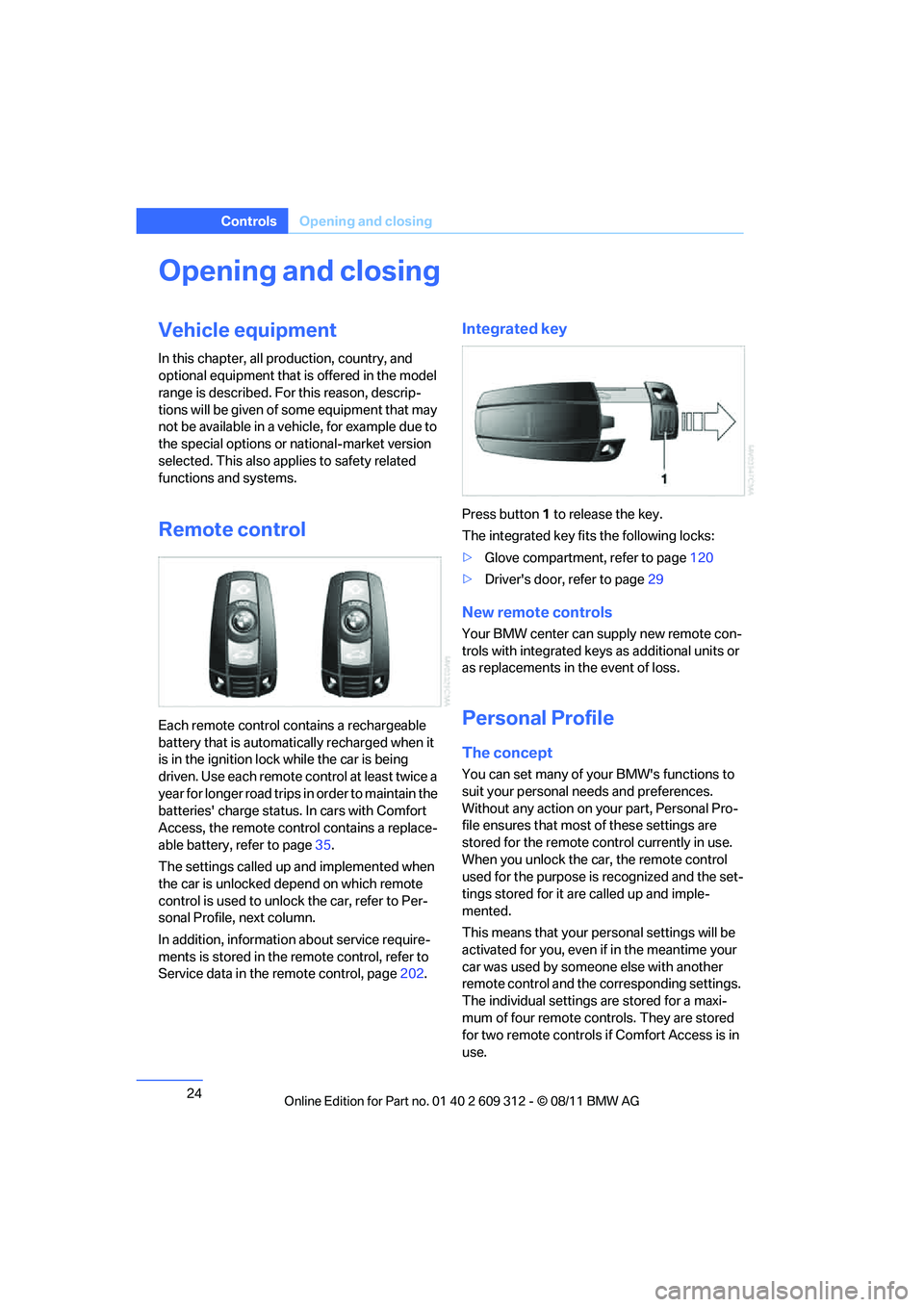

Opening and closing
Vehicle equipment
In this chapter, all pr oduction, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Remote control
Each remote control contains a rechargeable
battery that is automatically recharged when it
is in the ignition lock while the car is being
driven. Use each remote control at least twice a
year for longer road trips in order to maintain the
batteries' charge status. In cars with Comfort
Access, the remote control contains a replace-
able battery, refer to page 35.
The settings called up and implemented when
the car is unlocked de pend on which remote
control is used to unlock the car, refer to Per-
sonal Profile, next column.
In addition, informatio n about service require-
ments is stored in the remote control, refer to
Service data in the remote control, page 202.
Integrated key
Press button1 to release the key.
The integrated key fits the following locks:
> Glove compartment, refer to page 120
> Driver's door, refer to page 29
New remote controls
Your BMW center can supply new remote con-
trols with integrated keys as additional units or
as replacements in the event of loss.
Personal Profile
The concept
You can set many of your BMW's functions to
suit your personal needs and preferences.
Without any action on yo ur part, Personal Pro-
file ensures that most of these settings are
stored for the remote control currently in use.
When you unlock the car, the remote control
used for the purpose is recognized and the set-
tings stored for it are called up and imple-
mented.
This means that your pe rsonal settings will be
activated for you, even if in the meantime your
car was used by someone else with another
remote control and the corresponding settings.
The individual settings are stored for a maxi-
mum of four remote cont rols. They are stored
for two remote controls if Comfort Access is in
use.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

25
Opening and closing
Controls

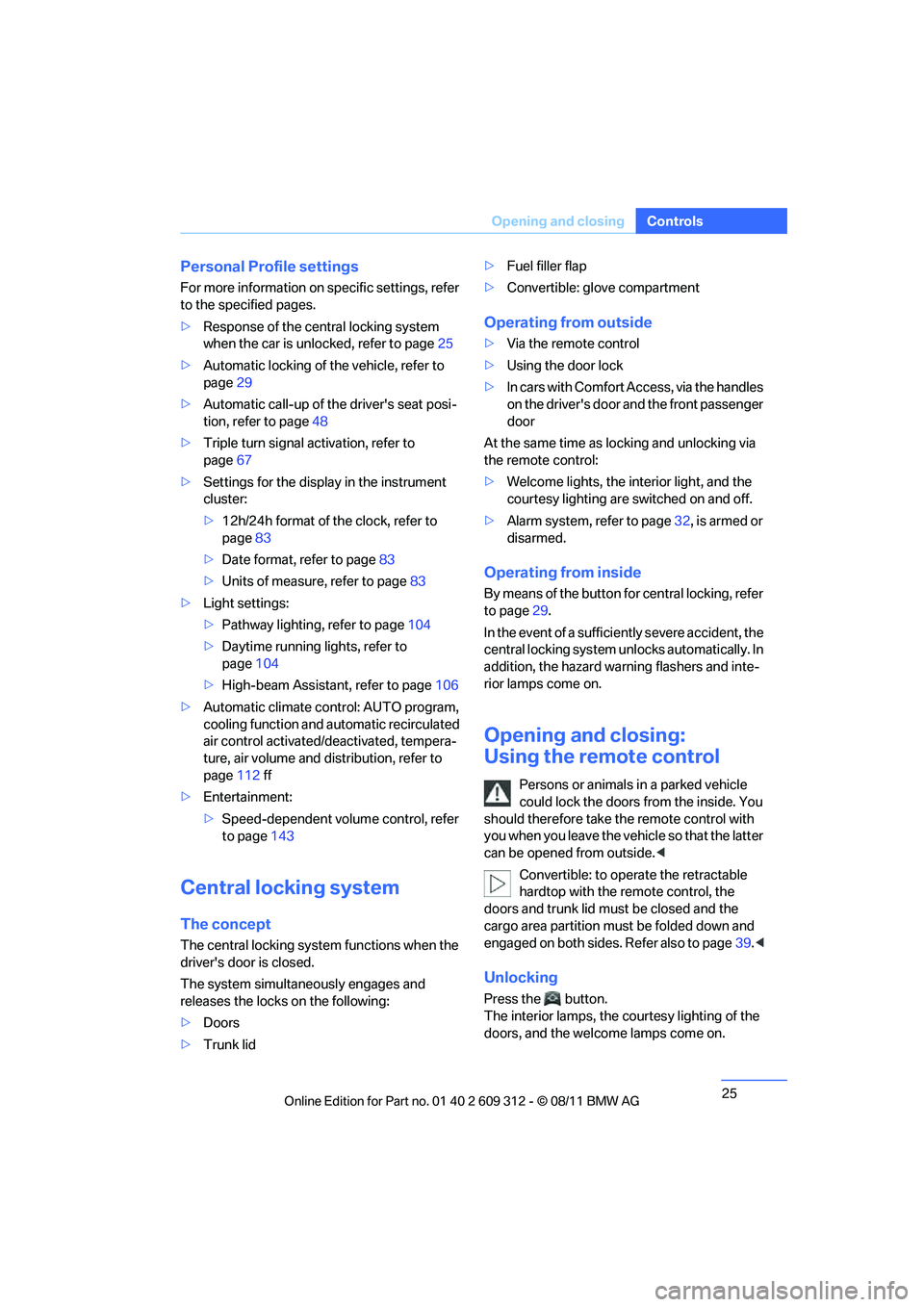

Personal Profile settings
For more information on
specific settings, refer
to the specified pages.
> Response of the central locking system
when the car is unlocked, refer to page 25
> Automatic locking of th e vehicle, refer to
page 29
> Automatic call-up of th e driver's seat posi-
tion, refer to page 48
> Triple turn signal activation, refer to
page 67
> Settings for the display in the instrument
cluster:
>12h/24h format of the clock, refer to
page 83
> Date format, refer to page 83
> Units of measure, refer to page 83
> Light settings:
>Pathway lighting, refer to page 104
> Daytime running lights, refer to
page 104
> High-beam Assistant, refer to page 106
> Automatic climate control: AUTO program,
cooling function and au tomatic recirculated
air control activated/ deactivated, tempera-
ture, air volume and di stribution, refer to
page 112 ff
> Entertainment:
>Speed-dependent volume control, refer
to page 143
Central locking system
The concept
The central locking system functions when the
driver's door is closed.
The system simultaneously engages and
releases the locks on the following:
>Doors
> Trunk lid >
Fuel filler flap
> Convertible: glove compartment
Operating from outside
>Via the remote control
> Using the door lock
> In cars with Comfort Access, via the handles
on the driver's door and the front passenger
door
At the same time as locking and unlocking via
the remote control:
> Welcome lights, the inte rior light, and the
courtesy lighting are switched on and off.
> Alarm system, refer to page 32, is armed or
disarmed.
Operating from inside
By means of the button fo r central locking, refer
to page 29.
In the event of a sufficien tly severe accident, the
central locking system un locks automatically. In
addition, the hazard warning flashers and inte-
rior lamps come on.
Opening and closing:
Using the remote control
Persons or animals in a parked vehicle
could lock the doors from the inside. You
should therefore take th e remote control with
you when you leave the ve hicle so that the latter
can be opened from outside. <
Convertible: to oper ate the retractable
hardtop with the remote control, the
doors and trunk lid must be closed and the
cargo area partition must be folded down and
engaged on both sides. Refer also to page39.<
Unlocking
Press the button.
The interior lamps, the courtesy lighting of the
doors, and the welcome lamps come on.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

26
ControlsOpening and closing

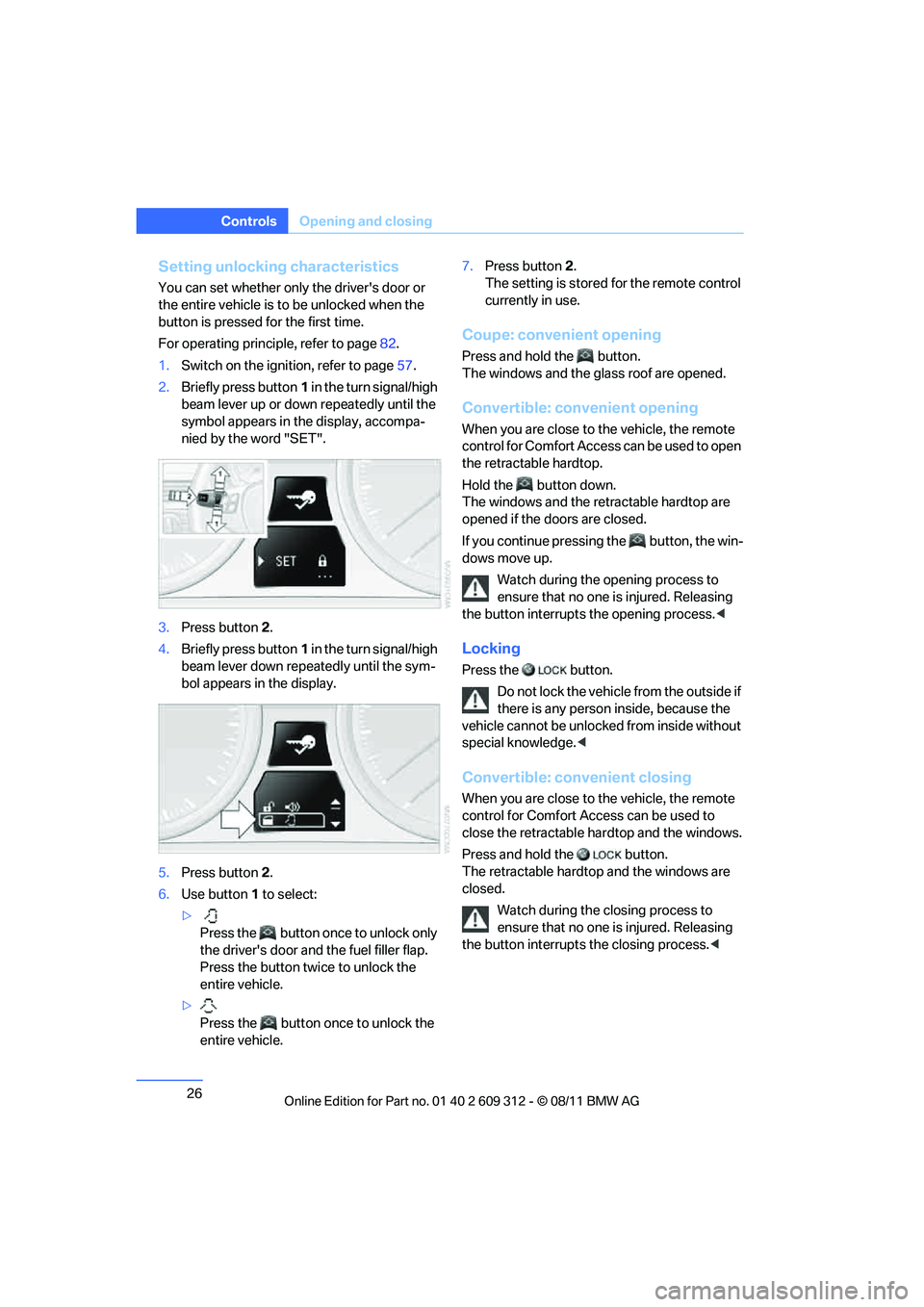

Setting unlocking characteristics
You can set whether only the driver's door or
the entire vehicle is to be unlocked when the
button is pressed for the first time.
For operating principle, refer to page 82.
1. Switch on the igni tion, refer to page 57.
2. Briefly press button 1 in the turn signal/high
beam lever up or down repeatedly until the
symbol appears in the display, accompa-
nied by the word "SET".
3. Press button 2.
4. Briefly press button 1 in the turn signal/high
beam lever down repeatedly until the sym-
bol appears in the display.
5. Press button 2.
6. Use button 1 to select:
> Press the button once to unlock only
the driver's door and the fuel filler flap.
Press the button twice to unlock the
entire vehicle.
> Press the button once to unlock the
entire vehicle. 7.
Press button 2.
The setting is stored for the remote control
currently in use.
Coupe: convenient opening
Press and hold the button.
The windows and the glass roof are opened.
Convertible: convenient opening
When you are close to the vehicle, the remote
control for Comfort Access can be used to open
the retracta ble hardtop.
Hold the button down.
The windows and the re tractable hardtop are
opened if the doors are closed.
If you continue pressing the button, the win-
dows move up.
Watch during the opening process to
ensure that no one is injured. Releasing
the button interrupts the opening process. <
Locking
Press the button.
Do not lock the vehicl e from the outside if
there is any person inside, because the
vehicle cannot be unlocked from inside without
special knowledge. <
Convertible: convenient closing
When you are close to the vehicle, the remote
control for Comfort Access can be used to
close the retractable ha rdtop and the windows.
Press and hold the button.
The retractable hardto p and the windows are
closed.
Watch during the closing process to
ensure that no one is injured. Releasing
the button interrupts the closing process. <
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

27
Opening and closing
Controls

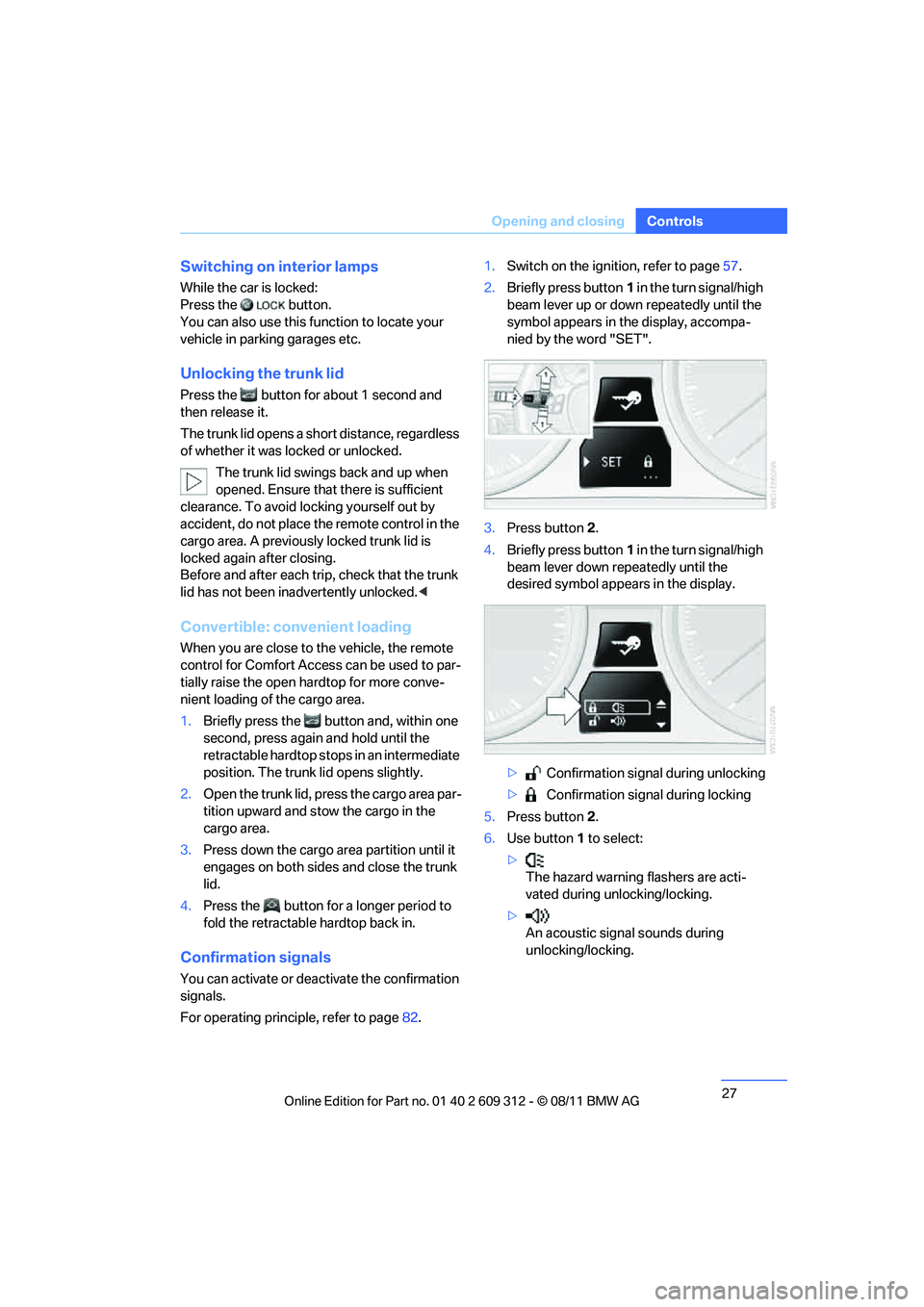

Switching on interior lamps
While the car is locked:
Press the button.
You can also use this fu
nction to locate your
vehicle in parking garages etc.
Unlocking the trunk lid
Press the button for about 1 second and
then release it.
The trunk lid opens a short distance, regardless
of whether it was locked or unlocked.
The trunk lid swings back and up when
opened. Ensure that there is sufficient
clearance. To avoid lo cking yourself out by
accident, do not place th e remote control in the
cargo area. A previously locked trunk lid is
locked again after closing.
Before and after each tr ip, check that the trunk
lid has not been inad vertently unlocked.<
Convertible: convenient loading
When you are close to the vehicle, the remote
control for Comfort Access can be used to par-
tially raise the open hardtop for more conve-
nient loading of the cargo area.
1.Briefly press the butto n and, within one
second, press again and hold until the
retractable hardtop stop s in an intermediate
position. The trunk lid opens slightly.
2. Open the trunk lid, pres s the cargo area par-
tition upward and stow the cargo in the
cargo area.
3. Press down the cargo ar ea partition until it
engages on both sides and close the trunk
lid.
4. Press the button for a longer period to
fold the retractable hardtop back in.
Confirmation signals
You can activate or deac tivate the confirmation
signals.
For operating principle, refer to page 82. 1.
Switch on the ignition, refer to page 57.
2. Briefly press button 1 in the turn signal/high
beam lever up or down repeatedly until the
symbol appears in the display, accompa-
nied by the word "SET".
3. Press button 2.
4. Briefly press button 1 in the turn signal/high
beam lever down repeatedly until the
desired symbol appears in the display.
> Confirmation signal during unlocking
> Confirmation signal during locking
5. Press button 2.
6. Use button 1 to select:
> The hazard warning flashers are acti-
vated during unlocking/locking.
> An acoustic signal sounds during
unlocking/locking.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

28
ControlsOpening and closing
>

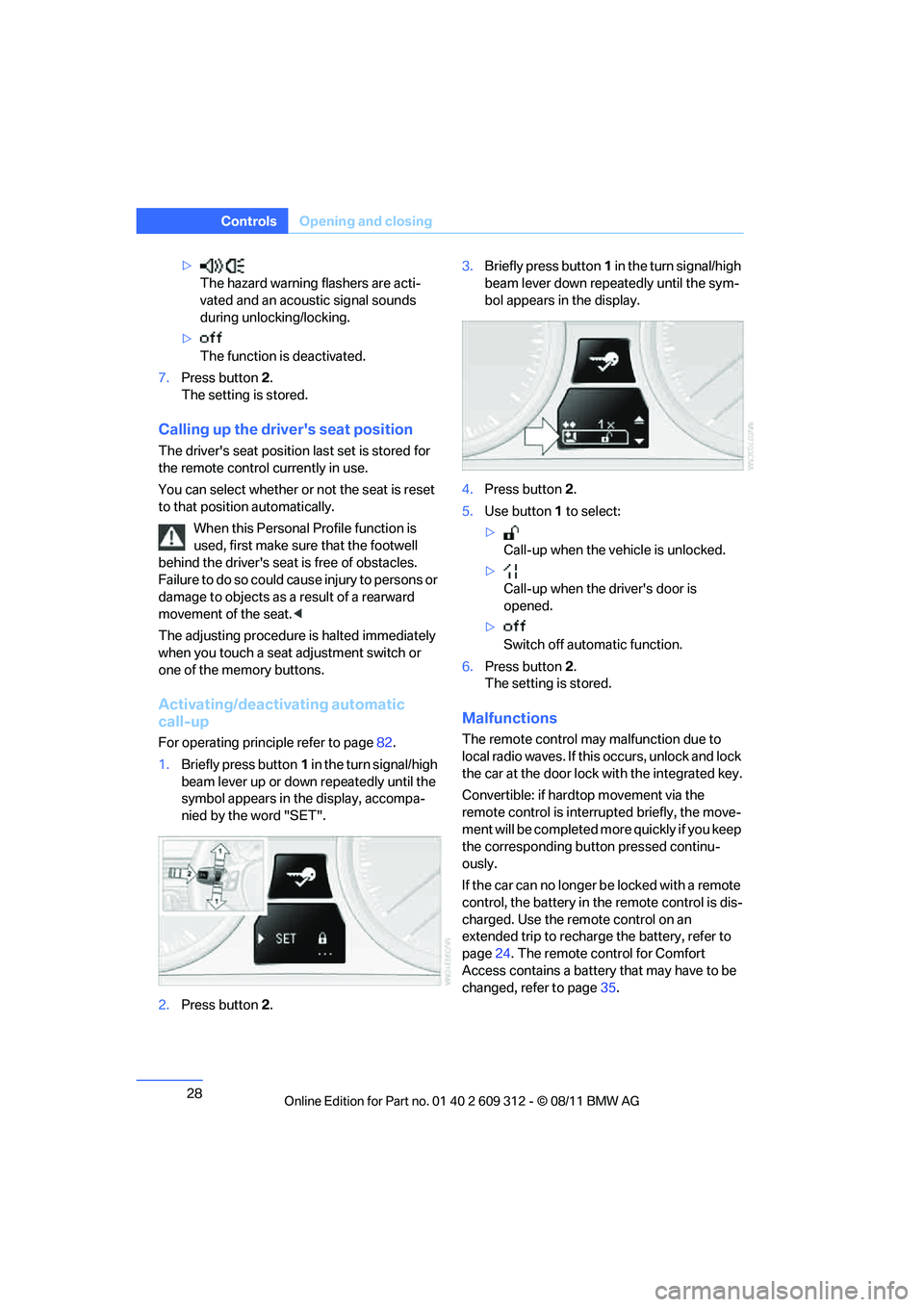

The hazard warning flashers are acti-
vated and an acoustic signal sounds
during unlocking/locking.
> The function is deactivated.
7. Press button 2.
The setting is stored.
Calling up the driver's seat position
The driver's seat position last set is stored for
the remote control currently in use.
You can select whether or not the seat is reset
to that position automatically.
When this Personal Profile function is
used, first make sure that the footwell
behind the driver's seat is free of obstacles.
Failure to do so could cause injury to persons or
damage to objects as a result of a rearward
movement of the seat. <
The adjusting procedure is halted immediately
when you touch a seat adjustment switch or
one of the memory buttons.
Activating/deactivating automatic
call-up
For operating principle refer to page 82.
1. Briefly press button 1 in the turn signal/high
beam lever up or down repeatedly until the
symbol appears in the display, accompa-
nied by the word "SET".
2. Press button 2. 3.
Briefly press button 1 in the turn signal/high
beam lever down repeatedly until the sym-
bol appears in the display.
4. Press button 2.
5. Use button 1 to select:
> Call-up when the vehicle is unlocked.
> Call-up when the driver's door is
opened.
> Switch off automatic function.
6. Press button 2.
The setting is stored.
Malfunctions
The remote control may malfunction due to
local radio waves. If this occurs, unlock and lock
the car at the door lock with the integrated key.
Convertible: if hardtop movement via the
remote control is interru pted briefly, the move-
ment will be completed mo re quickly if you keep
the corresponding button pressed continu-
ously.
If the car can no longer be locked with a remote
control, the battery in th e remote control is dis-
charged. Use the remote control on an
extended trip to rechar ge the battery, refer to
page 24. The remote control for Comfort
Access contains a battery that may have to be
changed, refer to page 35.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG

29

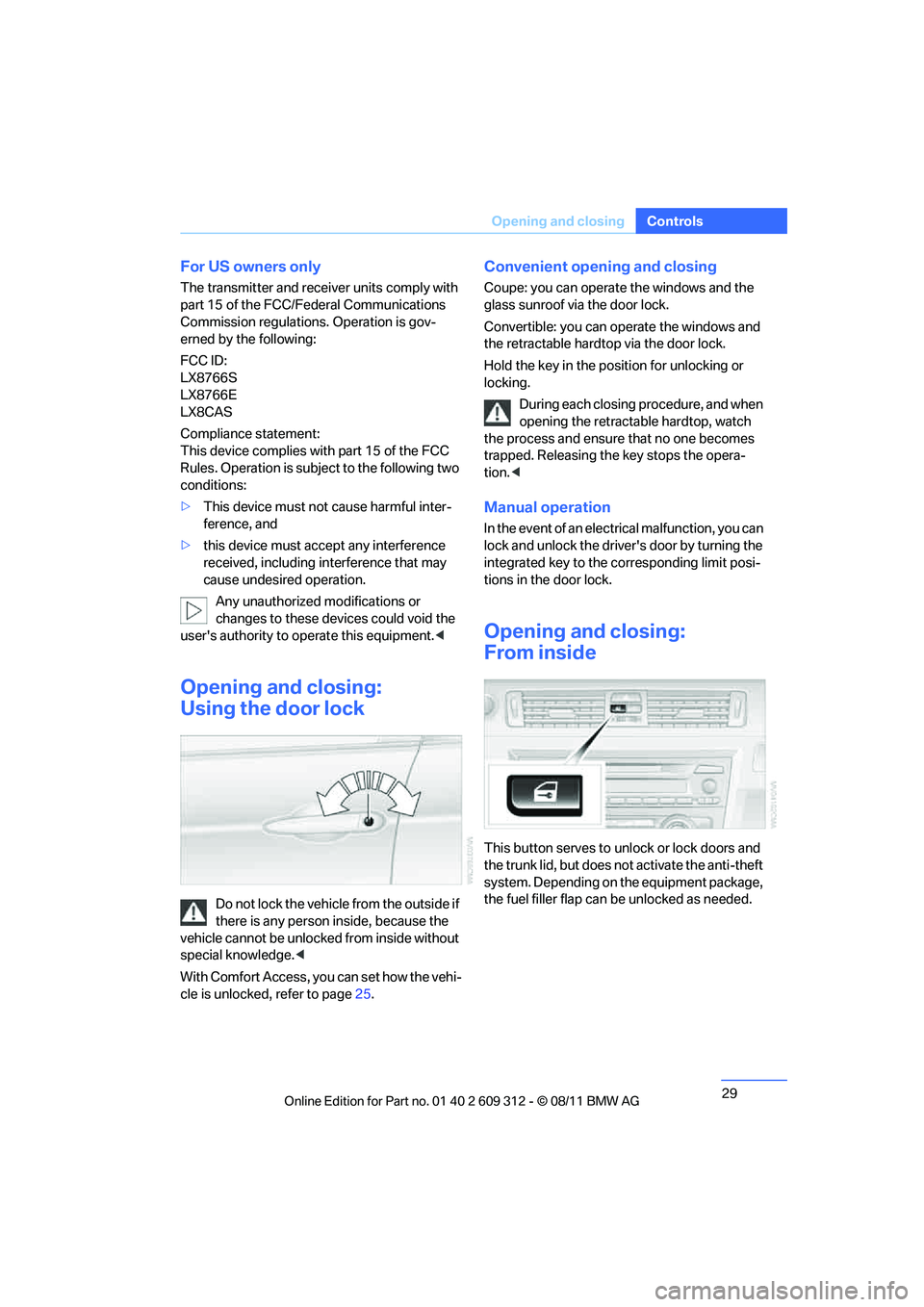

Opening and closing
Controls
For US owners only
The transmitter and receiver units comply with
part 15 of the FCC/Federal Communications
Commission regulations. Operation is gov-
erned by the following:
FCC ID:
LX8766S
LX8766E
LX8CAS
Compliance statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
>
This device must not cause harmful inter-
ference, and
> this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modifications or
changes to these devi ces could void the
user's authority to operate this equipment. <
Opening and closing:
Using the door lock
Do not lock the vehicle from the outside if
there is any person inside, because the
vehicle cannot be unlocked from inside without
special knowledge. <
With Comfort Access, you can set how the vehi-
cle is unlocked, refer to page 25.
Convenient opening and closing
Coupe: you can operate the windows and the
glass sunroof via the door lock.
Convertible: you can operate the windows and
the retractable hardtop via the door lock.
Hold the key in the position for unlocking or
locking. During each closing procedure, and when
opening the retractable hardtop, watch
the process and ensure that no one becomes
trapped. Releasing th e key stops the opera-
tion. <
Manual operation
In the event of an electrical malfunction, you can
lock and unlock the driver's door by turning the
integrated key to the corresponding limit posi-
tions in the door lock.
Opening and closing:
From inside
This button serves to unlock or lock doors and
the trunk lid, but does not activate the anti-theft
system. Depending on the equipment package,
the fuel filler flap can be unlocked as needed.
Online Edition for Part no. 01 40 2 609 312 - \251 08/11 BMW AG
