BMW MOTORRAD G 650 XCOUNTRY 2007 Rider's Manual (in English)

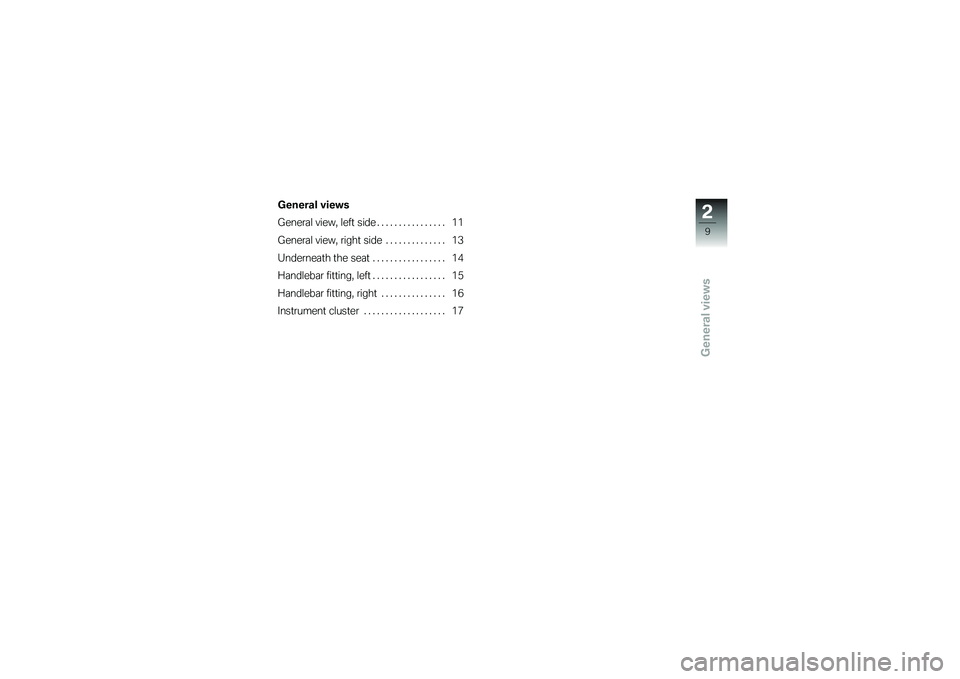

General views
General views
General view, left side................ 11
General view, right side . . ............ 13
Underneath the seat ................. 14
Handlebar fitting, left ................. 15
Handlebar fitting, right . . . ............ 16
Instrument cluster . . ................. 17
29zGeneral views

210zGeneral views

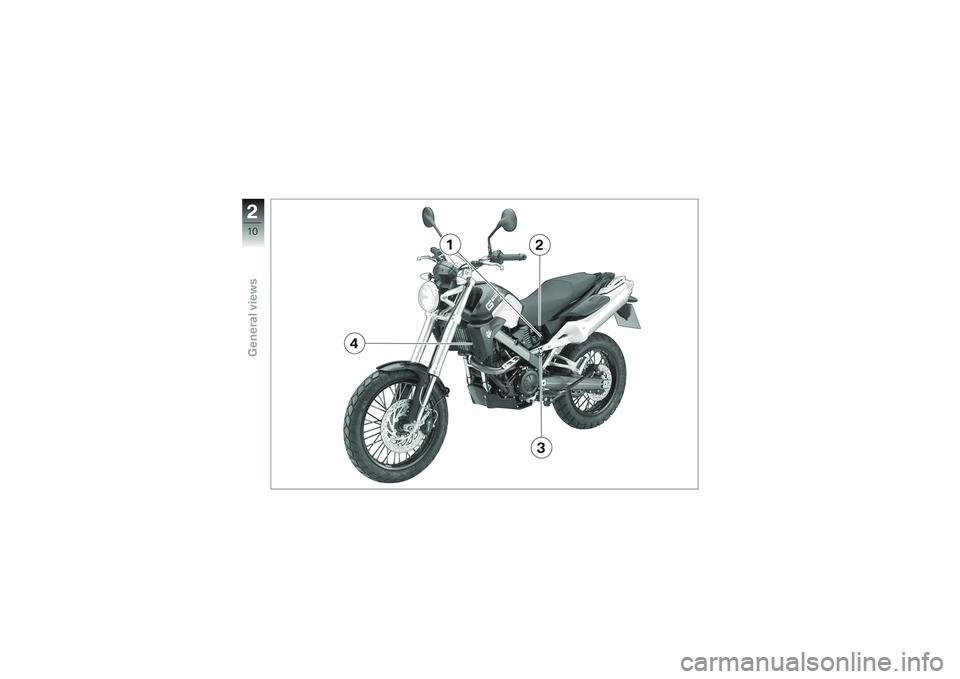

General view, left side1Adjuster for spring preload,
rear ( 34)
2 Power socket
OE
( 54)
3 Adjuster for damping char-
acteristic, rear suspension
( 35)
4 Coolant-level indicator
( 65)
211zGeneral views

212zGeneral views

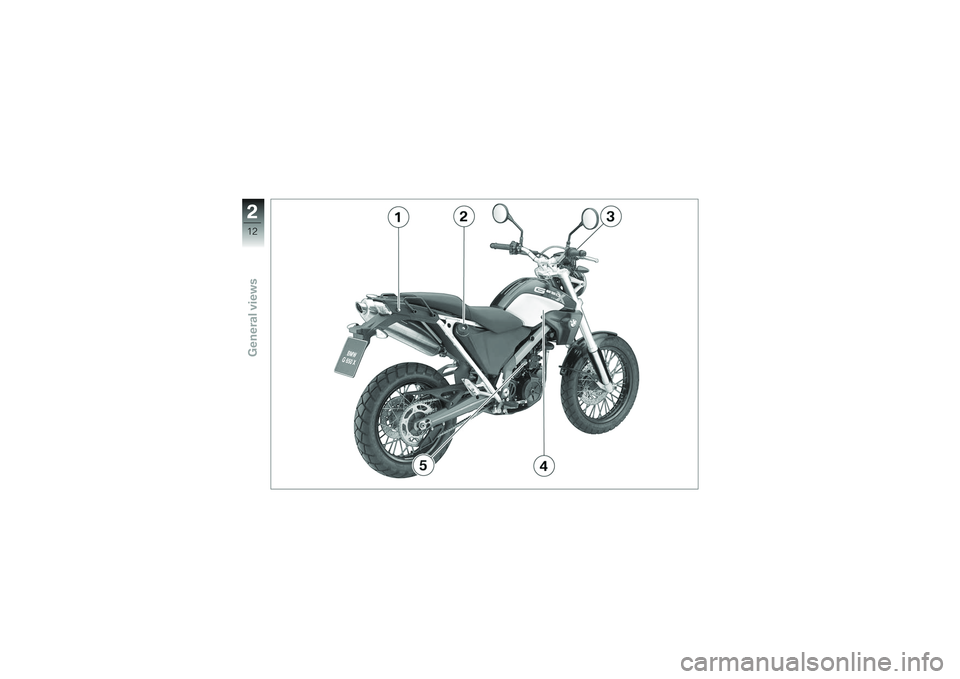

General view, right side1Seat lock ( 37)
2 Fuel filler neck ( 48)
3 Brake-fluid reservoir, front
( 63)
4 ABS fuses, behind the side
panel ( 79)
5 Brake-fluid reservoir, rear
( 64)
213zGeneral views

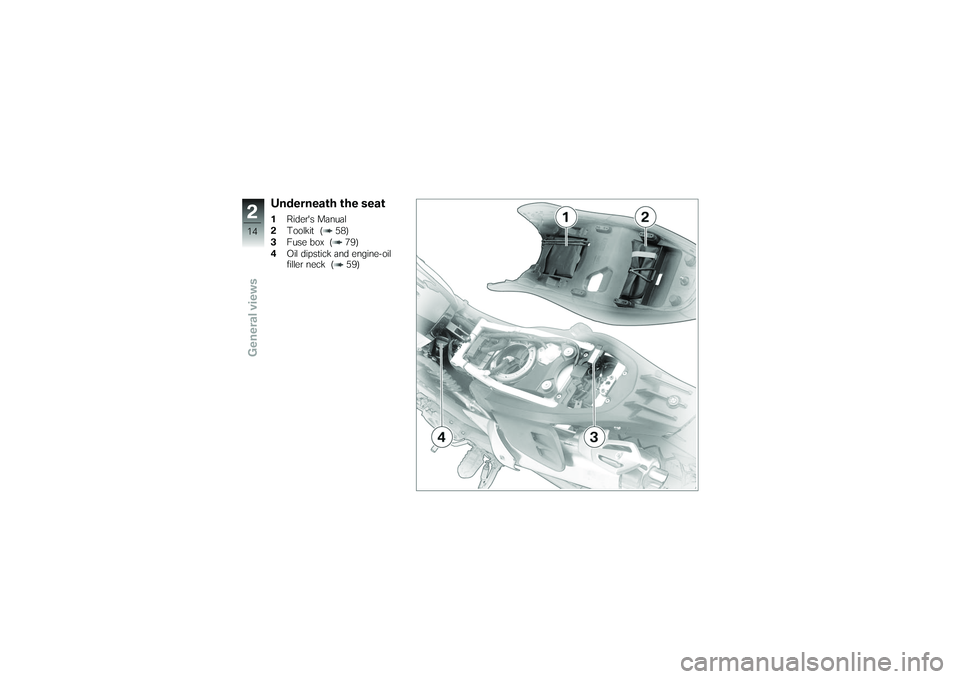

Underneath the seat1Rider's Manual
2 Toolkit ( 58)
3 Fuse box ( 79)
4 Oil dipstick and engine-oil
filler neck ( 59)
214zGeneral views

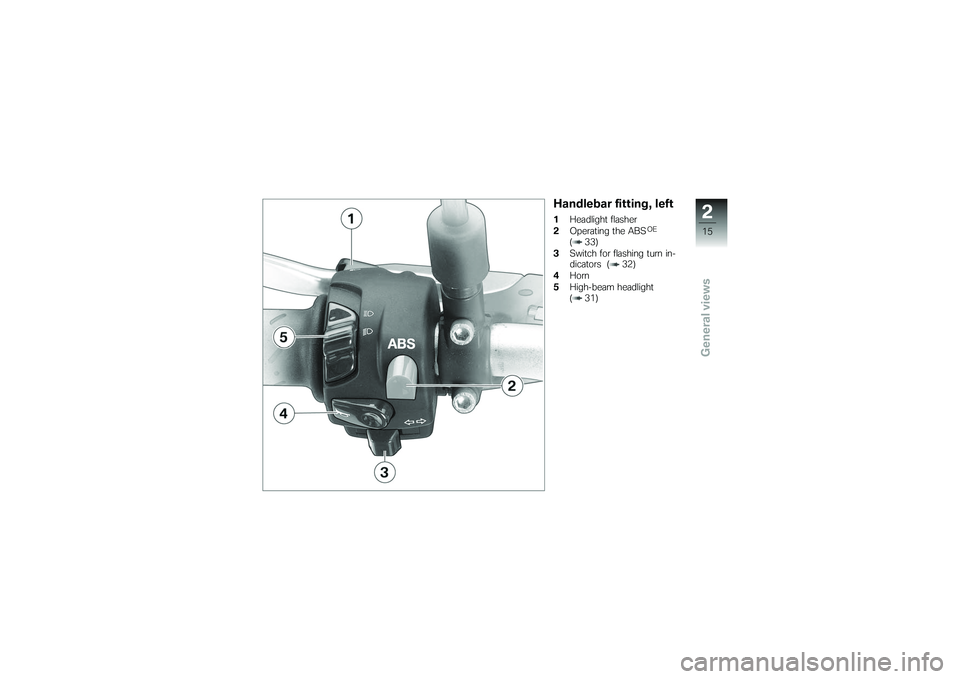

Handlebar fitting, left1Headlight flasher
2 Operating the ABS
OE
( 33)
3 Switch for flashing turn in-
dicators ( 32)
4 Horn
5 High-beam headlight
( 31)
215zGeneral views

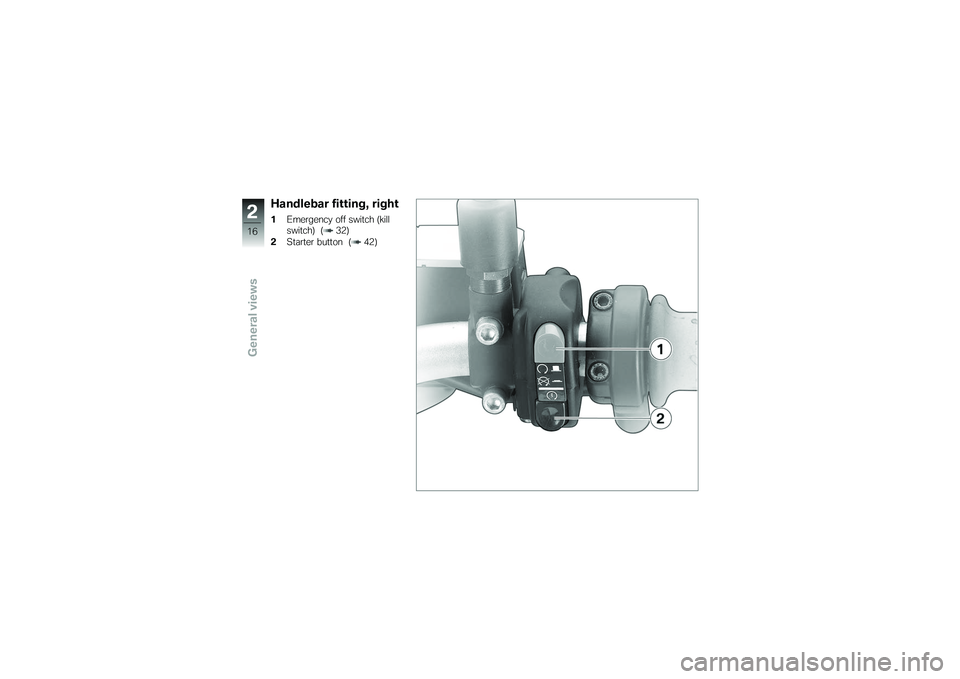

Handlebar fitting, right1Emergency off switch (kill
switch) ( 32)
2 Starter button ( 42)
216zGeneral views

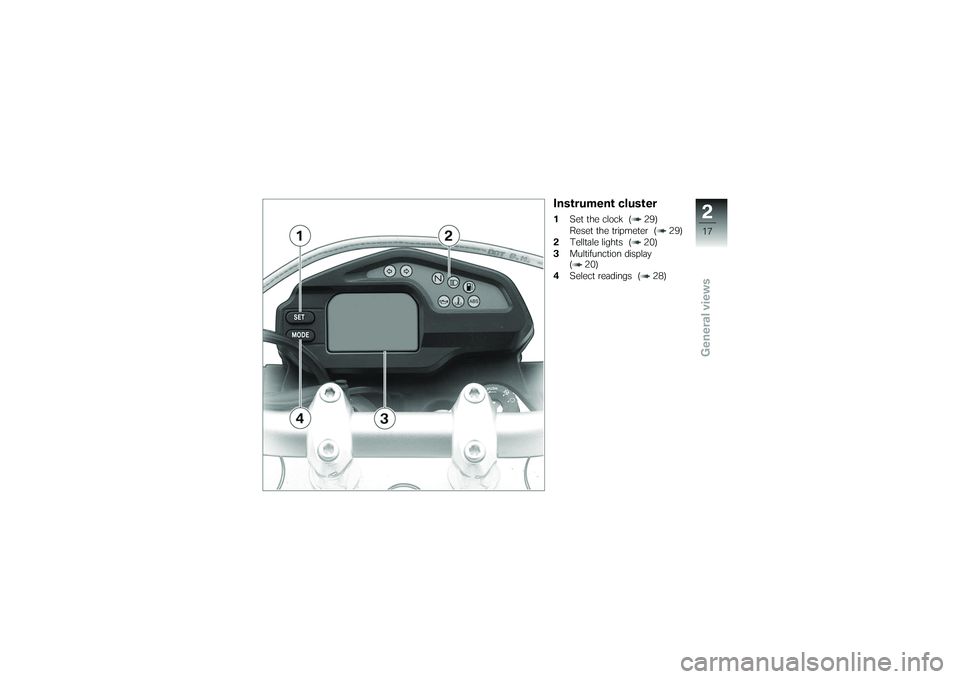

Instrument cluster1Set the clock ( 29)
Reset the tripmeter ( 29)
2 Telltale lights ( 20)
3 Multifunction display
( 20)
4 Select readings ( 28)
217zGeneral views

218zGeneral views
