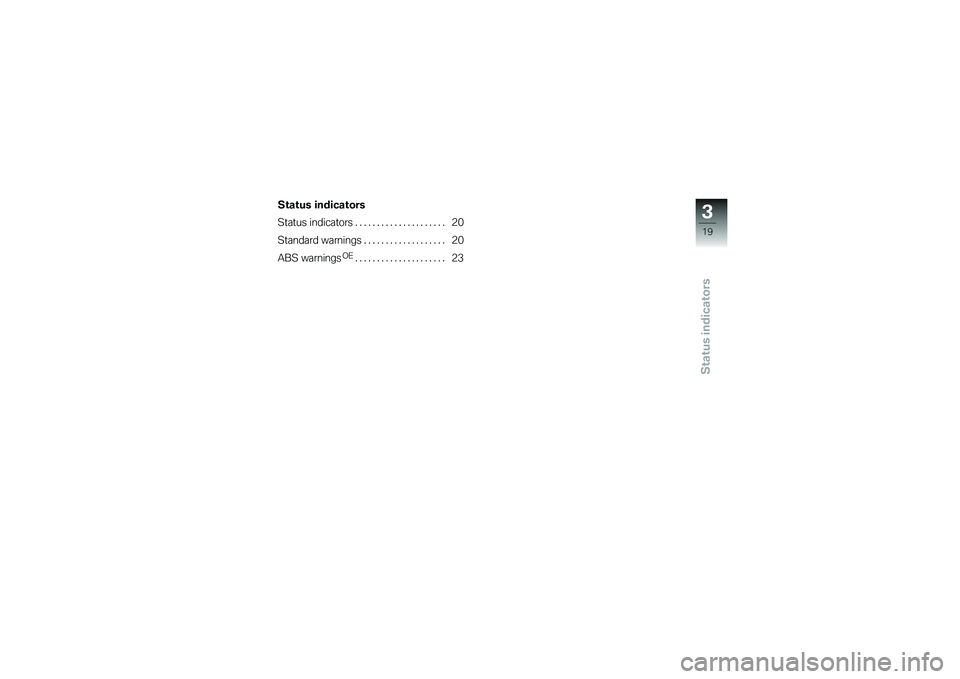

Status indicators
Status indicators
Status indicators..................... 20
Standard warnings . . ................. 20
ABS warnings
OE
..................... 23
319zStatus indicators
Page 22 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Status indicatorsMultifunction display1Speedometer
2 Odometer, clock or battery
voltage ( 28)
Telltale lights1Flashing turn indicators, left
2 Flashing turn indicators,
right
3 Idle
4 High-beam headli BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Status indicatorsMultifunction display1Speedometer
2 Odometer, clock or battery
voltage ( 28)
Telltale lights1Flashing turn indicators, left
2 Flashing turn indicators,
right
3 Idle
4 High-beam headli](/img/47/37976/w960_37976-21.png)
Status indicatorsMultifunction display1Speedometer
2 Odometer, clock or battery
voltage ( 28)
Telltale lights1Flashing turn indicators, left
2 Flashing turn indicators,
right
3 Idle
4 High-beam headlight
Standard warningsMode of presentation
Warnings are indicated by warn-
ing lights 1.
The possible warnings are listed
on the next page.
320zStatus indicators
Page 23 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Warnings, overviewMeaning
Lights up Fuel down to reserve ( 22)
Lights up Insufficient engine oil pressure ( 22)
Lights up Coolant temperature too high ( 22)
321zStatus indicators BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Warnings, overviewMeaning
Lights up Fuel down to reserve ( 22)
Lights up Insufficient engine oil pressure ( 22)
Lights up Coolant temperature too high ( 22)
321zStatus indicators](/img/47/37976/w960_37976-22.png)

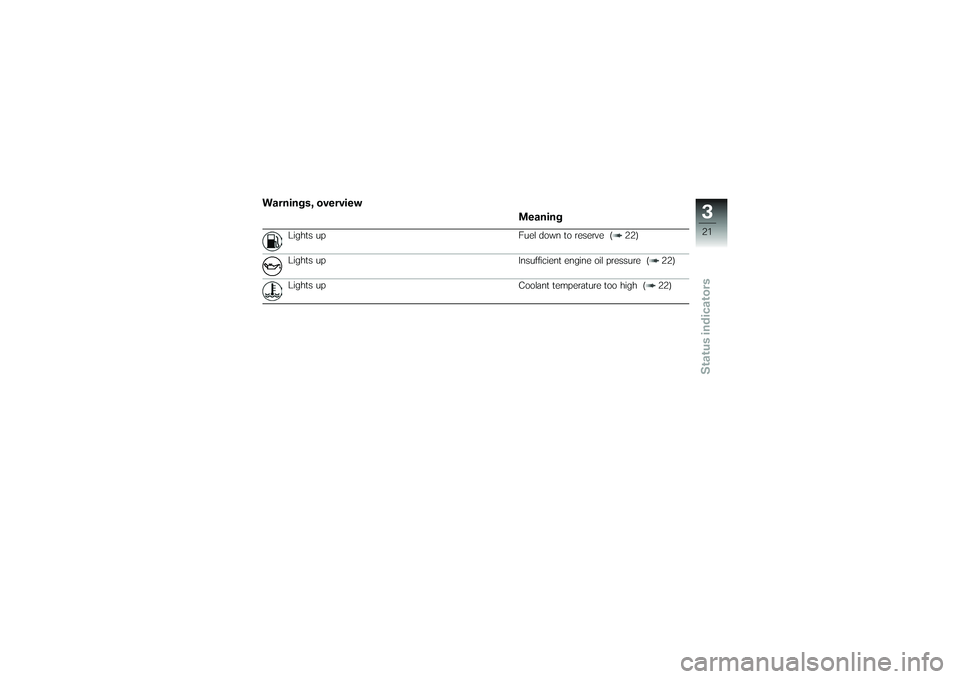

Warnings, overviewMeaning
Lights up Fuel down to reserve ( 22)
Lights up Insufficient engine oil pressure ( 22)
Lights up Coolant temperature too high ( 22)
321zStatus indicators
Page 24 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Fuel down to reserveWarning light for fuel down
to reserve lights up.
Lack of fuel can result in
the engine misfiring and
cutting out unexpectedly. Mis-
firing can damage the catalytic
converter; a ha BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Fuel down to reserveWarning light for fuel down
to reserve lights up.
Lack of fuel can result in
the engine misfiring and
cutting out unexpectedly. Mis-
firing can damage the catalytic
converter; a ha](/img/47/37976/w960_37976-23.png)

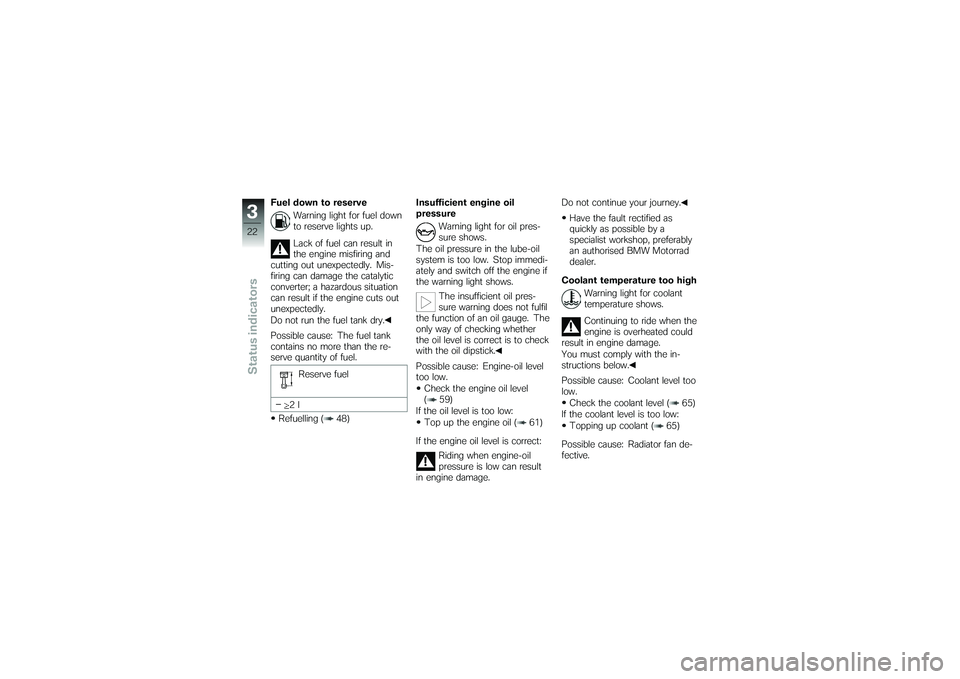

Fuel down to reserveWarning light for fuel down
to reserve lights up.
Lack of fuel can result in
the engine misfiring and
cutting out unexpectedly. Mis-
firing can damage the catalytic
converter; a hazardous situation
can result if the engine cuts out
unexpectedly.
Do not run the fuel tank dry.
Possible cause: The fuel tank
contains no more than the re-
serve quantity of fuel.
Reserve fuel
2l
Refuelling ( 48) Insufficient engine oil
pressure
Warning light for oil pres-
sure shows.
The oil pressure in the lube-oil
system is too low. Stop immedi-
ately and switch off the engine if
the warning light shows.
The insufficient oil pres-
sure warning does not fulfil
the function of an oil gauge. The
only way of checking whether
the oil level is correct is to check
with the oil dipstick.
Possible cause: Engine-oil level
too low.
Check the engine oil level
( 59)
If the oil level is too low: Top up the engine oil ( 61)
If the engine oil level is correct: Riding when engine-oil
pressure is low can result
in engine damage. Do not continue your journey.
Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
Coolant temperature too high Warning light for coolant
temperature shows.
Continuing to ride when the
engine is overheated could
result in engine damage.
You must comply with the in-
structions below.
Possible cause: Coolant level too
low.
Check the coolant level ( 65)
If the coolant level is too low:
Topping up coolant ( 65)
Possible cause: Radiator fan de-
fective.
322zStatus indicators
Page 25 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) If the radiator fan does not start
even though the coolant-temper-
ature warning light shows:Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Moto BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) If the radiator fan does not start
even though the coolant-temper-
ature warning light shows:Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Moto](/img/47/37976/w960_37976-24.png)

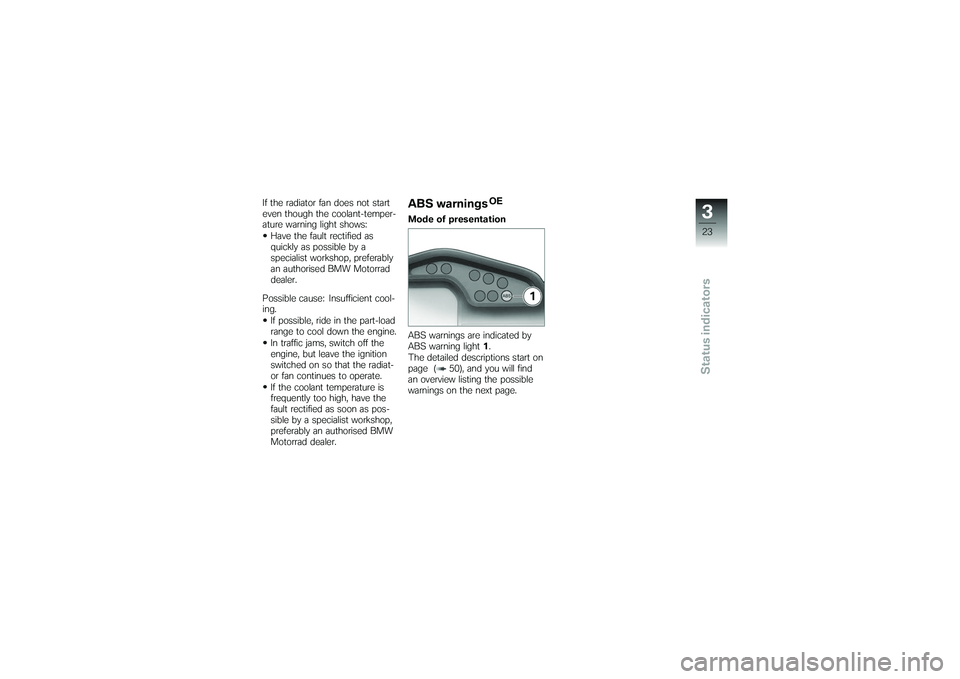

If the radiator fan does not start
even though the coolant-temper-
ature warning light shows:Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
Possible cause: Insufficient cool-
ing. If possible, ride in the part-load
range to cool down the engine.
In traffic jams, switch off the
engine, but leave the ignition
switched on so that the radiat-
or fan continues to operate.
If the coolant temperature is
frequently too high, have the
fault rectified as soon as pos-
sible by a specialist workshop,
preferably an authorised BMW
Motorrad dealer.
ABS warnings
OE
Mode of presentation
ABS warnings are indicated by
ABS warning light 1.
The detailed descriptions start on
page ( 50), and you will find
an overview listing the possible
warnings on the next page.
323zStatus indicators
Page 26 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Warnings, overviewMeaning
Flashes Self-diagnosis not completed ( 25)
Lights up ABS deactivated ( 25)
Lights up ABS fault ( 25)
324zStatus indicators BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Warnings, overviewMeaning
Flashes Self-diagnosis not completed ( 25)
Lights up ABS deactivated ( 25)
Lights up ABS fault ( 25)
324zStatus indicators](/img/47/37976/w960_37976-25.png)

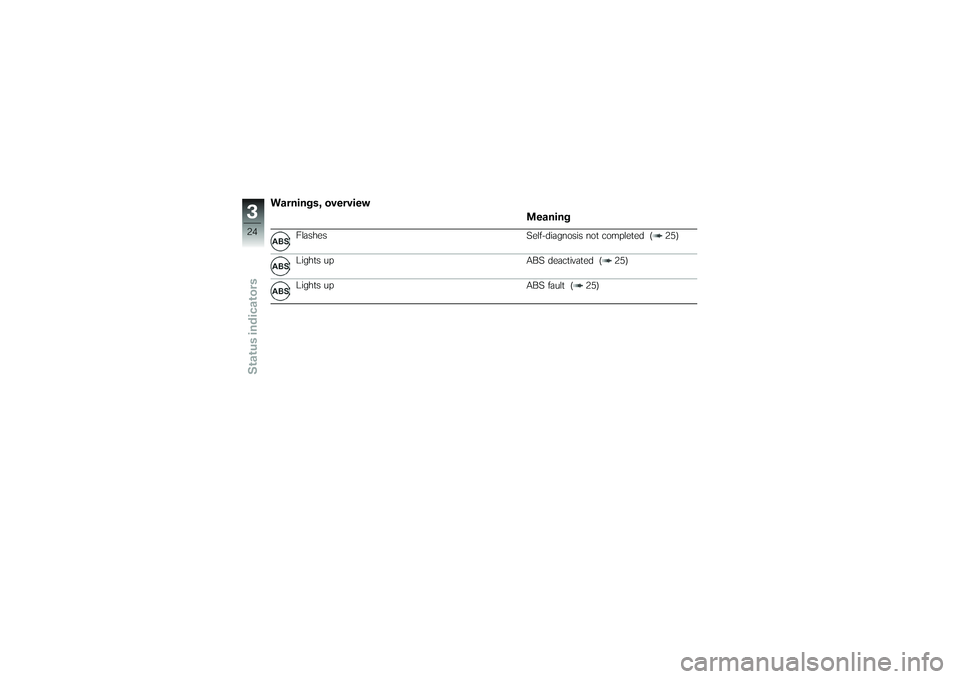

Warnings, overviewMeaning
Flashes Self-diagnosis not completed ( 25)
Lights up ABS deactivated ( 25)
Lights up ABS fault ( 25)
324zStatus indicators
Page 27 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Self-diagnosis not completedABS warning light flashes.
The ABS function is not
available, because self-
diagnosis did not complete. The
motorcycle has to move forward
a few metres for the wheel
sensor BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Self-diagnosis not completedABS warning light flashes.
The ABS function is not
available, because self-
diagnosis did not complete. The
motorcycle has to move forward
a few metres for the wheel
sensor](/img/47/37976/w960_37976-26.png)

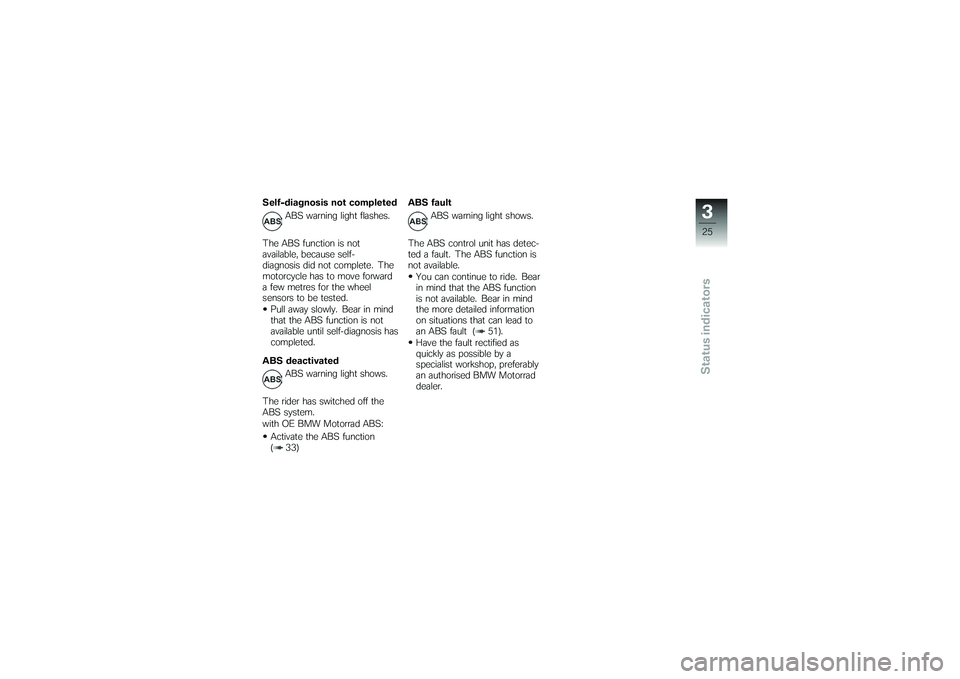

Self-diagnosis not completedABS warning light flashes.
The ABS function is not
available, because self-
diagnosis did not complete. The
motorcycle has to move forward
a few metres for the wheel
sensors to be tested. Pull away slowly. Bear in mind
that the ABS function is not
available until self-diagnosis has
completed.
ABS deactivated ABS warning light shows.
The rider has switched off the
ABS system.
with OE BMW Motorrad ABS: Activate the ABS function
( 33) ABS fault
ABS warning light shows.
The ABS control unit has detec-
ted a fault. The ABS function is
not available. You can continue to ride. Bear
in mind that the ABS function
is not available. Bear in mind
the more detailed information
on situations that can lead to
an ABS fault ( 51).
Have the fault rectified as
quickly as possible by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
325zStatus indicators
Page 28 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) 326zStatus indicators BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) 326zStatus indicators](/img/47/37976/w960_37976-27.png)
326zStatus indicators
Page 29 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Operation
Operation
Ignition switch and steering lock..... 28
Multifunction display ................. 28
Lights ................................ 31
Turn indicators ....................... 32
Emergency BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Operation
Operation
Ignition switch and steering lock..... 28
Multifunction display ................. 28
Lights ................................ 31
Turn indicators ....................... 32
Emergency](/img/47/37976/w960_37976-28.png)

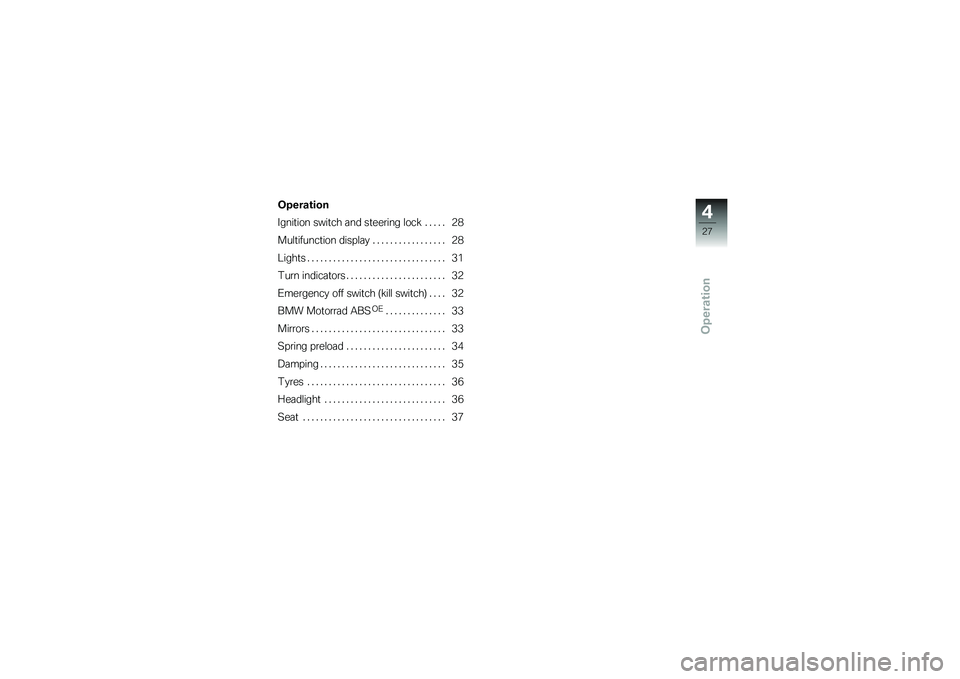

Operation
Operation
Ignition switch and steering lock..... 28
Multifunction display ................. 28
Lights ................................ 31
Turn indicators ....................... 32
Emergency off switch (kill switch) . . . . 32
BMW Motorrad ABS
OE
.............. 33
Mirrors . . . ............................ 33
Spring preload ....................... 34
Damping . ............................ 35
Tyres ................................ 36
Headlight ............................ 36
Seat ................................. 37
427zOperation
Page 30 of 126
![BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Ignition switch and
steering lockKeysYou receive one master key and
one spare key.
Ignition switch and steering lock,
tank filler cap lock and seat lock
are all operated with the same
key.Switching on BMW MOTORRAD G 650 XCOUNTRY 2007 Riders Manual (in English) Ignition switch and
steering lockKeysYou receive one master key and
one spare key.
Ignition switch and steering lock,
tank filler cap lock and seat lock
are all operated with the same
key.Switching on](/img/47/37976/w960_37976-29.png)

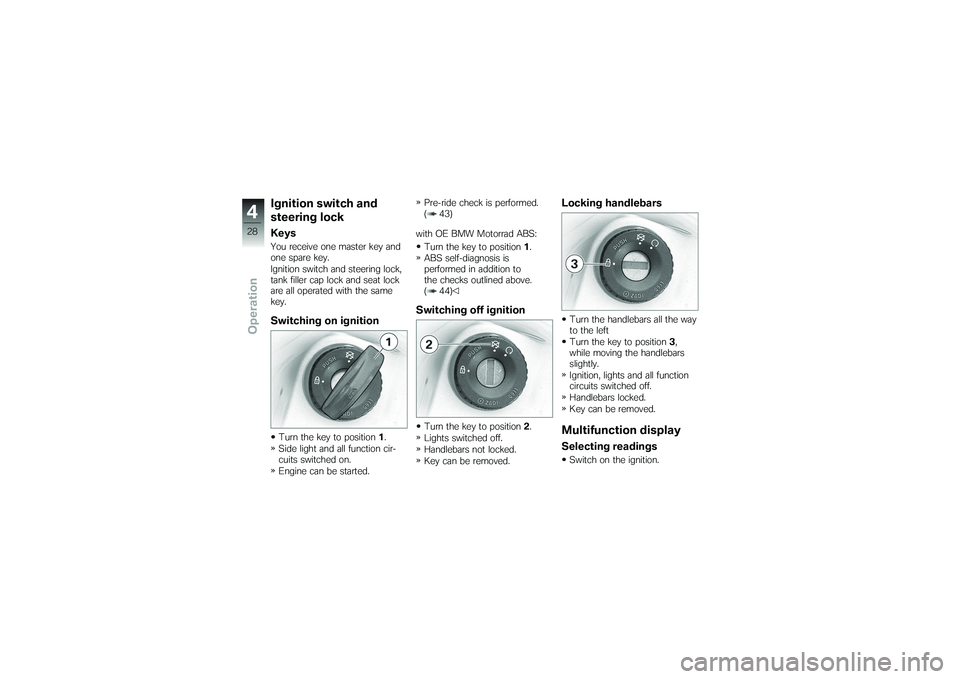

Ignition switch and
steering lockKeysYou receive one master key and
one spare key.
Ignition switch and steering lock,
tank filler cap lock and seat lock
are all operated with the same
key.Switching on ignitionTurn the key to position1.
Side light and all function cir-
cuits switched on.
Engine can be started. Pre-ride check is performed.
( 43)
with OE BMW Motorrad ABS: Turn the key to position 1.
ABS self-diagnosis is
performed in addition to
the checks outlined above.
( 44)
Switching off ignitionTurn the key to position 2.
Lights switched off.
Handlebars not locked.
Key can be removed.
Locking handlebarsTurn the handlebars all the way
to the left
Turn the key to position 3,
while moving the handlebars
slightly.
Ignition, lights and all function
circuits switched off.
Handlebars locked.
Key can be removed.Multifunction displaySelecting readingsSwitch on the ignition.
