Page 101 of 132

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) agents, the surfaces can be dam-
aged.
Do not use cleaning agents that
contain alcohol, solvents or ab-
rasives to clean plastic parts.
Even fly-remover pads or clean-
ing pads with hard surfaces can

Page 102 of 132

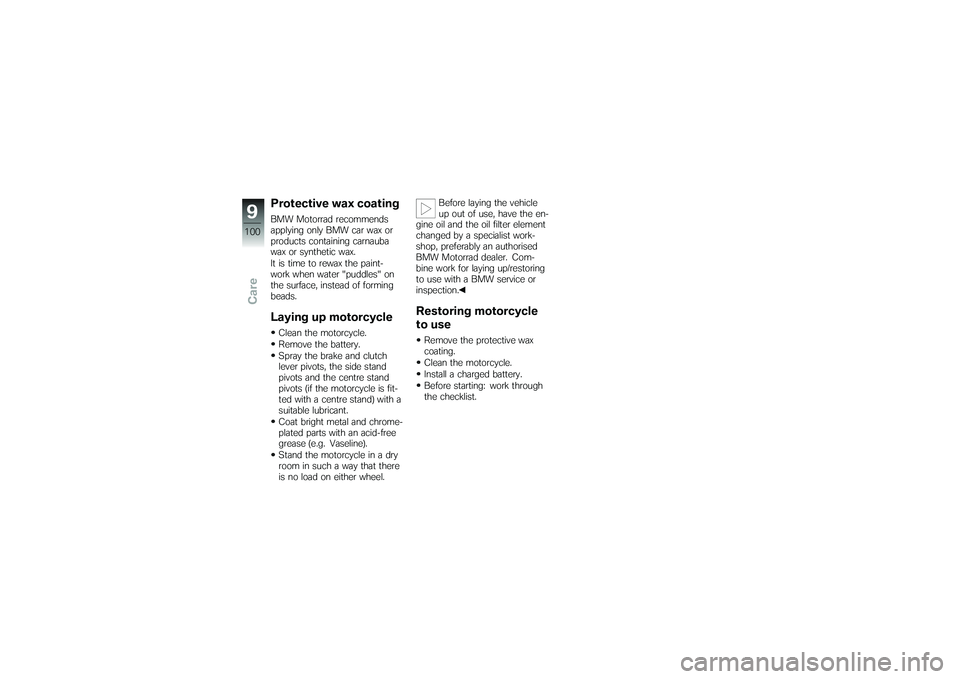

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) Protective wax coatingBMW Motorrad recommends
applying only BMW car wax or
products containing carnauba
wax or synthetic wax.
It is time to rewax the paint-
work when water "puddles" on
the surface, i

Page 103 of 132

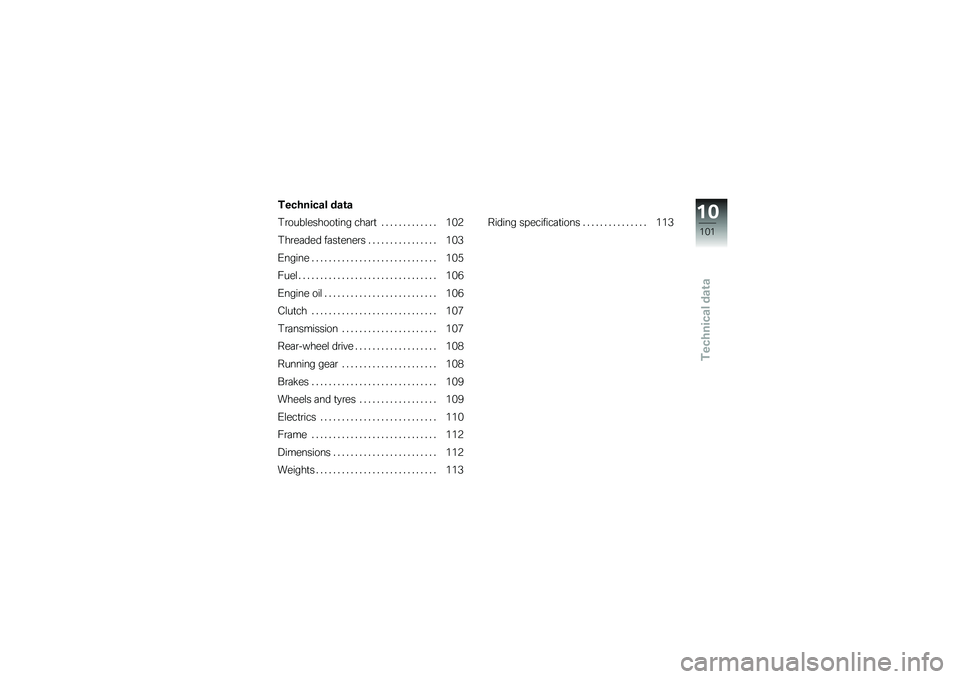

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) Technical data
Technical data
Troubleshooting chart . . ........... 102
Threaded fasteners . ............... 103
Engine . . . .......................... 105
Fuel . ............................... 106

Page 104 of 132

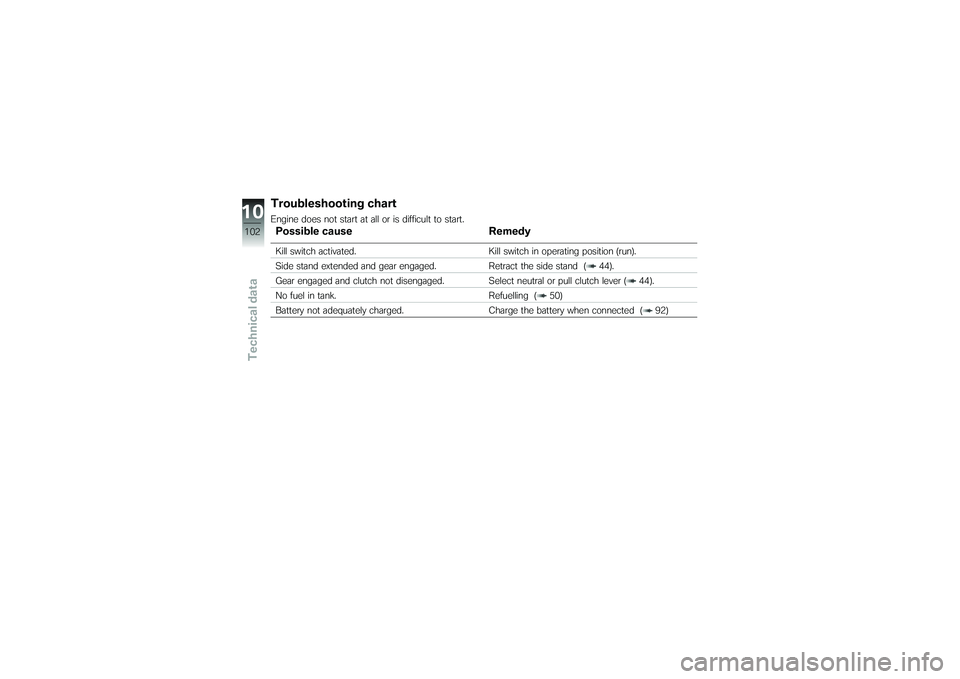

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) Troubleshooting chartEngine does not start at all or is difficult to start.Possible causeRemedyKill switch activated. Kill switch in operating position (run).
Side stand extended and gear engaged. Ret

Page 105 of 132

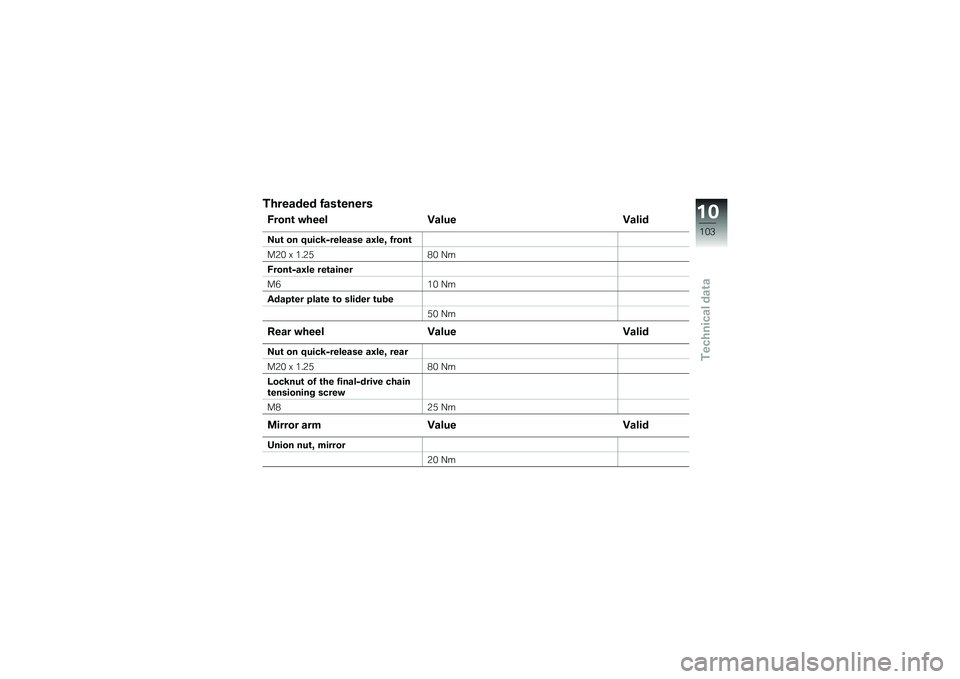

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) Threaded fastenersFront wheelValue ValidNut on quick-release axle, front
M20 x 1.25 80 Nm
Front-axle retainer
M6 10 Nm
Adapter plate to slider tube
50 NmRear wheelValue ValidNut on quick-release axle,

Page 106 of 132

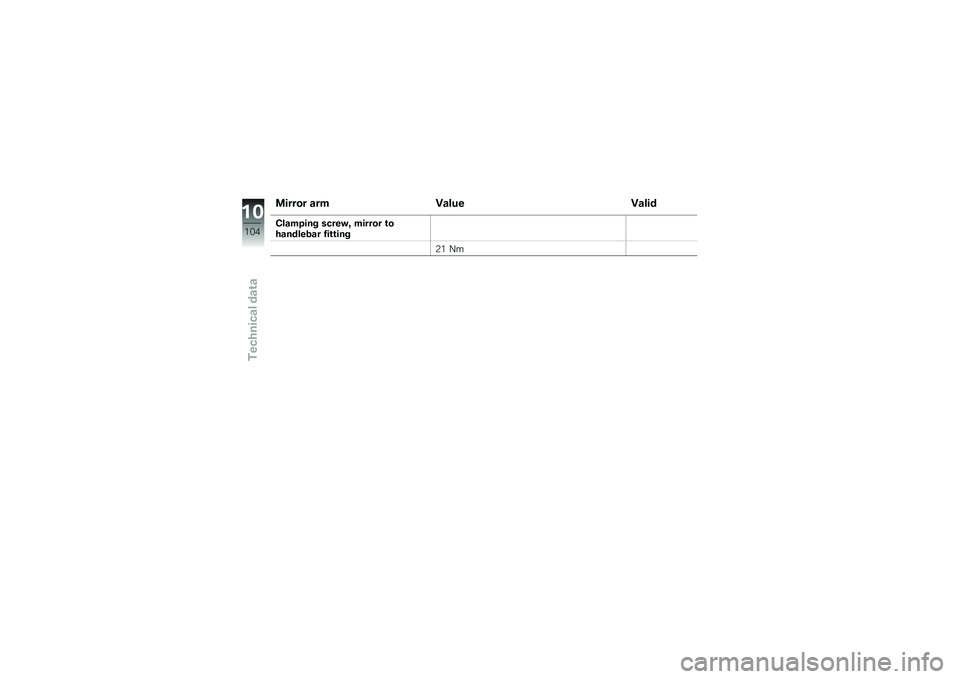

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) Mirror armValue ValidClamping screw, mirror to
handlebar fitting
21 Nm
10104zTechnical data

Page 107 of 132

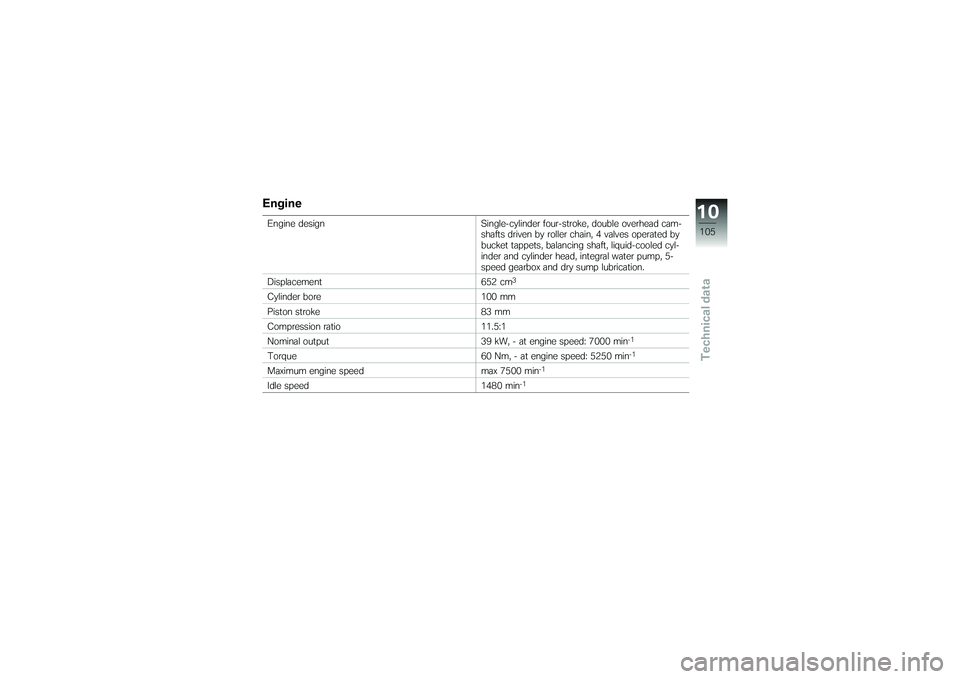

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) EngineEngine designSingle-cylinder four-stroke, double overhead cam-
shafts driven by roller chain, 4 valves operated by
bucket tappets, balancing shaft, liquid-cooled cyl-
inder and cylinder head, in

Page 108 of 132

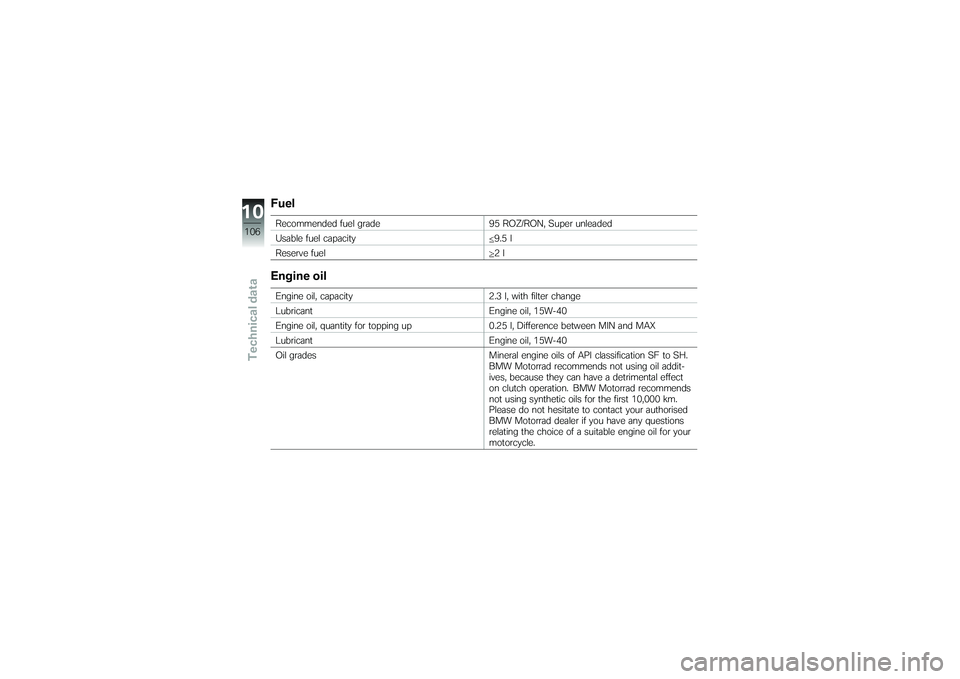

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) FuelRecommended fuel grade95 ROZ/RON, Super unleaded
Usable fuel capacity 9.5 l
Reserve fuel 2 lEngine oilEngine oil, capacity2.3 l, with filter change
Lubricant Engine oil, 15W-40
Engine oil, quantit

Page 109 of 132

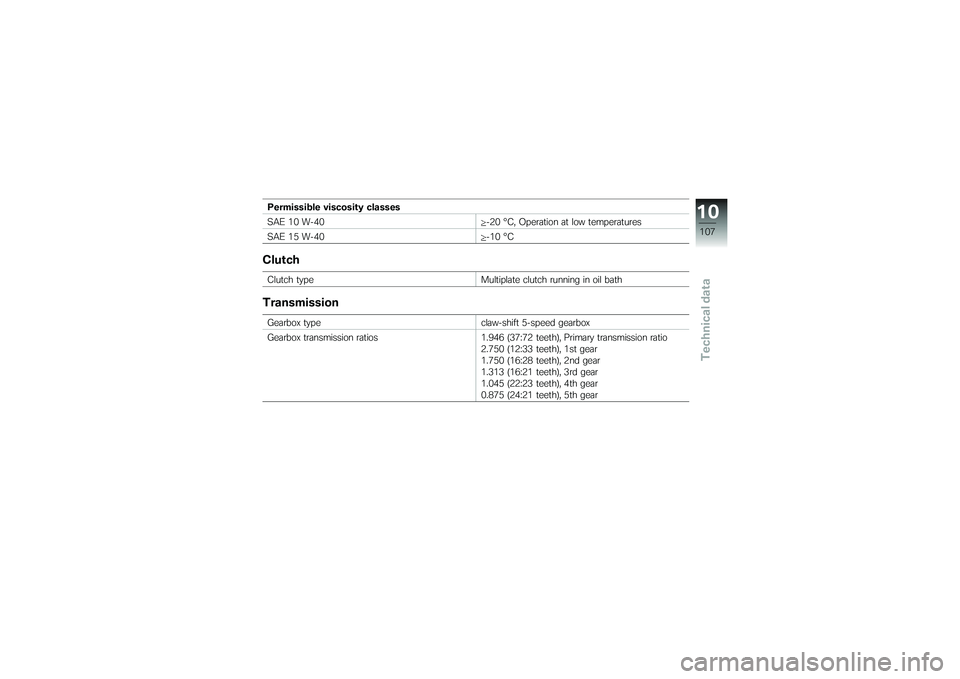

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) Permissible viscosity classes
SAE 10 W-40-20 °C, Operation at low temperatures
SAE 15 W-40 -10 °CClutchClutch typeMultiplate clutch running in oil bathTransmissionGearbox typeclaw-shift 5-speed gear

Page 110 of 132

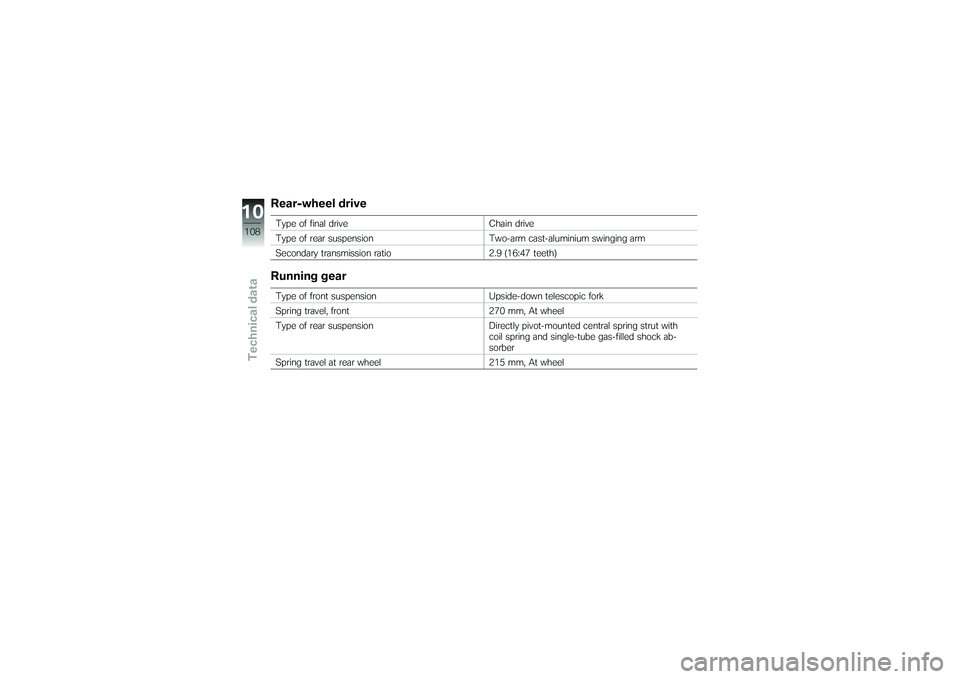

BMW MOTORRAD G650 XMOTO 2007  Riders Manual (in English) Rear-wheel driveType of final driveChain drive
Type of rear suspension Two-arm cast-aluminium swinging arm
Secondary transmission ratio 2.9 (16:47 teeth)Running gearType of front suspension Upside-dow
