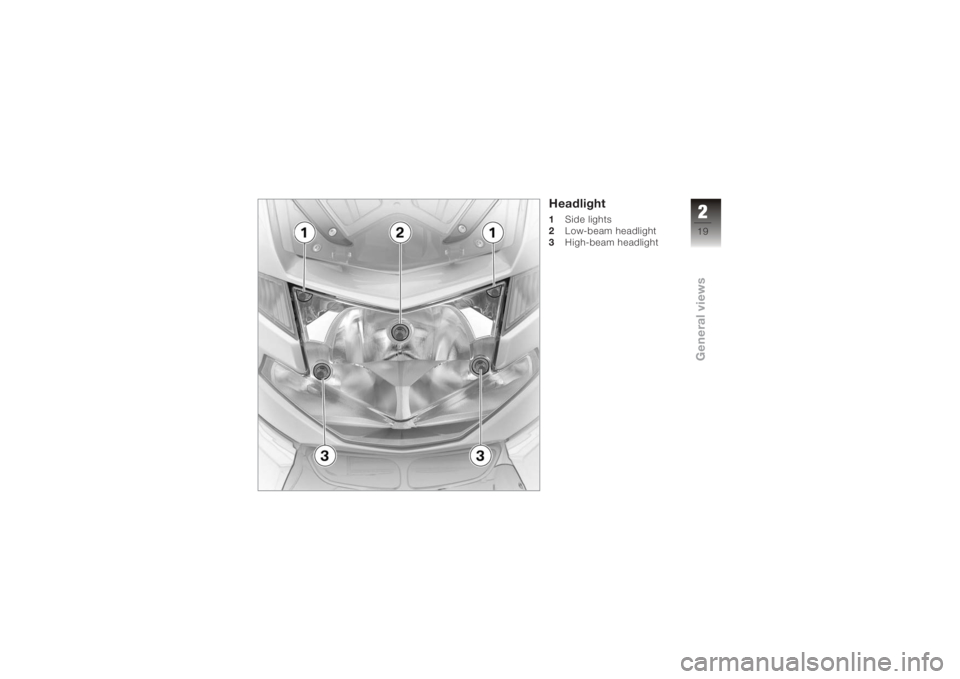

Headlight1Side lights
2 Low-beam headlight
3 High-beam headlight
219zGeneral views

220zGeneral views

Status indicators
Multifunction display . . . . . . . . . . . 22
Warning and telltale lights . . . . . . 23
ABS warning light . . . . . . . . . . . . . 23
Telltale light, cruise
control
OE
..................... 23
Function indicators . . . . . . . . . . . . 23
Warnings, general . . . . . . . . . . . . . 24
Warnings issued by the tyre
pressure monitoring system
(RDC)
OE
....................... 32
ABS warnings . . . . . . . . . . . . . . . . . 36
ASC warnings
OE
.............. 38
321zStatus indicators

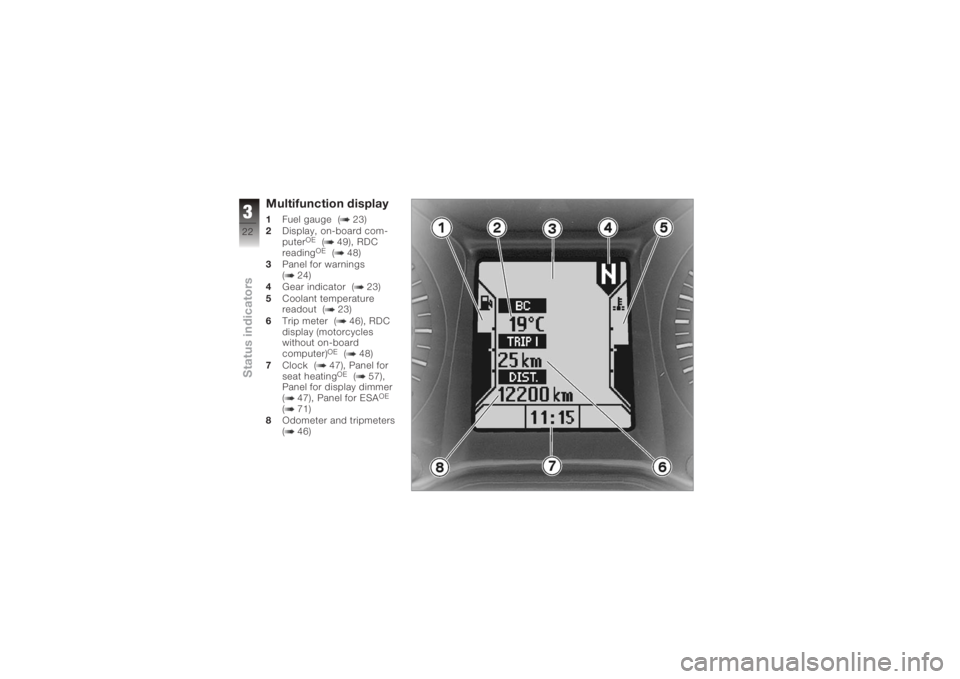

Multifunction display1Fuel gauge ( 23)
2 Display, on-board com-
puter
OE
( 49), RDC
readingOE
( 48)
3 Panel for warnings
( 24)
4 Gear indicator ( 23)
5 Coolant temperature
readout ( 23)
6 Trip meter ( 46), RDC
display (motorcycles
without on-board
computer)OE
( 48)
7 Clock ( 47), Panel for
seat heatingOE
( 57),
Panel for display dimmer
( 47), Panel for ESA
OE
( 71)
8 Odometer and tripmeters
( 46)
322zStatus indicators

Warning and telltale
lights1Telltale light, left turn in-
dicator
2 Telltale light, high-beam
headlight
3 Telltale light, neutral
4 ABS warning light
5 Telltale light, right turn
indicator
6 Warning and telltale light,
ASC (OE)
7 Warning light, general
8 Brake-pad wear indicator
ABS warning lightThe way in which the ABS
warning light indicates status
can differ in some countries.
Possible national variant.Telltale light, cruise
control
OE
1 Telltale light, cruise con-
trol
Function indicatorsFuel capacity
The column below the
fuel-pump symbol indic-
ates the remaining quantity of
fuel.
Gear
Shows which gear is en-
gaged.
If no gear is engaged, the
gear indicator shows N and
the 'neutral' telltale light also
lights up.
Coolant temperature
The column below the
temperature symbol in-
dicates the coolant temperat-
ure.
ASC intervention (OE)
ASC warning light quick-
flashes.
The ASC has detected a de-
323zStatus indicators

gree of instability at the rear
wheel and has intervened to
reduce torque. The warning
light flashes for one second
longer than ASC intervention
lasts. This affords the rider
visual feedback on control in-
tervention even after the crit-
ical situation has been dealt
with.Warnings, generalMode of presentation
General warnings are dis-
played by means of warning
lights or by texts and symbols
in the multifunction display.
In some cases, they are ac-
companied by the 'General'
warning light showing red or
yellow. If two or more warn-
ings occur at the same time,
all the appropriate warning
lights and warning symbols
appear.
324zStatus indicators

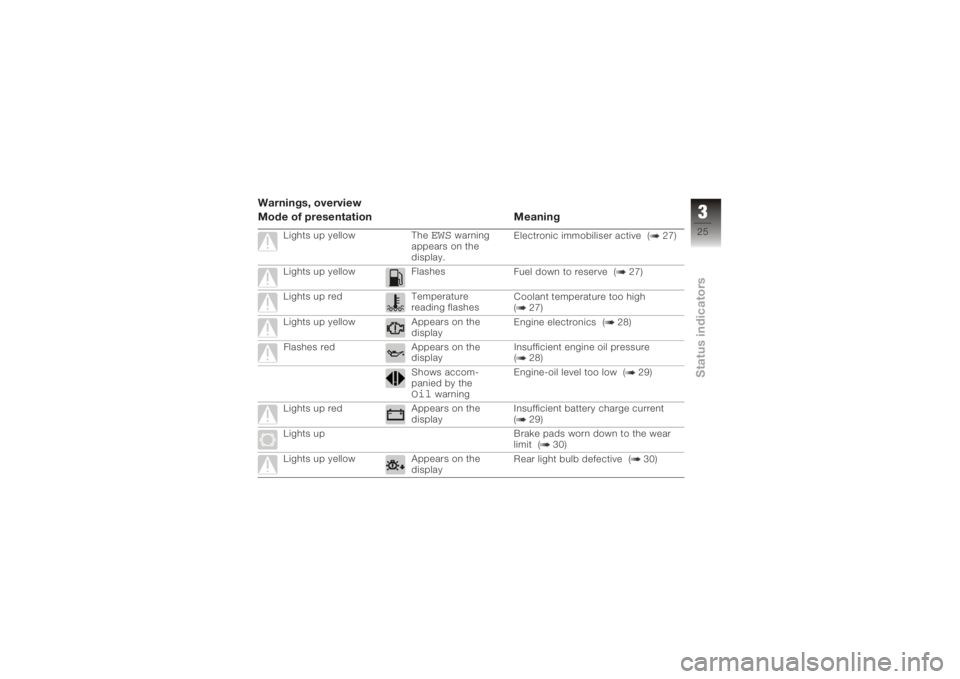

Warnings, overview
Mode of presentation Meaning
Lights up yellowThe
EWS
warning
appears on the
display. Electronic immobiliser active ( 27)
Lights up yellow Flashes Fuel down to reserve ( 27)
Lights up red Temperature reading flashesCoolant temperature too high
( 27)
Lights up yellow Appears on the displayEngine electronics ( 28)
Flashes red Appears on the displayInsufficient engine oil pressure
( 28)
Shows accom-
panied by the
Oil
warning Engine-oil level too low ( 29)
Lights up red Appears on the displayInsufficient battery charge current
( 29)
Lights up Brake pads worn down to the wear
limit ( 30)
Lights up yellow Appears on the
display Rear light bulb defective ( 30)
325zStatus indicators

Mode of presentationMeaning
Appears on the
displayFront light bulb defective ( 30)
Lights up yellow Appears on the displayBulbs defective ( 31)
Flashes with tem-
perature reading Ice warning ( 31)
Appears on the
display, accom-
panied by the let-
ters
DWA
. Battery of anti-theft alarm (OE) weak
( 31)
Lights up yellow Appears on the display, accom-
panied by the let-
ters
DWA
.Anti-theft alarm battery flat (OE)
( 32)
326zStatus indicators

Electronic immobiliser
activeGeneral warning light
lights up yellow.
The
EWS
warning appears on
the display.
The key being used is not au-
thorised for starting, or com-
munication between key and
engine electronics is disrup-
ted.
Remove all other vehicle
keys from the same ring as
the ignition key.
Use the reserve key.
Have the defective key re-
placed, preferably by an
authorised BMW Motorrad
dealer.
Fuel down to reserve General warning light
lights up yellow. Symbol for fuel down to
reserve flashes.
Lack of fuel can result
in the engine misfiring
and cutting out unexpectedly.
Misfiring can damage the
catalytic converter; a hazard-
ous situation can result if the
engine cuts out unexpectedly.
Do not run the fuel tank dry.
The estimated residual
range appears on the
display.
The fuel tank contains no
more than the reserve quant-
ity of fuel.
Reserve fuel
4l
Refuelling ( 83) Coolant temperature too
high
General warning light
lights up red.
The temperature reading
flashes.
Continuing to ride when
the engine is overheated
could result in engine dam-
age.
You must comply with the in-
structions below.
The coolant temperature is
too high.
If possible, ride in the part-
load range to cool down the
engine.
In traffic jams, switch off the
engine, but leave the igni-
tion switched on so that the
radiator fan continues to op-
erate.
If the coolant temperature
is frequently too high, have
327zStatus indicators

the fault rectified as soon
as possible by a special-
ist workshop, preferably an
authorised BMW Motorrad
dealer.
Engine electronics General warning light
lights up yellow.
Engine electronics sym-
bol appears on the dis-
play.
The engine is running
in emergency operating
mode. Engine power might
be reduced and this can
cause hazardous situations,
particularly if you attempt to
overtake other road users.
Engine power level might be
lower than normal: adapt your
style of riding accordingly. The engine electronics control
unit has diagnosed a fault. In
exceptional cases, the engine
stops and refuses to start.
Otherwise, the engine runs in
emergency operating mode.
You can continue to ride,
but bear in mind that the
usual engine power might
not be available.
Have the fault rectified as
quickly as possible by a
specialist workshop, prefer-
ably an authorised BMW
Motorrad dealer.
Insufficient engine oil
pressure General warning light
flashes red.
Engine oil pressure sym-
bol appears on the dis-
play.
The oil pressure in the lube-
oil system is too low. Stop immediately and switch off
the engine if the warning light
shows.
The insufficient oil
pressure warning does
not fulfil the function of an
oil gauge. The only way of
checking whether the oil level
is correct is to check the oil
level indicator.
A low oil level is one reason
why a warning indicating in-
sufficient oil pressure is is-
sued.
Checking engine oil level
( 103)
If the oil level is too low: Top up the engine oil
( 105)
If the warning indicating in-
sufficient engine oil level is
issued and a check indicates
that the engine oil level is cor-
rect:
328zStatus indicators
