coolant temperature BMW MOTORRAD K 1200 LT 2005 Rider's Manual (in English)

8
General information and controls
1
1Speedometer
2 Pushbutton for setting clock
3 Multifunction display with
– On-board computer
(
b28)
– Fuel gauge with indicator
for reserve (
b45)
– Coolant temperature
gauge (
b55)
–Odometer
–Trip meter
– Clock
–Gear indicator
– Radio display 4
Revolution counter (
b73)
5 Trip meter reset button
6 Radio controls (
b Supple-
mentary Rider's Manual)
7 Ignition switch and steering
lock (
b13)
( ) Number in parentheses
bpage number for description
Cockpit
123456
7
10LTbkg6.book Seite 8 Freitag, 1. Juli 2005 8:53 08

22
55
Safety check
Coolant
Checking coolant level
e Attention:
Always keep the coolant level
above the minimum mark.
Check coolant level only when
the engine is cold.
 Place the motorcycle on its main (centre) stand
– Make sure the ground is
level and firm.
Open the left case (
b32)
 Check coolant level at the expansion tank, using torch if
necessary:
MAX Maximum level
MIN Minimum level
e Attention:
Never overfill the expansion
tank underneath the front seat.
 Add coolant if necessary
 Close the left case (
b32)
L Note:
If the expansion tank is full and
coolant temperature is high
(as indicated by red warning
light
j b 10) or coolant con-
sumption is excessive, consult
a specialist workshop, prefera-
bly an authorised BMW motor-
cycle dealer.
MAX
MIN
10LTbkg6.book Seite 55 Freitag, 1. Juli 2005 8:53 08

3
79
Starting – Riding – Parking

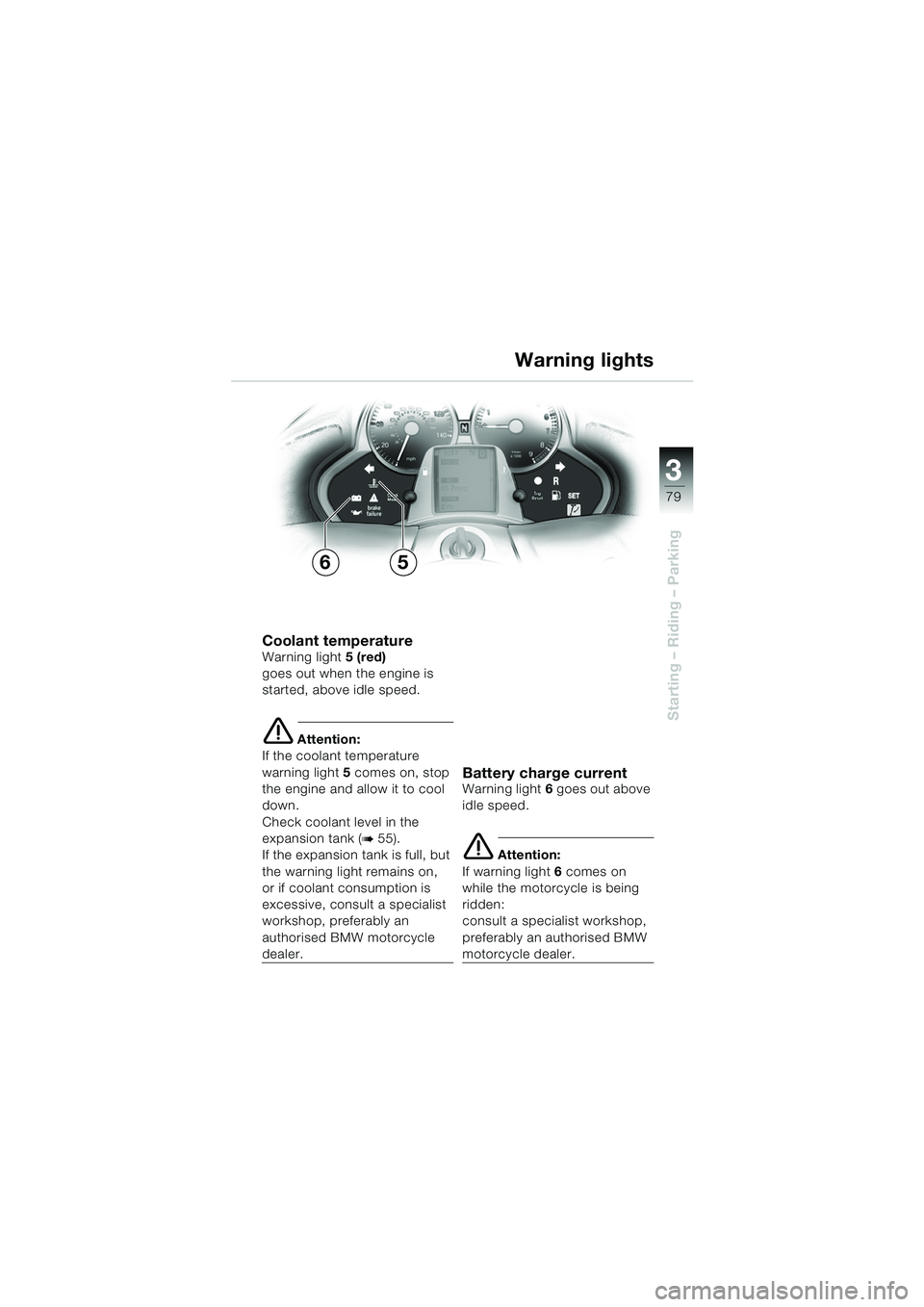

Warning lights
Coolant temperatureWarning light5 (red)
goes out when the engine is
started, above idle speed.
e Attention:
If the coolant temperature
warning light 5 comes on, stop
the engine and allow it to cool
down.
Check coolant level in the
expansion tank (
b55).
If the expansion tank is full, but
the warning light remains on,
or if coolant consumption is
excessive, consult a specialist
workshop, preferably an
authorised BMW motorcycle
dealer.
Battery charge currentWarning light 6 goes out above
idle speed.
e Attention:
If warning light 6 comes on
while the motorcycle is being
ridden:
consult a specialist workshop,
preferably an authorised BMW
motorcycle dealer.
65
10LTbkg6.book Seite 79 Freitag, 1. Juli 2005 8:53 08

80
Starting – Riding – Parking
3

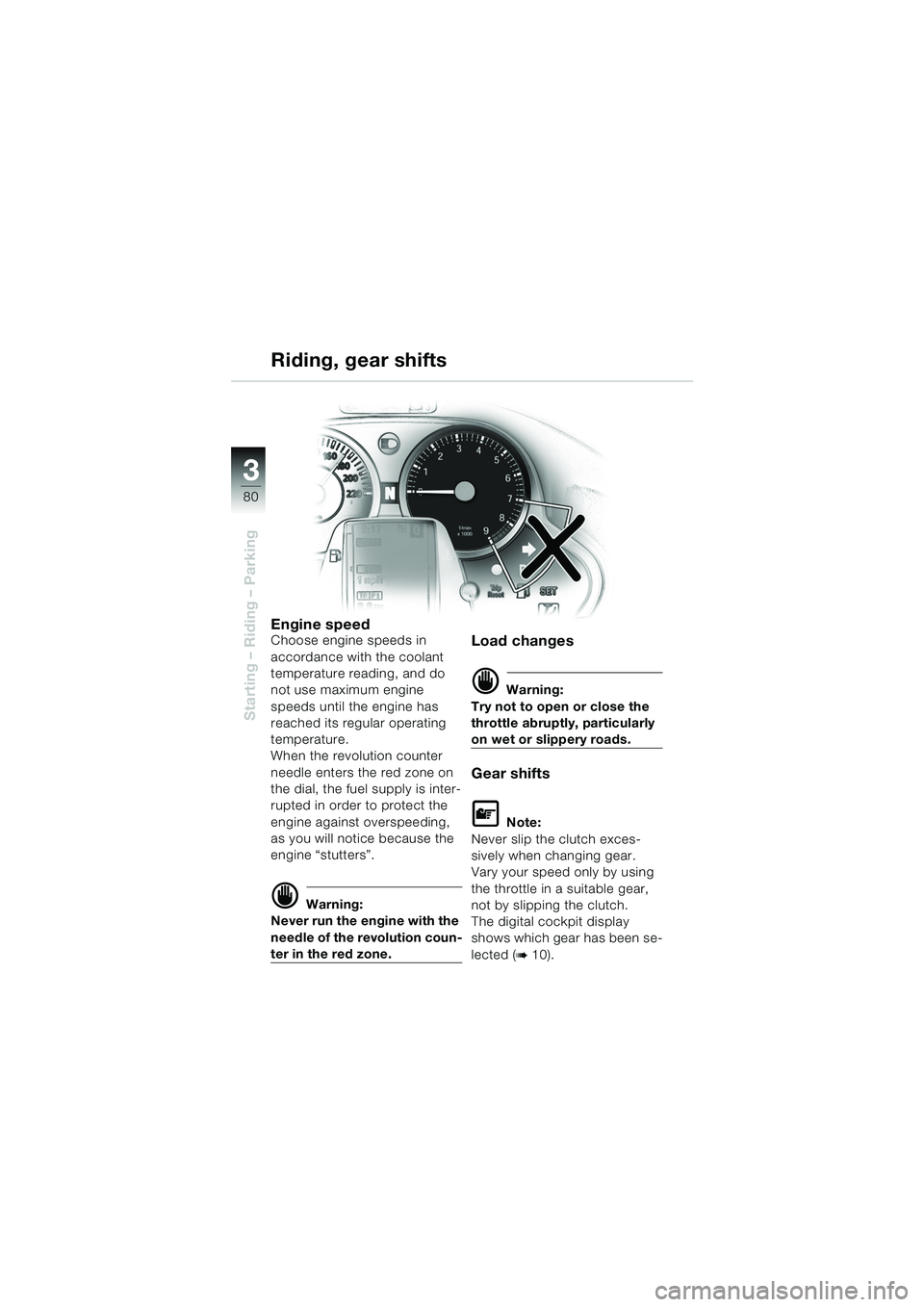

Riding, gear shifts
Engine speedChoose engine speeds in
accordance with the coolant
temperature reading, and do
not use maximum engine
speeds until the engine has
reached its regular operating
temperature.
When the revolution counter
needle enters the red zone on
the dial, the fuel supply is inter-
rupted in order to protect the
engine against overspeeding,
as you will notice because the
engine “stutters”.
d Warning:
Never run the engine with the
needle of the revolution coun-
ter in the red zone.
Load changes
d Warning:
Try not to open or close the
throttle abruptly, particularly
on wet or slippery roads.
Gear shifts
L Note:
Never slip the clutch exces-
sively when changing gear.
Vary your speed only by using
the throttle in a suitable gear,
not by slipping the clutch.
The digital cockpit display
shows which gear has been se-
lected (
b10).
10LTbkg6.book Seite 80 Freitag, 1. Juli 2005 8:53 08

99
Index
i
AABS, 86
Accessories and loads, 60, 61
Adjusting beam throw, 62
Adjusting fins, 17
Adjusting the handbrake lever, 47
Adjusting windscreen, 17
Aerial, 4
Anti-lock brake systemNotes, 84-91
Audio system controls
Passenger, 6
BBMW Integral ABS, 84-90Brake fluid level, 52
Brake-fluid reservoir, front
brakes, 6
Brake-fluid reservoir, rear
brakes, 6
Troubleshooting chart, 91
Warning lights, 10
BMW Service Card, 94
Brake booster, 86
Brake fluid level Check
Rear brake, 53
Brake pads, running in, 74
Brake system General, 48, 49
With BMW Integral ABS, 50-53
Brake system, checking, 48
CCassette recorder/radio, 9
Catalytic converter, 67
Catalytic convertor Safety instructions, 67
Checking brake pads, 49
Checking oil level, 42
Checklist, 41
Clutch
Fluid level, 54
Clutch lever, adjusting, 46
Cockpit Overview,8,9
Coolant level Check, 55
Coolant temperature, 78
Coolant temperature gauge, 8
Cruise-control system
Notes, 21
Operation, 22, 23, 24
Switch, 14
EEmergency off (kill) switch for ignition, 15, 75
Engine oil, 42, 43
Oil filler neck, 43
Engine oil pressure
Telltale light, 78
Engine speed, 80
A - E
10LTbkg6.book Seite 99 Freitag, 1. Juli 2005 8:53 08

102
Index
i
Starting, 77
Stowage compartmentTorch, 7
Switch on the ignition, 75, 76
TTank cap, 7
Telltale and warning lights ABS, 10, 78
Battery charge light, 10, 79
Coolant temperature, 10, 79
Cruise control, 11
Engine oil pressure, 10, 78
High-beam headlight, 11
Low fuel level, 11, 78
Neutral, 10
Reverser, 11
Turn indicator, right, 11
Tightening torques Topcase, rear seat, 38
Tools, 4
Torch Compartment for, 7
Tread depth, tyres, 58, 59
Trip meter, 8
Troubleshooting chart, 91
Turn indicator cancel switch, 15
Type plate, 7
Tyres Inflation pressure, 59
Running in, 74
Tread depth, 57
VValve caps, 59
WWarning lightLow fuel level, 78
Warning lights ABS, 78
Battery charge light, 79
Coolant temperature, 79
Engine oil pressure, 78
General, 78
Warnings
Braking, 82
Windscreen adjustment Switch, 14
S - Z
