Rider’s Manual
K 1200 LT
10LTbkg6.book Seite 103 Freitag, 1. Juli 2005 8:53 08
Page 2 of 108
1

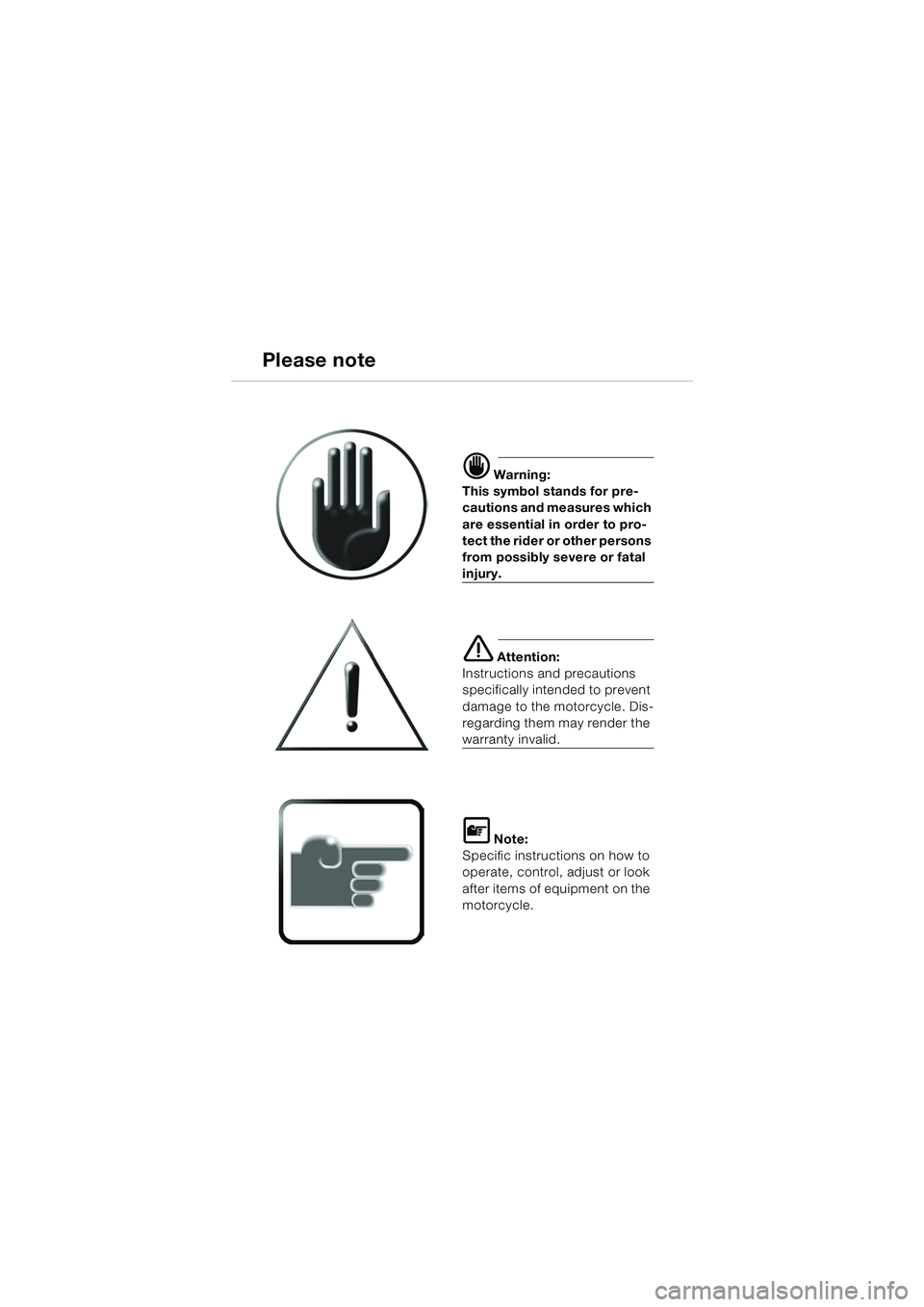

Please note
d Warning:
This symbol stands for pre-
cautions and measures which
are essential in order to pro-
tect the rider or other persons
from possibly severe or fatal
injury.
e Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle. Dis-
regarding them may render the
warranty invalid.
L Note:
Specific instructions on how to
operate, control, adjust or look
after items of equipment on the
motorcycle.
10LTbkg6.book Seite 1 Freitag, 1. Juli 2005 8:53 08
Page 3 of 108
1

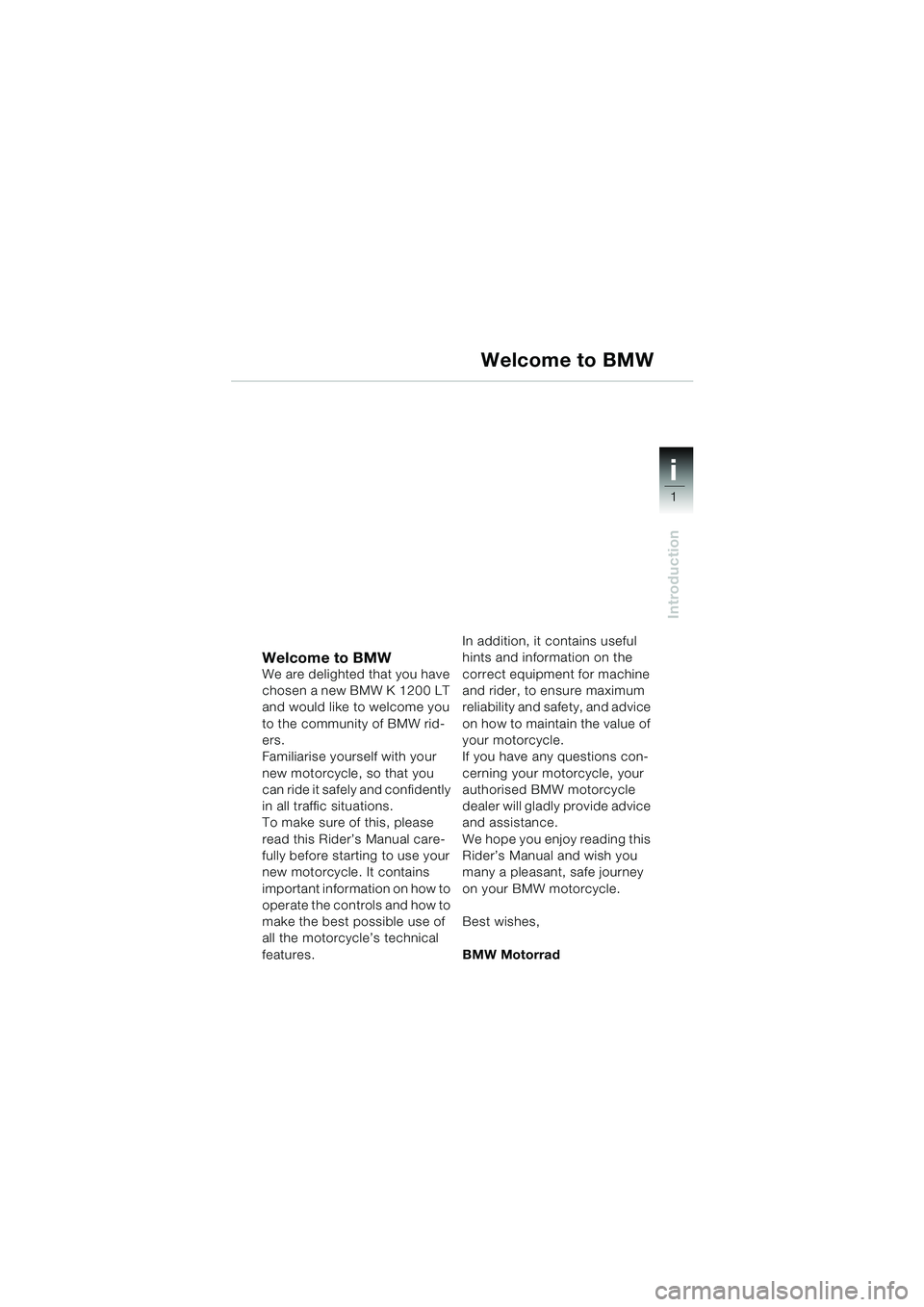

Introduction
i
Welcome to BMWWe are delighted that you have
chosen a new BMW K 1200 LT
and would like to welcome you
to the community of BMW rid-
ers.
Familiarise yourself with your
new motorcycle, so that you
can ride it safely and confidently
in all traffic situations.
To make sure of this, please
read this Rider’s Manual care-
fully before starting to use your
new motorcycle. It contains
important information on how to
operate the controls and how to
make the best possible use of
all the motorcycle’s technical
features.In addition, it contains useful
hints and information on the
correct equipment for machine
and rider, to ensure maximum
reliability and safety, and advice
on how to maintain the value of
your motorcycle.
If you have any questions con-
cerning your motorcycle, your
authorised BMW motorcycle
dealer will gladly provide advice
and assistance.
We hope you enjoy reading this
Rider’s Manual and wish you
many a pleasant, safe journey
on your BMW motorcycle.
Best wishes,
BMW Motorrad
Welcome to BMW
10LTbkg6.book Seite 1 Freitag, 1. Juli 2005 8:53 08
Page 4 of 108
2
Introduction
i

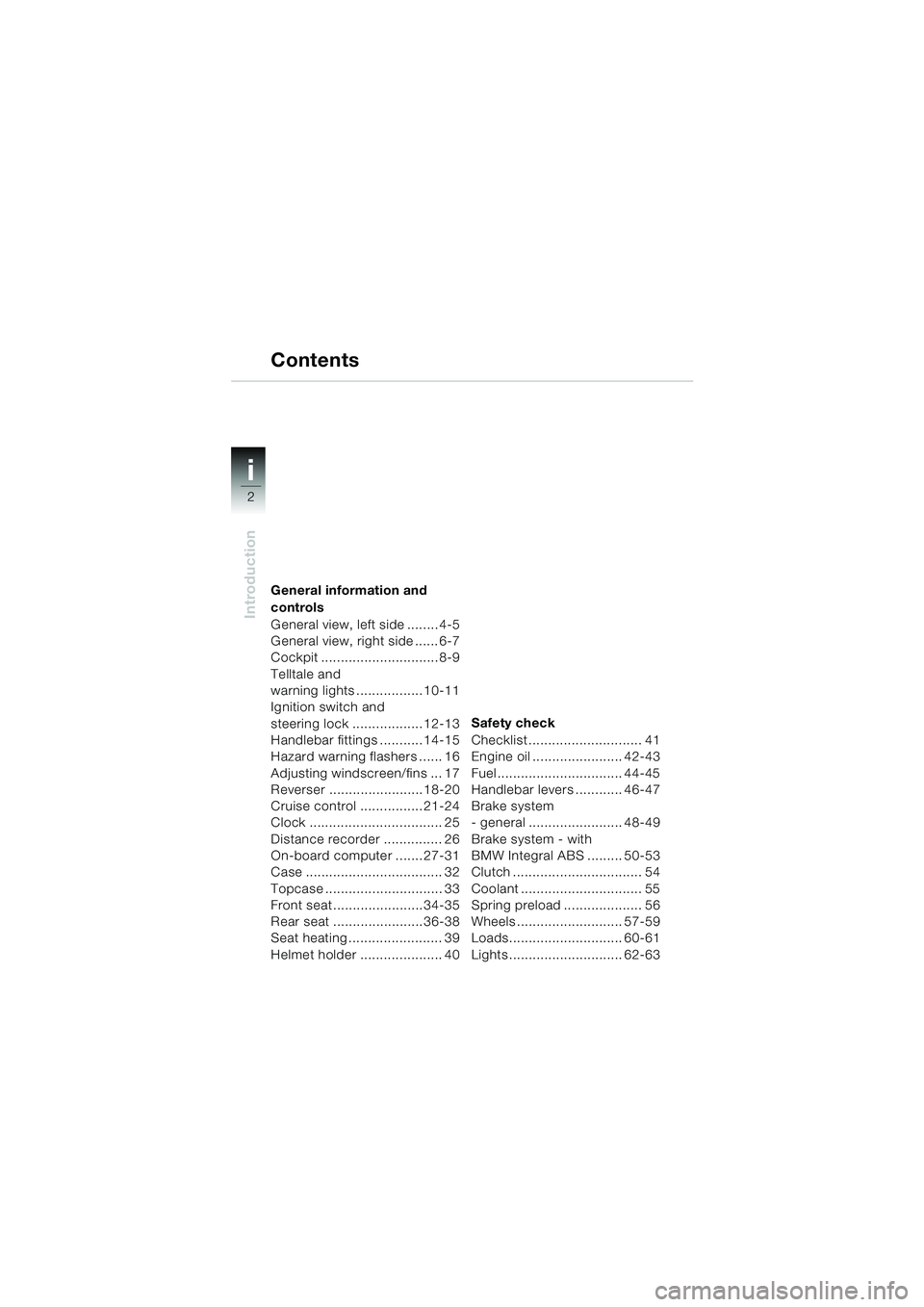

General information and
controls
General view, left side ........ 4-5
General view, right side ...... 6-7
Cockpit .............................. 8-9
Telltale and
warning lights ................. 10-11
Ignition switch and
steering lock .................. 12-13
Handlebar fittings ........... 14-15
Hazard warning flashers ...... 16
Adjusting windscreen/fins ... 17
Reverser ........................18-20
Cruise control ................ 21-24
Clock .................................. 25
Distance recorder ............... 26
On-board computer ....... 27-31
Case ................................... 32
Topcase .............................. 33
Front seat .......................34-35
Rear seat .......................36-38
Seat heating ........................ 39
Helmet holder ..................... 40Safety check
Checklist ............................. 41
Engine oil ....................... 42-43
Fuel ................................ 44-45
Handlebar levers ............ 46-47
Brake system
- general ........................ 48-49
Brake system - with
BMW Integral ABS ......... 50-53
Clutch ................................. 54
Coolant ............................... 55
Spring preload .................... 56
Wheels ........................... 57-59
Loads............................. 60-61
Lights ............................. 62-63
Contents
10LTbkg6.book Seite 2 Freitag, 1. Juli 2005 8:53 08
Page 5 of 108
3
Introduction
i

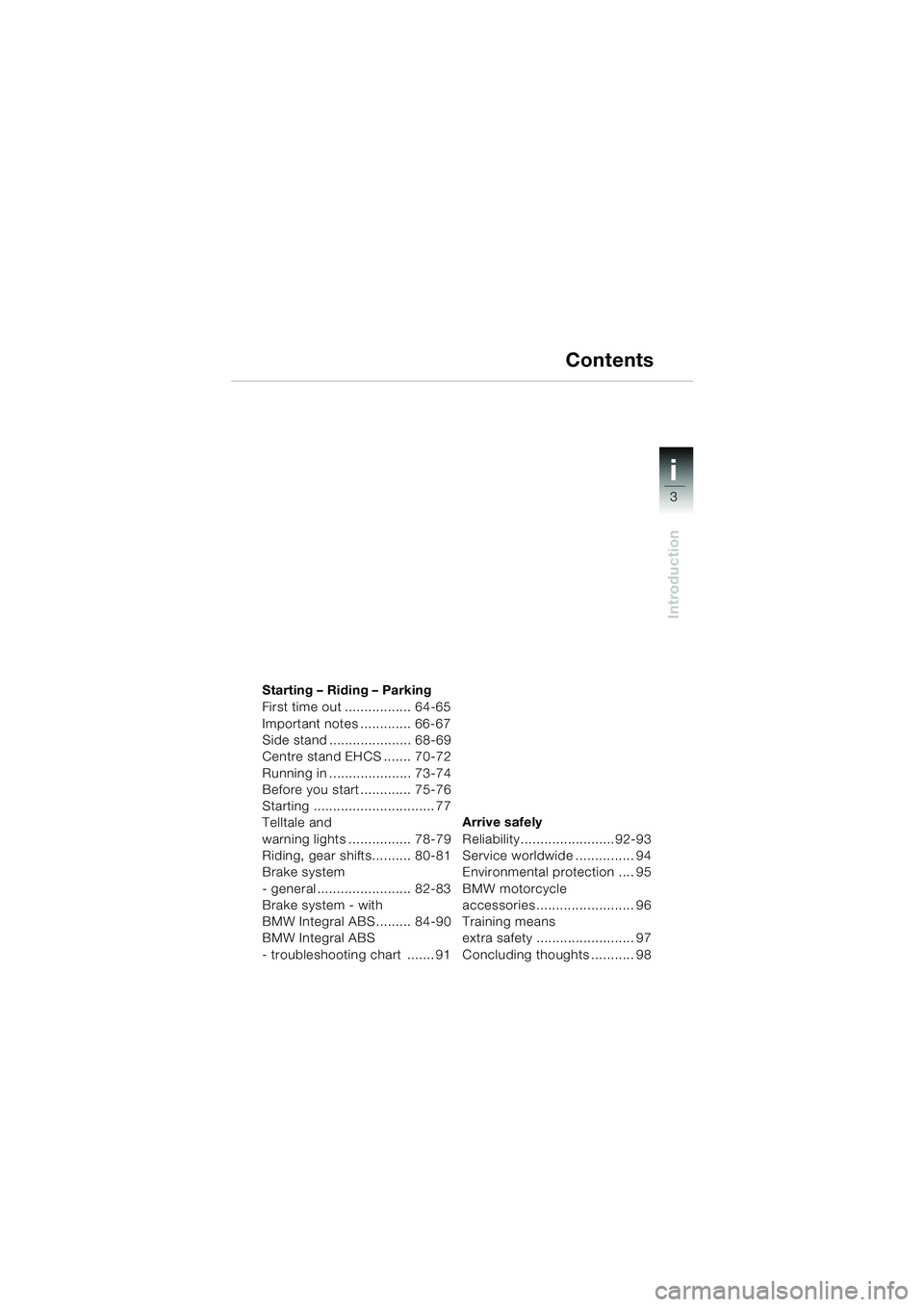

Starting – Riding – Parking
First time out ................. 64-65
Important notes ............. 66-67
Side stand ..................... 68-69
Centre stand EHCS ....... 70-72
Running in ..................... 73-74
Before you start ............. 75-76
Starting ............................... 77
Telltale and
warning lights ................ 78-79
Riding, gear shifts.......... 80-81
Brake system
- general ........................ 82-83
Brake system - with
BMW Integral ABS......... 84-90
BMW Integral ABS
- troubleshooting chart ....... 91Arrive safely
Reliability ........................92-93
Service worldwide ............... 94
Environmental protection .... 95
BMW motorcycle
accessories ......................... 96
Training means
extra safety ......................... 97
Concluding thoughts ........... 98
Contents
10LTing6.fm Seite 3 Dienstag, 12. Juli 2005 10:19 10
Page 6 of 108
4
General information and controls
1
1High-beam headlight
(
bMaintenance Instruc-
tions, Chapter 2)
2 Low-beam headlight
(
bMaintenance Instruc-
tions, Chapter 2)
3 Reservoir for clutch hydrau-
lic fluid (
b54)
4 Adjusting knob for spring
preload, rear suspension
(
b56)
( ) Number in parentheses
bpage number for description
5Case, left (b32)
– Seat opener (
b34)
– Toolkit
– Repair kit for tubeless tyres
(
b Maintenance Instruc-
tions, Chapter 2)
– Steel cable for helmet holder (
b40)
6 Aerial (
b Maintenance
Instructions, Chapter 2)
7 Parking light (
b Mainte-
nance Instructions,
Chapter 2)

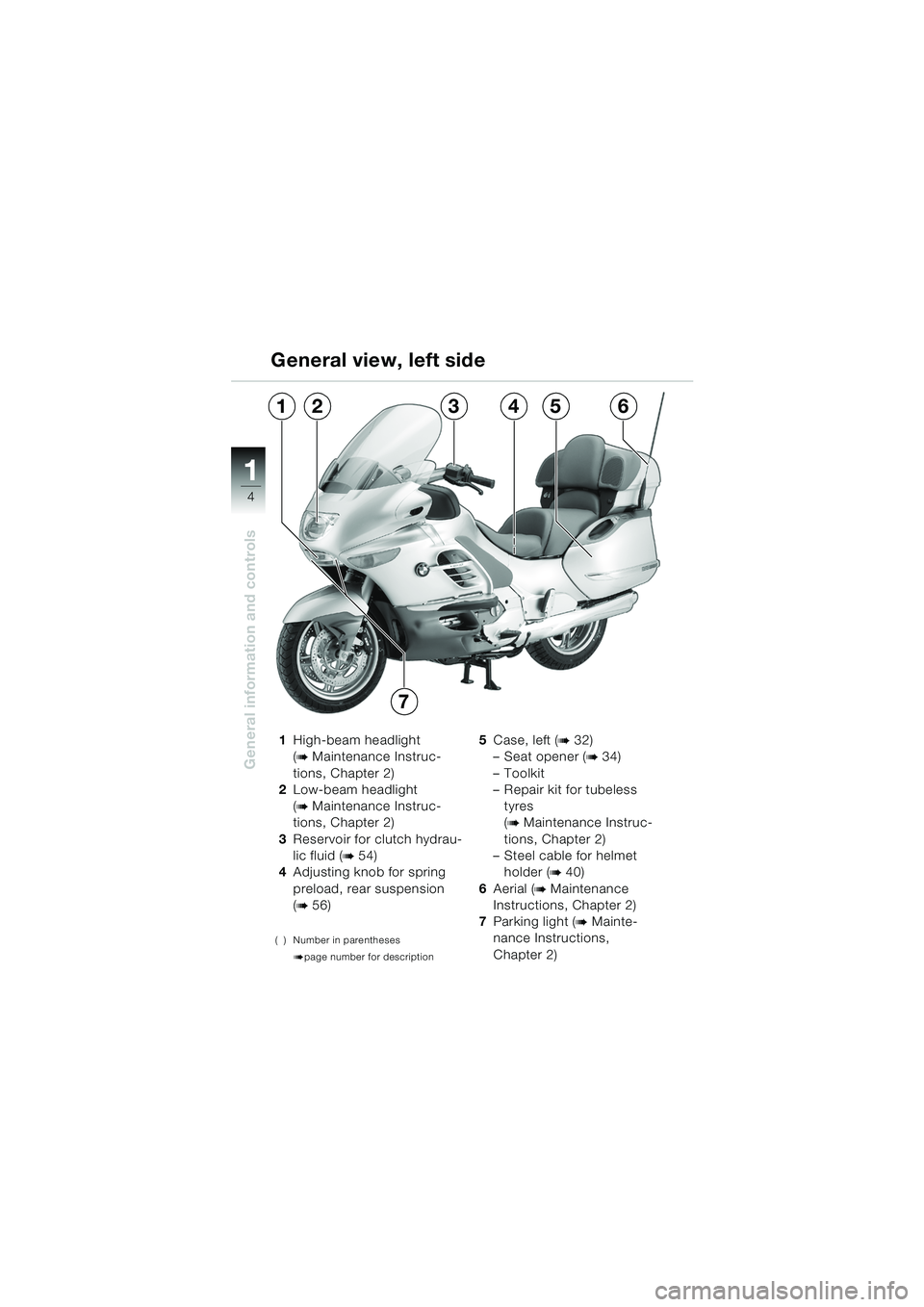

General view, left side
46132
7
5
10LTbkg6.book Seite 4 Freitag, 1. Juli 2005 8:53 08
Page 7 of 108
5
General information and controls
1
General view, left side

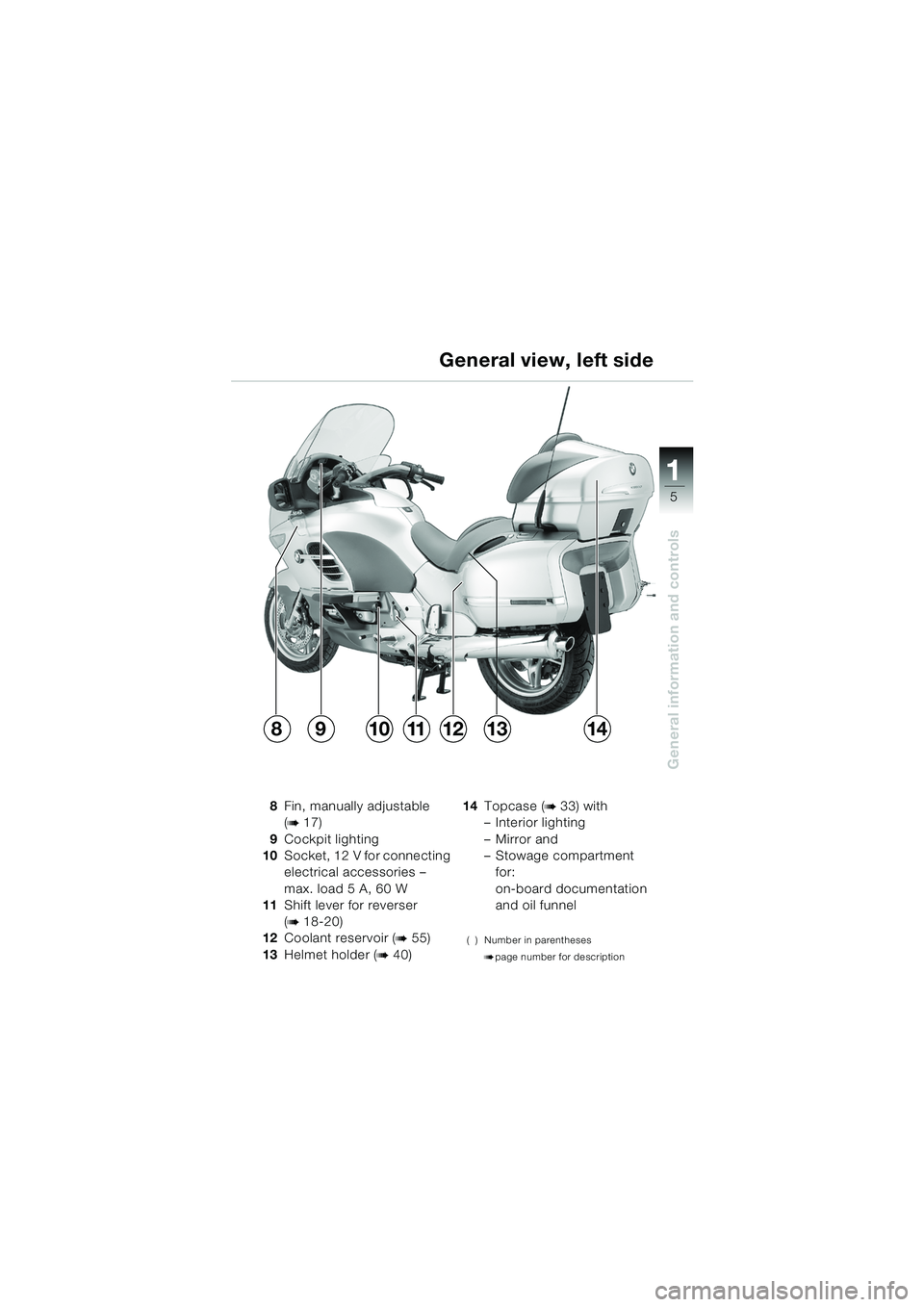

8Fin, manually adjustable
(
b17)
9 Cockpit lighting
10 Socket, 12 V for connecting
electrical accessories –
max. load 5A,60W
11 Shift lever for reverser
(
b18-20)
12 Coolant reservoir (
b55)
13 Helmet holder (
b40) 14
Topcase (
b33) with
– Interior lighting
–Mirror and
– Stowage compartment for:
on-board documentation
and oil funnel
( ) Number in parentheses
bpage number for description
101213149118
10LTbkg6.book Seite 5 Freitag, 1. Juli 2005 8:53 08
Page 8 of 108
6
General information and controls
1

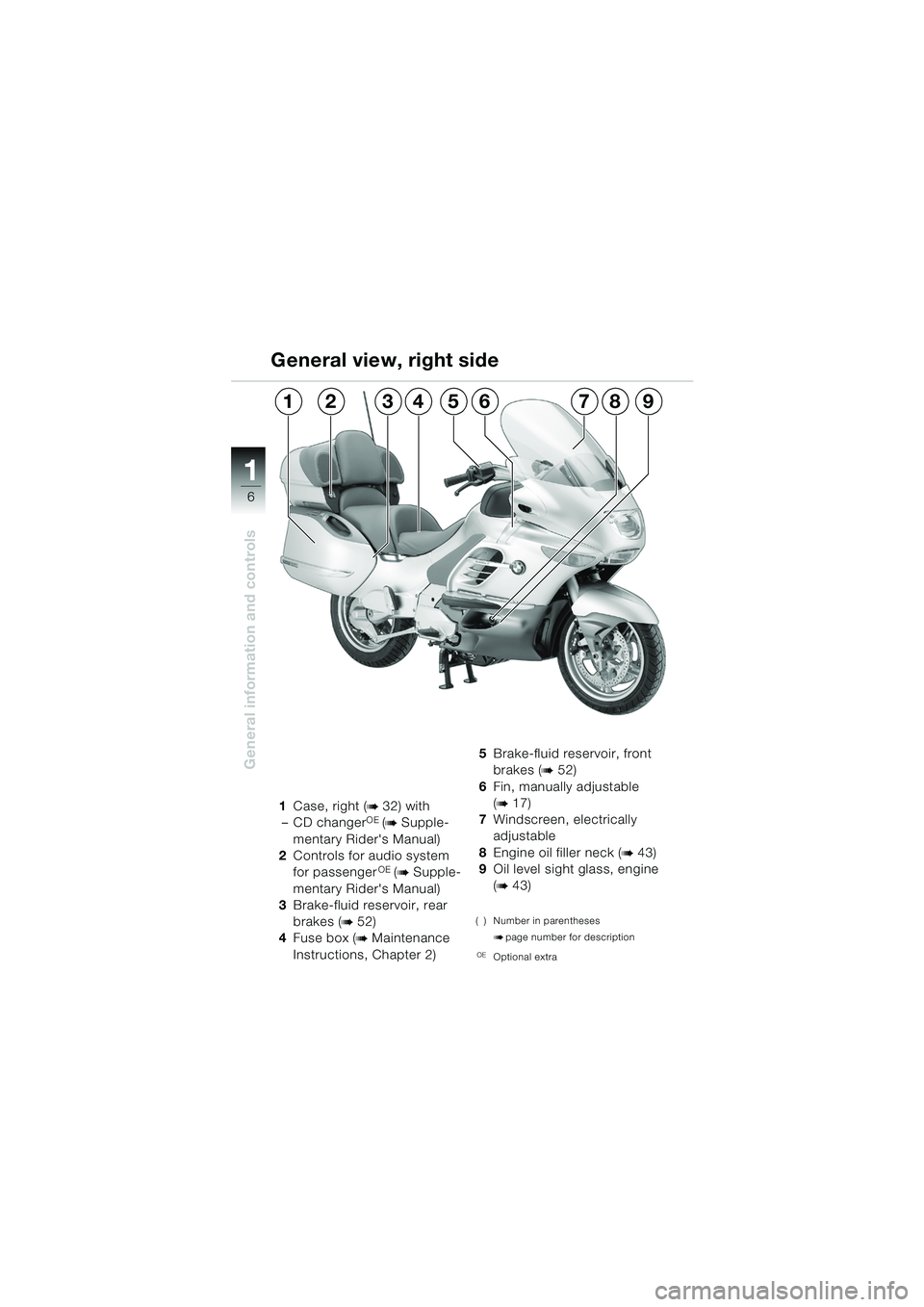

1Case, right (b32) with
–CD changerOE (b Supple-
mentary Rider's Manual)
2 Controls for audio system
for passenger
OE (b Supple-
mentary Rider's Manual)
3 Brake-fluid reservoir, rear
brakes (
b52)
4 Fuse box (
b Maintenance
Instructions, Chapter 2) 5
Brake-fluid reservoir, front
brakes (
b52)
6 Fin, manually adjustable
(
b17)
7 Windscreen, electrically
adjustable
8 Engine oil filler neck (
b43)
9 Oil level sight glass, engine
(
b43)
( ) Number in parentheses
bpage number for description
OEOptional extra
General view, right side
213468975
10LTbkg6.book Seite 6 Freitag, 1. Juli 2005 8:53 08
Page 9 of 108
7
General information and controls
1

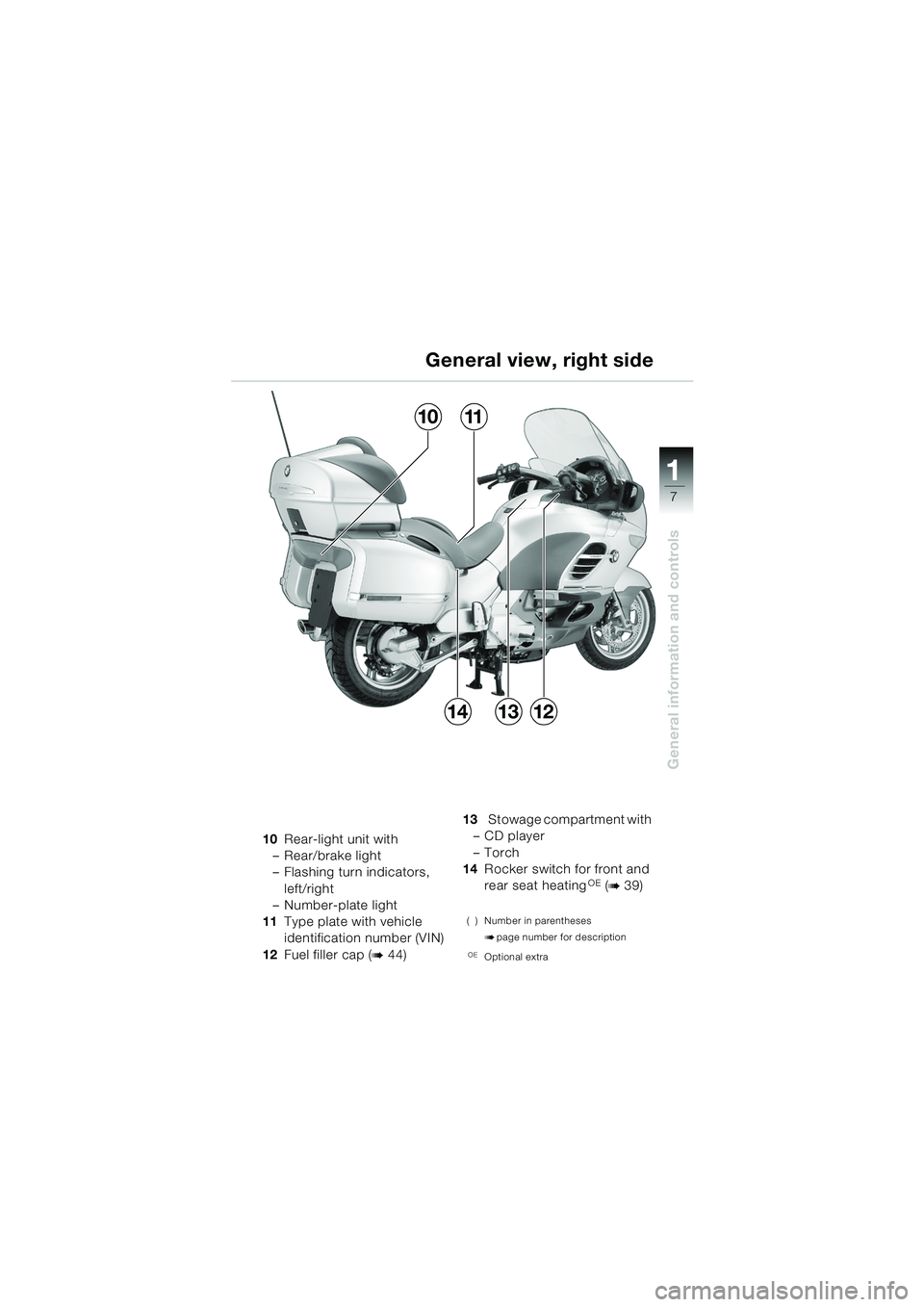

General view, right side
10Rear-light unit with
– Rear/brake light
– Flashing turn indicators, left/right
– Number-plate light
11 Type plate with vehicle
identification number (VIN)
12 Fuel filler cap (
b44) 13
Stowage compartment with
–CD player
– Torch
14 Rocker switch for front and
rear seat heating
OE (b39)
( ) Number in parentheses
bpage number for description
OEOptional extra
1011
131214
10LTbkg6.book Seite 7 Freitag, 1. Juli 2005 8:53 08
Page 10 of 108
8
General information and controls
1

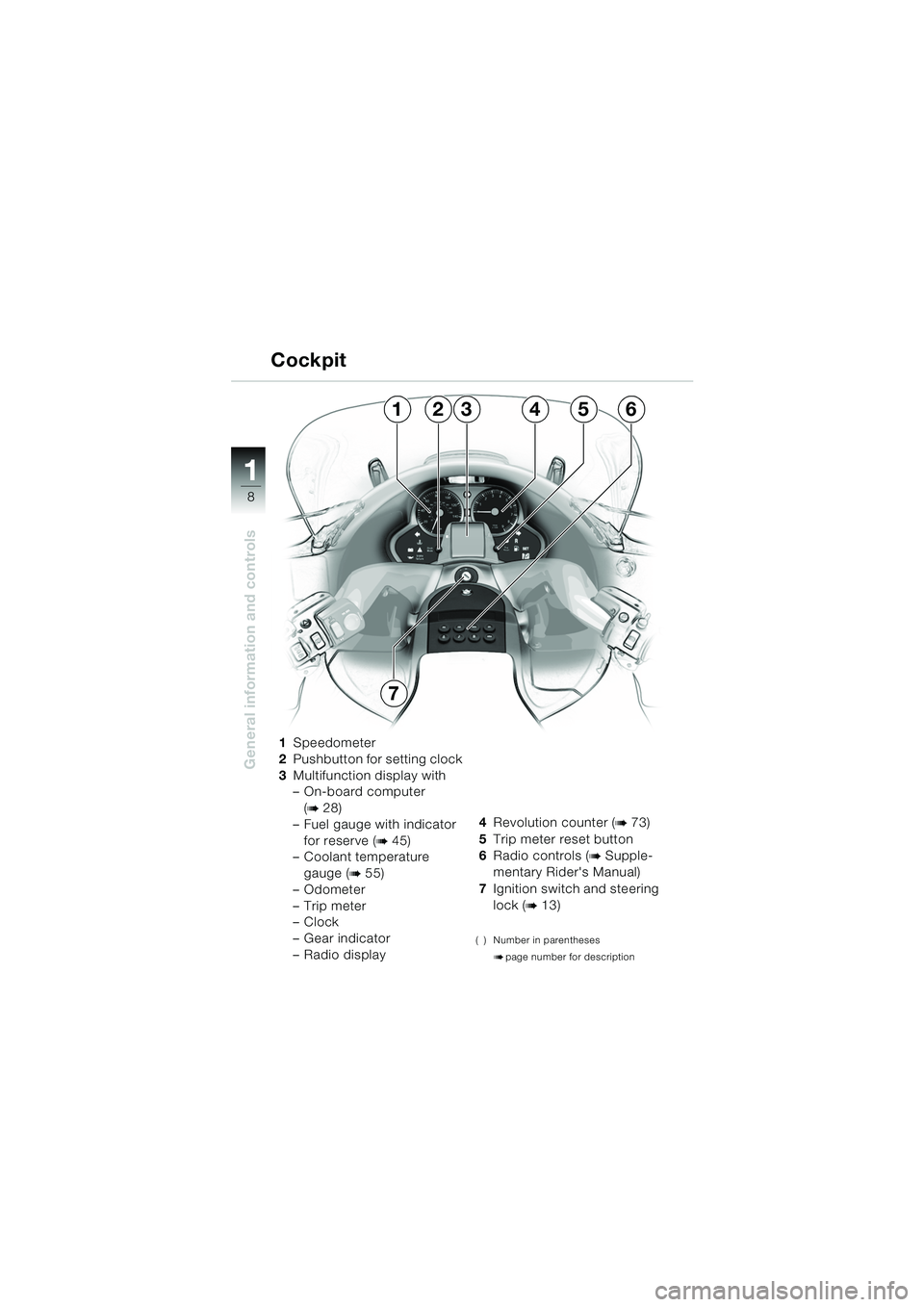

1Speedometer
2 Pushbutton for setting clock
3 Multifunction display with
– On-board computer
(
b28)
– Fuel gauge with indicator
for reserve (
b45)
– Coolant temperature
gauge (
b55)
–Odometer
–Trip meter
– Clock
–Gear indicator
– Radio display 4
Revolution counter (
b73)
5 Trip meter reset button
6 Radio controls (
b Supple-
mentary Rider's Manual)
7 Ignition switch and steering
lock (
b13)
( ) Number in parentheses
bpage number for description
Cockpit
123456
7
10LTbkg6.book Seite 8 Freitag, 1. Juli 2005 8:53 08
