Carefully route the ABS sensor
cable. Make sure that the ABS
sensor cable is clipped into
holders8.
Install securing screws 3on
left and right and tighten to
specified tightening torque.
Front brake caliper to
wheel carrier
30 Nm
Remove the adhesive tape
from the wheel rim.
Firmly pull the handbrake lever
until the pressure point is per- ceptible, and repeat this opera-
tion several times.
Install the front mudguard and
install screws
1on left and
right.
Remove the rear wheel stand,
if installed beforehand.
Removing rear wheelPlace the motorcycle on an
auxiliary stand; BMW Motorrad
recommends the BMW Motor-
rad rear-wheel stand.
Install the rear-wheel stand
( 114) with OA Centre stand:
Make sure the ground is level
and firm and place the motor-
cycle on its centre stand.

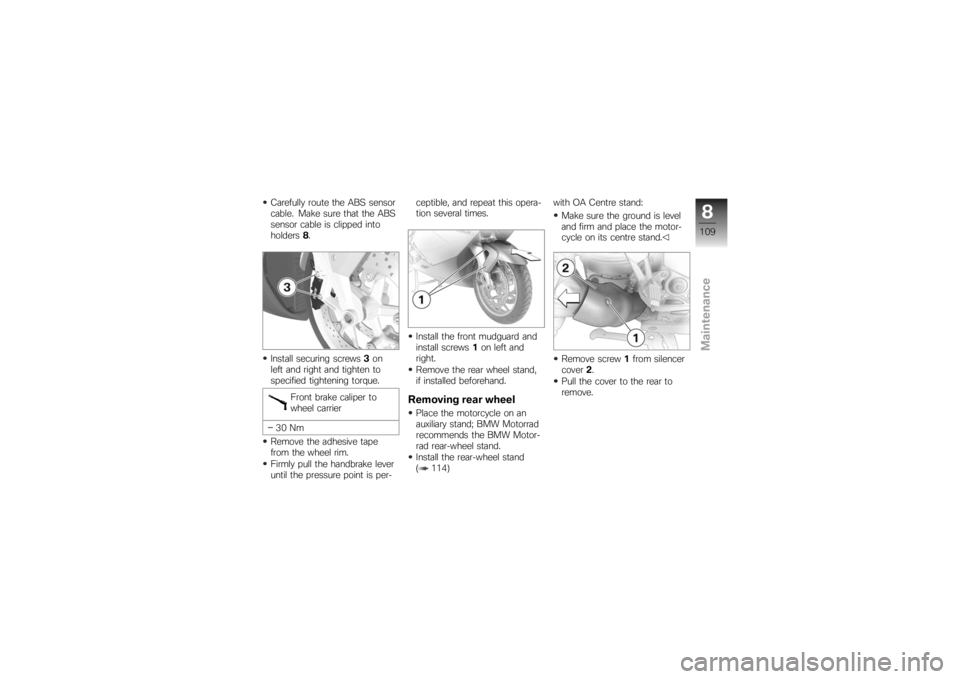

Remove screw 1from silencer
cover 2.
Pull the cover to the rear to
remove.
8109zMaintenance

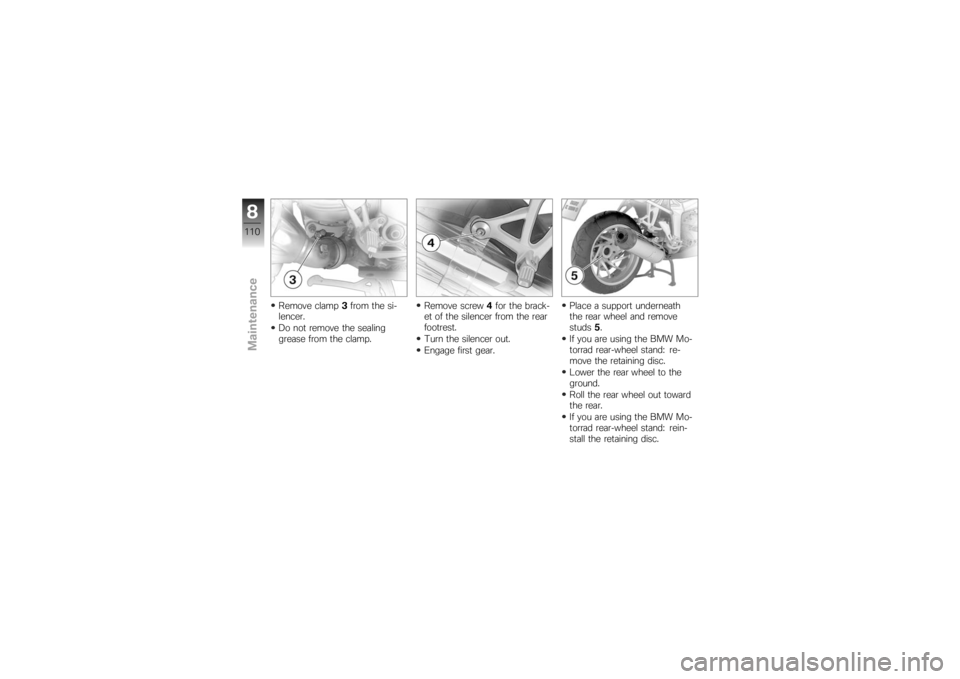

Remove clamp3from the si-
lencer.
Do not remove the sealing
grease from the clamp. Remove screw
4for the brack-
et of the silencer from the rear
footrest.
Turn the silencer out.
Engage first gear. Place a support underneath
the rear wheel and remove
studs
5.
If you are using the BMW Mo-
torrad rear-wheel stand: re-
move the retaining disc.
Lower the rear wheel to the
ground.
Roll the rear wheel out toward
the rear.
If you are using the BMW Mo-
torrad rear-wheel stand: rein-
stall the retaining disc.
8110zMaintenance

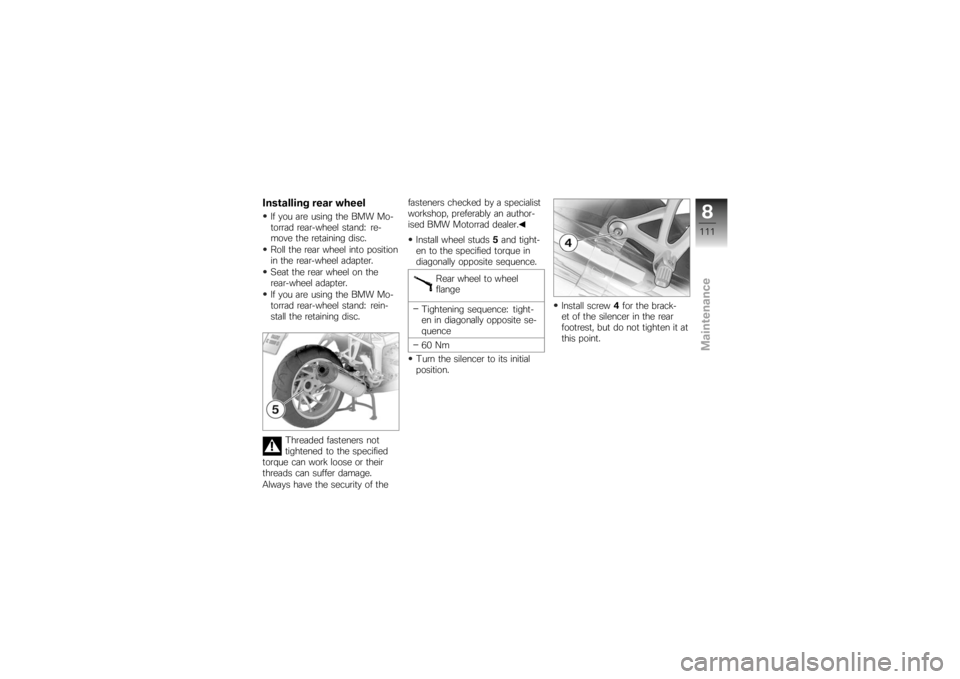

Installing rear wheelIf you are using the BMW Mo-
torrad rear-wheel stand: re-
move the retaining disc.
Roll the rear wheel into position
in the rear-wheel adapter.
Seat the rear wheel on the
rear-wheel adapter.
If you are using the BMW Mo-
torrad rear-wheel stand: rein-
stall the retaining disc.Threaded fasteners not
tightened to the specified
torque can work loose or their
threads can suffer damage.
Always have the security of the fasteners checked by a specialist
workshop, preferably an author-
ised BMW Motorrad dealer.
Install wheel studs 5and tight-
en to the specified torque in
diagonally opposite sequence.
Rear wheel to wheel
flange
Tightening sequence: tight-
en in diagonally opposite se-
quence
60 Nm

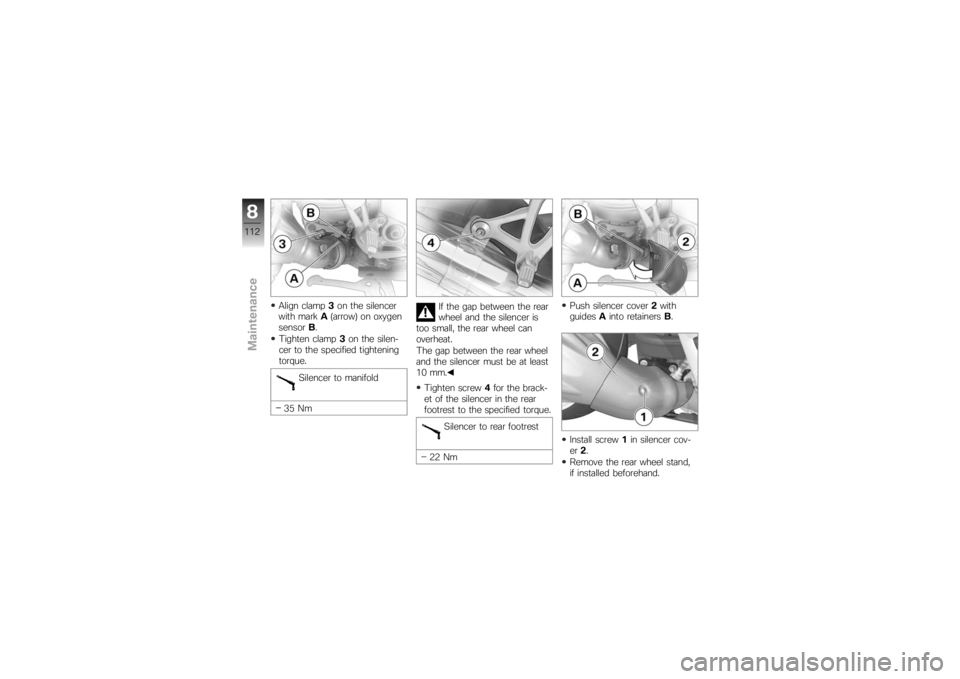

Turn the silencer to its initial
position. Install screw
4for the brack-
et of the silencer in the rear
footrest, but do not tighten it at
this point.
8111zMaintenance

Align clamp3on the silencer
with mark A(arrow) on oxygen
sensor B.
Tighten clamp 3on the silen-
cer to the specified tightening
torque.
Silencer to manifold
35 Nm If the gap between the rear
wheel and the silencer is
too small, the rear wheel can
overheat.
The gap between the rear wheel
and the silencer must be at least
10 mm.
Tighten screw 4for the brack-
et of the silencer in the rear
footrest to the specified torque.
Silencer to rear footrest
22 Nm Push silencer cover
2with
guides Ainto retainers B.
Install screw 1in silencer cov-
er 2.
Remove the rear wheel stand,
if installed beforehand.
8112zMaintenance

Front-wheel standUseA front-wheel stand for simple,
safe changing of the front wheel
is available from BMW Motorrad.
The BMW special tool number
is 36 3 971 and the front-wheel
stand is available from your au-
thorised BMW Motorrad dealer.
You also need the adapters with
the BMW special tool number
36 3 973.The BMW Motorrad front
wheel stand is not designed
to support motorcycles not fitted
with a centre stand or without
other auxiliary stands. A motor-
cycle resting only on the front
wheel stand and the rear wheel
can topple.
Place the motorcycle on its
centre stand or another auxiliary
stand before lifting the front
wheel with the BMW Motorrad
front-wheel stand.

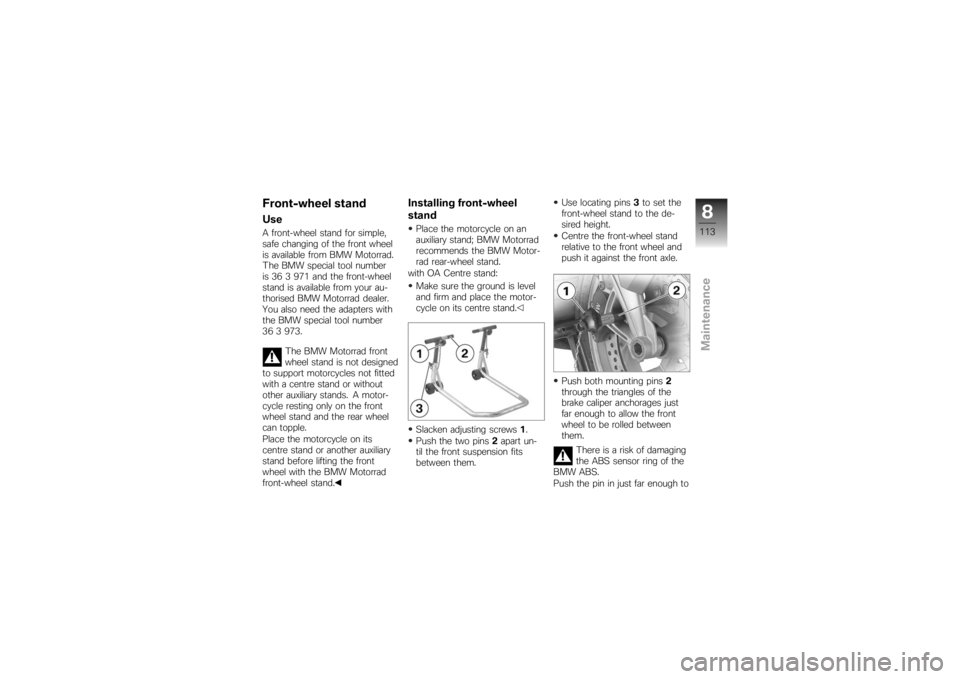

Installing front-wheel
standPlace the motorcycle on an
auxiliary stand; BMW Motorrad
recommends the BMW Motor-
rad rear-wheel stand.
with OA Centre stand:
Make sure the ground is level
and firm and place the motor-
cycle on its centre stand.
Slacken adjusting screws 1.
Push the two pins 2apart un-
til the front suspension fits
between them. Use locating pins
3to set the
front-wheel stand to the de-
sired height.
Centre the front-wheel stand
relative to the front wheel and
push it against the front axle.
Push both mounting pins 2
through the triangles of the
brake caliper anchorages just
far enough to allow the front
wheel to be rolled between
them.
There is a risk of damaging
the ABS sensor ring of the
BMW ABS.
Push the pin in just far enough to
8113zMaintenance

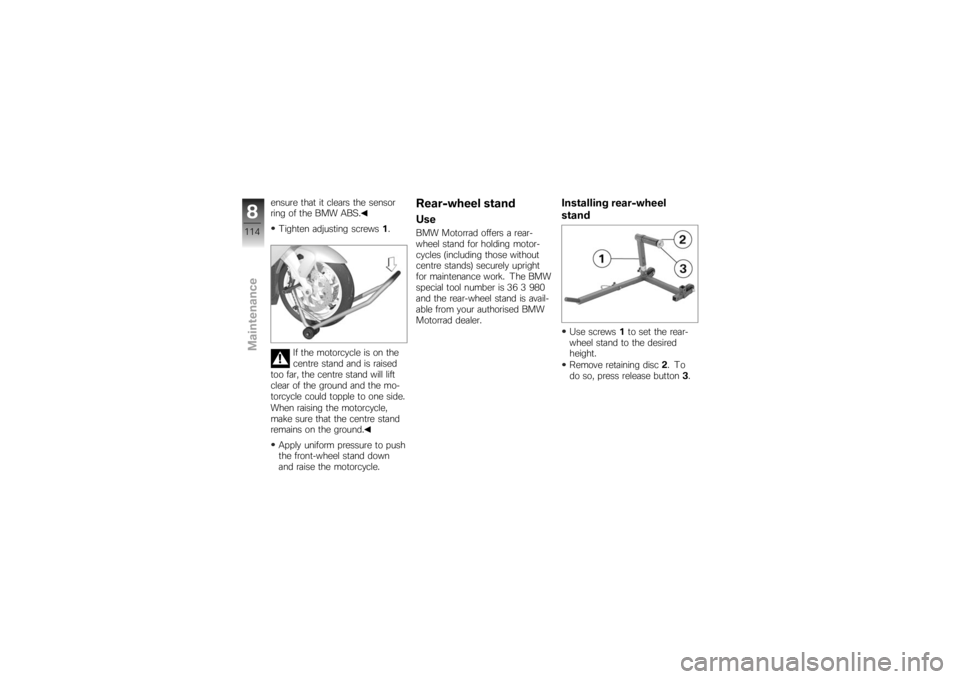

ensure that it clears the sensor
ring of the BMW ABS.Tighten adjusting screws 1.
If the motorcycle is on the
centre stand and is raised
too far, the centre stand will lift
clear of the ground and the mo-
torcycle could topple to one side.
When raising the motorcycle,
make sure that the centre stand
remains on the ground.
Apply uniform pressure to push
the front-wheel stand down
and raise the motorcycle.
Rear-wheel standUseBMW Motorrad offers a rear-
wheel stand for holding motor-
cycles (including those without
centre stands) securely upright
for maintenance work. The BMW
special tool number is 36 3 980
and the rear-wheel stand is avail-
able from your authorised BMW
Motorrad dealer.
Installing rear-wheel
standUse screws 1to set the rear-
wheel stand to the desired
height.
Remove retaining disc 2.To
do so, press release button 3.
8114zMaintenance

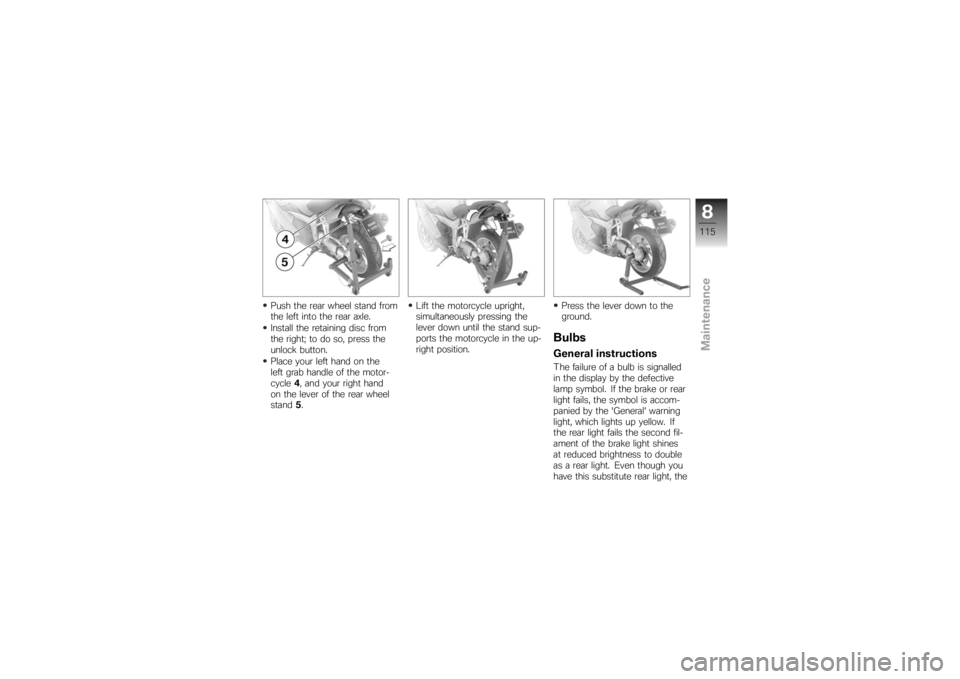

Push the rear wheel stand from
the left into the rear axle.
Install the retaining disc from
the right; to do so, press the
unlock button.
Place your left hand on the
left grab handle of the motor-
cycle4, and your right hand
on the lever of the rear wheel
stand 5. Lift the motorcycle upright,
simultaneously pressing the
lever down until the stand sup-
ports the motorcycle in the up-
right position.
Press the lever down to the
ground.
BulbsGeneral instructionsThe failure of a bulb is signalled
in the display by the defective
lamp symbol. If the brake or rear
light fails, the symbol is accom-
panied by the 'General' warning
light, which lights up yellow. If
the rear light fails the second fil-
ament of the brake light shines
at reduced brightness to double
as a rear light. Even though you
have this substitute rear light, the
8115zMaintenance

indicators in the display tell you
that a bulb defect has occurred.A defective bulb places
your safety at risk because
it is easier for other users to
oversee the motorcycle.
Replace defective bulbs as
soon as possible; always carry a
complete set of spare bulbs if
possible.
The bulb is pressurised and
can cause injury if dam-
aged.
Wear protective goggles and
gloves when changing bulbs.
The types of bulb fitted to
your motorcycle are listed
in the section entitled "Technical
data".
Do not touch the glass of
new bulbs with your fingers.
Use a clean, dry cloth to hold
the bulbs when handling them.
Dirt deposits, in particular oil and
grease, interfere with heat radi- ation from the bulb. This leads
to overheating and shortens the
bulb's operating life.

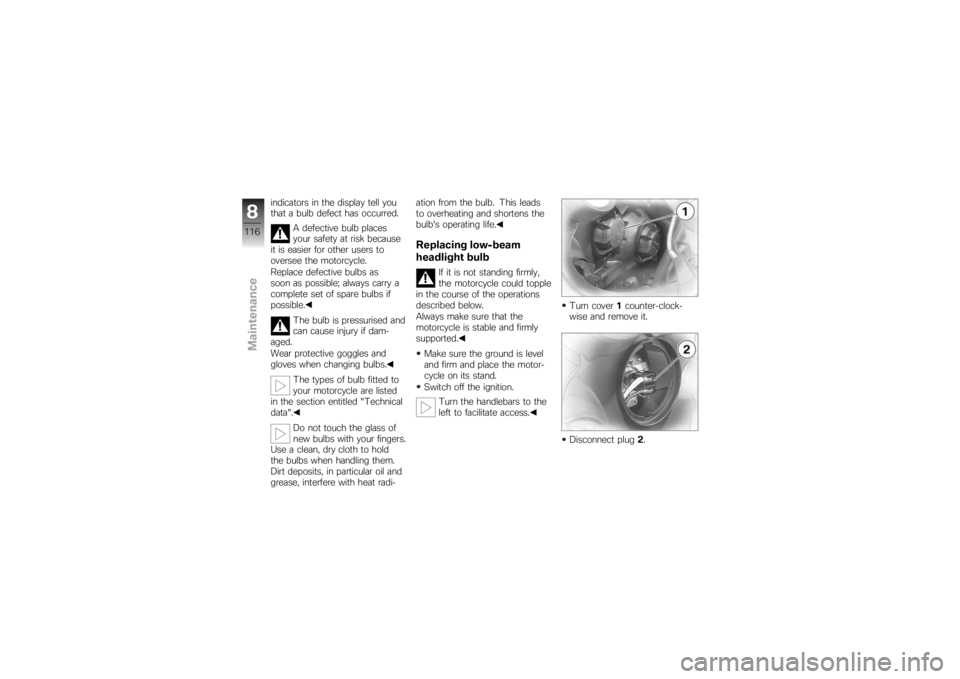

Replacing low-beam
headlight bulb
If it is not standing firmly,
the motorcycle could topple
in the course of the operations
described below.
Always make sure that the
motorcycle is stable and firmly
supported.
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Switch off the ignition. Turn the handlebars to the
left to facilitate access. Turn cover
1counter-clock-
wise and remove it.
Disconnect plug 2.
8116zMaintenance

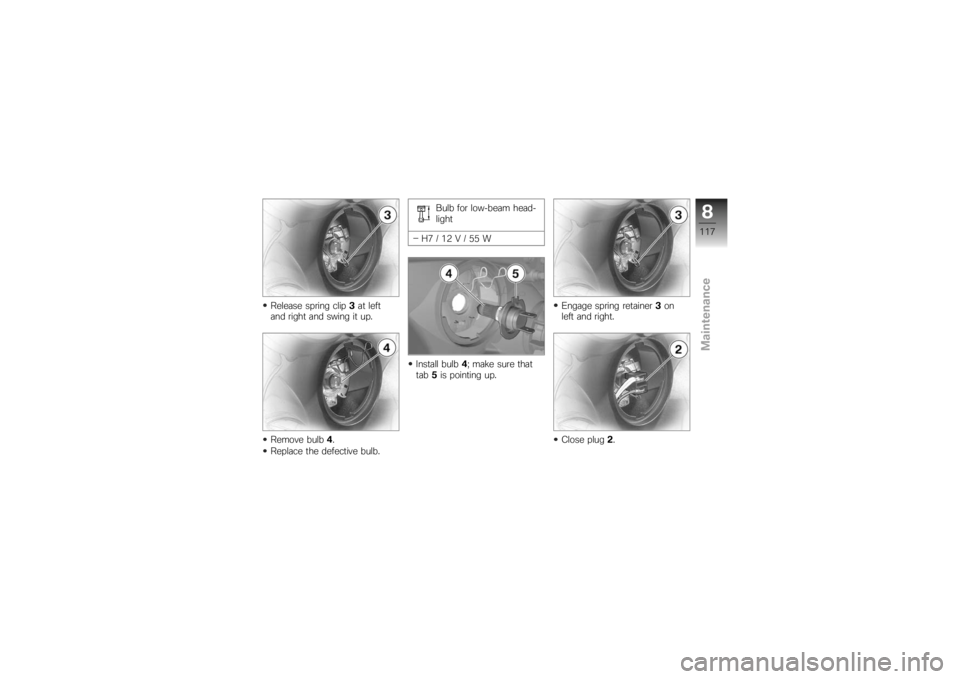

Release spring clip3at left
and right and swing it up.
Remove bulb 4.
Replace the defective bulb. Bulb for low-beam head-
light
H7/12V/55W
Install bulb 4; make sure that
tab 5is pointing up. Engage spring retainer
3on
left and right.
Close plug 2.
8117zMaintenance

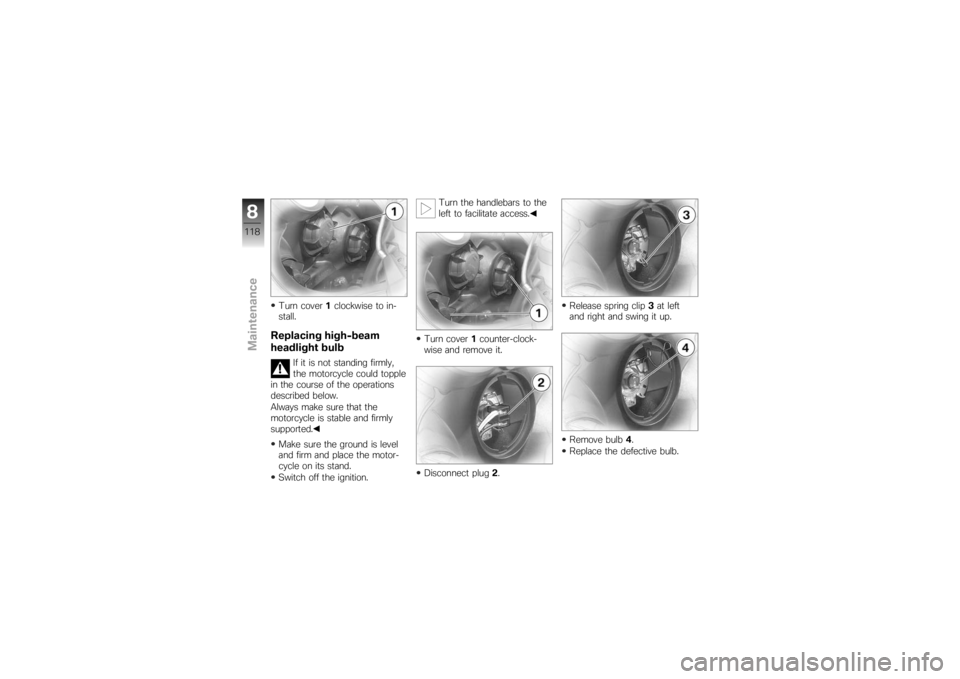

Turn cover1clockwise to in-
stall.Replacing high-beam
headlight bulb
If it is not standing firmly,
the motorcycle could topple
in the course of the operations
described below.
Always make sure that the
motorcycle is stable and firmly
supported.
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Switch off the ignition. Turn the handlebars to the
left to facilitate access.
Turn cover 1counter-clock-
wise and remove it.
Disconnect plug 2. Release spring clip
3at left
and right and swing it up.
Remove bulb 4.
Replace the defective bulb.
