BMW MOTORRAD K 1200 S 2007 Rider's Manual (in English)

General views
General views
General view, left side................ 11
General view, right side . . ............ 13
Underneath the seat ................. 14
Handlebar fitting, left ................. 15
Handlebar fitting, right . . . ............ 16
Instrument cluster ................... 17
Headlight ............................ 18
29zGeneral views

210zGeneral views

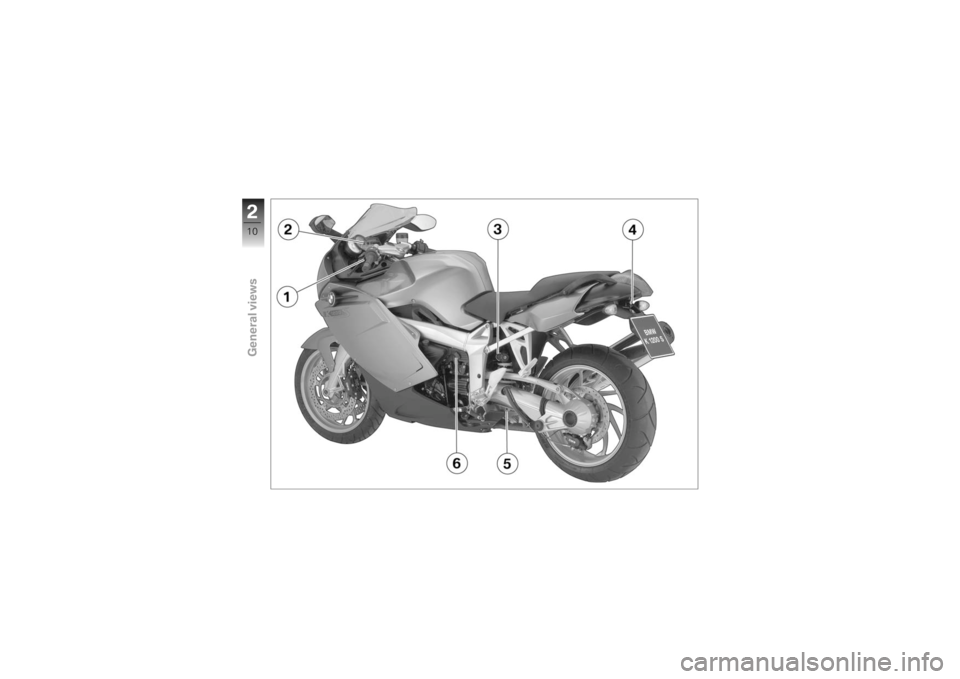

General view, left side1Adjuster for headlight beam
throw (underneath the in-
strument cluster) ( 63)
2 Clutch-fluid reservoir
( 103)
3 Adjuster for spring preload,
rear ( 58)
4 Seat lock (underneath the
rear light) ( 63)
5 Adjuster for damping char-
acteristic, rear suspension
( 59)
6 Power socket ( 88)
211zGeneral views

212zGeneral views

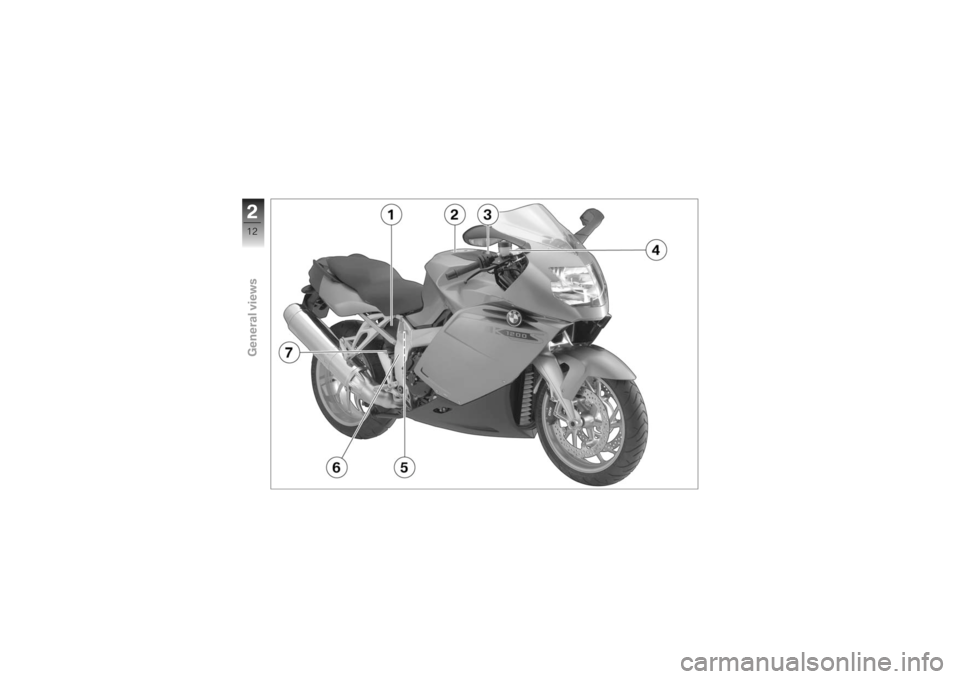

General view, right side1Engine oil level indicator
( 97)
2 Fuel filler neck ( 77)
3 Battery compartment
( 128)
4 Brake-fluid reservoir, front
( 100)
5 Type plate (on rear cross-
tube)
6 Vehicle identification num-
ber (on side panel, front
right)
7 Brake-fluid reservoir, rear
( 102)
213zGeneral views

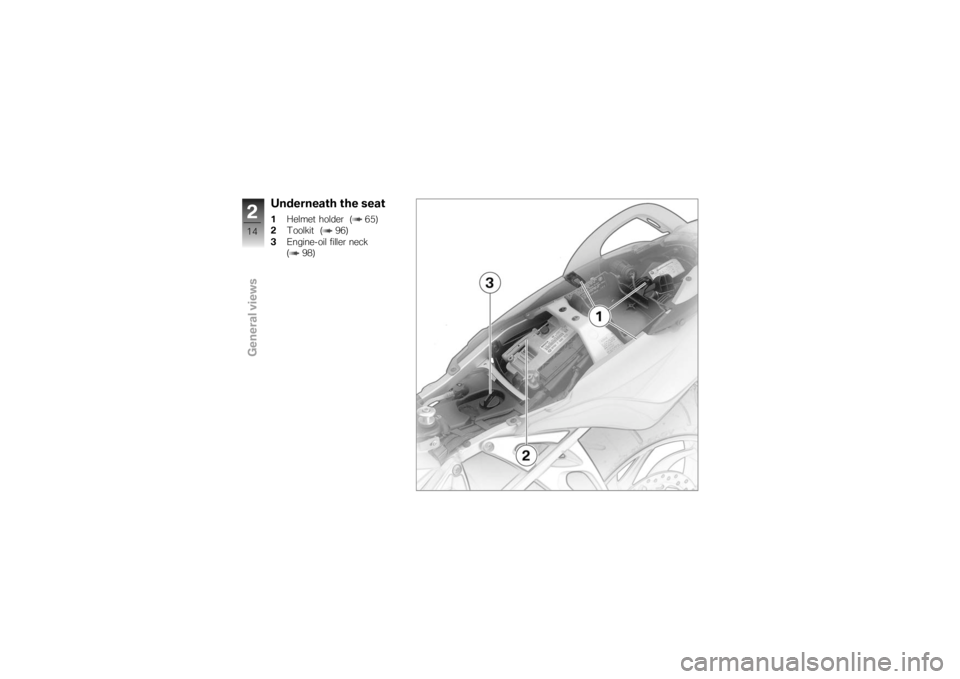

Underneath the seat1Helmet holder ( 65)
2 Toolkit ( 96)
3 Engine-oil filler neck
( 98)
214zGeneral views

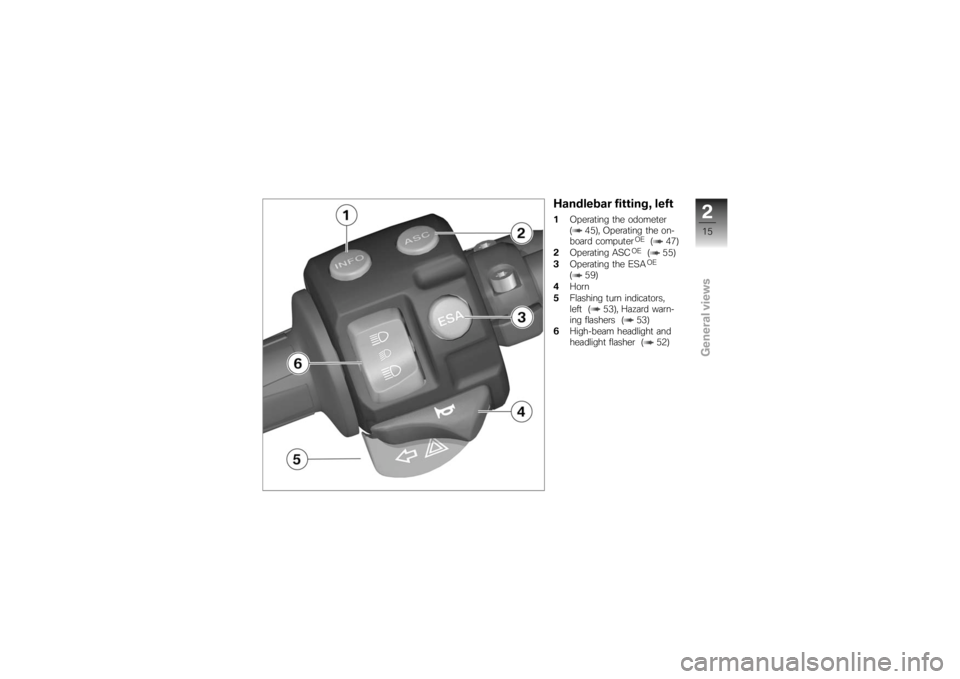

Handlebar fitting, left1Operating the odometer
( 45), Operating the on-
board computer
OE
( 47)
2 Operating ASC
OE
( 55)
3 Operating the ESAOE
( 59)
4 Horn
5 Flashing turn indicators,
left ( 53), Hazard warn-
ing flashers ( 53)
6 High-beam headlight and
headlight flasher ( 52)
215zGeneral views

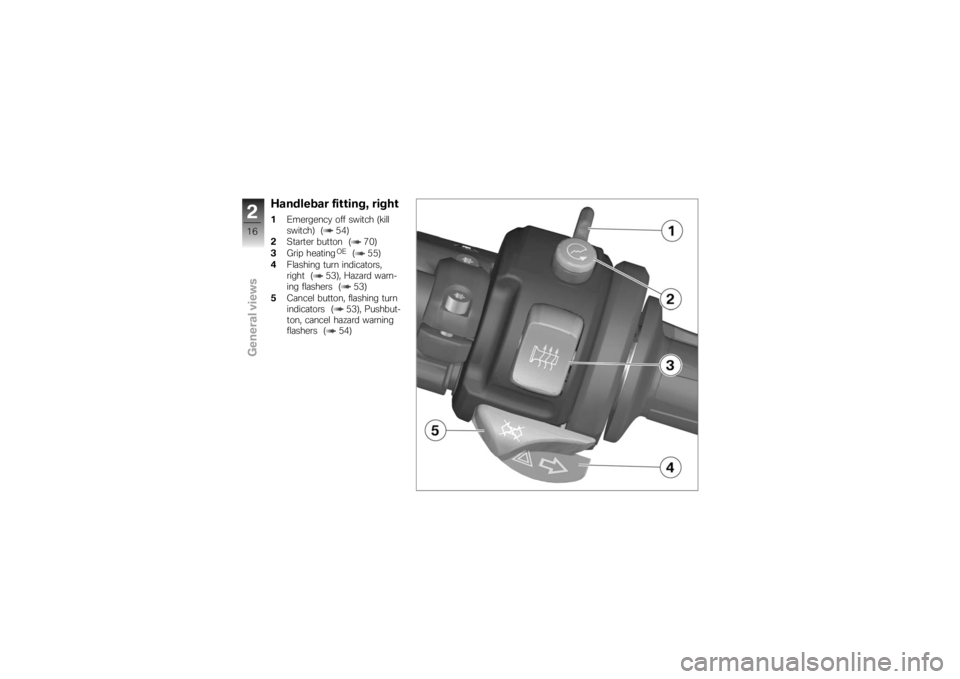

Handlebar fitting, right1Emergency off switch (kill
switch) ( 54)
2 Starter button ( 70)
3 Grip heating
OE
( 55)
4 Flashing turn indicators,
right ( 53), Hazard warn-
ing flashers ( 53)
5 Cancel button, flashing turn
indicators ( 53), Pushbut-
ton, cancel hazard warning
flashers ( 54)
216zGeneral views

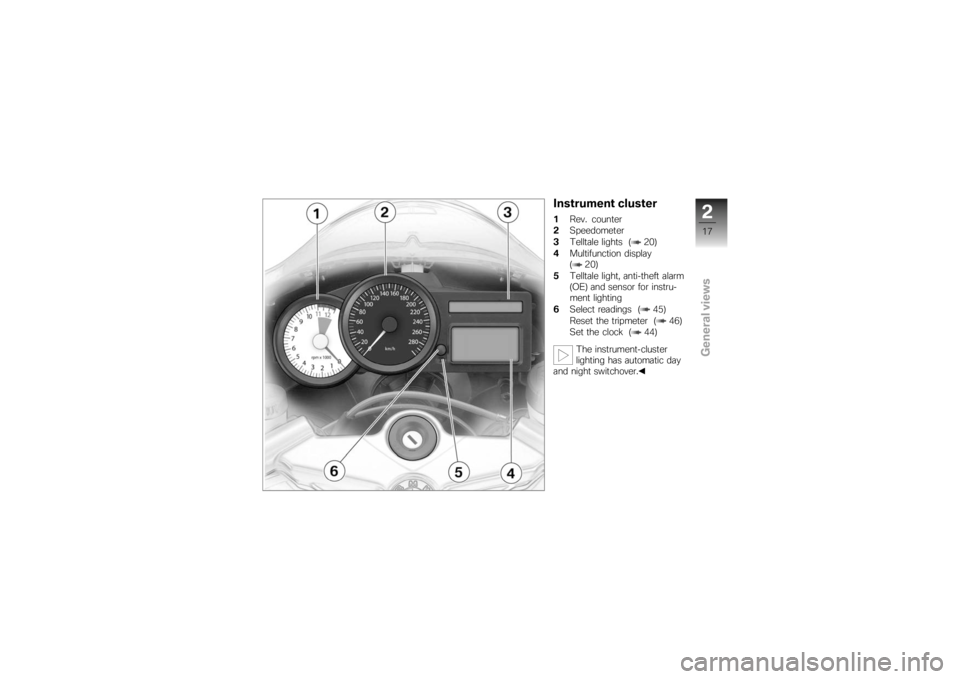

Instrument cluster1Rev. counter
2 Speedometer
3 Telltale lights ( 20)
4 Multifunction display
( 20)
5 Telltale light, anti-theft alarm
(OE) and sensor for instru-
ment lighting
6 Select readings ( 45)
Reset the tripmeter ( 46)
Set the clock ( 44)
The instrument-cluster
lighting has automatic day
and night switchover.
217zGeneral views

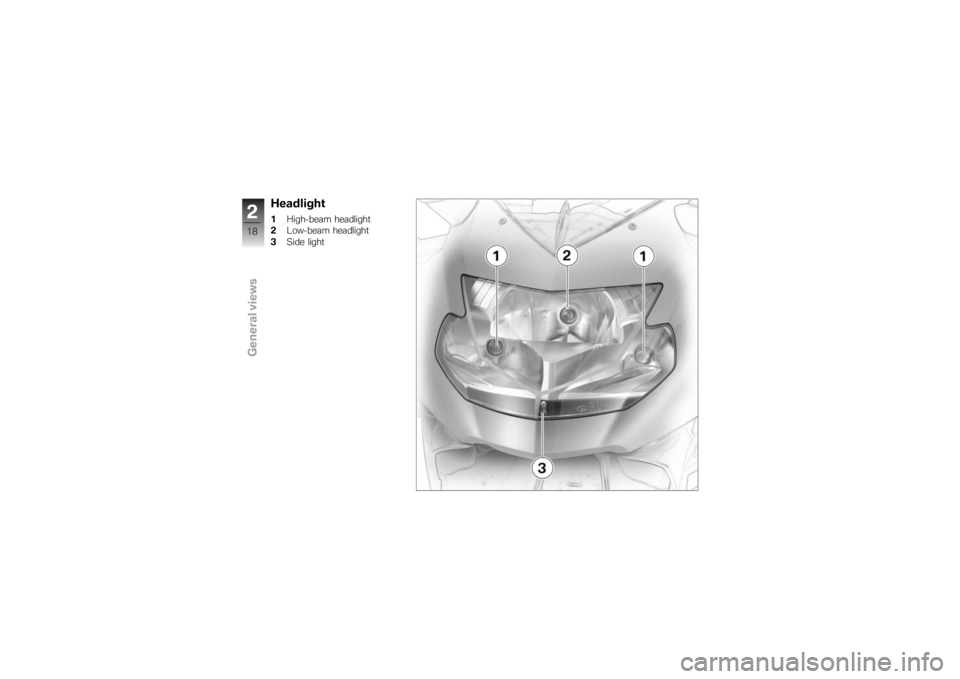

Headlight1High-beam headlight
2 Low-beam headlight
3 Side light
218zGeneral views
