2
29
2
Safety check
MIN

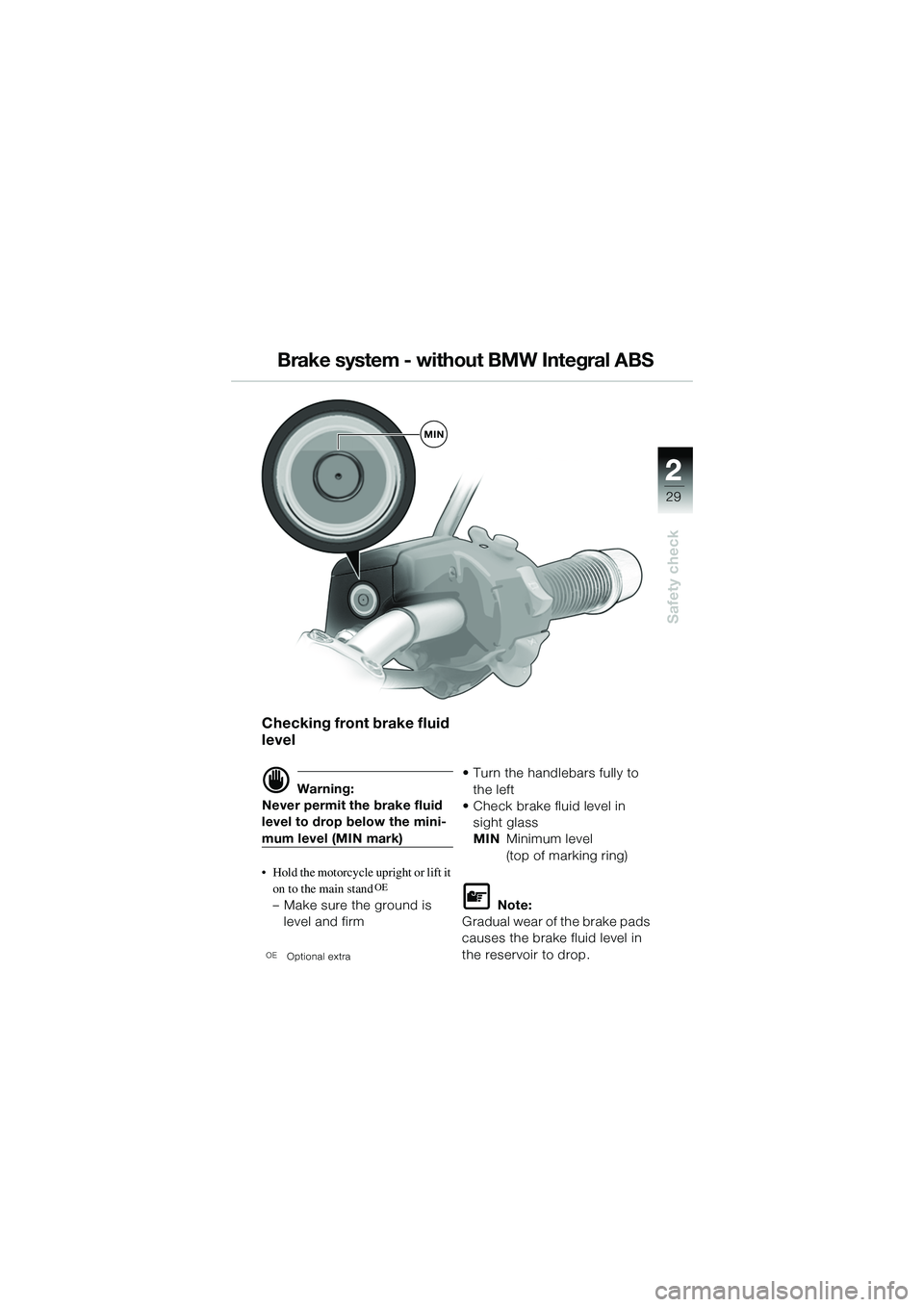

Checking front brake fluid
level
d Warning:
Never permit the brake fluid
level to drop below the mini-
mum level (MIN mark)
• Hold the motorcycle upright or lift it on to the main stand
OE
– Make sure the ground is level and firm
OE Optional extra
• Turn the handlebars fully to the left
• Check brake fluid level in sight glass
MIN Minimum level
(top of marking ring)
L Note:
Gradual wear of the brake pads
causes the brake fluid level in
the reservoir to drop.
Brake system - without BMW Integral ABS
10r28FUNbkg1.book Seite 29 Dienstag, 24. Januar 2006 9:31 09
Page 32 of 88
22
30
Safety check
MAX
MIN
Brake system - without BMW Integral ABS

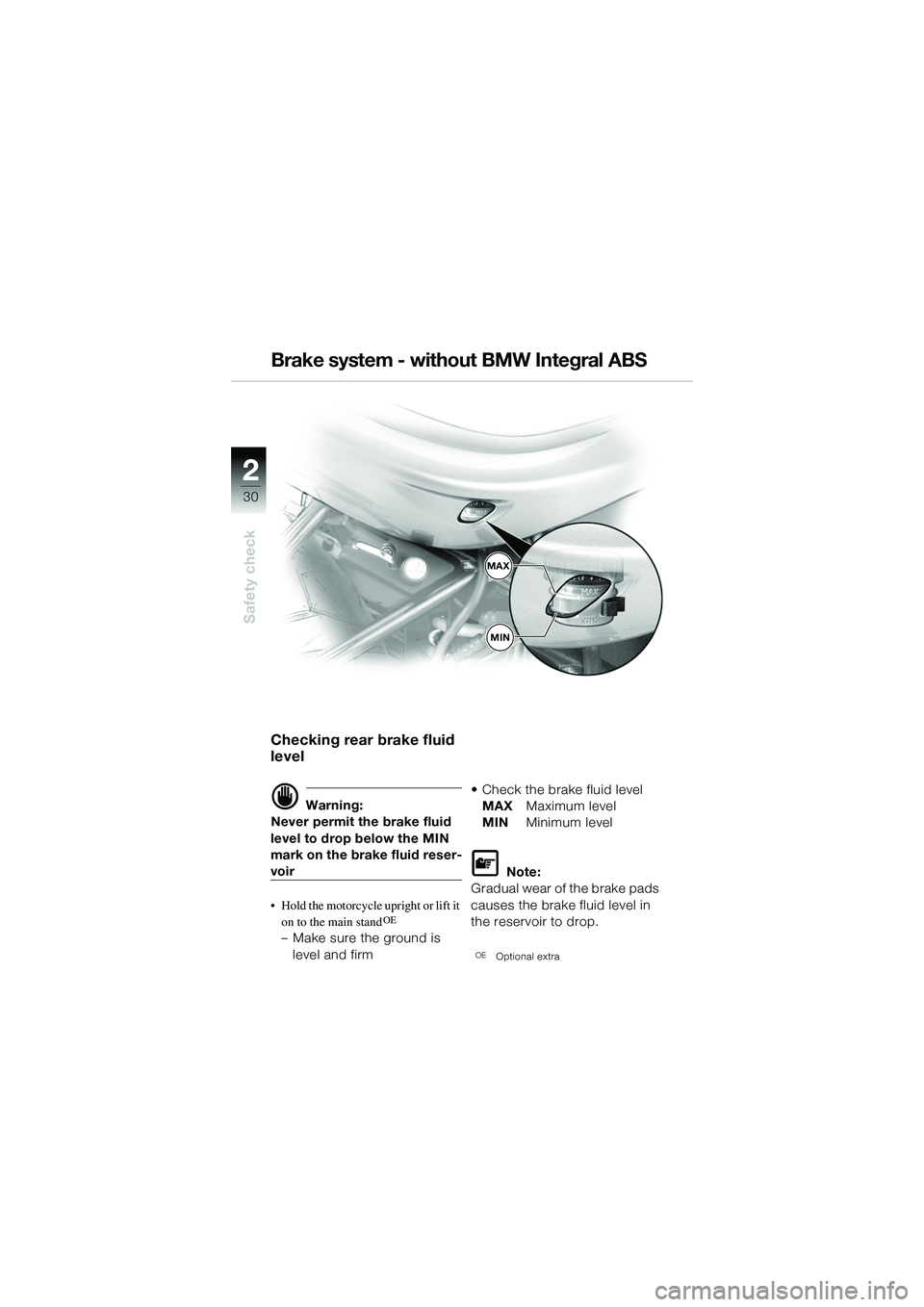

Checking rear brake fluid
level
d Warning:
Never permit the brake fluid
level to drop below the MIN
mark on the brake fluid reser-
voir
• Hold the motorcycle upright or lift it on to the main stand
OE
– Make sure the ground is
level and firm • Check the brake fluid level
MAX Maximum level
MIN Minimum level
L Note:
Gradual wear of the brake pads
causes the brake fluid level in
the reservoir to drop.
OE Optional extra
10r28FUNbkg1.book Seite 30 Dienstag, 24. Januar 2006 9:31 09
Page 33 of 88
2
31
2
Safety check
Brake system - with BMW Integral ABSOE

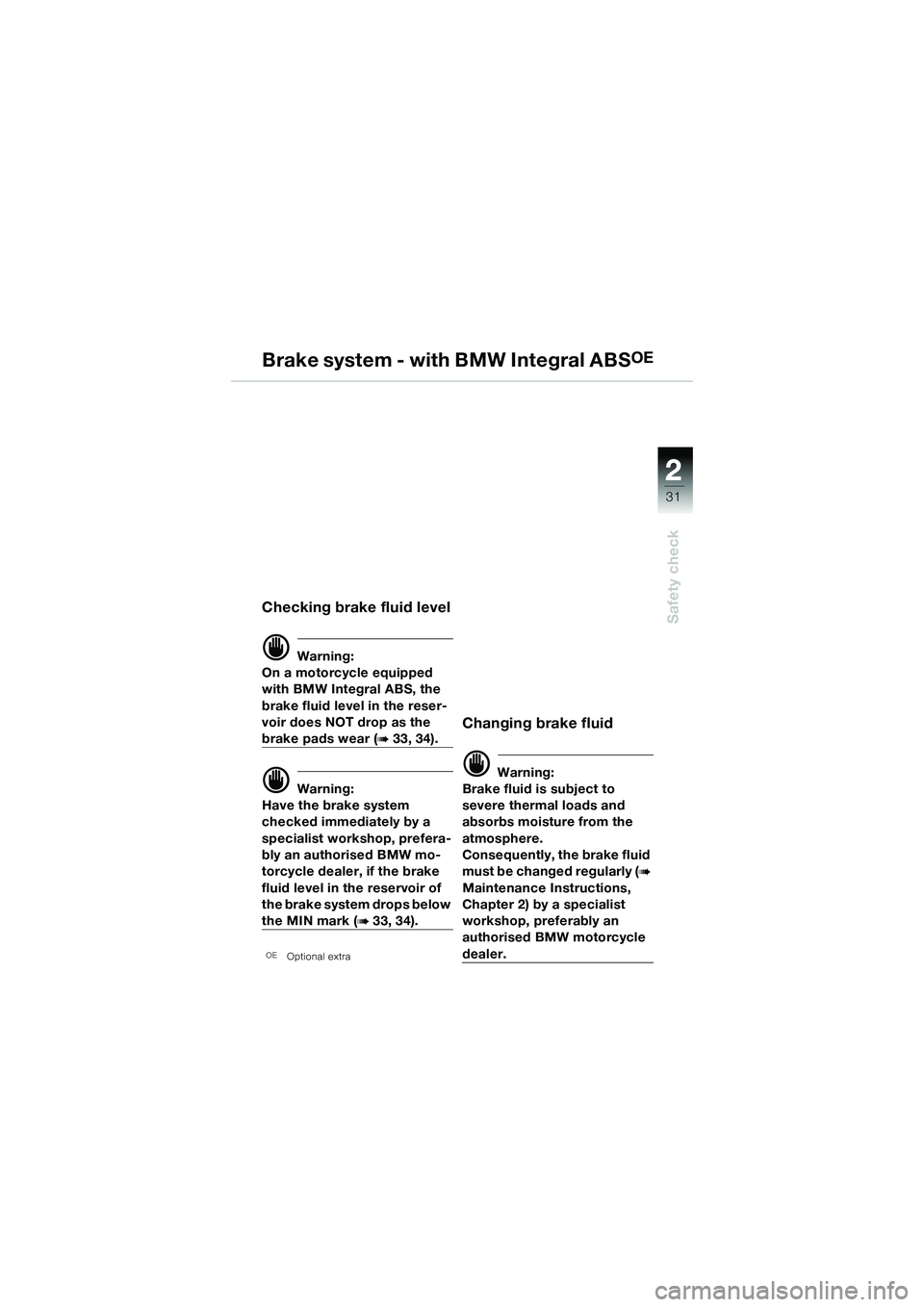

Checking brake fluid level
d Warning:
On a motorcycle equipped
with BMW Integral ABS, the
brake fluid level in the reser-
voir does NOT drop as the
brake pads wear (b 33, 34).
d Warning:
Have the brake system
checked immediately by a
specialist workshop, prefera-
bly an authorised BMW mo-
torcycle dealer, if the brake
fluid level in the reservoir of
the brake system drops below
the MIN mark (b 33, 34).
OE Optional extra
Changing brake fluid
d Warning:
Brake fluid is subject to
severe thermal loads and
absorbs moisture from the
atmosphere.
Consequently, the brake fluid
must be changed regularly (
b
Maintenance Instructions,
Chapter 2) by a specialist
workshop, preferably an
authorised BMW motorcycle
dealer.
10r28FUNbkg1.book Seite 31 Dienstag, 24. Januar 2006 9:31 09
Page 34 of 88
22
32
Safety check

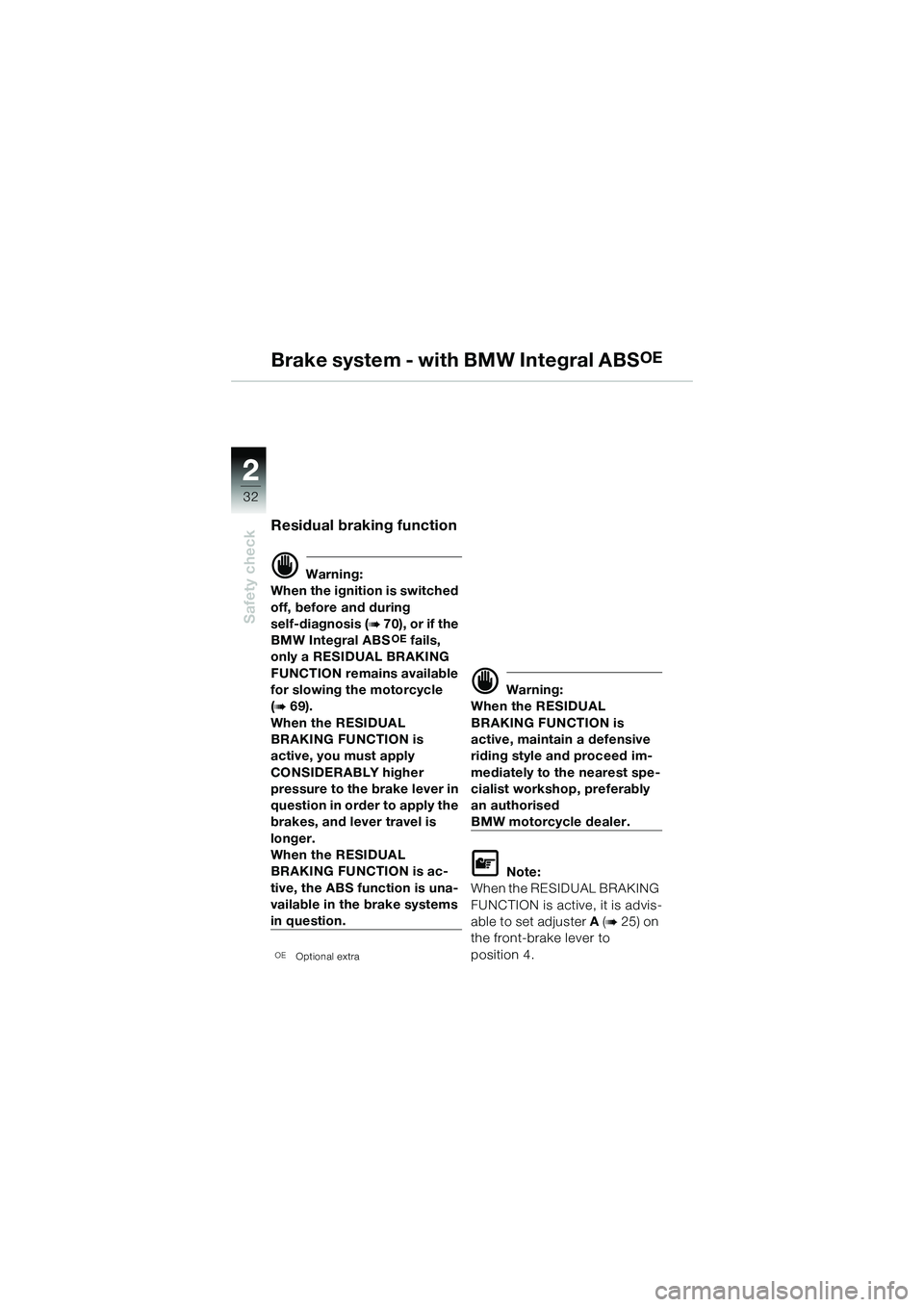

Residual braking function
d Warning:
When the ignition is switched
off, before and during
self-diagnosis (
b 70), or if the
BMW Integral ABSOE fails,
only a RESIDUAL BRAKING
FUNCTION remains available
for slowing the motorcycle
(
b 69).
When the RESIDUAL
BRAKING FUNCTION is
active, you must apply
CONSIDERABLY higher
pressure to the brake lever in
question in order to apply the
brakes, and lever travel is
longer.
When the RESIDUAL
BRAKING FUNCTION is ac-
tive, the ABS function is una-
vailable in the brake systems
in question.
OE Optional extra
d Warning:
When the RESIDUAL
BRAKING FUNCTION is
active, maintain a defensive
riding style and proceed im-
mediately to the nearest spe-
cialist workshop, preferably
an authorised
BMW motorcycle dealer.
L Note:
When the RESIDUAL BRAKING
FUNCTION is active, it is advis-
able to set adjuster A (
b 25) on
the front-brake lever to
position 4.
Brake system - with BMW Integral ABSOE
10r28FUNbkg1.book Seite 32 Dienstag, 24. Januar 2006 9:31 09
Page 35 of 88
2
33
2
Safety check
MIN
Brake system - with BMW Integral ABSOE
Checking front brake fluid
level
d Warning:
Never permit the brake fluid
level to drop below the mini-
mum level (MIN mark)
• Hold the motorcycle upright or lift it on to the main stand
OE
– Make sure the ground is level and firm
OE Optional extra
• Turn the handlebars fully to the left
• Check bake fluid level in sight glass
MIN Minimum level
(top of marking ring)
L Note:
The brake fluid level in the
brake fluid reservoir remains
constant despite wear of the
brake pads.
10r28FUNbkg1.book Seite 33 Dienstag, 24. Januar 2006 9:31 09
Page 36 of 88
22
34
Safety check

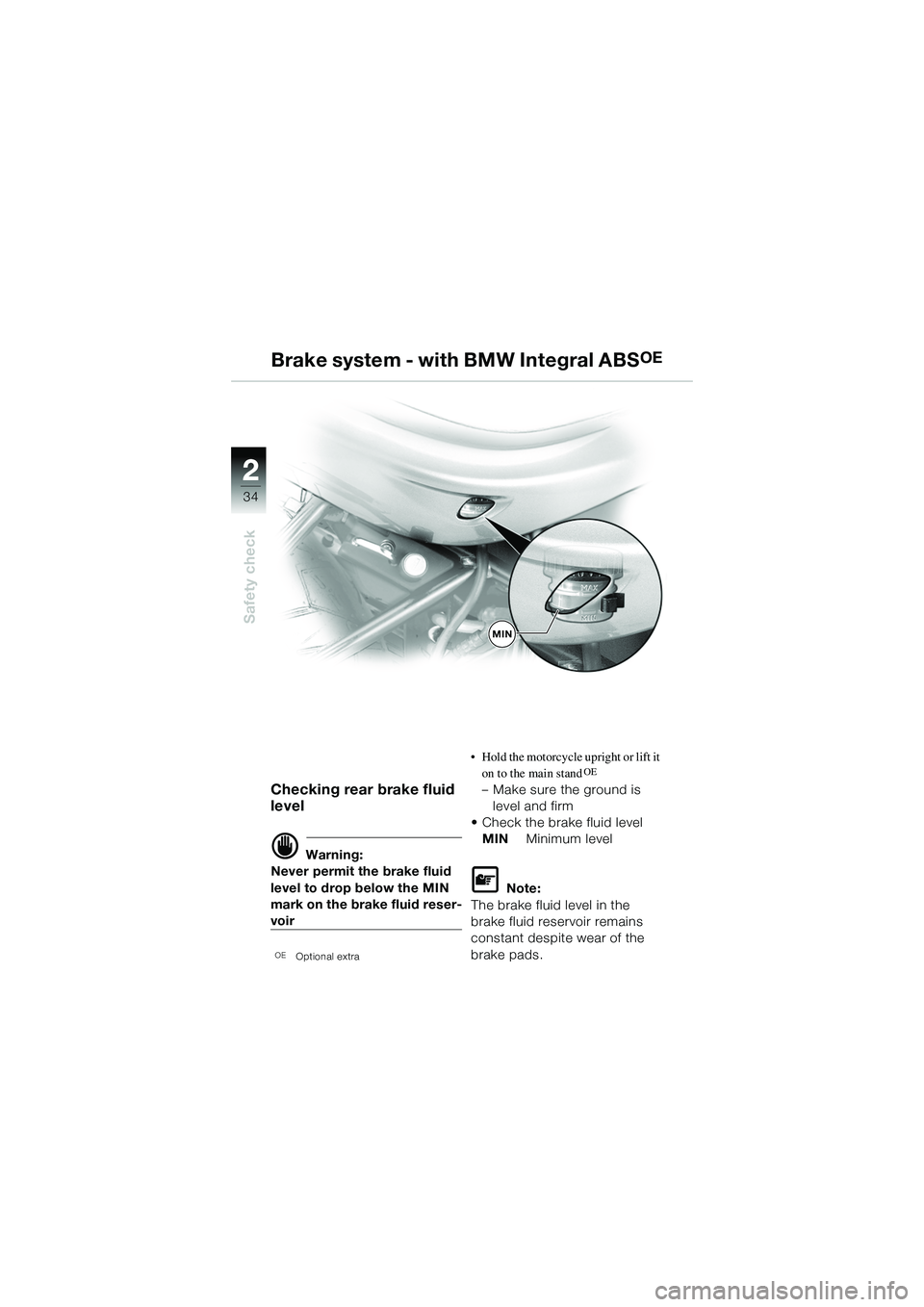

Checking rear brake fluid
level
d Warning:
Never permit the brake fluid
level to drop below the MIN
mark on the brake fluid reser-
voir
OE Optional extra
• Hold the motorcycle upright or lift it on to the main standOE
– Make sure the ground is level and firm
• Check the brake fluid level MIN Minimum level
L Note:
The brake fluid level in the
brake fluid reservoir remains
constant despite wear of the
brake pads.
MIN
Brake system - with BMW Integral ABSOE
10r28FUNbkg1.book Seite 34 Dienstag, 24. Januar 2006 9:31 09
Page 37 of 88
2
35
2
Safety check
MIN

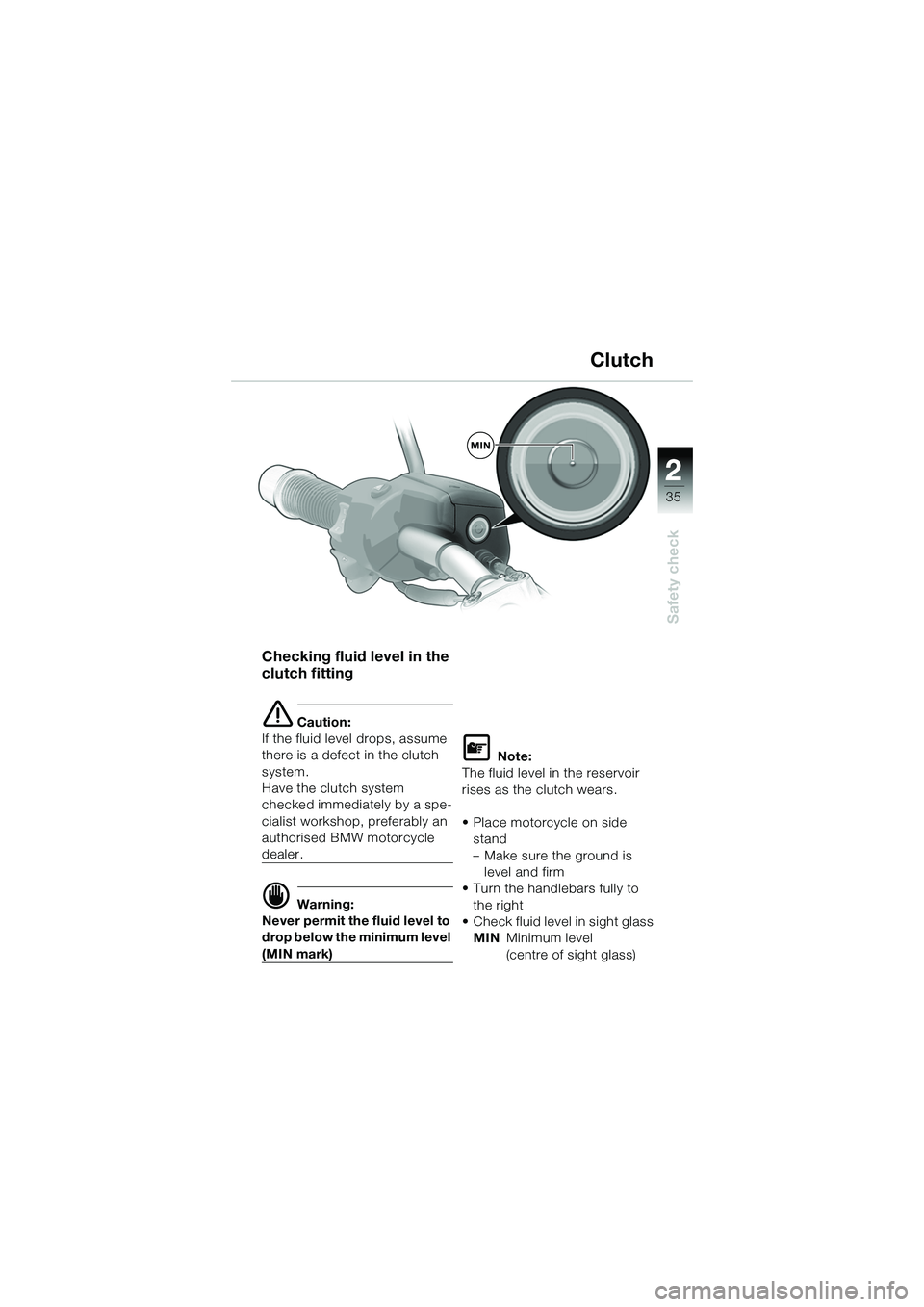

Checking fluid level in the
clutch fitting
e Caution:
If the fluid level drops, assume
there is a defect in the clutch
system.
Have the clutch system
checked immediately by a spe-
cialist workshop, preferably an
authorised BMW motorcycle
dealer.
d Warning:
Never permit the fluid level to
drop below the minimum level
(MIN mark)
L Note:
The fluid level in the reservoir
rises as the clutch wears.
• Place motorcycle on side stand
– Make sure the ground is level and firm
• Turn the handlebars fully to the right
• Check fluid level in sight glass MIN Minimum level
(centre of sight glass)
Clutch
10r28FUNbkg1.book Seite 35 Dienstag, 24. Januar 2006 9:31 09
Page 38 of 88
22
36
Safety checkChecking lights
e Caution:
Check that all lights are opera-
tional at the start of each jour-
ney.
L Note:
If turn indicator repeater flashes
at twice the usual speed: defec-
tive flasher bulb.
BMW Integral ABS:
General warning light ON (
b 7):
Check brake light or tail light.
If the tail light is defective the
brake light is dimmed and acts
as a tail light. When you apply the
brakes the brake light shines at
full brightness. To change bulbs in parking
lights, headlight (dipped and
main beams), rear/brake lights,
turn indicators and the number-
plate light: (
b
Maintenance In-
structions, Chapter 2)
Headlight setting, RHD/LHD
traffic
For trips in countries where the
traffic drives on the opposite
side of the road:
Adjust the headlight accord-
ingly (Maintenance Instructions
bChapter 2).
When necessary, you can
resort to the assistance of a
specialist workshop,
preferably your authorised
BMW motorcycle dealer.
Lights
10r28FUNbkg1.book Seite 36 Dienstag, 24. Januar 2006 9:31 09
Page 39 of 88
2
37
2

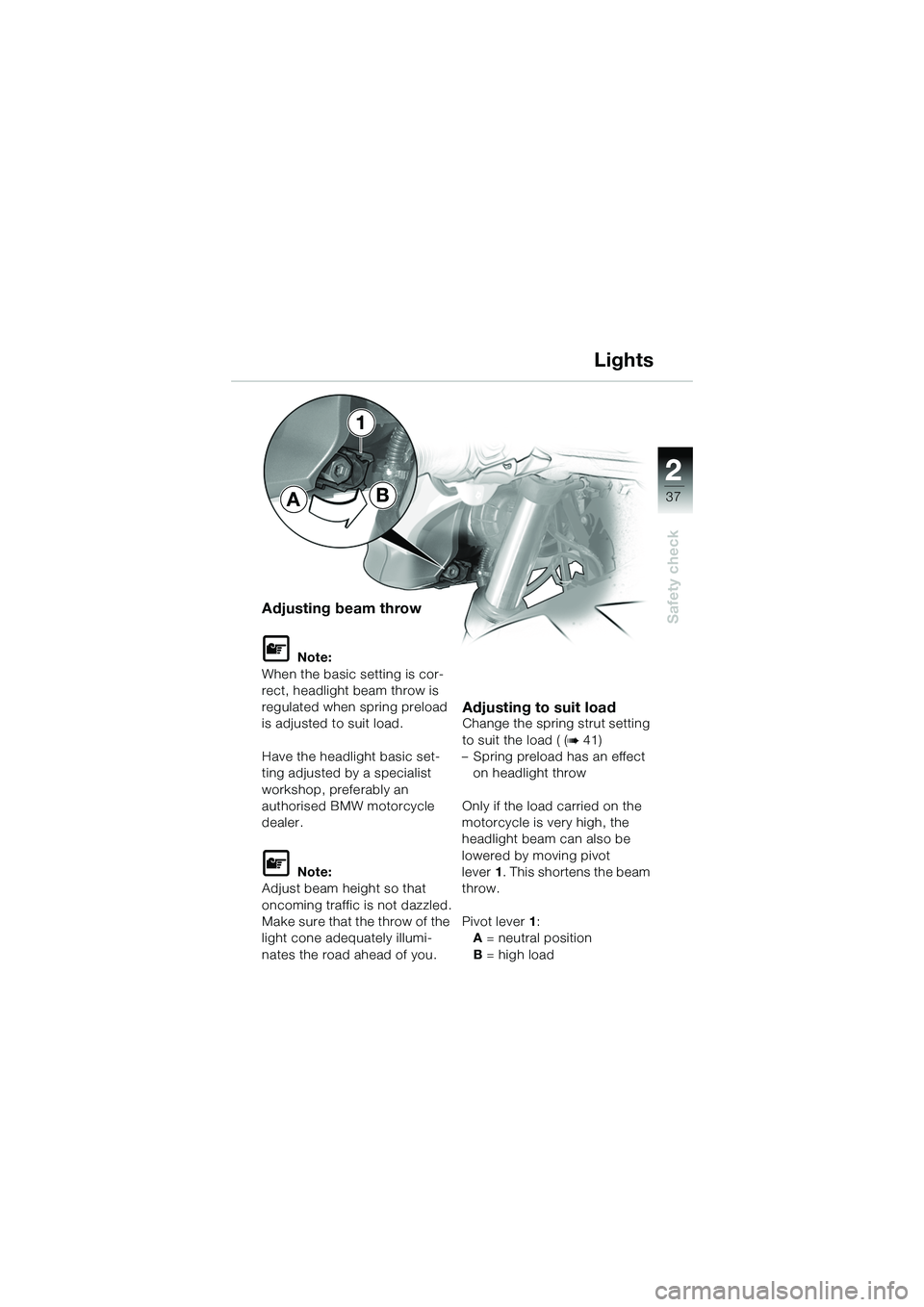

Safety checkAdjusting beam throw
L Note:
When the basic setting is cor-
rect, headlight beam throw is
regulated when spring preload
is adjusted to suit load.
Have the headlight basic set-
ting adjusted by a specialist
workshop, preferably an
authorised BMW motorcycle
dealer.
L Note:
Adjust beam height so that
oncoming traffic is not dazzled.
Make sure that the throw of the
light cone adequately illumi-
nates the road ahead of you.
Adjusting to suit load Change the spring strut setting
to suit the load ( (
b 41)
– Spring preload has an effect on headlight throw
Only if the load carried on the
motorcycle is very high, the
headlight beam can also be
lowered by moving pivot
lever 1. This shortens the beam
throw.
Pivot lever 1:
A = neutral position
B = high load
Lights
AB
1
10r28FUNbkg1.book Seite 37 Dienstag, 24. Januar 2006 9:31 09
Page 40 of 88
22
38
Safety check
1
Lights

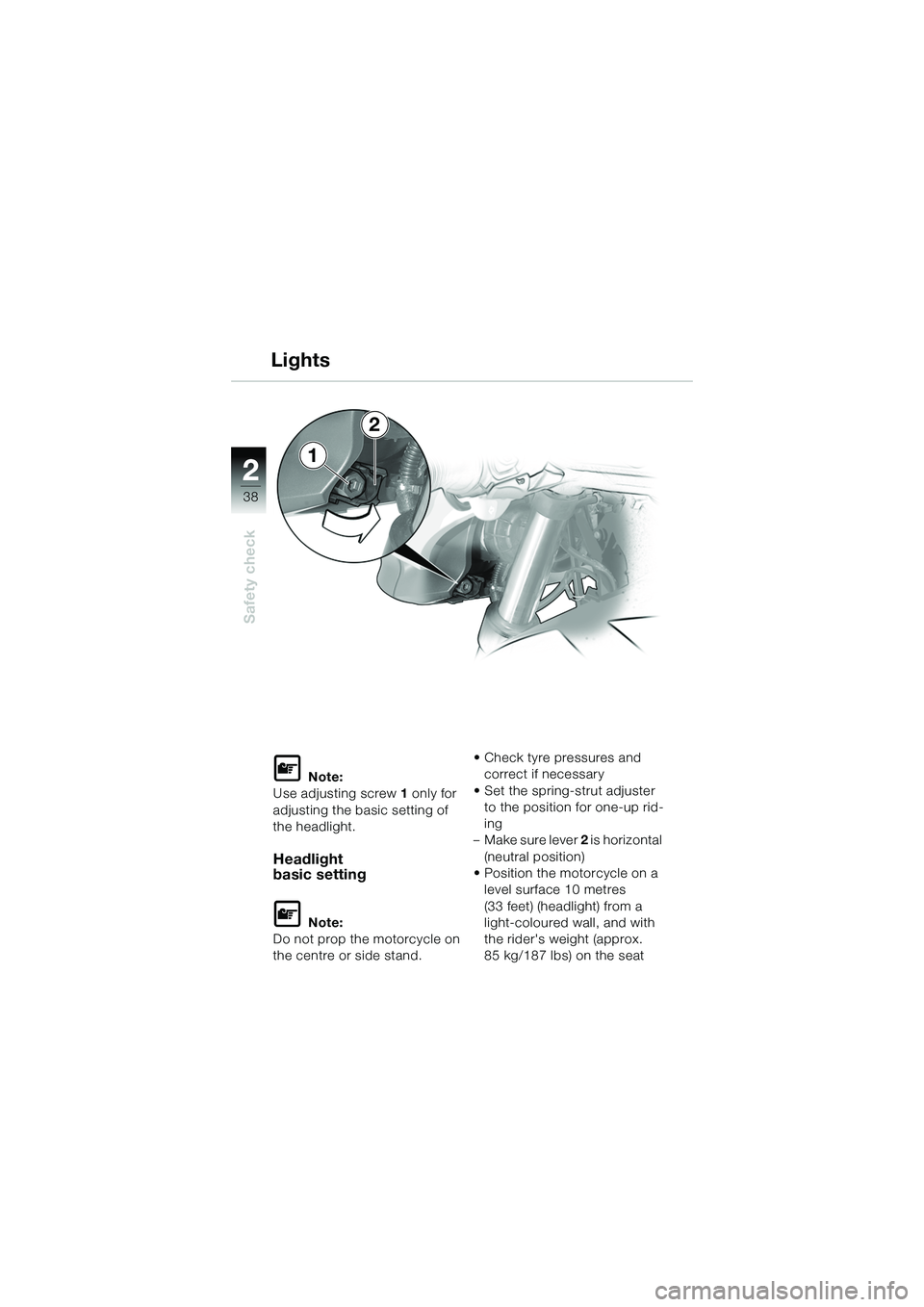

L Note:
Use adjusting screw 1 only for
adjusting the basic setting of
the headlight.
Headlight
basic setting
L Note:
Do not prop the motorcycle on
the centre or side stand. • Check tyre pressures and
correct if necessary
• Set the spring-strut adjuster to the position for one-up rid-
ing
–Make sure lever 2 is horizontal
(neutral position)
• Position the motorcycle on a level surface 10 metres
(33 feet) (headlight) from a
light-coloured wall, and with
the rider's weight (approx.
85 kg/187 lbs) on the seat
2
10r28FUNbkg1.book Seite 38 Dienstag, 24. Januar 2006 9:31 09
