BMW MOTORRAD R 1150 R 2002 Rider's Manual (in English)
Manufacturer: BMW MOTORRAD, Model Year: 2002, Model line: R 1150 R, Model: BMW MOTORRAD R 1150 R 2002Pages: 88, PDF Size: 6.49 MB
Page 21 of 88
2
19
2

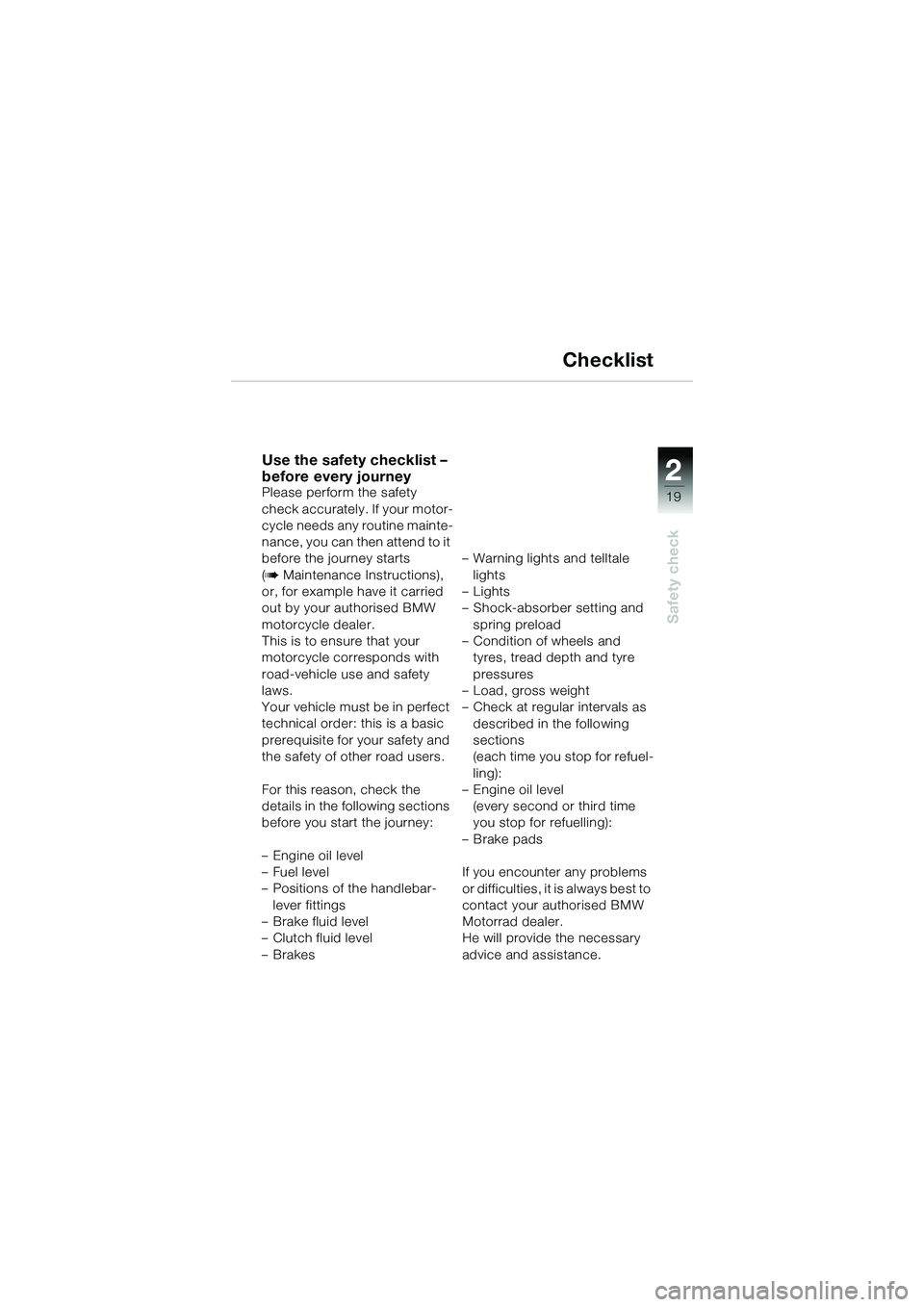

Safety check
Checklist
Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can then attend to it
before the journey starts
(
b Maintenance Instructions),
or, for example have it carried
out by your authorised BMW
motorcycle dealer.
This is to ensure that your
motorcycle corresponds with
road-vehicle use and safety
laws.
Your vehicle must be in perfect
technical order: this is a basic
prerequisite for your safety and
the safety of other road users.
For this reason, check the
details in the following sections
before you start the journey:
– Engine oil level
–Fuel level
– Positions of the handlebar- lever fittings
– Brake fluid level
– Clutch fluid level
–Brakes – Warning lights and telltale
lights
–Lights
– Shock-absorber setting and spring preload
– Condition of wheels and tyres, tread depth and tyre
pressures
– Load, gross weight
– Check at regular intervals as described in the following
sections
(each time you stop for refuel-
ling):
– Engine oil level (every second or third time
you stop for refuelling):
– Brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
Motorrad dealer.
He will provide the necessary
advice and assistance.
10r28FUNbkg1.book Seite 19 Dienstag, 24. Januar 2006 9:31 09
Page 22 of 88
22
20

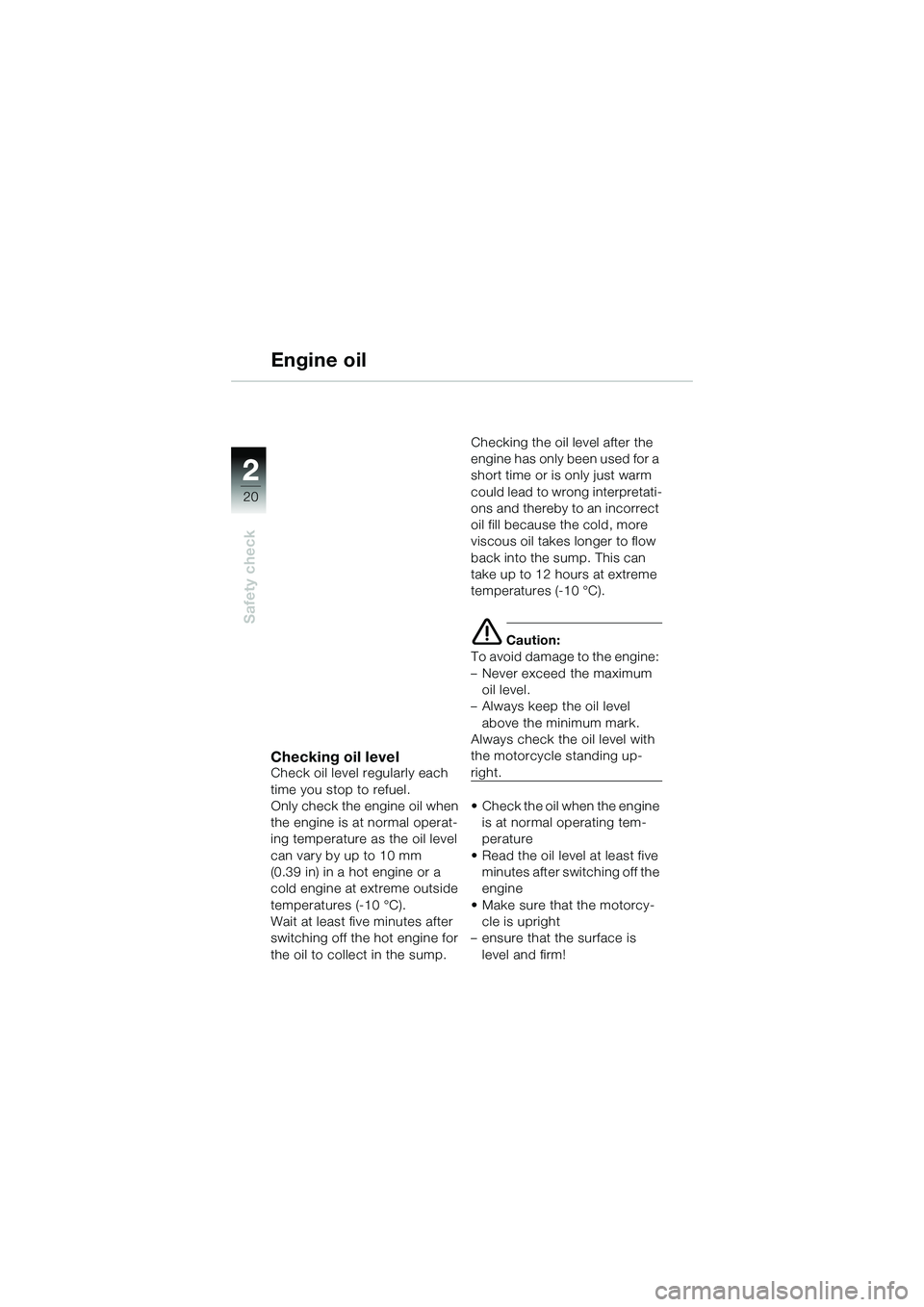

Safety check
Engine oil
Checking oil levelCheck oil level regularly each
time you stop to refuel.
Only check the engine oil when
the engine is at normal operat-
ing temperature as the oil level
can vary by up to 10 mm
(0.39 in) in a hot engine or a
cold engine at extreme outside
temperatures (-10 °C).
Wait at least five minutes after
switching off the hot engine for
the oil to collect in the sump. Checking the oil level after the
engine has only been used for a
short time or is only just warm
could lead to wrong interpretati-
ons and thereby to an incorrect
oil fill because the cold, more
viscous oil takes longer to flow
back into the sump. This can
take up to 12 hours at extreme
temperatures (-10 °C).
e Caution:
To avoid damage to the engine:
– Never exceed the maximum oil level.
– Always keep the oil level above the minimum mark.
Always check the oil level with
the motorcycle standing up-
right.
• Check the oil when the engine is at normal operating tem-
perature
• Read the oil level at least five minutes after switching off the
engine
• Make sure that the motorcy- cle is upright
– ensure that the surface is
level and firm!
10r28FUNbkg1.book Seite 20 Dienstag, 24. Januar 2006 9:31 09
Page 23 of 88
2
21
2

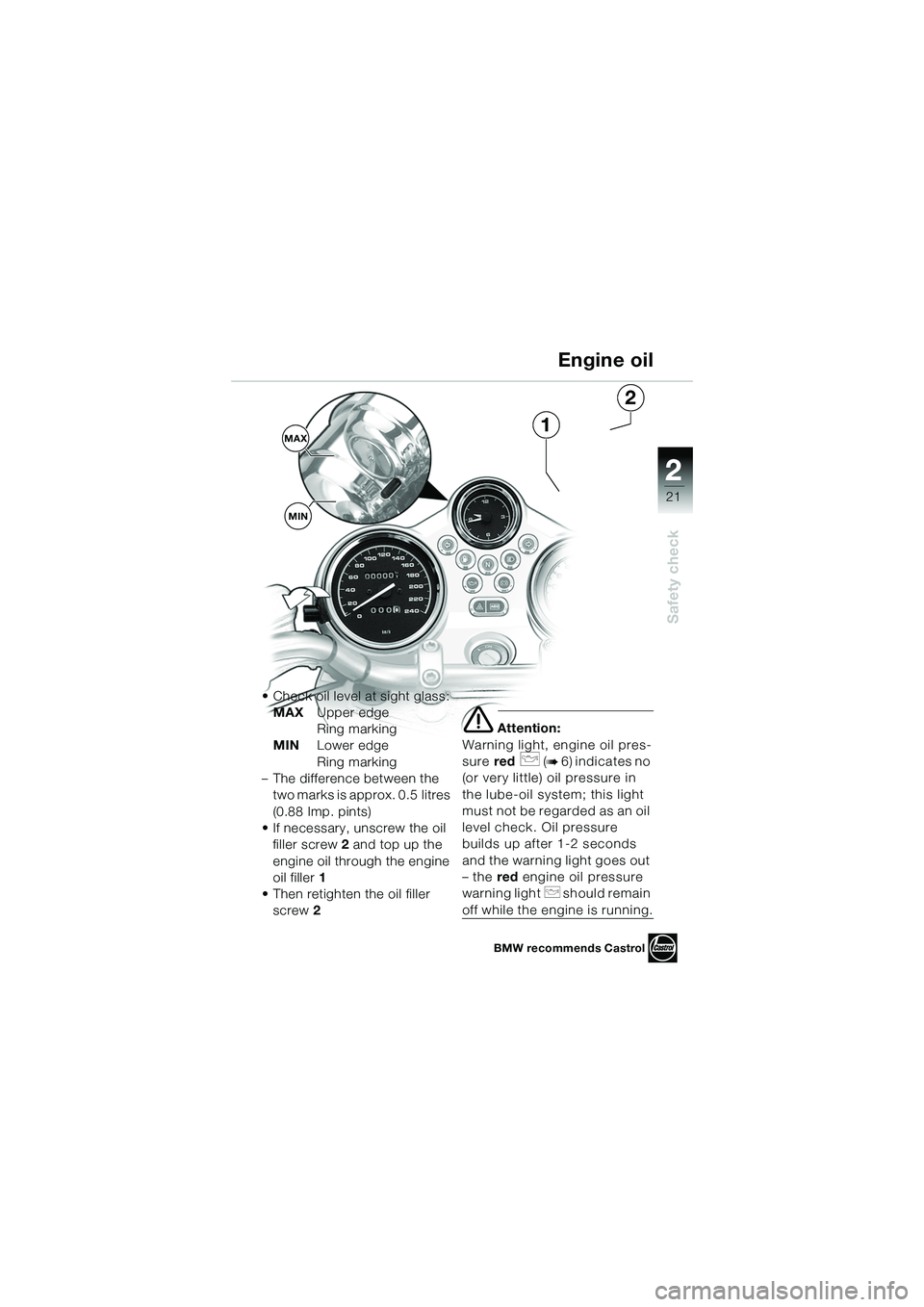

Safety check
MAXMIN1
2
• Check oil level at sight glass: MAX Upper edge
Ring marking
MIN Lower edge
Ring marking
– The difference between the two marks is approx. 0.5 litres
(0.88 Imp. pints)
• If necessary, unscrew the oil filler screw 2 and top up the
engine oil through the engine
oil filler 1
• Then retighten the oil filler screw 2
e Attention:
Warning light, engine oil pres-
sure red
p (b 6) indicates no
(or very little) oil pressure in
the lube-oil system; this light
must not be regarded as an oil
level check. Oil pressure
builds up after 1-2 seconds
and the warning light goes out
– the red engine oil pressure
warning light
p should remain
off while the engine is running.
Engine oil
BMW recommends Castrol
10r28FUNbkg1.book Seite 21 Dienstag, 24. Januar 2006 9:31 09
Page 24 of 88
22
22
Safety check

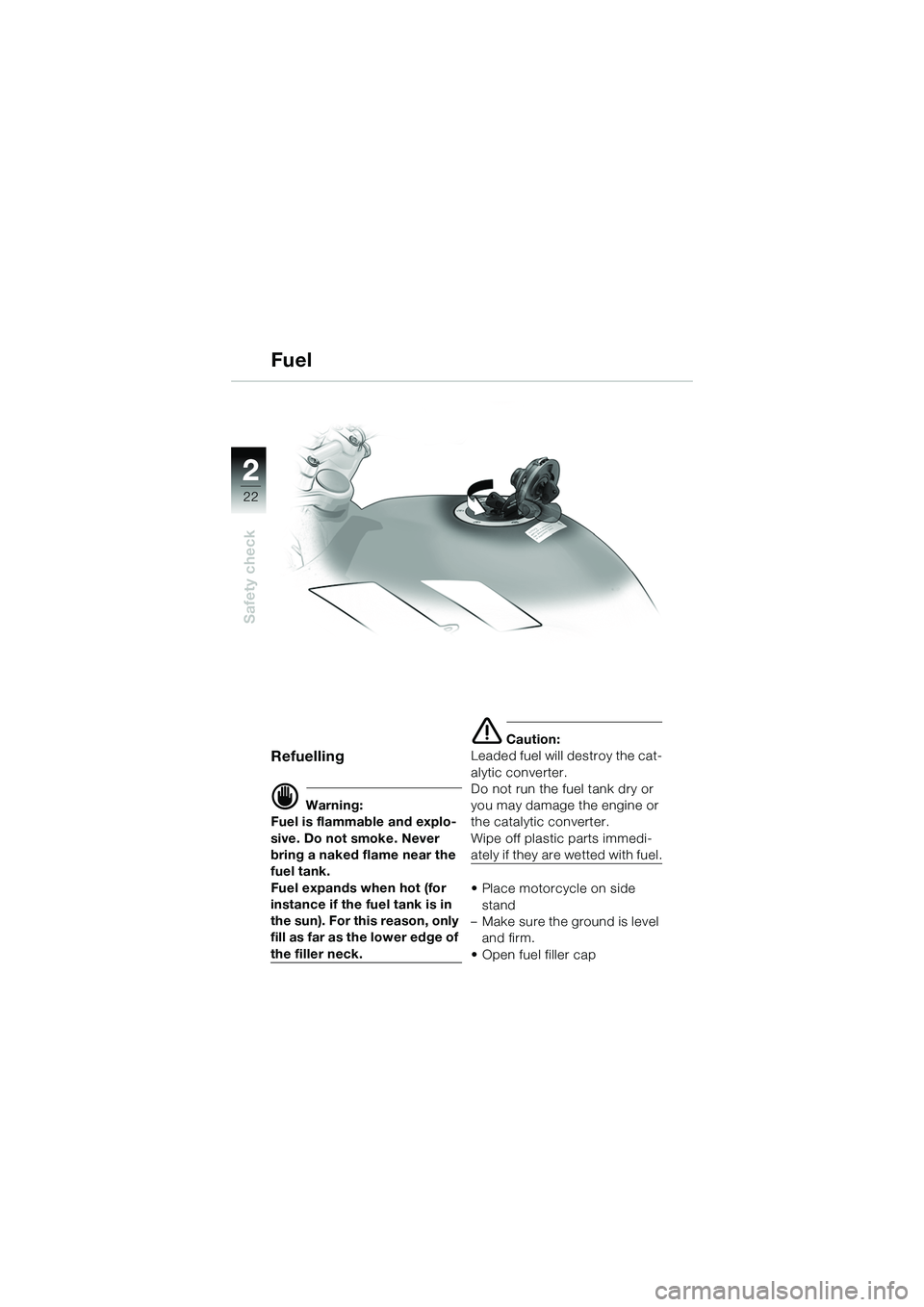

Fuel
Refuelling
d Warning:
Fuel is flammable and explo-
sive. Do not smoke. Never
bring a naked flame near the
fuel tank.
Fuel expands when hot (for
instance if the fuel tank is in
the sun). For this reason, only
fill as far as the lower edge of
the filler neck.
e Caution:
Leaded fuel will destroy the cat-
alytic converter.
Do not run the fuel tank dry or
you may damage the engine or
the catalytic converter.
Wipe off plastic parts immedi-
ately if they are wetted with fuel.
• Place motorcycle on side stand
– Make sure the ground is level and firm.
• Open fuel filler cap
10r28FUNbkg1.book Seite 22 Dienstag, 24. Januar 2006 9:31 09
Page 25 of 88
2
23
2

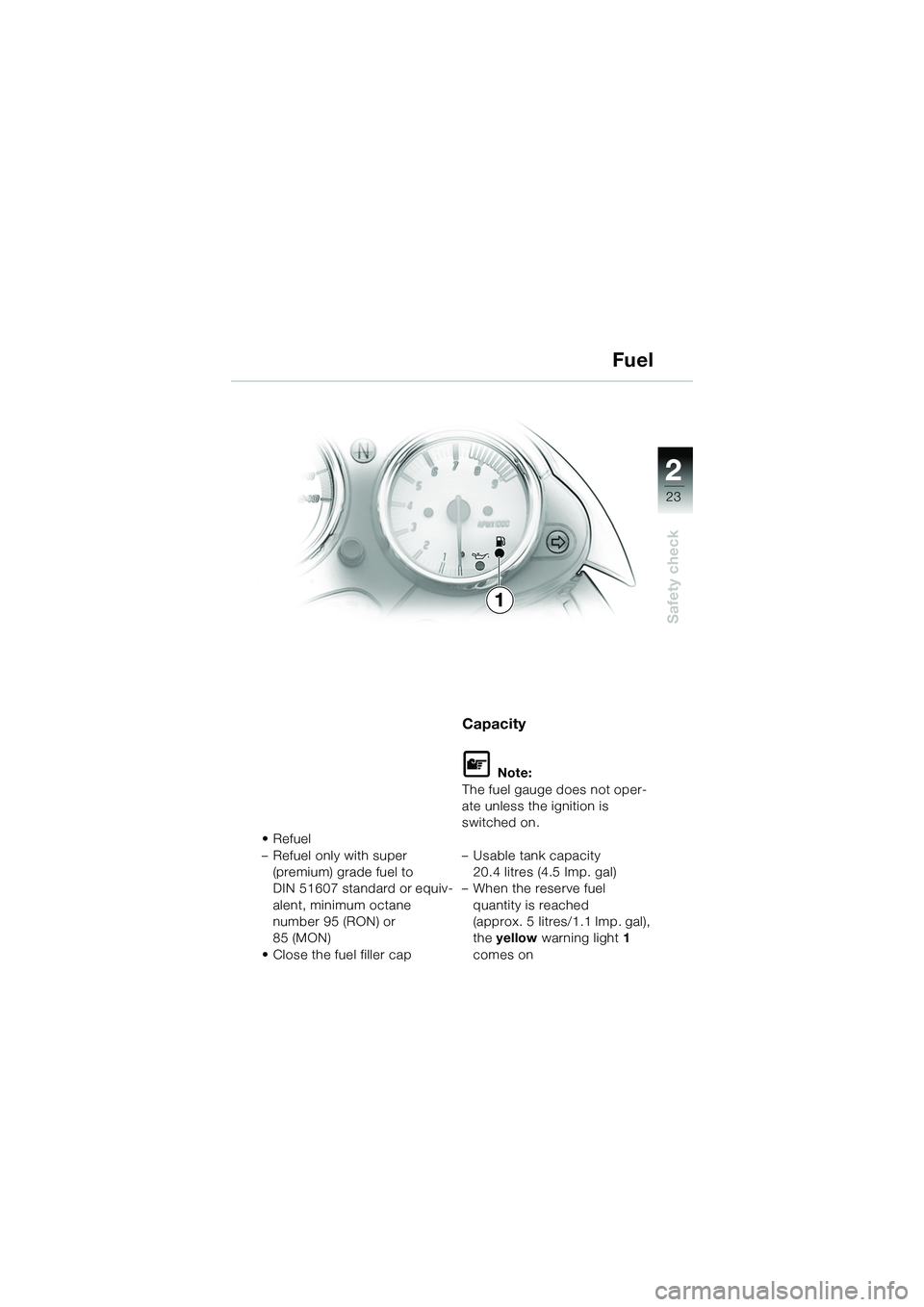

Safety check
1
•Refuel
– Refuel only with super (premium) grade fuel to
DIN 51607 standard or equiv-
alent, minimum octane
number 95 (RON) or
85 (MON)
• Close the fuel filler cap
Capacity
L Note:
The fuel gauge does not oper-
ate unless the ignition is
switched on.
– Usable tank capacity 20.4 litres (4.5 Imp. gal)
– When the reserve fuel quantity is reached
(approx. 5 litres/1.1 Imp. gal),
the yellow warning light 1
comes on
Fuel
10r28FUNbkg1.book Seite 23 Dienstag, 24. Januar 2006 9:31 09
Page 26 of 88
22
24
Safety check
31
A

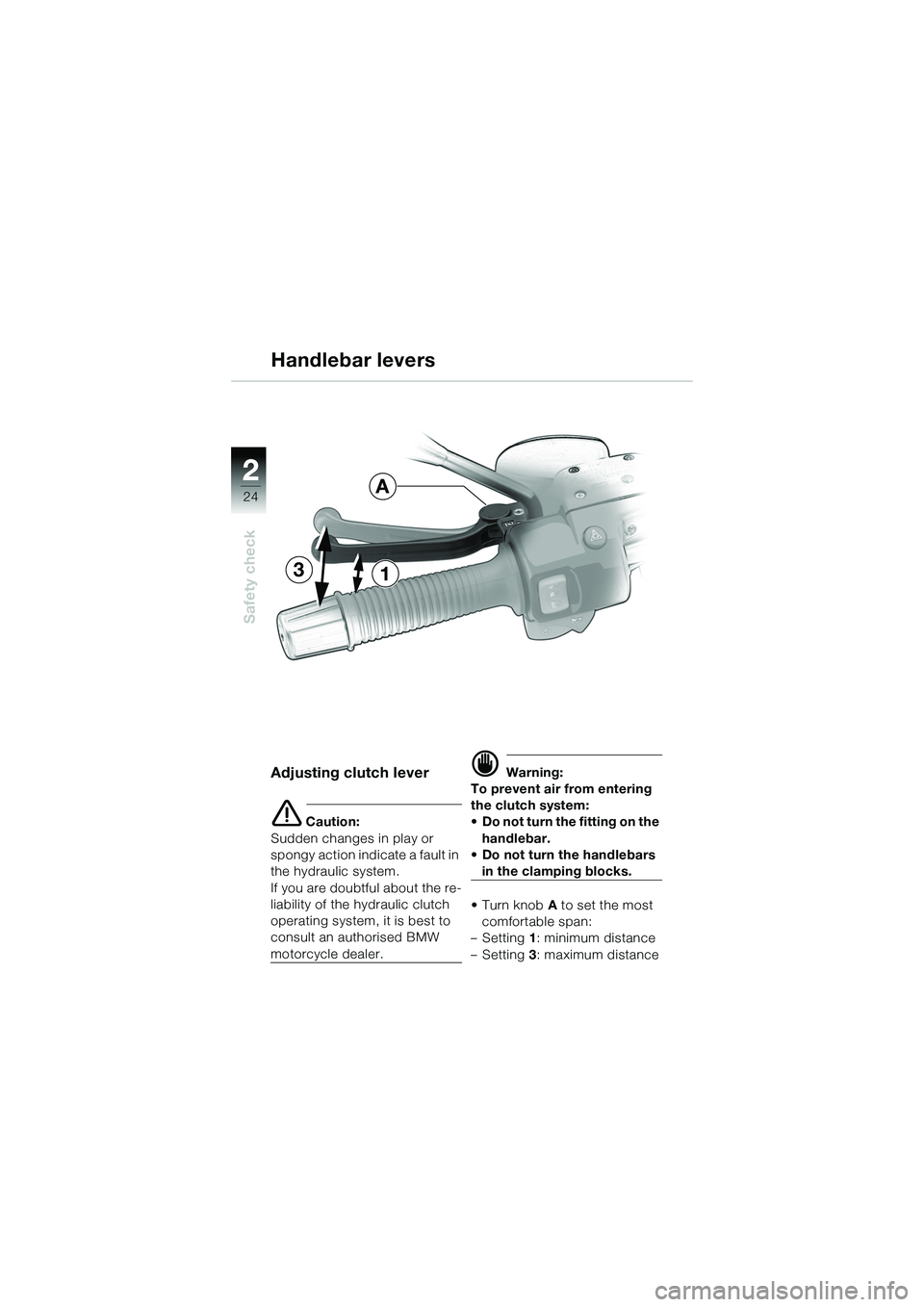

Adjusting clutch lever
e Caution:
Sudden changes in play or
spongy action indi cate a fault in
the hydraulic system.
If you are doubtful about the re-
liability of the hydraulic clutch
operating system, it is best to
consult an authorised BMW
motorcycle dealer.
d Warning:
To prevent air from entering
the clutch system:
• Do not turn the fitting on the handlebar.
• Do not turn the handlebars
in the clamping blocks.
• Turn knob A to set the most
comfortable span:
–Setting 1: minimum distance
–Setting 3: maximum distance
Handlebar levers
10r28FUNbkg1.book Seite 24 Dienstag, 24. Januar 2006 9:31 09
Page 27 of 88
2
25
2

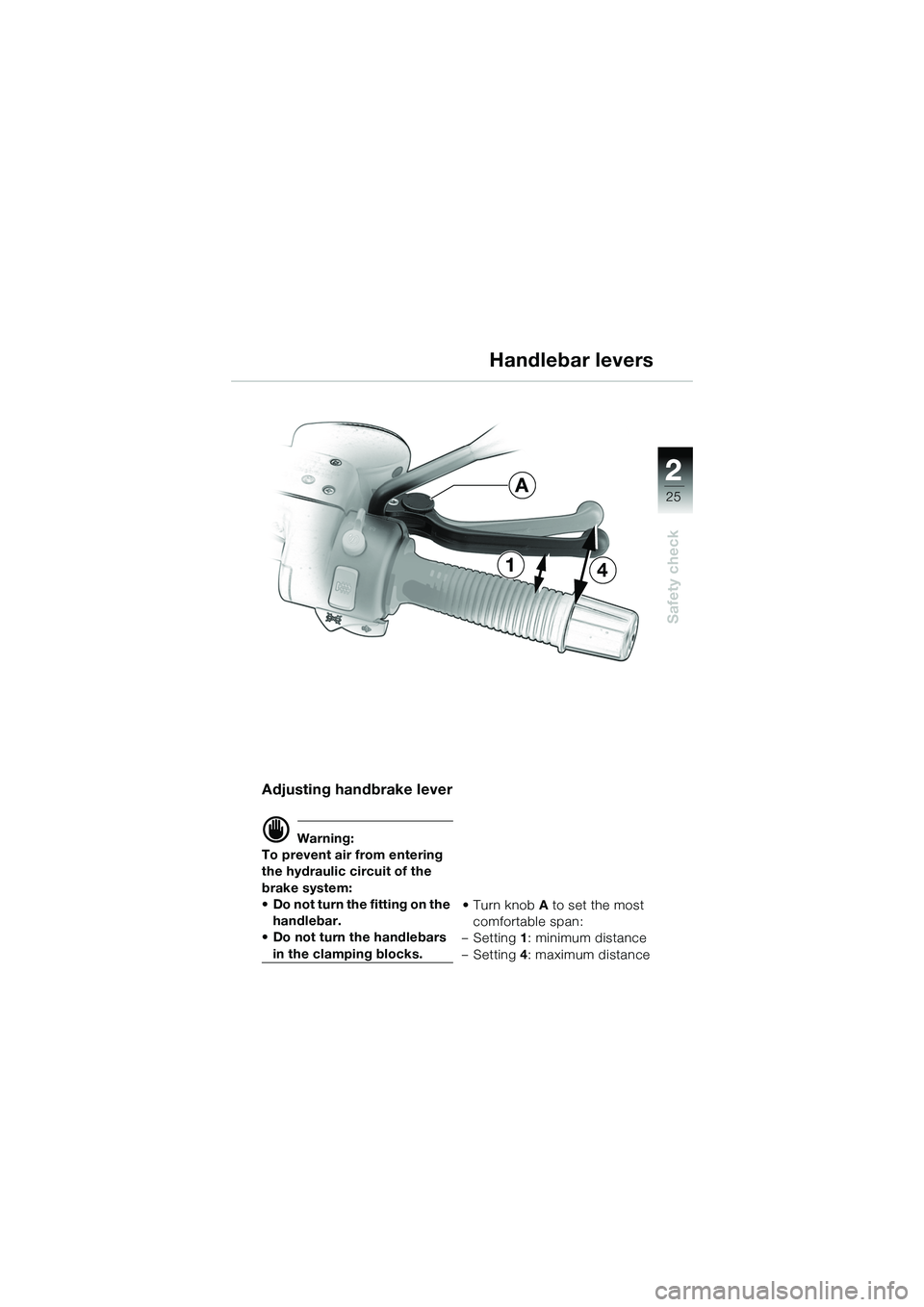

Safety check
41
A
Adjusting handbrake lever
d Warning:
To prevent air from entering
the hydraulic circuit of the
brake system:
• Do not turn the fitting on the handlebar.
• Do not turn the handlebars
in the clamping blocks. • Turn knob
A to set the most
comfortable span:
– Setting 1: minimum distance
– Setting 4: maximum distance
Handlebar levers
10r28FUNbkg1.book Seite 25 Dienstag, 24. Januar 2006 9:31 09
Page 28 of 88
22
26

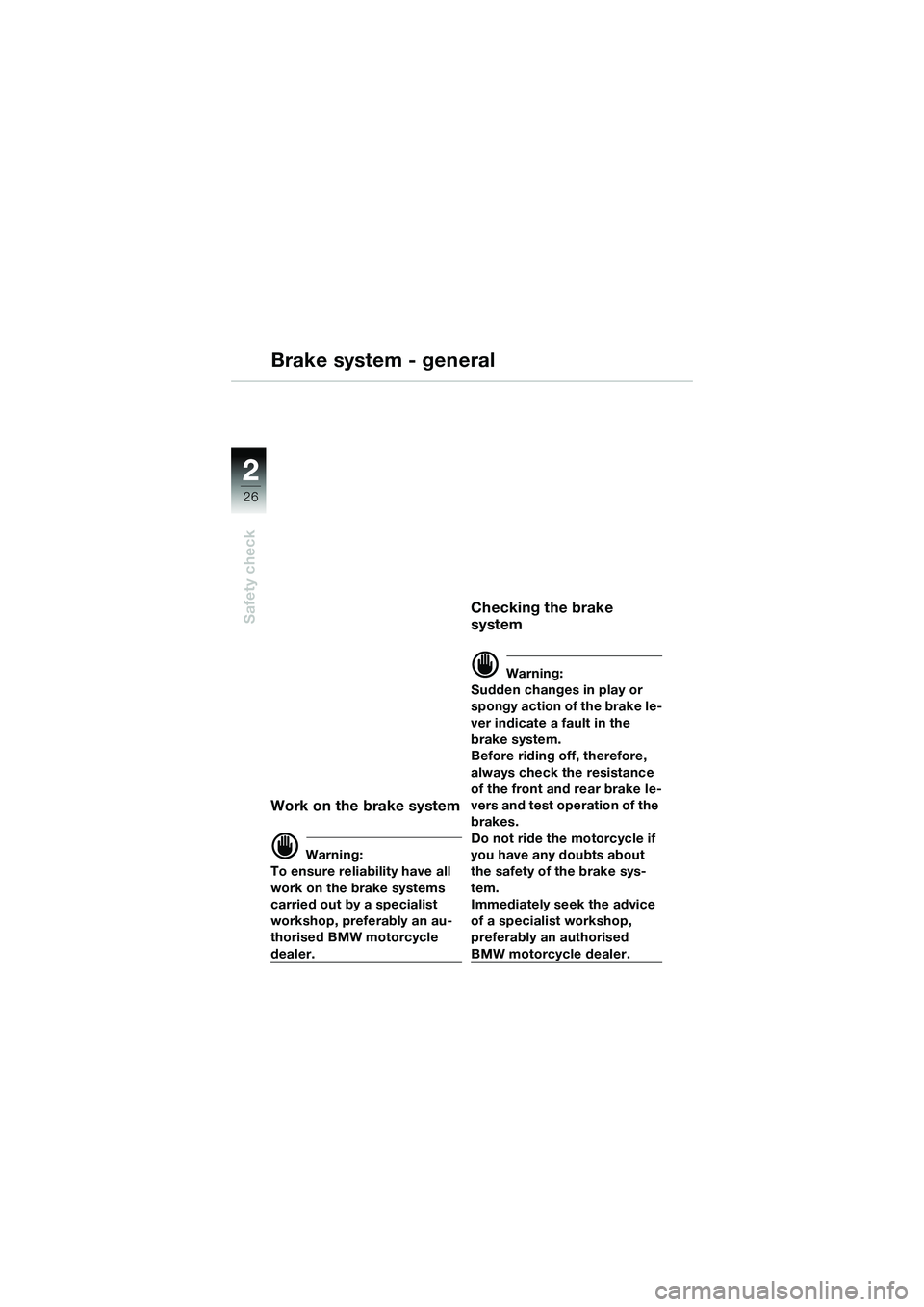

Safety check
Brake system - general
Work on the brake system
d Warning:
To ensure reliability have all
work on the brake systems
carried out by a specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
Checking the brake
system
d Warning:
Sudden changes in play or
spongy action of the brake le-
ver indicate a fault in the
brake system.
Before riding off, therefore,
always check the resistance
of the front and rear brake le-
vers and test operation of the
brakes.
Do not ride the motorcycle if
you have any doubts about
the safety of the brake sys-
tem.
Immediately seek the advice
of a specialist workshop,
preferably an authorised
BMW motorcycle dealer.
10r28FUNbkg1.book Seite 26 Dienstag, 24. Januar 2006 9:31 09
Page 29 of 88
2
27
2

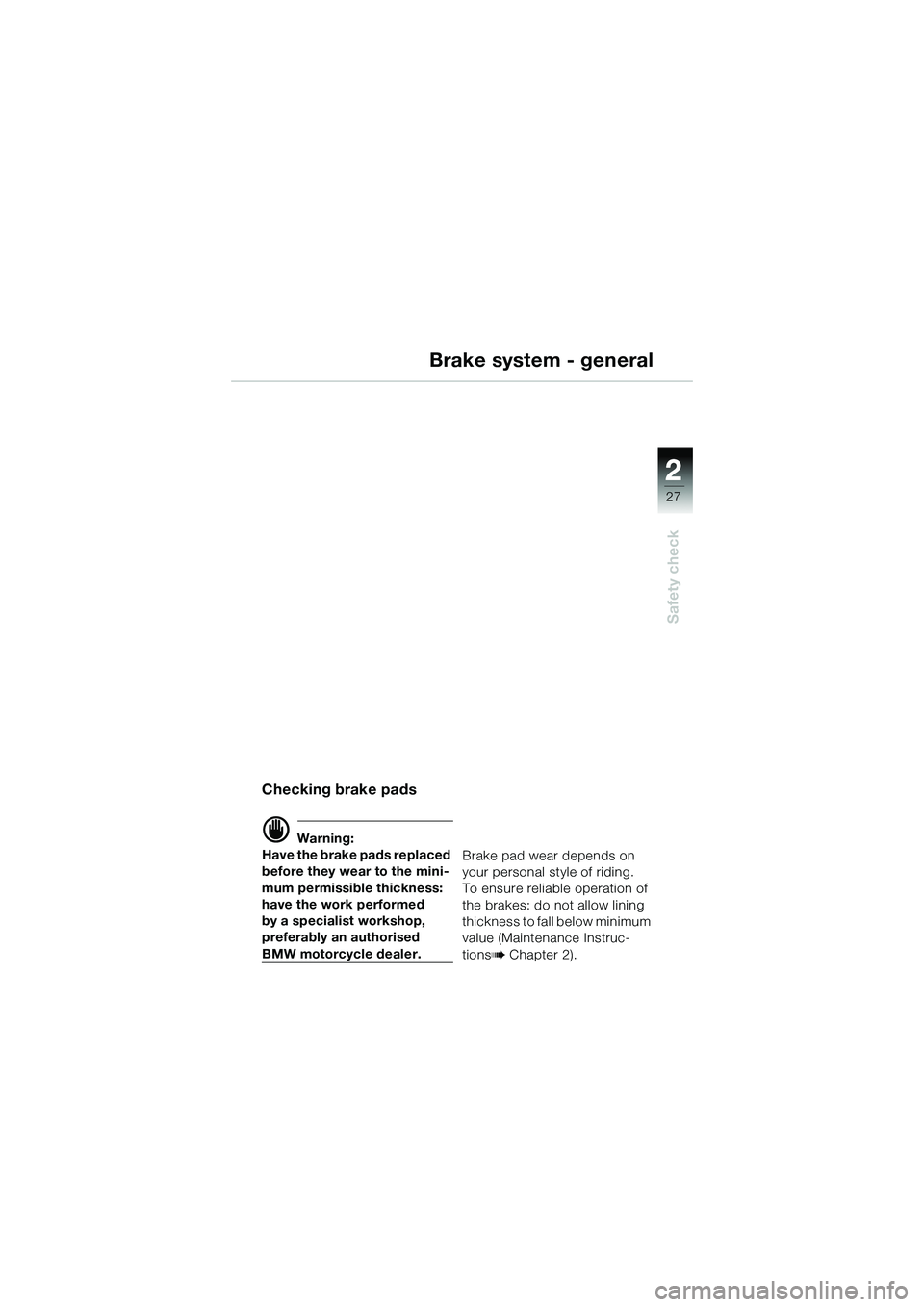

Safety check
Brake system - general
Checking brake pads
d Warning:
Have the brake pads replaced
before they wear to the mini-
mum permissible thickness:
have the work performed
by a specialist workshop,
preferably an authorised
BMW motorcycle dealer. Brake pad wear depends on
your personal style of riding.
To ensure reliable operation of
the brakes: do not allow lining
thickness to fall below minimum
value (Maintenance Instruc-
tionsb Chapter 2).
10r28FUNbkg1.book Seite 27 Dienstag, 24. Januar 2006 9:31 09
Page 30 of 88
22
28

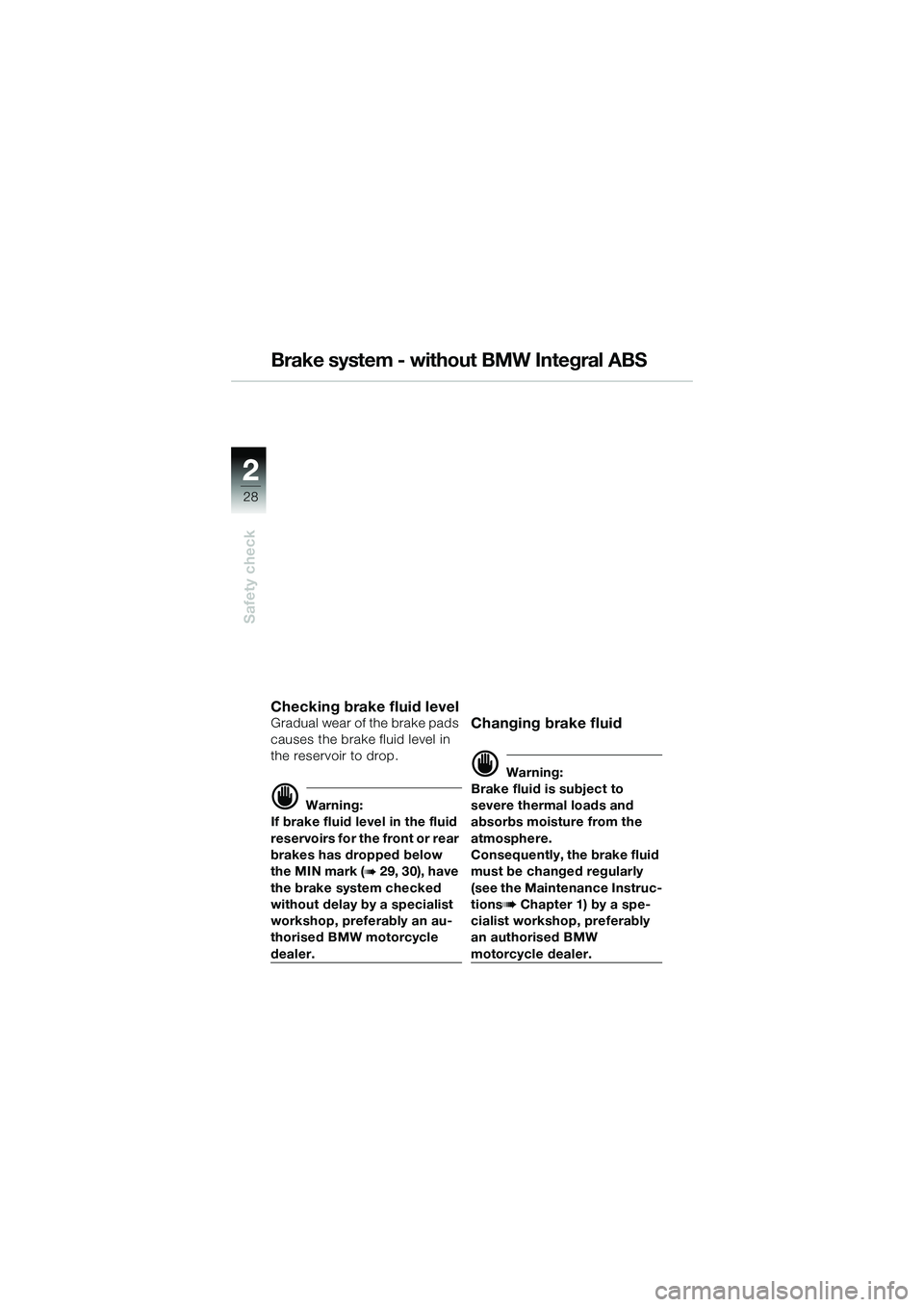

Safety check
Brake system - without BMW Integral ABS
Checking brake fluid levelGradual wear of the brake pads
causes the brake fluid level in
the reservoir to drop.
d Warning:
If brake fluid level in the fluid
reservoirs for the front or rear
brakes has dropped below
the MIN mark (
b 29, 30), have
the brake system checked
without delay by a specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
Changing brake fluid
d Warning:
Brake fluid is subject to
severe thermal loads and
absorbs moisture from the
atmosphere.
Consequently, the brake fluid
must be changed regularly
(see the Maintenance Instruc-
tions
b Chapter 1) by a spe-
cialist workshop, preferably
an authorised BMW
motorcycle dealer.
10r28FUNbkg1.book Seite 28 Dienstag, 24. Januar 2006 9:31 09
