BMW MOTORRAD R 1150 R 2002 Rider's Manual (in English)

3
49
3

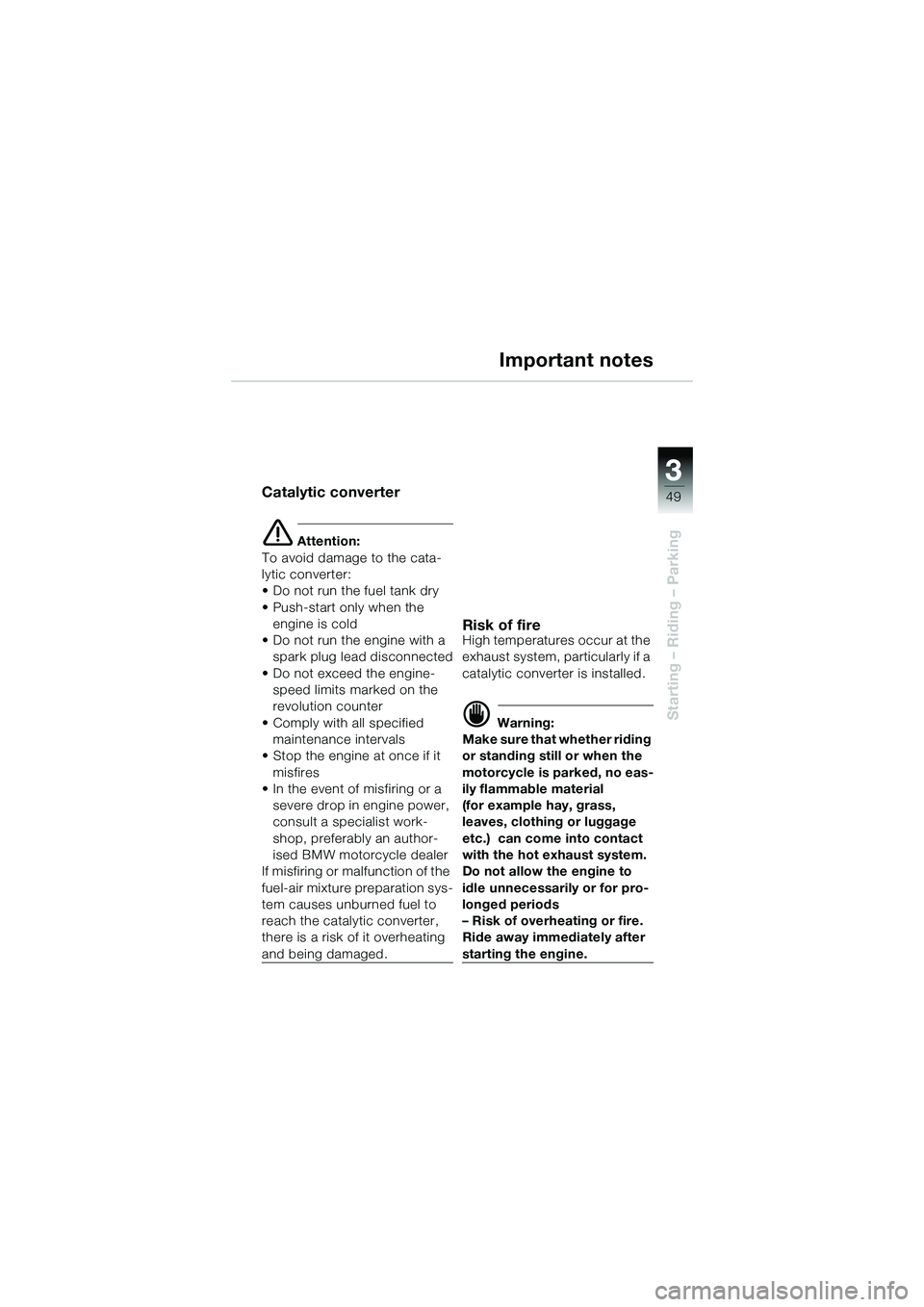

Starting – Riding – Parking
Important notes
Catalytic converter
e Attention:
To avoid damage to the cata-
lytic converter:
• Do not run the fuel tank dry
• Push-start only when the engine is cold
• Do not run the engine with a spark plug lead disconnected
• Do not exceed the engine- speed limits marked on the
revolution counter
• Comply with all specified maintenance intervals
• Stop the engine at once if it
misfires
• In the event of misfiring or a severe drop in engine power,
consult a specialist work-
shop, preferably an author-
ised BMW motorcycle dealer
If misfiring or malfunction of the
fuel-air mixture preparation sys-
tem causes unburned fuel to
reach the catalytic converter,
there is a risk of it overheating
and being damaged.
Risk of fireHigh temperatures occur at the
exhaust system, particularly if a
catalytic converter is installed.
d Warning:
Make sure that whether riding
or standing still or when the
motorcycle is parked, no eas-
ily flammable material
(for example hay, grass,
leaves, clothing or luggage
etc.) can come into contact
with the hot exhaust system.
Do not allow the engine to
idle unnecessarily or for pro-
longed periods
– Risk of overheating or fire.
Ride away immediately after
starting the engine.
10r28FUNbkg1.book Seite 49 Dienstag, 24. Januar 2006 9:31 09

33
50

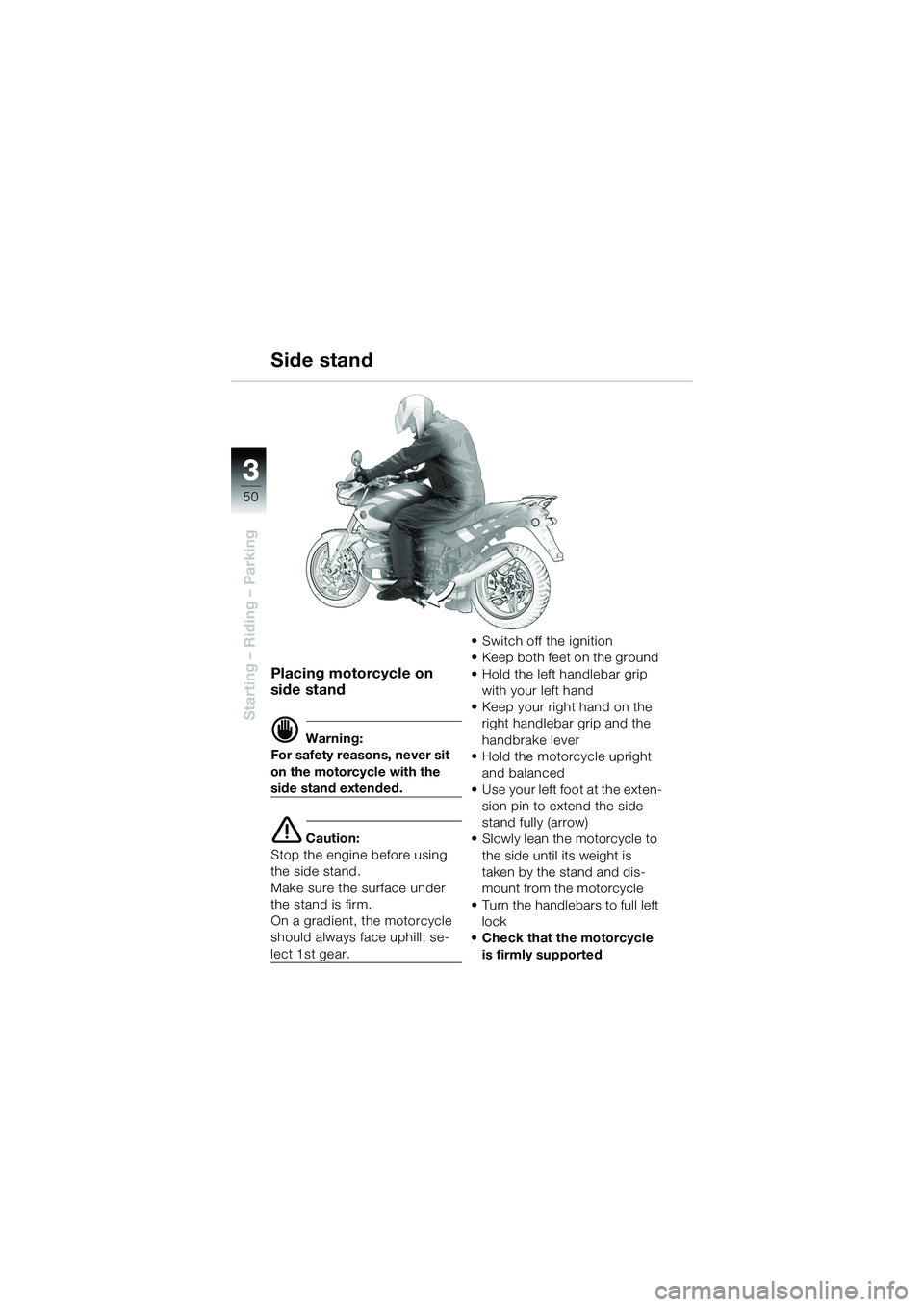

Starting – Riding – Parking
Placing motorcycle on
side stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
side stand extended.
e Caution:
Stop the engine before using
the side stand.
Make sure the surface under
the stand is firm.
On a gradient, the motorcycle
should always face uphill; se-
lect 1st gear. • Switch off the ignition
• Keep both feet on the ground
• Hold the left handlebar grip
with your left hand
• Keep your right hand on the right handlebar grip and the
handbrake lever
• Hold the motorcycle upright and balanced
• U s e y o u r l e f t f o o t a t t h e e x t e n - sion pin to extend the side
stand fully (arrow)
• Slowly lean the motorcycle to
the side until its weight is
taken by the stand and dis-
mount from the motorcycle
• Turn the handleba rs to full left
lock
• Check that the motorcycle
is firmly supported
Side stand
10r28FUNbkg1.book Seite 50 Dienstag, 24. Januar 2006 9:31 09

3
51
3

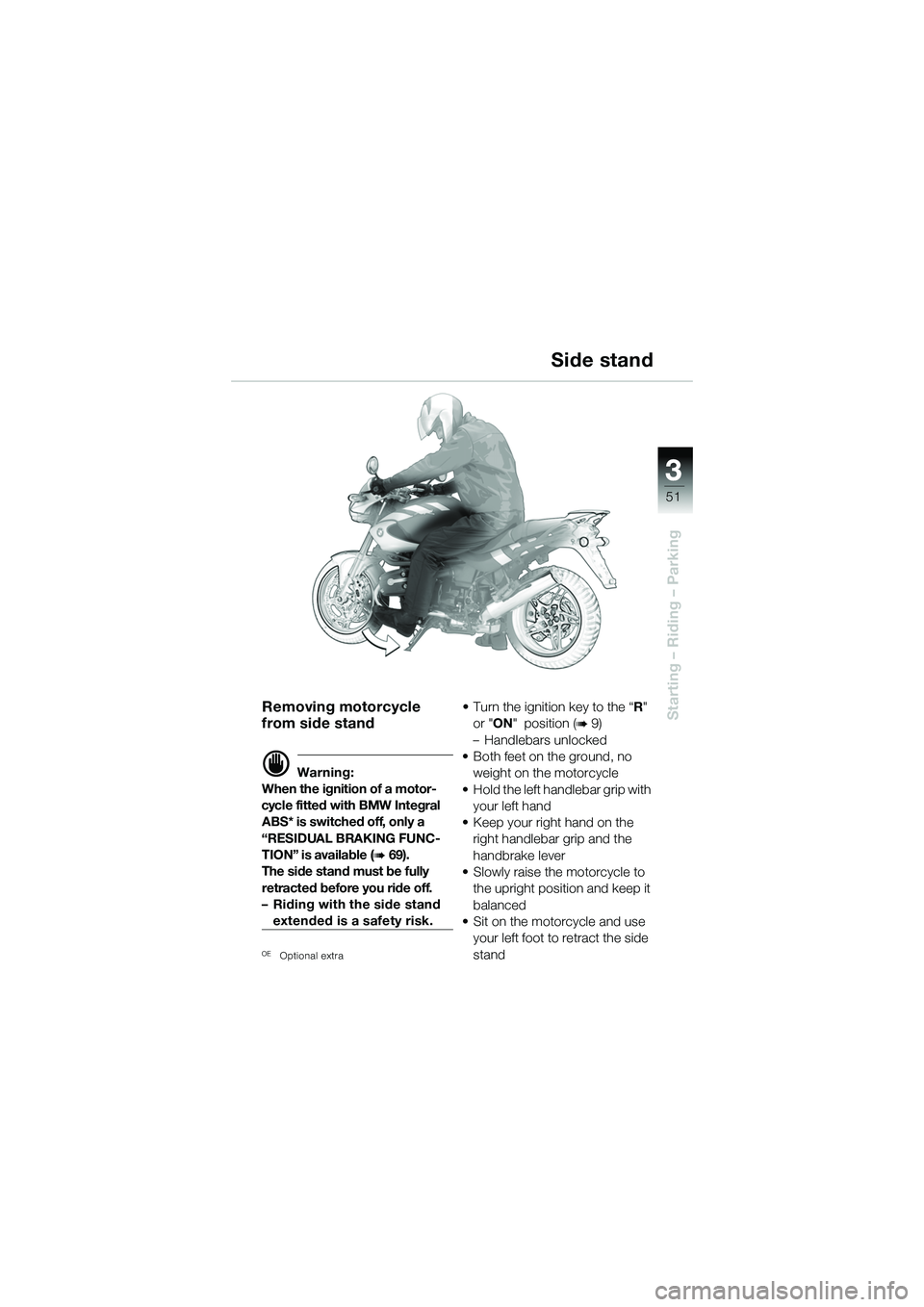

Starting – Riding – ParkingRemoving motorcycle
from side stand
d Warning:
When the ignition of a motor-
cycle fitted with BMW Integral ABS* is switched off, only a
“RESIDUAL BRAKING FUNC-
TION” is available (
b 69).
The side stand must be fully
retracted before you ride off.
– Riding with the side stand
extended is a safety risk.
OE Optional extra
• Turn the ignition key to the “ R"
or " ON " position (
b 9)
– Handlebars unlocked
• Both feet on the ground, no weight on the motorcycle
• Hold the left handlebar grip with your left hand
• Keep your right hand on the right handlebar grip and the
handbrake lever
• Slowly raise the motorcycle to the upright position and keep it
balanced
• Sit on the motorcycle and use your left foot to retract the side
stand
Side stand
10r28FUNbkg1.book Seite 51 Dienstag, 24. Januar 2006 9:31 09

33
52

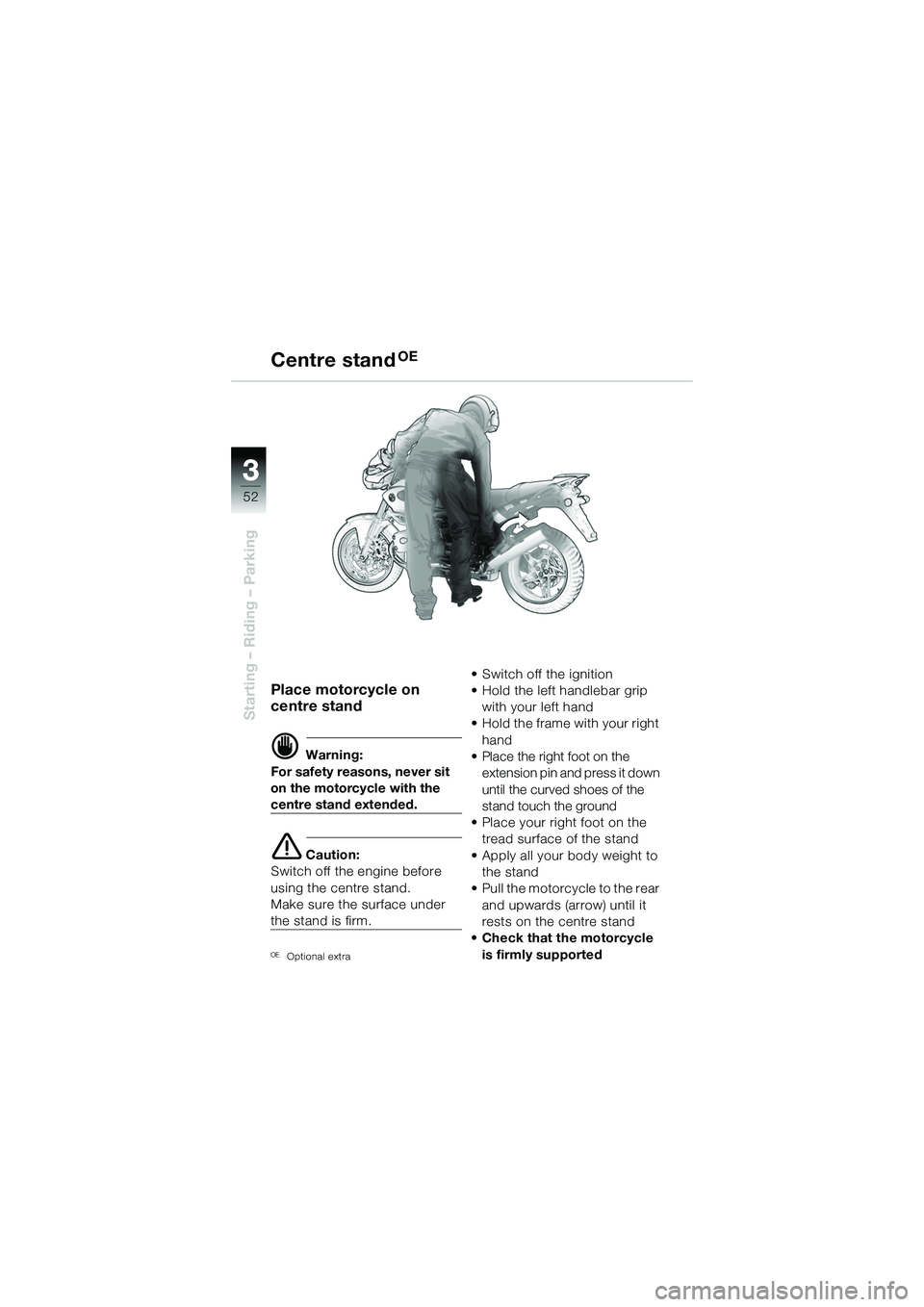

Starting – Riding – Parking

Place motorcycle on
centre stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
centre stand extended.
e Caution:
Switch off the engine before
using the centre stand.
Make sure the surface under
the stand is firm.
OE Optional extra
• Switch off the ignition
• Hold the left handlebar grip with your left hand
• Hold the frame wi th your right
hand
• Place the right foot on the extension pin and press it down
until the curved shoes of the
stand touch the ground
• Place your right foot on the tread surface of the stand
• Apply all your body weight to the stand
• Pull the motorcycle to the rear and upwards (arrow) until it
rests on the centre stand
• Check that the motorcycle
is firmly supported
Centre standOE
10r28FUNbkg1.book Seite 52 Dienstag, 24. Januar 2006 9:31 09

3
53
3
Starting – Riding – Parking

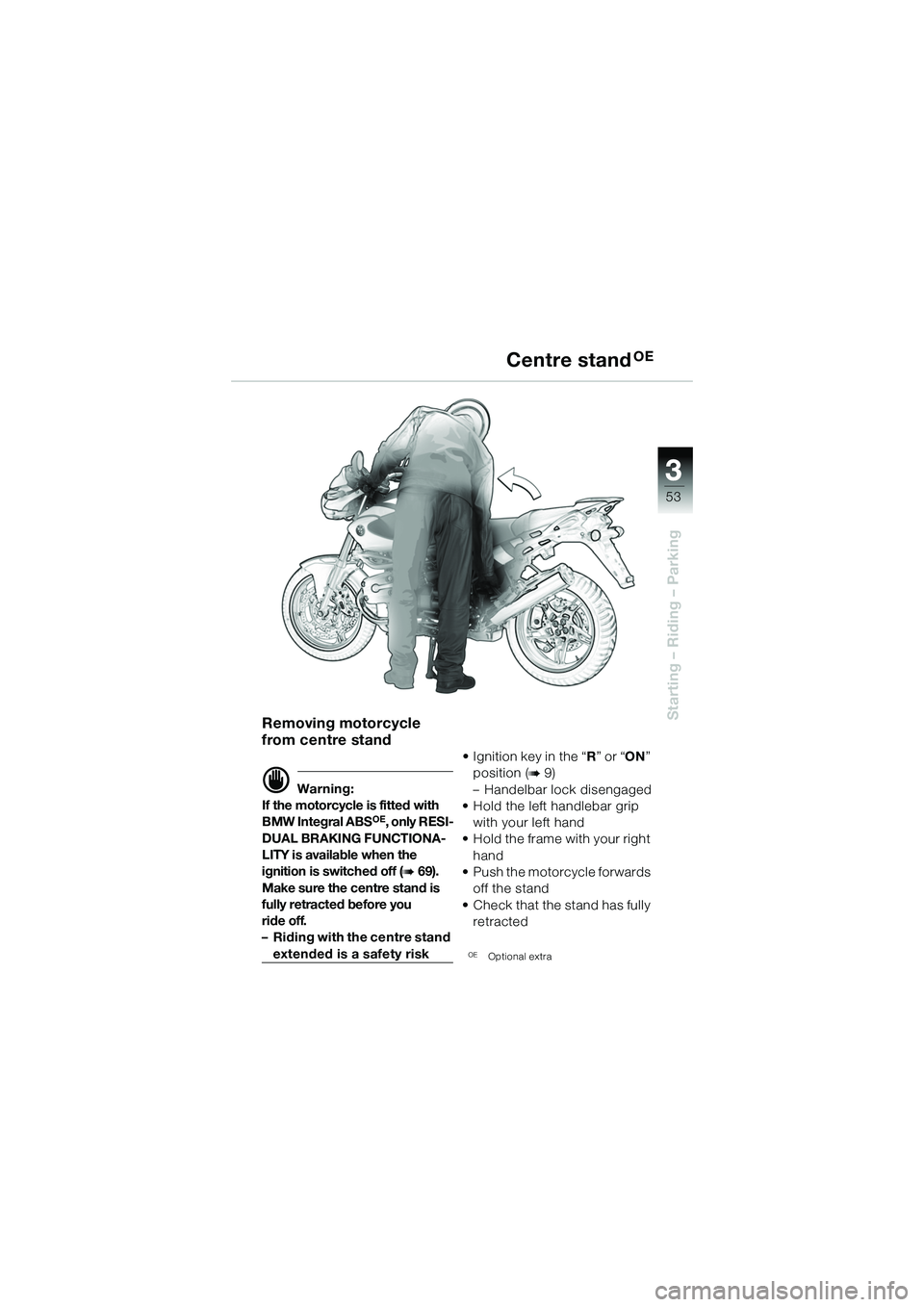

Centre standOE
Removing motorcycle
from centre stand
d Warning:
If the motorcycle is fitted with
BMW Integral ABS
OE, only RESI-
DUAL BRAKING FUNCTIONA-
LITY is available when the
ignition is switched off (
b 69).
Make sure the centre stand is
fully retracted before you
ride off.
– Riding with the centre stand
extended is a safety risk • Ignition key in the “
R” or “ ON”
position (
b 9)
– Handelbar lock disengaged
• Hold the left handlebar grip with your left hand
• Hold the frame with your right
hand
• Push the motorcycle forwards off the stand
• Check that the stand has fully retracted
OE Optional extra
10r28FUNbkg1.book Seite 53 Dienstag, 24. Januar 2006 9:31 09

33
54

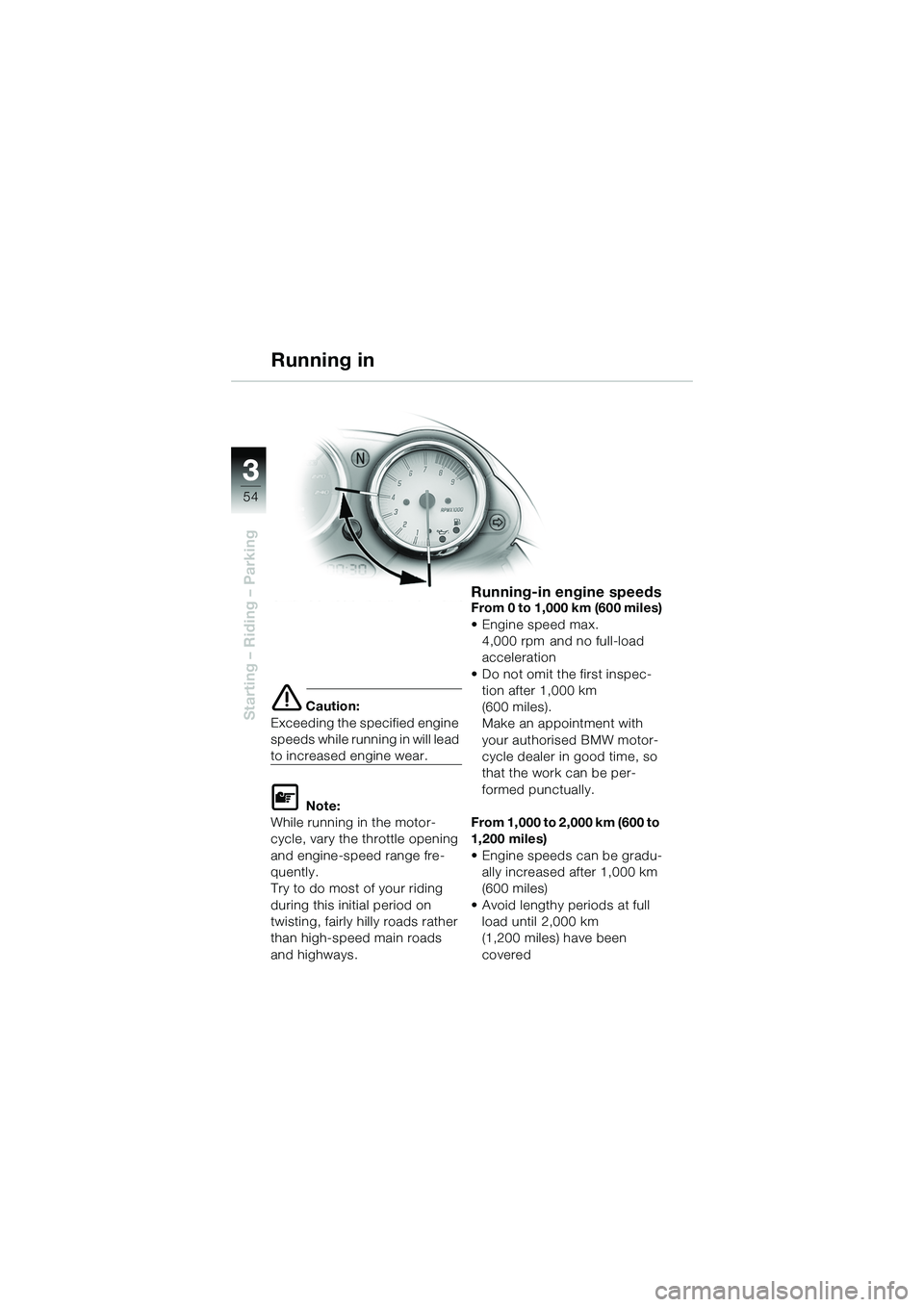

Starting – Riding – Parkinge Caution:
Exceeding the specified engine
speeds while running in will lead
to increased engine wear.
L Note:
While running in the motor-
cycle, vary the throttle opening
and engine-speed range fre-
quently.
Try to do most of your riding
during this initial period on
twisting, fairly hilly roads rather
than high-speed main roads
and highways.
Running-in engine speedsFrom 0 to 1,000 km (600 miles)
• Engine speed max. 4,000 rpm and no full-load
acceleration
• Do not omit the first inspec- tion after 1,000 km
(600 miles).
Make an appointment with
your authorised BMW motor-
cycle dealer in good time, so
that the work can be per-
formed punctually.
From 1,000 to 2,000 km (600 to
1,200 miles)
• Engine speeds can be gradu- ally increased after 1,000 km
(600 miles)
• Avoid lengthy periods at full load until 2,000 km
(1,200 miles) have been
covered
Running in
10r28FUNbkg1.book Seite 54 Dienstag, 24. Januar 2006 9:31 09

3
55
3
Starting – Riding – Parking

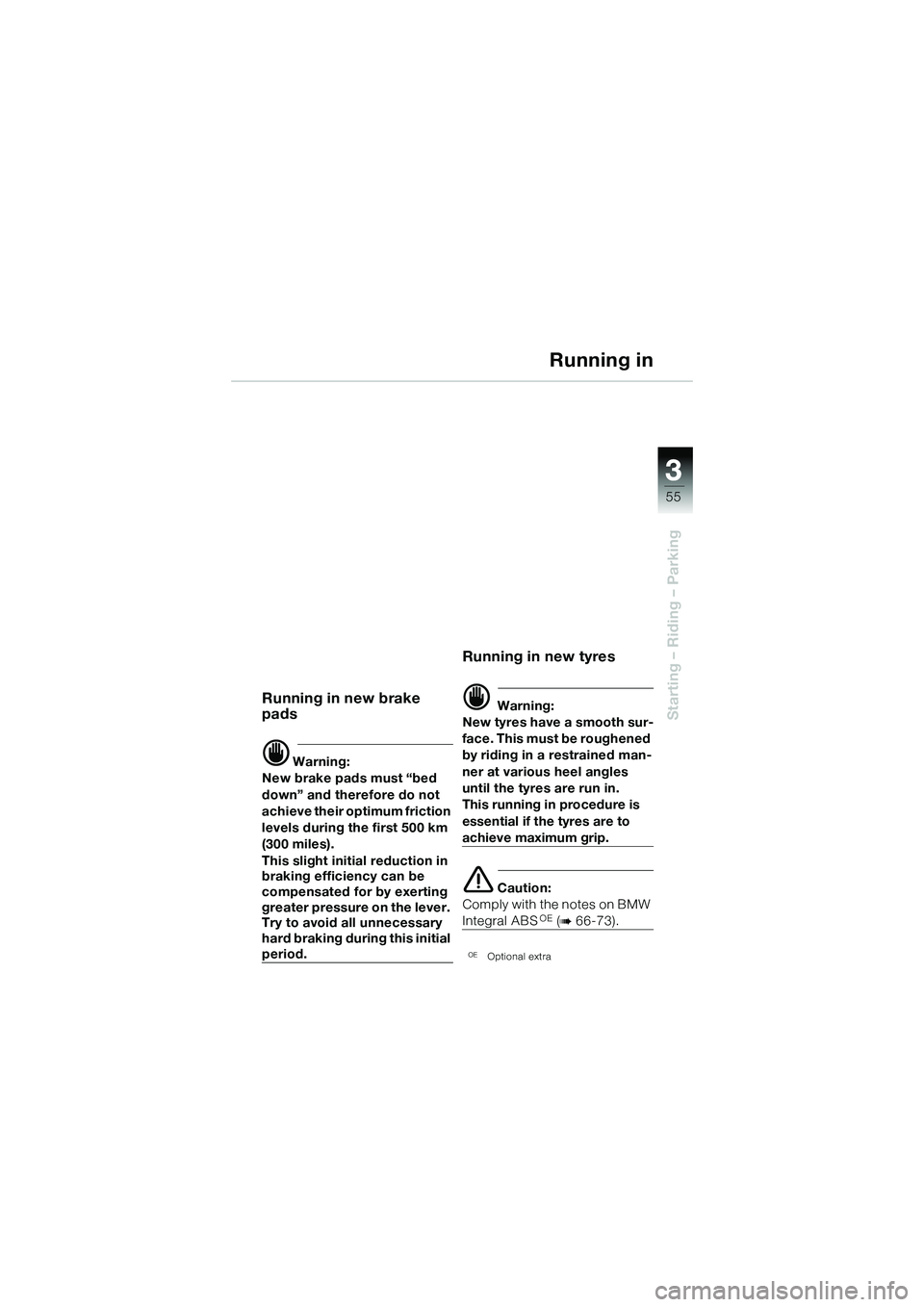

Running in

Running in new brake
pads
d Warning:
New brake pads must “bed
down” and therefore do not
achieve their optimum friction
levels during the first 500 km
(300 miles).
This slight initial reduction in
braking efficiency can be
compensated for by exerting
greater pressure on the lever.
Try to avoid all unnecessary
hard braking during this initial
period.
Running in new tyres
d Warning:
New tyres have a smooth sur-
face. This must be roughened
by riding in a restrained man-
ner at various heel angles
until the tyres are run in.
This running in procedure is
essential if the tyres are to
achieve maximum grip.
e Caution:
Comply with the notes on BMW
Integral ABSOE (b 66-73).
OE Optional extra
10r28FUNbkg1.book Seite 55 Dienstag, 24. Januar 2006 9:31 09

33
56
Starting – Riding – Parking
A
BB
1

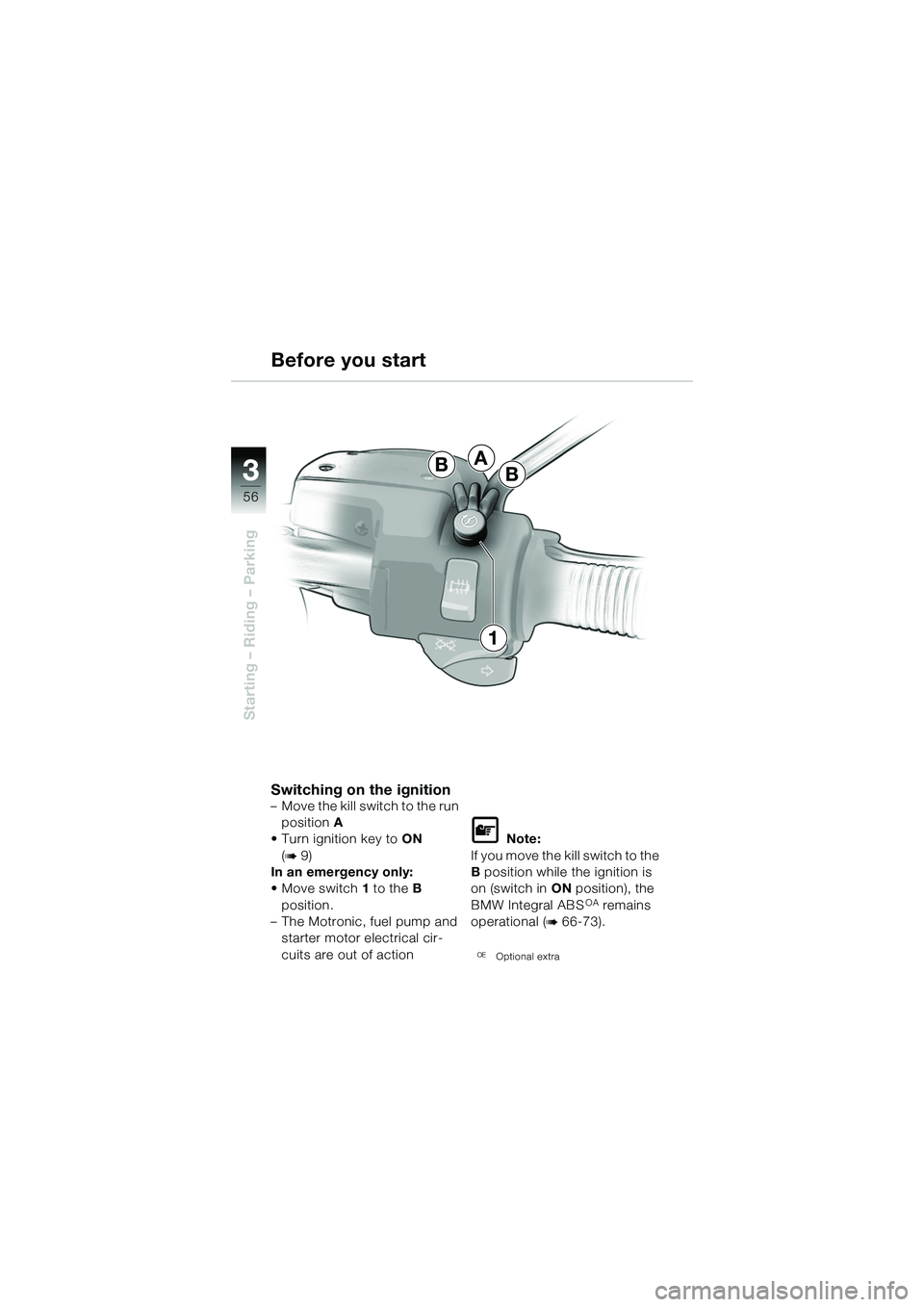

Switching on the ignition– Move the kill switch to the run position A
• Turn ignition key to ON
(
b 9)
In an emergency only:
• Move switch 1 to the B
position.
– The Motronic, fuel pump and starter motor electrical cir-
cuits are out of action
L Note:
If you move the kill switch to the
B position while the ignition is
on (switch in ON position), the
BMW Integral ABS
OA remains
operational (
b 66-73).
OE Optional extra
Before you start
10r28FUNbkg1.book Seite 56 Dienstag, 24. Januar 2006 9:31 09

3
57
3

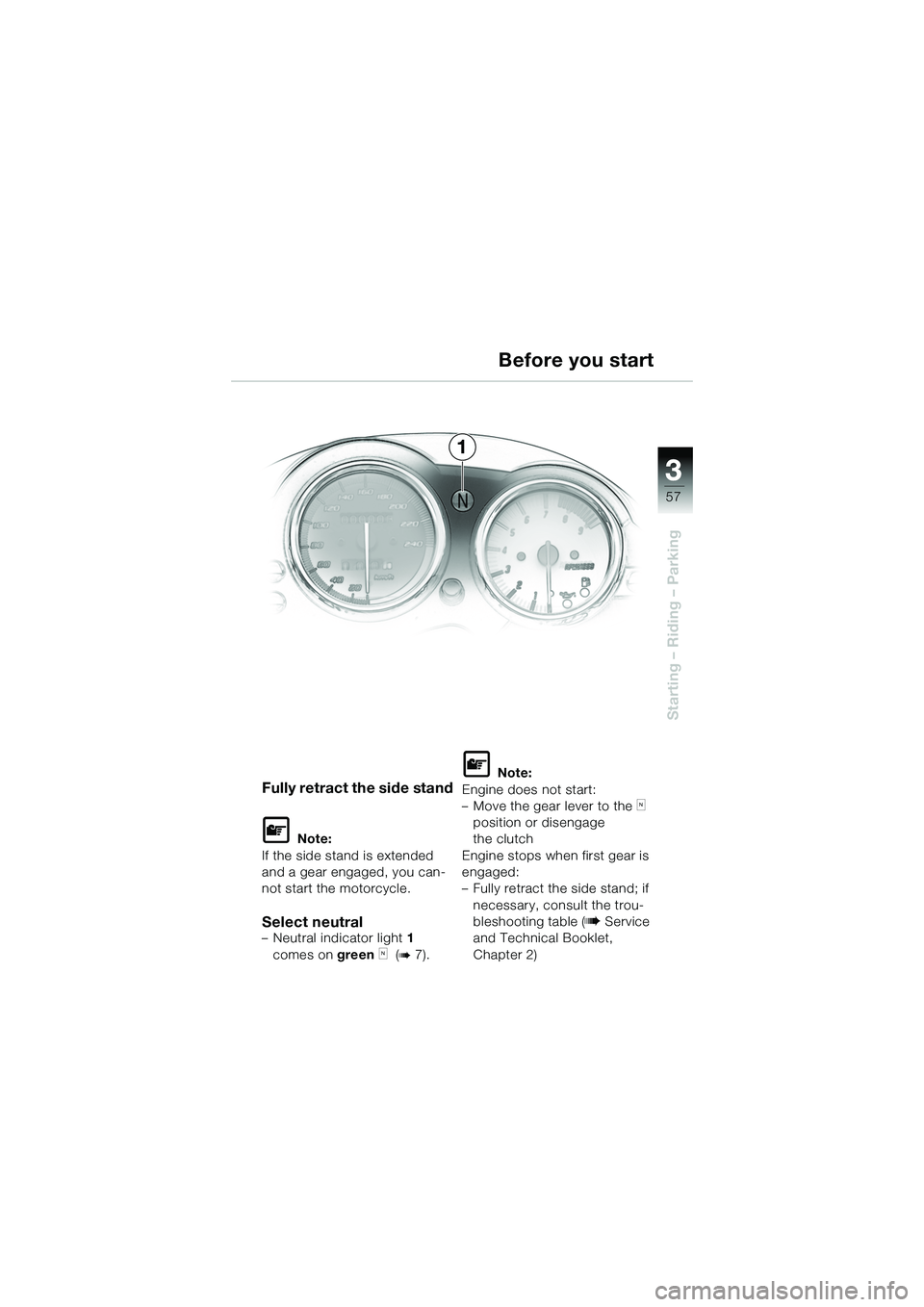

Starting – Riding – Parking
1
Fully retract the side stand
L Note:
If the side stand is extended
and a gear engaged, you can-
not start the motorcycle.
Select neutral– Neutral indicator light 1
comes on green
k (b 7).
L Note:
Engine does not start:
– Move the gear lever to the
k
position or disengage
the clutch
Engine stops when first gear is
engaged:
– Fully retract the side stand; if necessary, consult the trou-
bleshooting table ( b Service
and Technical Booklet,
Chapter 2)
Before you start
10r28FUNbkg1.book Seite 57 Dienstag, 24. Januar 2006 9:31 09

33
58

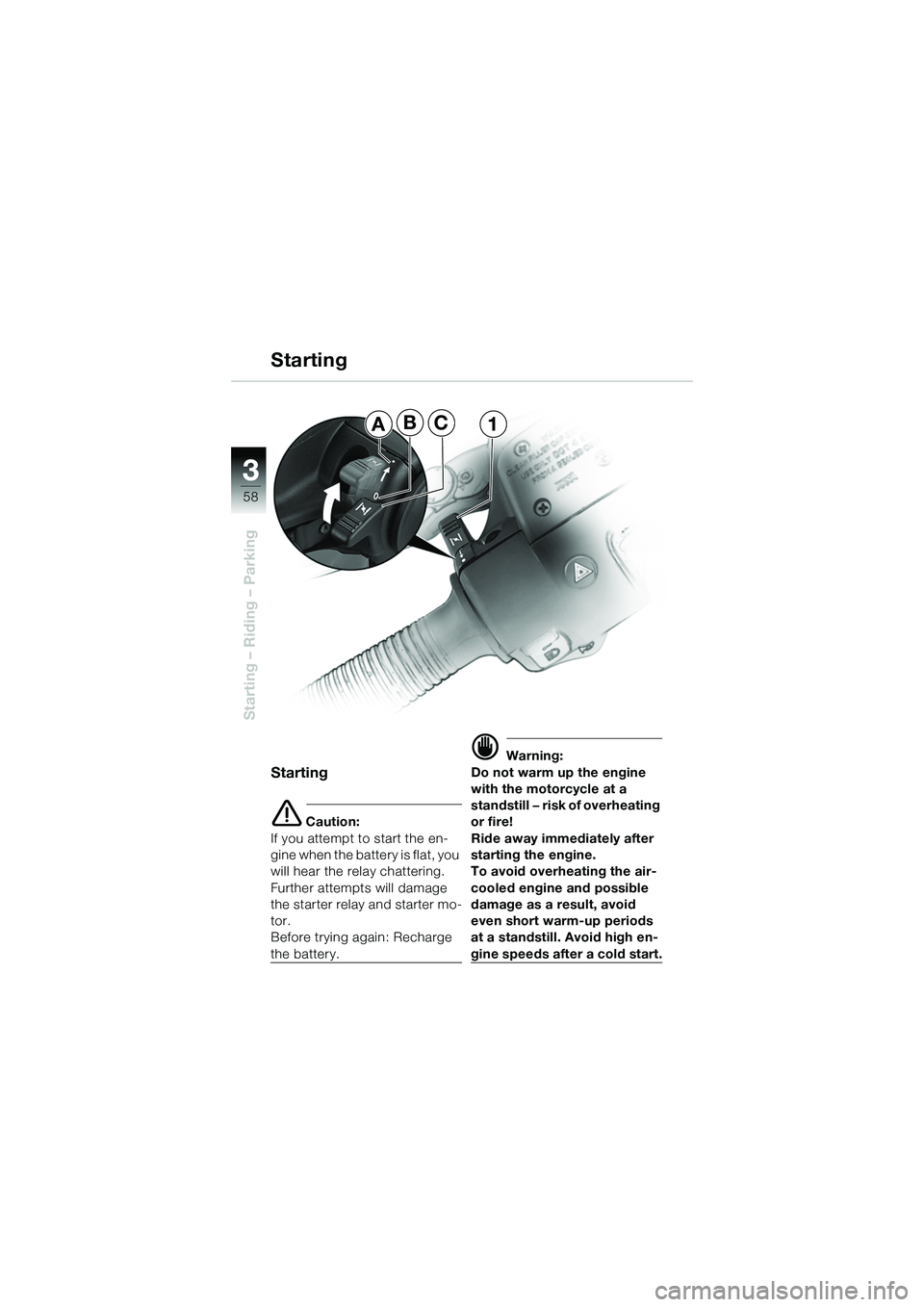

Starting – Riding – Parking
ABC1
Starting
e Caution:
If you attempt to start the en-
gine when the battery is flat, you
will hear the relay chattering.
Further attempts will damage
the starter relay and starter mo-
tor.
Before trying again: Recharge
the battery.
d Warning:
Do not warm up the engine
with the motorcycle at a
standstill — risk of overheating
or fire!
Ride away immediately after
starting the engine.
To avoid overheating the air-
cooled engine and possible
damage as a result, avoid
even short warm-up periods
at a standstill. Avoid high en-
gine speeds after a cold start.
Starting
