BMW X5 2011 E70 Owner's Manual
Manufacturer: BMW, Model Year: 2011, Model line: X5, Model: BMW X5 2011 E70Pages: 312, PDF Size: 8.91 MB
Page 281 of 312

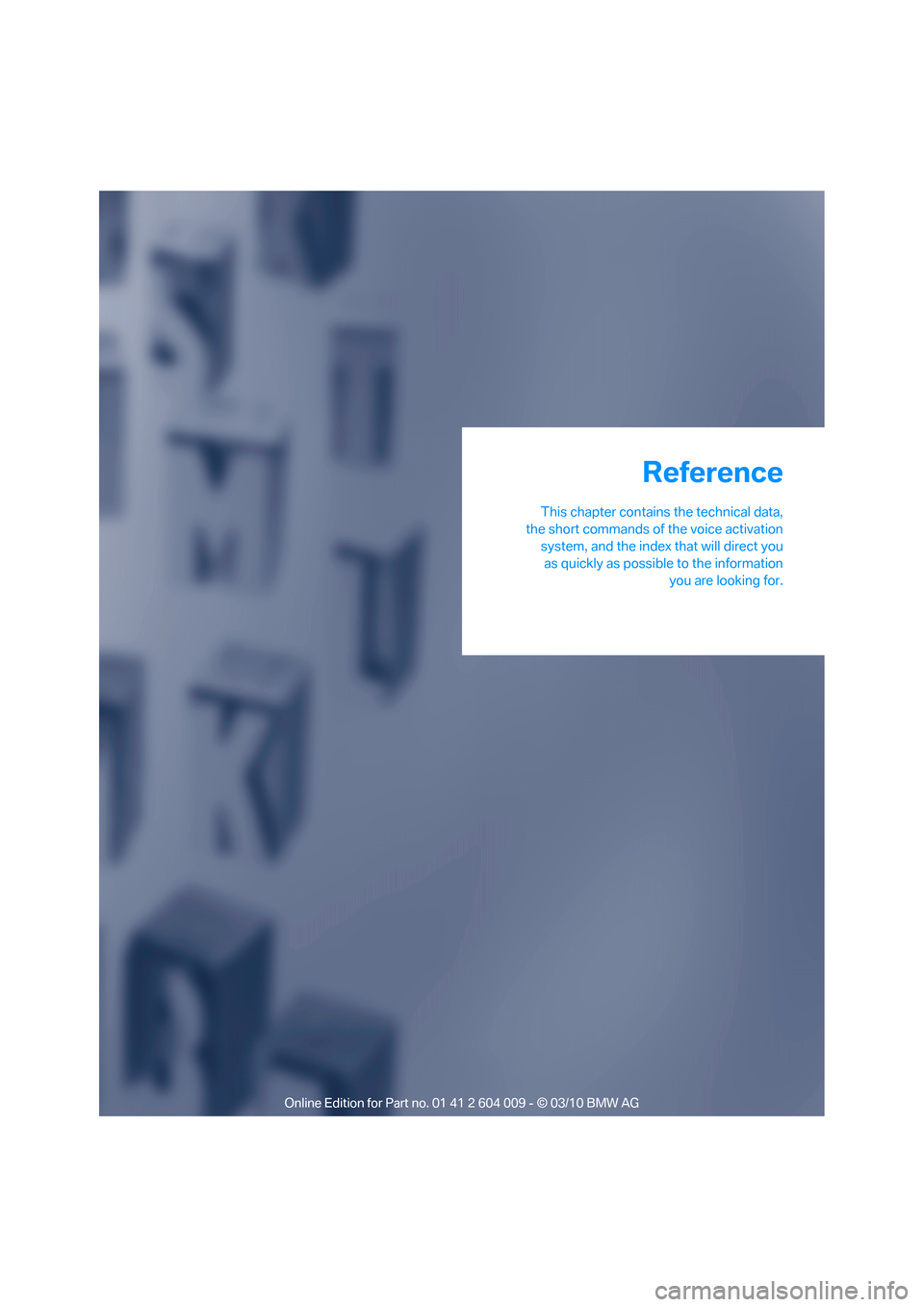

Reference
This chapter contains the technical data,
the short commands of the voice activation
system, and the index that will direct you
as quickly as possible to the information
you are looking for.
Reference
Page 282 of 312

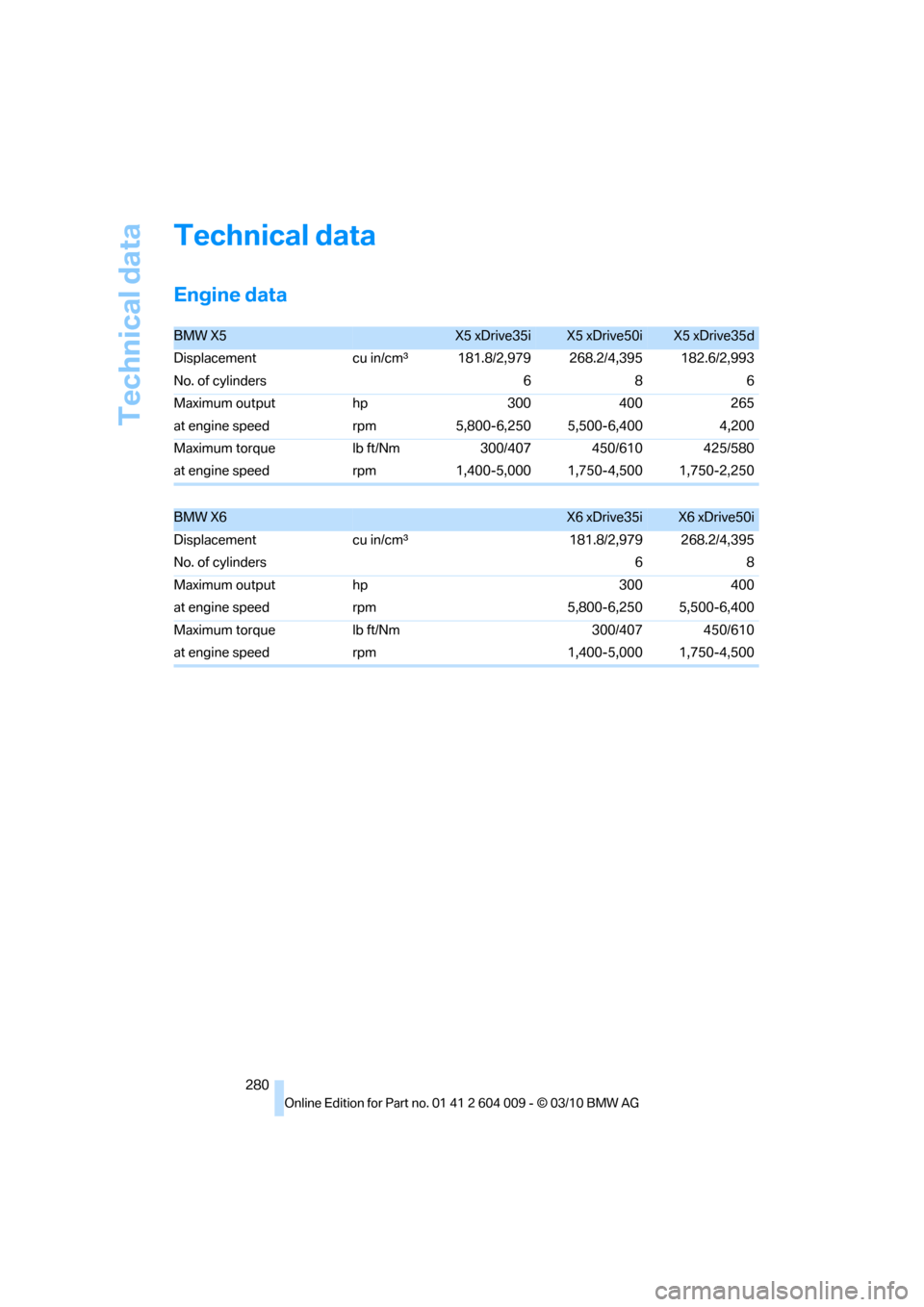

Technical data
280
Technical data
Engine data
BMW X5X5 xDrive35iX5 xDrive50iX5 xDrive35d
Displacement cu in/cmμ181.8/2,979 268.2/4,395 182.6/2,993
No. of cylinders 6 8 6
Maximum output hp 300 400 265
at engine speed rpm 5,800-6,250 5,500-6,400 4,200
Maximum torque lb ft/Nm 300/407 450/610 425/580
at engine speed rpm 1,400-5,000 1,750-4,500 1,750-2,250
BMW X6X6 xDrive35iX6 xDrive50i
Displacement cu in/cmμ181.8/2,979 268.2/4,395
No. of cylinders 6 8
Maximum output hp 300 400
at engine speed rpm 5,800-6,250 5,500-6,400
Maximum torque lb ft/Nm 300/407 450/610
at engine speed rpm 1,400-5,000 1,750-4,500
Page 283 of 312

Reference 281
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Dimensions
BMW X5
All dimensions given in inches/mm.
Smallest turning circle dia.: 42.0 ft/12.8 m
With mixed tires
* the vehicle width may exceed the specified dimension.
Page 284 of 312

Technical data
282
BMW X6
All dimensions given in inches/mm.
Smallest turning circle dia.: 42.0 ft/12.8 m
Height with roof rack
*: 66.9 in/1,699 mm
With mixed tires
* the vehicle width may exceed the specified dimension.
Page 285 of 312

Reference 283
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

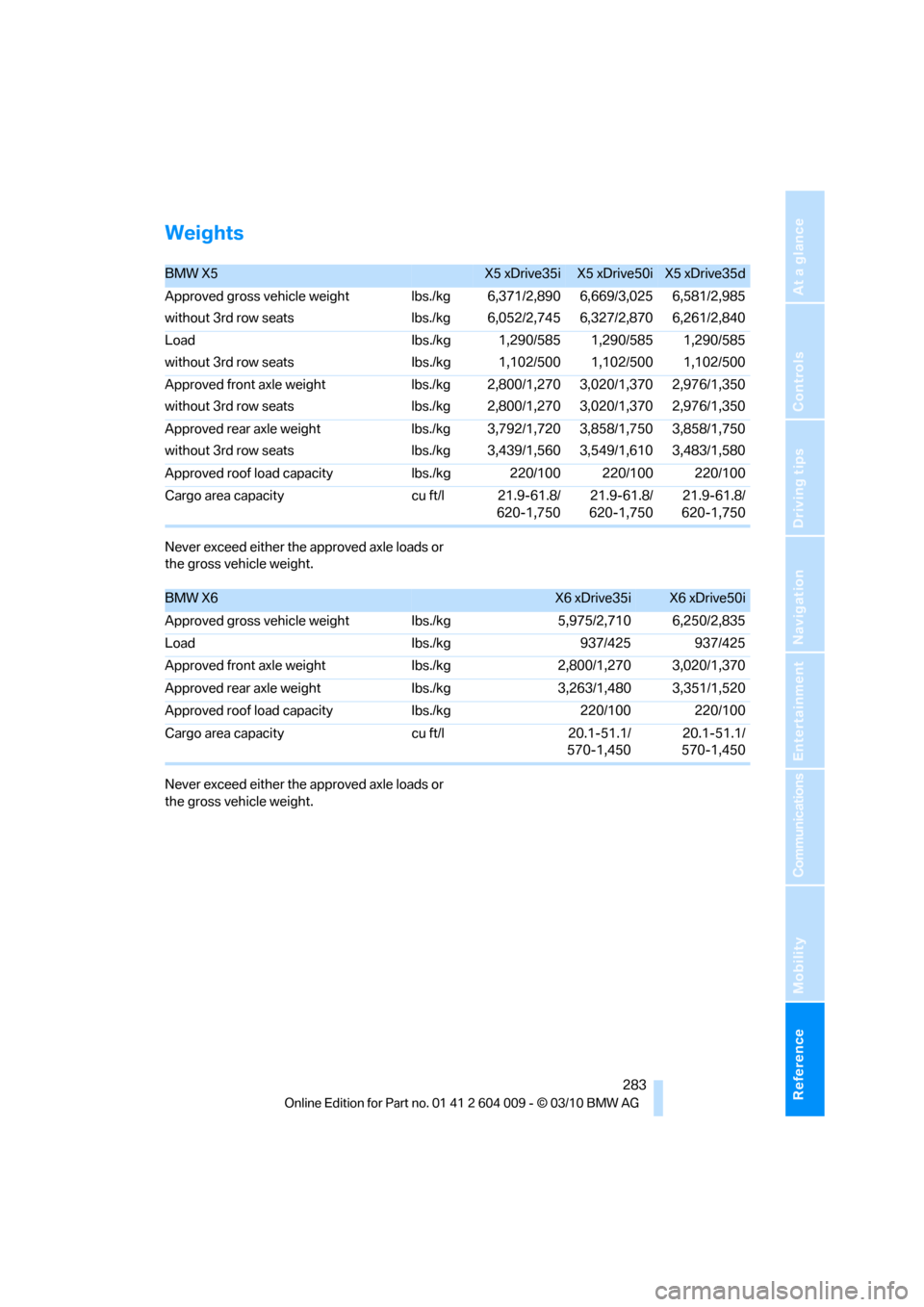

Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Never exceed either the approved axle loads or
the gross vehicle weight.
BMW X5X5 xDrive35iX5 xDrive50iX5 xDrive35d
Approved gross vehicle weight
without 3rd row seatslbs./kg
lbs./kg6,371/2,890
6,052/2,7456,669/3,025
6,327/2,8706,581/2,985
6,261/2,840
Load
without 3rd row seatsIbs./kg
Ibs./kg1,290/585
1,102/5001,290/585
1,102/5001,290/585
1,102/500
Approved front axle weight
without 3rd row seatslbs./kg
lbs./kg2,800/1,270
2,800/1,2703,020/1,370
3,020/1,3702,976/1,350
2,976/1,350
Approved rear axle weight
without 3rd row seatslbs./kg
lbs./kg3,792/1,720
3,439/1,5603,858/1,750
3,549/1,6103,858/1,750
3,483/1,580
Approved roof load capacity lbs./kg 220/100 220/100 220/100
Cargo area capacity cu ft/l 21.9-61.8/
620-1,75021.9-61.8/
620-1,75021.9-61.8/
620-1,750
BMW X6X6 xDrive35iX6 xDrive50i
Approved gross vehicle weightIbs./kg 5,975/2,710 6,250/2,835
Load Ibs./kg 937/425 937/425
Approved front axle weightIbs./kg 2,800/1,270 3,020/1,370
Approved rear axle weight Ibs./kg 3,263/1,480 3,351/1,520
Approved roof load capacity Ibs./kg 220/100 220/100
Cargo area capacity cu ft/l 20.1-51.1/
570-1,45020.1-51.1/
570-1,450
Page 286 of 312

Technical data
284

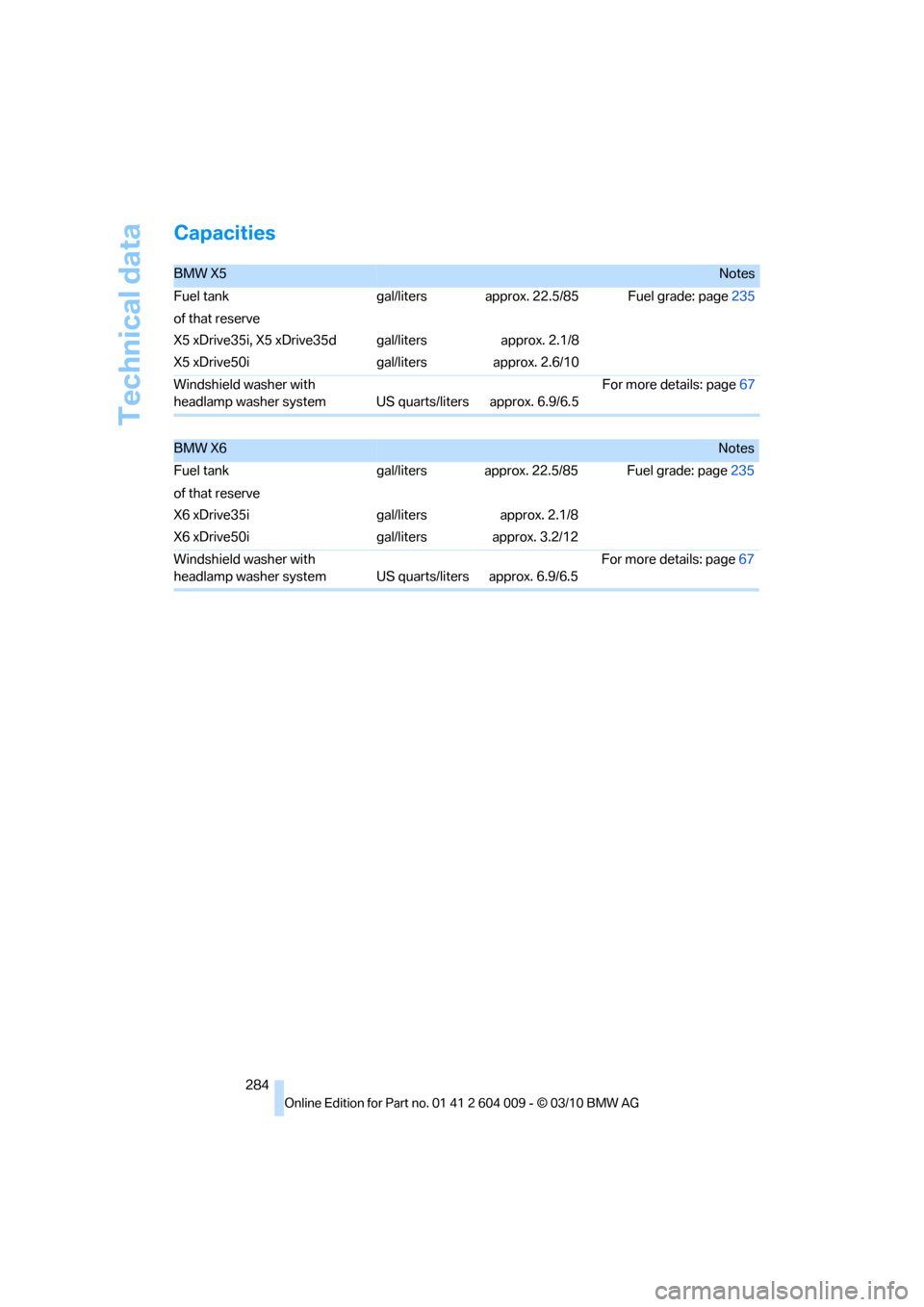

Capacities
BMW X5Notes
Fuel tank gal/liters approx. 22.5/85 Fuel grade: page235
of that reserve
X5 xDrive35i, X5 xDrive35d
X5 xDrive50igal/liters
gal/litersapprox. 2.1/8
approx. 2.6/10
Windshield washer with
headlamp washer system US quarts/liters approx. 6.9/6.5For more details: page67
BMW X6Notes
Fuel tank gal/liters approx. 22.5/85 Fuel grade: page235
of that reserve
X6 xDrive35i
X6 xDrive50igal/liters
gal/litersapprox. 2.1/8
approx. 3.2/12
Windshield washer with
headlamp washer system US quarts/liters approx. 6.9/6.5For more details: page67
Page 287 of 312

Reference 285
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

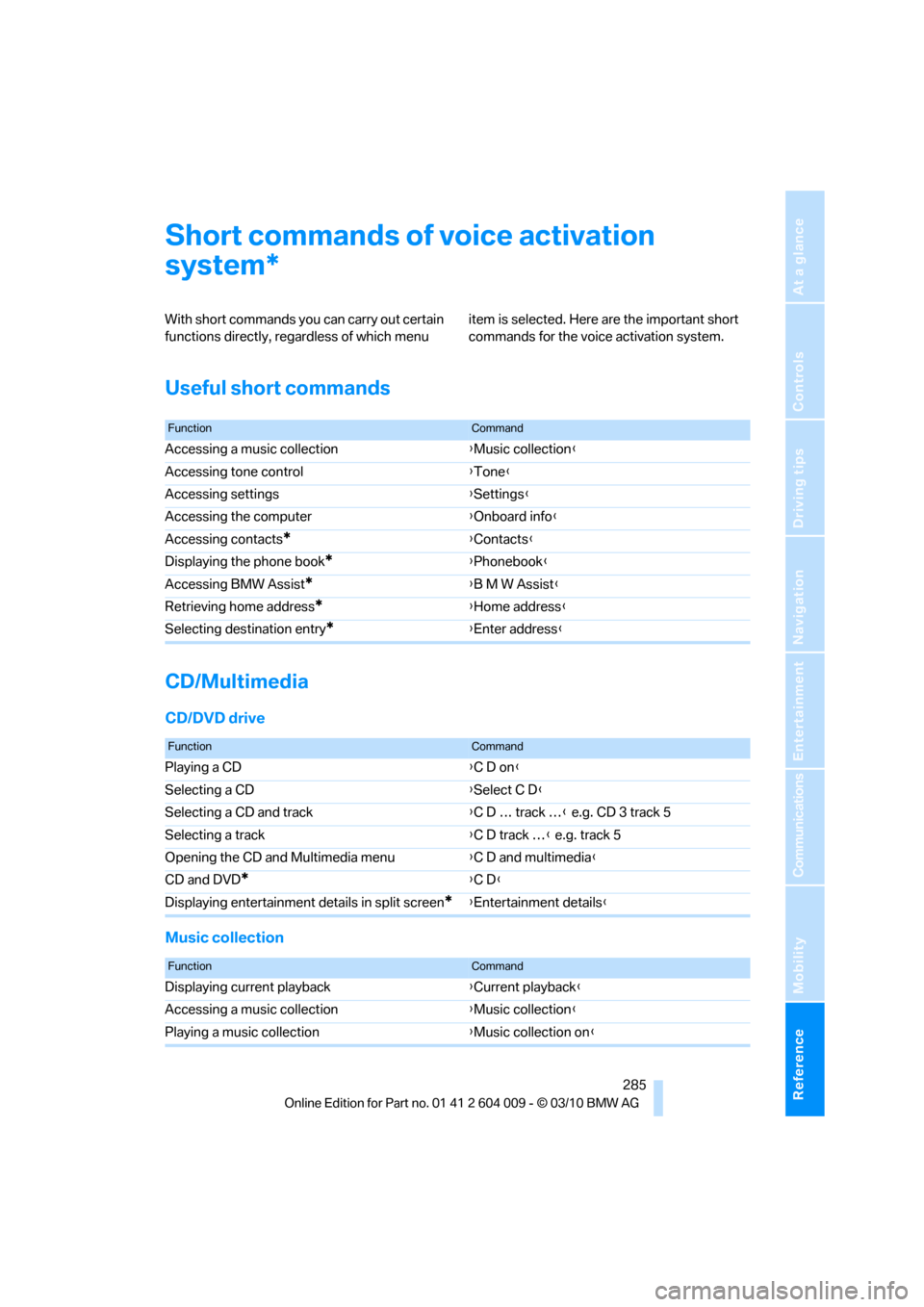

Short commands of voice activation
system
With short commands you can carry out certain
functions directly, regardless of which menu item is selected. Here are the important short
commands for the voice activation system.
Useful short commands
CD/Multimedia
CD/DVD drive
Music collection
*
FunctionCommand
Accessing a music collection{Music collection}
Accessing tone control{Tone}
Accessing settings{Settings}
Accessing the computer{Onboard info}
Accessing contacts
*{Contacts}
Displaying the phone book
*{Phonebook}
Accessing BMW Assist
*{B M W Assist}
Retrieving home address
*{Home address}
Selecting destination entry
*{Enter address}
FunctionCommand
Playing a CD{C D on}
Selecting a CD{Select C D}
Selecting a CD and track{C D … track …} e.g. CD 3 track 5
Selecting a track{C D track …} e.g. track 5
Opening the CD and Multimedia menu{C D and multimedia}
CD and DVD
*{C D}
Displaying entertainment details in split screen
*{Entertainment details}
FunctionCommand
Displaying current playback{Current playback}
Accessing a music collection{Music collection}
Playing a music collection{Music collection on}
Page 288 of 312

Short commands of voice activation system
286
External devices
Tone control
Radio
FM
AM
Searching for music; opening the menu{Music search}
Selecting a genre{Select genre}
Selecting an artist{Select artist}
Selecting an album{Select album}
Selecting a track{Select track}
Selecting track directly
*{Track …}
Starting playback{Start play}
Playing back the most frequently played tracks{Top fifty}
FunctionCommand
FunctionCommand
Selecting external devices{External devices}
AUX front{AUX front}
FunctionCommand
Accessing tone control{Tone}
FunctionCommand
Selecting the radio{Radio}
Selecting FM stations{F M}
Selecting manual search{Manual}
Selecting the frequency range{Select frequency}
Selecting a station{Select station} e.g. W-PLJ
FunctionCommand
Selecting AM stations{A M}
Selecting manual search{Manual}
Page 289 of 312

Reference 287
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Satellite radio
Stored stations
Telephone
Navigation
General information
FunctionCommand
Selecting the satellite radio{Satellite radio}
Switching on the satellite radio{Satellite radio on}
Selecting a satellite radio channel{Select satellite radio} e.g. channel 2
FunctionCommand
Selecting stored stations{Presets}
Choosing a stored station{Select preset}
Selecting a stored station{Preset …} e.g. stored station 2
FunctionCommand
Opening the Telephone menu{Telephone}
Displaying the phone book{Phonebook}
Redialing{Redial}
Displaying accepted calls{Received calls}
Dialing a phone number{Dial number}
Displaying the list of messages{Messages}
Displaying Bluetooth devices{Bluetooth}
FunctionCommand
Navigation menu{Navigation}
Selecting destination entry{Enter address}
Entering an address{Enter address}
Selecting destination guidance{Guidance}
Starting destination guidance{Start guidance}
Ending destination guidance{Stop guidance}
Retrieving home address{Home address}
Selecting route criteria{Route preference}
Selecting route{Route information}
Switching on the voice instructions{Switch on voice instructions}
Page 290 of 312

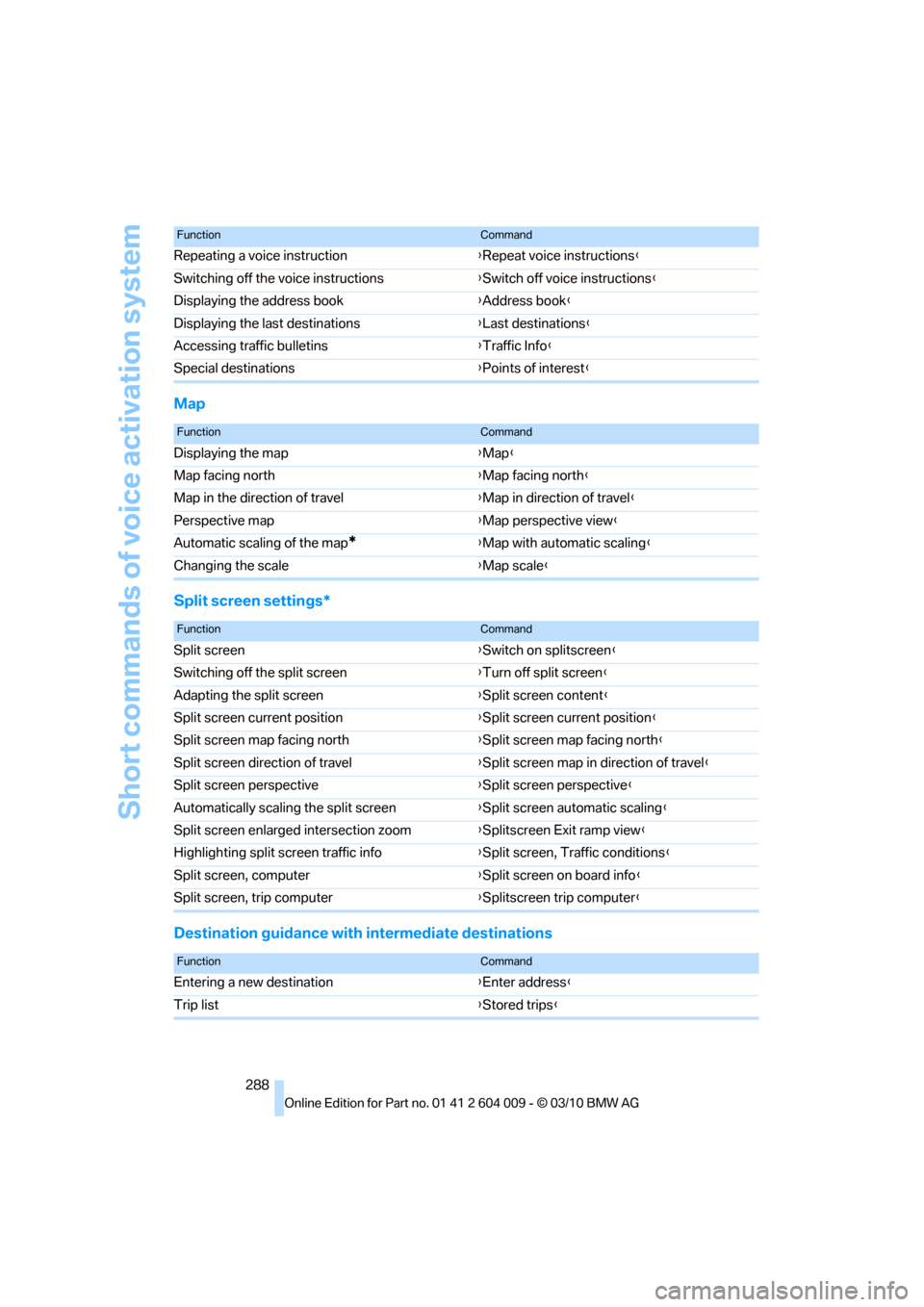

Short commands of voice activation system
288
Map
Split screen settings*
Destination guidance with intermediate destinations
Repeating a voice instruction{Repeat voice instructions}
Switching off the voice instructions{Switch off voice instructions}
Displaying the address book{Address book}
Displaying the last destinations{Last destinations}
Accessing traffic bulletins{Traffic Info}
Special destinations{Points of interest}
FunctionCommand
FunctionCommand
Displaying the map{Map}
Map facing north{Map facing north}
Map in the direction of travel{Map in direction of travel}
Perspective map{Map perspective view}
Automatic scaling of the map
*{Map with automatic scaling}
Changing the scale{Map scale}
FunctionCommand
Split screen{Switch on splitscreen}
Switching off the split screen{Turn off split screen}
Adapting the split screen{Split screen content}
Split screen current position{Split screen current position}
Split screen map facing north{Split screen map facing north}
Split screen direction of travel{Split screen map in direction of travel}
Split screen perspective{Split screen perspective}
Automatically scaling the split screen{Split screen automatic scaling}
Split screen enlarged intersection zoom{Splitscreen Exit ramp view}
Highlighting split screen traffic info{Split screen, Traffic conditions}
Split screen, computer{Split screen on board info}
Split screen, trip computer{Splitscreen trip computer}
FunctionCommand
Entering a new destination{Enter address}
Trip list{Stored trips}
