Seat, mirror and steering wheel memory
*
Calling up a stored setting
Do not call up a position from the
memory while the vehicle is mov-
ing. There is a risk of accident from
unexpected movement of the seat or
steering wheel.<
Convenience function:
1. Open the driver's door after unlock-
ing the vehicle or place the ignition
key in position 1
2. Briefly press memory button 1, 2
or 3, as desired.
Movement stops immediately when
one of the seat-adjustment or mem-
ory buttons is activated during the
adjustment process.
Security function:
1. With the driver's door closed and the
ignition key either removed or in
position 0 or 2
2. Maintain pressure on the desired
memory button 1, 2 or 3 until the
adjustment process is completed.
If you press the
M
EMORY button
accidentally: press the button a
second time – the indicator lamp goes
out.<
You can have your vehicle pro-
grammed to automatically dial in
your own individual adjustment settings
for the seat, mirrors and steering wheel
whenever you use your personal
remote control to unlock the vehicle.<
If you make use of this adjust-
ment, be sure that the footwell
behind the driver's seat is unobstructed
before unlocking the vehicle. If you fail
to do so, any persons or objects behind
the seat could be injured or damaged
by a rearward movement of the seat.<
Passenger-side exterior mirror
tilt function Automatic curb monitor
Activating:
1. Select the driver's mirror with the
mirror selection switch
2. When you engage reverse gear or
selector-lever position R, the exterior
mirror glass on the front passenger
side tilts downward slightly. This
allows the driver to see the area
immediately adjacent to the vehicle –
such as a curb – when parking, etc.
Deactivating:
Slide the mirror selection switch to the
passenger's side position.530us214

52n

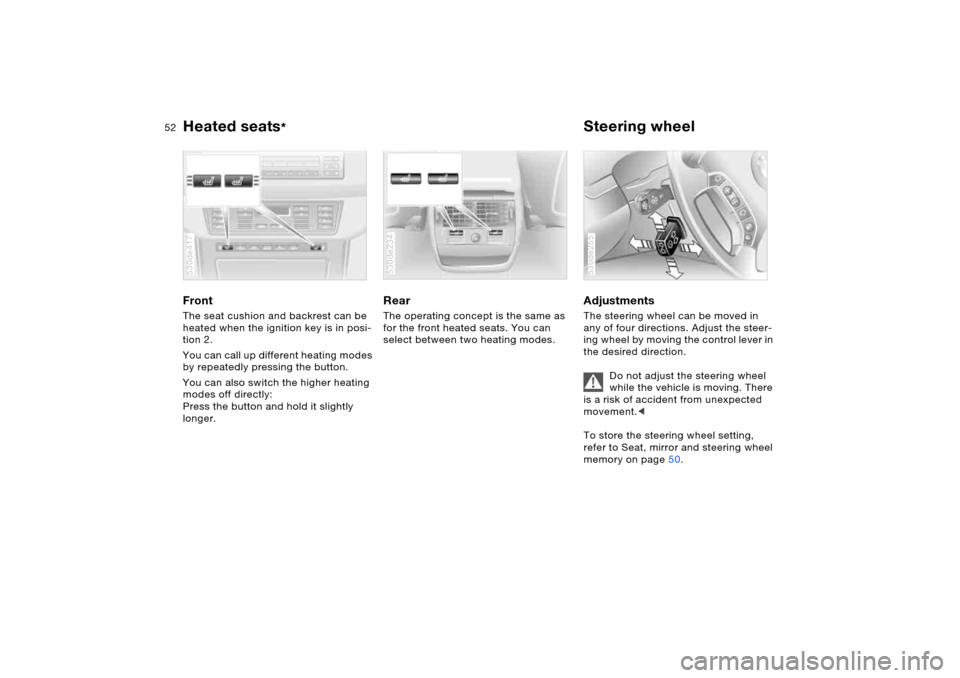

Heated seats
*
Steering wheel
Front The seat cushion and backrest can be
heated when the ignition key is in posi-
tion 2.
You can call up different heating modes
by repeatedly pressing the button.
You can also switch the higher heating
modes off directly:
Press the button and hold it slightly
longer.530de417
Rear The operating concept is the same as
for the front heated seats. You can
select between two heating modes.530de234
Adjustments The steering wheel can be moved in
any of four directions. Adjust the steer-
ing wheel by moving the control lever in
the desired direction.
Do not adjust the steering wheel
while the vehicle is moving. There
is a risk of accident from unexpected
movement.<
To store the steering wheel setting,
refer to Seat, mirror and steering wheel
memory on page50. 530de255

53n
OverviewControlsMaintenanceRepairsDataIndex

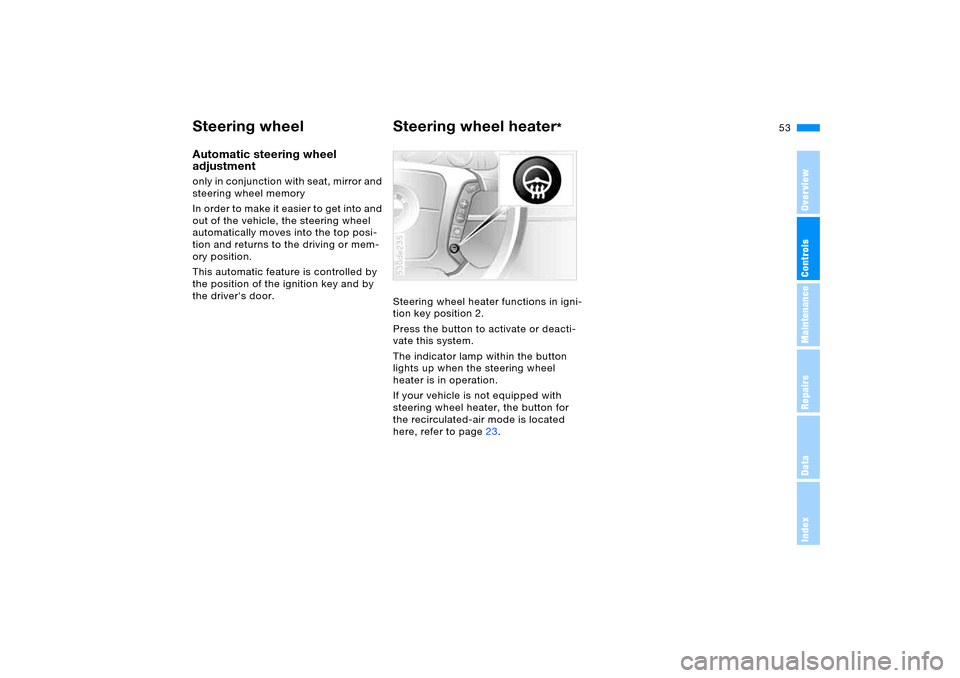

Steering wheel Steering wheel heater
*
Automatic steering wheel
adjustmentonly in conjunction with seat, mirror and
steering wheel memory
In or der to m a ke it e asie r t o get in to an d
out of the vehicle, the steering wheel
automatically moves into the top posi-
tion and returns to the driving or mem-
ory position.
This automatic feature is controlled by
the position of the ignition key and by
the driver's door.
Steering wheel heater functions in igni-
tion key position 2.
Press the button to activate or deacti-
vate this system.
The indicator lamp within the button
lights up when the steering wheel
heater is in operation.
If your vehicle is not equipped with
steering wheel heater, the button for
the recirculated-air mode is located
here, refer to page23.
530de235

54n

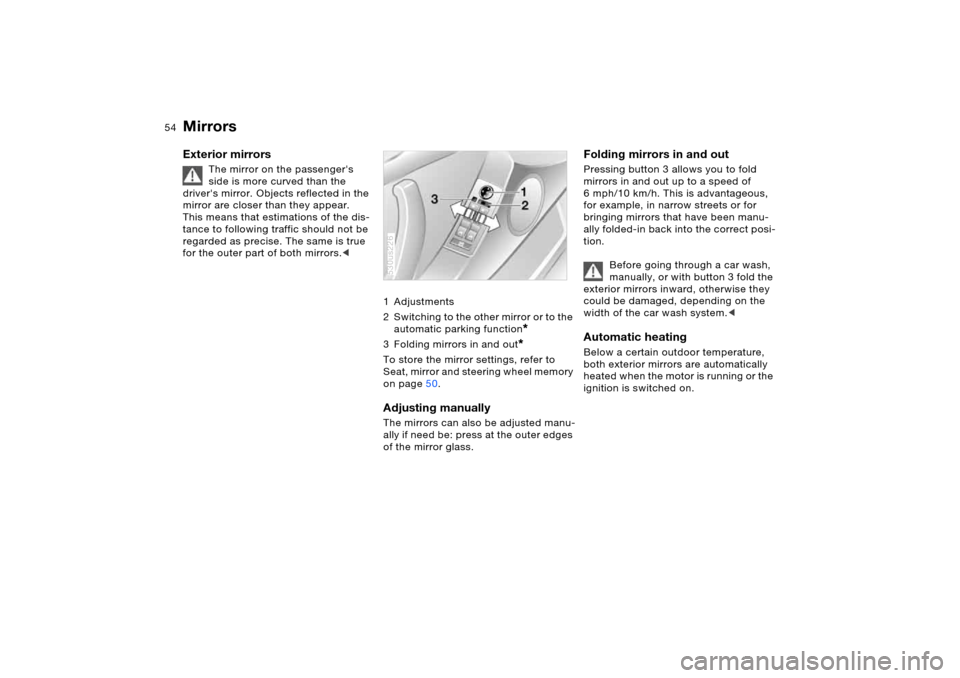

Mirrors Exterior mirrors
The mirror on the passenger's
side is more curved than the
driver's mirror. Objects reflected in the
mirror are closer than they appear.
This means that estimations of the dis-
tance to following traffic should not be
regarded as precise. The same is true
for the outer part of both mirrors.<
1Adjustments
2 Switching to the other mirror or to the
automatic parking function
*
3 Folding mirrors in and out
*
To store the mirror settings, refer to
Seat, mirror and steering wheel memory
on page50.Adjusting manuallyThe mirrors can also be adjusted manu-
ally if need be: press at the outer edges
of the mirror glass.530us226
Folding mirrors in and out Pressing button 3 allows you to fold
mirrors in and out up to a speed of
6 mph/10 km/h. This is advantageous,
for example, in narrow streets or for
bringing mirrors that have been manu-
ally folded-in back into the correct posi-
tion.
Before going through a car wash,
manually, or with button 3 fold the
exterior mirrors inward, otherwise they
could be damaged, depending on the
width of the car wash system. both exterior mirrors are automatically
heated when the motor is running or the
ignition is switched on.

55n
OverviewControlsMaintenanceRepairsDataIndex

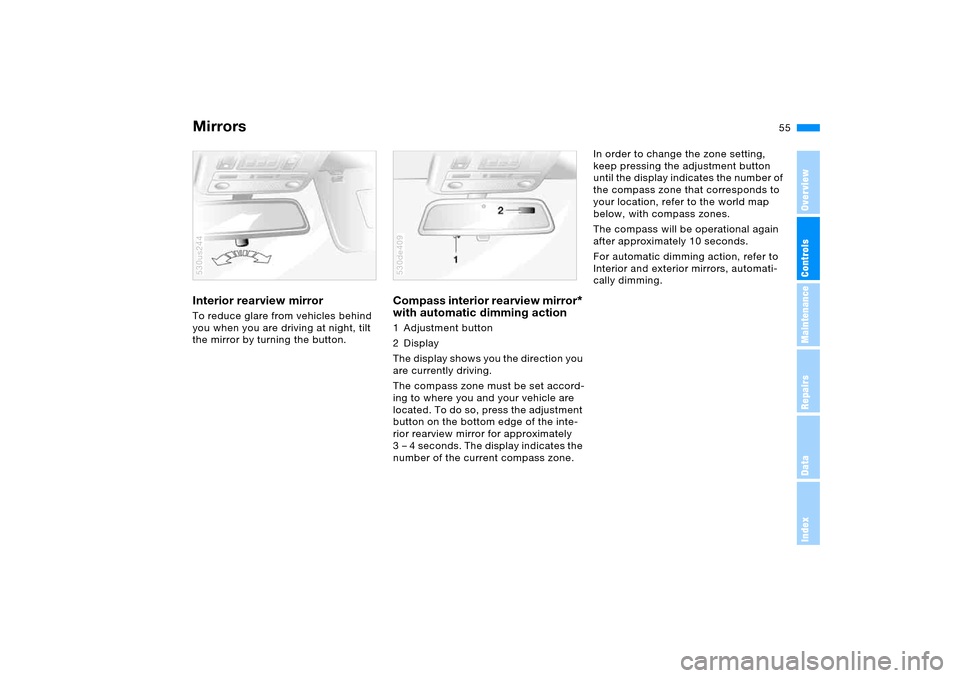

MirrorsInterior rearview mirror To reduce glare from vehicles behind
you when you are driving at night, tilt
the mirror by turning the button. 530us244
Compass interior rearview mirror
*
with automatic dimming action
1 Adjustment button
2Display
The display shows you the direction you
are currently driving.
The compass zone must be set accord-
ing to where you and your vehicle are
located. To do so, press the adjustment
button on the bottom edge of the inte-
rior rearview mirror for approximately
3 – 4 seconds. The display indicates the
number of the current compass zone.530de409

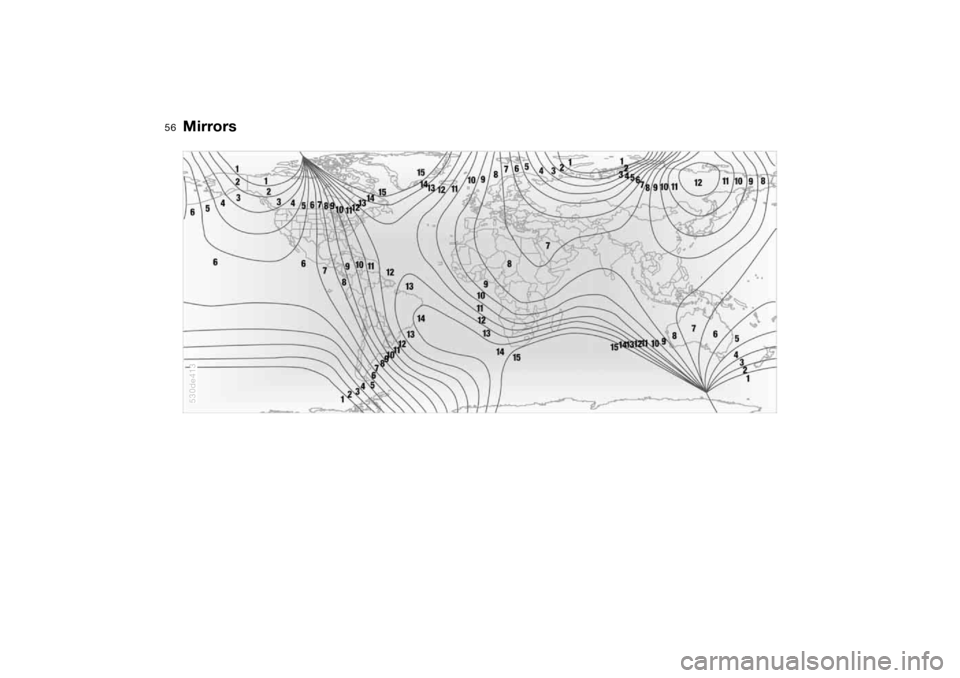

In order to change the zone setting,
keep pressing the adjustment button
until the display indicates the number of
the compass zone that corresponds to
your location, refer to the world map
below, with compass zones.
The compass will be operational again
after approximately 10 seconds.
For automatic dimming action, refer to
Interior and exterior mirrors, automati-
cally dimming.

56n
Mirrors
530de413

57n
OverviewControlsMaintenanceRepairsDataIndex

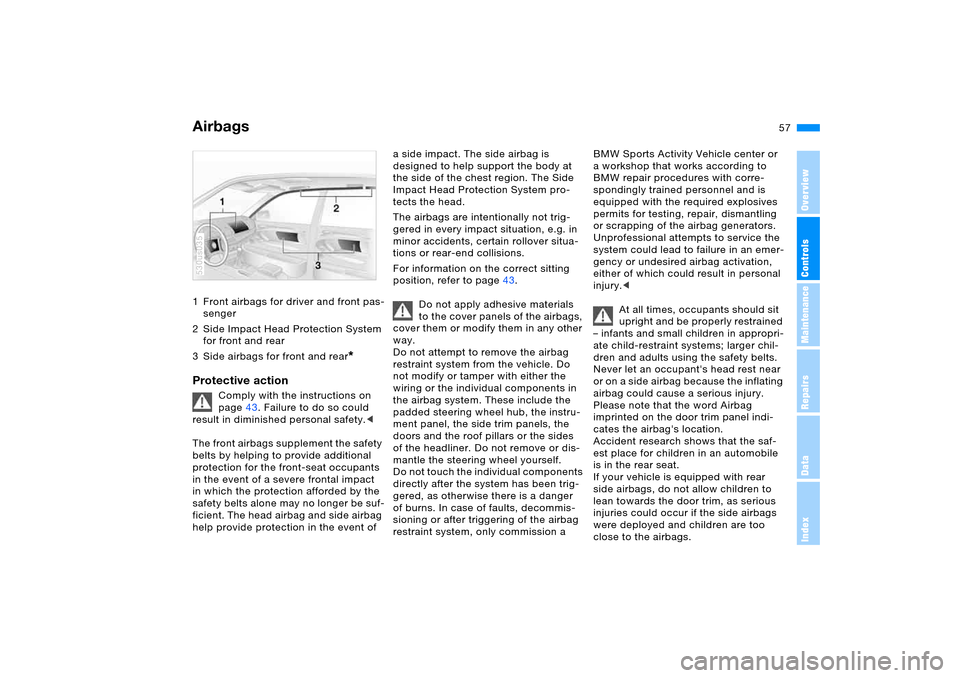

Airbags1 Front airbags for driver and front pas-
senger
2 Side Impact Head Protection System
for front and rear
3 Side airbags for front and rear
*
Protective action
Comply with the instructions on
page43. Failure to do so could
result in diminished personal safety.<
The front airbags supplement the safety
belts by helping to provide additional
protection for the front-seat occupants
in the event of a severe frontal impact
in which the protection afforded by the
safety belts alone may no longer be suf-
ficient. The head airbag and side airbag
help provide protection in the event of
530us035
a side impact. The side airbag is
designed to help support the body at
the side of the chest region. The Side
Impact Head Protection System pro-
tects the head.
The airbags are intentionally not trig-
gered in every impact situation, e.g. in
minor accidents, certain rollover situa-
tions or rear-end collisions.
For information on the correct sitting
position, refer to page43.
Do not apply adhesive materials
to the cover panels of the airbags,
cover them or modify them in any other
way.
Do not attempt to remove the airbag
restraint system from the vehicle. Do
not modify or tamper with either the
wiring or the individual components in
the airbag system. These include the
padded steering wheel hub, the instru-
ment panel, the side trim panels, the
doors and the roof pillars or the sides
of the headliner. Do not remove or dis-
mantle the steering wheel yourself.
Do not touch the individual components
directly after the system has been trig-
gered, as otherwise there is a danger
of burns. In case of faults, decommis-
sioning or after triggering of the airbag
restraint system, only commission a
BMW Sports Activity Vehicle center or
a workshop that works according to
BMW repair procedures with corre-
spondingly trained personnel and is
equipped with the required explosives
permits for testing, repair, dismantling
or scrapping of the airbag generators.
Unprofessional attempts to service the
system could lead to failure in an emer-
gency or undesired airbag activation,
either of which could result in personal
injury.<
At all times, occupants should sit
upright and be properly restrained
– infants and small children in appropri-
ate child-restraint systems; larger chil-
dren and adults using the safety belts.
Never let an occupant's head rest near
or on a side airbag because the inflating
airbag could cause a serious injury.
Please note that the word Airbag
imprinted on the door trim panel indi-
cates the airbag's location.
Accident research shows that the saf-
est place for children in an automobile
is in the rear seat.
If your vehicle is equipped with rear
side airbags, do not allow children to
lean towards the door trim, as serious
injuries could occur if the side airbags
were deployed and children are too
close to the airbags.

58n

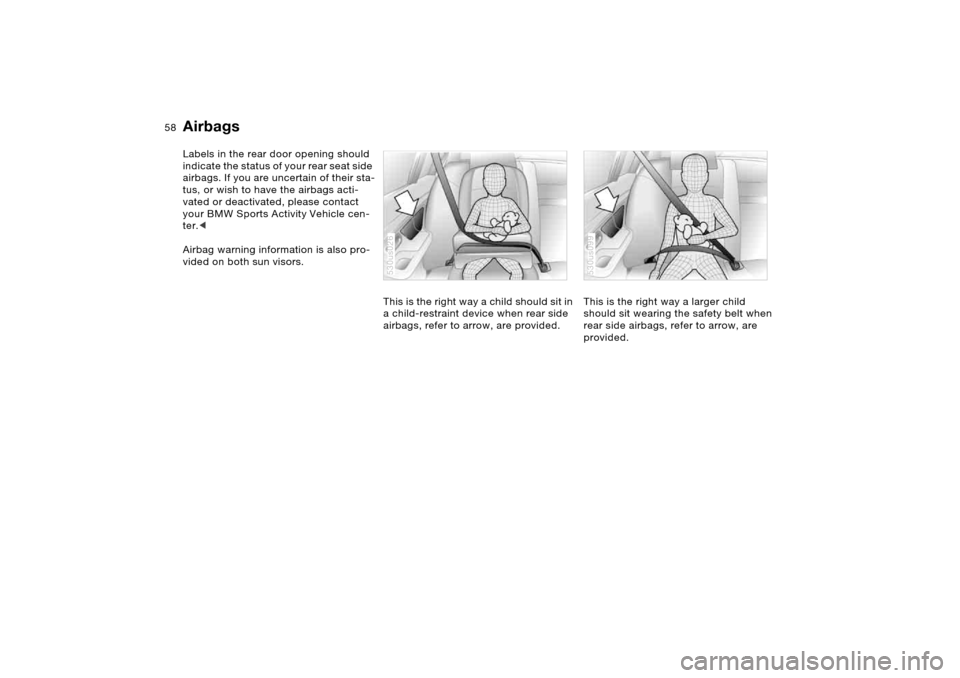

AirbagsLabels in the rear door opening should
indicate the status of your rear seat side
airbags. If you are uncertain of their sta-
tus, or wish to have the airbags acti-
vated or deactivated, please contact
your BMW Sports Activity Vehicle cen-
ter.<
Airbag warning information is also pro-
vided on both sun visors.
This is the right way a child should sit in
a child-restraint device when rear side
airbags, refer to arrow, are provided.
530us026
This is the right way a larger child
should sit wearing the safety belt when
rear side airbags, refer to arrow, are
provided. 530us099

59n
OverviewControlsMaintenanceRepairsDataIndex

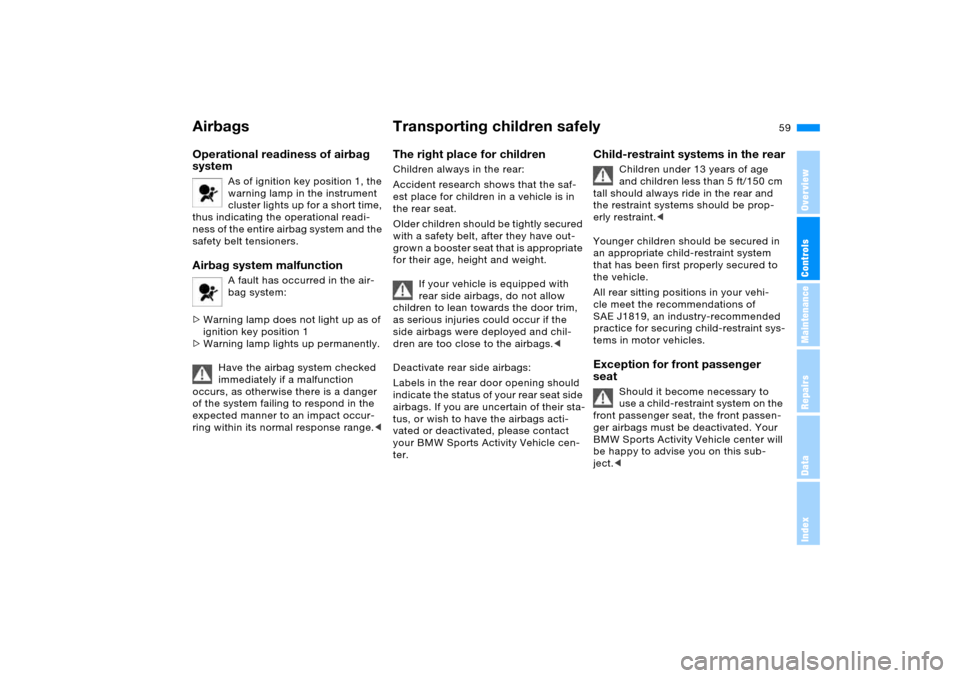

Airbags Transporting children safely Operational readiness of airbag
system
As of ignition key position 1, the
warning lamp in the instrument
cluster lights up for a short time,
thus indicating the operational readi-
ness of the entire airbag system and the
safety belt tensioners.
Airbag system malfunction
A fault has occurred in the air-
bag system:
>Warning lamp does not light up as of
ignition key position 1
>Warning lamp lights up permanently.
Have the airbag system checked
immediately if a malfunction
occurs, as otherwise there is a danger
of the system failing to respond in the
expected manner to an impact occur-
ring within its normal response range.<
The right place for children Children always in the rear:
Accident research shows that the saf-
est place for children in a vehicle is in
the rear seat.
Older children should be tightly secured
with a safety belt, after they have out-
grown a booster seat that is appropriate
for their age, height and weight.
If your vehicle is equipped with
rear side airbags, do not allow
children to lean towards the door trim,
as serious injuries could occur if the
side airbags were deployed and chil-
dren are too close to the airbags.<
Deactivate rear side airbags:
Labels in the rear door opening should
indicate the status of your rear seat side
airbags. If you are uncertain of their sta-
tus, or wish to have the airbags acti-
vated or deactivated, please contact
your BMW Sports Activity Vehicle cen-
ter.
Child-restraint systems in the rear
Children under 13 years of age
and children less than 5 ft/150 cm
tall should always ride in the rear and
the restraint systems should be prop-
erly restraint.<
Younger children should be secured in
an appropriate child-restraint system
that has been first properly secured to
the vehicle.
All rear sitting positions in your vehi-
cle meet the recommendations of
SAE J1819, an industry-recommended
practice for securing child-restraint sys-
tems in motor vehicles.
Exception for front passenger
seat
Should it become necessary to
use a child-restraint system on the
front passenger seat, the front passen-
ger airbags must be deactivated. Your
BMW Sports Activity Vehicle center will
be happy to advise you on this sub-
ject.<

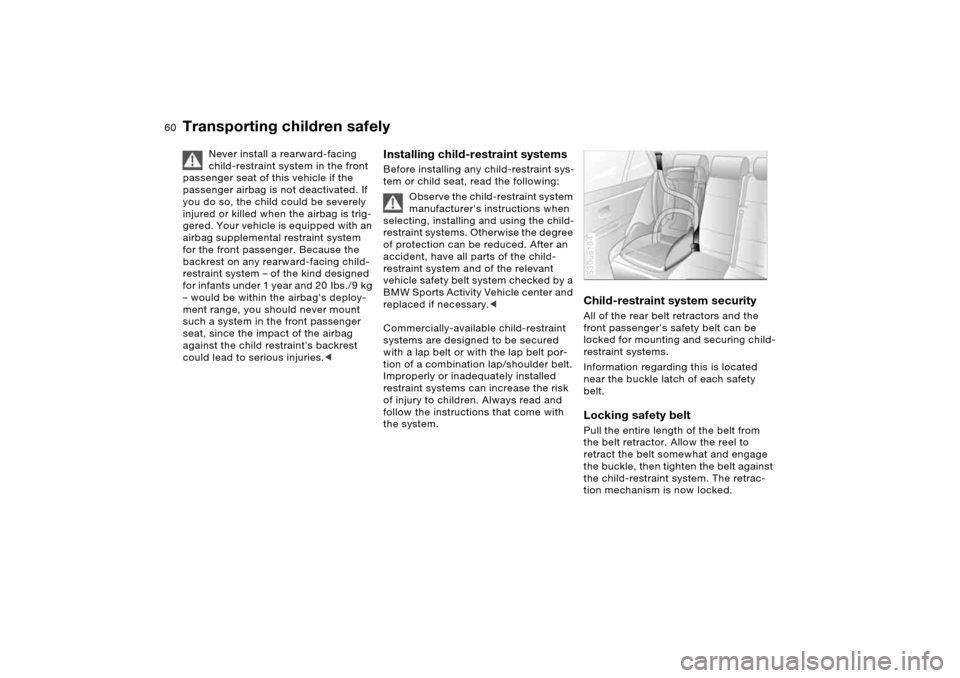

60n
Transporting children safely
Never install a rearward-facing
child-restraint system in the front
passenger seat of this vehicle if the
passenger airbag is not deactivated. If
you do so, the child could be severely
injured or killed when the airbag is trig-
gered. Your vehicle is equipped with an
airbag supplemental restraint system
for the front passenger. Because the
backrest on any rearward-facing child-
restraint system – of the kind designed
for infants under 1 year and 20 Ibs./9 kg
– would be within the airbag's deploy-
ment range, you should never mount
such a system in the front passenger
seat, since the impact of the airbag
against the child restraint's backrest
could lead to serious injuries.<
Installing child-restraint systemsBefore installing any child-restraint sys-
tem or child seat, read the following:
Observe the child-restraint system
manufacturer's instructions when
selecting, installing and using the child-
restraint systems. Otherwise the degree
of protection can be reduced. After an
accident, have all parts of the child-
restraint system and of the relevant
vehicle safety belt system checked by a
BMW Sports Activity Vehicle center and
replaced if necessary.<
Commercially-available child-restraint
systems are designed to be secured
with a lap belt or with the lap belt por-
tion of a combination lap/shoulder belt.
Improperly or inadequately installed
restraint systems can increase the risk
of injury to children. Always read and
follow the instructions that come with
the system.
Child-restraint system securityAll of the rear belt retractors and the
front passenger's safety belt can be
locked for mounting and securing child-
restraint systems.
Information regarding this is located
near the buckle latch of each safety
belt. Locking safety beltPull the entire length of the belt from
the belt retractor. Allow the reel to
retract the belt somewhat and engage
the buckle, then tighten the belt against
the child-restraint system. The retrac-
tion mechanism is now locked.530us104
