BMW Z3M ROADSTER 2000 E36 Electrical Troubleshooting Manual
Manufacturer: BMW, Model Year: 2000, Model line: Z3M ROADSTER, Model: BMW Z3M ROADSTER 2000 E36Pages: 382, PDF Size: 4.47 MB
Page 281 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
F97 . . . FUSIBLE LINK . . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
G1 . . .
BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
01-1
G5 . . . DRIVER’S AIR BAG GAS GENERATOR . . behind steering wheel
G6 . . .
PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . . . .
behind glove box above
G12 . .
DRIVER’S SIDE PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . . . . .
in LH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-2
G13 . .
PASSENGER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . . . . .
in RH front seat belt buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-2
G14 . . LEFT SIDE AIR BAG GAS GENERATOR . LH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-2
G15 . . RIGHT SIDE AIR BAG GAS GENERATOR RH front door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-2
G19 . . BATTERY SAFETY TERMINAL . . . . . . . . . . RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-3
G6400
B+ JUNCTION POINT E–BOX . . . . . . . . . . .
rear RH side of engine compartment in E–Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48-3
G6430 B+ JUMP START JUNCTION POINT . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-2
G6509 GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-3
G7512 B+ JUNCTION POINT . . . . . . . . . . . . . . . . . . below LH side of dash
H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09-1
H2 . . .
LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . . . .
under LH front bumper
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . . . . RH front of wheel well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
H4 . . . RIGHT FRONT TURN LIGHT . . . . . . . . . . . . front of vehicle
H7 . . . LEFT FRONT TURN LIGHT . . . . . . . . . . . . . front of vehicle
H8 . . . RIGHT FRONT AUXILIARY TURN LIGHT . front of vehicle
H9 . . .
LEFT FRONT AUXILIARY TURN LIGHT . .
front of vehicle

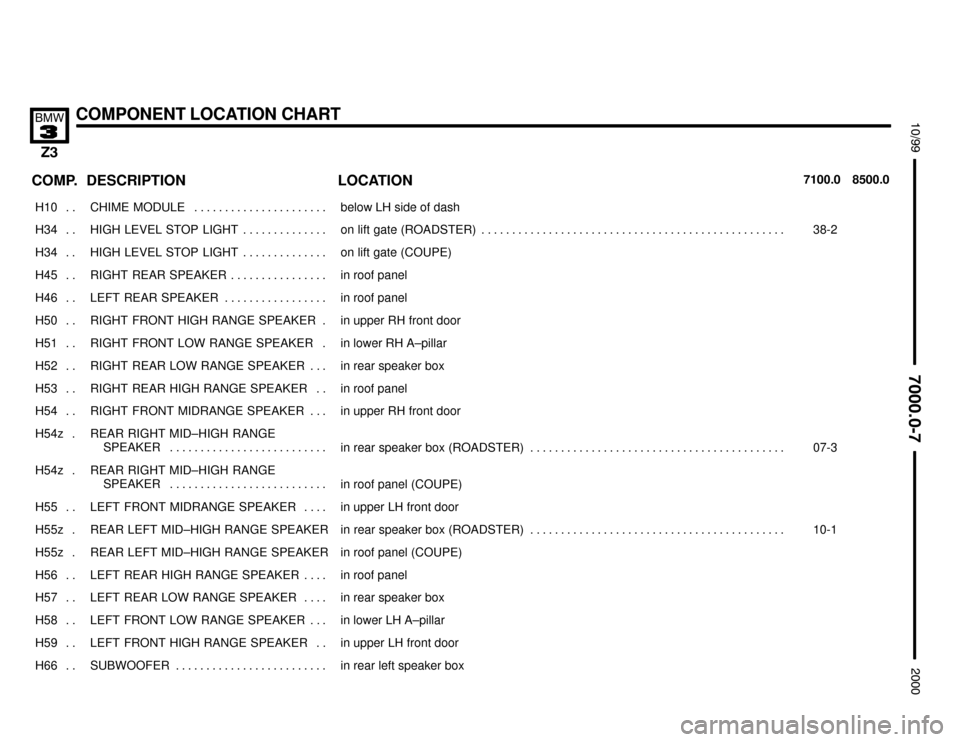

Page 282 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
H10 . . CHIME MODULE . . . . . . . . . . . . . . . . . . . . . . below LH side of dash
H34 . .
HIGH LEVEL STOP LIGHT . . . . . . . . . . . . . .
on lift gate (ROADSTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-2
H34 . . HIGH LEVEL STOP LIGHT . . . . . . . . . . . . . . on lift gate (COUPE)
H45 . . RIGHT REAR SPEAKER . . . . . . . . . . . . . . . . in roof panel
H46 . . LEFT REAR SPEAKER . . . . . . . . . . . . . . . . . in roof panel
H50 . . RIGHT FRONT HIGH RANGE SPEAKER . in upper RH front door
H51 . .
RIGHT FRONT LOW RANGE SPEAKER .
in lower RH A–pillar
H52 . . RIGHT REAR LOW RANGE SPEAKER . . . in rear speaker box
H53 . . RIGHT REAR HIGH RANGE SPEAKER . . in roof panel
H54 . . RIGHT FRONT MIDRANGE SPEAKER . . . in upper RH front door
H54z .
REAR RIGHT MID–HIGH RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box (ROADSTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
07-3
H54z .
REAR RIGHT MID–HIGH RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . . . .
in roof panel (COUPE)
H55 . . LEFT FRONT MIDRANGE SPEAKER . . . . in upper LH front door
H55z .
REAR LEFT MID–HIGH RANGE SPEAKER
in rear speaker box (ROADSTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-1
H55z . REAR LEFT MID–HIGH RANGE SPEAKER in roof panel (COUPE)
H56 . . LEFT REAR HIGH RANGE SPEAKER . . . . in roof panel
H57 . . LEFT REAR LOW RANGE SPEAKER . . . . in rear speaker box
H58 . .
LEFT FRONT LOW RANGE SPEAKER . . .
in lower LH A–pillar
H59 . .
LEFT FRONT HIGH RANGE SPEAKER . .
in upper LH front door
H66 . . SUBWOOFER . . . . . . . . . . . . . . . . . . . . . . . . . in rear left speaker box
Page 283 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
H70 . . LEFT REAR MID–HIGH RANGE SPEAKER in rear speaker box
H71 . .
RIGHT REAR MID–HIGH RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box
H500 .
REAR WOOFER . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box (ROADSTER)
H500 .
REAR WOOFER . . . . . . . . . . . . . . . . . . . . . . .
in rear speaker box (COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40-3
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat area
K2 . . . . HORN RELAY . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K9 . . . .
UNLOADER RELAY, TERMINAL 15 . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-3
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K19 . . COMPRESSOR CONTROL RELAY . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K22 . . HIGH SPEED RELAY . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K25 . .
RIGHT PARK LIGHT/LICENSE PLATE
LIGHT RELAY . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
08-2
K26 . .
LEFT PARK LIGHT RELAY . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
08-2
K33a . AIR CONDITIONING RELAY, MOTRONIC . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-2
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . . . . footwell, driver’s side (USA AND CANADA LATE PRODUCTION) . . . . . . . . . . . . . . 19-1
K46z . DAY LIGHT RELAY MODULE . . . . . . . . . . . . footwell, driver’s side (CANADA EARLY PRODUCTION)
K47 . .
FRONT FOG LIGHT RELAY . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-2
K48 . .
LOW BEAM LIGHT RELAY . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
09-2
Page 284 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
K70 . .
CENTRAL LOCKING LUGGAGE
COMPARTMENT LID MOTOR RELAY
(ZV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
08-2
K94 . . ENGINE CONTROL RELAY (ABS/ASC) . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K95 . . VALVE RELAY (ABS/ASC) . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 09-3
K910 .
PASSENGER’S SEAT TILT ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-1
K911 . .
PASSENGER’S SEAT LENGTH ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-1
K920 .
DRIVER’S SEAT TILT ADJUST CUT–OFF
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
underside of LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
K921 .
DRIVER’S SEAT LENGTH ADJUST
CUT–OFF RELAY . . . . . . . . . . . . . . . . . . . .
underside of LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
K6300 ENGINE CONTROL MODULE RELAY . . . . rear RH side of engine compartment in E–Box (M VERSIONS) . . . . . . . . . . . . . . . . . 00-1
K6300
ENGINE CONTROL MODULE RELAY . . . .
rear RH side of engine compartment in E–Box (Z3 VERSIONS) . . . . . . . . . . . . . . . .
47-3
K6304 SECONDARY AIR PUMP RELAY . . . . . . . . rear RH side of engine compartment in E–Box (M VERSIONS) . . . . . . . . . . . . . . . . . 00-1
K6304 SECONDARY AIR PUMP RELAY . . . . . . . . rear RH side of engine compartment in E–Box (Z3 VERSIONS) . . . . . . . . . . . . . . . . 47-3
K6326 UNLOADER RELAY, TERMINAL 15 . . . . . . rear RH side of engine compartment in E–Box (M VERSIONS) . . . . . . . . . . . . . . . . . 00-1
K6326 UNLOADER RELAY, TERMINAL 15 . . . . . . rear RH side of engine compartment in E–Box (Z3 VERSIONS) . . . . . . . . . . . . . . . . 47-3
K6301w
FUEL PUMP RELAY . . . . . . . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
K6394 COMPRESSOR RELAY . . . . . . . . . . . . . . . . . TIRE INFLATION SYSTEM
K10485 BRAKE FLUID LEVEL RELAY . . . . . . . . . . . below RH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-2
K18363 CONVERTIBLE TOP RELAY I (CLOSE) . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
K18364
CONVERTIBLE TOP RELAY II (OPEN) . . .
in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25-3
Page 285 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
L1 . . . . EWS TOROIDAL COIL . . . . . . . . . . . . . . . . . at ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-3
M2 . . .
FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . .
in fuel tank
M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . . . . rear of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-3
M4 . . . WASHER PUMP . . . . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment on washer fluid reservoir
M7 . . . HEADLIGHT/FOG LIGHT WASHER PUMP front RH side of engine compartment on washer fluid reservoir
M9 . . . AUXILIARY FAN MOTOR . . . . . . . . . . . . . . . behind front grille
M12 . .
DRIVER’S DOOR LOCK MOTOR . . . . . . . .
driver’s door
M13 . . PASSENGER’S DOOR LOCK MOTOR . . . passenger’s door
M16 . . GAS FILLER LOCK MOTOR . . . . . . . . . . . . RH rear wheel well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-1
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment behind trim panel (ROADSTER)
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in lift gate (M COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40-2
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in lift gate (Z3 COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37-2
M21 . . DRIVER’S WINDOW MOTOR . . . . . . . . . . . in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-2
M23 . . PASSENGER’S WINDOW MOTOR . . . . . . . in passenger’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-3
M24y .
TILT SUNROOF MOTOR . . . . . . . . . . . . . . .
in roof panel
M25 . .
CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-3
M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . . . . rear of engine compartment
M51 . . DRIVER’S SEAT MOVEMENT MOTOR . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1
M51 . . DRIVER’S SEAT MOVEMENT MOTOR . . . under LH front seat (WITH SPORT SEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
Page 286 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
M52 . . DRIVER’S SEAT HEIGHT MOTOR . . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1
M52 . .
DRIVER’S SEAT HEIGHT MOTOR . . . . . . .
under LH front seat (WITH SPORT SEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-3
M59 . . PASSENGER’S SEAT HEIGHT MOTOR . . under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1
M60 . .
PASSENGER’S SEAT MOVEMENT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
under RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24-1
M93 . .
AUXILIARY THROTTLE POSITION
MOTOR (ADS) . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-1
M101 . CONVERTIBLE TOP MOTOR . . . . . . . . . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
M111 . FRESH AIR RECIRCULATION MOTOR . . . RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2
M118 . PRECHARGE PUMP . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48-1
M805 .
ELECTRICAL COMPRESSOR . . . . . . . . . . .
TIRE INFLATION SYSTEM
M6506 E–BOX FAN . . . . . . . . . . . . . . . . . . . . . . . . . . . in E–Box
M6510 STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-2
N5 . . . ANALOG CLOCK . . . . . . . . . . . . . . . . . . . . . . center console
N8 . . . ANTENNA AMPLIFIER AM/FM . . . . . . . . . . in LH side of luggage compartment behind trim panel (ROADSTER)
N8 . . .
ANTENNA AMPLIFIER AM/FM . . . . . . . . . .
in roof panel (COUPE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37-3
N9 . . . RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . center console
N12w .
ANTI–THEFT CONTROL MODULE
(ALPINE) . . . . . . . . . . . . . . . . . . . . . . . . . . .
behind glove box
N17 . . CRASH CONTROL MODULE . . . . . . . . . . . . footwell, driver’s side (M VERSIONS AND Z3 VERSIONS LATE PRODUCTION) . 19-1
N17 . . CRASH CONTROL MODULE . . . . . . . . . . . . footwell, passenger’s side (Z3 VERSIONS EARLY PRODUCTION) . . . . . . . . . . . . . 50-2
N22 . . CD CHANGER . . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment
N44 . .
SUBWOOFER AMPLIFIER MODULE . . . . .
in LH forward side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41-3
Page 287 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
P90 . . FRONT POWER DISTRIBUTION BOX . . . rear LH side of engine compartment
P95 . .
AUXILIARY FUSE BOX . . . . . . . . . . . . . . . . .
below LH side of dash
P97 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-1
P98 . . FUSE HOLDER IN E–BOX . . . . . . . . . . . . . . rear RH side of engine compartment in E–Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48-2
P99 . . FUSE HOLDER . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-3
P900 . AUXILIARY FUSE BOX . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-2
P901 .
AUXILIARY FUSE BOX . . . . . . . . . . . . . . . . .
in RH side of luggage compartment
R11 . . . BLOWER RESISTORS . . . . . . . . . . . . . . . . . rear of engine compartment behind firewall
R31 . .
AUXILIARY THROTTLE POSITION
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33-3
R33 . . STEERING ANGLE SENSOR . . . . . . . . . . . on steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49-3
R6252 THROTTLE POSITION SENSOR . . . . . . . . front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-3
R6385
THROTTLE POSITION SENSOR/CRUISE
CONTROL ACTUATOR . . . . . . . . . . . . . . .
top LH side of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46-1
R8554 RESISTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . on cylinder head
S2 . . . .
IGNITION SWITCH . . . . . . . . . . . . . . . . . . . . .
LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-3
S3 . . . .
AUTOMATIC TRANSMISSION RANGE
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22-1
S4 . . . . HORN SWITCH . . . . . . . . . . . . . . . . . . . . . . . . on steering wheel
S5 . . . . WIPER/WASHER SWITCH . . . . . . . . . . . . . . LH side of dash RH side of steering column above
S6 . . . . ASC SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . center console
S6y . . . DSC SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . center console
S7 . . . .
COMBINATION SWITCH . . . . . . . . . . . . . . . .
LH side of dash LH side of steering column above
Page 288 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
S8 . . . . LIGHT SWITCH . . . . . . . . . . . . . . . . . . . . . . . . LH side of dash
S10 . .
FOG LIGHT SWITCH . . . . . . . . . . . . . . . . . . .
LH side of dash
S13 . . PASSENGER’S DOOR JAMB SWITCH . . . RH B–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-1
S14 . . DRIVER’S DOOR JAMB SWITCH . . . . . . . . LH B–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-1
S17 . . MIRROR CONTROL SWITCH . . . . . . . . . . . in upper LH front door
S18 . . HAZARD SWITCH . . . . . . . . . . . . . . . . . . . . . center console bottom
S20w .
RADIO ANTI–THEFT SWITCH . . . . . . . . . .
center console (radio and console removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-1
S21w . ENGINE HOOD SWITCH . . . . . . . . . . . . . . . near LH headlight assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-1
S28 . . CRUISE CONTROL SWITCH . . . . . . . . . . . . LH side of dash RH side of steering column above
S30 . . BRAKE LIGHT SWITCH . . . . . . . . . . . . . . . . LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
S31 . . PARK BRAKE SWITCH . . . . . . . . . . . . . . . . . center console on rear of park brake lever
S32 . .
CLUTCH SWITCH . . . . . . . . . . . . . . . . . . . . .
LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20-1
S36 . . TEMPERATURE SWITCH . . . . . . . . . . . . . . . front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-1
S38y . TILT SUNROOF SWITCH . . . . . . . . . . . . . . . in roof panel
S47 . . DRIVER’S DOOR LOCK SWITCH . . . . . . . . in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-1
S49 . .
PASSENGER’S DOOR LOCK SWITCH . . .
in passenger’s door
S51 . .
DRIVER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LH front seat
S53 . . DRIVER’S SEAT, SEAT HEATER SWITCH center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-1
S54 . .
PASSENGER’S SEAT, SEAT HEATER
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23-1
S56 . .
PASSENGER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RH front seat
Page 289 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
S58 . . DRIVER’S SEAT BELT SWITCH . . . . . . . . . in LH front seat belt buckle
S59 . .
PASSENGER’S SEAT BELT SWITCH . . . .
in RH front seat belt buckle
S75 . . BLOWER SWITCH . . . . . . . . . . . . . . . . . . . . . center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-3
S76 . . REAR WINDOW DEFOGGER SWITCH . . . center console
S117 . .
LUGGAGE COMPARTMENT LID LOCKING
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .
in lift gate
S126y DRIVER’S POWER WINDOW SWITCH . . . center console near gearshift lever
S127y
PASSENGER’S POWER WINDOW
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console near gearshift lever
S143 . CONVERTIBLE TOP ACTUATING SWITCH center console
S164 .
CONVERTIBLE TOP END–POSITION
MICRO SWITCH . . . . . . . . . . . . . . . . . . . . .
at convertible top linkage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17-3
S198 .
JET HEATER THERMOSWITCH . . . . . . . . .
on front RH wheel well
S220 . AIR CONDITIONING/RECIRCULATING
SWITCH ASSEMBLY . . . . . . . . . . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-3
S221 .
EVAPORATOR CONTROLLER . . . . . . . . . .
RH side of LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-2
S232 . COMPRESSOR MAIN SWITCH . . . . . . . . . . TIRE INFLATION SYSTEM
S235 . STARTER IMMOBILIZATION SWITCH . . . . LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
S408 . INTERIOR LIGHT SWITCH . . . . . . . . . . . . . near interior rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-2
S531 .
TEMPERATURE WHEEL SWITCH . . . . . . .
center of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21-3
S826 .
LUGGAGE COMPARTMENT LIGHT
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .
underside of luggage compartment lid
S910 . DRIVER’S SEAT LIMIT SWITCH . . . . . . . . . in driver’s seatback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-3
S911 . . PASSENGER’S SEAT LIMIT SWITCH . . . . in passenger’s seatback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-3
Page 290 of 382
COMPONENT LOCATION CHART
COMP.8500.0 7100.0LOCATION DESCRIPTION
S8503 PROGRAM SWITCH . . . . . . . . . . . . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-1
S8507
KICK–DOWN SWITCH . . . . . . . . . . . . . . . . .
behind gas pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-3
S8511 REVERSING LIGHT SWITCH . . . . . . . . . . . LH side of transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2
T6151 CYL. 1 IGNITION COIL . . . . . . . . . . . . . . . . . RH side of engine compartment
T6152 CYL. 2 IGNITION COIL . . . . . . . . . . . . . . . . . RH side of engine compartment
T6153 CYL. 3 IGNITION COIL . . . . . . . . . . . . . . . . . RH side of engine compartment
T6154
CYL. 4 IGNITION COIL . . . . . . . . . . . . . . . . .
RH side of engine compartment
T6155 CYL. 5 IGNITION COIL . . . . . . . . . . . . . . . . . RH side of engine compartment
T6156 CYL. 6 IGNITION COIL . . . . . . . . . . . . . . . . . RH side of engine compartment
V9 . . . . UNCOUPLING DIODE (LIGHTS) . . . . . . . . . rear LH side of engine compartment in Power Distribution Box
V10 . . UNCOUPLING DIODE (LIGHTS) . . . . . . . . . rear LH side of engine compartment in Power Distribution Box
X0 . . . .
B+ JUNCTION POINT . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
02-1
X2 . . . . BATTERY B+ START POINT . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box (M VERSIONS)
X2 . . . . BATTERY B+ START POINT . . . . . . . . . . . . in RH side of luggage compartment (Z3 VERSIONS)
X4 . . . . GROUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LH side of engine compartment
X8 . . . .
CABLE SOCKET B+ . . . . . . . . . . . . . . . . . . . .
in RH side of luggage compartment
X9 . . . . CABLE SOCKET B+ . . . . . . . . . . . . . . . . . . . . below LH side of dash
X16 . . (26 PINS, NATURAL) . . . . . . . . . . . . . . . . . . . LH side of dash rear side of instrument cluster, A2w . . . . . . . . . . . . . . . . . . . . . . . . . . 20-2 00-3
X17 . . (26 PINS, BLUE) . . . . . . . . . . . . . . . . . . . . . . . LH side of dash rear side of instrument cluster, A2w . . . . . . . . . . . . . . . . . . . . . . . . . . 20-2 00-3
X20 . . (25 PINS, BLACK) . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08-1 04-4
X22 . .
(26 PINS, BLUE) . . . . . . . . . . . . . . . . . . . . . . .
behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-2
00-3
X32 . . (12 PINS, NATURAL) . . . . . . . . . . . . . . . . . . . on steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-2 02-4
