BMW Z4 COUPE 2008 E86 Service and warranty information

M
oreabo utBMW
The Ul timat e
Drivin gMach in e
®b mw usa.com
1
800\b\b44B MW
©20 0\f BMW ofNorth Americ a,LLC
Woodc liff Lake ,New Jerse y0\f6\f\f
The BMW name,mode ln am esand logo areregister edtradem arks.
Printedin U.S .A .08 /0\f
SD9 2\b 45
*08Z4 SW*
08Z4S W
The Ult imate
Dr ivin gM achin e®
Serviceand
W arranty
Informati on
2008
Z
4 Road ster \b.0 i,
\b .0 si
Z
4 \foup e \b.0 si
91951 08Z4SWCover.qxp:91951cov 8/30/07 12:20 PM Page 1

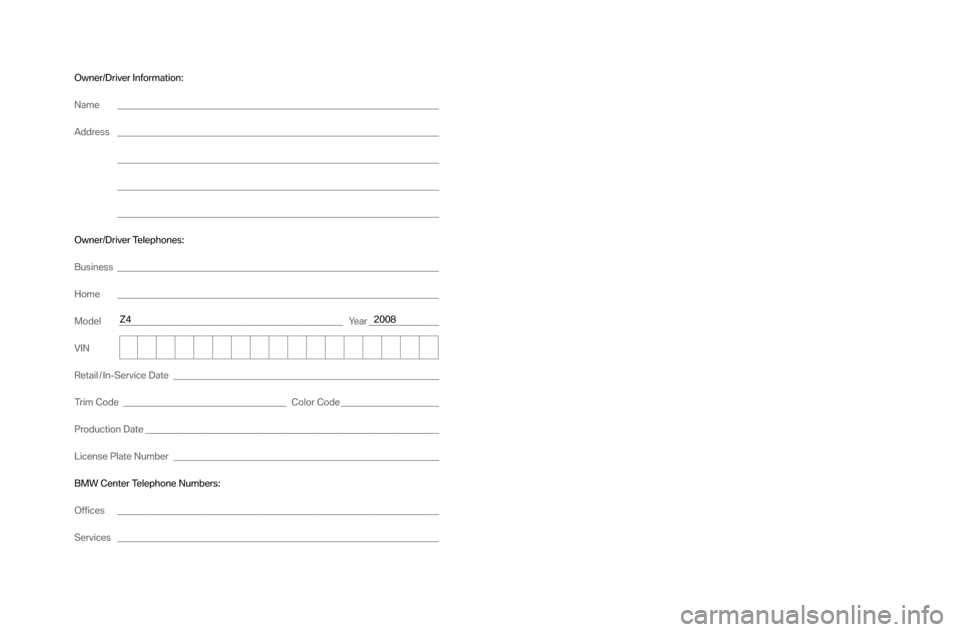

Owner/Driver Informat ion:
Name _______________________________________ ______________________________
Address _______________________________________ ______________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
Owner/Driver Telephones:
Bu sin ess _______________________________________ ______________________________
Home _______________________________________ ______________________________
Model ________________________________________________ Year _______________
VIN
Retai l/In Serv iceDate___________________________ ______________________________
TrimCode ___________________________________ ColorCode_____________________
Prod uct ion Date _________________________________ ______________________________
LicensePlate Numb er___________________________ ______________________________
BMWCe nter Teleph oneNum bers :
Offices _______________________________________ ______________________________
Service s_______________________________________ ______________________________
Z4 2008
91951 08Z4SWCover.qxp:91951cov 8/30/07 12:20 PM Page 2

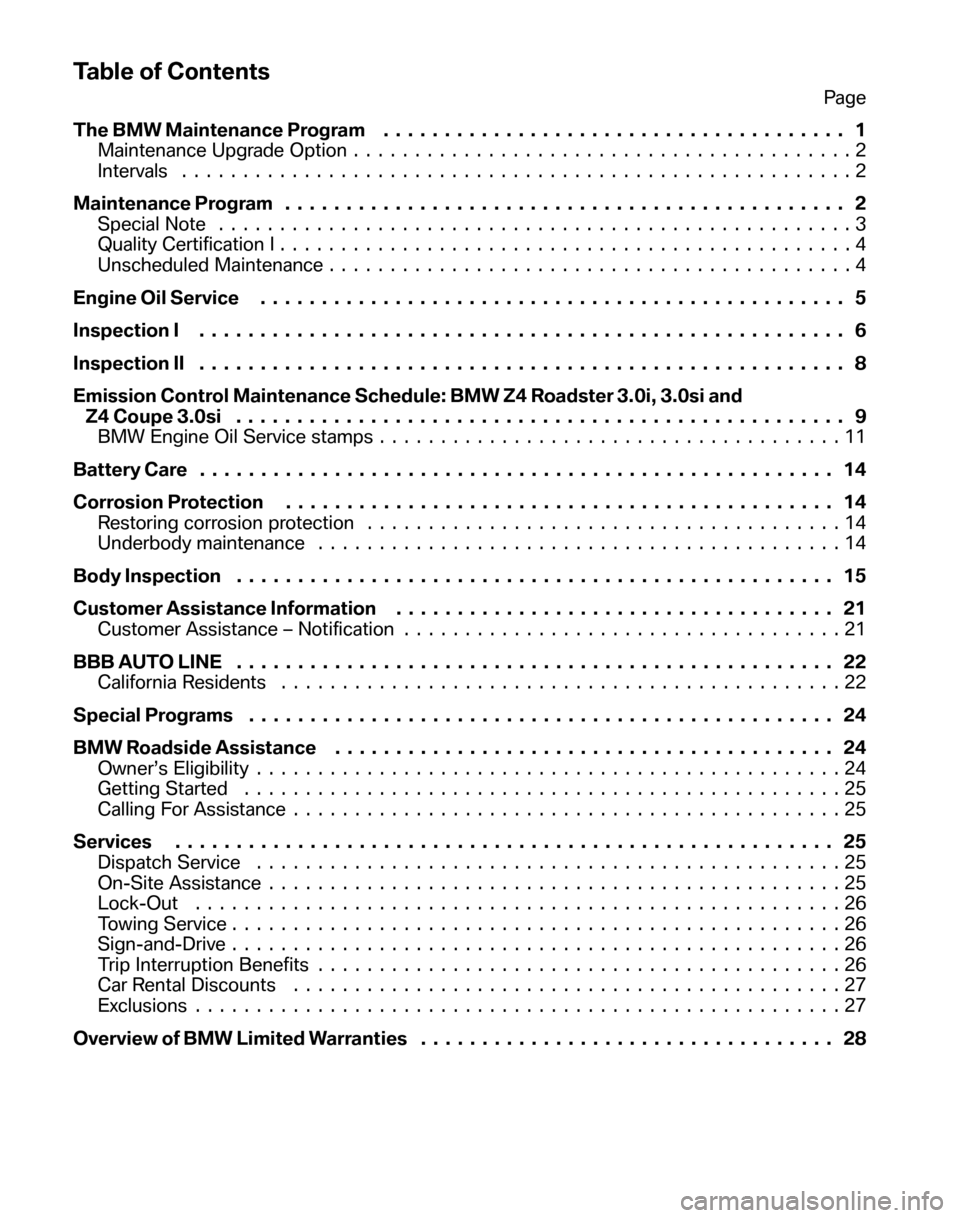

Table of Contents
Page
The BMW Maintenance Program ...................................... 1
Maintenance Upgrade Option .........................................2
Intervals .......................................................2
Maintenance Program . . ............................................ 2

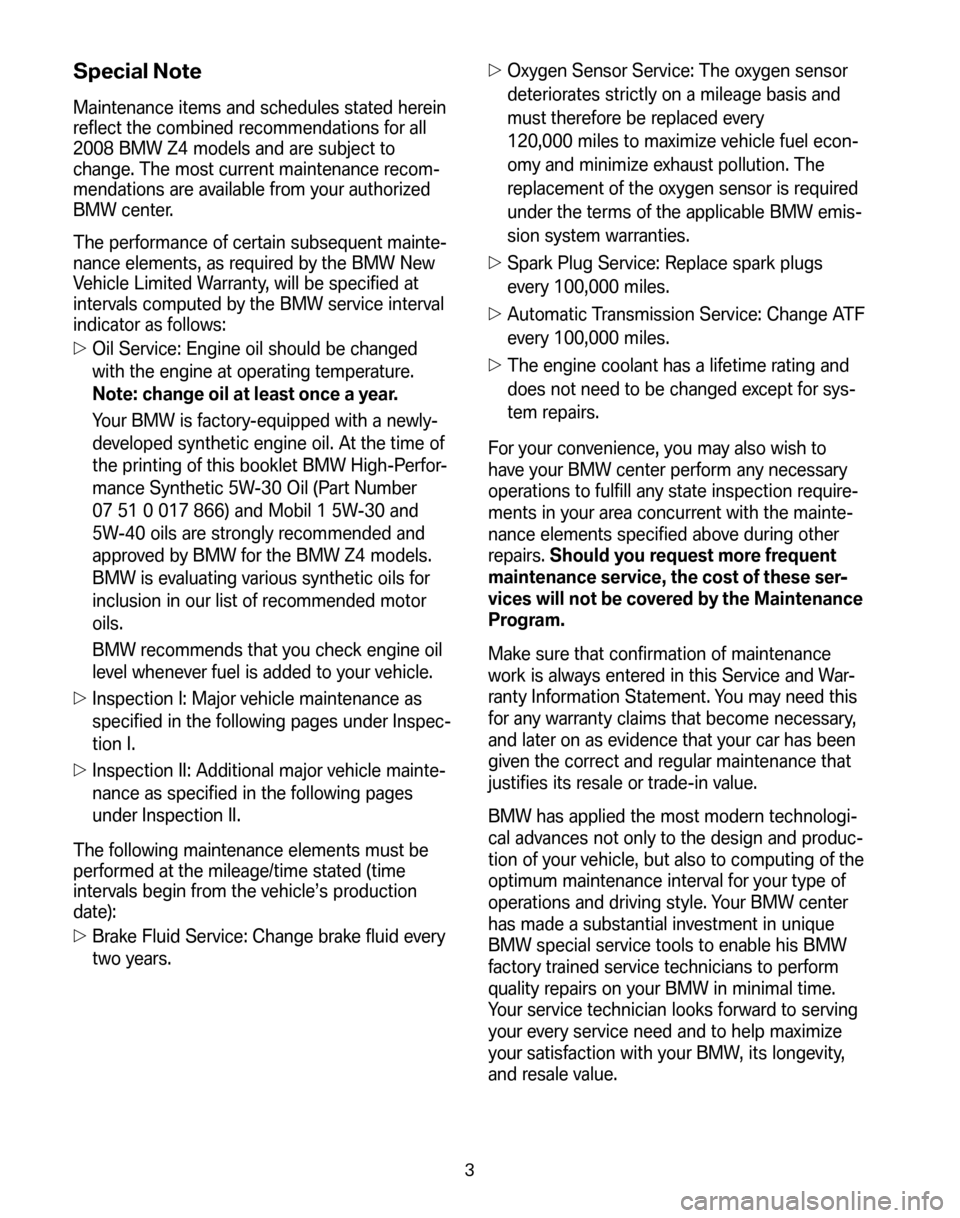

Special Note ....................................................3

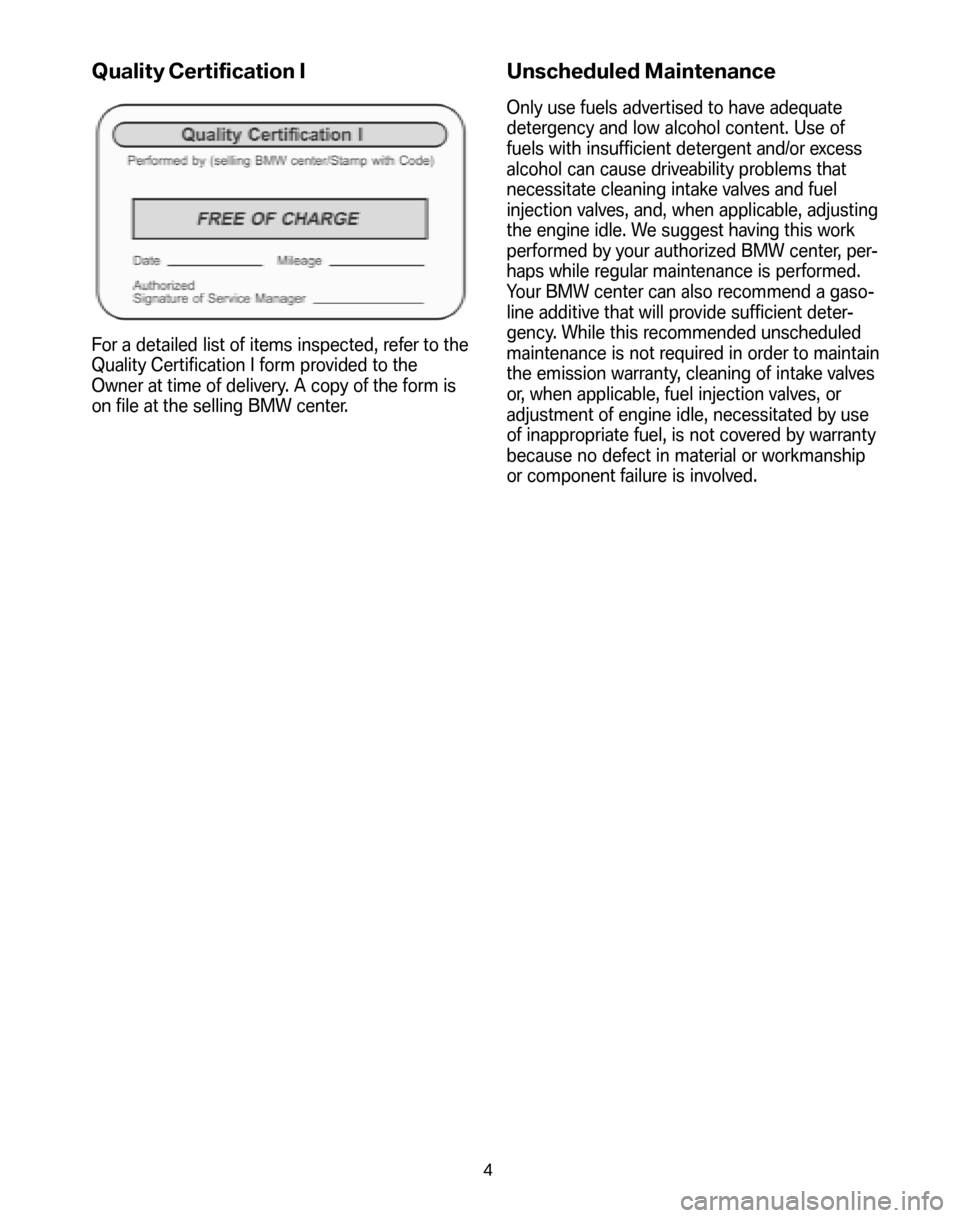

Quality Certification I ...............................................4
Unscheduled Maintenance ...........................................4

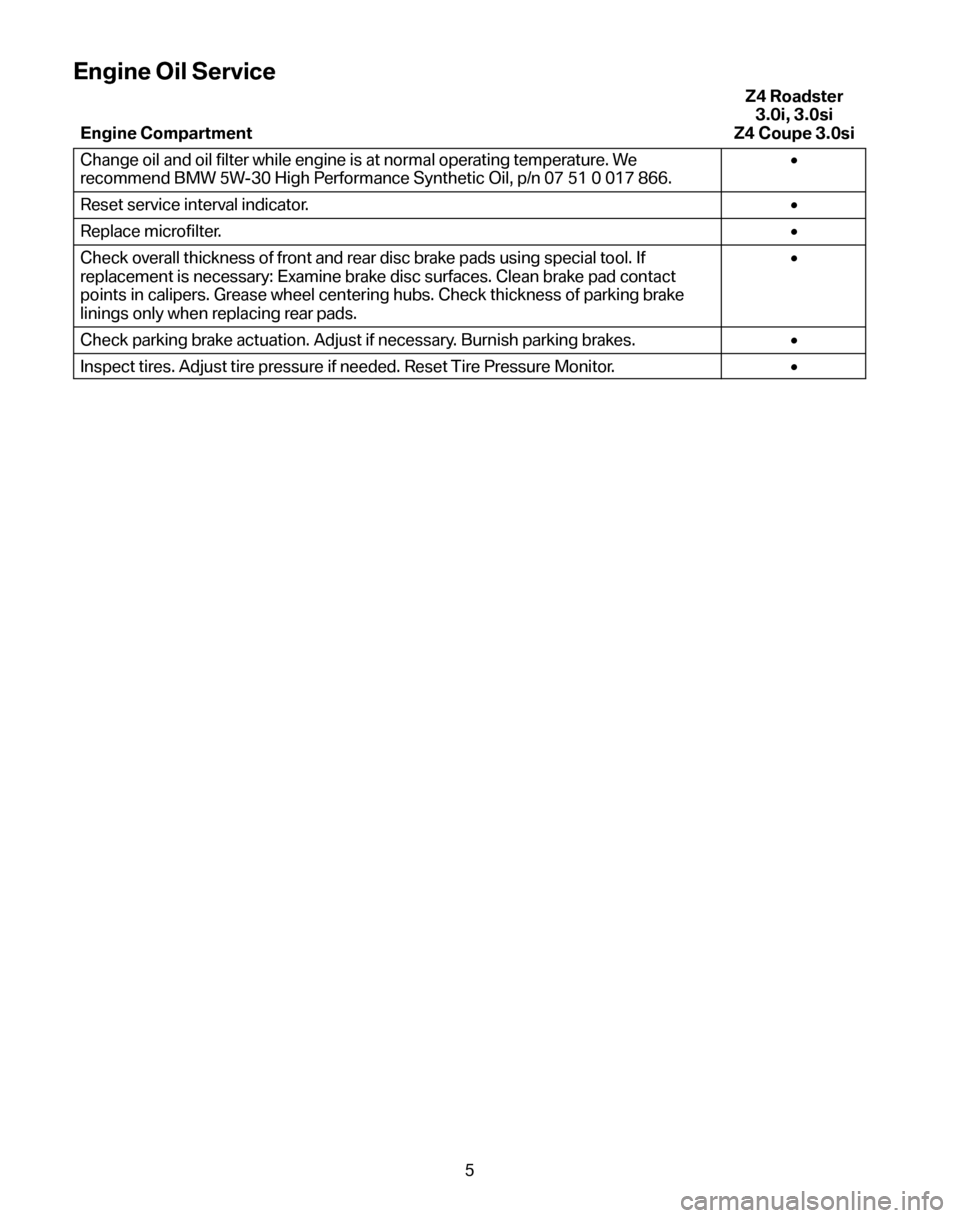

Engine Oil Service ................................................ 5

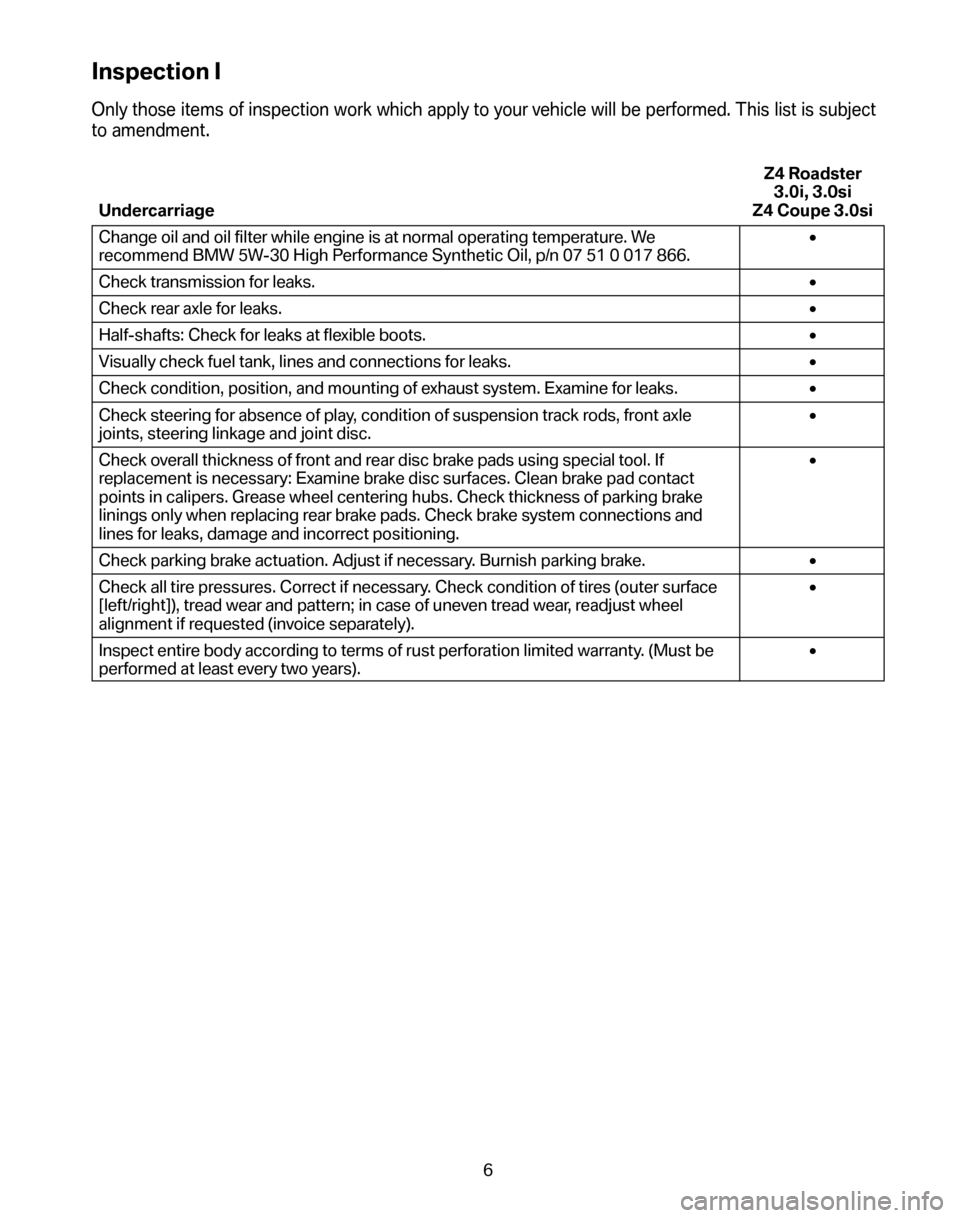

Inspection I . .................................................... 6
Inspection II . .................................................... 8
Emission Control Maintenance Schedule: BMW Z4 Roadster 3.0i, 3.0si and Z4 Coupe 3.0si . . ................................................ 9
BMW Engine Oil Service stamps ......................................11
BatteryCare .................................................... 14
Corrosion Protection ............................................. 14
Restoring corrosion protection .......................................14
Underbody maintenance ...........................................14
Body Inspection ................................................. 15
Customer Assistance Information .................................... 21
Customer Assistance – Notification ....................................21
BBB AUTO LINE ................................................. 22
California Residents ..............................................22
Special Programs ................................................ 24
BMW Roadside Assistance ......................................... 24
Owner’s Eligibility ................................................24
Getting Started .................................................25
Calling For Assistance .............................................25
Services ...................................................... 25
Dispatch Service ................................................25
On-Site Assistance ...............................................25
Lock-Out .....................................................26
Towing Service ..................................................26
Sign-and-Drive ..................................................26
Trip Interruption Benefits ...........................................26
Car Rental Discounts .............................................27
Exclusions .....................................................27

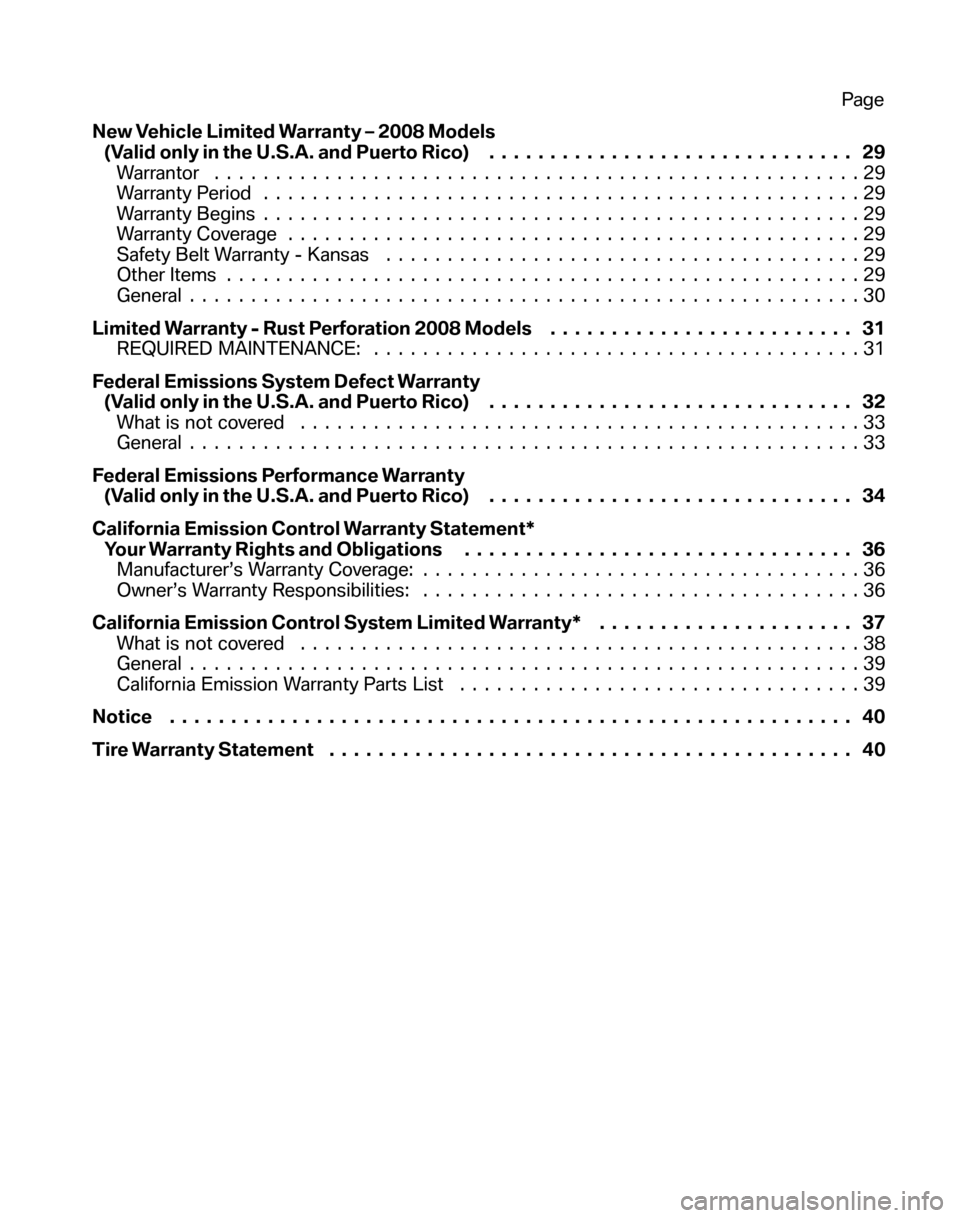

Overview of BMW Limited Warranties .................................. 28

New Vehicle Limited Warranty – 2008 Models (Valid only in the U.S.A. and Puerto Rico) .............................. 29
Warrantor .....................................................29
Warranty Period .................................................29
Warranty Begins .................................................29
Warranty Coverage ...............................................29
Safety Belt Warranty - Kansas .......................................29
Other Items ....................................................29
General .......................................................30
Limited Warranty - Rust Perforation 2008 Models ......................... 31
REQUIRED MAINTENANCE: ........................................31
Federal Emissions System Defect Warranty (Valid only in the U.S.A. and Puerto Rico) .............................. 32
What is not covered ..............................................33
General .......................................................33
Federal Emissions Performance Warranty (Valid only in the U.S.A. and Puerto Rico) .............................. 34
California Emission Control Warranty Statement* Your Warranty Rights and Obligations ................................ 36
Manufacturer’s Warranty Coverage: ....................................36
Owner’s Warranty Responsibilities: ....................................36
California Emission Control System Limited Warranty* ..................... 37
What is not covered ..............................................38
General .......................................................39
California Emission Warranty Parts List .................................39
Notice ........................................................ 40
Tire Warranty Statement ........................................... 40 Page

2008 BMW Z4 Roadster 3.0i,
3.0si and Z4 Coupe 3.0si
BMW Ultimate Service™
BMW Ultimate Service leads the industry in pro-
viding owners with incredible value and peace of
mind. This service includes:
 The BMW Maintenance Program: No-cost
factory-recommended maintenance for
4 years/50,000 miles from the original in-ser-
vice date, whichever comes first.
 BMW Roadside Assistance: No-cost 24/7
on-the-road assistance for 4 years/unlimited
miles from the original in-service date. Also
includes alternate transportation and trip-in-
terruption benefits as well as trip routing
services.
 New Vehicle Limited Warranty: Limited cov-
erage for defects in materials and workman-
ship for 4 years/50,000 miles from the original
in-service date, whichever comes first.
Repairs will only be made at authorized BMW
centers using Original BMW Parts.
The BMW Maintenance Program
The BMW Maintenance Program is a benefit
designed to help reduce the cost of ownership.
The program has been devised with the follow-
ing objectives: to maximize vehicle safety, reli-
ability, and resale value by minimizing
breakdowns resulting from wear, and minimizing
cost and inconvenience by computing mainte-
nance intervals based upon the specific manner
in which each individual vehicle is driven.
2008 BMW Z4 models purchased from any
authorized BMW center in the United States or
Puerto Rico are covered by the BMW Mainte-
nance Program for 48 months or 50,000 miles,
whichever occurs first. Coverage begins on the
date of first retail sale or the date the vehicle is
first placed into service as a sales demonstrator,
service loaner (SLP) or company vehicle, which-
ever is earlier.
Any authorized BMW center in the United
States or Puerto Rico will perform the sched-
uled or additional maintenance services on your
vehicle at no expense to you.
Coverage
The BMW Maintenance Program covers all factory
recommended maintenance, as determined by the
service interval indicator. Additional items that
need replacement due to normal wear and tear,
and that are not covered by the original New Vehi-
cle Limited Warranty - such as brake pads, brake
rotors, and wiper blade inserts - are included, pro-
vided wear and tear exceeds BMW wear limits.
Any adjustments required due to normal operating
conditions are also included. See page s5-8of
this booklet for additional information.
Exclusions from coverage include the following:
 Items reimbursable under your New Vehicle
Limited Warranty
 Gasoline and gasoline additive
 Windshield washer additive (except when in
conjunction with scheduled maintenance)
 Tires, wheel alignment, tire balance and
rotation
 Reset Tire Pressure Monitor
 Wear and tear of soft trim items, such as:
seats, carpets, moldings, headliner, door pan-
els and all chrome trim
 Damage detected when performing the rust
perforation inspection
 Damage which results from negligence,
improper operation of the vehicle, wear and
tear or deterioration due to driving habits or
conditions, improper repair, environmental
influences, flood, accident or fire damage,
road salt corrosion, alteration, installation of
non-genuine BMW accessories, or use of
improper, poor quality or contaminated fuel.
 Altered or unreadable Vehicle Identification
Number (VIN) or odometer irregularities or
vehicles where the true mileage cannot be
determined
 Maintenance or repair after the vehicle is
deemed a total loss
 Maintenance or repairs performed by other
than an authorized BMW center within the
United States or Puerto Rico
1

Vehicles used in competitive events

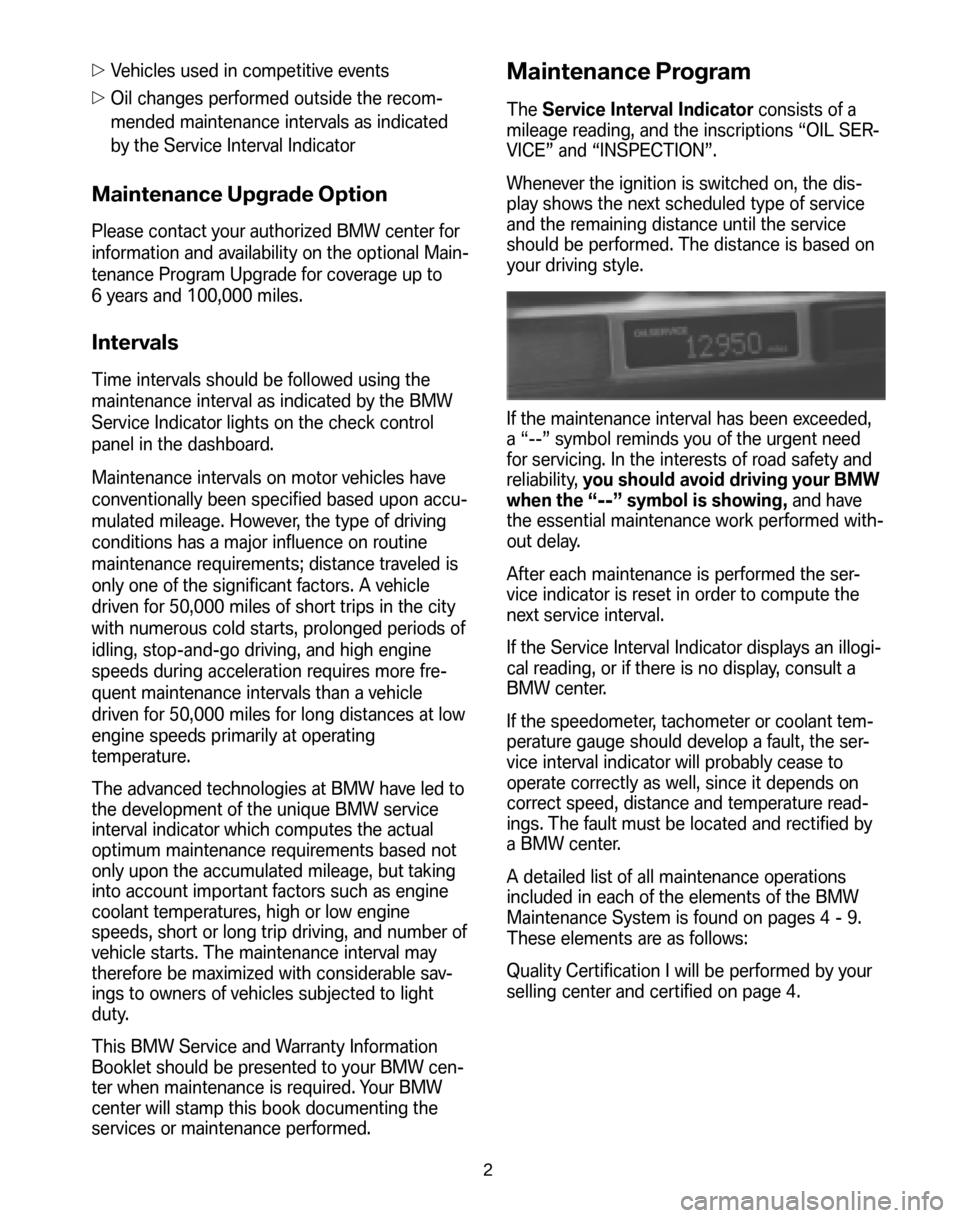

 Oil changes performed outside the recom-
mended maintenance intervals as indicated
by the Service Interval Indicator
Maintenance Upgrade Option
Please contact your authorized BMW center for
information and availability on the optional Main-
tenance Program Upgrade for coverage up to
6 years and 100,000 miles.
Intervals
Time intervals should be followed using the
maintenance interval as indicated by the BMW
Service Indicator lights on the check control
panel in the dashboard.
Maintenance intervals on motor vehicles have
conventionally been specified based upon accu-
mulated mileage. However, the type of driving
conditions has a major influence on routine
maintenance requirements; distance traveled is
only one of the significant factors. A vehicle
driven for 50,000 miles of short trips in the city
with numerous cold starts, prolonged periods of
idling, stop-and-go driving, and high engine
speeds during acceleration requires more fre-
quent maintenance intervals than a vehicle
driven for 50,000 miles for long distances at low
engine speeds primarily at operating
temperature.
The advanced technologies at BMW have led to
the development of the unique BMW service
interval indicator which computes the actual
optimum maintenance requirements based not
only upon the accumulated mileage, but taking
into account important factors such as engine
coolant temperatures, high or low engine
speeds, short or long trip driving, and number of
vehicle starts. The maintenance interval may
therefore be maximized with considerable sav-
ings to owners of vehicles subjected to light
duty.
This BMW Service and Warranty Information
Booklet should be presented to your BMW cen-
ter when maintenance is required. Your BMW
center will stamp this book documenting the
services or maintenance performed.
Maintenance Program
The Service Interval Indicator consists of a
mileage reading, and the inscriptions “OIL SER-
VICE” and “INSPECTION”.
Whenever the ignition is switched on, the dis-
play shows the next scheduled type of service
and the remaining distance until the service
should be performed. The distance is based on
your driving style.
If the maintenance interval has been exceeded,
a “--” symbol reminds you of the urgent need
for servicing. In the interests of road safety and
reliability, you should avoid driving your BMW
when the “--” symbol is showing, and have
the essential maintenance work performed with-
out delay.
After each maintenance is performed the ser-
vice indicator is reset in order to compute the
next service interval.
If the Service Interval Indicator displays an illogi-
cal reading, or if there is no display, consult a
BMW center.
If the speedometer, tachometer or coolant tem-
perature gauge should develop a fault, the ser-
vice interval indicator will probably cease to
operate correctly as well, since it depends on
correct speed, distance and temperature read-
ings. The fault must be located and rectified by
a BMW center.
A detailed list of all maintenance operations
included in each of the elements of the BMW
Maintenance System is found on page s4-9.
These elements are as follows:
Quality Certification I will be performed by your
selling center and certified on page 4.
2

Special Note
Maintenance items and schedules stated herein
reflect the combined recommendations for all
2008 BMW Z4 models and are subject to
change. The most current maintenance recom-
mendations are available from your authorized
BMW center.
The performance of certain subsequent mainte-
nance elements, as required by the BMW New
Vehicle Limited Warranty, will be specified at
intervals computed by the BMW service interval
indicator as follows:
 Oil Service: Engine oil should be changed
with the engine at operating temperature.
Note: change oil at least once a year.
Your BMW is factory-equipped with a newly-
developed synthetic engine oil. At the time of
the printing of this booklet BMW High-Perfor-
mance Synthetic 5W-30 Oil (Part Number
07 51 0 017 866) and Mobil 1 5W-30 and
5W-40 oils are strongly recommended and
approved by BMW for the BMW Z4 models.
BMW is evaluating various synthetic oils for
inclusion in our list of recommended motor
oils.
BMW recommends that you check engine oil
level whenever fuel is added to your vehicle.
 Inspection I: Major vehicle maintenance as
specified in the following pages under Inspec-
tion I.
 Inspection II: Additional major vehicle mainte-
nance as specified in the following pages
under Inspection II.
The following maintenance elements must be
performed at the mileage/time stated (time
intervals begin from the vehicle’s production
date):
 Brake Fluid Service: Change brake fluid every
two years.
Oxygen Sensor Service: The oxygen sensor
deteriorates strictly on a mileage basis and
must therefore be replaced every
120,000 miles to maximize vehicle fuel econ-
omy and minimize exhaust pollution. The
replacement of the oxygen sensor is required
under the terms of the applicable BMW emis-
sion system warranties.
 Spark Plug Service: Replace spark plugs
every 100,000 miles.
 Automatic Transmission Service: Change ATF
every 100,000 miles.
 The engine coolant has a lifetime rating and
does not need to be changed except for sys-
tem repairs.
For your convenience, you may also wish to
have your BMW center perform any necessary
operations to fulfill any state inspection require-
ments in your area concurrent with the mainte-
nance elements specified above during other
repairs. Should you request more frequent
maintenance service, the cost of these ser-
vices will not be covered by the Maintenance
Program.
Make sure that confirmation of maintenance
work is always entered in this Service and War-
ranty Information Statement. You may need this
for any warranty claims that become necessary,
and later on as evidence that your car has been
given the correct and regular maintenance that
justifies its resale or trade-in value.
BMW has applied the most modern technologi-
cal advances not only to the design and produc-
tion of your vehicle, but also to computing of the
optimum maintenance interval for your type of
operations and driving style. Your BMW center
has made a substantial investment in unique
BMW special service tools to enable his BMW
factory trained service technicians to perform
quality repairs on your BMW in minimal time.
Your service technician looks forward to serving
your every service need and to help maximize
your satisfaction with your BMW, its longevity,
and resale value.
3

Quality Certification I
For a detailed list of items inspected, refer to the
Quality Certification I form provided to the
Owner at time of delivery. A copy of the form is
on file at the selling BMW center.
Unscheduled Maintenance
Only use fuels advertised to have adequate
detergency and low alcohol content. Use of
fuels with insufficient detergent and/or excess
alcohol can cause driveability problems that
necessitate cleaning intake valves and fuel
injection valves, and, when applicable, adjusting
the engine idle. We suggest having this work
performed by your authorized BMW center, per-
haps while regular maintenance is performed.
Your BMW center can also recommend a gaso-
line additive that will provide sufficient deter-
gency. While this recommended unscheduled
maintenance is not required in order to maintain
the emission warranty, cleaning of intake valves
or, when applicable, fuel injection valves, or
adjustment of engine idle, necessitated by use
of inappropriate fuel, is not covered by warranty
because no defect in material or workmanship
or component failure is involved.
4

Engine Oil Service
Engine Compartment Z4 Roadster
3.0i, 3.0si
Z4 Coupe 3.0si
Change oil and oil filter while engine is at normal operating temperature. We
recommend BMW 5W-30 High Performance Synthetic Oil, p/n 07 51 0 017 866. •
Reset service interval indicator. •
Replace microfilter. •
Check overall thickness of front and rear disc brake pads using special tool. If
replacement is necessary: Examine brake disc surfaces. Clean brake pad contact
points in calipers. Grease wheel centering hubs. Check thickness of parking brake
linings only when replacing rear pads. •
Check parking brake actuation. Adjust if necessary. Burnish parking brakes. •
Inspect tires. Adjust tire pressure if needed. Reset Tire Pressure Monitor. •
5

Inspection I
Only those items of inspection work which apply to your vehicle will be performed. This list is subject
to amendment.
Undercarriage Z4 Roadster
3.0i, 3.0si
Z4 Coupe 3.0si
Change oil and oil filter while engine is at normal operating temperature. We
recommend BMW 5W-30 High Performance Synthetic Oil, p/n 07 51 0 017 866. •
Check transmission for leaks. •
Check rear axle for leaks. •
Half-shafts: Check for leaks at flexible boots. •
Visually check fuel tank, lines and connections for leaks. •
Check condition, position, and mounting of exhaust system. Examine for leaks. •
Check steering for absence of play, condition of suspension track rods, front axle
joints, steering linkage and joint disc. •
Check overall thickness of front and rear disc brake pads using special tool. If
replacement is necessary: Examine brake disc surfaces. Clean brake pad contact
points in calipers. Grease wheel centering hubs. Check thickness of parking brake
linings only when replacing rear brake pads. Check brake system connections and
lines for leaks, damage and incorrect positioning. •
Check parking brake actuation. Adjust if necessary. Burnish parking brake. •
Check all tire pressures. Correct if necessary. Check condition of tires (outer surface
[left/right]), tread wear and pattern; in case of uneven tread wear, readjust wheel
alignment if requested (invoice separately). •
Inspect entire body according to terms of rust perforation limited warranty. (Must be
performed at least every two years). •
6
