520de042Heating and ventilation/Air conditioning

71n
IndexDataTechnologyRepairsCar careControlsOverview

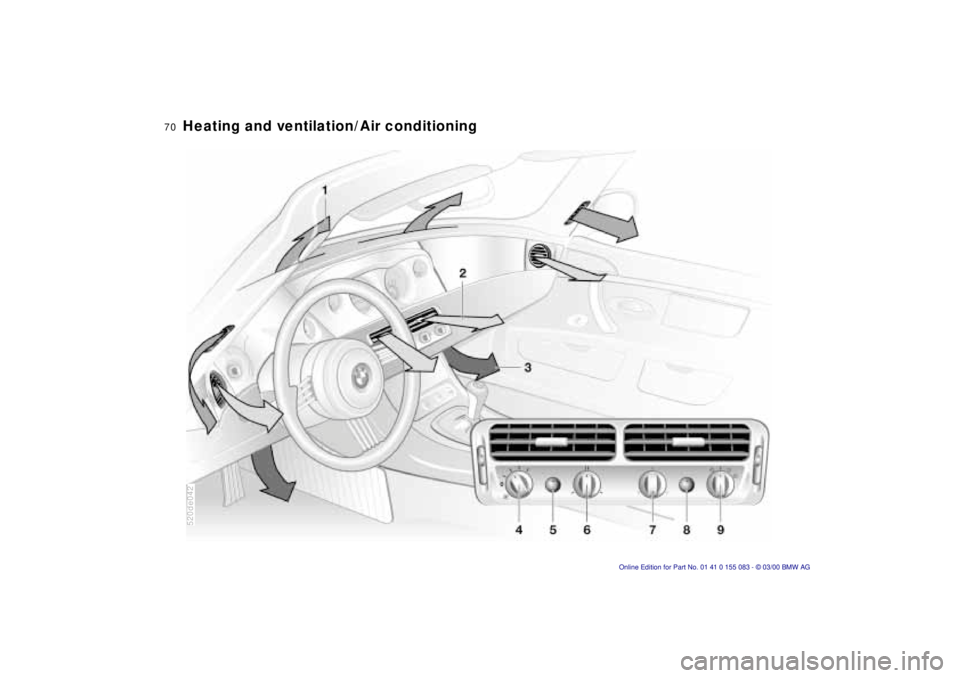

Heating and ventilation/Air conditioning1 Air onto the windshield and the side
windows
2 Air flow for the upper body
The rotary dials make it possible for
you to open and close the air supply
through an infinitely-variable range,
while the levers change the air-flow
direction. Refer to page 73
3 Front footwell ventilation
4 Air supply
Both the heating and ventilation are
available from position 1 on. Refer to
page 72
5 To defrost windows and remove
condensation73
6 Temperature72
7 Air distribution toward
>the windows
>the upper body
>the footwell
All intermediate settings are possible,
too. Refer to page 72
8 Rear window defroster with the
hardtop in place73
9 Operating
>Recirculated air72
>Incoming air72
>Air conditioner/Incoming air72
>Air conditioner/Recirculated air72

72n
Heating and ventilation/Air conditioningAir supply
You can select blower speeds
from 1 to 4. The higher the set-
ting, the greater the amount of
heat and air supply. In position
0, the blower, heating and air condi-
tioner are switched off.
Temperature
In order to increase the inte-
rior temperature, turn to the
right. For rapid heating, turn
completely to the right. Then
select an interior temperature that is
comfortable for you.
Air distribution
You can direct the airflow onto
the windows , toward the
upper body and into the
footwell . You can also make
all intermediate settings. The "6 o'clock"
setting is recommended for normal con-
ditions (refer also to the illustration and
overview on page 70).
Recirculated air mode
If there are unpleasant odors
in the outside air, you can tem-
porarily block the air supply.
The system then recirculates
the air currently within the vehicle.
If the windows fog over when
using recirculated air, turn off the
recirculated air mode and increase the
airflow if necessary, or press the button
for "defrosting and defogging the win-
dows."<
Venting in outside air
Recommended when driving
with the convertible top open.
The degree to which the pas-
senger compartment is
heated depends on temperature selec-
tion and air distribution.
Air conditioner/Venting in outside
air
The air is cooled and dehu-
midified and Ð depending on
the temperature setting Ð
warmed again when the air
conditioner system is switched on.
Depending on the weather, the wind-
shield may fog over briefly when the
engine is started.
Do not turn on the air conditioner if out-
side air temperature is below approx.
41 7 (5 6). This will help to prevent
the windows from fogging.
If the windows fog over after switching
the air conditioner off, switch it back on.
Air conditioner/Recirculated air
mode
Both systems are operating.
Another advantage is that a
hot vehicle cools down more
quickly with the convertible
top closed. This way, you will get the
lowest possible vented air temperature
(turn the temperature rotary dial all the
way to the left).

73n
IndexDataTechnologyRepairsCar careControlsOverview
Heating and ventilation/Air conditioning
If the windows fog over when
using recirculated air, turn off the
recirculated air mode, and increase air-
flow if necessary, or press the button
for "defrosting and defogging the win-
dows."<
To defrost windows and remove
condensation
This operation quickly re-
moves ice and condensation
from the windshield and the
side windows.
Rear window defroster
Whenever the hardtop is on,
the indicator lamp lights up
when the rear window de-
froster is turned on. The rear window
defroster switches off automatically.
Refer to page 58.
The indicator lamp is always
active. The rear window defroster
will not work if the hardtop is not in
place.<
Draft-free ventilation You can adjust the air outlets for the up-
per body area for your personal comfort:
Use rotary dials 1 to open and close the
air outlets through an infinitely-variable
range.520de043
You can adjust the direction of the air-
flow using the levers 2.
Set the air outlets so that the air flows
past you and is not directed straight at
you.MicrofilterThe microfilter removes dust and pollen
from the incoming air. Your BMW cen-
ter will change this filter during routine
maintenance. A substantial reduction in
air flow indicates that the filter needs to
be replaced early.520de140

74n
Heating and ventilation/Air conditioningRapid ventilation1 Set the rotary blower switch to
position 4 for air intake
2 Turn the rotary temperature control
completely to the left
3 Rotary control for air distribution in
position
4 Select outside air
5 Open the air outlets for the upper
body area.520de044
Cooling1 Set the rotary blower switch to
position 2 for air intake
2 Use the rotary temperature control
to select an interior temperature
comfortable for you
3 Rotary control for air distribution in
position
4 Select air conditioning/outside air
5 Open the air outlets for the upper
body area.520de129
Rapid cooling1 Set the rotary blower switch to
position 4 for air intake
2 Turn the rotary temperature control
completely to the left
3 Rotary control for air distribution in
position
4 Select air conditioning/recirculating
air
5 Open the outlets for the upper body
area.520de097

75n
IndexDataTechnologyRepairsCar careControlsOverview
Heating and ventilation/Air conditioning Seat heatingRapid heating 1 Set the rotary blower switch to
position 3 for air intake
2 Turn the rotary temperature control
completely to the right
3 Rotary control for air distribution in
position
4 Select incoming air mode.520de045
HeatingWhen the windows are free of ice and
condensation, we recommend the fol-
lowing settings:
1 Set the blower speed control for the
air flow rate to position 2
2 Use the rotary temperature control to
select an interior temperature which
is comfortable for you
3 Rotary control for air distribution in
position .520de047
The seat cushion and backrest can
be heated when the ignition key is in
position 2.
By repeately pressing the button, you
can select one of three different opera-
tion modes:
>Two indicator lamps on: heating at
high temperature
>One on: heating at low temperature
>Indicator lamps off: seat heating
deactivated.520de048

76n
To open Pull the handle. The lamp comes on.
A beverage can holder is stored in the
glove compartment.
For further information, refer to page 78.To closeFlip the door up.
To prevent injury in the event of a
crash, close the glove compart-
ment immediately after every use.<520de049
To lockUse one of the master keys. The glove
compartment, the storage shelf for the
cellular phone and the luggage compart-
ment lid are now locked.
A master key is also required for
unlocking.
If you turn over only your door and
ignition key for valet parking (refer
to page 28), for example, access to the
glove compartment,
the storage shelf
for the cellular phone or
the luggage
compartment
is not possible when the
vehicle has been locked.<
Manual operation(in the event of electrical malfunction)
With the key in the last key positions,
you can unlock or lock the glove com-
partment.
Refer to page 140 for operating
the
storage shelf for the cellular phone and
the luggage compartment lid
.
In the doorsTo open:
Pull into the cut-outs.
To close:
Push the cover back.520de051
Glove compartment Storage compartments

77n
IndexDataTechnologyRepairsCar careControlsOverview
Storage compartmentsIn the center consoleTo open:
Flip the cover up (arrow 1) Ð access to
the ashtray and cigarette lighter.
When the glove compartment has been
unlocked, press the button (arrow 2) Ð storage shelf for
the cellular phone.
To close:
Flip the cover back into place.
Manual operation(in the event of electrical malfunction)
Refer to page 140 for operating
the
storage shelf for the cellular phone.
520de050
Behind the seatsBy way of example, the illustration
shows the storage compartment behind
the driver's seat.
To open:
Unlock by turning the master key all the
way to the left.
The cover will open slightly and can
then be flipped all the way up.
To close:
Press down until you hear it snap into
place. The cover has been locked
again.
If you turn over only your door and
ignition key for valet parking (refer
to page 28), access is impossible.<520de082
Rechargeable flashlight Located in the storage compartment
behind the driver's seat.
Because of overload-protection, the
flashlight can remain in its holder.
Be sure that the flashlight is
switched off when it is inserted
into its holder. Failure to do so could
lead to overcharging and damage.<520de070

78n
Storage compartments Beverage can holderNavigation computerLocated in the storage compartment
behind the passenger's seat.
For further information regarding the
navigation system, refer to the separate
Owner's Manual.520de103
CD changerLocated in the storage compartment
behind the driver's seat.
For further information regarding the
CD changer, refer to the separate
Owner's Manual.520de138
1 Push the front passenger seat all the
way back
2 Take the beverage can holder out of
the glove compartment and
3 Hang it on the bracket located on the
center console on the front passen-
ger side. Refer to the illustration.
By using the removable plastic insert,
you can place beverage cans or cups of
various sizes in the holder.
Do not place any open drinks in
the holder while driving, otherwise
the liquid could slop over the side and
either dirty the fabric or cause burns.<520us015

79n
IndexDataTechnologyRepairsCar careControlsOverview
Cellular phone Ashtray Located in the storage compartment in
the center console.To remove 1 Push the button and pull the connec-
tor out
2 Push the button in and remove the
cellular phone.
Reverse the sequence to reattach the
cellular phone.
For further information on the cellular
phone, refer to the separate Owner's
Manual.520de132
Hands free systemLocated over the interior rearview
mirror.
For further information on the cellular
phone, refer to the separate Owner's
Manual.520de131
To openFlip the cover up.
To extinguish your cigarette, first tap off
the ash and gently press the tip into the
funnel (arrow 1). To emptyPush the button (arrow 2), you can now
pull the ashtray upward for removal.520de052
