Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Driving and Operating 299

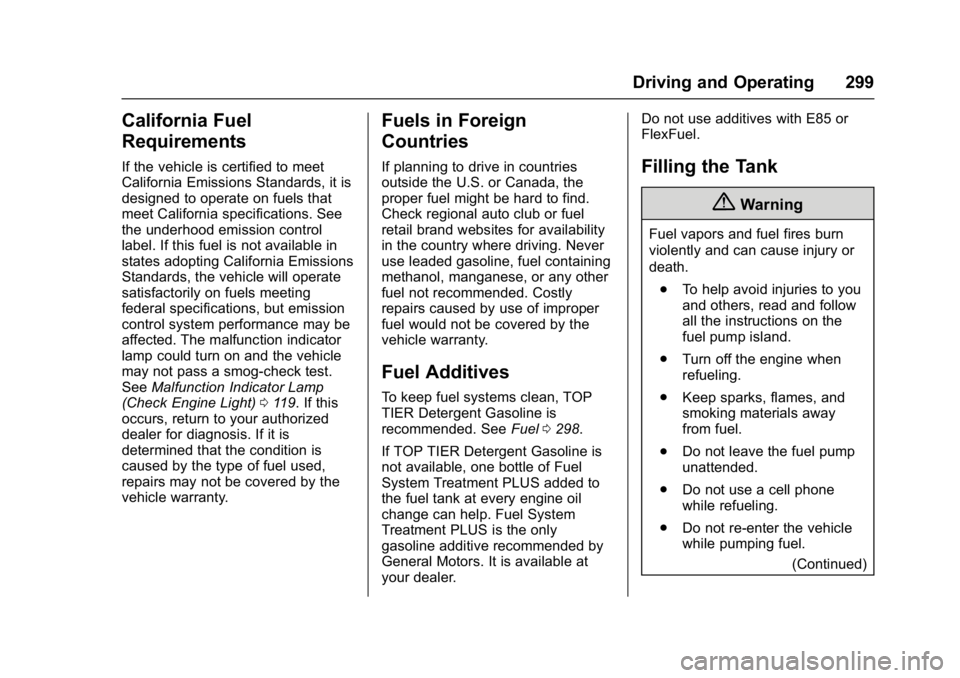

California Fuel
Requirements
If the vehicle is certified to meet
California Emissions Standards, it is
designed to operate on fuels that
meet California specifications. See
the underhood emission control
label. If this fuel is not available in
states adopting California Emissions
Standards, the vehicle will operate
satisfactorily on fuels meeting
federal specifications, but emission
control system performance may be
affected. The malfunction indicator
lamp could turn on and the vehicle
may not pass a smog-check test.
SeeMalfunction Indicator Lamp
(Check Engine Light) 0119. If this
occurs, return to your authorized
dealer for diagnosis. If it is
determined that the condition is
caused by the type of fuel used,
repairs may not be covered by the
vehicle warranty.
Fuels in Foreign
Countries
If planning to drive in countries
outside the U.S. or Canada, the
proper fuel might be hard to find.
Check regional auto club or fuel
retail brand websites for availability
in the country where driving. Never
use leaded gasoline, fuel containing
methanol, manganese, or any other
fuel not recommended. Costly
repairs caused by use of improper
fuel would not be covered by the
vehicle warranty.
Fuel Additives
To keep fuel systems clean, TOP
TIER Detergent Gasoline is
recommended. See Fuel0298.
If TOP TIER Detergent Gasoline is
not available, one bottle of Fuel
System Treatment PLUS added to
the fuel tank at every engine oil
change can help. Fuel System
Treatment PLUS is the only
gasoline additive recommended by
General Motors. It is available at
your dealer. Do not use additives with E85 or
FlexFuel.
Filling the Tank
{Warning
Fuel vapors and fuel fires burn
violently and can cause injury or
death.
. To help avoid injuries to you
and others, read and follow
all the instructions on the
fuel pump island.
. Turn off the engine when
refueling.
. Keep sparks, flames, and
smoking materials away
from fuel.
. Do not leave the fuel pump
unattended.
. Do not use a cell phone
while refueling.
. Do not re-enter the vehicle
while pumping fuel.
(Continued)

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
300 Driving and Operating
Warning (Continued)
.Keep children away from
the fuel pump and never let
children pump fuel.
. Fuel can spray out if the fuel
cap is opened too quickly.
This spray can happen if the
tank is nearly full, and is
more likely in hot weather.
Open the fuel cap slowly
and wait for any hiss noise
to stop, then unscrew the
cap all the way.
To open the fuel door, push and
release the rearward center edge of
the door.
The cap is behind the fuel door on
the passenger side of the vehicle.
To remove the fuel cap, turn it
slowly counterclockwise. While
refueling, hang the fuel cap from the
hook on the fuel door.
{Warning
Overfilling the fuel tank by more
than three clicks of a standard fill
nozzle may cause:
. Vehicle performance issues,
including engine stalling and
damage to the fuel system.
. Fuel spills.
. Potential fuel fires.
Be careful not to spill fuel. Wait a
few seconds after you have finished
pumping before removing the
nozzle. Clean fuel from painted
surfaces as soon as possible. See
Exterior Care 0371. When replacing the fuel cap, turn it
clockwise until it clicks once. Make
sure the cap is fully installed. The
diagnostic system can determine if
the fuel cap has been left off or
improperly installed. This would
allow fuel to evaporate into the
atmosphere. See
Malfunction
Indicator Lamp (Check Engine
Light) 0119.
{Warning
If a fire starts while you are
refueling, do not remove the
nozzle. Shut off the flow of fuel by
shutting off the pump or by
notifying the station attendant.
Leave the area immediately.
Caution
If a new fuel cap is needed, be
sure to get the right type of cap
from your dealer. The wrong type
of fuel cap may not fit properly,
may cause the malfunction
(Continued)

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Driving and Operating 301
Caution (Continued)
indicator lamp to light, and could
damage the fuel tank and
emissions system. See
Malfunction Indicator Lamp
(Check Engine Light)0119.
Filling a Portable Fuel
Container
{Warning
Filling a portable fuel container
while it is in the vehicle can cause
fuel vapors that can ignite either
by static electricity or other
means. You or others could be
badly burned and the vehicle
could be damaged. Always:
. Use approved fuel
containers.
. Remove the container from
the vehicle, trunk, or pickup
bed before filling.
(Continued)
Warning (Continued)
.Place the container on the
ground.
. Place the nozzle inside the
fill opening of the container
before dispensing fuel, and
keep it in contact with the fill
opening until filling is
complete.
. Fill the container no more
than 95% full to allow for
expansion.
. Do not smoke, light
matches, or use lighters
while pumping fuel.
. Avoid using cell phones or
other electronic devices.
Trailer Towing
General Towing
Information
Only use towing equipment that has
been designed for the vehicle.
Contact your dealer or trailering
dealer for assistance with preparing
the vehicle for towing a trailer. Read
the entire section before towing a
trailer.
For towing a disabled vehicle, see
Towing the Vehicle 0368. For
towing the vehicle behind another
vehicle such as a motor home, see
Recreational Vehicle Towing 0369.
Driving Characteristics
and Towing Tips
Driving with a Trailer
When towing a trailer:
.
Become familiar with the state
and local laws that apply
specifically to trailer towing.

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
308 Driving and Operating
Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector (DLC) is
used for vehicle service and
Emission Inspection/Maintenance
testing. SeeMalfunction Indicator
Lamp (Check Engine Light) 0119.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle
systems. This could affect vehicle
operation and cause a crash.
Such devices may also access
information stored in the vehicle’s
systems.
Caution
Some electrical equipment can
damage the vehicle or cause
components to not work and
would not be covered by the
vehicle warranty. Always check
with your dealer before adding
electrical equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing the Airbag-Equipped
Vehicle 076 and Adding Equipment
to the Airbag-Equipped
Vehicle 077.

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Vehicle Care 309
Vehicle Care
General Information
General Information . . . . . . . . . . 310
California Proposition65 Warning . . . . . . . . . . . . . . . . . 310
California Perchlorate Materials Requirements . . . . . 310
Accessories and Modifications . . . . . . . . . . . . . . . . 310
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . 311
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 312
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 313
Engine Oil . . . . . . . . . . . . . . . . . . . . 314
Engine Oil Life System . . . . . . . 316
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 317
Engine Air Cleaner/Filter . . . . . . 318
Cooling System . . . . . . . . . . . . . . 319
Engine Coolant . . . . . . . . . . . . . . . 320
Engine Overheating . . . . . . . . . . 323
Washer Fluid . . . . . . . . . . . . . . . . . 324
Brakes . . . . . . . . . . . . . . . . . . . . . . . 325
Brake Fluid . . . . . . . . . . . . . . . . . . . 325
Battery - North America . . . . . . 326
All-Wheel Drive . . . . . . . . . . . . . . . 328 Starter Switch Check . . . . . . . . . 328
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 328
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . 328
Wiper Blade Replacement . . . . 329
Windshield Replacement . . . . . 330
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 331
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 331
Halogen Bulbs . . . . . . . . . . . . . . . . 331
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 331
License Plate Lamp . . . . . . . . . . 332
Replacement Bulbs . . . . . . . . . . . 332
Electrical System
Electrical System Overload . . . 333
Fuses and Circuit Breakers . . . 333
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 334
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 336
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 337
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 338 All-Season Tires . . . . . . . . . . . . . . 339
Winter Tires . . . . . . . . . . . . . . . . . . 339
Summer Tires . . . . . . . . . . . . . . . . 340
Tire Sidewall Labeling . . . . . . . . 340
Tire Designations . . . . . . . . . . . . . 342
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 343
Tire Pressure . . . . . . . . . . . . . . . . . 346
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 347
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 348
Tire Inspection . . . . . . . . . . . . . . . . 351
Tire Rotation . . . . . . . . . . . . . . . . . 351
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 352
Buying New Tires . . . . . . . . . . . . . 353
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 354
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 355
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 356
Wheel Replacement . . . . . . . . . . 356
Tire Chains . . . . . . . . . . . . . . . . . . . 357
If a Tire Goes Flat . . . . . . . . . . . . 357
Tire Changing . . . . . . . . . . . . . . . . 359
Compact Spare Tire . . . . . . . . . . 364

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Vehicle Care 325
Brakes
Disc brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or can
be heard all the time when the
vehicle is moving, except when
applying the brake pedal firmly.
{Warning
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
a crash. When the brake wear
warning sound is heard, have the
vehicle serviced.
Caution
Continuing to drive with worn-out
brake pads could result in costly
brake repair.Some driving conditions or climates
can cause a brake squeal when the
brakes are first applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated,
inspect brake pads for wear and
evenly tighten wheel nuts in the
proper sequence to torque
specifications. See
Capacities and
Specifications 0394.
Brake pads should be replaced as
complete sets.
Brake Pedal Travel
See your dealer if the brake pedal
does not return to normal height,
or if there is a rapid increase in
pedal travel. This could be a sign
that brake service may be required.
Replacing Brake System Parts
Always replace brake system parts
with new, approved replacement
parts. If this is not done, the brakes
may not work properly. The braking
performance expected can change
in many other ways if the wrong replacement brake parts are
installed or if parts are improperly
installed.
Brake Fluid
The brake master cylinder reservoir
is filled with GM approved DOT 4
brake fluid as indicated on the
reservoir cap. See
Engine
Compartment Overview 0313 for
the location of the reservoir.
Checking Brake Fluid
With the vehicle in P (Park) on a
level surface, the brake fluid level
should be between the minimum
and maximum marks on the brake
fluid reservoir.
There are only two reasons why the
brake fluid level in the reservoir may
go down:

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
366 Vehicle Care
3. Good Battery Negative (–)Terminal
4. Good Battery Positive (+) Terminal
The jump start negative grounding
point (2) for the discharged battery
is on the shock tower on the
driver side.
The jump start positive terminal on
the discharged battery (1) is located
on the battery on the driver side of
the vehicle.
The jump start positive terminal (4)
and negative terminal (3) are on the
battery of the vehicle providing the
jump start.
The positive jump start connection
for the discharged battery is under a
cover. Open the cover to expose the
terminal.
1. Check the other vehicle. It must have a 12-volt battery
with a negative ground system.
Caution
If the other vehicle does not have
a 12-volt system with a negative
ground, both vehicles can be
damaged. Only use a vehicle that
has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the shift lever in
P (Park) with an automatic
transmission, or Neutral with a
manual transmission.
Caution
If any accessories are left on or
plugged in during the jump
starting procedure, they could be
damaged. The repairs would not
be covered by the vehicle
warranty. Whenever possible, turn
off or unplug all accessories on
either vehicle when jump starting. 4. Turn the ignition to LOCK/OFF.
Turn off all lights and
accessories in both vehicles,
except the hazard warning
flashers if needed.
{Warning
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing, and tools away from any
underhood electric fan.
{Warning
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
and some have been blinded.
Use a flashlight if you need more
light.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
(Continued)

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
388 Service and Maintenance
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories.
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving. .
Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping.
. Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0390 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks. With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
420 Index
IndexA
About Driving the Vehicle . . . . . . . . . 2
Accessories andModifications . . . . . . . . . . . . . . . . . . 310
Accessory Power . . . . . . . . . . . . . . . 264
Adaptive Cruise Control . . . . . . . . 277
Adaptive Forward
Lighting (AFL) . . . . . . . . . . . . . . . . . 158
Adaptive Forward Lighting (AFL) Light . . . . . . . . . . . . . . . . . . . . 126
Add-On Electrical Equipment . . . 308
Additional Information OnStar
®. . . . . . . . . . . . . . . . . . . . . . 414
Additional Maintenance
and Care . . . . . . . . . . . . . . . . . . . . . . 387
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 52
Thigh Support . . . . . . . . . . . . . . . . . . 52
Agreements
Trademarks and License . . . . . 229
Air Cleaner/Filter, Engine . . . . . . . 318
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . 245
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 244
Airbag System
Check . . . . . . . . . . . . . . . . . . . . . . . . . . 77
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 70 Airbag System (cont'd)
Passenger Sensing System . . . . 72
What Makes an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 70
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 71
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 69
Where Are the Airbags? . . . . . . . . 67
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 77
Passenger Status Indicator . . . .118
Readiness Light . . . . . . . . . . . . . . .118
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 76
System Check . . . . . . . . . . . . . . . . . . 65
Alarm
Vehicle Security . . . . . . . . . . . . . . . . 41
Alert Lane Change . . . . . . . . . . . . . . . . . 294
Side Blind Zone (SBZA) . . . . . . 293
All-Season Tires . . . . . . . . . . . . . . . . 339
All-Wheel Drive . . . . . . . . . . . . 270, 328
AM-FM Radio . . . . . . . . . . . . . . . . . . . 170
Antenna . . . . . . . . . . . . . . . . . . . . . . . . 175
Multi-band . . . . . . . . . . . . . . . . . . . . 175
Antilock Brake System (ABS) . . . 270

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Index 421
Antilock Brake System(ABS) (cont'd)
Warning Light . . . . . . . . . . . . . . . . . 122
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 371
Interior . . . . . . . . . . . . . . . . . . . . . . . . 376
Armrest Rear Seat . . . . . . . . . . . . . . . . . . . . . . 57
Assistance Program,
Roadside . . . . . . . . . . . . . . . . . . . . . . 400
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 289
Assistance Systems for
Parking and Backing . . . . . . . . . . 285
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 185
Audio Players CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 44
Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Headlamp System . . . . . . . . . . . . 157
Transmission . . . . . . . . . . . . . . . . . 267
Transmission Fluid . . . . . . . . . . . 317
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 269
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 328 Auxiliary Jack . . . . . . . . . . . . . . . . . . . 184
Avoiding Untrusted Media
Devices . . . . . . . . . . . . . . . . . . . . . . . 179
B
BatteryExterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 162
Power Protection . . . . . . . . . . . . . 162
Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . 137
Battery - North America . . . . 326, 365
Blade Replacement, Wiper . . . . . 329
Bluetooth
Overview . . . . . . . . . . . 220, 221, 224
Bluetooth Audio . . . . . . . . . . . . . . . . 185
Brake Parking, Electric . . . . . . . . . . . . . . 271
System Warning Light . . . . . . . . 121
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 325 Antilock . . . . . . . . . . . . . . . . . . . . . . . 270
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 272
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 325
System Messages . . . . . . . . . . . . 137
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 250
Break-In, New Vehicle . . . . . . . . . . 259
Bulb Replacement . . . . . . . . . . . . . . 332 Halogen Bulbs . . . . . . . . . . . . . . . . 331
Headlamp Aiming . . . . . . . . . . . . . 331 Bulb Replacement (cont'd)
Headlamps . . . . . . . . . . . . . . . . . . . 331
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 331
License Plate Lamps . . . . . . . . . 332
Buying New Tires . . . . . . . . . . . . . . . 353
C
California Fuel Requirements . . . . . . . . . . . 299
Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 310
California Proposition
65 Warning . . . . . . . . . .310, 326, 365
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 394
Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . 266
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 36
Winter Driving . . . . . . . . . . . . . . . . 253
Card Reader SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . 99
Caution, Danger, and Warning . . . . 3
CD Player . . . . . . . . . . . . . . . . . . . . . . 179
