BUICK LACROSSE 2009 Owner's Manual

Fuses Usage
DR/LCK
TRUNKDoor Locks, Trunk
HAZRD Turn Signal, Hazard
HTD/MIR Heated Mirrors
HTD/SEAT Heated Seats
HVAC Climate Control System
INT/ILLUM Interior Lamps
ONSTAR/ALDL OnStar
®, Data Link
PRK/LAMP Park Lamps
PRK/SWTCH Ignition Key Lock
PWR/MIR Power Mirrors
PWR/SEAT Power Seats
PWR/WNDW Power Window
RDO/AMP Radio, Amplier
Fuses Usage
RFA/MOD Remote Keyless Entry
S/ROOF Sunroof
STR/WHL/
ILLUMSteering Wheel Controls Illumination
Relays Usage
RAP Retained Accessory Power
PRK/LAMP Park Lamp Relay
R/DEFOG Rear Defogger Relay
Underhood Fuse Block
Some fuses and relays are located in the underhood
fuse block on the passenger side of the vehicle in
the engine compartment. SeeEngine Compartment
Overview on page 5-12for more information on location.
Notice:Spilling liquid on any electrical components
on the vehicle may damage it. Always keep the
covers on any electrical component.
5-101

Mini-Fuses Usage
1 Driver Side High-Beam
2 Passenger Side High-Beam
3 Driver Side Low-Beam
4 Passenger Side Low-Beam
5 Windshield Wiper
Mini-Fuses Usage
6 Washer/Regulated Voltage Control
7 Fog Lamps
8 Transmission Control Module
9 Supplemental Inatable Restraint
10 Auxiliary Power
11 Horn
12 Emission
13 Air Conditioner Clutch
14 Oxygen Sensor
15 Powertrain Control Module
16Powertrain Control Module,
Electronic Throttle Control
17 Electronic Throttle Control
18 Display
19 Antilock Brake Solenoid
20 Fuel Injector
21 Transmission Solenoid
22 Fuel Pump
23 Antilock Brake System
24 Ignition 3.8L V6 Engines
5-102

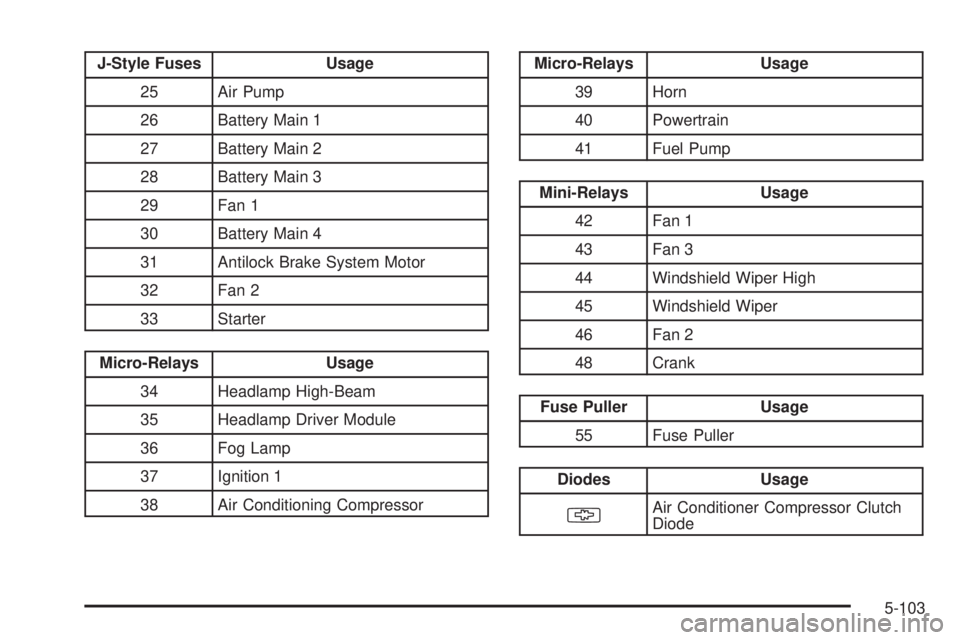

J-Style Fuses Usage
25 Air Pump
26 Battery Main 1
27 Battery Main 2
28 Battery Main 3
29 Fan 1
30 Battery Main 4
31 Antilock Brake System Motor
32 Fan 2
33 Starter
Micro-Relays Usage
34 Headlamp High-Beam
35 Headlamp Driver Module
36 Fog Lamp
37 Ignition 1
38 Air Conditioning Compressor
Micro-Relays Usage
39 Horn
40 Powertrain
41 Fuel Pump
Mini-Relays Usage
42 Fan 1
43 Fan 3
44 Windshield Wiper High
45 Windshield Wiper
46 Fan 2
48 Crank
Fuse Puller Usage
55 Fuse Puller
Diodes Usage
§Air Conditioner Compressor Clutch
Diode
5-103

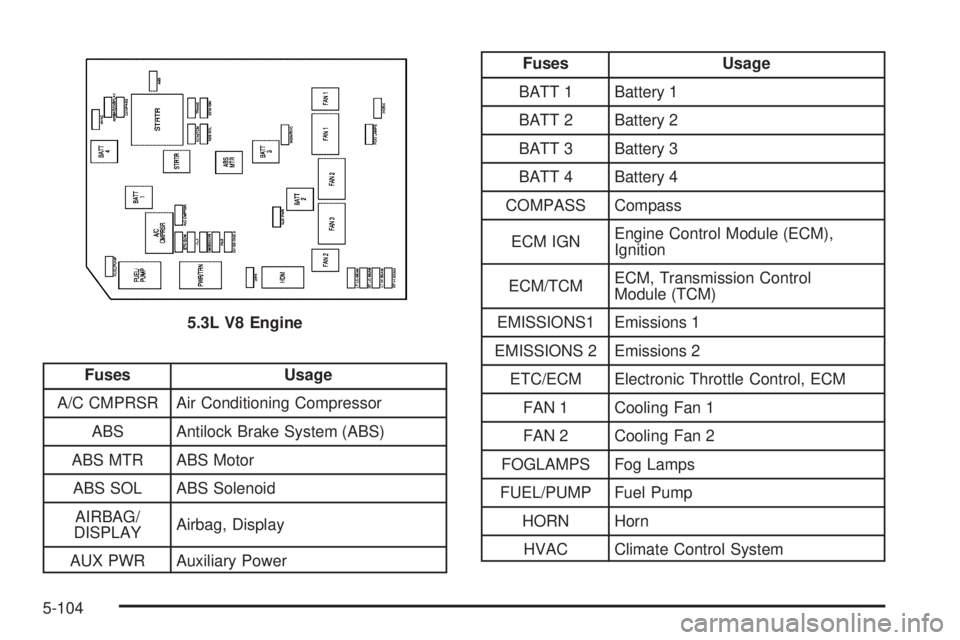

Fuses Usage
A/C CMPRSR Air Conditioning Compressor
ABS Antilock Brake System (ABS)
ABS MTR ABS Motor
ABS SOL ABS Solenoid
AIRBAG/
DISPLAYAirbag, Display
AUX PWR Auxiliary Power
Fuses Usage
BATT 1 Battery 1
BATT 2 Battery 2
BATT 3 Battery 3
BATT 4 Battery 4
COMPASS Compass
ECM IGNEngine Control Module (ECM),
Ignition
ECM/TCMECM, Transmission Control
Module (TCM)
EMISSIONS1 Emissions 1
EMISSIONS 2 Emissions 2
ETC/ECM Electronic Throttle Control, ECM
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FOGLAMPS Fog Lamps
FUEL/PUMP Fuel Pump
HORN Horn
HVAC Climate Control System 5.3L V8 Engine
5-104

Fuses Usage
INJ 1 Injectors 1
INJ 2 Injectors 2
LT HI BEAM Driver Side High-Beam Headlamps
LT LO BEAM Driver Side Low-Beam Headlamp
RT HI BEAMPassenger Side High-Beam
Headlamp
RT LO BEAMPassenger Side Low-Beam
Headlamp
STRTR Starter
TRANS Transmission
WPR Windshield Wipers
WSW/RVC1Windshield Washers, Regulated
Voltage ControlRelays Usage
A/C CMPRSR Air Conditioning Compressor
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FAN 3 Cooling Fan 3
FUEL/PUMP Fuel Pump
HDM Headlamp Driver Module
PWR/TRN Powertrain
STRTR Starter
5-105

Capacities and Specications
The following approximate capacities are given in English and metric conversions.
Capacities and Specications
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Cooling System Including Reservoir
3.8L V6 Engine 11.2 qt 10.6 L
5.3L V8 Engine 13.3 qt 12.6 L
Engine Oil with Filter
3.8L V6 Engine 4.5 qt 4.3 L
5.3L V8 Engine 6.0 qt 5.7 L
Fuel Tank
3.8L V6 Engine (with NU6 emissions) 17.0 gal 64.4 L
3.8L V6 Engine (without NU6 emissions) 17.5 gal 66.2 L
5-106

Capacities and Specications (cont’d)
ApplicationCapacities
English Metric
5.3L V8 Engine 17.5 gal 66.2 L
Transmission Fluid (Drain and Rell) 7.4 qt 7.0 L
Wheel Nut Torque 100 lb ft 140Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. SeeScheduled Maintenance on page 6-4.
Engine Specications
Engine VIN Code Transmission Spark Plug Gap
3.8L V6 Engine 2 Automatic 0.060 in (1.52 mm)
5.3 V8 Engine with Active Fuel
Management™C Automatic 0.040 in (1.01 mm)
5-107

✍NOTES
5-108

Maintenance Schedule......................................6-2
Introduction...................................................6-2
Maintenance Requirements..............................6-2
Your Vehicle and the Environment....................6-2
Using the Maintenance Schedule......................6-3
Scheduled Maintenance...................................6-4
Additional Required Services............................6-6
Maintenance Footnotes...................................6-7Owner Checks and Services............................6-8
At Each Fuel Fill............................................6-8
At Least Once a Month...................................6-9
At Least Once a Year.....................................6-9
Recommended Fluids and Lubricants...............6-11
Maintenance Replacement Parts.....................6-13
Engine Drive Belt Routing..............................6-14
Maintenance Record.....................................6-15
Section 6 Maintenance Schedule
6-1

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Have you purchased the GM Protection Plan? The Plan
supplements the vehicle warranties. See the Warranty
and Owner Assistance booklet or your dealer/retailer for
details.
Maintenance Requirements
Notice:Maintenance intervals, checks, inspections,
replacement parts, and recommended uids and
lubricants as prescribed in this manual are
necessary to keep this vehicle in good working
condition. Any damage caused by failure to follow
scheduled maintenance might not be covered by the
vehicle warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep
the vehicle in good working condition, but also helps
the environment. All recommended maintenance
is important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper
uid levels or the wrong tire ination can increase the
level of emissions from the vehicle. To help protect
the environment, and to keep the vehicle in good
condition, be sure to maintain the vehicle properly.
