BUICK PARK AVENUE 1993 Workshop Manual

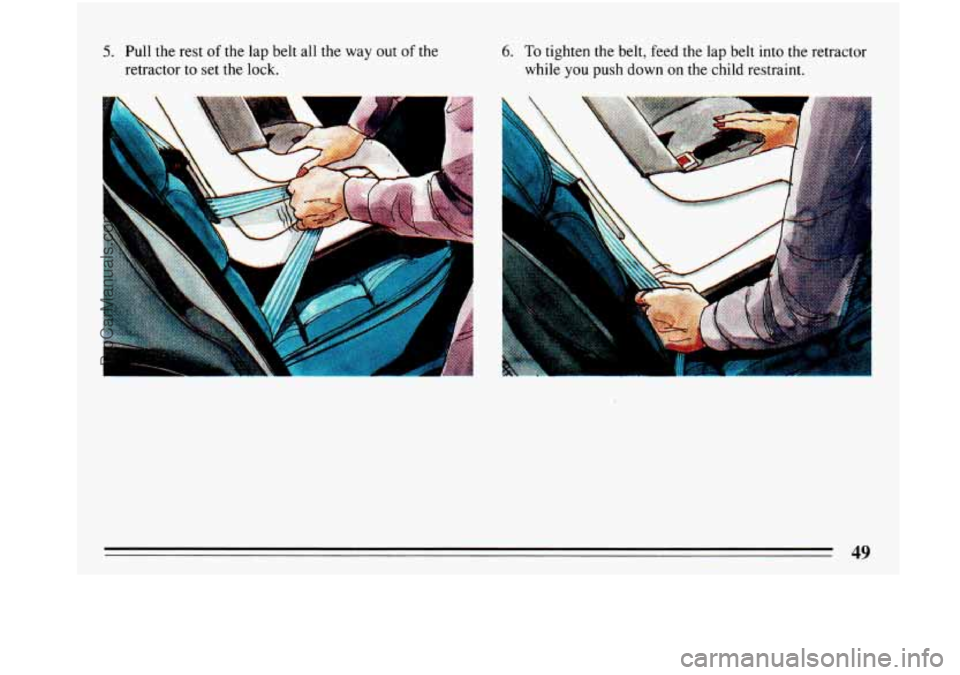

5. Pull the rest of the lap belt all the way out of the
retractor to set the lock.
?
6. To tighten the belt, feed the lap belt into the retractor
while
you push down on the child restraint.
'5. '?
ProCarManuals.com

To remove the child restraint, just unbuckle the vehicle’s
safety belt and let
it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
Securing a Child Restraint in a Center Seat
Position
When you secure a child restraint in a center seating
position, you’ll be using the lap belt.
7. Push and pull the child restraint in different
directions
to be sure it is secure.
ProCarManuals.com

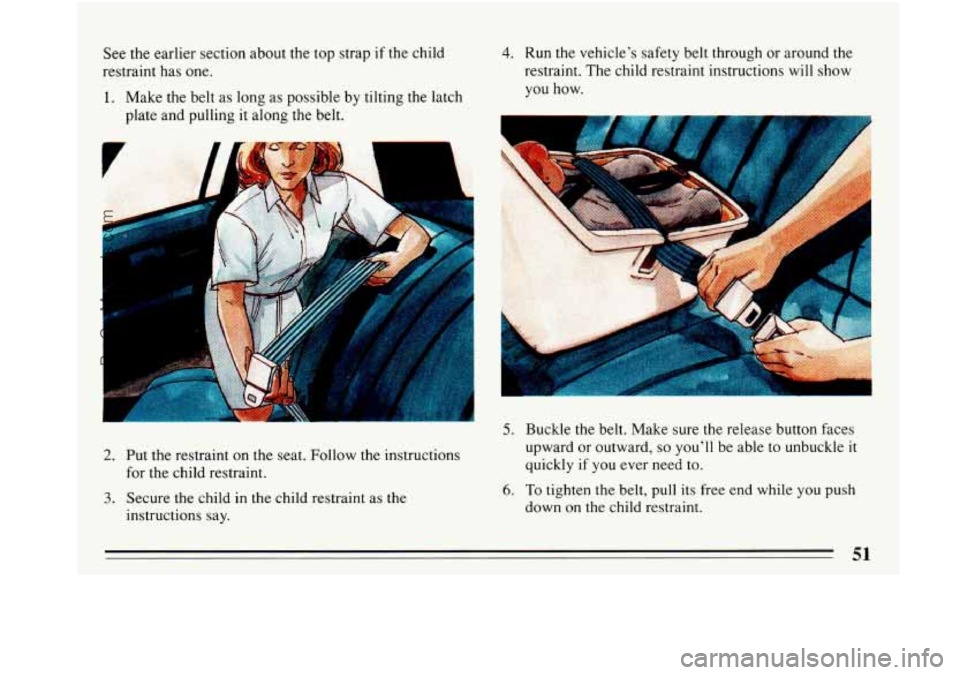

See the earlier section about the top strap if the child
restraint has one.
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat. Follow the instructions
for the child restraint.
3. Secure the child in the child restraint as the
instructions say.
4. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
5. Buckle the belt. Make sure the release button faces
upward
or outward, so you’ll be able to unbuckle it
quickly if you ever need to.
6. To tighten the belt, pull its free end while you push
down on the child restraint.
51
ProCarManuals.com

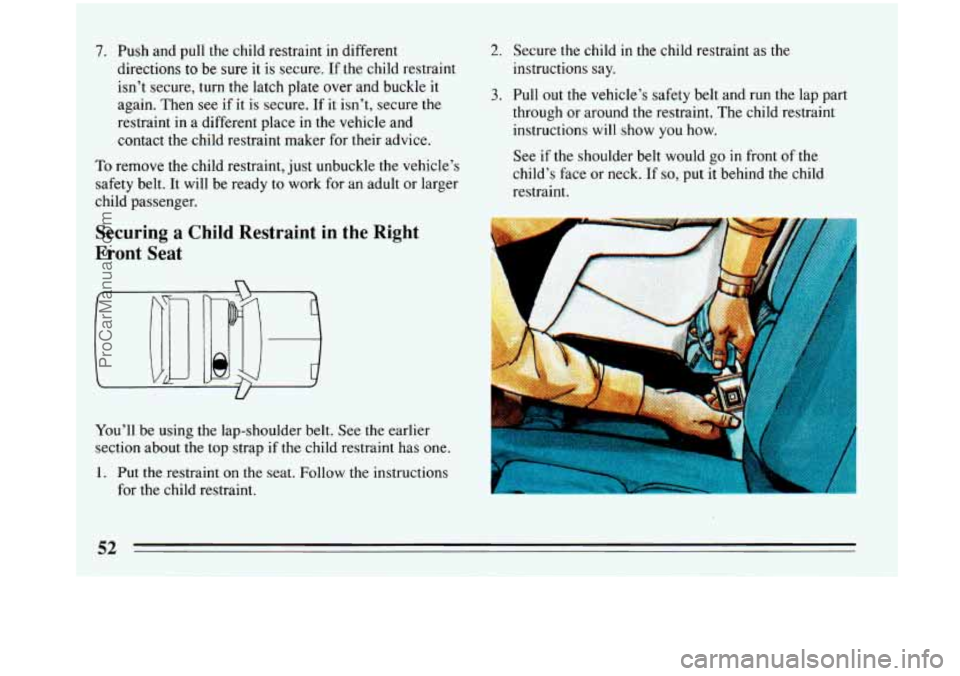

7. Push and pull the child restraint in different
directions
to be sure it is secure. If the child restraint
isn’t secure, turn the latch plate over and buckle it
again. Then see if it is secure. If
it isn’t, secure the
restraint in a different place in the vehicle and
contact the child restraint maker for their advice.
To remove the child restraint, just unbuckle the vehicle’s
safety belt.
It will be ready to work for an adult or larger
child passenger.
Securing a Child Restraint in the Right
Front Seat
n
u
You’ll be using the lap-shoulder belt. See the earlier
section about the top strap if the child restraint has one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
!. Secure the child in the child restraint as the
instructions say.
3. Pull out the vehicle’s safety belt and run the lap part
through or around
the restraint. The child restraint
instructions will show
you how.
See if the shoulder belt would go
in front of the
child’s face or neck.
If so, put it behind the child
restraint.
52
ProCarManuals.com

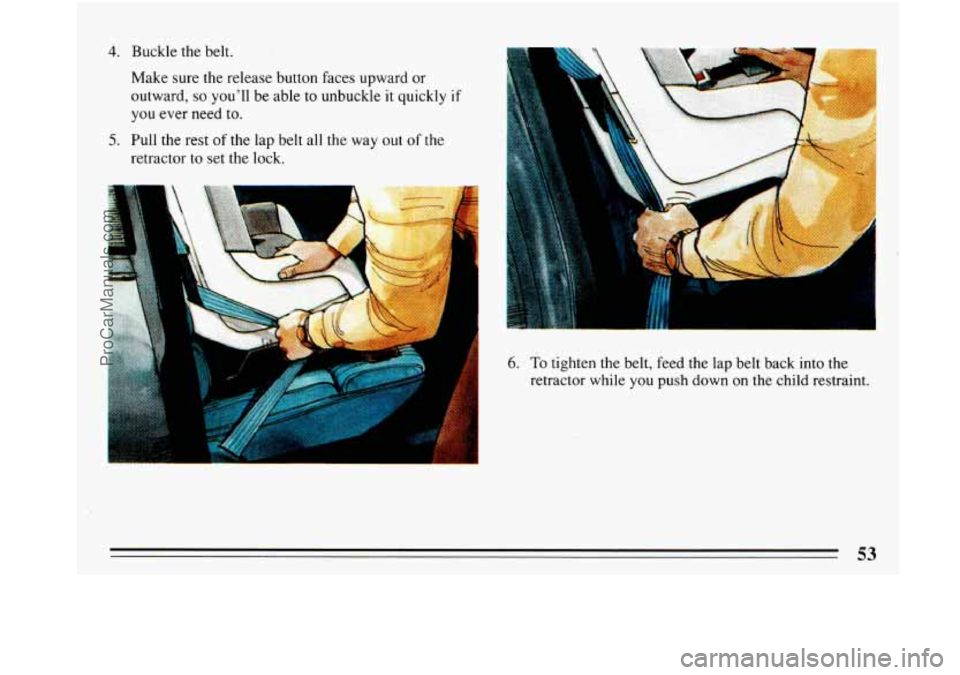

4. Buckle the belt.
Make sure the release button faces upward or
outward,
so you’ll be able to unbuckle it quickly if
you ever need to.
5. Pull the rest of the lap belt all the way out of the
retractor to set the lock.
6. To tighten the belt, feed the lap belt back into the
retractor while
you push down on the child restraint.
ProCarManuals.com

A
1
I

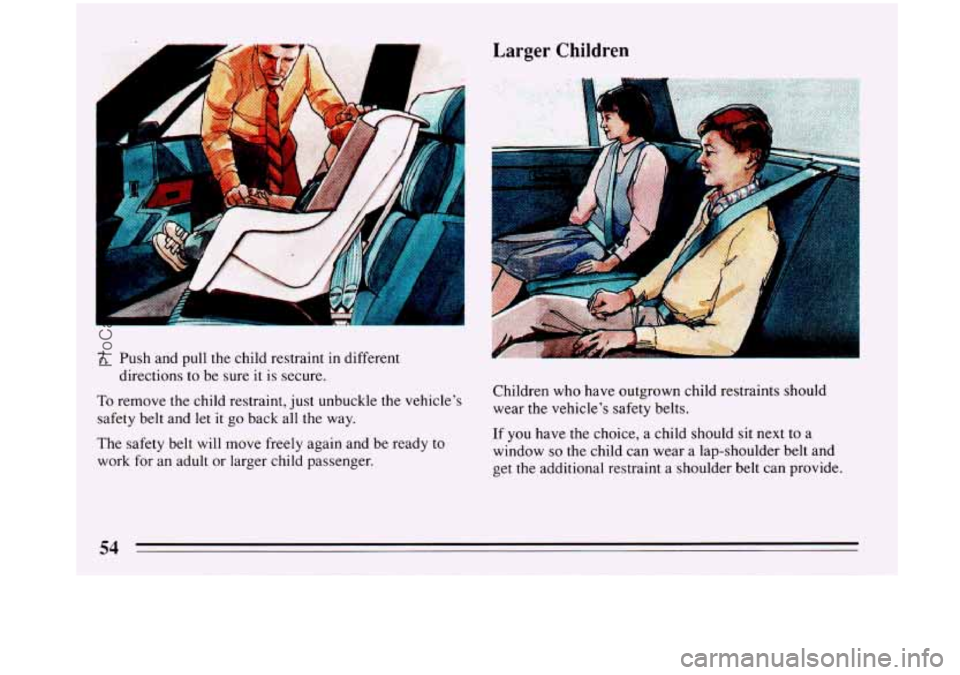

7. Push and pull the child restraint in different
A
directions to be sure it is secure.
Children who have outgrown child restraints should
To remove the child restraint, just unbuckle the vehicle's wear the safety belts.
safety belt and let it
go back all the way. -
The safety belt will move freely again and be ready to
work for an adult or larger child passenger. If you
have the choice, a child should sit next to a
window so the child can wear a lap-shoulder belt and
get the additional restraint a shoulder belt can provide.
ProCarManuals.com

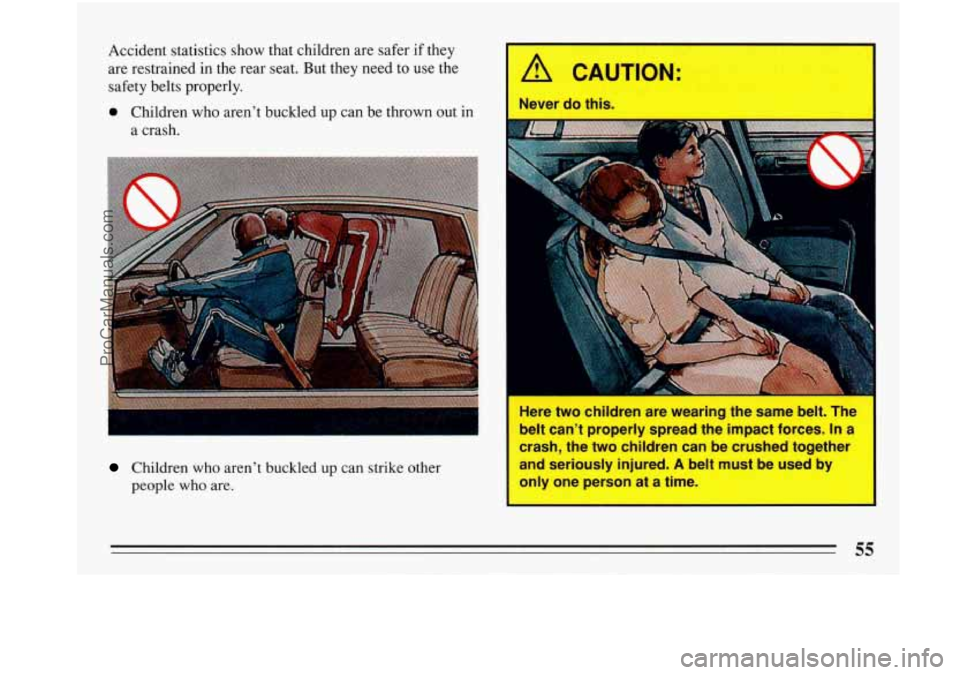

Accident statistics show that children are safer if they
are restrained in the rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can strike other
people who are.
’ crash, the two children can be crushed together
and seriously injured.
A belt must be used by
only one person at a time.
55
ProCarManuals.com

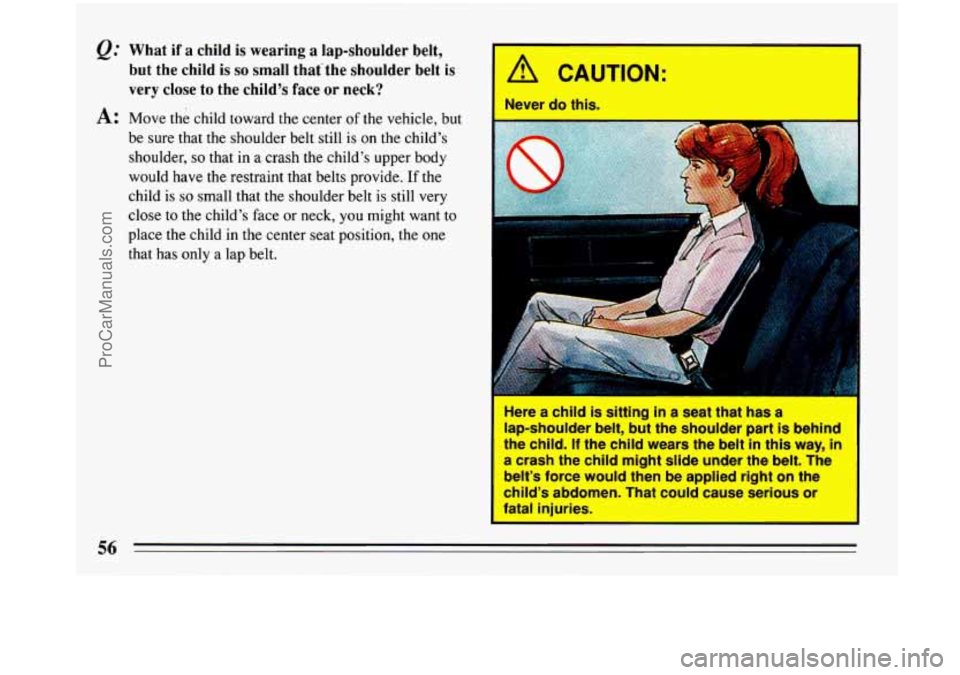

@ What if a child is wearing a lap-shoulder belt,
but the child is
so small thatthe shoulder belt is
verv close to the child’s face
or neck? Y
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
If the
child is
so small that the shoulder belt is still very
close to the child’s face or neck, you might want to
place the child in the center seat position, the one
that has only a lap belt.
1
Here a child is sitting in a’seat that has a
lap-shoulder belt, but the shoulder
part is behind
the child.
If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then
be applied right on the
child’s abdomen. That
could causQ serious or
fatal iniuries
I
56
ProCarManuals.com

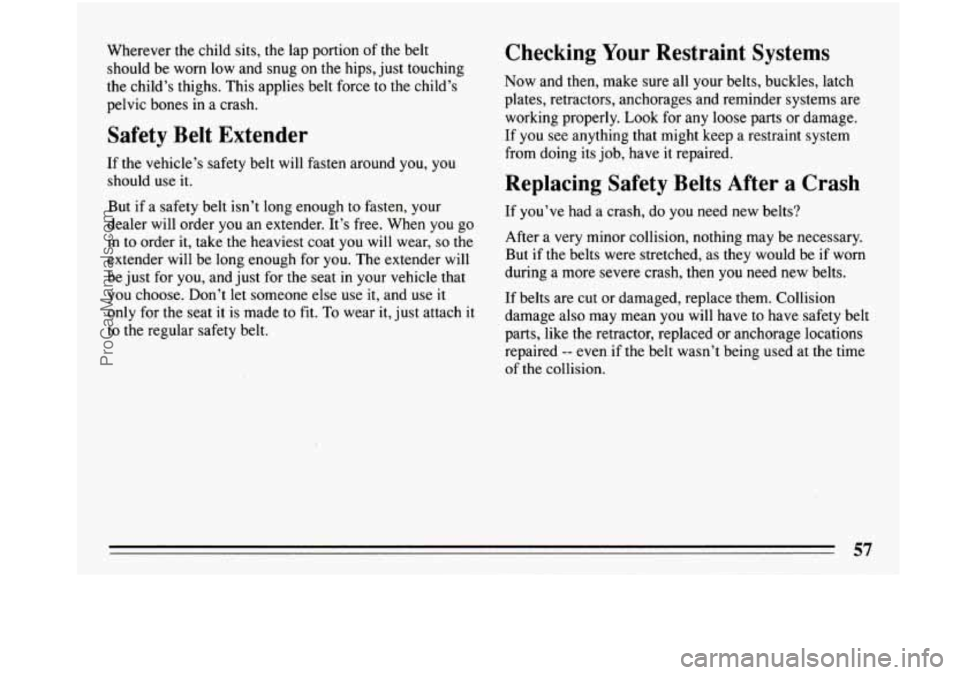

Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child’s thighs. This applies belt force to the child’s
pelvic bones in a crash.
Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use it.
But if a safety belt isn’t long enough to fasten, your
dealer will order
you an extender. It’s free. When you go
in to order it, take the heaviest coat
you will wear, so the
extender will be long enough for
you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don’t let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly. Look
for any loose parts or damage.
If
you see anything that might keep a restraint system
from doing its job, have it repaired.
Replacing Safety Belts After a Crash
If you’ve had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will have to have safety belt
parts, like the retractor, replaced or anchorage locations
repaired
-- even if the belt wasn’t being used at the time
of the collision.
57
ProCarManuals.com

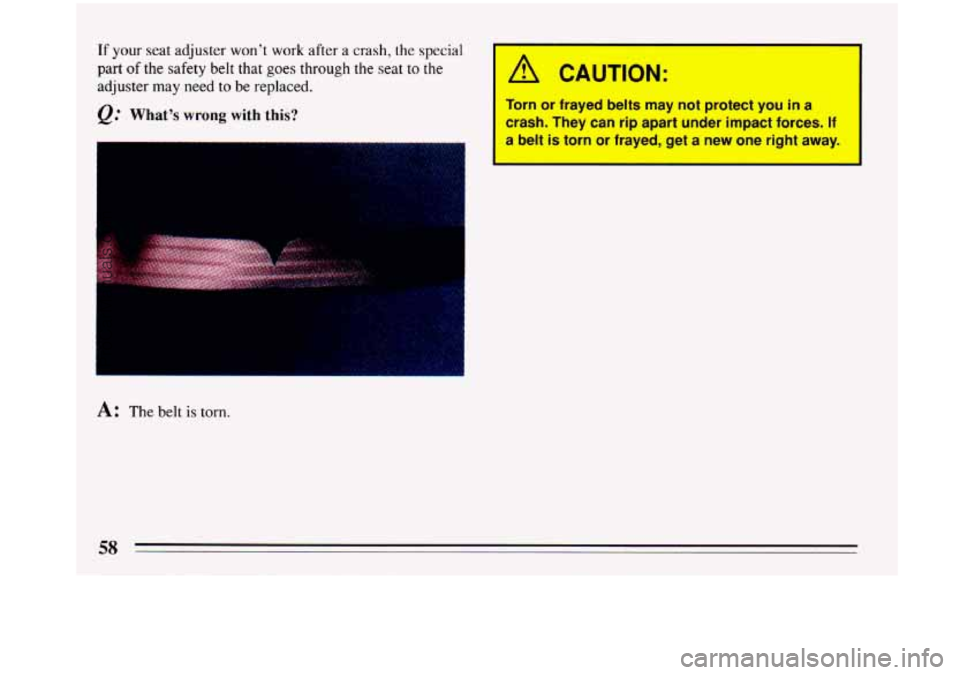

If your seat adjuster won’t work after a crash, the special
part of the safety belt that goes through the seat to the
adjuster may need to be replaced.
Q: What’s wrong with this?
A: The belt is torn.
CAUTION:
frayed belts may not protect you in a
Torn or
crash. They can rip apart under impact forces.
If
a belt is torn or frayed, get a new one right away.
I
1
