BUICK PARK AVENUE 2002 Owner's Manual
Manufacturer: BUICK, Model Year: 2002, Model line: PARK AVENUE, Model: BUICK PARK AVENUE 2002Pages: 395, PDF Size: 2.67 MB
Page 331 of 395

6-67

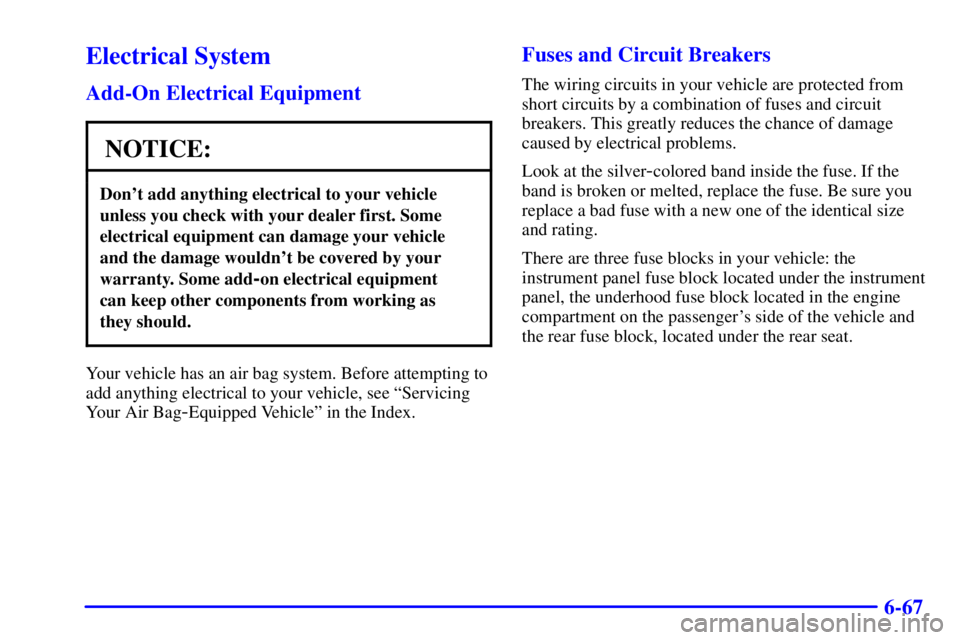

Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of damage
caused by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
There are three fuse blocks in your vehicle: the
instrument panel fuse block located under the instrument
panel, the underhood fuse block located in the engine
compartment on the passenger's side of the vehicle and
the rear fuse block, located under the rear seat.
Page 332 of 395

6-68
Main and Auxiliary Instrument Panel Fuse Blocks
The main and auxiliary instrument panel fuse blocks are
located on the passenger's side of the vehicle, under the
instrument panel. Lamps, connectors and the HVAC
duct temperature sensors may need to be disconnected
and removed to allow access to these fuse blocks.
Remove the hush panel on the passenger's side to reveal
the fuses by performing the following steps:
1. Remove the two screws located along the front edge
of the panel.
2. Lower the hush panel.
3. Remove the fuse block cover.
4. Place the wide end of the fuse puller over the plastic
end of the fuse.
5. Squeeze the ends over the fuse and pull it out.
When finished, reinstall the fuse block cover and the
hush panel. Reinstall lamps, connectors and HVAC duct
temperature sensors if they were removed.Main Instrument Panel Fuse Block
Fuse Usage
SBM Interior Lamps
PDM PDM Module
A/C HVAC Motor, HVAC Mix Motors
Page 333 of 395

6-69
Fuse Usage
IGN SEN Electrochromic Mirror, Driver
HTS Seat, Rear Defog Relay,
MEM Module, Cool LVL Sensor,
Pass Heated Seat
ELC HVAC Flat Pk Mtrs, Electronic
Level Control Sensor, Electronic
Level Control Sensor (R Bec)
ABS
Anti
-Lock Brake System Module
HVAC HVAC Main Con Head,
HVAC Programmer, Instrument
Panel Cluster
CR CONT Stepper Motor Cruise,
Cruise Switch
HUD
Head
-Up Display Switch,
Head
-Up Display
CSTR/SBM HVAC Programmer, Instrument
Panel Cluster, SBM (275 to LCM)
(1135 to BTSI SL)Fuse Usage
LP PK L Underhood Lamp, Left Park/
Sidemarker, Left Park/Turn Lamp,
SBM, Left Tail Signal Lamp,
Left Tail/Stoplamp,
Left Rear Sidemarker
LP PK R Right Park/Sidemarker Lamp,
Right ParK/Turn Lamp, Right
Tail/Sign Lamp, Right Tail/Sto-
plamp, Right Rear Sidemarker,
Stop/Taillamp, Tail/Signal Lamp,
License Lamp, RFA
RUN Run/Accessory
WSW Wiper Motor
Blank Not Used
WSW/RFA Wiper Switch, RFA, Rain Sense
B/U LP Electrochromic Mirror,
Back
-Up Lamps
Page 334 of 395

6-70
Auxiliary Instrument Panel Fuse Block
Fuse Usage
PERIM LP Perimeter Lamps
ACCY Accessory

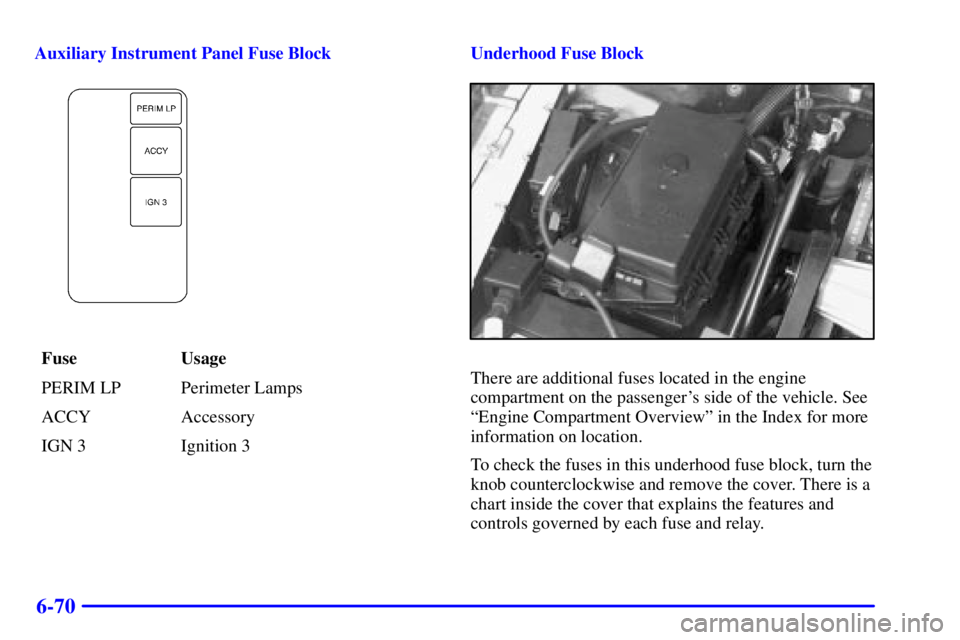

IGN 3 Ignition 3Underhood Fuse Block
There are additional fuses located in the engine
compartment on the passenger's side of the vehicle. See
ªEngine Compartment Overviewº in the Index for more
information on location.
To check the fuses in this underhood fuse block, turn the
knob counterclockwise and remove the cover. There is a
chart inside the cover that explains the features and
controls governed by each fuse and relay.
Page 335 of 395

6-71
Minifuses Usage
1 Air Sol
2 SBM, LCM
3 Turn Signal
4
Pre
-Oxygen Sensor, Post-Oxygen
Sensor
5 Air Bag (SIR)Minifuses Usage
6 Powertrain Control Module
7 Air Conditioning Clutch
8 Ignition Feed
9 Horn Relay
10 Spare
11 Spare
12
Injectors #1
-6
13
C
-31
14 Right High Beam
15 Spare
16 Left High Beam
17 Spare
18 Right Low Beam
19 Left Low Beam
20 Stop
21 Fuel Pump Relay (Wire in BEC)
Page 336 of 395

6-72
Minifuses Usage
22 Run/Crank
23 Powertrain Control Module
24 Parking Lamp
25 Hazard Flashers
26 Spare
27 Spare
28 ABS #2
Mini Relays Usage
29 Ignition
30 Horn
31 Cool Fan #2
32 Starter
33 Air Pump
34 Cool Fan SP
35 Cool Fan 1Micro Relays Usage
36 Air Conditioning Clutch
37 Fuel Pump
Maxifuses Usage
38 Bat #1
39 Blower Motor
40 Cool Fan 2
41 Headlamp
42 BAT #2
43 Ignition
44 Starter
45 ABS
46 Fuse Puller
Page 337 of 395

6-73

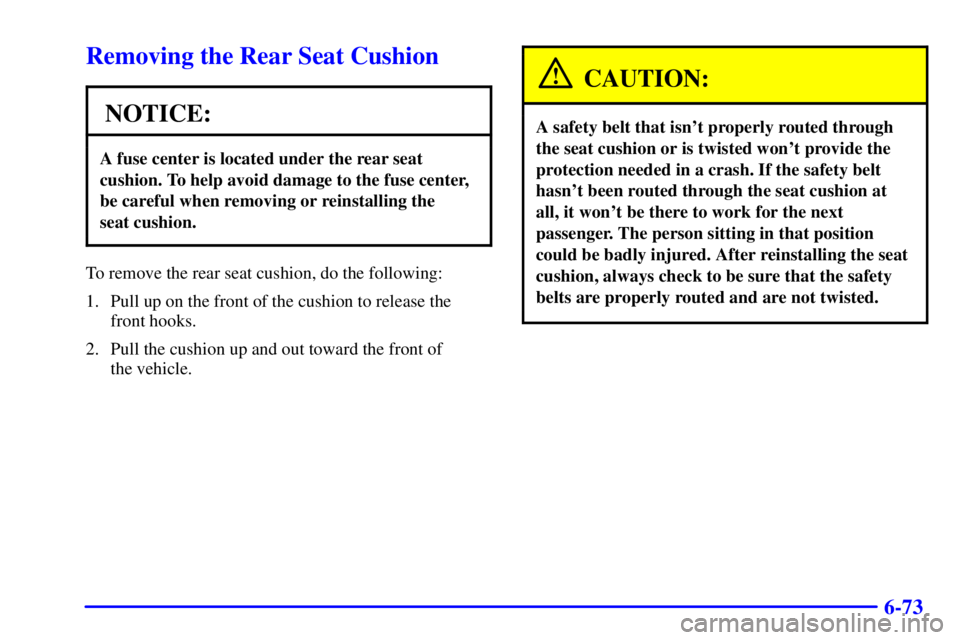

Removing the Rear Seat Cushion
NOTICE:
A fuse center is located under the rear seat
cushion. To help avoid damage to the fuse center,
be careful when removing or reinstalling the
seat cushion.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front of
the vehicle.
CAUTION:
A safety belt that isn't properly routed through
the seat cushion or is twisted won't provide the
protection needed in a crash. If the safety belt
hasn't been routed through the seat cushion at
all, it won't be there to work for the next
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the safety
belts are properly routed and are not twisted.
Page 338 of 395

6-74

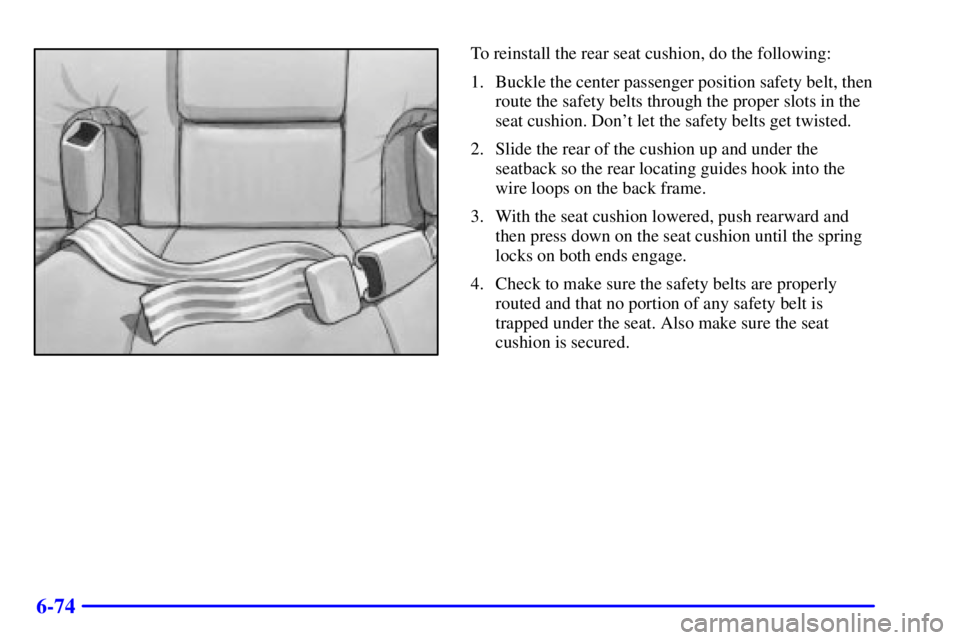

To reinstall the rear seat cushion, do the following:
1. Buckle the center passenger position safety belt, then
route the safety belts through the proper slots in the
seat cushion. Don't let the safety belts get twisted.
2. Slide the rear of the cushion up and under the
seatback so the rear locating guides hook into the
wire loops on the back frame.
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
4. Check to make sure the safety belts are properly
routed and that no portion of any safety belt is
trapped under the seat. Also make sure the seat
cushion is secured.
Page 339 of 395

6-75
Rear Compartment Fuse Block
Additional fuses are located in the fuse center under the
rear seat.
Mini Relay Usage
1 Heated Backlite
Micro Relays Usage
2 Retained Accessory Power (RAP)
3 Trunk Release
4 Electronic Level ControlCircuit Breakers Usage
5 Power Seat
6 Electronic Level Control Sensor,
Electronic Level Control
Compressor Solenoid
Minifuses Usage
7 Crank
8 Auxiliary Outlet
9 Powertrain Control Module
for Cruise
10 SBM Module
11 Radio/Phone
12 Sunroof
13 Spare
14 CD Changer, Phone
15 Driver Door Module
16 Spare
Page 340 of 395

6-76
Minifuses Usage
17 Radio
18 Driver Heated Seat Module
19 Rear Door Module
20 Trunk Release
21 Spare
22 Instrument Panel Ashtray
Cigarette Lighter
23 Spare
24 Spare
25 Passenger Heated Seat Module
26 Right Rear Cig Lighter
27 Left Rear Cig Lighter
28 RFA, Memory Seat Module,
Driver Seat SwitchReplacement Bulbs
Lamp Bulb Number
Headlamp
High
-Beam 9005. . . . . . . . . . . . . . . . . . . . . . . . . . .
Low
-Beam 9006. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking/Turn, Front 3057. . . . . . . . . . . . . . . . . . . . . .
Back
-Up 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tail/Turn 194. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tail/Stop 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For any bulb not listed here contact your dealer.
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the Index for
more information.
Capacities
Automatic Transaxle 7.4 quarts (7.0 L). . . . . . . . . . .
Engine Cooling System 13.0 quarts (12.3 L). . . . . . .
Engine Oil with Filter 4.5 quarts (4.3 L). . . . . . . . . .
Fuel Tank 18.5 U.S. gallons (70.0 L). . . . . . . . . . . . .
All capacities are approximate. When adding, be sure to fill
to the appropriate level as recommended in this manual.
