BUICK REGAL 1996 Owners Manual

RECALL: Press this button briefly to recall the station
being played or the clock display. To change what is
normally shown on the display (station or time), press
the button until you see
the display you want, then hold
the button until the display flashes. If
you press the
button when the ignition is off,
the clock will show for
a few seconds.
AM-FM: Press this button to select AM, FMl or FM2.
The display shows your selection.
TUNE: Press the up or down arrow to choose
radio stations.
SEEK: Press the up or down arrows to go to the
next higher or lower station. The sound will be muted
while seeking.
SCAN: Press one of the SEEK arrows for two seconds
and
SCAN will appear on the display. Use SCAN to
listen to stations for a few seconds. The radio will go
to
a station, stop for a few seconds, then go on to the next
station. Press one of the
SEEK arrows again to stop
scanning. The sound will be muted while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM1 and six FM2).
1. Press AM-FM to select the band.
2. Find the station you want by using TUNE or SEEK.
3. Press TONE to select the setting you prefer.
4. Press and hold one of the six numbered buttons.
5. The sound will mute. When it returns, release the
button. Whenever you press that numbered button, the
station
you set will return and the TONE you selected
will be automatically selected for that button.
P SCAN: Press this button to listen to each of your
preset stations for
a few seconds. The radio will go to
the first preset station, stop for
a few seconds, then go
on to the next preset station. Press P SCAN again to stop
scanning. If a preset station
has weak reception, the
radio will not stop at the preset station.
AUTO PRESET Press this button and the system will
seek and set the
12 strongest FM or the 6 strongest AM
stations on your preset buttons.
To return to the stations
you manually set, press AUTO PRESET again.
ProCarManuals.com

Setting the Tone
BASS: Press this knob lightly so it extends. Turn the
knob to increase or decrease bass.
Playing a Cassette Tape
The longer side with the tape visible should face to the
right.
If the ignition is on, but the radio is off, the tape
will begin playing. If you hear nothing or hear
a garbled
sound the tape may not
be in squarely. Press EJECT to
remove the tape and start over.
While
the tape is playing, use the VOLUME, FADE,
BAL, TREB and BASS controls just as you do for the
radio. Other controls may have different functions when
a tape is inserted. The display will show
an arrow to
show which side of the tape is playing.
TREB: Press this knob lightly so it extends. Turn the
knob
to increase or decrease treble.
Push the knobs back in when you are not using them.
TONE: This feature allows you to choose preset treble and
bass equalization settings designed for classical, pop, rock,
jazz, talk and country/western stations. CLASS will
appear
on the display when you first press TONE. Each
time you press
it, another setting will appear on the display.
Press it again after
C & W appears and MANUAL will
appear. Tone control will return
to the TREB and BASS
knobs.
Also, if you use the TREB and BASS knobs,
control will return
to them and MANUAL will appear.
Adjusting the Speakers
BAL: Press this knob lightly so it extends. Turn the
knob to move the sound
to the left or right speakers.
Use
the middle position to balance these speakers.
FADE: Press this button lightly so it extends. Turn the
knob to move
the sound to the front or rear speakers.
Use the middle position to balance these speakers.
Push the knobs back
in when you are not using them.
If you want to insert a tape when the ignition or radio is
off, first press EJECT or RECALL. Note that the
cassette tape adapter kits for portable compact disc
players may not work
in your cassette player. These
adapters can cause an error message on the display, and
the adapter cassette could be ejected.
Your tape bias
is set automatically.
PREV (1): Press this button to search for the previous
selection on the tape. Your tape must have at least three
seconds of silence between each selection for PREV to
work. The sound
will be muted while seeking.
NEXT (2): Press this button to search for the next
selection on the tape. Your tape must have at least three
3-18
ProCarManuals.com

seconds of silence between each selection for NEXT to
work. The sound will be muted while seeking.
The
SEEK down and up arrows will also find the
previous and next selections on the tape.
44 (3): Press this button to reverse the tape rapidly.
Press
it again to return to playing speed. The radio will
play while the tape reverses.
,, (4): Press this button to advance quickly to another
part of the tape. Press
the button again to return to
playing speed.
The radio will play while the tape
advances.,
SIDE (5): Press this button to change the side of the
tape that is playing.
SOURCE: Press this button to change to the tape or
disc function when the radio
is on. If both a tape and a
disc are installed, the system will first go to tape play;
TAPE will appear on
the display. If SOURCE is pressed
again, the system will go to disc play; CD will appear on
the display.
EJECT The system has two EJECT buttons. Press the
button near the CD slot
to remove a disc. Press the button
near
the tape slot to remove a tape. The radio will play.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes, but you should clean it as soon
as
possible to prevent damage to your tapes and player. See

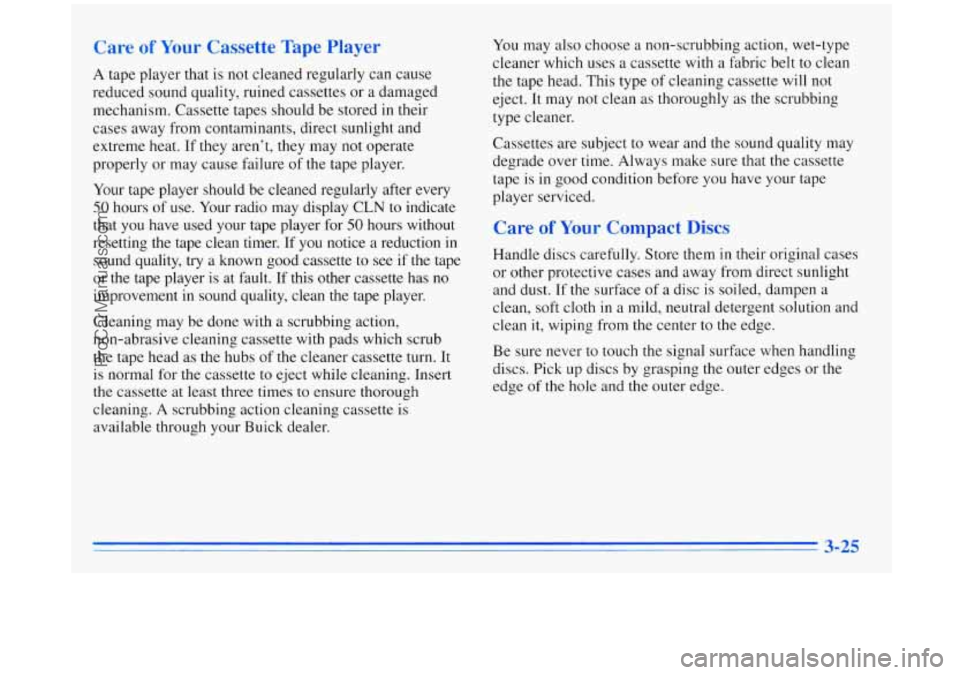

“Care of Your Cassette Tape Player”
in the Index. After
you clean the player, press and hold EJECT for five
seconds
to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Your cassette tape player automatically reduces
background noise from tapes encoded with Dolby NR.
You may turn Dolby off by pressing the number
six preset.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will
pull it in. The disc should begin playing.
If you’re driving on a very rough road or if it’s very hot,
the disc may not play and an error code may appear on
the display. Press
RECALL to take the error code off the
3-19
ProCarManuals.com

display. When things get back to normal, the disc should
play. If the disc comes out,
it could be that:
0 The disc is upside down.
It is dirty, scratched or wet.
It is very humid. (If so, wait about an hour and
try again.)
RECALL: Press this button to see which track is
playing. Press it again
within five seconds to see how
long it has been playing.
To change what is normally
shown on the display (track or elapsed time), press the
button until you see the display you want, then hold the
button until the display flashes.
PREV (1): Press this button to go to the start of the
current track,
if more than eight seconds have played. If
you hold the button or press it more than once, the
player will continue moving back through the disc. The
sound will be muted while seeking.
NEXT (2): Press this button to go to the next track.
If you hold the button or press it more than once, the
player will continue moving forward through the disc.
The sound will be muted while seeking.
The
SEEK down and up arrows will also find the previous
and next selections on
the disc.
44 (3): Press and hold this button to return to a passage
quickly.
You will hear sound.
,, (4): Press and hold this button to advance to a
passage quickly. You will hear sound.
RAND (6): Press this button to hear the tracks in
random, rather than sequential, order.
AM-FM: Press this button to play the radio when a disc
is in the player.
If you turn off the ignition or radio with a disc in the
player,
it will stay in the player. When you turn on the
ignition or system, the disc will start playing where it
stopped,
if it was the last-selected audio source.
SOURCE: Press this button to change to the disc
function when the radio
is on. When a disc is inserted,
the disc
will play until you press AM-FM. Then the disc
will stop playing and the radio will play. Press
SOURCE
again to play a disc again. CD PLAY will show on
the display.
EJECT Press this button to remove the disc. The radio
will play.
ProCarManuals.com

Theft-Deterrent Feature
THEFTLOCK" is designed to discourage theft of your
radio. It works by using
a secret code to disable all radio
functions whenever battery power is removed.
If THEFTLOCK is active, the THEFTLOCK indicator
will flash when the ignition is
OFF.
The THEFTLOCK feature for the radio may be used or
ignored.
If ignored, the system plays normally and the
radio is not protected by the feature. If THEFTLOCK is
activated, your radio will not operate if stolen.
When THEFTLOCK is activated, the radio will display
LOC to indicate a locked condition anytime battery
power is removed. If your battery loses power for any
reason, you must unlock the radio with the secret code
before it will operate.
Activating the Theft-Deterrent Feature
The instructions which follow explain how to enter your
secret code to activate the THEFTLOCK system. It
is
recommended that you read through all nine steps
before starting the procedure.
NOTE:
If you allow more than 15 seconds to elapse
between any steps, the radio automatically reverts to
time and you must start the procedure over at Step
4.
1. Write down any three or four-digit number from
000 to 1999 and keep it in a safe place separate from
the vehicle.
2. Turn the ignition to the ACC or RUN position.
3. Turn the radio off.
4. Press the 1 and 4 buttons together. Hold them down
until
--- shows on the display. Next you will use the
secret code number which you have written down.
5. Press MIN and 000 will appear on the display.
6. Press MIN again to make the last two digits agree
with your code.
7. Press HRS to make the first or two digits agree with
your code.
8. Press AM-FM after you have confirmed that the code
matches the secret code you have written down. The
display
will show REP to let you know that you need to
repeat Steps
5 through 7 to confirm your secret code.
9. Press AM-FM and this time the display will show
SEC to let you know that your radio is secure.
3-21
ProCarManuals.com

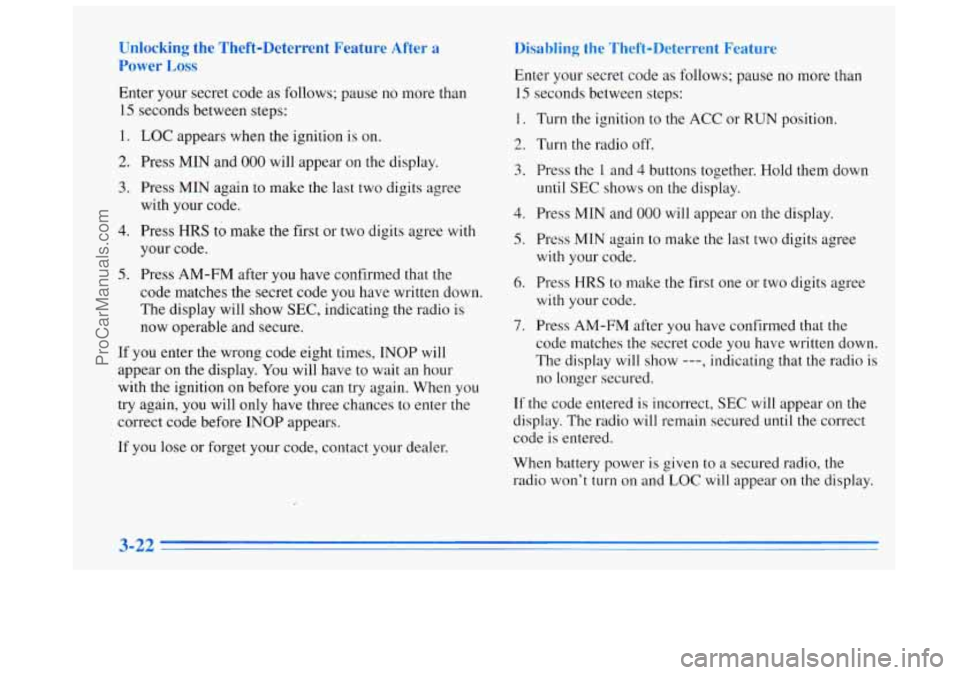

Unlocking the Theft-Deterrent 1 ature After a
Power
Loss
Enter your secret code as follows; pause no more than
15 seconds between steps:
1.
2.
3.
4.
5.
LOC appears when the ignition is on.
Press MIN and
000 will appear on the display.
Press MIN again to make the last two digits agree
with your code.
Press
HRS to make the first or two digits agree with
your code.
Press AM-FM after
you have confirmed that the
code matches the secret code
you have written down.
The display will show SEC, indicating the radio is
now operable and secure.
If you enter
the wrong code eight times, INOP will
appear on the display.
You will have to wait an hour
with the ignition on before
you can try again. When you
try again, you will only have three chances to enter the
correct code before
INOP appears.
If you lose or forget your code, contact your dealer.
Disabling the Theft-Deterrent Feature
Enter your secret code as follows; pause no more than
15 seconds between steps:
1.
2.
3.
4.
5.
6.
7.
Turn the ignition to the ACC or RUN position.
Turn the radio
off.
Press the 1 and 4 buttons together. Hold them down
until
SEC shows on the display.
Press MIN and
000 will appear on the display.
Press
MTN again to make the last two digits agree
with your code.
Press HRS to make the first one or two digits agree
with your code.
Press AM-FM after you have confirmed that the
code matches the secret code you have written down.
The display will
show ---, indicating that the radio is
no longer secured.
If the code entered is incorrect, SEC will appear on the
display. The radio will remain secured
until the correct
code is entered.
When battery power
is given to a secured radio, the
radio
won’t turn on and LOC will appear on the display.
3-22
ProCarManuals.com

Steering Wheel Controls tion)
You can control certain audio system functions using the
buttons on your steering wheel.
SEEK: Press the up or down arrows to tune to the
next or previous radio station. If a tape or compact
disc
is playing, the player will advance to the next or
previous selection.
SCAN: Press to listen to stations for a few seconds. The
radio will
go to a station, stop for a few seconds, then go
on to the next station. Press again to stop scanning.
AM FM: Press to choose AM, FM 1 or FM2. If a
tape or disc is playing, press this button to hear the
radio instead.
VOL: Press the up or down arrows to increase or
decrease volume.
SRCE: Press to change to the tape or disc function
when the radio is on.
MUTE: Press to silence the audio system.
3-23
.~
ProCarManuals.com

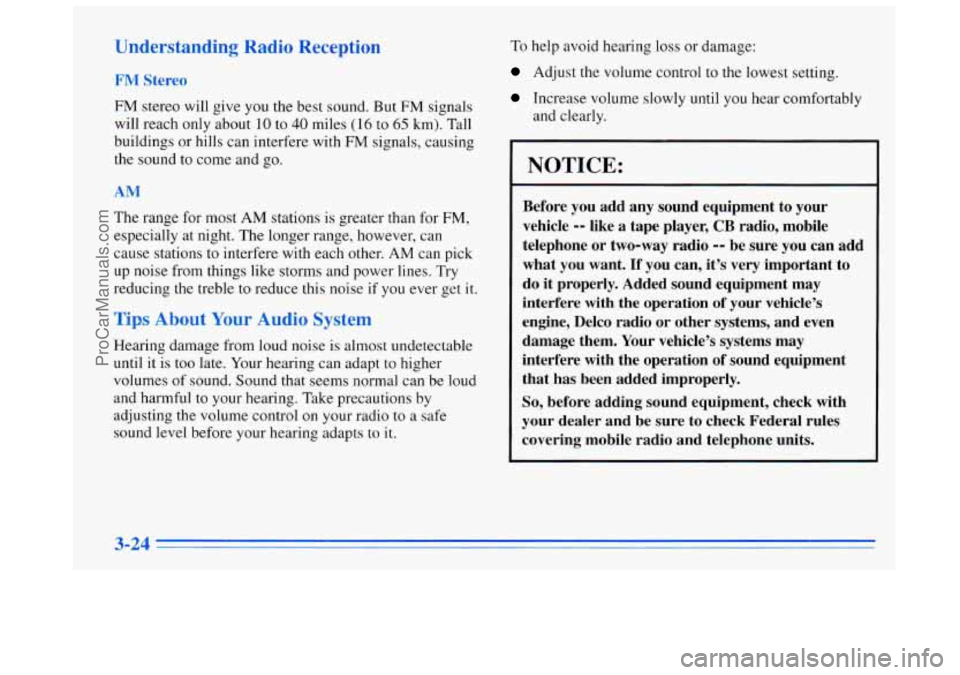

Understanding Radio Reception
FM Stereo
FM stereo will give you the best sound. But FM signals
will reach only about
10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with
FM signals, causing
the sound to come and go.
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce this noise if you ever get it.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher
volumes of sound. Sound that seems normal can be loud
and harmful to your hearing. Take precautions by
adjusting
the volume control on your radio to a safe
sound level before your hearing adapts to it.
To help avoid hearing loss or damage:
Adjust the volume control to the lowest setting.
Increase volume slowly until you hear comfortably
and clearly.
NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two-way radio
-- be sure you can add
what you want.
If you can, it’s very important to
do it properly. Added sound equipment may
interfere with the operation of your vehicle’s
engine, Delco radio
or other systems, and even
damage them. Your vehicle’s systems may
interfere with the operation
of sound equipment
that has been added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check Federal rules
covering mobile radio and telephone units.
3-24
ProCarManuals.com

C __~ ~ ~ Iur C mette Tape PIayer
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme heat. If they aren’t, they may not operate
properly or may cause failure
of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that you have used your tape player for
50 hours without
resetting the tape clean timer. If you notice a reduction in
sound quality,
try a known good cassette to see if the tape
or the tape player is at fault. If this other cassette has no
improvement
in sound quality, clean the tape player.
Cleaning may be done with a scrubbing action,
non-abrasive cleaning cassette with pads which scrub
the tape head as the hubs of the cleaner cassette turn. It
is normal for the cassette to eject while cleaning. Insert
the cassette at least three times to ensure thorough
cleaning. A scrubbing action cleaning cassette is
available through your Buick dealer. You
may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type
of cleaning cassette will not
eject. It may not clean as thoroughly as the scrubbing
type cleaner.
Cassettes are subject to wear and the sound quality may
degrade over time. Always make sure that the cassette
tape is in good condition before you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen a
clean, soft cloth in
a mild, neutral detergent solution and
clean it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge
of the hole and the outer edge.
t
ProCarManuals.com

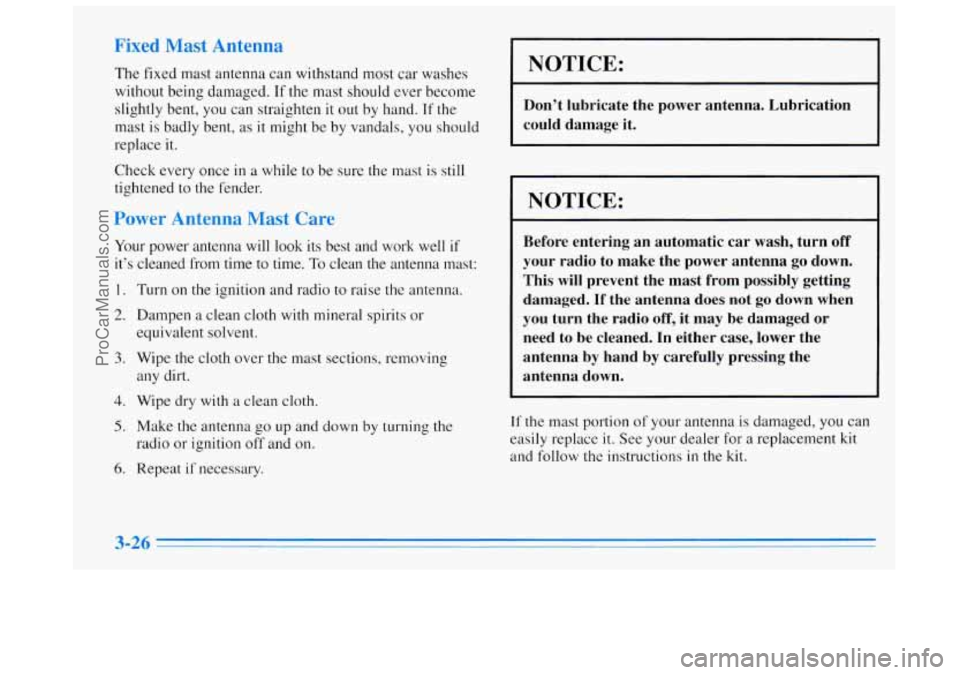

1 Ma:
The fixed mast antenna can withstand most car washes
without being damaged.
If the mast should ever become
slightly bent, you can straighten
it out by hand. If the
mast is badly bent, as it might be by vandals, you should
replace it.
Check every once
in a while to be sure the mast is still
tightened to the fender.
Powe: intenna ast Care
Your power antenna will look its best and work well if
it’s cleaned from time to time. To clean the antenna mast:
1.
2.
3.
4.
5.
6.
Turn on the ignition and radio to raise the antenna.
Dampen
a clean cloth with mineral spirits or
equivalent solvent.
Wipe the cloth over the mast sections, removing
any dirt.
Wipe dry with a clean cloth.
Make
the antenna go up and down by turning the
radio or ignition off and on.
Repeat
if necessary.
I NOTICE:
Don’t lubricate the power antenna. Lubrication
could damage it.
NOTICE:
Before entering an automatic car wash, turn off
your radio to make the power antenna go down.
This
will prevent the mast from possibly getting
damaged.
If the antenna does not go down when
you turn the radio off, it may be damaged
or
need to be cleaned. In either case, lower the
antenna by hand by carefully pressing the
antenna down.
If the mast portion of your antenna is damaged, you can
easily replace
it. See your dealer for a replacement kit
and follow the instructions
in the kit.
3-26
ProCarManuals.com
