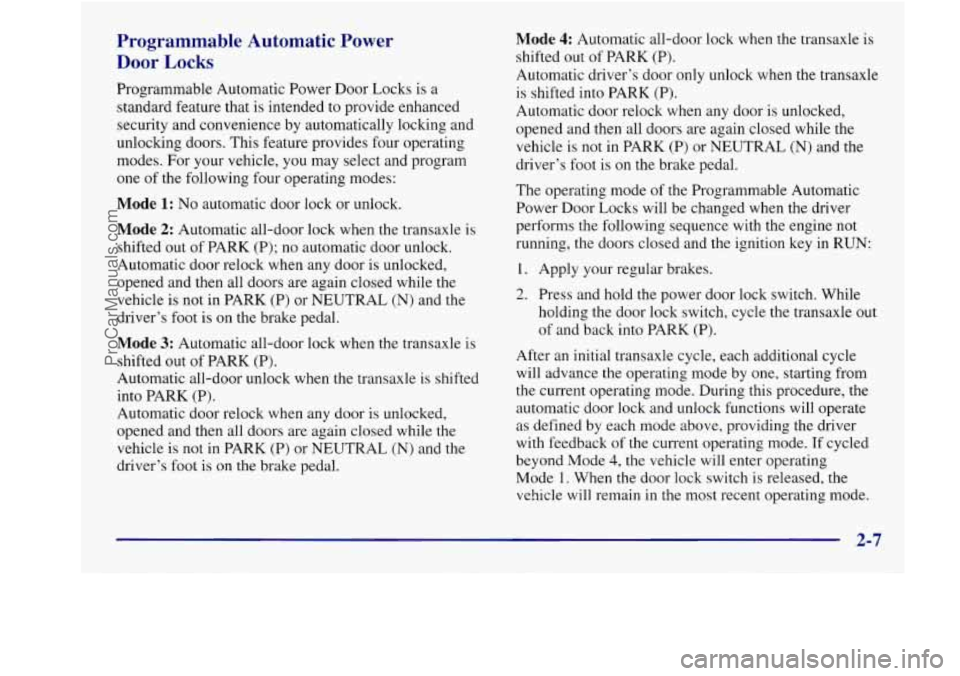

Programmable Automatic Power
Door Locks
Programmable Automatic Power Door Locks is a
standard feature that
is intended to provide enhanced
security and convenience by automatically locking and
unlocking doors. This feature provides four operating
modes. For your vehicle, you may select and program
one of the following four operating modes:
Mode 1: No automatic door lock or unlock.
Mode 2: Automatic all-door lock when the transaxle is
shifted out of PARK (P); no automatic door unlock.
Automatic door relock when any door is unlocked,
opened and then all doors are again closed while
the
vehicle is not in PARK (P) or NEUTRAL (N) and the
driver’s foot is on the brake pedal.
Mode 3: Automatic all-door lock when the transaxle is
shifted out
of PARK (P).
Automatic all-door unlock when the transaxle is shifted
into PARK (P).
Automatic door relock when any door is unlocked,
opened and then all doors are again closed while the
vehicle is not in PARK (P) or NEUTRAL
(N) and the
driver’s foot is
on the brake pedal.
Mode 4: Automatic all-door lock when the transaxle is
shifted out
of PARK (P).
Automatic driver’s door only unlock when the transaxle
is shifted into PARK
(P).
Automatic door relock when any door is unlocked,
opened and then all doors are again closed while the
vehicle is not in PARK (P) or NEUTRAL
(N) and the
driver’s foot is on the brake pedal.
The operating mode of the Programmable Automatic
Power Door Locks will be changed when the driver
performs the following sequence with the engine not
running, the doors closed and the ignition key in RUN:
1. Apply your regular brakes.
2. Press and hold the power door lock switch. While
holding the door lock switch, cycle the transaxle out
of and back into PARK (P).
After an initial transaxle cycle, each additional cycle
will advance the operating mode by one, starting from
the current operating mode. During this procedure, the
automatic door lock and unlock functions will operate
as defined
by each mode above, providing the driver
with feedback of the current operating mode. If cycled
beyond Mode
4, the vehicle will enter operating
Mode
1. When the door lock switch is released, the
vehicle will remain in the most recent operating mode.
2-7
ProCarManuals.com

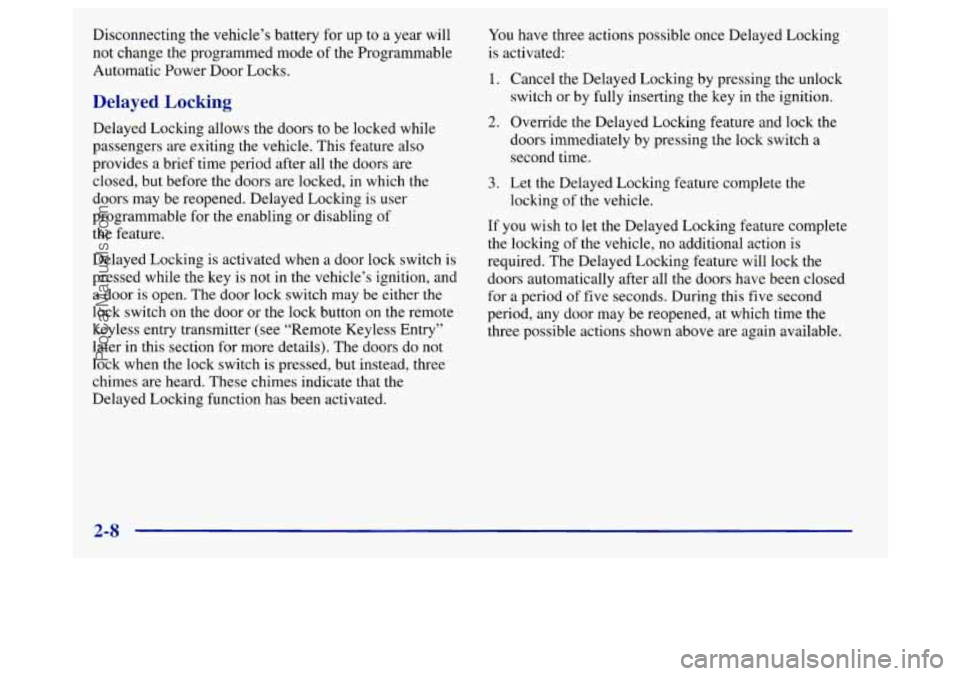

Disconnecting the vehicle’s battery for up to a year will
not change the programmed mode
of the Programmable
Automatic Power Door Locks.
Delayed Locking
Delayed Locking allows the doors to be locked while
passengers are exiting the vehicle. This feature also
provides
a brief time period after all the doors are
closed, but before the doors are locked, in which the
doors may be reopened. Delayed Locking
is user
programmable for the enabling or disabling of
the feature.
Delayed Locking is activated when a door lock switch is
pressed while the key is not
in the vehicle’s ignition, and
a
door is open, The door lock switch may be either the
lock switch on the door or the lock button on the remote
keyless entry transmitter (see “Remote Keyless Entry”
later in this section for more details). The doors do not
lock when the lock switch is pressed, but instead, three
chimes are heard. These chimes indicate that the
Delayed Locking function has been activated. You
have three actions possible once Delayed Locking
is activated:
1. Cancel the Delayed Locking by pressing the unlock
switch or by fully inserting the key in the ignition.
2. Override the Delayed Locking feature and lock the
doors immediately by pressing the lock switch a
second time.
3. Let the Delayed Locking feature complete the
locking of the vehicle.
If you wish to let the Delayed Locking feature complete
the locking
of the vehicle, no additional action is
required. The Delayed Locking feature will lock the
doors automatically after all the doors have been closed
for a period
of five seconds. During this five second
period, any door may be reopened, at which time the
three possible actions shown above are again available.
2-8
ProCarManuals.com

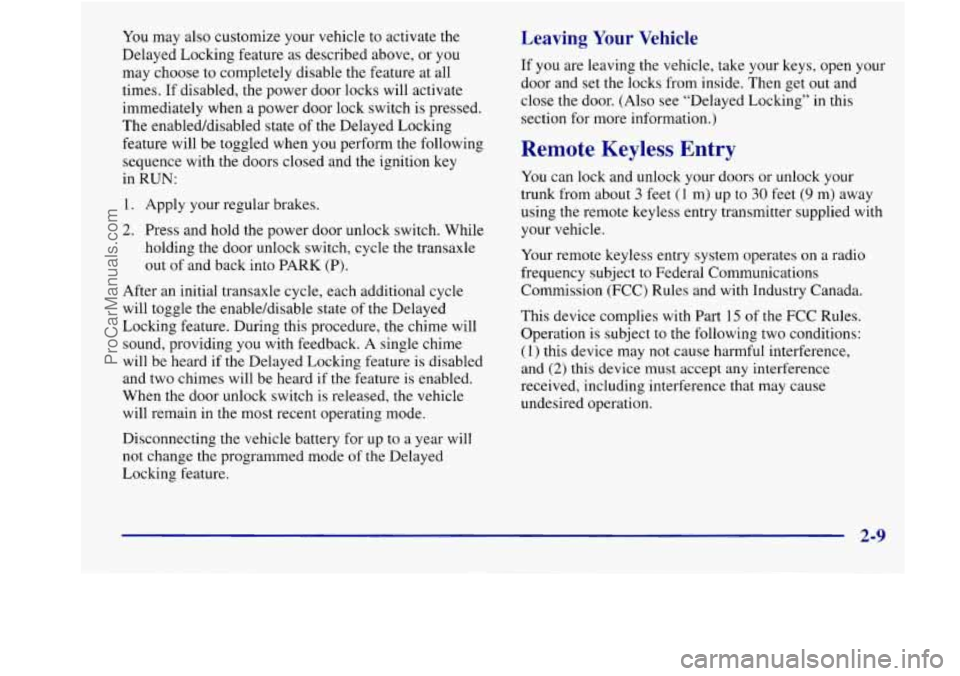

You may also customize your vehicle to activate the
Delayed Locking feature as described above, or you
may choose to completely disable the feature at all
times.
If disabled, the power door locks will activate
immediately when a power door lock switch is pressed.
The enabled/disabled state of the Delayed Locking
feature will be toggled when you perform the following
sequence with the doors closed and the ignition key
in RUN:
1. Apply your regular brakes.
2. Press and hold the power door unlock switch. While
holding the door unlock switch, cycle the transaxle
out of and back into PARK (P).
After an initial transaxle cycle, each additional cycle
will toggle the enable/disable state of the Delayed
Locking feature. During this procedure, the chime will
sound, providing you with feedback. A single chime
will be heard if the Delayed Locking feature is disabled
and two chimes will be heard if the feature is enabled.
When the door unlock switch is released, the vehicle
will remain in the most recent operating mode.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door. (Also see “Delayed Locking” in this
section for more information.)
Remote Keyless Entry
You can lock and unlock your doors or unlock your
trunk from about
3 feet (1 m) up to 30 feet (9 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of
the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Disconnecting the vehicle battery for up to a year will
not change the programmed mode of the Delayed
Locking feature.
2-9
ProCarManuals.com

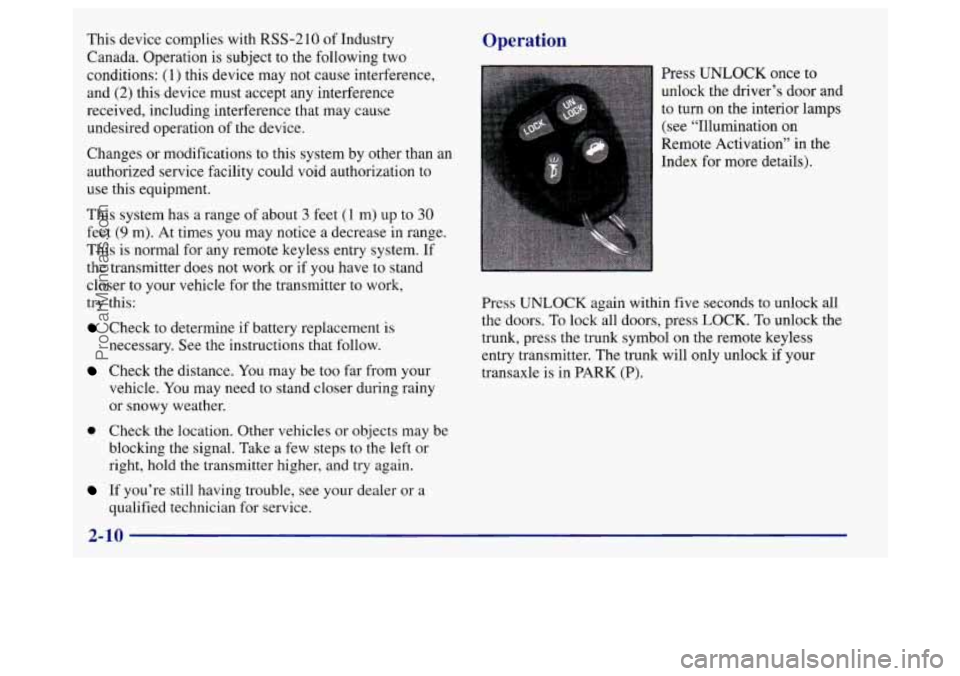

This device complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions: (1) this device may not cause interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization
to
use this equipment.
This system has a range of about
3 feet (1 m) up to 30
feet (9 m). At times you may notice a decrease in range.
This
is normal for any remote keyless entry system. If
the transmitter does not work or if you have to stand
closer to your vehicle for the transmitter to work,
try this:
Check to determine if battery replacement is
necessary. See the instructions that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
0 Check the location. Other vehicles or objects may be
blocking the signal. Take
a few steps to the left or
right, hold the transmitter higher, and try again.
If you’re still having trouble, see your dealer or a
qualified technician for service.
Operation
Press UNLOCK once to
unlock the driver’s door and
to turn on the interior lamps
(see “Illumination on
Remote Activation” in the
Index for more details).
Press
UNLOCK again within five seconds to unlock all
the doors. To lock all doors, press
LOCK. To unlock the
trunk, press the trunk symbol on the remote keyless
entry transmitter. The trunk will only unlock
if your
transaxle is in PARK
(P).
2-10
ProCarManuals.com

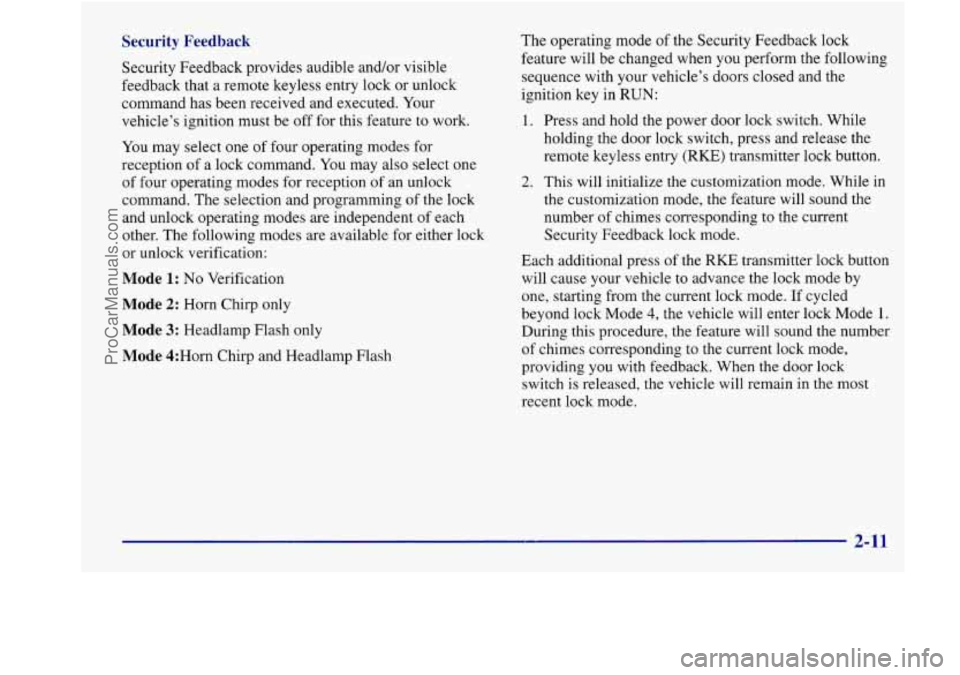

Security Feedback
Security Feedback provides audible and/or visible
feedback that a remote keyless entry lock or unlock
command has been received and executed. Your
vehicle’s ignition must be off for this feature to work.
You may select one of four operating modes for
reception of a lock command. You may also select one
of four operating modes for reception of an unlock
command. The selection and programming of the lock
and unlock operating modes are independent of each
other. The following modes are available for either lock
or unlock verification:
Mode 1: No Verification
Mode 2: Horn Chirp only
Mode 3: Headlamp Flash only
Mode &Horn Chirp and Headlamp Flash The operating
mode of the Security Feedback lock
feature will be changed when you perform the following
sequence with your vehicle’s doors closed and the
ignition key in
RUN:
1.
2.
Press and hold the power door lock switch. While
holding the door lock switch, press and release the
remote keyless entry
(RKE) transmitter lock button.
This will initialize the customization mode. While in
the customization mode, the feature will sound the
number of chimes corresponding to the current
Security Feedback lock mode.
Each additional press of the
RKE transmitter lock button
will cause your vehicle
to advance the lock mode by
one, starting from the current lock mode. If cycled
beyond lock Mode
4, the vehicle will enter lock Mode 1.
During this procedure, the feature will sound the number
of chimes corresponding to the current lock mode,
providing you with feedback. When the door lock
switch is released, the vehicle will remain in the most
recent lock mode.
2-11
ProCarManuals.com

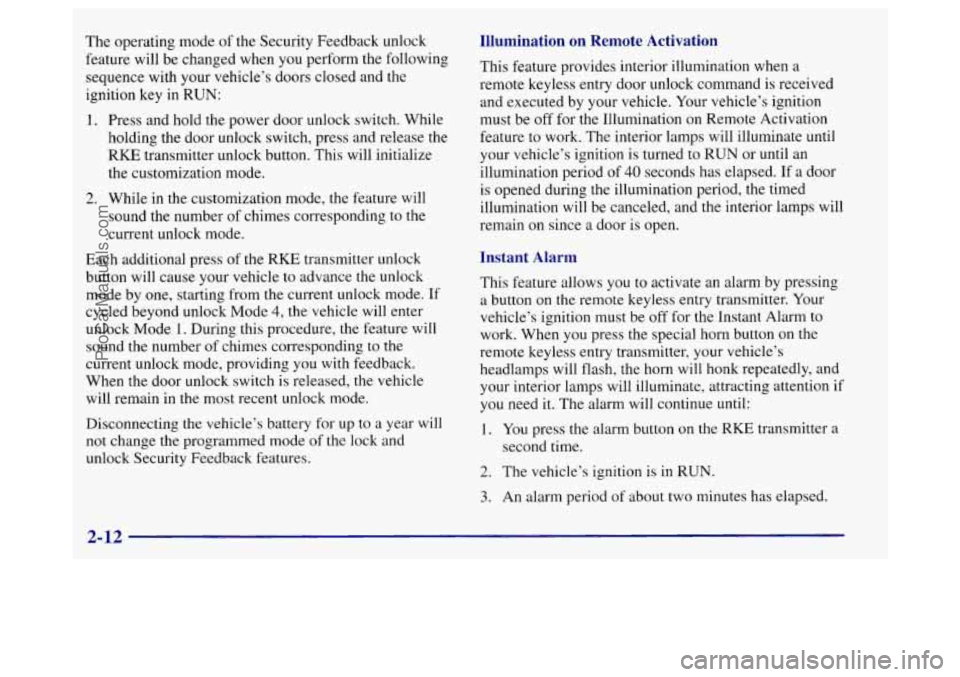

The operating mode of the Security Feedback unlock
feature will be changed when you perform
the following
sequence with your vehicle’s doors closed and the
ignition key
in RUN:
1.
2.
Press and hold the power door unlock switch. While
holding the door unlock switch, press and release the
RKE transmitter unlock button. This will initialize
the customization mode.
While in the customization mode, the feature will
sound the number of chimes corresponding
to the
current unlock mode.
Each additional press of the
RKE transmitter unlock
button will cause your vehicle to advance the unlock
mode by
one, starting from the current unlock mode. If
cycled beyond unlock Mode
4, the vehicle will enter
unlock Mode 1. During this procedure, the feature will
sound the number of chimes corresponding to the
current unlock mode, providing you with feedback.
When the door unlock switch is released,
the vehicle
will remain in
the most recent unlock mode.
Disconnecting the vehicle’s battery for up to a year will
not change the programmed mode of the lock and
unlock Security Feedback features.
Illumination on Remote Activation
This feature provides interior illumination when a
remote keyless entry door unlock command is received
and executed by your vehicle.
Your vehicle’s ignition
must be off for the Illumination
on Remote Activation
feature to work. The interior lamps will illuminate until
your vehicle’s ignition
is turned to RUN or until an
illumination period of
40 seconds has elapsed. If a door
is opened during the illumination period, the timed
illumination will be canceled, and the interior lamps will
remain on since a door is open.
Instant Alarm
This feature allows you to activate an alarm by pressing
a button on the remote keyless entry transmitter. Your
vehicle’s ignition must be off for the Instant Alarm to
work. When you press the special horn button on the
remote keyless entry transmitter, your vehicle’s
headlamps will flash, the horn will honk repeatedly, and
your interior lamps will illuminate, attracting attention if
you need it. The alarm will continue until:
1. You press the alarm button on the RKE transmitter a
second time.
2. The vehicle’s ignition is in RUN.
3. An alarm period of about two minutes has elapsed.
2-12
ProCarManuals.com

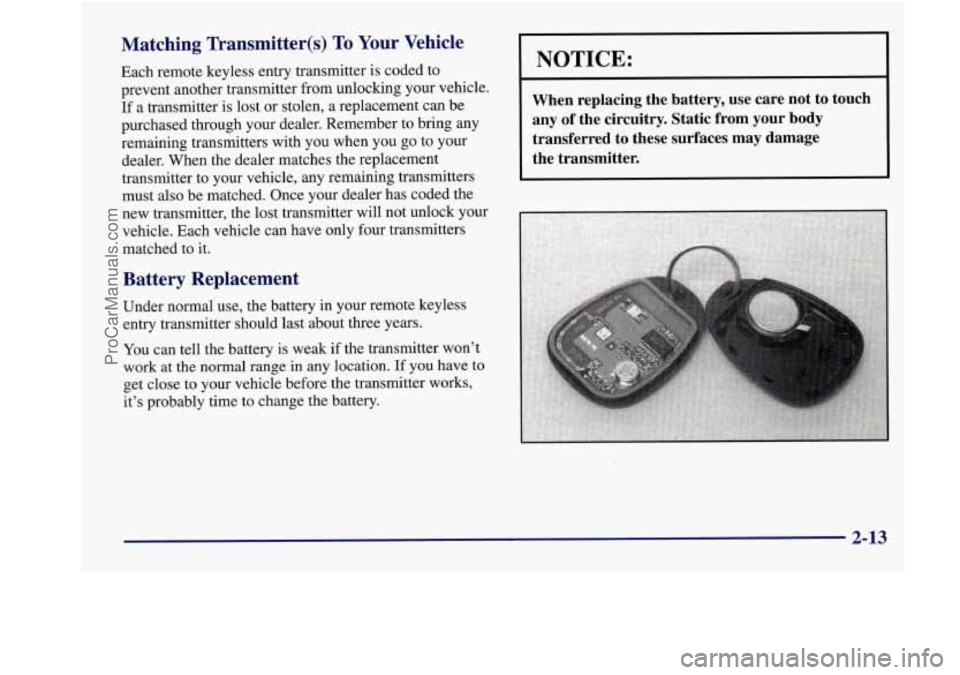

Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it. 1 NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
I
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won’t
work
at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
2-13
ProCarManuals.com

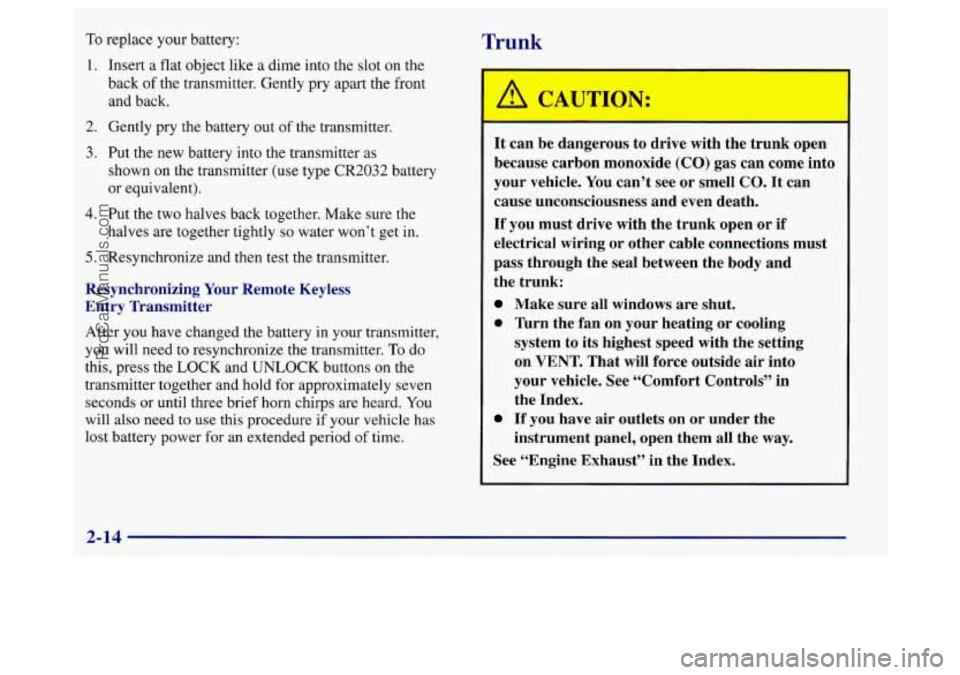

To replace your battery: Trunk
1. Insert a flat object like a dime into the slot on the
back
of the transmitter. Gently pry apart the front
and back.
2. Gently pry the battery out of the transmitter.
3. Put the new battery into the transmitter as
shown on the transmitter (use type CR2032 battery
or equivalent).
4. Put the two halves back together. Make sure the
halves are together tightly
so water won’t get in.
5. Resynchronize and then test the transmitter.
Resynchronizing Your Remote Keyless
Entry Transmitter
After you have changed the battery in your transmitter,
you will need to resynchronize the transmitter.
To do
this, press the LOCK and UNLOCK buttons on the
transmitter together and hold for approximately seven
seconds or until three brief horn chirps are heard. You
will also need to use this procedure
if your vehicle has
lost battery power
for an extended period of time.
It can be dangerous to drive with the trunk open
because carbon monoxide (CO) gas can come into
your vehicle. You can’t see or smell CO.
It can
cause unconsciousness and even death.
If you must drive with the trunk open or if
electrical wiring or other cable connections must
pass through the seal between the body and
the trunk:
Make sure all windows are shut.
0 Tbrn the fan on your heating or cooling
system to its highest speed with the setting
on
VENT. That will force outside air into
your vehicle. See “Comfort Controls” in
the Index.
instrument panel, open them all the
way.
If you have air outlets on or under the
See “Engine Exhaust’’ in the Index.
2-14
ProCarManuals.com

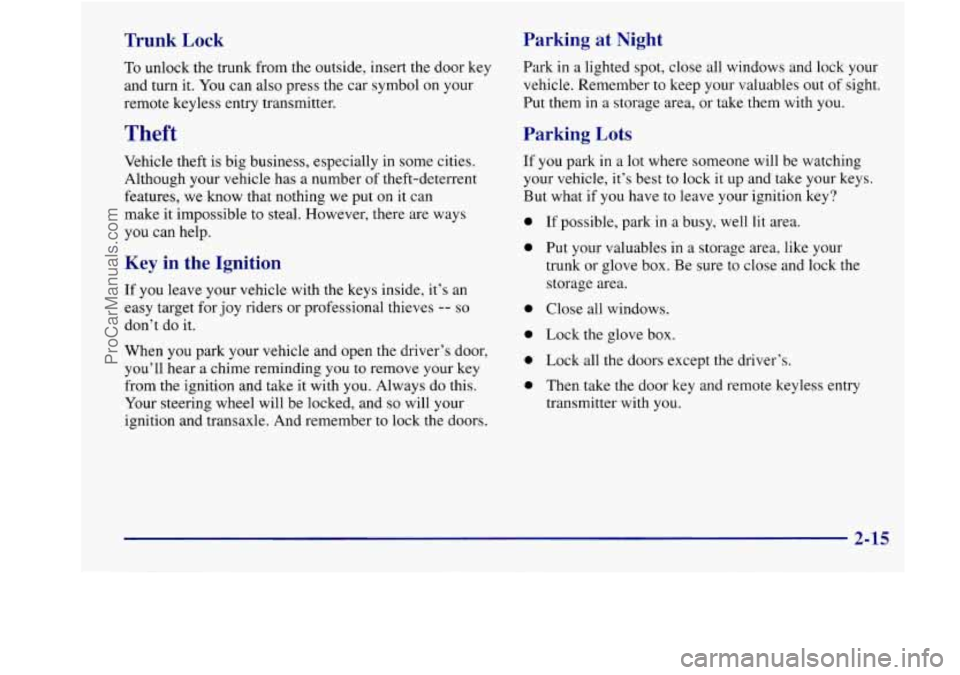

Trunk Lock Parking at Night
To unlock
the trunk from the outside, insert the door key
and turn it.
You can also press the car symbol on your
remote keyless entry transmitter.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can
make it impossible to steal. However, there are ways
you can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for joy riders or professional thieves
-- so
don’t do it.
When you park your vehicle and open the driver’s door,
you’ll hear a chime reminding you to remove your key
from the ignition and take it with you. Always
do this.
Your steering wheel will be locked, and
so will your
ignition and transaxle. And remember to lock the doors.
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out
of sight.
Put them
in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock it up and take your keys.
But what if you have to leave your ignition key?
0
0
0
0
0
0
If possible, park in a busy, well lit area.
Put your valuables in
a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.
Close all windows.
Lock the glove box.
Lock all the doors except the driver’s.
Then take the door key and remote keyless entry
transmitter with you.
2-15
ProCarManuals.com

PASS-Key@ I1
Your vehicle is equipped
with the PASS-Key
I1
(Personalized Automotive
Security System)
theft-deterrent system.
PASS-Key I1 is a passive
theft-deterrent system. It
works when you insert or
remove the
key from
the ignition.
PASS-Key
I1 uses a resistor pellet in the ignition key
that matches a decoder
in your vehicle.
When the PASS-Key I1 system senses that someone
is
using the wrong key, it shuts down the vehicle’s starter and
fuel systems. For about three minutes, the starter won’t
work and fuel won’t
go to the engine. If someone tries to
start your vehicle again or uses another key during this
time, the vehicle will not start. This discourages someone
from randomly trying different keys with different resistor
pellets in
an attempt to make a match.
The ignition key must be clean and dry before it’s inserted
in the ignition or the engine may not start. If the engine
does not start and the SECURITY light is flashing, the key
may be dirty or wet. Turn the ignition off. Clean and
dry
the key. Wait about three minutes and try
again.
If the starter still won’t work, and the key appears
to be clean and dry, wait about three minutes and try
another ignition key. At this time, you may also want to
check the fuse (see “Fuses and Circuit Breakers” in the
Index). If
the starter won’t work with the other key, your
vehicle needs service. If your vehicle does start, the first
ignition key may be faulty. See your dealer or a
locksmith who can service the PASS-Key
11.
If you accidentally use a key that has a damaged or
missing resistor pellet, the starter won’t work. The
SECURITY light will then come
on. But you don’t have
to wait three minutes before trying another ignition key.
See your dealer or a locksmith who can service the
PASS-Key
I1 to have a new key made.
If you’re ever driving and the SECURITY light comes
on, you will be able to restart your engine if
you turn it
off. Your PASS-Key I1 system, however, is not working
properly and must be serviced by your dealer. Your
vehicle is not protected by the PASS-Key I1 system.
If you lose or damage a PASS-Key
I1 ignition key, see
your dealer or
a locksmith who can service PASS-Key I1
to have a new key made. In an emergency, call the Buick
Premium Roadside Assistance Center at
1-800-252-
1 112. In Canada, call 1-800-268-6800.
2-16
ProCarManuals.com
