BUICK REGAL 2013 Owner's Manual

Black plate (3,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12

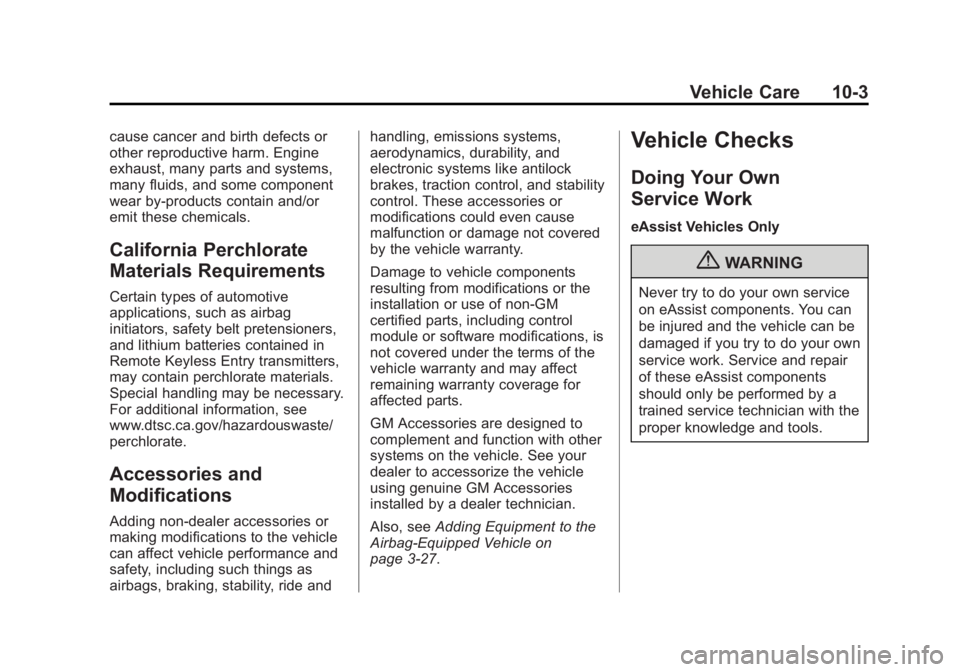

Vehicle Care 10-3
cause cancer and birth defects or
other reproductive harm. Engine
exhaust, many parts and systems,
many fluids, and some component
wear by-products contain and/or
emit these chemicals.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, safety belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non‐dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride andhandling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non‐GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle on
page 3‑27.
Vehicle Checks
Doing Your Own
Service Work
eAssist Vehicles Only
{WARNING
Never try to do your own service
on eAssist components. You can
be injured and the vehicle can be
damaged if you try to do your own
service work. Service and repair
of these eAssist components
should only be performed by a
trained service technician with the
proper knowledge and tools.

Black plate (4,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12

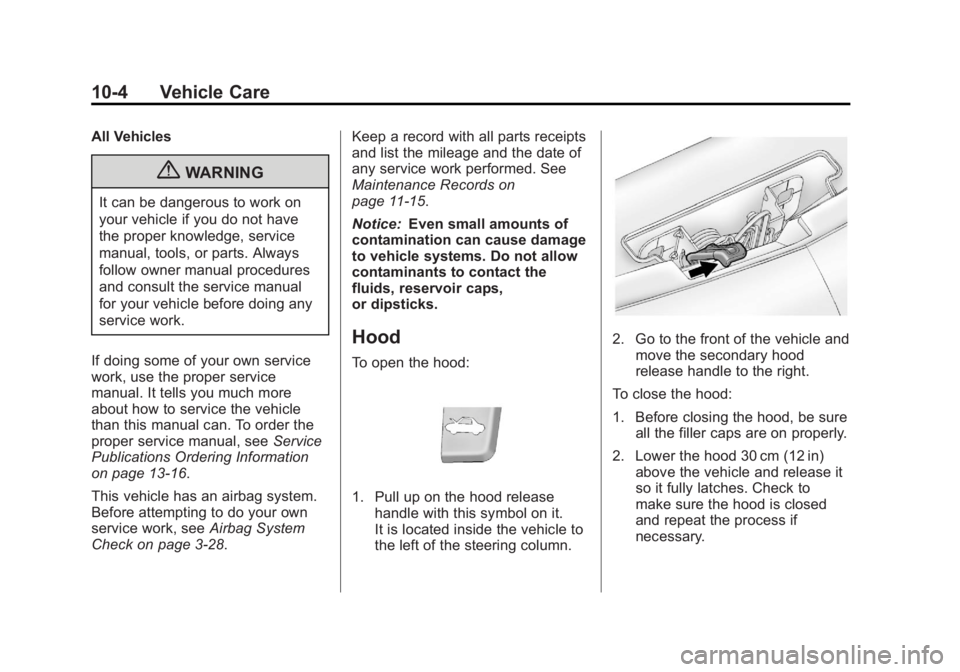

10-4 Vehicle Care
All Vehicles
{WARNING
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering Information
on page 13‑16.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Airbag System
Check on page 3‑28. Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records on
page 11‑15.
Notice:
Even small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the
fluids, reservoir caps,
or dipsticks.
Hood
To open the hood:
1. Pull up on the hood release handle with this symbol on it.
It is located inside the vehicle to
the left of the steering column.
2. Go to the front of the vehicle andmove the secondary hood
release handle to the right.
To close the hood:
1. Before closing the hood, be sure all the filler caps are on properly.
2. Lower the hood 30 cm (12 in) above the vehicle and release it
so it fully latches. Check to
make sure the hood is closed
and repeat the process if
necessary.

Black plate (5,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
Vehicle Care 10-5

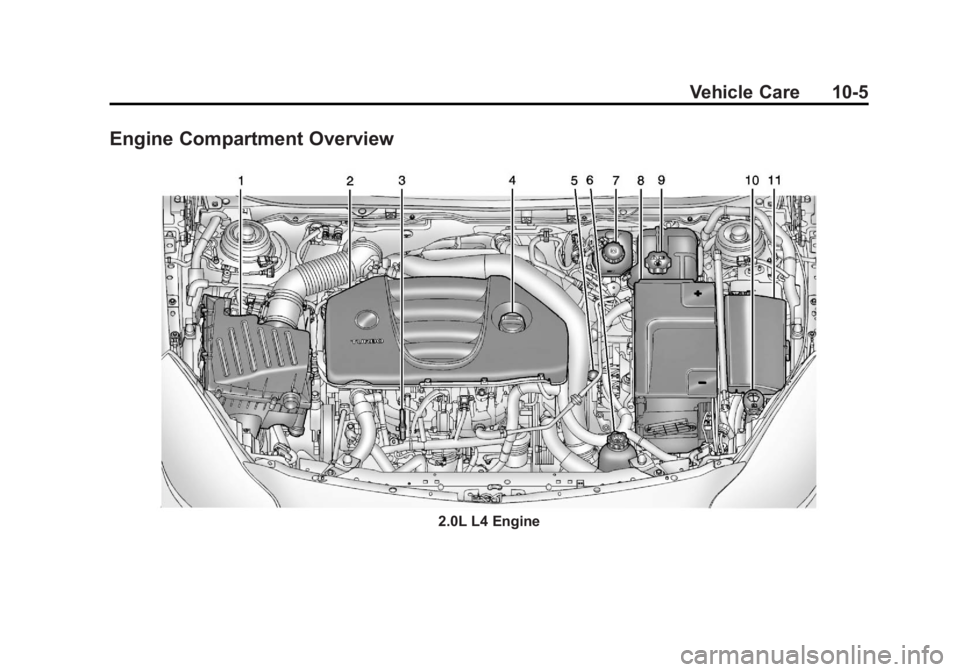

Engine Compartment Overview
2.0L L4 Engine

Black plate (6,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
10-6 Vehicle Care

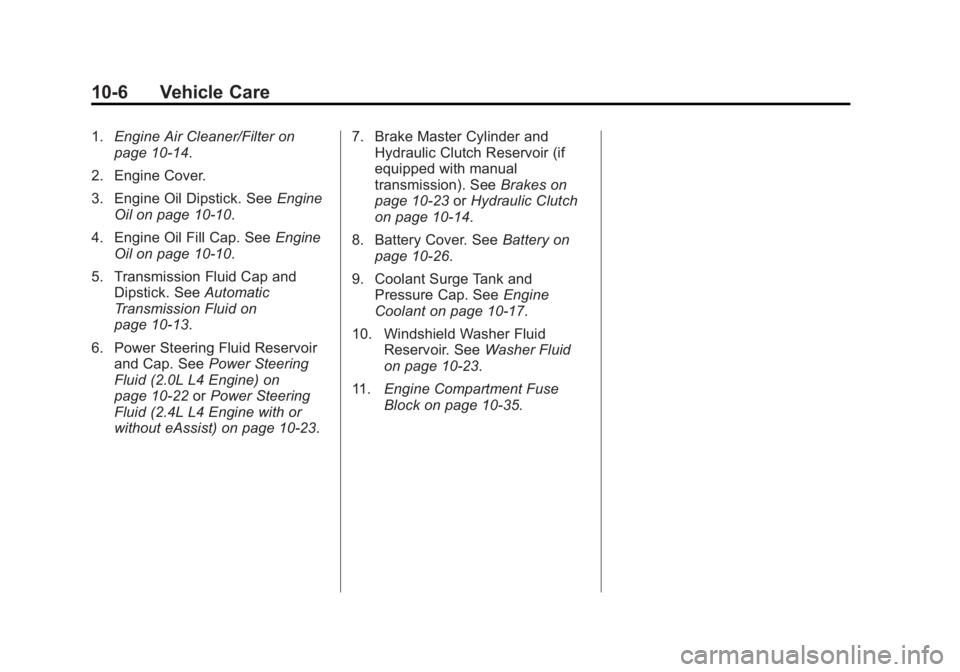

1.Engine Air Cleaner/Filter on
page 10‑14.
2. Engine Cover.
3. Engine Oil Dipstick. See Engine
Oil on page 10‑10.
4. Engine Oil Fill Cap. See Engine
Oil on page 10‑10.
5. Transmission Fluid Cap and Dipstick. See Automatic
Transmission Fluid on
page 10‑13.
6. Power Steering Fluid Reservoir and Cap. See Power Steering
Fluid (2.0L L4 Engine) on
page 10‑22 orPower Steering
Fluid (2.4L L4 Engine with or
without eAssist) on page 10‑23. 7. Brake Master Cylinder and
Hydraulic Clutch Reservoir (if
equipped with manual
transmission). See Brakes on
page 10‑23 orHydraulic Clutch
on page 10‑14.
8. Battery Cover. See Battery on
page 10‑26.
9. Coolant Surge Tank and Pressure Cap. See Engine
Coolant on page 10‑17.
10. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10‑23.
11. Engine Compartment Fuse
Block on page 10‑35.

Black plate (7,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
Vehicle Care 10-7

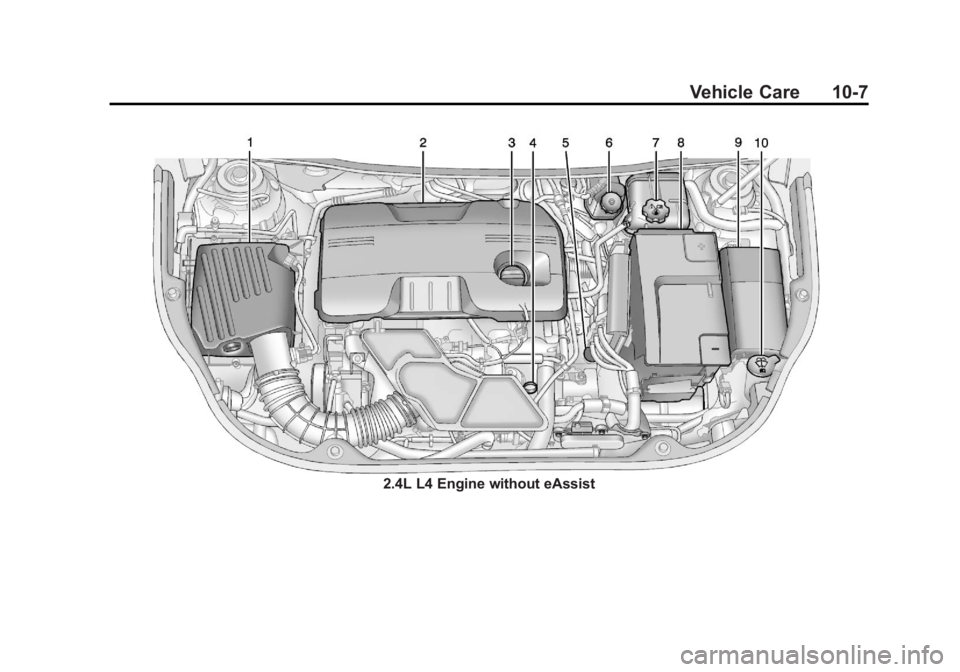

2.4L L4 Engine without eAssist

Black plate (8,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12

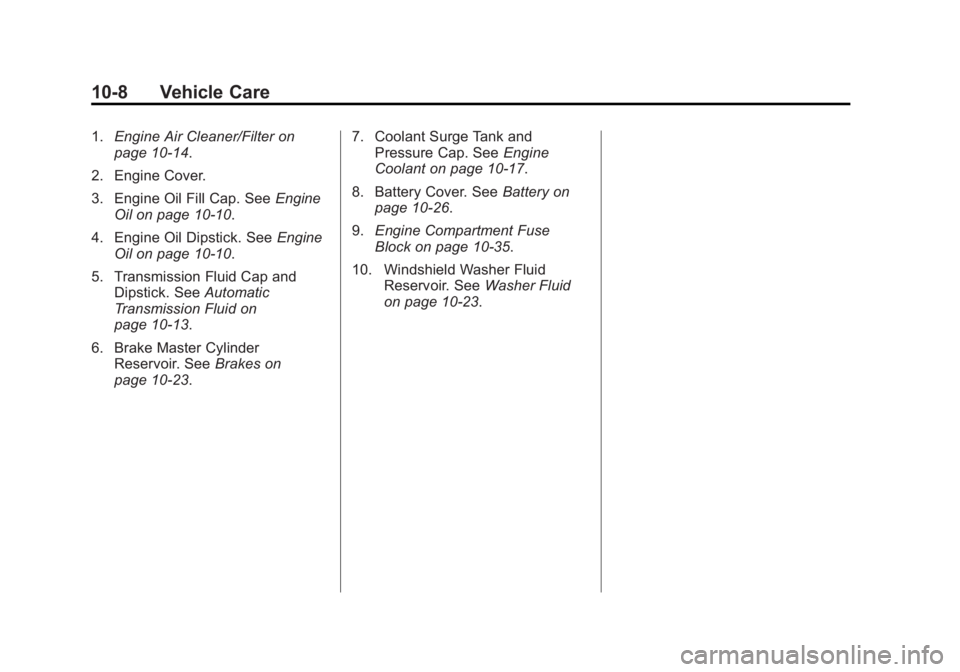

10-8 Vehicle Care
1.Engine Air Cleaner/Filter on
page 10‑14.
2. Engine Cover.
3. Engine Oil Fill Cap. See Engine
Oil on page 10‑10.
4. Engine Oil Dipstick. See Engine
Oil on page 10‑10.
5. Transmission Fluid Cap and Dipstick. See Automatic
Transmission Fluid on
page 10‑13.
6. Brake Master Cylinder Reservoir. See Brakes on
page 10‑23. 7. Coolant Surge Tank and
Pressure Cap. See Engine
Coolant on page 10‑17.
8. Battery Cover. See Battery on
page 10‑26.
9. Engine Compartment Fuse
Block on page 10‑35.
10. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10‑23.

Black plate (9,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
Vehicle Care 10-9

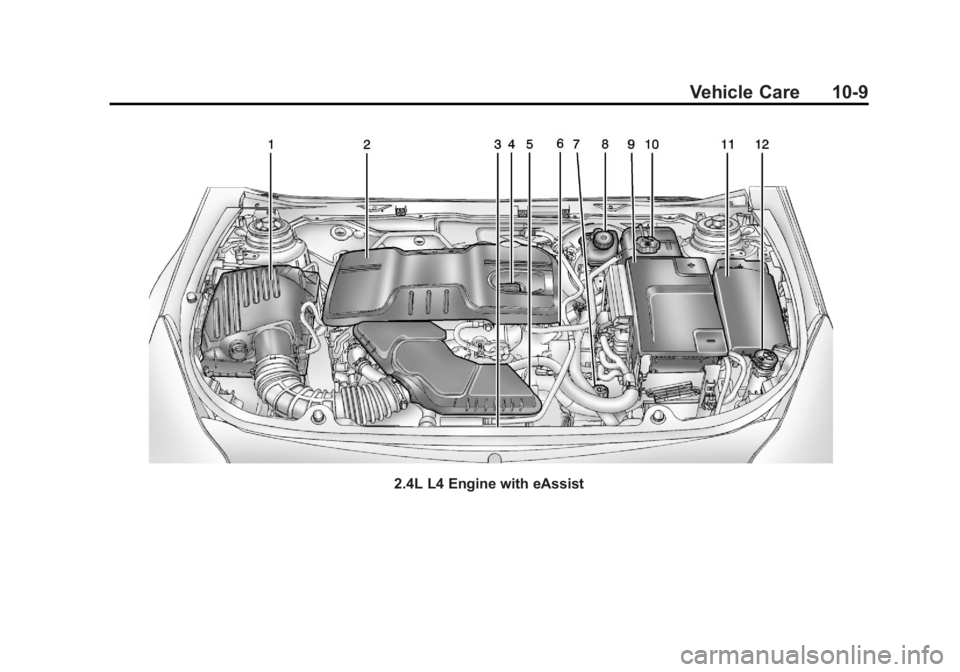

2.4L L4 Engine with eAssist

Black plate (10,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12

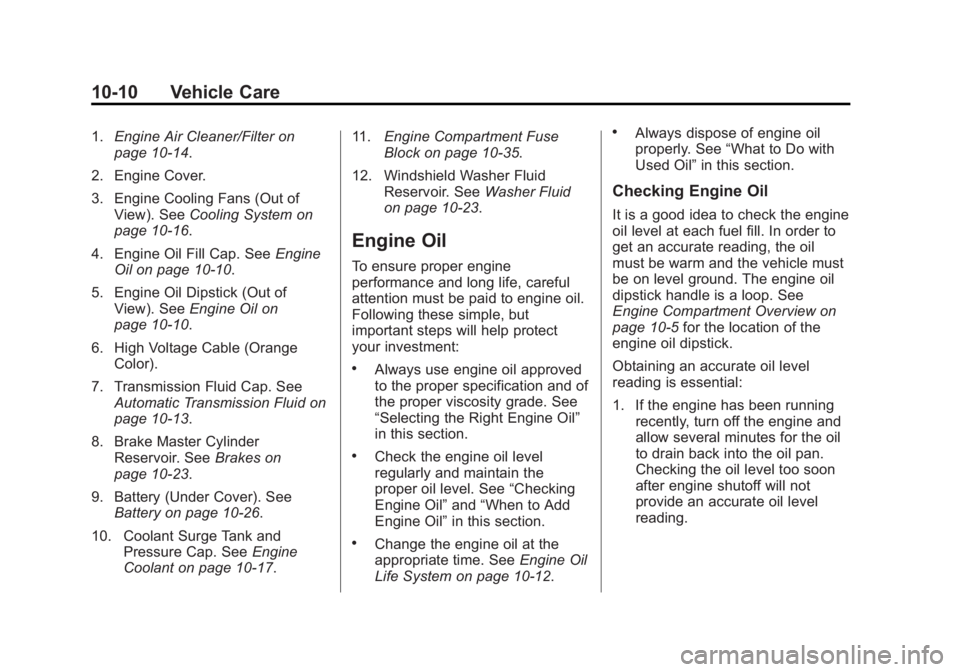

10-10 Vehicle Care
1.Engine Air Cleaner/Filter on
page 10‑14.
2. Engine Cover.
3. Engine Cooling Fans (Out of View). See Cooling System on
page 10‑16.
4. Engine Oil Fill Cap. See Engine
Oil on page 10‑10.
5. Engine Oil Dipstick (Out of View). See Engine Oil on
page 10‑10.
6. High Voltage Cable (Orange Color).
7. Transmission Fluid Cap. See Automatic Transmission Fluid on
page 10‑13.
8. Brake Master Cylinder Reservoir. See Brakes on
page 10‑23.
9. Battery (Under Cover). See Battery on page 10‑26.
10. Coolant Surge Tank and Pressure Cap. See Engine
Coolant on page 10‑17. 11.
Engine Compartment Fuse
Block on page 10‑35.
12. Windshield Washer Fluid Reservoir. See Washer Fluid
on page 10‑23.
Engine Oil
To ensure proper engine
performance and long life, careful
attention must be paid to engine oil.
Following these simple, but
important steps will help protect
your investment:
.Always use engine oil approved
to the proper specification and of
the proper viscosity grade. See
“Selecting the Right Engine Oil”
in this section.
.Check the engine oil level
regularly and maintain the
proper oil level. See “Checking
Engine Oil” and“When to Add
Engine Oil” in this section.
.Change the engine oil at the
appropriate time. See Engine Oil
Life System on page 10‑12.
.Always dispose of engine oil
properly. See “What to Do with
Used Oil” in this section.
Checking Engine Oil
It is a good idea to check the engine
oil level at each fuel fill. In order to
get an accurate reading, the oil
must be warm and the vehicle must
be on level ground. The engine oil
dipstick handle is a loop. See
Engine Compartment Overview on
page 10‑5 for the location of the
engine oil dipstick.
Obtaining an accurate oil level
reading is essential:
1. If the engine has been running recently, turn off the engine and
allow several minutes for the oil
to drain back into the oil pan.
Checking the oil level too soon
after engine shutoff will not
provide an accurate oil level
reading.

Black plate (11,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12
Vehicle Care 10-11

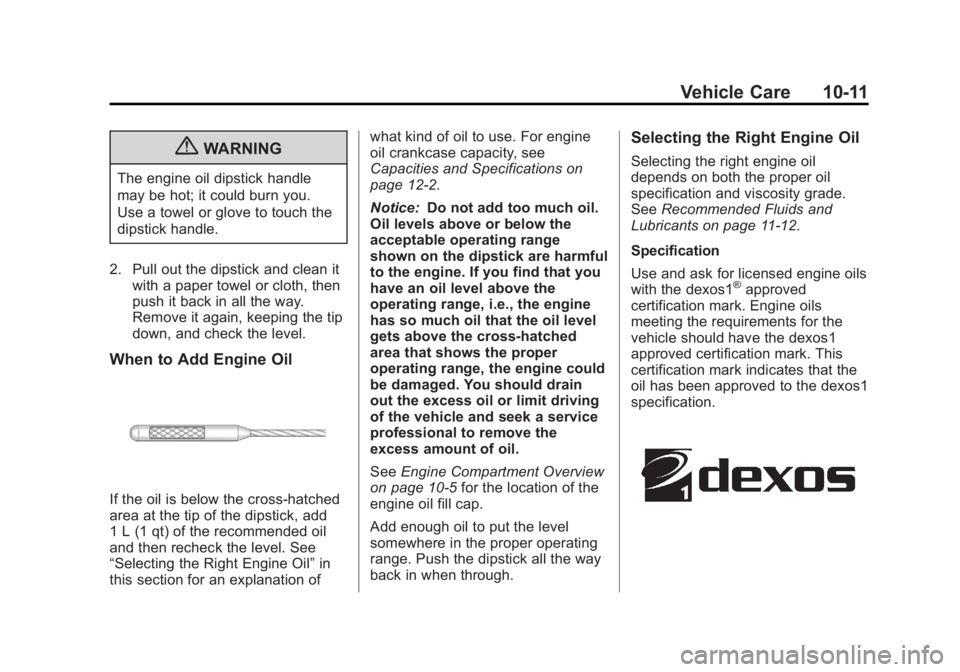

{WARNING
The engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
2. Pull out the dipstick and clean it with a paper towel or cloth, then
push it back in all the way.
Remove it again, keeping the tip
down, and check the level.
When to Add Engine Oil
If the oil is below the cross-hatched
area at the tip of the dipstick, add
1 L (1 qt) of the recommended oil
and then recheck the level. See
“Selecting the Right Engine Oil” in
this section for an explanation of what kind of oil to use. For engine
oil crankcase capacity, see
Capacities and Specifications on
page 12‑2.
Notice:
Do not add too much oil.
Oil levels above or below the
acceptable operating range
shown on the dipstick are harmful
to the engine. If you find that you
have an oil level above the
operating range, i.e., the engine
has so much oil that the oil level
gets above the cross-hatched
area that shows the proper
operating range, the engine could
be damaged. You should drain
out the excess oil or limit driving
of the vehicle and seek a service
professional to remove the
excess amount of oil.
See Engine Compartment Overview
on page 10‑5 for the location of the
engine oil fill cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back in when through.
Selecting the Right Engine Oil
Selecting the right engine oil
depends on both the proper oil
specification and viscosity grade.
See Recommended Fluids and
Lubricants on page 11‑12.
Specification
Use and ask for licensed engine oils
with the dexos1
®approved
certification mark. Engine oils
meeting the requirements for the
vehicle should have the dexos1
approved certification mark. This
certification mark indicates that the
oil has been approved to the dexos1
specification.

Black plate (12,1)Buick Regal Owner Manual - 2013 - crc - 11/5/12

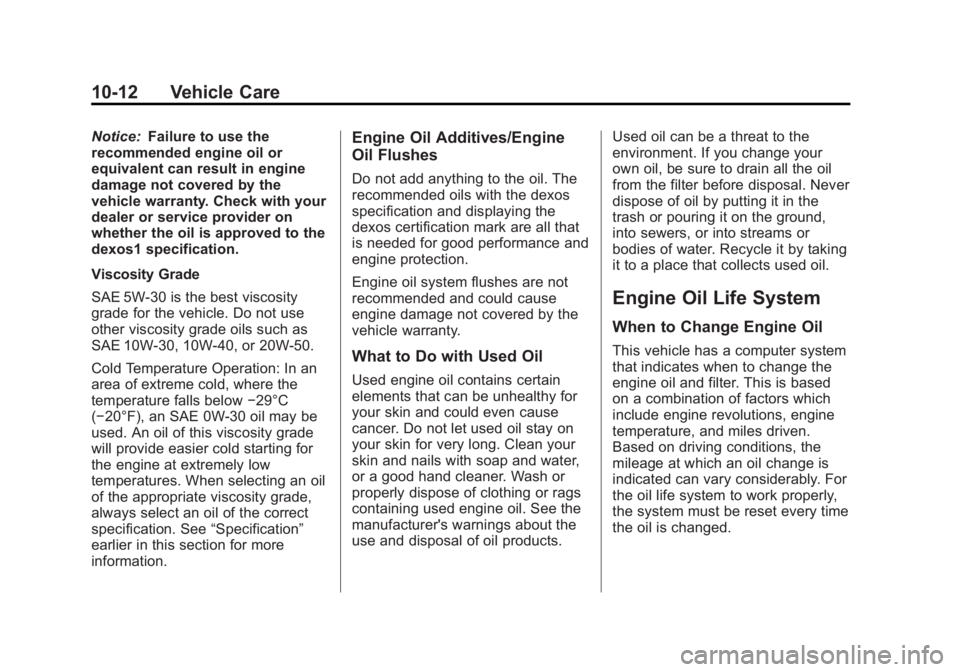

10-12 Vehicle Care
Notice:Failure to use the
recommended engine oil or
equivalent can result in engine
damage not covered by the
vehicle warranty. Check with your
dealer or service provider on
whether the oil is approved to the
dexos1 specification.
Viscosity Grade
SAE 5W-30 is the best viscosity
grade for the vehicle. Do not use
other viscosity grade oils such as
SAE 10W-30, 10W-40, or 20W-50.
Cold Temperature Operation: In an
area of extreme cold, where the
temperature falls below −29°C
(−20°F), an SAE 0W-30 oil may be
used. An oil of this viscosity grade
will provide easier cold starting for
the engine at extremely low
temperatures. When selecting an oil
of the appropriate viscosity grade,
always select an oil of the correct
specification. See “Specification”
earlier in this section for more
information.Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil. The
recommended oils with the dexos
specification and displaying the
dexos certification mark are all that
is needed for good performance and
engine protection.
Engine oil system flushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer's warnings about the
use and disposal of oil products. Used oil can be a threat to the
environment. If you change your
own oil, be sure to drain all the oil
from the filter before disposal. Never
dispose of oil by putting it in the
trash or pouring it on the ground,
into sewers, or into streams or
bodies of water. Recycle it by taking
it to a place that collects used oil.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system
that indicates when to change the
engine oil and filter. This is based
on a combination of factors which
include engine revolutions, engine
temperature, and miles driven.
Based on driving conditions, the
mileage at which an oil change is
indicated can vary considerably. For
the oil life system to work properly,
the system must be reset every time
the oil is changed.
