CADILLAC CATERA 1997 1.G Owners Manual

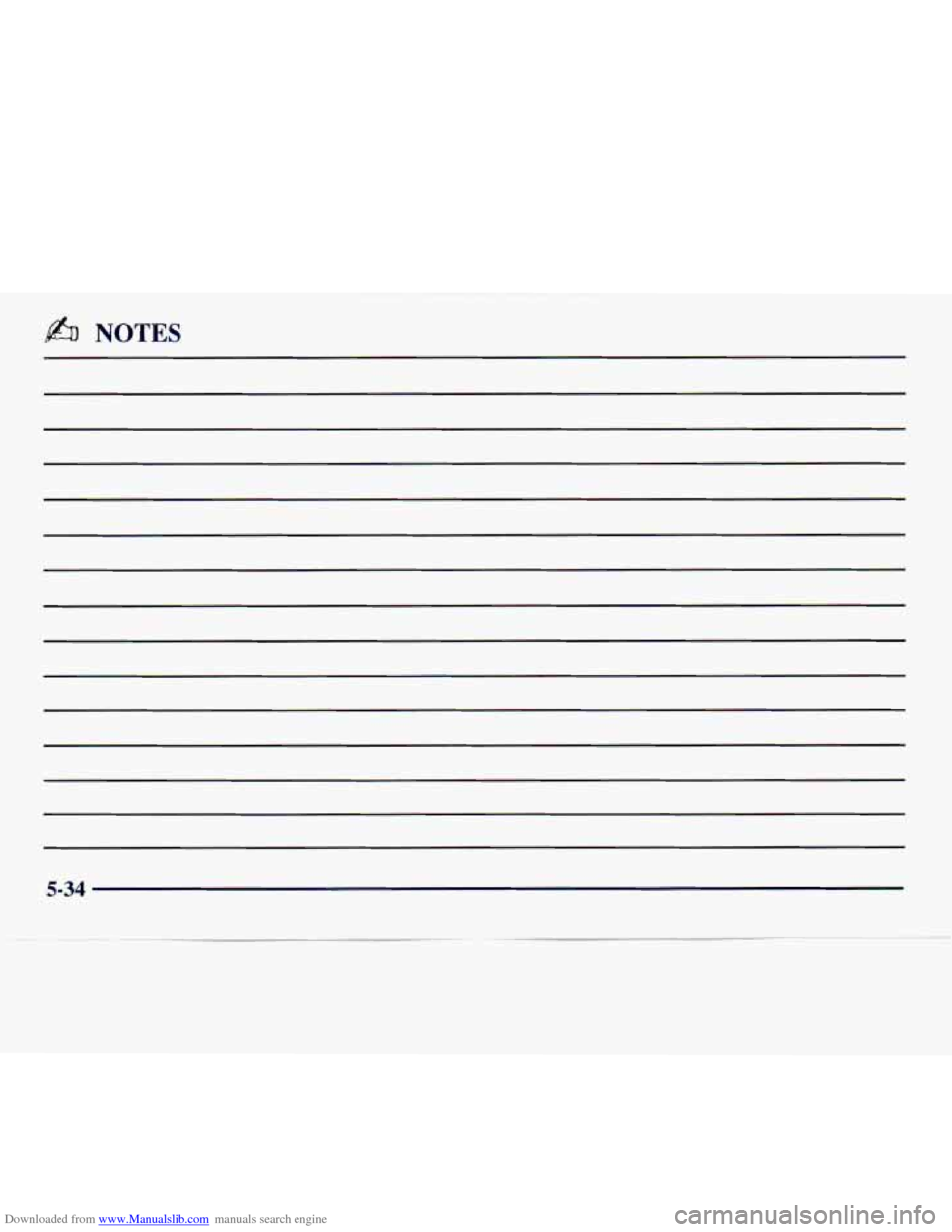

Downloaded from www.Manualslib.com manuals search engine fi NOTES
5-34

Downloaded from www.Manualslib.com manuals search engine & NOTES
.
5-35

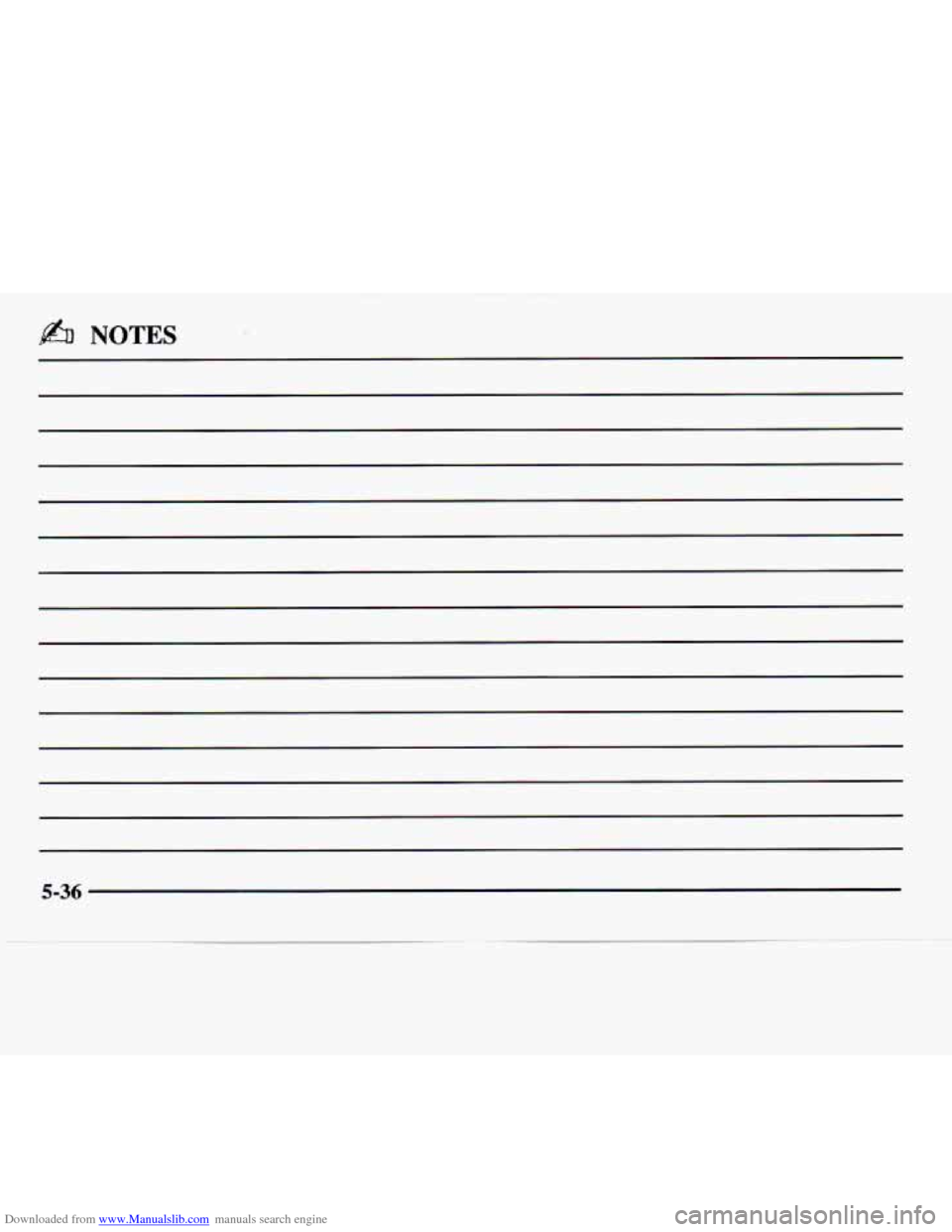

Downloaded from www.Manualslib.com manuals search engine b% NOTES
5-36

Downloaded from www.Manualslib.com manuals search engine Here you will find information about the care of your Catera. This section begins with service and fuel information,
and then
it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6-2
6-3
6-5
6-5 6-7
6- 10
6- 15 6-18
6- 19
6-24
6-25
6-29
6-29
6-37
Service
Fuel
Fuels in Foreign Countries
Filling Your Tank
Checking Things Under the Hood
Engine Oil
Air Cleaner
Automatic Transmission Fluid
Engine Coolant
Windshield Washer Fluid
Brakes
Battery Bulb Replacement
Wiper Blade Replacement Tires
Cleaning the Inside of Your Catera
Care
of Safety Belts
Cleaning the Outside
of Your Catera
Cleaning Aluminum or Chrome Wheels
Underbody Maintenance
Appearance Care Materials Chart
Vehicle Identification Number (VIN)
Electrical System Replacement Bulbs Capacities and Specifications
Air Conditioning Refrigerants
Normal Maintenance Replacement Parts
6-38
6-46
6-49
6-50
6-5 1
6-53
6-54
6-55
6-55
6-62 6-62
6-63
6-63
6-1

Downloaded from www.Manualslib.com manuals search engine Service
Your Catera dealer knows your vehicle best and wants
you to be happy with it. We hope you’ll go to your
dealer for all your service needs. You’ll get genuine GM
parts and GM-trained and supported service people.
We hope you’ll want to keep your GM vehicle all GM.
Genuine
GM parts have one of these marks:
n
w
Doing Your Own Service Work
If you want to do some of your own service work, you’ll
want to get the proper Catera Service Manual. It tells
you much more about how
to service your Catera than
this manual can.
To order the proper service manual, see
“Service and Owner Publications” in the Index.
Your vehicle has an air bag system. Before attempting to
do your own service work,
see “Servicing Your Air
Bag-Equipped Catera” in the Index.
You should keep a record with all parts receipts and
list the mileage and the date
of any service work you
perform.
See “Maintenance Record” in the Maintenance
Schedule booklet.
6-2

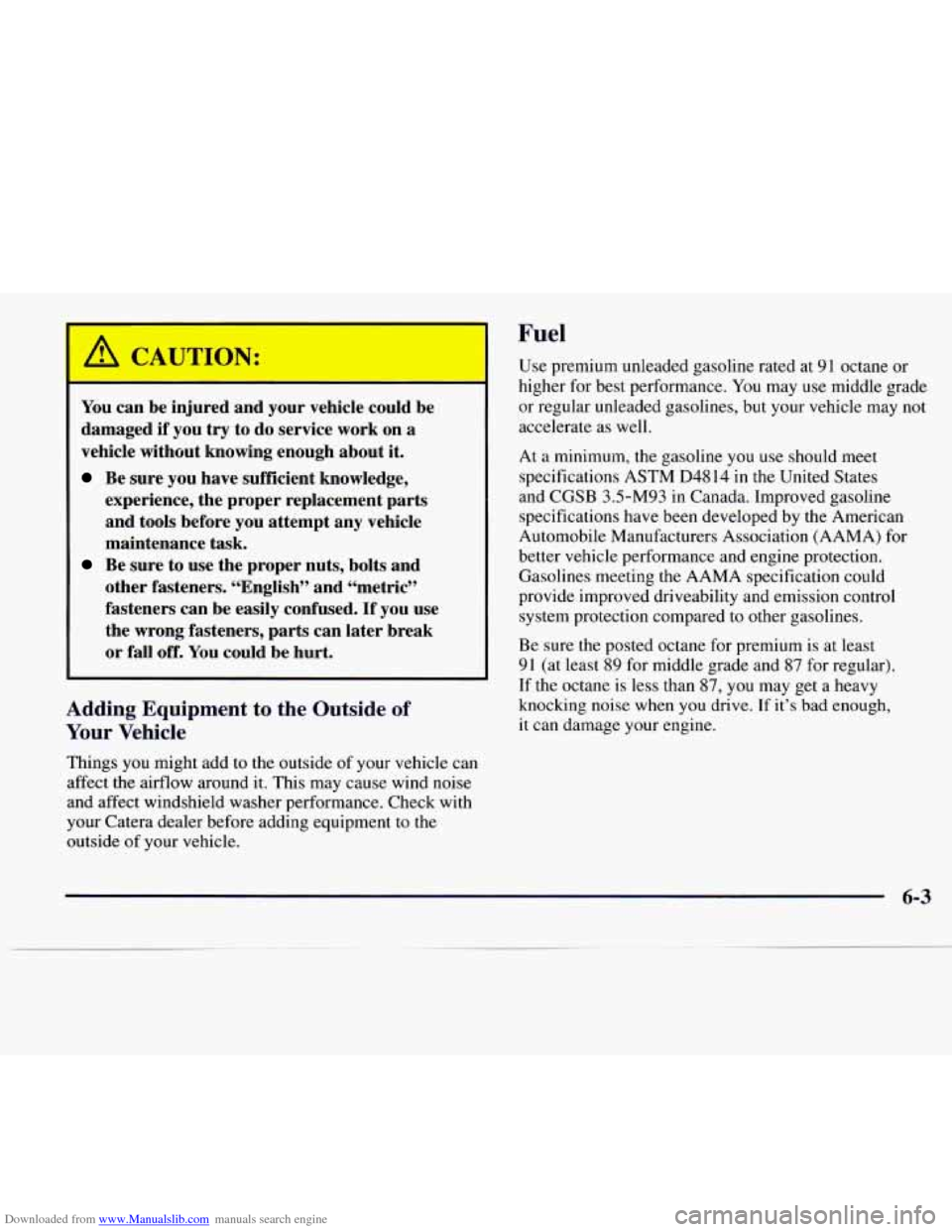

Downloaded from www.Manualslib.com manuals search engine Fuel
You can be injured and your vehicle could be
damaged
if you try to do service work on a
vehicle without knowing enough about it.
Be sure you have sufficient knowledge,
experience, the proper replacement parts
and tools before
you attempt any vehicle
maintenance
task.
Be sure to use the proper nuts, bolts and
other fasteners. “English” and (‘metric”
fasteners can be easily confused.
If you use
the wrong fasteners, parts can later break
or fall off.
You could be hurt.
Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your vehicle can
affect the airflow around it. This may cause wind noise
and affect windshield washer performance. Check with
your Catera dealer before adding equipment to the
outside of your vehicle. Use
premium unleaded gasoline rated at 91 octane or
higher for best performance. You may use middle grade
or regular unleaded gasolines, but your vehicle may not
accelerate as well.
At a minimum, the gasoline you use should meet
specifications ASTM D4814 in the United States
and CGSB 3.5-M93 in Canada. Improved gasoline
specifications have been developed by the American
Automobile Manufacturers Association (AAMA) for
better vehicle performance and engine protection.
Gasolines meeting the AAMA specification could
provide improved driveability and emission control
system protection compared to other gasolines.
Be sure the posted octane for premium is at least
91 (at least
89 for middle grade and 87 for regular).
If the octane
is 1ess.than 87, you may get a heavy
knocking noise when
you drive. If it’s bad enough,
it can damage your engine.
6-3

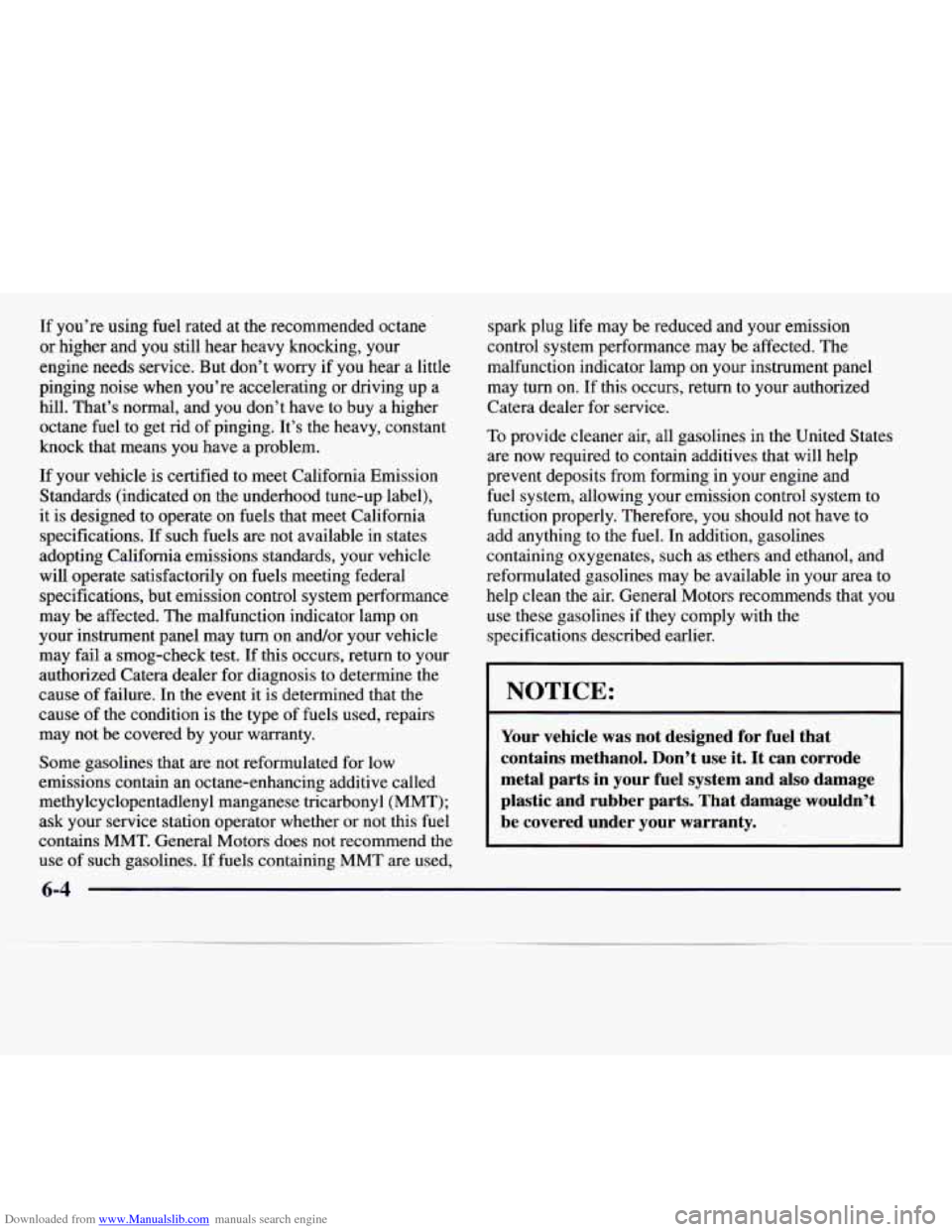

Downloaded from www.Manualslib.com manuals search engine If you’re using fuel rated at the recommended octane
or higher and you still hear heavy knocking, your
engine needs service. But don’t worry if you hear a little
pinging noise when you’re accelerating or driving up a
hill. That’s normal, and you don’t have to buy a higher
octane fuel to get rid of pinging. It’s the heavy, constant
knock that means you have a problem.
IT your vehicle is certified to meet California Emission
Standards (indicated on the underhood tune-up label),
it
is designed to operate on fuels that meet California
specifications.
If such fuels are not available in states
adopting California emissions standards, your vehicle
will operate satisfactorily on fuels meeting federal
specifications, but emission control system performance
may be affected. The malfunction indicator lamp on
your instrument panel may turn on and/or your vehicle
may fail a smog-check test. If this occurs, return to your
authorized Catera dealer for diagnosis to determine
the
cause of failure. In the event it is determined that the
cause of the condition is the type of fuels used, repairs
may not be covered by your warranty.
Some gasolines that are not reformulated for low
emissions contain an octane-enhancing additive called
methylcyclopentadlenyl manganese tricarbonyl (MMT);
ask your service station operator whether or not this fuel
contains MMT. General Motors does not recommend the
use of such gasolines. If fuels containing MMT are used, spark plug
life may be reduced and your emission
control system performance may be affected. The
malfunction indicator lamp on your instrument panel
may turn on. If this occurs, return
to your authorized
Catera dealer for service.
To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent deposits from forming in your engine and
fuel system, allowing your emission control system to
function properly. Therefore, you should not have to
add anything to the fuel. In addition, gasolines
containing oxygenates, such as ethers and ethanol, and
reformulated gasolines may be available in your area to
help clean the air. General Motors recommends that
you
use these gasolines if they comply with the
specifications described earlier.
NOTICE:
Your vehicle was not designed for fuel that
contains methanol. Don’t use it. It can corrode
metal parts in your fuel system and also damage
plastic and rubber parts. That damage wouldn’t
be covered under your warranty.
.

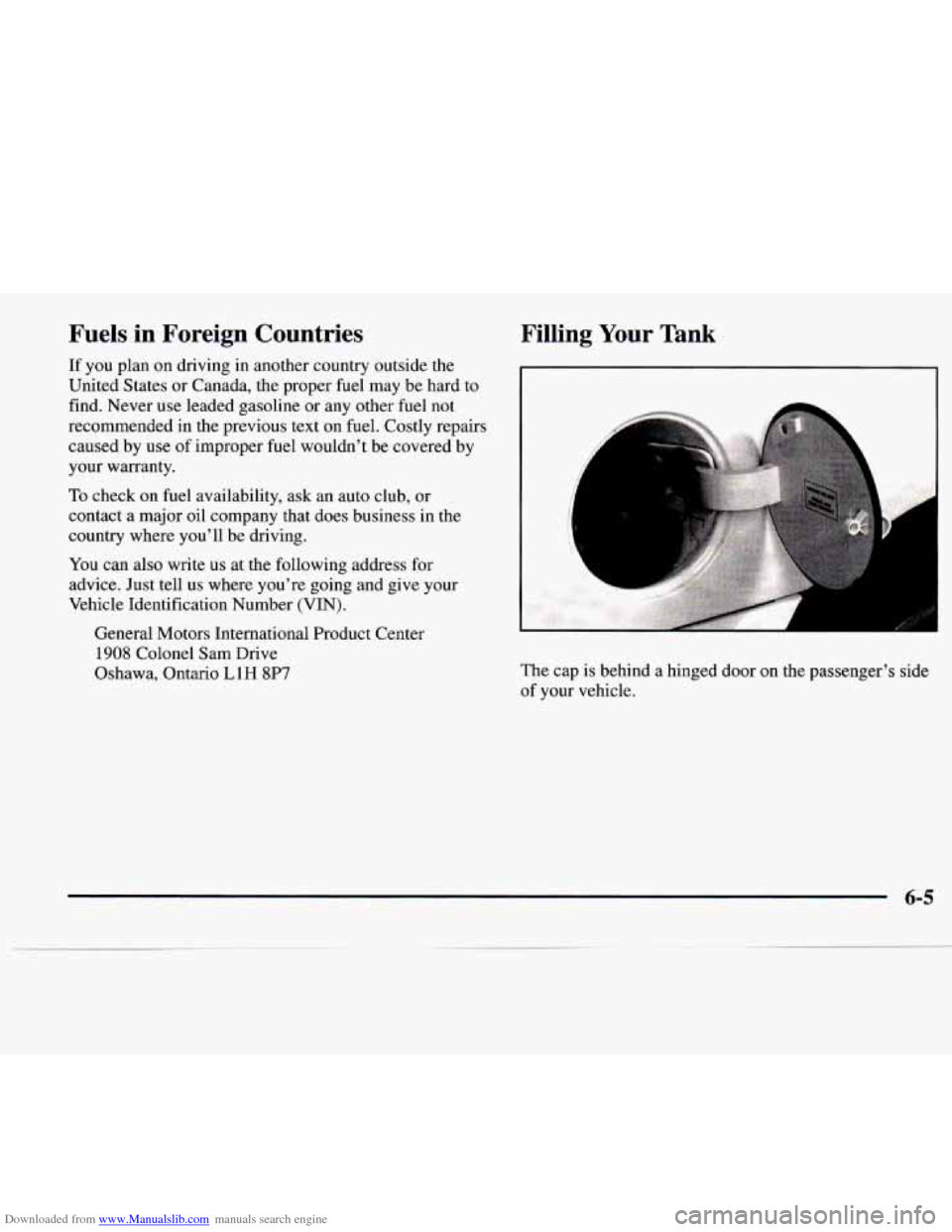

Downloaded from www.Manualslib.com manuals search engine Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard to
find. Never use leaded gasoline or any other fuel not
recommended in the previous text on fuel. Costly repairs
caused by use
of improper fuel wouldn’t be covered by
your warranty.
To check on fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you’ll be driving.
You can also write us at the following address for
advice. Just tell
us where you’re going and give your
Vehicle Identification Number (VIN).
General Motors International Product Center
1908 Colonel Sam Drive
Oshawa, Ontario
L1H 8P7
Filling Your Tank
The cap is behind a hinged door on the passenger’s side
of your vehicle.

Downloaded from www.Manualslib.com manuals search engine I

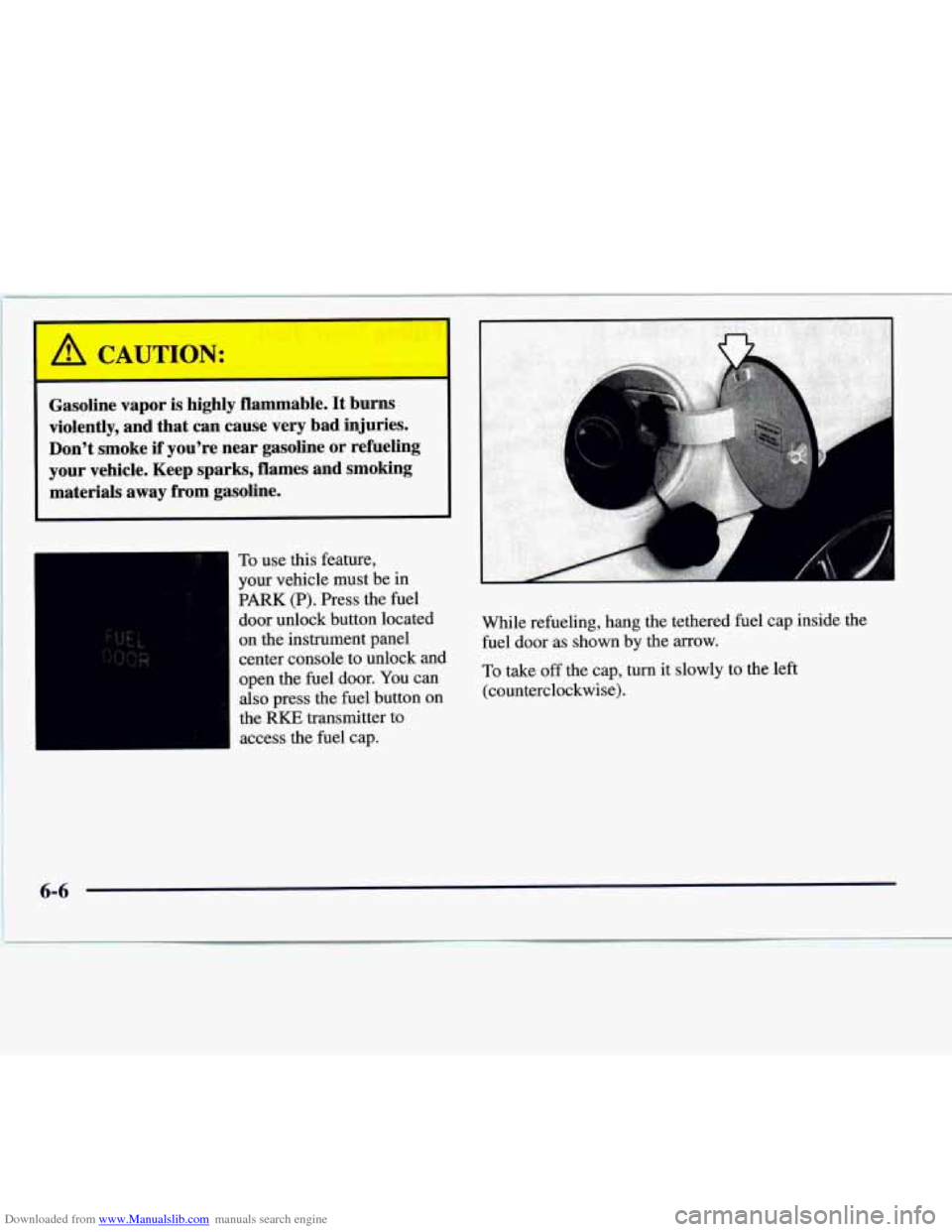

I A CAUTION:
1
Gasoline vapor is highly flammable. It burns
violently, and that can cause very bad injuries.
Don't smoke if you're near gasoline or refueling your vehicle. Keep sparks, flames and smoking materials away from gasoline.
To use this feature,
your vehicle must be in
PARK (P). Press the fuel
door unlock button located
on the.instrument panel
center console to unlock and
open the fuel door. You can
also press the fuel button on
the
RKE transmitter to
access the fuel cap. While
refueling, hang the tethered fuel cap inside the
fuel door as shown
by the arrow.
To take off the cap, turn it slowly to the left
(counterclockwise).

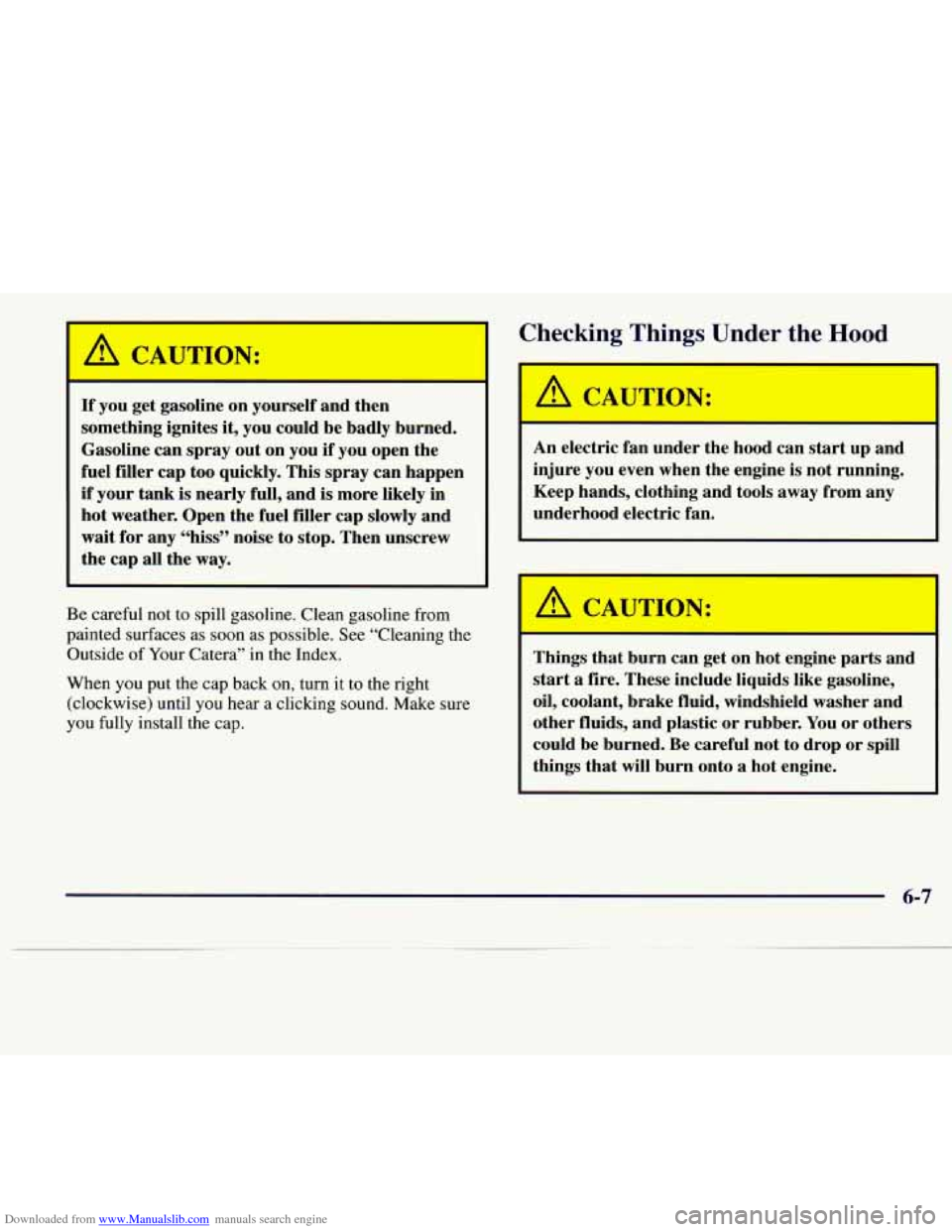

Downloaded from www.Manualslib.com manuals search engine If you get gasoline on yourself and then
something ignites
it, you could be badly burned.
Gasoline can spray out on you
if you open the
fuel filler cap too quickly. This spray can happen
if your tank is nearly full, and is more likely in
hot weather. Open the fuel filler cap slowly and
wait for any “hiss” noise to stop. Then unscrew
the cap all the
way.
Be careful not to spill gasoline. Clean gasoline from
painted surfaces as soon as possible. See “Cleaning the
Outside of Your Catera” in the Index.
When
you put the cap back on, turn it to the right
(clockwise) until you hear a clicking sound. Make sure
you fully install the cap.
Checking Things Under the Hood
A CAC-ION:
An electric fan under the hood can start up and
injure you even when the engine
is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
Things that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that will burn onto a hot engine.
6-7
