CADILLAC CT5 2023 Owners Manual

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22

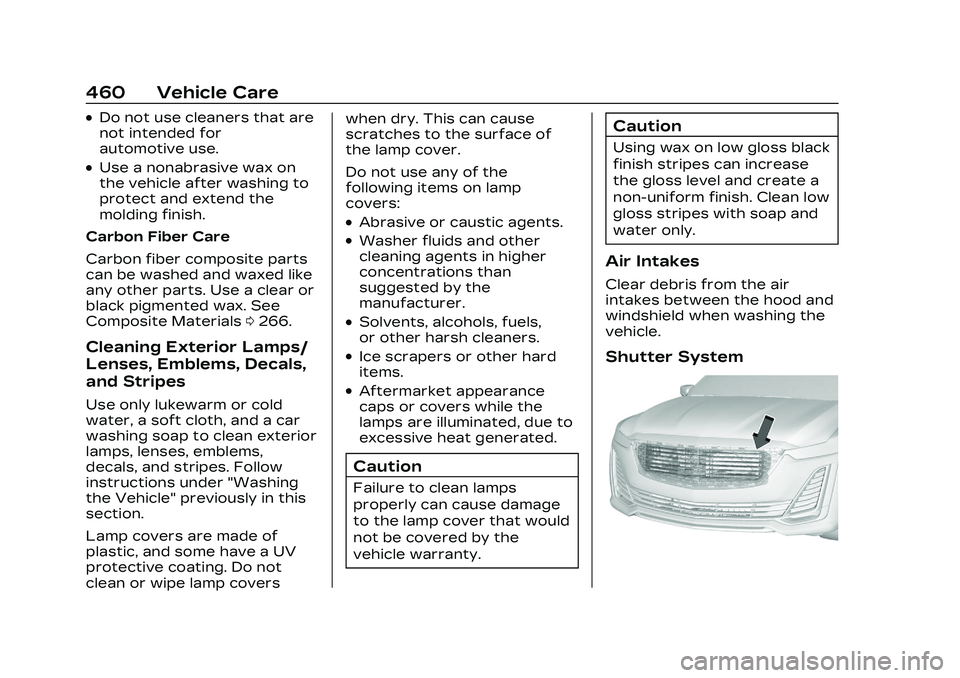

460 Vehicle Care
.Do not use cleaners that are
not intended for
automotive use.
.Use a nonabrasive wax on
the vehicle after washing to
protect and extend the
molding finish.
Carbon Fiber Care
Carbon fiber composite parts
can be washed and waxed like
any other parts. Use a clear or
black pigmented wax. See
Composite Materials 0266.
Cleaning Exterior Lamps/
Lenses, Emblems, Decals,
and Stripes
Use only lukewarm or cold
water, a soft cloth, and a car
washing soap to clean exterior
lamps, lenses, emblems,
decals, and stripes. Follow
instructions under "Washing
the Vehicle" previously in this
section.
Lamp covers are made of
plastic, and some have a UV
protective coating. Do not
clean or wipe lamp covers when dry. This can cause
scratches to the surface of
the lamp cover.
Do not use any of the
following items on lamp
covers:
.Abrasive or caustic agents.
.Washer fluids and other
cleaning agents in higher
concentrations than
suggested by the
manufacturer.
.Solvents, alcohols, fuels,
or other harsh cleaners.
.Ice scrapers or other hard
items.
.Aftermarket appearance
caps or covers while the
lamps are illuminated, due to
excessive heat generated.
Caution
Failure to clean lamps
properly can cause damage
to the lamp cover that would
not be covered by the
vehicle warranty.
Caution
Using wax on low gloss black
finish stripes can increase
the gloss level and create a
non-uniform finish. Clean low
gloss stripes with soap and
water only.
Air Intakes
Clear debris from the air
intakes between the hood and
windshield when washing the
vehicle.
Shutter System

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 461
The vehicle may have a
shutter system designed to
help improve fuel economy.
Always keep the shutter
system clear of debris, snow
and ice. If the check engine
light is activated, please check
to see if the shutter system is
clear of debris, snow or ice.
Windshield and Wiper
Blades
Clean the outside of the
windshield with glass cleaner.
Clean rubber wiper blades
using a lint-free cloth or paper
towel soaked with windshield
washer fluid or a mild
detergent. Wash the
windshield thoroughly when
cleaning the blades. Bugs,
road grime, sap, and a buildup
of vehicle wash/wax
treatments may cause wiper
streaking.
Replace the wiper blades if
they are worn or damaged.
Damage can be caused byextreme dusty conditions,
sand, salt, heat, sun, snow,
and ice.
Weatherstrips
Apply weatherstrip lubricant
on weatherstrips to make
them last longer, seal better,
and not stick or squeak.
Lubricate weatherstrips at
least once a year. Hot, dry
climates may require more
frequent application. Black
marks from rubber material on
painted surfaces can be
removed by rubbing with a
clean cloth. See
Recommended Fluids and
Lubricants
0476.
Tires
Use a stiff brush with tire
cleaner to clean the tires.
Caution
Using petroleum-based tire
dressing products on the
vehicle may damage the
paint finish and/or tires.
(Continued)
Caution (Continued)
When applying a tire
dressing, always wipe off
any overspray from all
painted surfaces on the
vehicle.
Wheels and Wheel Trim
Use a soft, clean cloth with
mild soap and water to clean
the wheels. After rinsing
thoroughly with clean water,
dry with a soft, clean towel.
A wax may then be applied.
Caution
Chrome wheels and chrome
wheel trim may be damaged
if the vehicle is not washed
after driving on roads that
have been sprayed with
magnesium chloride or
calcium chloride. These are
used on roads for conditions
such as dust control. Always
wash the chrome with soap
and water after exposure.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
462 Vehicle Care
Caution
To avoid surface damage on
wheels and wheel trim, do
not use strong soaps,
chemicals, abrasive polishes,
cleaners, or brushes. Use
only GM approved cleaners.
Do not drive the vehicle
through an automatic car
wash that uses silicon
carbide tire/wheel cleaning
brushes. Damage could
occur and the repairs would
not be covered by the
vehicle warranty.
Brake System
Visually inspect brake lines
and hoses for proper hook-up,
binding, leaks, cracks, chafing,
etc. Inspect disc brake pads
for wear and rotors for
surface condition. Inspect
brake linings/shoes for wear
or cracks. Inspect all other
brake parts.
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged,
loose, or missing parts or signs
of wear at least once a year.
Inspect power steering for
proper attachment,
connections, binding, leaks,
cracks, chafing, etc.
Visually check constant
velocity joint boots and axle
seals for leaks.
Body Component
Lubrication
Lubricate all key lock cylinders,
hood hinges, liftgate hinges,
and the steel fuel door hinges,
unless the components are
plastic. Applying silicone
grease on weatherstrips with
a clean cloth will make them
last longer, seal better, and
not stick or squeak.
Underbody Maintenance
Every six months, use plain
water to flush any corrosive
materials from the underbody.
Take care to thoroughly clean
any areas where mud and
other debris can collect.
Do not directly power wash
the transfer case and/or
front/rear axle output seals.
High pressure water can
overcome the seals and
contaminate the fluid.
Contaminated fluid will
decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the
body repair shop applies
anti-corrosion material to
parts repaired or replaced to
restore corrosion protection.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 463
Original manufacturer
replacement parts will provide
the corrosion protection while
maintaining the vehicle
warranty.
Finish Damage
Quickly repair minor chips and
scratches with touch-up
materials available from your
dealer to avoid corrosion.
Larger areas of finish damage
can be corrected in your
dealer's body and paint shop.
Chemical Paint Spotting
Airborne pollutants can fall
upon and attack painted
vehicle surfaces causing
blotchy, ring-shaped
discolorations, and small,
irregular dark spots etched
into the paint surface. See
“Finish Care”previously in this
section.
Interior Care
To prevent dirt particle
abrasions, regularly clean the
vehicle's interior. Before using cleaners, read and follow all
safety instructions on the
label. While cleaning the
interior, open the doors and
windows to get proper
ventilation. Newspapers or
dark garments can transfer
color to the vehicle’s interior.
Caution
Immediately remove
cleaners, hand lotions,
sunscreen, and insect
repellent from all interior
surfaces or permanent
damage may result.
Caution
Use cleaners specifically
designed for the surfaces
being cleaned to prevent
permanent damage to the
vehicle. Apply all cleaners
directly to a cleaning cloth.
Do not spray cleaners on
any switches or controls.
When using liquid soap
cleaners, follow the directions
on the specific cleaner or soap
solution for dilution
instructions.
Caution
To prevent damage:
.Never use a razor or any
other sharp object to
remove soil from any
interior surface
.Never use a brush with
stiff bristles.
.Never rub any surface
aggressively or with too
much pressure.
.Do not get any exposed
electrical components wet.
.Do not use laundry
detergents or dishwashing
soaps with degreasers. Do
not use solutions that
contain strong or
caustic soap.
(Continued)

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
464 Vehicle Care
Caution (Continued)
.Do not heavily saturate
the upholstery when
cleaning.
.Do not use solvents or
cleaners containing
solvents.
.Do not use disinfecting
wipes that are scented or
contain bleach. Do not use
wipes or cleaners that
show a color transfer to
the wipe or change the
appearance of the interior
surface when used.
.Do not use scented or
gel-type hand sanitizers.
If hand sanitizer comes in
contact with interior
surfaces of the vehicle,
blot immediately and clean
with a soft cloth
dampened with a mild
soap and water solution.
Interior Glass
To clean, use a microfiber
cloth fabric dampened with
water. Wipe droplets left
behind with a clean dry cloth.
If necessary, use a commercial
glass cleaner after cleaning
with plain water.
Caution
To prevent scratching, never
use abrasive cleaners on
automotive glass. Abrasive
cleaners or aggressive
cleaning may damage the
rear window defogger.
Cleaning the windshield with
water during the first three to
six months of ownership will
reduce tendency to fog.
Speaker Covers
Vacuum around a speaker
cover gently, so that the
speaker will not be damaged.
Clean spots with water and
mild soap.
Coated Moldings
Coated moldings should be
cleaned.
.When lightly soiled, wipe
with a sponge or soft,
lint-free cloth dampened
with water.
.When heavily soiled, use
warm soapy water.
Vinyl/Rubber
If equipped with vinyl floor and
rubber floor mats, use a soft
cloth and/or brush dampened
with water to remove dust and
loose dirt. For more thorough
cleaning, use a mild soap and
water solution.
{Warning
Do not use cleaners that
contain silicone, wax-based
products, or cleaners that
increase gloss on vinyl/
rubber floor and mats.
These cleaners can
permanently change the (Continued)

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 465
Warning (Continued)
appearance and feel of the
vinyl/rubber and can make
the floor slippery. Your foot
could slip while operating
the vehicle, and you could
lose control, resulting in a
crash. You or others could
be injured.
Fabric/Carpet/Suede
Start by vacuuming the
surface using a soft brush
attachment. If a rotating
vacuum brush attachment is
being used, only use it on the
floor carpet. Before cleaning,
gently remove as much of the
soil as possible:
.Gently blot liquids with a
paper towel. Continue
blotting until no more soil
can be removed.
.For solid soils, remove as
much as possible prior to
vacuuming.To clean:
1. Saturate a clean, lint-free colorfast cloth with water.
Microfiber cloth is
recommended to prevent
lint transfer to the fabric
or carpet.
2. Remove excess moisture by gently wringing until
water does not drip from
the cleaning cloth.
3. Start on the outside edge of the soil and gently rub
toward the center. Fold
the cleaning cloth to a
clean area frequently to
prevent forcing the soil
into the fabric.
4. Continue gently rubbing the soiled area until there
is no longer any color
transfer from the soil to
the cleaning cloth.
5. If the soil is not completely removed, use a mild soap
solution followed only by
plain water. If the soil is not completely
removed, it may be necessary
to use a commercial
upholstery cleaner or spot
lifter. Test a small hidden area
for colorfastness before using
a commercial upholstery
cleaner or spot lifter. If ring
formation occurs, clean the
entire fabric or carpet.
After cleaning, use a paper
towel to blot excess moisture.
Cleaning High Gloss
Surfaces and Vehicle
Information and Radio
Displays
Use a microfiber cloth on high
gloss surfaces or vehicle
displays. First, use a soft
bristle brush to remove dirt
that can scratch the surface.
Then gently clean by rubbing
with a microfiber cloth. Never
use window cleaners or
solvents. Periodically hand
wash the microfiber cloth
separately, using mild soap. Do

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
466 Vehicle Care
not use bleach or fabric
softener. Rinse thoroughly and
air dry before next use.
Caution
Do not attach a device with
a suction cup to the display.
This may cause damage and
would not be covered by the
vehicle warranty.
Instrument Panel, Leather,
Vinyl, Other Plastic
Surfaces, Low Gloss Paint
Surfaces, and Natural
Open Pore Wood
Surfaces
Use a soft bristle brush to
remove dust from knobs and
crevices on the instrument
cluster. Use a soft microfiber
cloth dampened with water to
remove dust and loose dirt.
For a more thorough cleaning,
use a soft microfiber cloth
dampened with a mild soap
and water solution.
Caution
Soaking or saturating
leather, especially
perforated leather, as well
as other interior surfaces,
may cause permanent
damage. Wipe excess
moisture from these
surfaces after cleaning and
allow them to dry naturally.
Never use heat, steam,
or spot removers. Do not
use liquids that contain
alcohol or solvents on
leather seats. Do not use
cleaners that contain
silicone or wax-based
products. Cleaners
containing these solvents
can permanently change the
appearance and feel of
leather or soft trim, and are
not recommended.
Do not use cleaners that
increase gloss, especially on
the instrument panel.
Reflected glare can decrease visibility through the
windshield under certain
conditions.
Caution
Use of air fresheners may
cause permanent damage to
plastics and painted
surfaces. If an air freshener
comes in contact with any
plastic or painted surface in
the vehicle, blot immediately
and clean with a soft cloth
dampened with a mild soap
solution. Damage caused by
air fresheners would not be
covered by the vehicle
warranty.
Cargo Cover and
Convenience Net
If equipped, wash with warm
water and mild detergent. Do
not use chlorine bleach. Rinse
with cold water, and then dry
completely.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Vehicle Care 467
Care of Seat Belts
Keep belts clean and dry.
{Warning
Do not bleach or dye seat
belt webbing. It may severely
weaken the webbing. In a
crash, they might not be
able to provide adequate
protection. Clean and rinse
seat belt webbing only with
mild soap and lukewarm
water. Allow the webbing
to dry.
Floor Mats
{Warning
If a floor mat is the wrong
size or is not properly
installed, it can interfere
with the pedals. Interference
with the pedals can cause
unintended acceleration
and/or increased stopping
distance which can cause a(Continued)
Warning (Continued)
crash and injury. Make sure
the floor mat does not
interfere with the pedals.
Use the following guidelines
for proper floor mat use.
.The original equipment floor
mats are designed for your
vehicle. If the floor mats
need to be replaced, it is
recommended that
GM-certified floor mats are
purchased. Non-GM floor
mats may not fit properly
and may interfere with the
pedals. Always check that
the floor mats do not
interfere with the pedals.
.Do not use a floor mat if the
vehicle is not equipped with
a floor mat retainer on the
driver side floor.
.Use the floor mat with the
correct side up. Do not turn
it over.
.Do not place anything on top
of the driver side floor mat.
.Use only a single floor mat
on the driver side.
.Do not place one floor mat
on top of another.
The driver side floor mat is
held in place by two
button-type retainers.
Removing and Replacing
the Floor Mats
1. Pull up on the rear of the floor mat to unlock the
retainers and remove.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
468 Vehicle Care
2. Reinstall by lining up thefloor mat retainer openings
over the carpet retainers
and snap into position.
3. Make sure the floor mat is properly secured in place.
Verify the floor mat does
not interfere with the
pedals.
Cleaning Rubber Floor
Mats (All-Weather Mats
and Floor Liners)
See “Vinyl/Rubber” under
Interior Care 0463 for
important cleaning
information.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-16500419) -
2023 - CRC - 5/6/22
Service and Maintenance 469
Service and
Maintenance
General Information
General Information . . . . . . 469
Maintenance Schedule
Maintenance Schedule . . . 471
Multi-Point Vehicle
Inspection (MPVI)
Multi-Point VehicleInspection (MPVI) . . . . . . . . 474
Special Application
Services
Special ApplicationServices . . . . . . . . . . . . . . . . . . . . 475
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . 476
Maintenance Replacement Parts . . . . . . 477
Maintenance Records
Maintenance Records . . . . 479
General
Information
Your vehicle is an important
investment. This section
describes the required
maintenance for the vehicle.
Follow this schedule to help
protect against major repair
expenses resulting from
neglect or inadequate
maintenance. It may also help
to maintain the value of the
vehicle if it is sold. It is the
responsibility of the owner to
have all required maintenance
performed.
Your dealer has trained
technicians who can perform
required maintenance using
genuine replacement parts.
They have up-to-date tools
and equipment for fast and
accurate diagnostics. Many
dealers have extended
evening and Saturday hours,
courtesy transportation, and
online scheduling to assist
with service needs. Your dealer recognizes the
importance of providing
competitively priced
maintenance and repair
services. With trained
technicians, the dealer is the
place for routine maintenance
such as oil changes and tire
rotations and additional
maintenance items like tires,
brakes, batteries, and wiper
blades.
Caution
Damage caused by improper
maintenance can lead to
costly repairs and may not
be covered by the vehicle
warranty. Maintenance
intervals, checks,
inspections, recommended
fluids, and lubricants are
important to keep the
vehicle in good working
condition.
Do not have chemical
flushes that are not
approved by GM performed
(Continued)
