engine CADILLAC CT6 2018 1.G Owners Manual

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
SERVICE AND MAINTENANCE 399
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Automatic Transmission DEXRON-HP Automatic Transmission Fluid (GM Part No. 19331925, in Canada 19300537).
Engine Coolant (Gasoline Only Vehicles) 50/50 mixture of clean drinkable water and use only DEX-COOL Coolant. Engine Coolant, High Voltage Battery,
and Power Electronics Cooling System (PLUG-IN Only Vehicles) Use Only Premix DEX-COOL Coolant (GM Part No. 12378390, in
Canada 10953456).
See
Cooling System (Gasoline Only) 0312 orCooling System (PLUG-IN Only)
0 316.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity grade.
ACDelco dexos1 is recommended. See Engine Oil0307.
Hood Latch Assembly, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in Canada 89021674) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Hydraulic Brake System (Gasoline Only) DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818, in Canada 19299819).
Hydraulic Brake System (PLUG-IN Only) DOT 4 Hydraulic Brake Fluid (GM Part No. 19299570, in Canada 19299571). Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Rear Axle SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88863089, in
Canada 88863090) meeting GM Specification 9986285.
Rear Axle/Front Axle (All-Wheel Drive) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88863089, in Canada 88863090).

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17

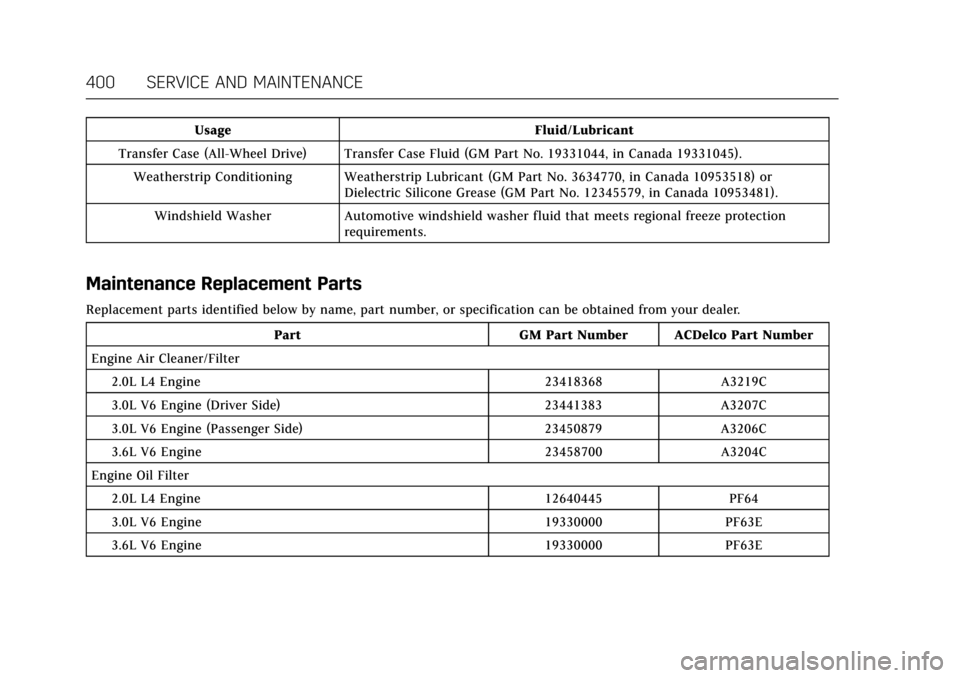

400 SERVICE AND MAINTENANCE
UsageFluid/Lubricant
Transfer Case (All-Wheel Drive) Transfer Case Fluid (GM Part No. 19331044, in Canada 19331045). Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or Dielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection
requirements.
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 2.0L L4 Engine 23418368 A3219C
3.0L V6 Engine (Driver Side) 23441383 A3207C
3.0L V6 Engine (Passenger Side) 23450879 A3206C
3.6L V6 Engine 23458700 A3204C
Engine Oil Filter
2.0L L4 Engine 12640445 PF64
3.0L V6 Engine 19330000 PF63E
3.6L V6 Engine 19330000 PF63E

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
SERVICE AND MAINTENANCE 401
PartGM Part Number ACDelco Part Number
Passenger Compartment Air Filter Particulate 13508023CF185
Carbon 13356914CF184
Spark Plugs 2.0L L4 Engine 1264782741-125
3.0L V6 Engine 1265028341-131
3.6L V6 Engine 1264678041-130
Wiper Blades Driver Side –60 cm (23.62 in) 23368186—
Passenger Side –45 cm (17.72 in) 23353587—

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
TECHNICAL DATA 403
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . . . . . 403
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Vehicle Data
Capacities and Specifications . . . . 404
Engine Drive Belt Routing . . . . . . . 406
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on the
driver side of the vehicle. It can be
seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service Parts
labels and certificates of title and
registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See “Engine
Specifications” underCapacities and
Specifications 0404 for the vehicle's
engine code.
Service Parts Identification
Label
There may be a label on the inside of
the trunk that contains the following
information:
. Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options and special
equipment
If there is no label, there is a barcode
on the certification label on the
center (B) pillar to scan for this same
information.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
404 TECHNICAL DATA
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and Lubricants
0 399 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Brake Fluid 0.4 L 0.4 qt
Cooling System –Engine
2.0L L4 Engine 8.6 L 9.1 qt
2.0L L4 Engine with Rear A/C 10.3 L 10.9 qt
2.0L L4 PLUG–IN Engine 9.8 L 10.4 qt
2.0L L4 PLUG–IN Engine –Power Electronics 4.0 L 4.2 qt
2.0L L4 PLUG–IN Engine –RESS 3.1 L 3.3 qt
3.0L V6 Engine 10.6 L 11.2 qt
3.0L V6 Engine with Rear A/C 12.3 L 13.0 qt
3.0L V6 Engine with Rear A/C and Auxiliary Radiator 13.2 L 13.9 qt
3.0L V6 Engine with Auxiliary Radiator 11.5 L 12.2 qt

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
TECHNICAL DATA 405
ApplicationCapacities
Metric English
3.0L V6 Engine Intercoolers 3.2 L 3.4 qt
3.6L V6 Engine 9.8 L 10.4 qt
3.6L V6 Engine with Rear A/C 11.4 L 12.0 qt
Engine Oil with Filter
2.0L L4 Engine 4.7 L 5.0 qt
3.0L V6 Engine 5.7 L 6.0 qt
3.6L V6 Engine 5.7 L 6.0 qt
Front Axle 0.5 L 0.53 qt
Rear Axle 0.5 L 0.53 qt
Rear Axle - PLUG–IN 1.1 L 1.16 qt
Fuel Tank Gasoline Only 72.7 L 19.2 gal
PLUG–IN 58.0 L 15.3 gal
Transfer Case –AWD 0.8 L 0.85 qt
Wheel Nut Torque 150 Y110 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
406 TECHNICAL DATA
Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
2.0L L4 Engine XAutomatic0.75–0.90 mm (0.030–0.035 in)
3.0L V6 Engine 6Automatic 0.65–0.75 mm (0.26–0.030 in)
3.6L V6 Engine SAutomatic0.80–0.90 mm (0.031–0.035 in)
Engine Drive Belt Routing
2.0L L4 Engine (PLUG-IN)
2.0L L4 Engine (Gasoline Only)3.0L V6 Engine

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
TECHNICAL DATA 407
3.6L V6 Engine

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
416 CUSTOMER INFORMATION
Give only the necessary information
to police and other parties involved in
the crash.
For emergency towing seeRoadside
Service 0411.
Gather the following information:
. Driver name, address, and
telephone number
. Driver license number
. Owner name, address, and
telephone number
. Vehicle license plate number
. Vehicle make, model, and
model year
. Vehicle Identification
Number (VIN)
. Insurance company and policy
number
. General description of the damage
to the other vehicle
Choose a reputable repair facility that
uses quality replacement parts. See
“Collision Parts ”earlier in this section. If the airbag has inflated, see
What
Will You See after an Airbag Inf lates?
0 89.
Managing the Vehicle Damage
Repair Process
In the event that the vehicle requires
damage repairs, GM recommends that
you take an active role in its repair.
If you have a pre-determined repair
facility of choice, take the vehicle
there, or have it towed there. Specify
to the facility that any required
replacement collision parts be original
equipment parts, either new Genuine
GM parts or recycled original GM
parts. Remember, recycled parts will
not be covered by the GM vehicle
warranty.
Insurance pays the bill for the repair,
but you must live with the repair.
Depending on your policy limits, your
insurance company may initially value
the repair using aftermarket parts.
Discuss this with the repair
professional, and insist on Genuine
GM parts. Remember, if the vehicle is
leased, you may be obligated to have the vehicle repaired with Genuine GM
parts, even if your insurance coverage
does not pay the full cost.
If another party's insurance company
is paying for the repairs, you are not
obligated to accept a repair valuation
based on that insurance company's
collision policy repair limits, as you
have no contractual limits with that
company. In such cases, you can have
control of the repair and parts choices
as long as the cost stays within
reasonable limits.
Service Publications
Ordering Information
Service Manuals
Service Manuals have the diagnosis
and repair information on the engines,
transmission, axle, suspension, brakes,
electrical, steering, body, etc.
Owner Information
Owner publications are written
specifically for owners and intended
to provide basic operational

Cadillac CT6 Owner Manual (GMNA-Localizing-U.S./Canada-11292458) -
2018 - crc - 2/14/17
CUSTOMER INFORMATION 419
Vehicle Data Recording
and Privacy
The vehicle has a number of
computers that record information
about the vehicle’s performance and
how it is driven. For example, the
vehicle uses computer modules to
monitor and control engine and
transmission performance, to monitor
the conditions for airbag deployment
and deploy them in a crash, and,
if equipped, to provide antilock
braking to help the driver control the
vehicle. These modules may store data
to help the dealer technician service
the vehicle. Some modules may also
store data about how the vehicle is
operated, such as rate of fuel
consumption or average speed. These
modules may retain personal
preferences, such as radio presets, seat
positions, and temperature settings.
Event Data Recorders
This vehicle is equipped with an event
data recorder (EDR). The main
purpose of an EDR is to record, in
certain crash or near crash-likesituations, such as an air bag
deployment or hitting a road obstacle,
data that will assist in understanding
how a vehicle’s systems performed.
The EDR is designed to record data
related to vehicle dynamics and safety
systems for a short period of time,
typically 30 seconds or less. The EDR
in this vehicle is designed to record
such data as:
.
How various systems in your
vehicle were operating;
. Whether or not the driver and
passenger safety belts were
buckled/fastened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
Note
EDR data are recorded by your vehicle
only if a non-trivial crash situation
occurs; no data are recorded by the
EDR under normal driving conditions
and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine
the EDR data with the type of
personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such as
law enforcement, that have the special
equipment, can read the information
if they have access to the vehicle or
the EDR.
GM will not access these data or share
it with others except: with the consent
of the vehicle owner or, if the vehicle
is leased, with the consent of the
lessee; in response to an official
request by police or similar
government office; as part of GM's
defense of litigation through the
discovery process; or, as required by
law. Data that GM collects or receives
may also be used for GM research
needs or may be made available to
others for research purposes, where a
need is shown and the data is not tied
to a specific vehicle or vehicle owner.
