Power Lumbar
Your vehicle may have this
feature. The driver’s and
passenger’s seatback
lumbar support can be
adjusted by moving the
control located on the
outboard side of the
seat cushions.
To increase or decrease support, hold the control
forward or rearward. Keep in mind that as your seating
position changes, as it may during long trips, so should
the position of your lumbar support. Adjust the seat as
needed.
Heated and Ventilated Seats
On vehicles with this feature, the buttons are located on
the climate control panel.
z(Heated Seat and Seatback):Press for the heated
seat and seatback.
{(Ventilated Seat):Press for the ventilated seat.
A light bar in the climate control display shows the
setting; high, medium or low.
Press either button to start that feature at the highest
setting. Each press of the button, decreases the setting.
To turn the feature off, press the button until the light
turns off
The heated or ventilated seats shut off when the vehicle
is turned off.
1-6

Memory Seat, Mirrors and Steering
Wheel
On vehicles with the memory package the controls
are located on the driver door. This feature is used to
program and recall memory settings for the driver’s seat,
outside mirror, and the steering wheel position if the
vehicle has the power tilt wheel and telescopic steering
feature.
1:Saves the seating position for driver 1.
2:Saves the seating position for driver 2.
S:Recalls the easy exit position.
To save your positions in memory:
1. Adjust the driver’s seat, seatback recliner and
lumbar, both outside mirrors, and the steering
wheel to a comfortable position.
2. Press and hold button 1 until two beeps sound
through the driver’s side front speaker to let you
know that the position has been stored.
3. Repeat the procedure for a second driver using
button 2.To recall your memory positions, the vehicle must
be in PARK (P). Press and release either button 1 or
button 2. A single beep will sound. The seat, outside
mirrors, and steering wheel will move to the position
previously stored for the identied driver.
If you use the remote keyless entry transmitter to enter
your vehicle and the remote recall memory feature
is on, automatic seat and mirror movement occur.
On vehicles with the Keyless Access System, automatic
adjustment occurs when the driver door is opened.
See “MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 3-69for more information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, memory
buttons, power tilt wheel control, or power mirror
buttons.
If something has blocked the driver’s seat or the
steering column while recalling a memory position, the
recall may stop. Remove the obstruction, then press the
appropriate control for the area that is not recalling for
two seconds. Try recalling the memory position again by
pressing the appropriate memory button. If the memory
position is still not recalling, see your dealer for service.
1-7

G(Trunk):Press and hold for about one second
to open the trunk while the engine is turned off or
the shift lever is in PARK (P).
L(Vehicle Locator/Panic Alarm):Press and release
to locate your vehicle. The horn will chirp three times
and the turn signal lamps will ash three times.
Press and hold
Lfor three seconds to sound the panic
alarm. The horn will chirp and the turn signal lamps
will ash for 30 seconds. Press and release
Lagain
to cancel the panic alarm.
Matching Transmitter(s) to Your
Vehicle
Each Keyless Access System is coded to allow only
transmitters programmed to your vehicle to work.
If a transmitter is lost or stolen, a replacement can be
purchased and programmed through your dealer/retailer.
Your dealer/retailer can reprogram your vehicle so
lost or stolen transmitters no longer work with your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.To match a new transmitter to your vehicle when
you have a recognized transmitter, do the following.
Two recognized transmitters are required for Canadian
owners.
1. The vehicle must be off.
2. Have the recognized transmitter and the new,
unrecognized transmitter(s) with you.
3. Insert the key into the key lock cylinder located on
the outside of the driver’s door.
4. Turn the key to the unlock position ve times within
ve seconds.
5. The Driver Information Center (DIC) will display
Ready To Learn Electronic Key #X, where X can
be2,3or4.
6. Place the new,
unrecognized
transmitter into the
transmitter pocket with
the transmitter buttons
facing the front of the
vehicle. The transmitter
pocket is inside the
center console storage
area located between
the driver and front
passenger seats.
2-12

7. Once the transmitter is programmed, a beep will
sound. The DIC will display Ready To Learn
Electronic Key #X, where X can be 3 or 4, or
Maximum # Electronic Keys Learned.
8. Press the ignition control knob to exit
programming mode.
9. Remove the transmitter from the transmitter pocket
and press the unlock button on the keyless access
transmitter two times.
The Canadian immobilizer standard requires Canadian
owners to see their dealer/retailer for matching new
transmitters when two recognized transmitters are not
available. United States owners are permitted to match
a new transmitter to their vehicle when a recognized
transmitter is not available.The procedure will require three, ten minute cycles to
complete the matching process.
1. The vehicle must be off.
2. Place the new,
unrecognized
transmitter into the
transmitter pocket with
the transmitter buttons
facing the front of the
vehicle. The transmitter
pocket is inside the
center console storage
area located between
the driver and front
passenger seats.
3. Insert the vehicle key into the key lock cylinder
located on the driver’s door.
2-13

Battery Replacement
Replace the battery if the Replace Battery In Remote
Key message displays in the DIC. See “Replace Battery
In Remote Key” underDIC Warnings and Messages
on page 3-56for additional information.
A weak battery may also cause the DIC to display
Electronic Key Not Detected when you try to start the
vehicle. If this happens, place the transmitter in the
center console storage area transmitter pocket with the
buttons facing to the front of the vehicle. Then, with
the vehicle in PARK (P) or NEUTRAL (N), press
the brake pedal and the ignition control knob. See
Starting the Engine on page 2-35, for additional
information about your vehicle’s electronic keyless
ignition with push start. Although this will start the
vehicle, it is recommended that you replace the
transmitter battery as soon as possible.
Notice:When replacing the battery, do not touch
any of the circuitry on the transmitter. Static
from your body could damage the transmitter.To replace the battery:
1. Separate the halves of the transmitter with a at,
thin object inserted into the slot on the side or
back of the transmitter.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery, positive side facing down.
Replace with a CR2032 or equivalent battery.
4. Put the transmitter back together tightly.
2-15

If the vehicle is left running it automatically shuts off
after 10 minutes unless a time extension has been done.
To manually shut off a remote start:
Aim the transmitter at the vehicle and press
the remote start button until the parking lamps
turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
The remote vehicle start feature provides two separate
starts, each with 10 minutes of engine running, or it
provides one start with 10 minutes of engine running
that may be extended 10 more minutes. If the transmitter
lock button is pressed and released and then the remote
start button is pressed and held again before the rst
10 minutes of engine running time has expired,
10 minutes are added to the remaining minutes.
For example, if the lock button and then the remote
start buttons are pressed again after ve minutes of
the engine run time, 10 minutes are added and you
now have 15 minutes of engine running. The added
ten minutes are considered a second remote vehicle
start.
Once two remote starts or a single start with a time
extension have been used, the vehicle must be started
with the keyless access ignition control knob before
the remote start feature can be used again.The remote start feature does not operate if any of the
following occur:
The ignition is in any position other than LOCK/OFF.
A keyless access transmitter is inside the vehicle.
The hood is open.
There is an emission control system malfunction.
The remote start feature is not enabled.
See “Remote Start” underDIC Vehicle
Customization on page 3-69.
The engine turns off during a remote vehicle start if the
coolant temperature gets too high, or the oil pressure
is too low.
This vehicle was shipped from the factory with the
remote vehicle start system enabled. The system may
be disabled through the Driver Information Center (DIC).
See “Remote Start” underDIC Vehicle Customization
on page 3-69for additional information.
SeeEngine Exhaust on page 2-48for important safety
information when using remote start in a closed garage.
2-17

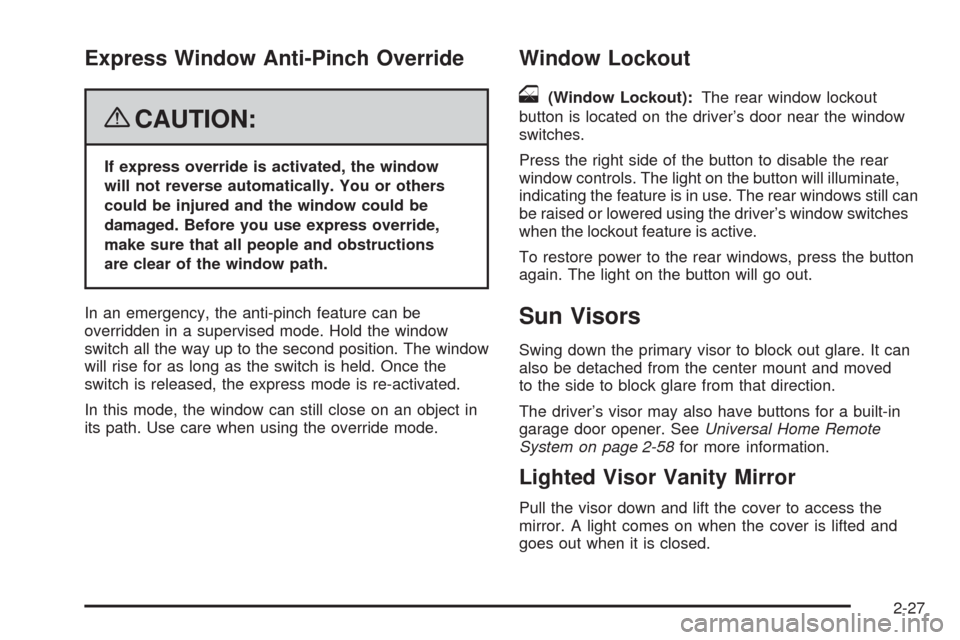

Express Window Anti-Pinch Override
{CAUTION:
If express override is activated, the window
will not reverse automatically. You or others
could be injured and the window could be
damaged. Before you use express override,
make sure that all people and obstructions
are clear of the window path.
In an emergency, the anti-pinch feature can be
overridden in a supervised mode. Hold the window
switch all the way up to the second position. The window
will rise for as long as the switch is held. Once the
switch is released, the express mode is re-activated.
In this mode, the window can still close on an object in
its path. Use care when using the override mode.
Window Lockout
o
(Window Lockout):The rear window lockout
button is located on the driver’s door near the window
switches.
Press the right side of the button to disable the rear
window controls. The light on the button will illuminate,
indicating the feature is in use. The rear windows still can
be raised or lowered using the driver’s window switches
when the lockout feature is active.
To restore power to the rear windows, press the button
again. The light on the button will go out.
Sun Visors
Swing down the primary visor to block out glare. It can
also be detached from the center mount and moved
to the side to block glare from that direction.
The driver’s visor may also have buttons for a built-in
garage door opener. SeeUniversal Home Remote
System on page 2-58for more information.
Lighted Visor Vanity Mirror
Pull the visor down and lift the cover to access the
mirror. A light comes on when the cover is lifted and
goes out when it is closed.
2-27

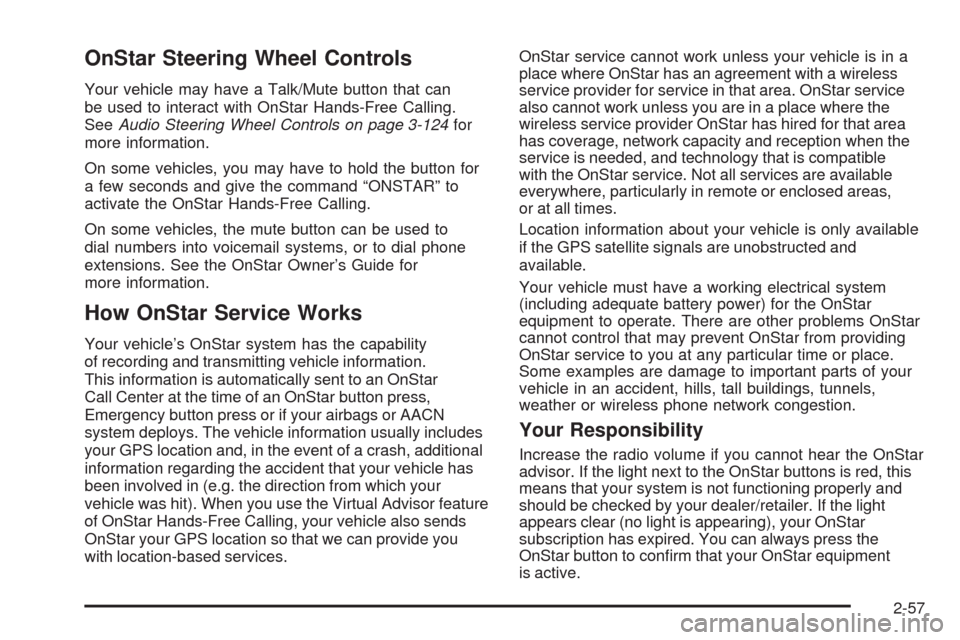

OnStar Steering Wheel Controls
Your vehicle may have a Talk/Mute button that can
be used to interact with OnStar Hands-Free Calling.
SeeAudio Steering Wheel Controls on page 3-124for
more information.
On some vehicles, you may have to hold the button for
a few seconds and give the command “ONSTAR” to
activate the OnStar Hands-Free Calling.
On some vehicles, the mute button can be used to
dial numbers into voicemail systems, or to dial phone
extensions. See the OnStar Owner’s Guide for
more information.
How OnStar Service Works
Your vehicle’s OnStar system has the capability
of recording and transmitting vehicle information.
This information is automatically sent to an OnStar
Call Center at the time of an OnStar button press,
Emergency button press or if your airbags or AACN
system deploys. The vehicle information usually includes
your GPS location and, in the event of a crash, additional
information regarding the accident that your vehicle has
been involved in (e.g. the direction from which your
vehicle was hit). When you use the Virtual Advisor feature
of OnStar Hands-Free Calling, your vehicle also sends
OnStar your GPS location so that we can provide you
with location-based services.OnStar service cannot work unless your vehicle is in a
place where OnStar has an agreement with a wireless
service provider for service in that area. OnStar service
also cannot work unless you are in a place where the
wireless service provider OnStar has hired for that area
has coverage, network capacity and reception when the
service is needed, and technology that is compatible
with the OnStar service. Not all services are available
everywhere, particularly in remote or enclosed areas,
or at all times.
Location information about your vehicle is only available
if the GPS satellite signals are unobstructed and
available.
Your vehicle must have a working electrical system
(including adequate battery power) for the OnStar
equipment to operate. There are other problems OnStar
cannot control that may prevent OnStar from providing
OnStar service to you at any particular time or place.
Some examples are damage to important parts of your
vehicle in an accident, hills, tall buildings, tunnels,
weather or wireless phone network congestion.
Your Responsibility
Increase the radio volume if you cannot hear the OnStar
advisor. If the light next to the OnStar buttons is red, this
means that your system is not functioning properly and
should be checked by your dealer/retailer. If the light
appears clear (no light is appearing), your OnStar
subscription has expired. You can always press the
OnStar button to conrm that your OnStar equipment
is active.
2-57

Universal Home Remote
System
The Universal Home Remote System provides a way to
replace up to three hand-held Radio-Frequency (RF)
transmitters used to activate devices such as garage
door openers, security systems, and home lighting.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Universal Home Remote System
Operation (With One Triangular LED)
If there is one triangular Light Emitting Diode (LED)
indicator light above the Universal Home Remote
buttons, follow the instructions below.
This system provides a way to replace up to three
remote control transmitters used to activate devices
such as garage door openers, security systems,
and home automation devices.
Do not use the Universal Home Remote with any
garage door opener that does not have the stop and
reverse feature. This includes any garage door opener
model manufactured before April 1, 1982.
Read the instructions completely before attempting to
program the Universal Home Remote. Because of
the steps involved, it may be helpful to have another
person available to assist you in the programming
the Universal Home Remote.
2-58

Keep the original hand-held transmitter for use in other
vehicles as well as for future Universal Home Remote
programming. It is also recommended that upon the
sale of the vehicle, the programmed Universal Home
Remote buttons should be erased for security purposes.
See “Erasing Universal Home Remote Buttons” later
in this section.
When programming a garage door, park outside of the
garage. Park directly in line with and facing the garage
door opener motor-head or gate motor-head. Be sure that
people and objects are clear of the garage door or gate
that is being programmed.
It is recommended that a new battery be installed
in your hand-held transmitter for quicker and more
accurate transmission of the radio-frequency signal.
Programming the Universal Home
Remote System
For questions or help programming the Universal
Home Remote System, call 1-800-355-3515 or go to
www.homelink.com.
Programming a garage door opener involves
time-sensitive actions, so read the entire procedure
before starting. Otherwise, the device will time out and
the procedure will have to be repeated.To program up to three devices:
1. From inside the vehicle, press and hold down the
two outside buttons at the same time, releasing
only when the Universal Home Remote indicator
light begins to ash, after 20 seconds. This step
will erase the factory settings or all previously
programmed buttons.
Do not hold down the buttons for longer than
30 seconds and do not repeat this step to program
the remaining two Universal Home Remote buttons.
2. Hold the end of your hand-held transmitter about
1 to 3 inches (3 to 8 cm) away from the Universal
Home Remote buttons while keeping the indicator
light in view. The hand-held transmitter was supplied
by the manufacturer of your garage door opener
receiver (motor head unit).
2-59
